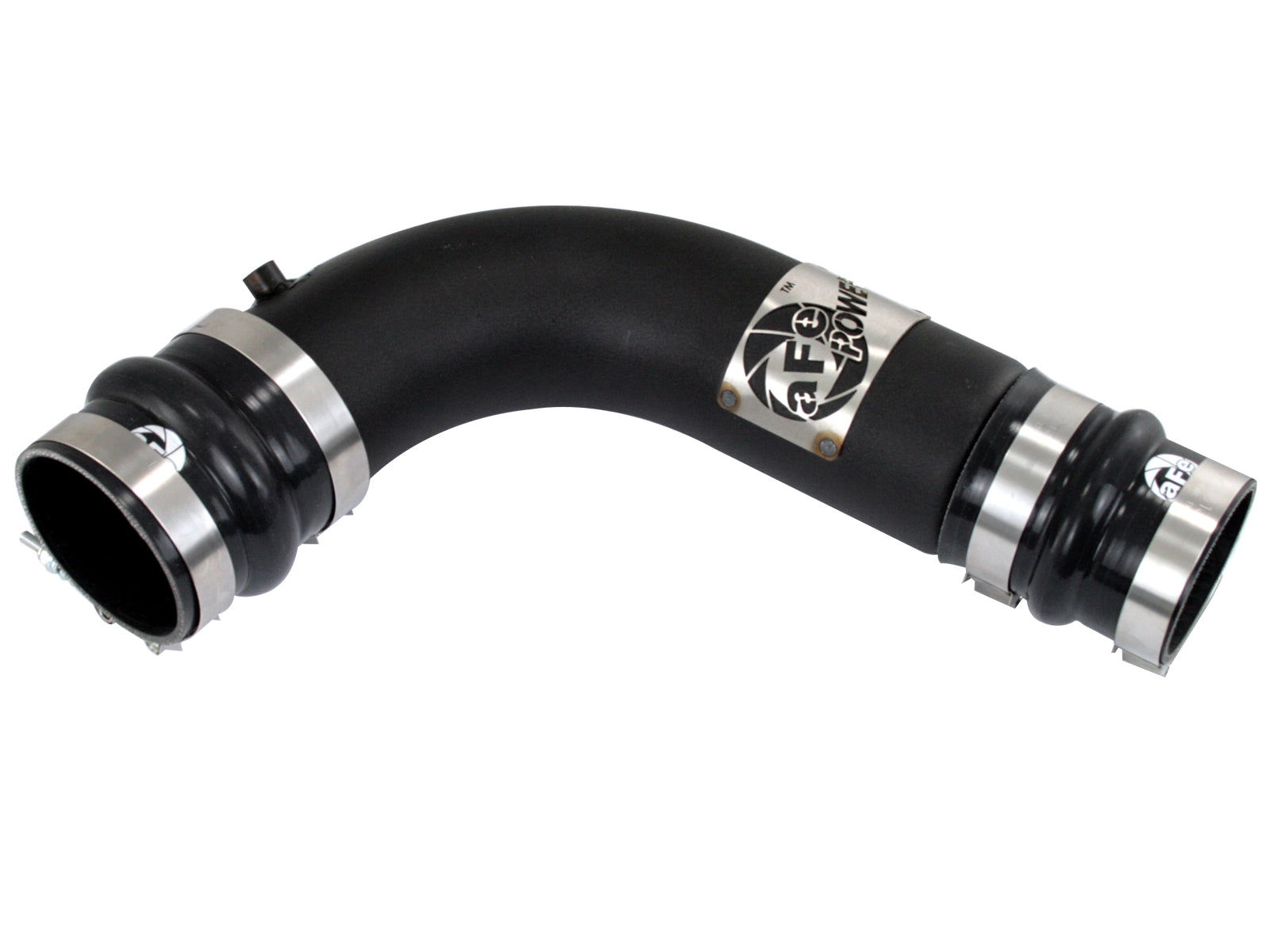

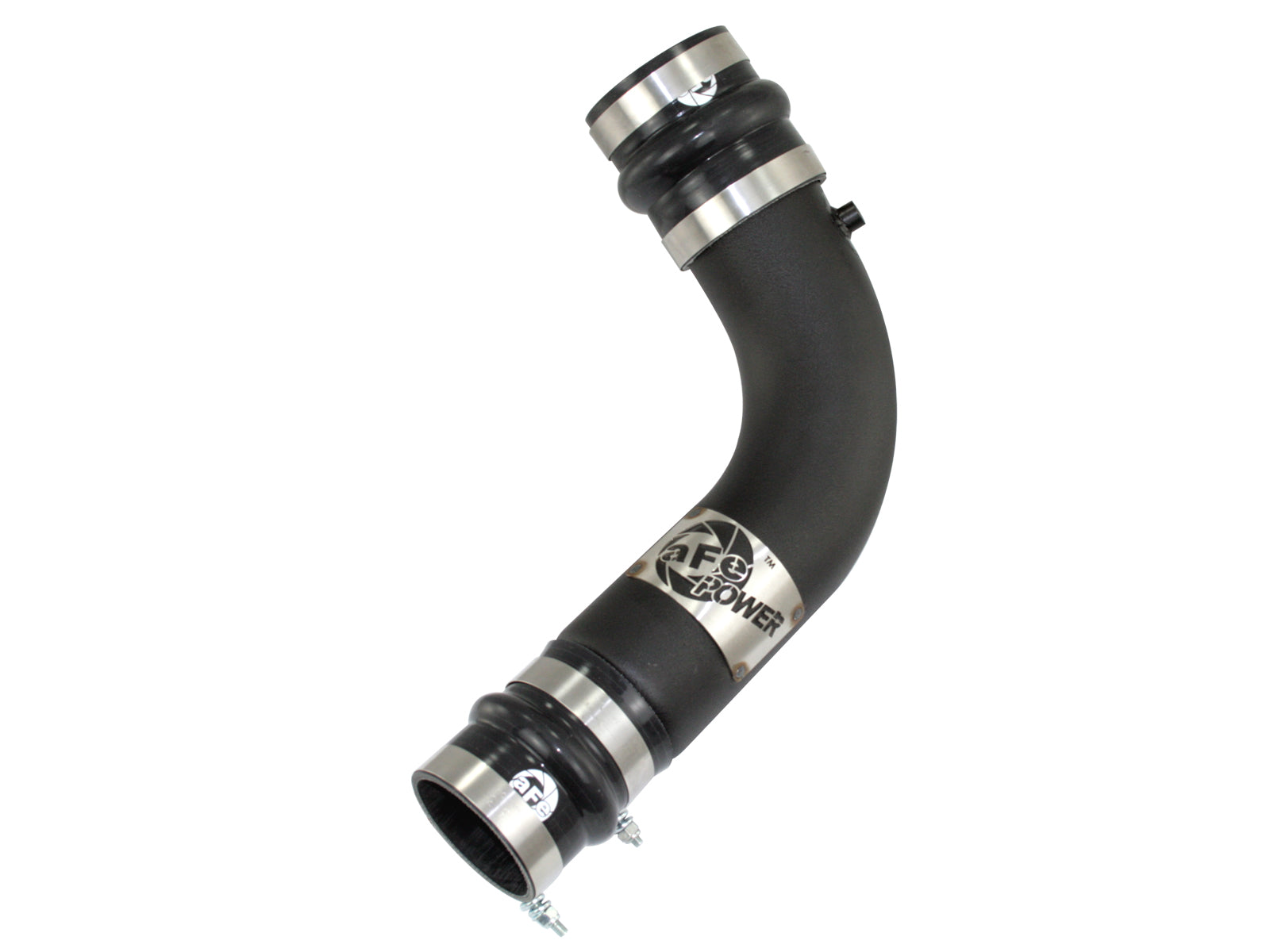

The aFe 46-20089 is the BladeRunner 3.5-inch cold-side mandrel-bent aluminum charge-pipe kit with wrinkle-black powder coating for the listed 2010–2012 Dodge/Ram 6.7L turbo-diesel trucks. It connects the intercooler outlet to the engine intake manifold. It is a charge pipe rather than an intercooler core, and does not include the hot-side pipe.
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2010 | Dodge Ram 2500 / 3500 | 6.7L turbo-diesel only; exact factory charge connections |
| 2011–2012 | Ram 2500 / 3500 | 6.7L turbo-diesel only; current primary application, original connections and actual engine required |
46-20089: The current exact manufacturer page covers 2010–2012 Dodge/Ram 6.7L diesel trucks. The linked April 2010 cold-side sheet names 2010 only, so its procedure and original packaging are not independently certified for every 2011–2012 revision. Later current primary application is retained, while the older sheet's details remain identified by revision. The official D-550-8 application table names the exact cold part for 2010 only.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20089 |
| Configuration | One cold tube, two silicone hump couplings, four spring clamps and two plugs in the linked April 2010 bill of materials |
| Tubing / flow path | 3.5-inch mandrel-bent aluminum cold-side tube |

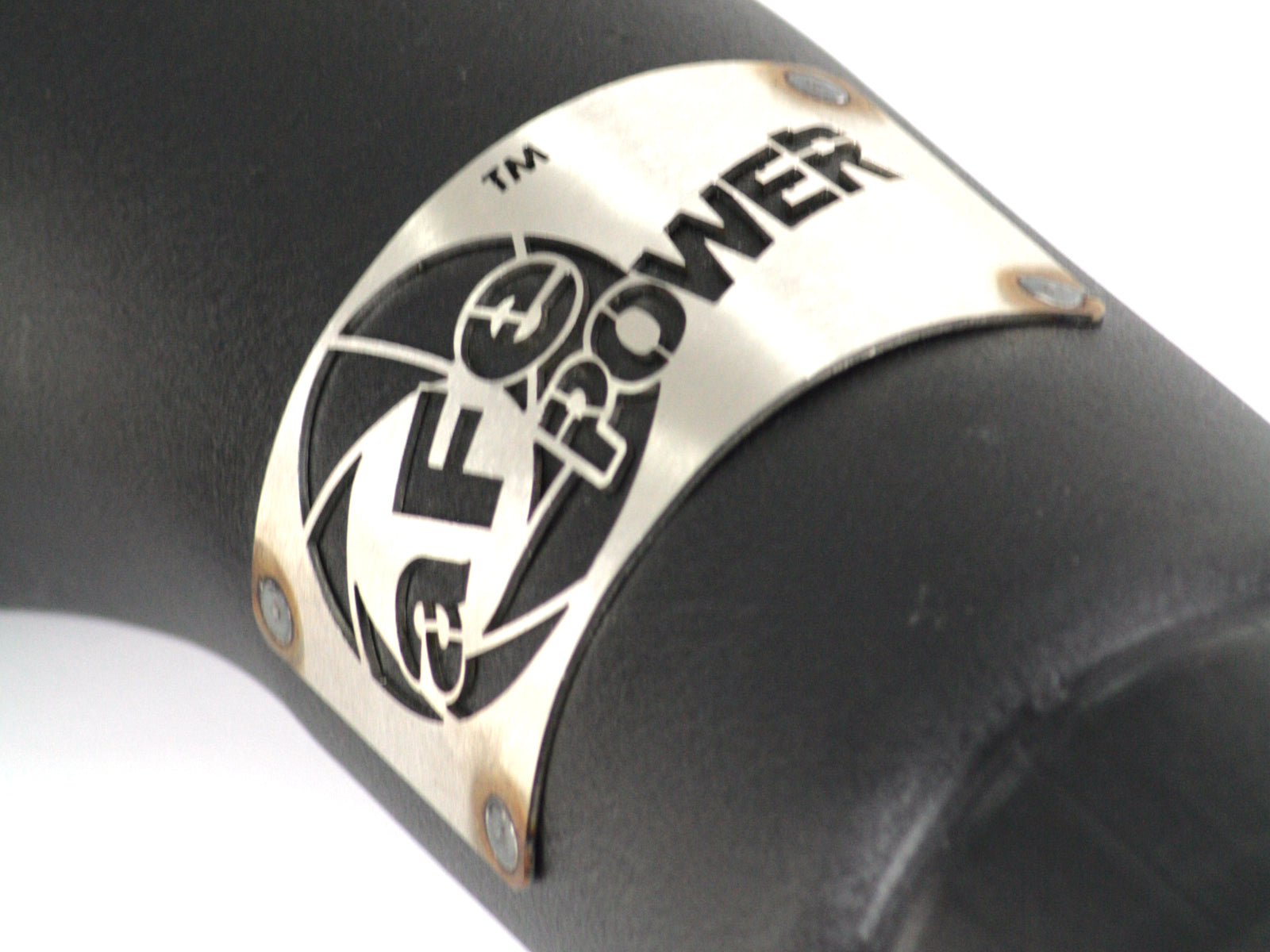

| Finish | Wrinkle-black powder-coated aluminum; welded aluminum logo plate |
| Clamps / fastening | The exact April 2010 cold-side sheet specifies 75 in-lb for all four supplied clamps and checking/tightening after 50 miles. These are in-lb, not ft-lb; do not transfer them to the hot-side kit or an unverified hardware revision. |

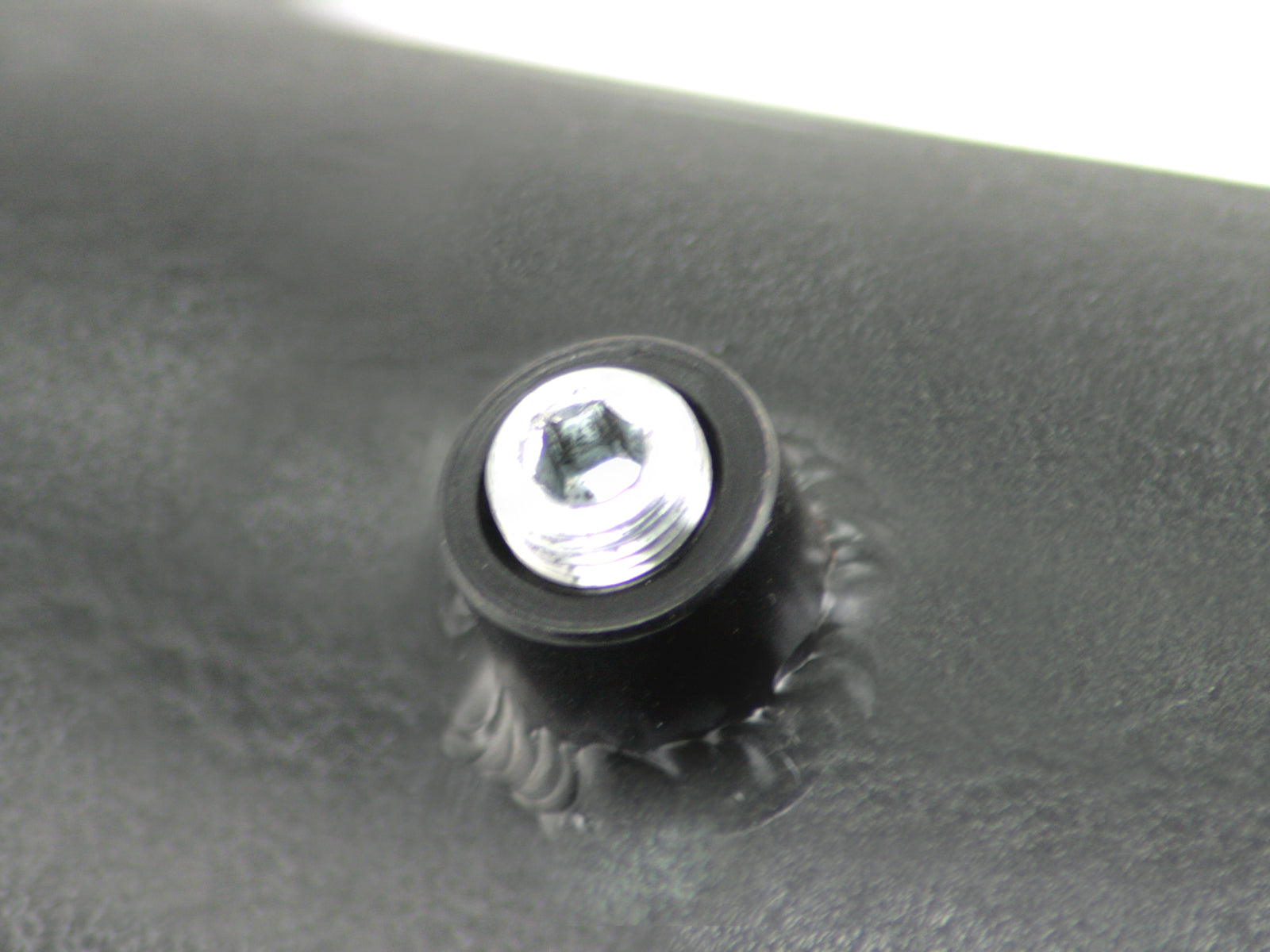

| Original sensors / seals | The cold kit lists two unused 1/8 NPT-port plugs; no new sensor, O-ring, retaining-clip kit or water/methanol system is included by that bill of materials. The cold procedure does not direct hot-side airbox/sensor removal. |
| Emissions | The current page and manual cite CARB Executive Order D-550-8. Its table lists this exact cold-side part for 2010 Dodge Ram diesel 6.7L pickups only. Do not extend that exemption to the current 2011–2012 physical application or the hot-side kit. Match the actual part/application and required EO identification; the order does not approve changed tuning. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
A 3.5-inch cold aluminum charge-pipe kit for the stated Dodge/Ram 6.7L diesel applications; no intercooler core is included.
Which side and original connections does it replace?The cold side, between the intercooler outlet and engine intake manifold. The hot pipe is a separate part.
How many couplings and clamps are included?The exact April 2010 cold-only list has one tube, two hump couplings, four clamps and two plugs. Later actual packaging must be matched to its revision.
Are original sensors replaced?The cold kit lists two unused 1/8 NPT-port plugs; no new sensor, O-ring, retaining-clip kit or water/methanol system is included by that bill of materials. The cold procedure does not direct hot-side airbox/sensor removal.
What torque and inspection interval apply?The exact April 2010 cold-side sheet specifies 75 in-lb for all four supplied clamps and checking/tightening after 50 miles. These are in-lb, not ft-lb; do not transfer them to the hot-side kit or an unverified hardware revision.
Does the older manual establish every later model year?The current exact manufacturer page covers 2010–2012 Dodge/Ram 6.7L diesel trucks. The linked April 2010 cold-side sheet names 2010 only, so its procedure and original packaging are not independently certified for every 2011–2012 revision. Later current primary application is retained, while the older sheet's details remain identified by revision.

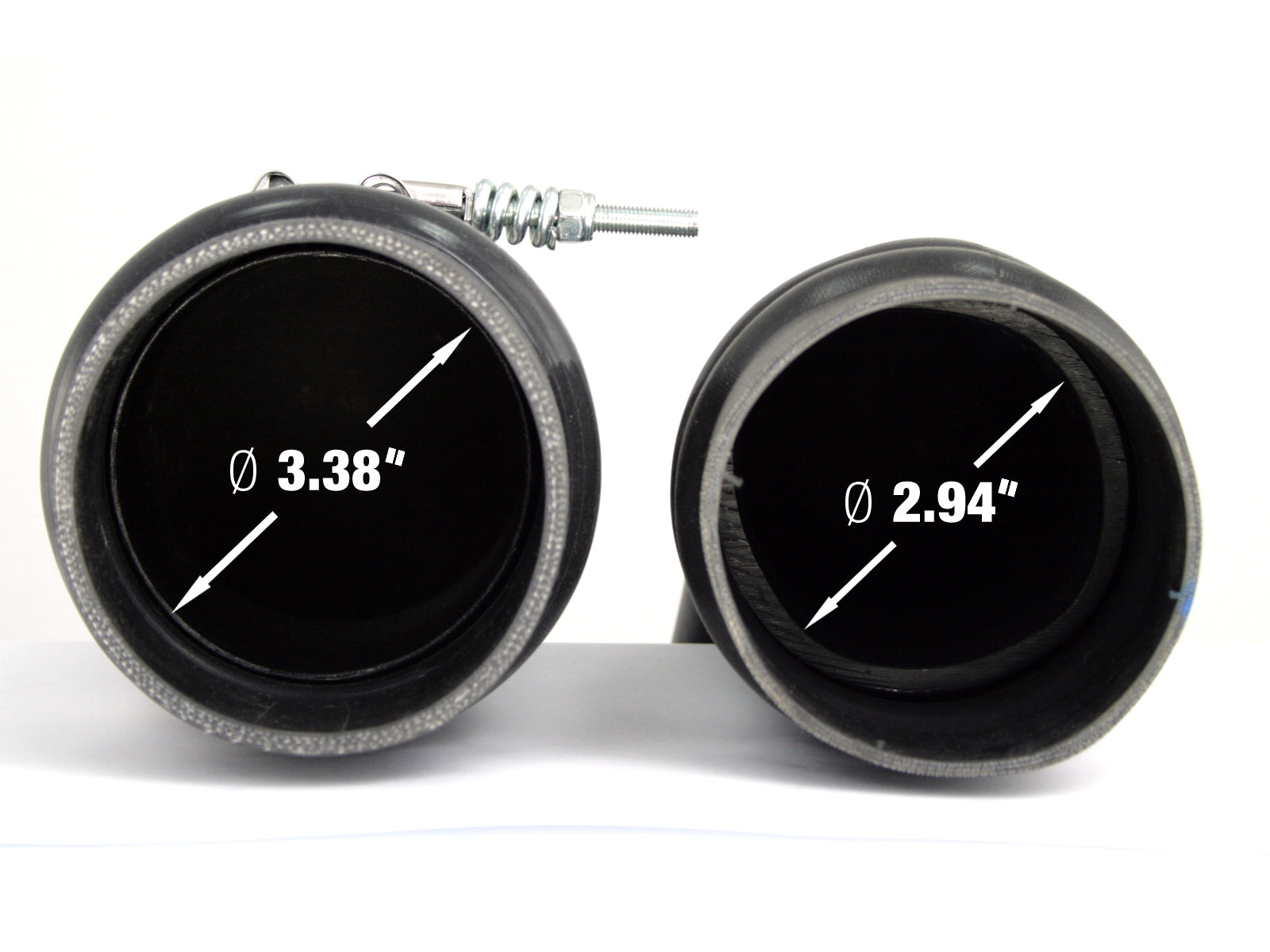

Are the flow figures guaranteed engine gains?No. They are manufacturer comparisons for this exact side, not a power guarantee, pressure rating, EGT promise or permission to combine figures from other kits.
What emissions scope is documented?The current page and manual cite CARB Executive Order D-550-8. Its table lists this exact cold-side part for 2010 Dodge Ram diesel 6.7L pickups only. Do not extend that exemption to the current 2011–2012 physical application or the hot-side kit. Match the actual part/application and required EO identification; the order does not approve changed tuning.
46-20089: inspect every connection and resolve the documented kit discrepancies before operation.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
