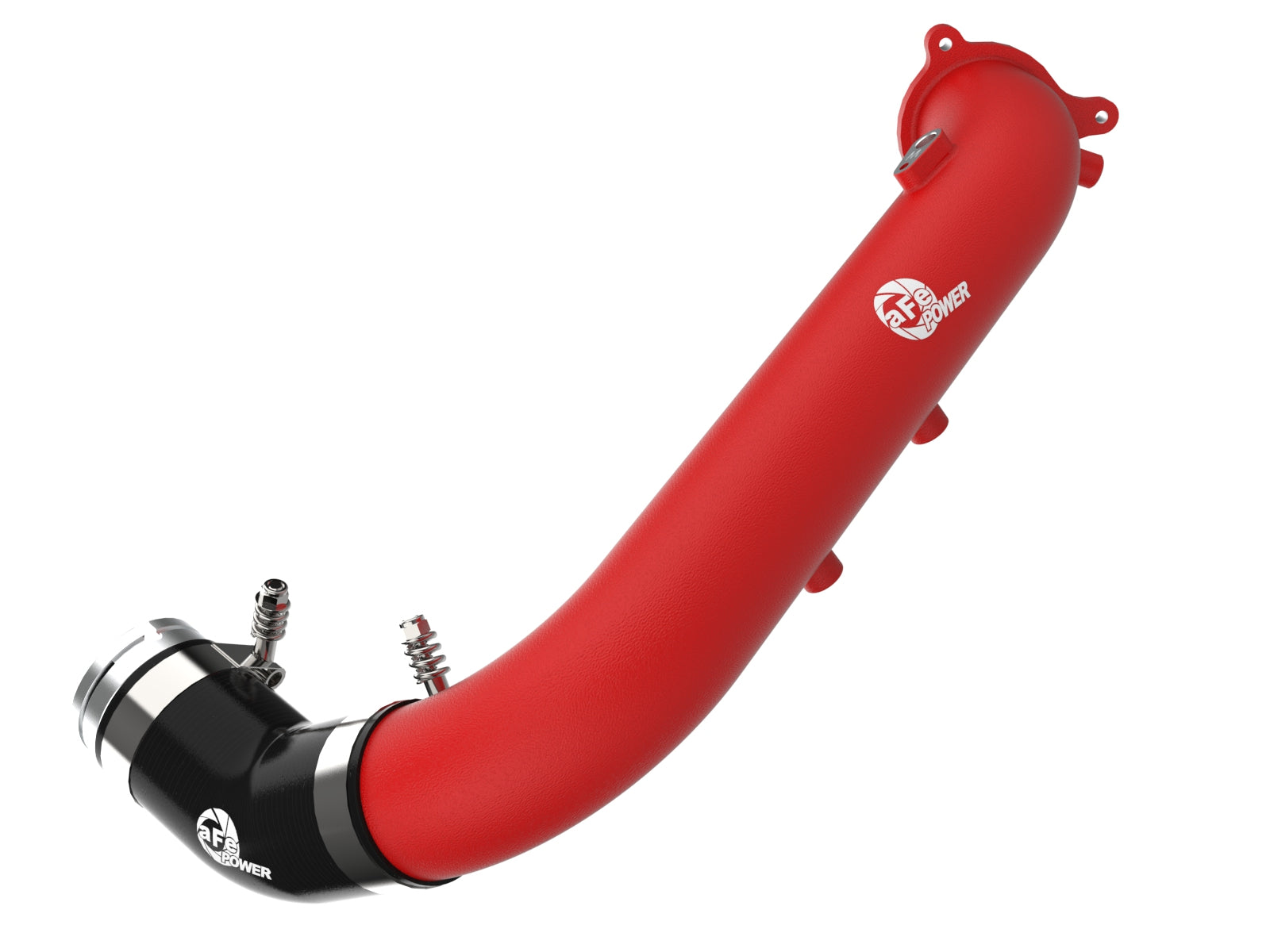

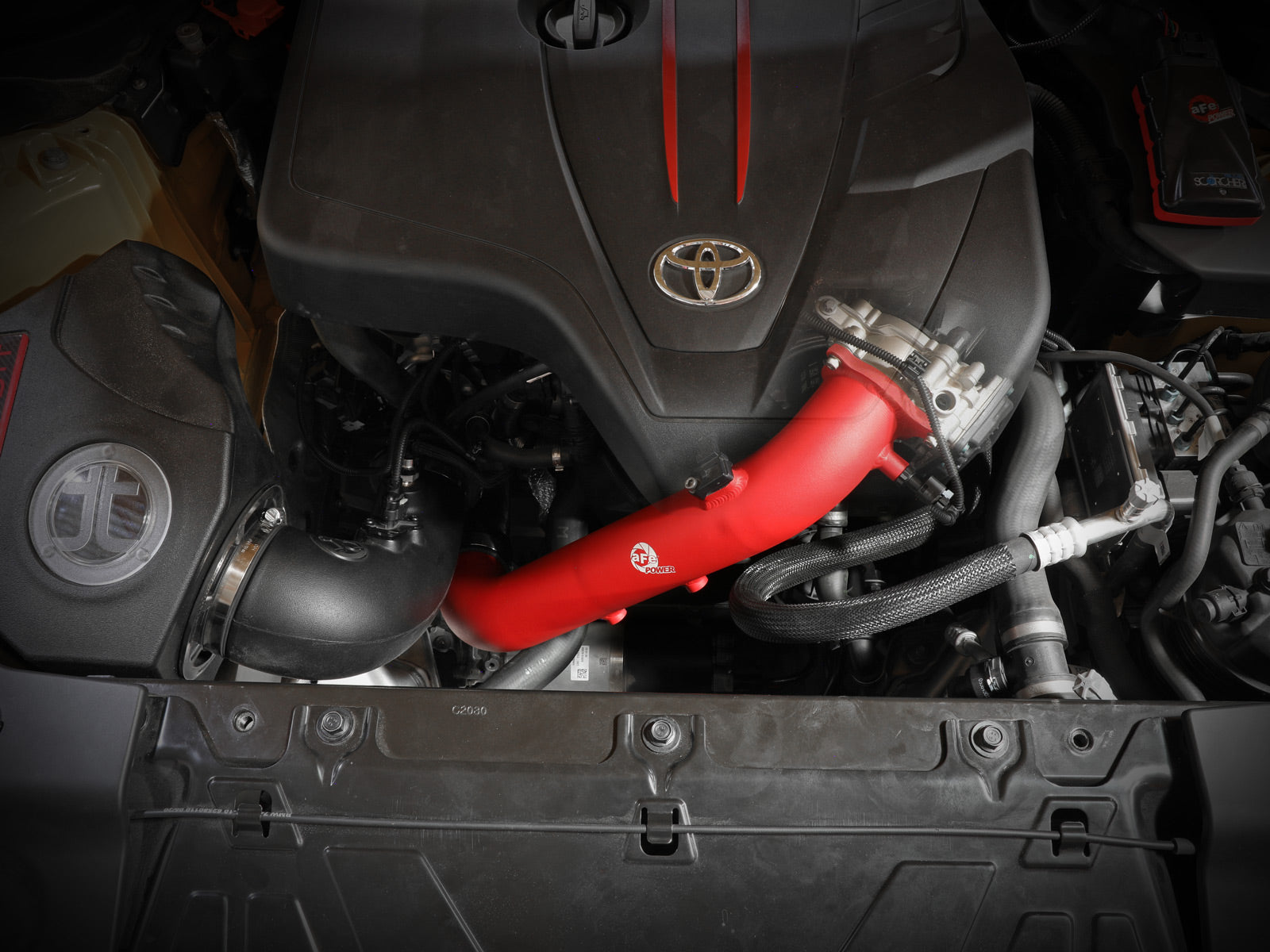

The aFe 46-20488-R is the single aluminum charge-pipe kit for the GR Supra A90 2.0L turbo, connecting its turbo-side adapter/coupling to the throttle-body flange. It transfers the factory temperature and MAP sensors; it is not the 3.0L kit or an intercooler core.
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2021–2024 | Toyota GR Supra A90 | L4 2.0L turbo only; exact current PDP and shared B/R manual agree |
46-20488-R: The current exact PDP and shared B/R manual agree on GR Supra A90 2021–2024 L4 2.0L turbo. No 3.0L, BMW or later model-year coverage is inferred from related engines. Confirm the actual 2.0L turbo engine before ordering; the model/year alone does not approve the 3.0L version. The generic Filter Included Yes field is unsupported by the exact parts matrix.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20488-R |

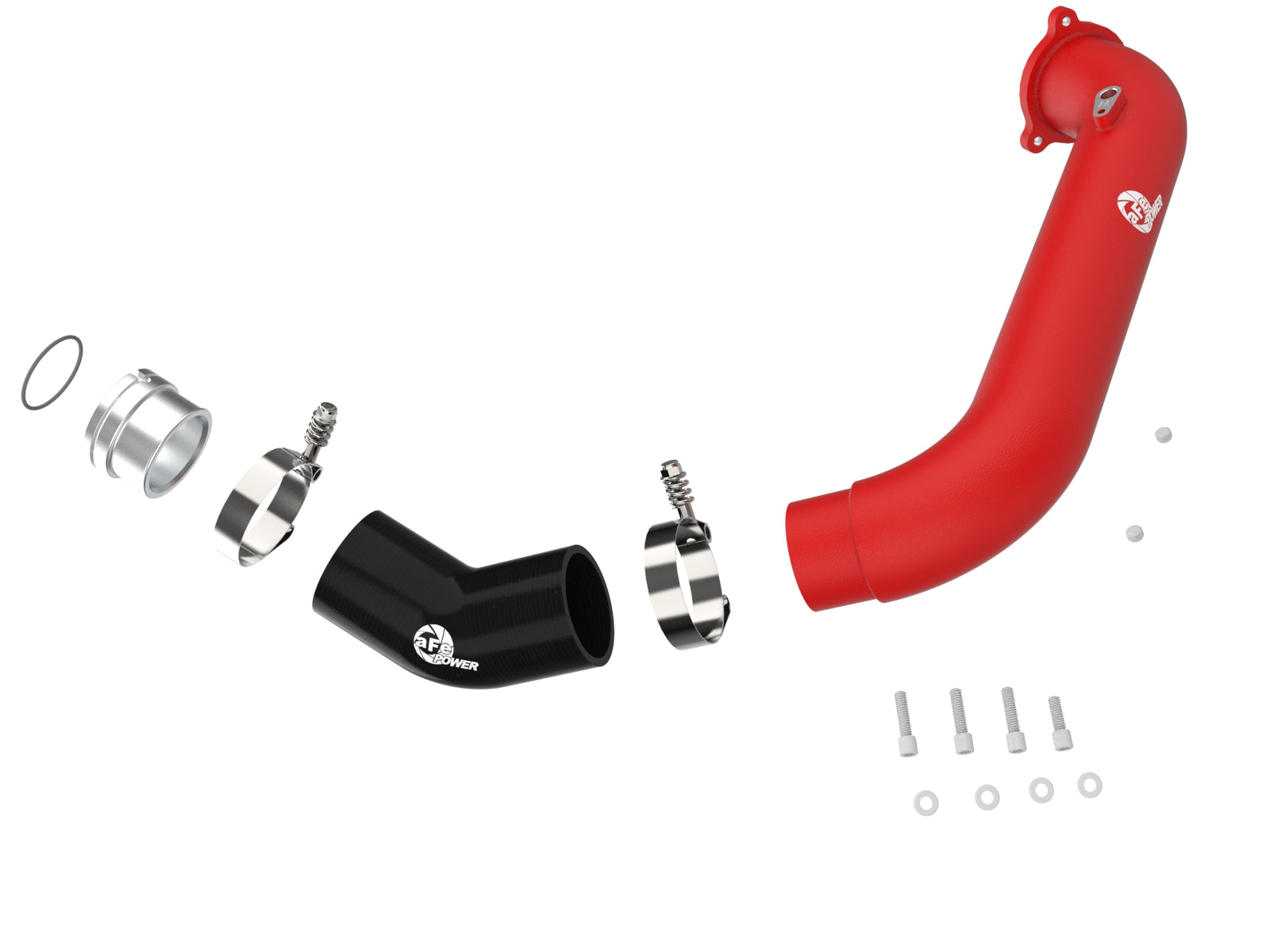

| Configuration | Charge piping and exact listed installation components; no intercooler core |

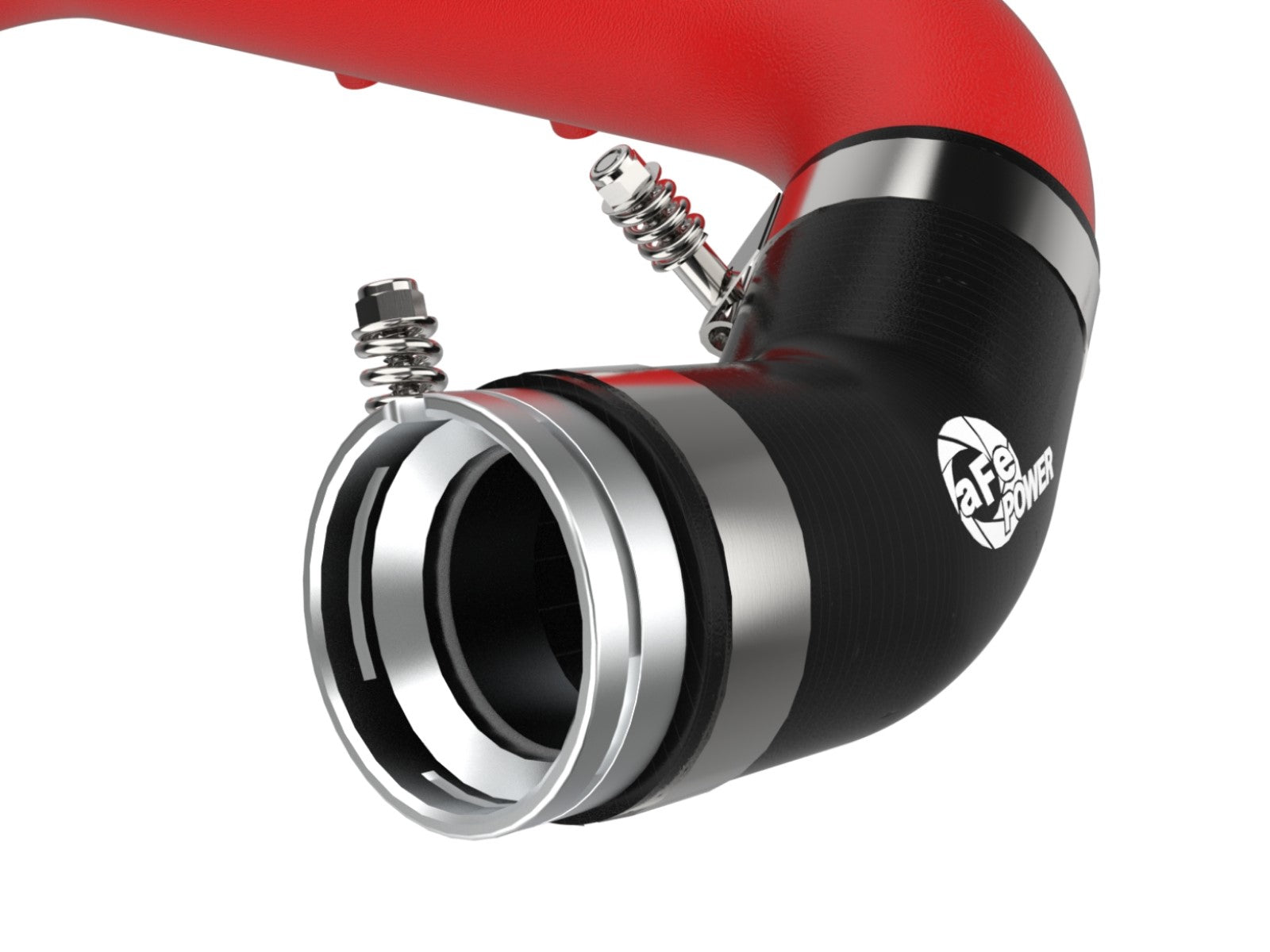

| Tubing / flow path | Current exact PDP nominal 2¾-inch aluminum charge tube; separate 2½-inch-ID 45° coupling |

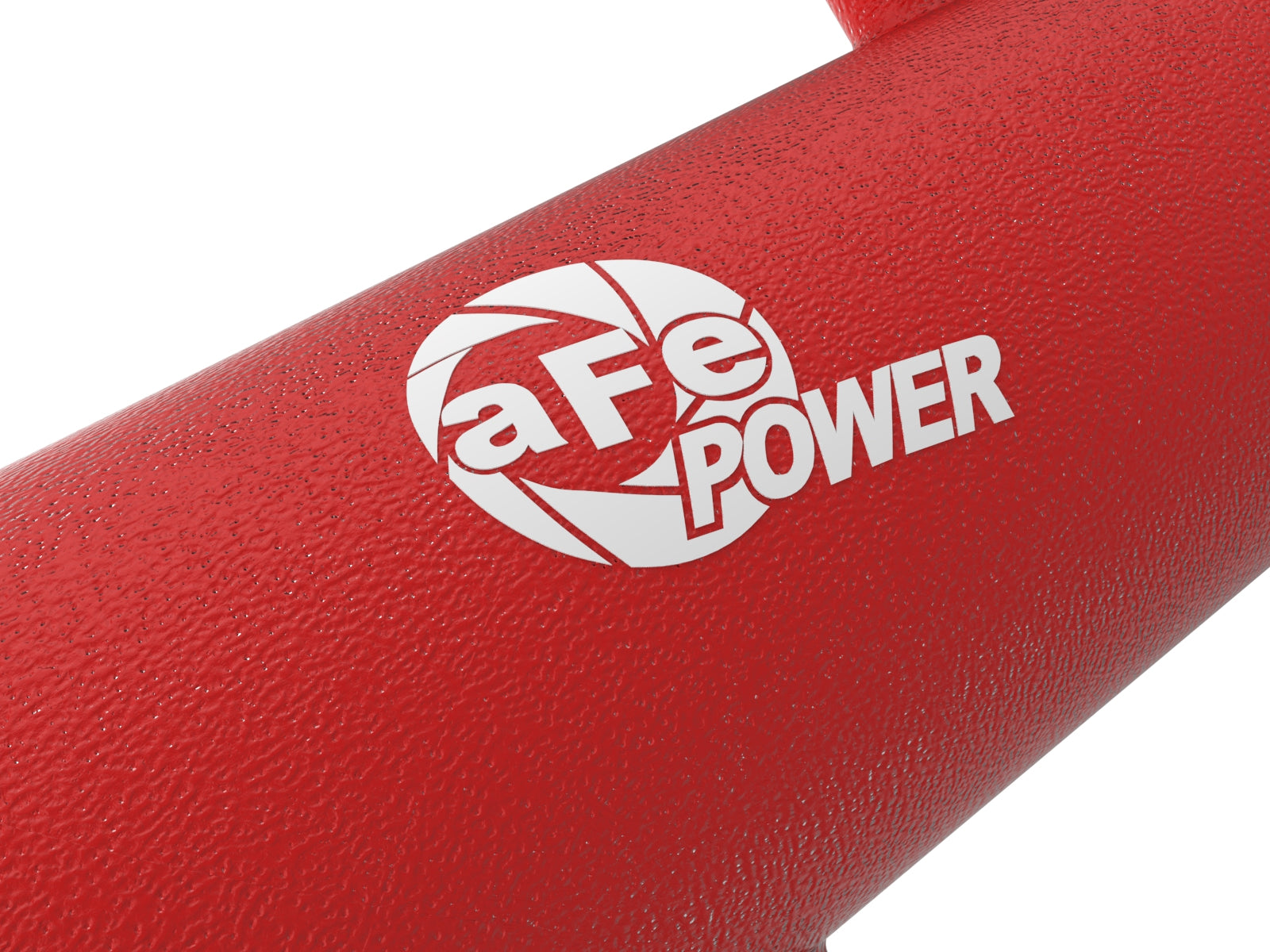

| Finish | Textured red powder-coated aluminum tube |
| Clamps / fastening | The exact manual supplies no numeric clamp, sensor or mount torque. Use the applicable actual hardware/vehicle specifications, align clear of adjacent components before final tightening and recheck connections after 50–100 miles. |

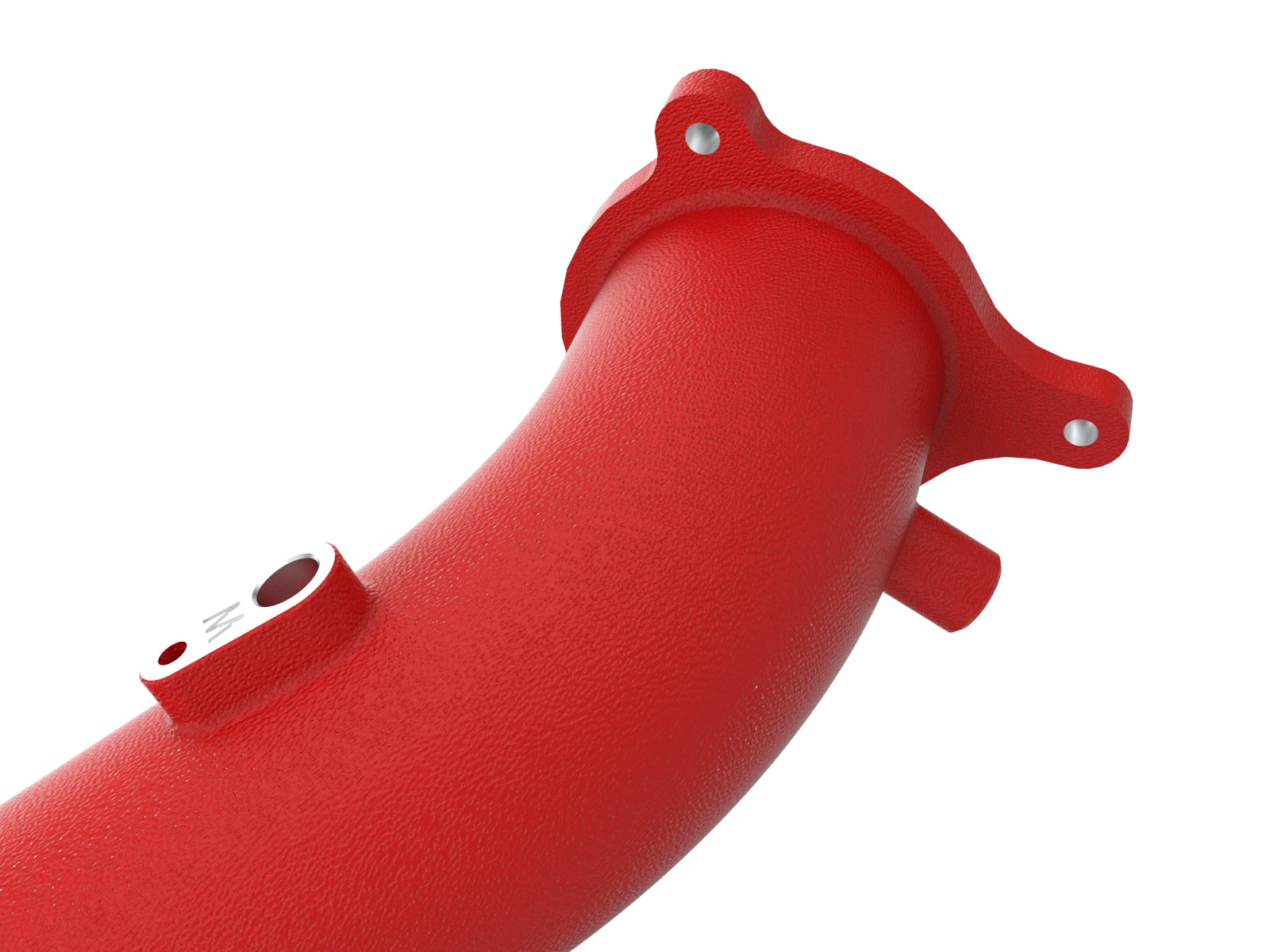

| Original sensors / seals | Transfer the original temperature sensor and MAP sensor, lubricating their O-rings as instructed. Use the supplied M6 × 20 mm screw/washer for MAP and three M6 × 25 mm screws/washers at the throttle-body flange. Reuse the original turbo retaining clip. |
| Emissions | The exact current PDP and manufacturer manual state this product is not CARB exempt and restrict California purchase/use on vehicles registered with the California DMV. No EO from another kit is inherited. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.
Does the kit include both hot and cold piping?is the single aluminum charge-pipe kit for the GR Supra A90 2.0L turbo, connecting its turbo-side adapter/coupling to the throttle-body flange. It transfers the factory temperature and MAP sensors; it is not the 3.0L kit or an intercooler core.
Are the airflow claims guaranteed horsepower gains?No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.
Which original sensors and clips are reused?Transfer the original temperature sensor and MAP sensor, lubricating their O-rings as instructed. Use the supplied M6 × 20 mm screw/washer for MAP and three M6 × 25 mm screws/washers at the throttle-body flange. Reuse the original turbo retaining clip.
What is the clamp torque?The exact manual supplies no numeric clamp, sensor or mount torque. Use the applicable actual hardware/vehicle specifications, align clear of adjacent components before final tightening and recheck connections after 50–100 miles.
Are all manual contents and installation steps consistent?The current exact PDP and shared B/R manual agree on GR Supra A90 2021–2024 L4 2.0L turbo. No 3.0L, BMW or later model-year coverage is inferred from related engines. Confirm the actual 2.0L turbo engine before ordering; the model/year alone does not approve the 3.0L version. The generic Filter Included Yes field is unsupported by the exact parts matrix.
Does a threaded port include a water/methanol system?No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.
Is this kit CARB exempt?The exact current PDP and manufacturer manual state this product is not CARB exempt and restrict California purchase/use on vehicles registered with the California DMV. No EO from another kit is inherited.
46-20488-R: inspect every connection and resolve the documented kit discrepancies before operation.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
