aFe Toyota CONTROL 2-Inch Front Leveling Kit

CONTROL two-inch front leveling spacers

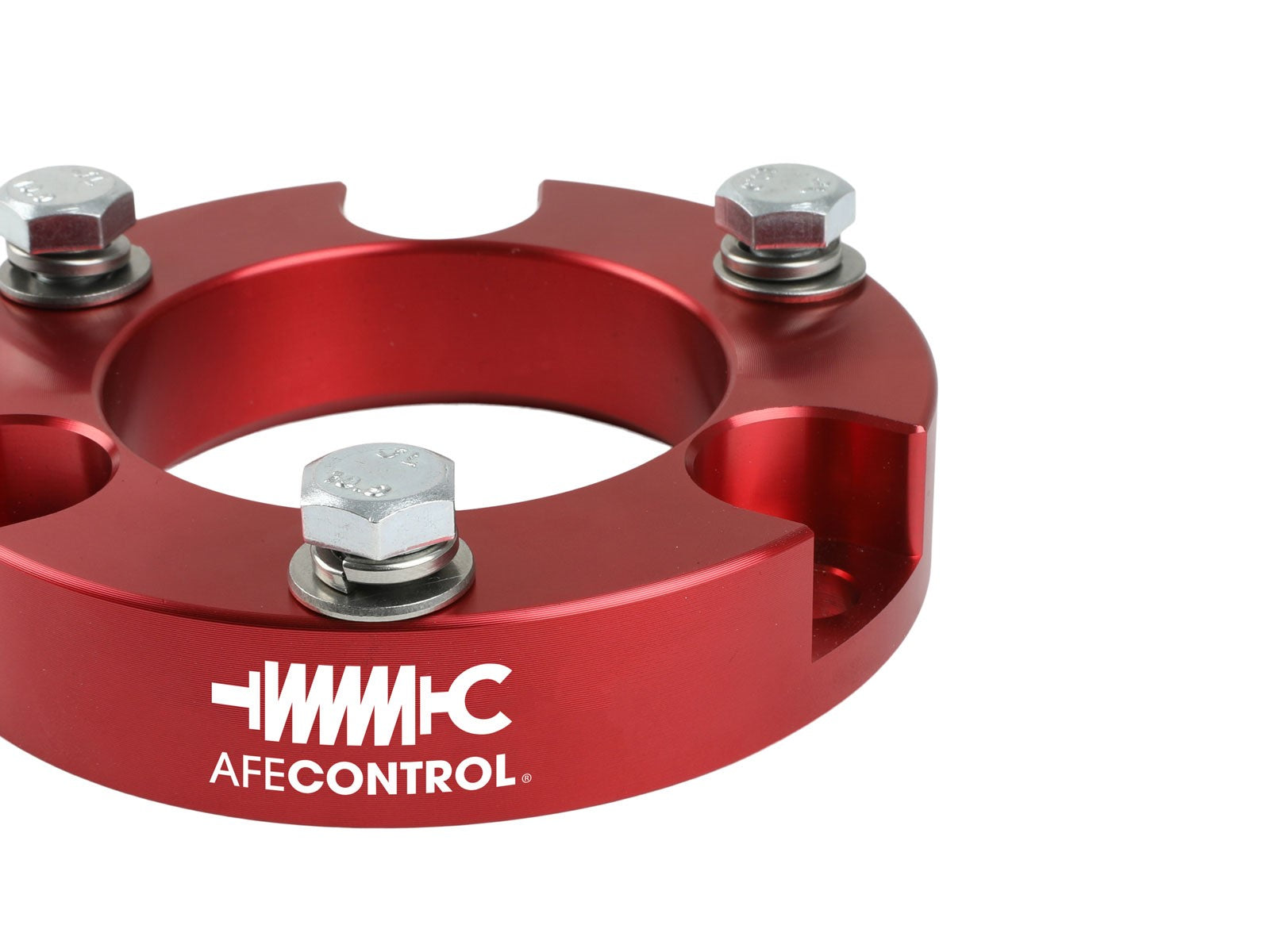

The aFe 416-72T001-R kit uses two red-anodized 6061 billet-aluminum spacers to provide nominal two-inch front lift on eligible Toyota applications. The original strut and spring remain assembled. Match the exact application and six-lug Tacoma requirement, preserve the alignment-cam references during installation and complete the required final alignment.

Key Features

• Selected aFe CONTROL front spacer kit 416-72T001-R.
• Nominal 2-inch FRONT lift; spacer thickness differs from lift height.
• TWO red-anodized 6061 billet-aluminum spacers.
• SIX-LUG Tacoma configuration required by manufacturer.
• Factory strut/spring assemblies retained without disassembly.
• Specified hardware included; final alignment required.

Fitment

Toyota 4Runner 2003–2009, FJ Cruiser 2007–2014 and Tacoma 2005–2023, limited to the exact named scopes below and the manufacturer’s SIX-LUG Tacoma requirement. Both 2WD and 4WD are identified in the guide; actual mounting configuration must match. The March 2021 guide lists Tacoma through 2021 and FJ Cruiser through 2008, while the current selected heading supports Tacoma through 2023 and full exact-part tables support FJ Cruiser through 2014. Those source-year differences are qualified here, not silently presented as one manual scope. The separate X-Runner retailer row is held pending proof that the actual configuration meets the six-lug requirement; no X-Runner mapping is added. The 2016 TRD Pro gap is retained.

Specifications

What's Included

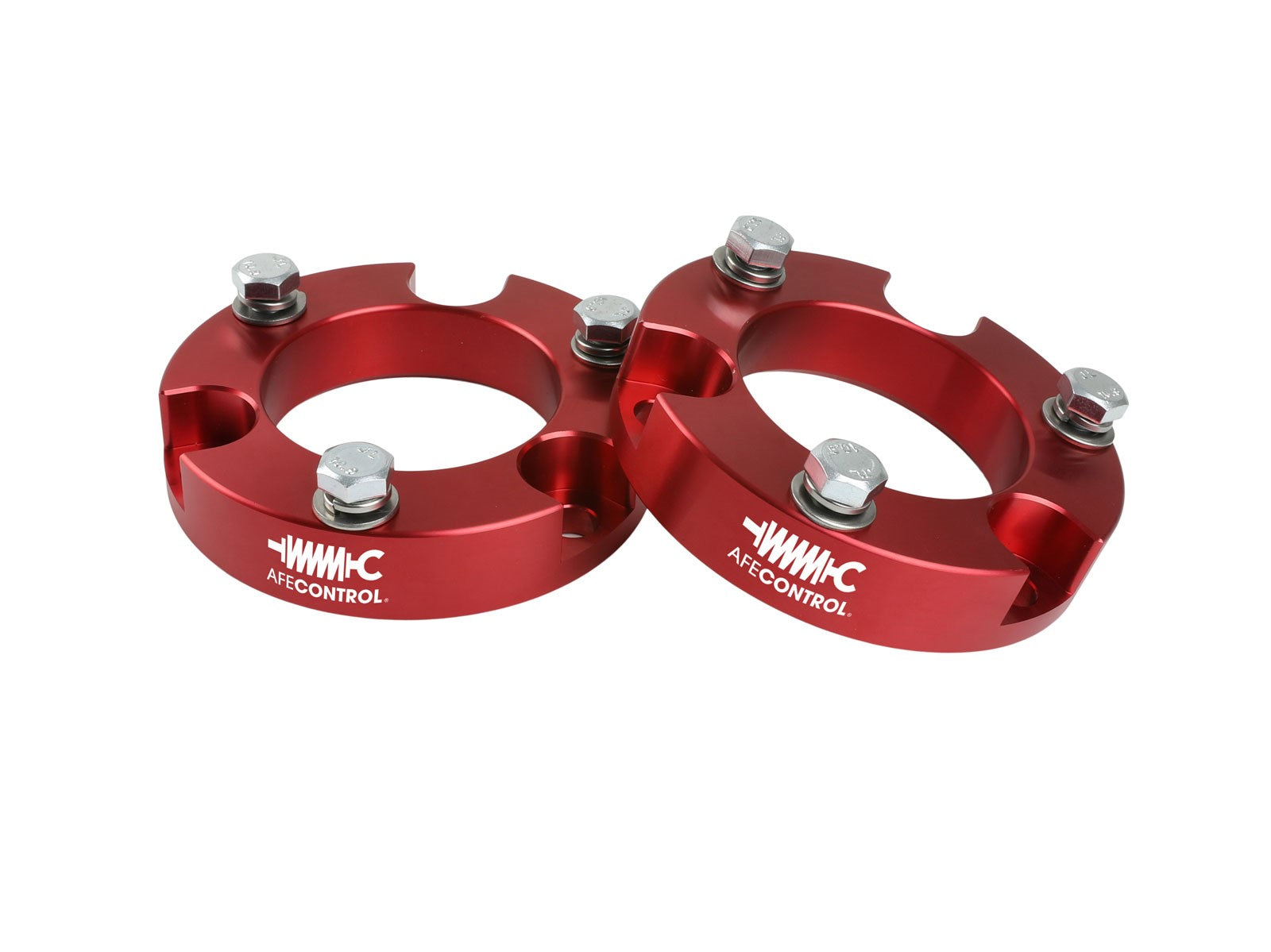

• The 416-72T001-R kit includes TWO billet-aluminum front spacers.

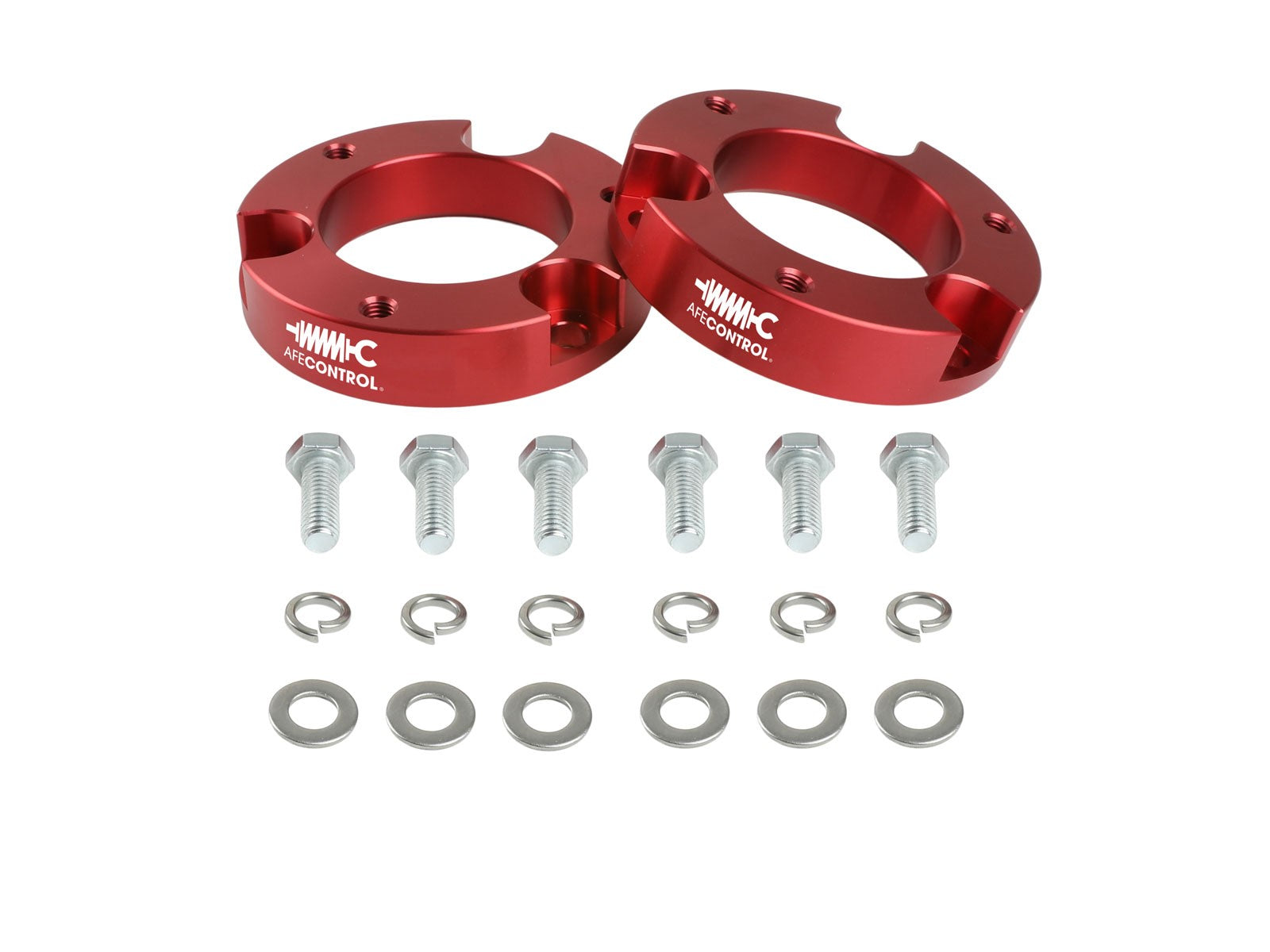

• The selected formal bill lists TWO billet spacers and ONE hardware bag containing SIX bolts and TWELVE washers. The native loose-hardware photo shows six bolts, six flat washers and six split washers, consistent with twelve pictured washers; no separate hardware bag is added to that bill. Original strut hardware is reused at spacer-to-strut, and supplied hardware mounts the modified assembly at the body.
• No replacement strut, shock, spring, rear spacer, intake filter or coupler is established as included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Current manufacturer construction, nominal lift and six-lug Tacoma requirement
• Complete selected twenty-one-step manufacturer guide and formal hardware bill
• Full selected-part named application table; equipment requirements and held X-Runner row remain qualified
• Shop the complete aFe Power collection

FAQ

TWO CNC-machined 6061 billet-aluminum front spacers with red anodized finish and high-strength hardware. Nominal FRONT lift is 2 inches; spacer thickness does not equal resulting lift height. Factory strut/spring assemblies are retained intact. No preload spring disassembly, replacement coilover, shock or spring is part of the selected procedure.

Toyota 4Runner 2003–2009, FJ Cruiser 2007–2014 and Tacoma 2005–2023, limited to the exact named scopes below and the manufacturer’s SIX-LUG Tacoma requirement. Both 2WD and 4WD are identified in the guide; actual mounting configuration must match. The March 2021 guide lists Tacoma through 2021 and FJ Cruiser through 2008, while the current selected heading supports Tacoma through 2023 and full exact-part tables support FJ Cruiser through 2014. Those source-year differences are qualified here, not silently presented as one manual scope. The separate X-Runner retailer row is held pending proof that the actual configuration meets the six-lug requirement; no X-Runner mapping is added. The 2016 TRD Pro gap is retained.

No. The selected procedure removes and reinstalls the intact strut/spring assembly, adding its spacer with original hardware. It does not call for upper shaft-nut removal or spring compression.

Chock the rear tires and support the vehicle at factory lift/jack-stand locations. Remove front wheels. Detach ABS and brake-line attachments at the spindle and their upper brackets, and disconnect the sway link from the spindle. Remove the lower strut bolt. MARK the original lower-control-arm alignment-cam positions, then LOOSEN BUT DO NOT REMOVE those lower-arm bolts so the arm can droop. Remove the TWO spindle-to-lower-arm bolts and the original upper strut hardware, then withdraw the intact strut assembly. The selected procedure separates the spindle at the lower arm; do not substitute a different kit’s upper-ball-joint removal sequence.

Place the billet spacer on the complete strut using the ORIGINAL upper hardware, then reinstall at the body using the SUPPLIED upper mounting hardware. Refit the original lower strut bolt. Raise the lower arm and reinstall the two spindle-to-arm bolts. Retighten the lower-arm cam bolts while matching the original marked positions. Reconnect the sway link and restore ALL spindle and upper ABS/brake-line brackets. Check secure routing and clearance throughout steering and suspension travel.

The selected formal bill lists TWO billet spacers and ONE hardware bag containing SIX bolts and TWELVE washers. The native loose-hardware photo shows six bolts, six flat washers and six split washers, consistent with twelve pictured washers; no separate hardware bag is added to that bill. Original strut hardware is reused at spacer-to-strut, and supplied hardware mounts the modified assembly at the body.

Check all hardware and reinstall wheels using current exact-vehicle OEM torque requirements. The selected guide prints NO numeric suspension or wheel torque values; do not borrow Tundra, Crosstrek, Outback or coilover-kit figures. Have the vehicle aligned by a qualified technician experienced with lifted vehicles. Returning the cam marks is an installation reference, not proof that final measured alignment is correct. No fixed mileage retorque, battery disconnection, coding, tire-size clearance or extra load/tow rating is established.

No. The guide explicitly distinguishes spacer thickness from resulting lift height. The selected nominal front lift is two inches. Final ride height, alignment and clearance depend on the actual vehicle and setup; no rear lift or universal larger-tire fit is established.

Installation Instructions

1. Confirm aFe 416-72T001-R and the exact vehicle, equipment and modifications. Inventory the spacers and hardware and read the full selected guide and current vehicle service requirements.
2. Chock the rear tires and support the vehicle at factory lift/jack-stand locations. Remove front wheels. Detach ABS and brake-line attachments at the spindle and their upper brackets, and disconnect the sway link from the spindle. Remove the lower strut bolt. MARK the original lower-control-arm alignment-cam positions, then LOOSEN BUT DO NOT REMOVE those lower-arm bolts so the arm can droop. Remove the TWO spindle-to-lower-arm bolts and the original upper strut hardware, then withdraw the intact strut assembly. The selected procedure separates the spindle at the lower arm; do not substitute a different kit’s upper-ball-joint removal sequence.
3. Place the billet spacer on the complete strut using the ORIGINAL upper hardware, then reinstall at the body using the SUPPLIED upper mounting hardware. Refit the original lower strut bolt. Raise the lower arm and reinstall the two spindle-to-arm bolts. Retighten the lower-arm cam bolts while matching the original marked positions. Reconnect the sway link and restore ALL spindle and upper ABS/brake-line brackets. Check secure routing and clearance throughout steering and suspension travel.
4. Check all hardware and reinstall wheels using current exact-vehicle OEM torque requirements. The selected guide prints NO numeric suspension or wheel torque values; do not borrow Tundra, Crosstrek, Outback or coilover-kit figures. Have the vehicle aligned by a qualified technician experienced with lifted vehicles. Returning the cam marks is an installation reference, not proof that final measured alignment is correct. No fixed mileage retorque, battery disconnection, coding, tire-size clearance or extra load/tow rating is established.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
