aFe MACH Force-Xp Polished Cat-Back - Nissan Titan 5.6L

Nissan Titan MACH Force-Xp Polished cat-back

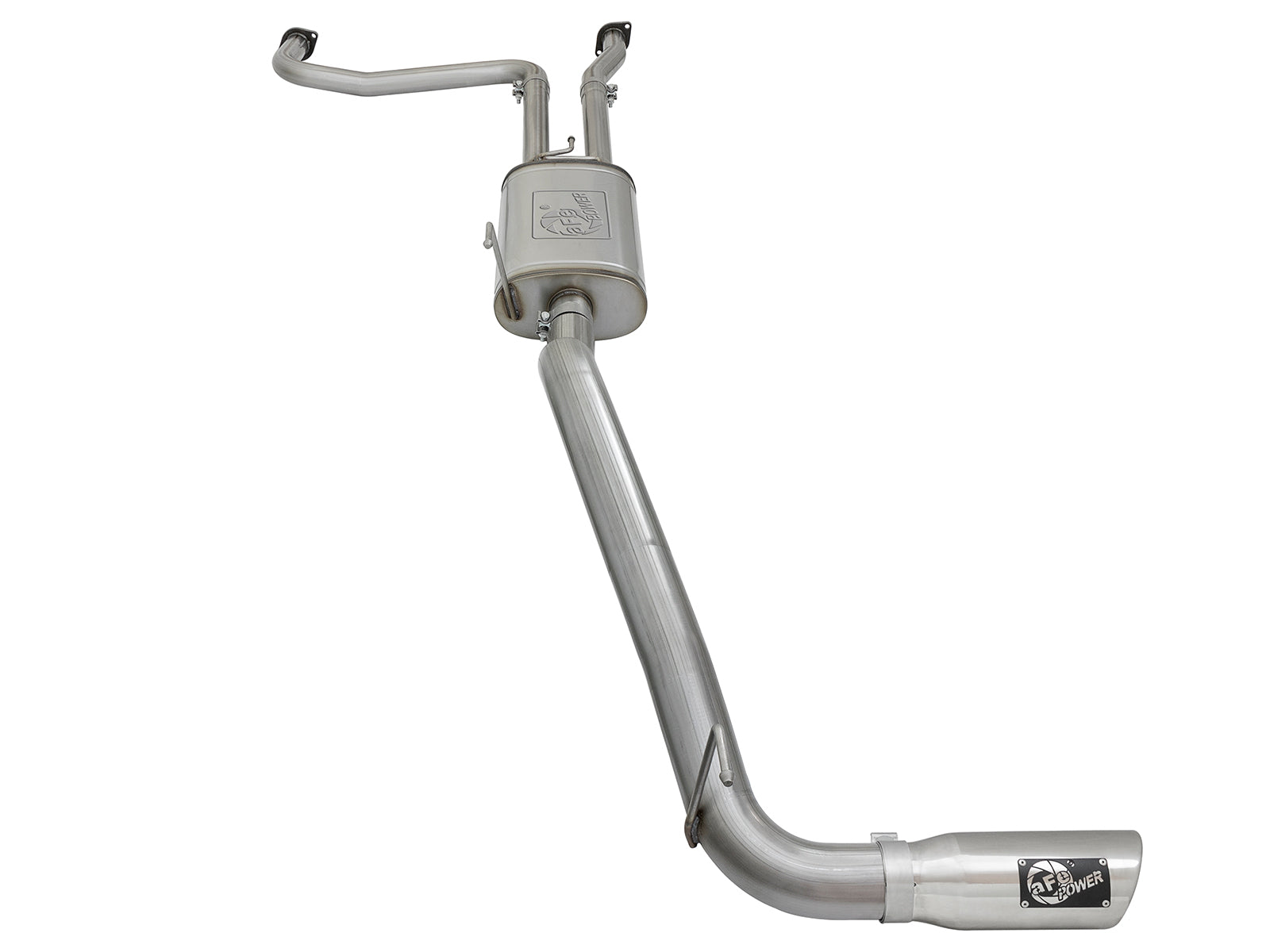

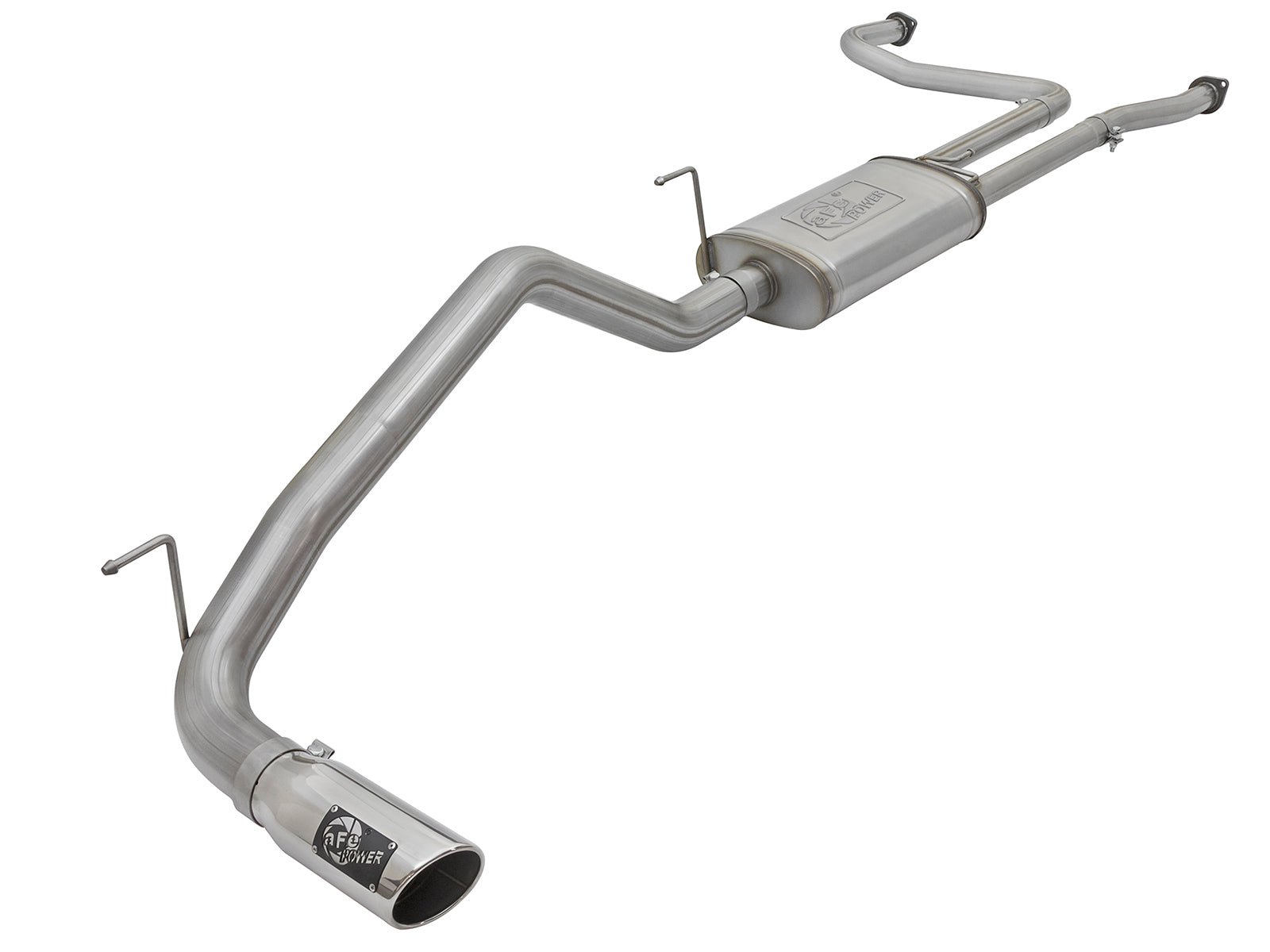

The aFe 49-46125-P cat-back uses 2.5-inch branches into 3.5-inch mandrel-bent 409 stainless tubing with a dual-inlet/single-outlet stainless muffler and one 4.5-inch polished 304 stainless tip at the passenger side rear. The exact current application covers 2017-2024 Titan gas V8-5.6L, while the older selected guide ends at 2023. Match the named year ranges and actual cab/bed limits below.

Key Features

• Selected aFe part 49-46125-P.

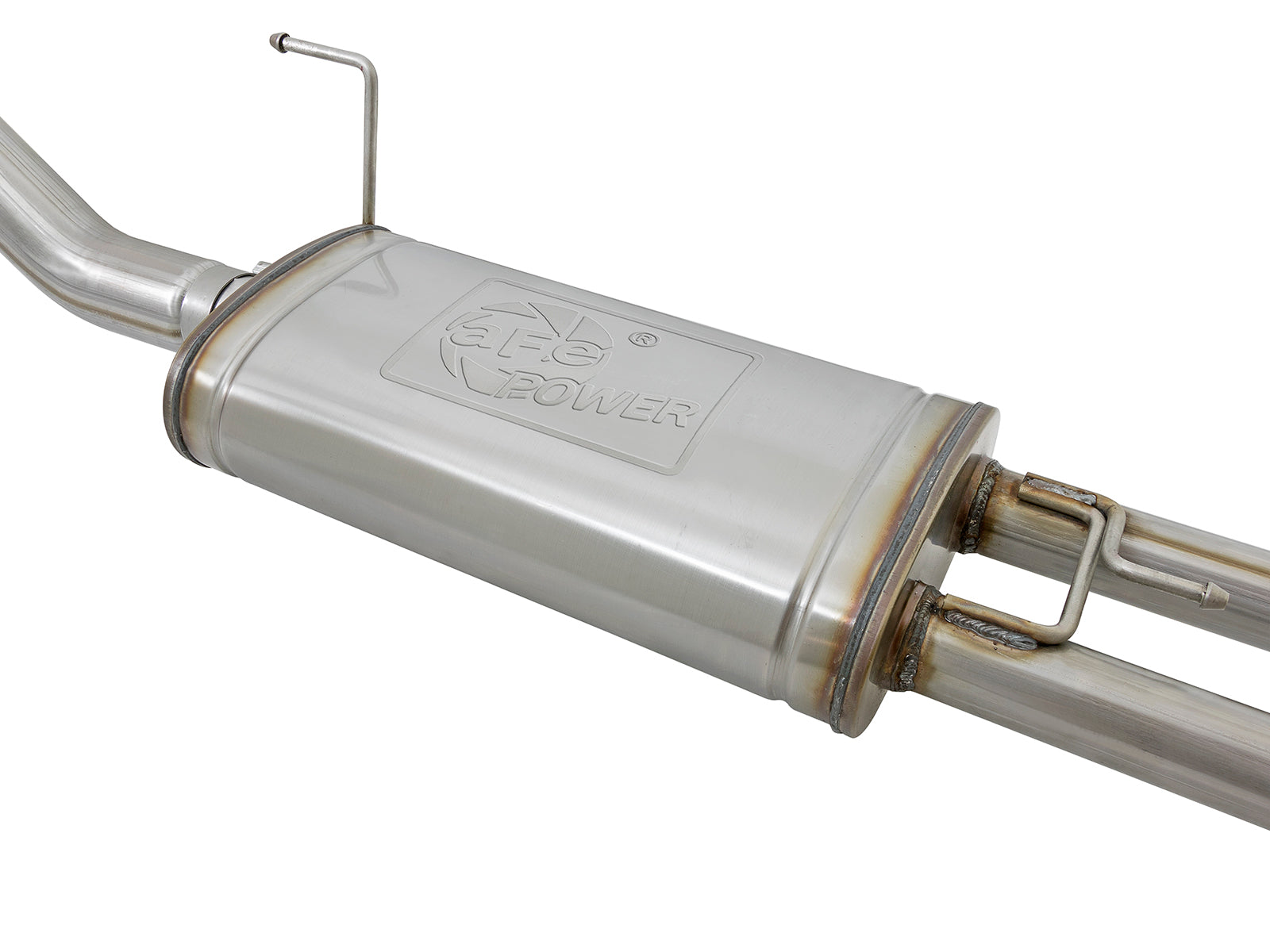

• 2.5-inch branches into 3.5-inch mandrel-bent 409 stainless tubing with a dual-inlet/single-outlet stainless muffler and one 4.5-inch polished 304 stainless tip at the passenger side rear.
• Match 139.8-inch wheelbase with the listed standard/single cab and 8-foot bed, King Cab and 6.6-foot bed, or crew cab and 5.6-foot bed. The primary and guide use different standard/long/short bed names for the same dimensions; actual cab, dimensions and wheelbase control. No longer-wheelbase application is inferred.
• Remove original isolation-mount brackets from the frame to remove the factory exhaust, then restore the original mounts to their factory positions. Reuse original flange bolts and rubber isolators. No Rebel-specific replacement brackets or new isolator are borrowed.

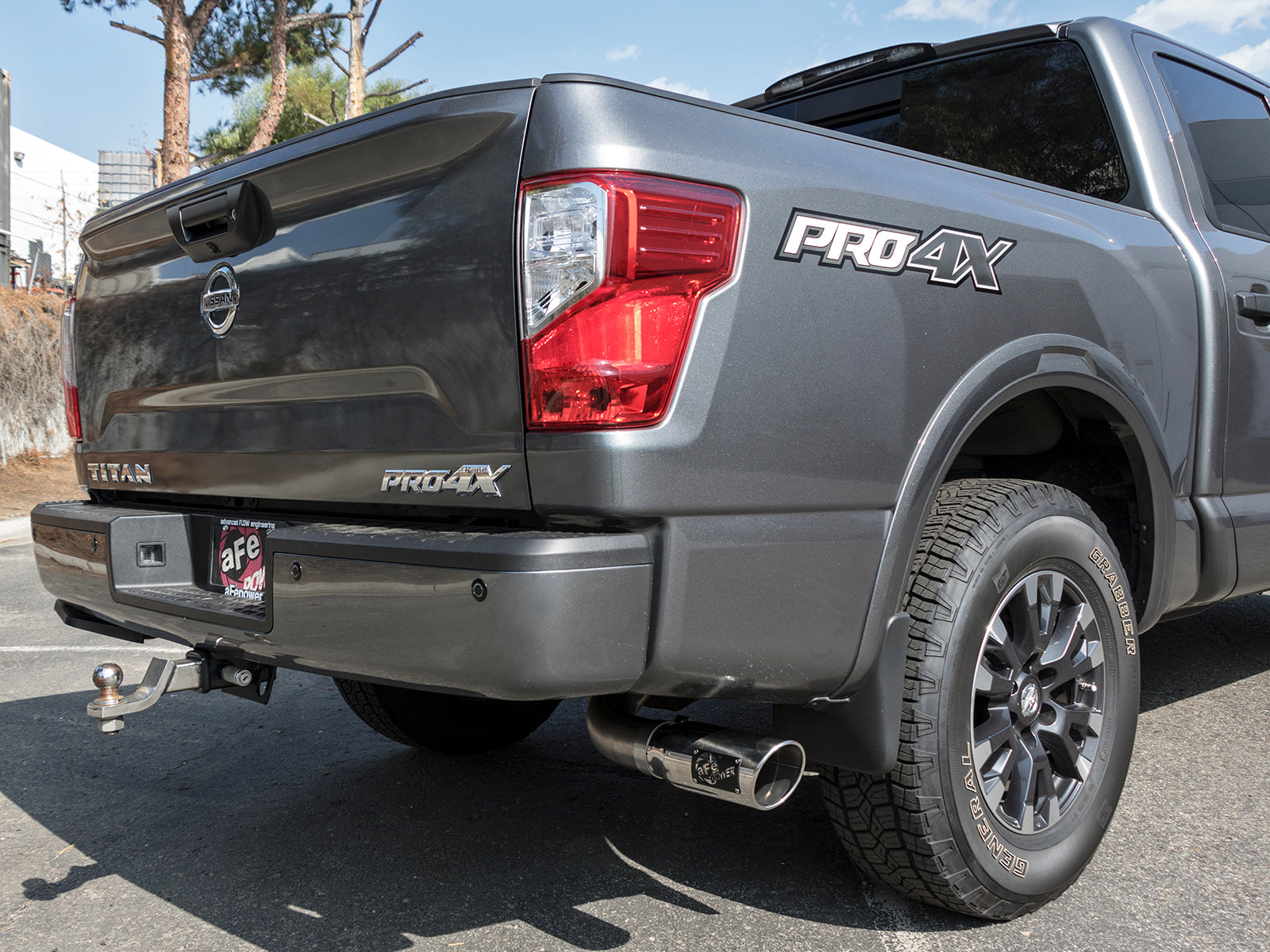

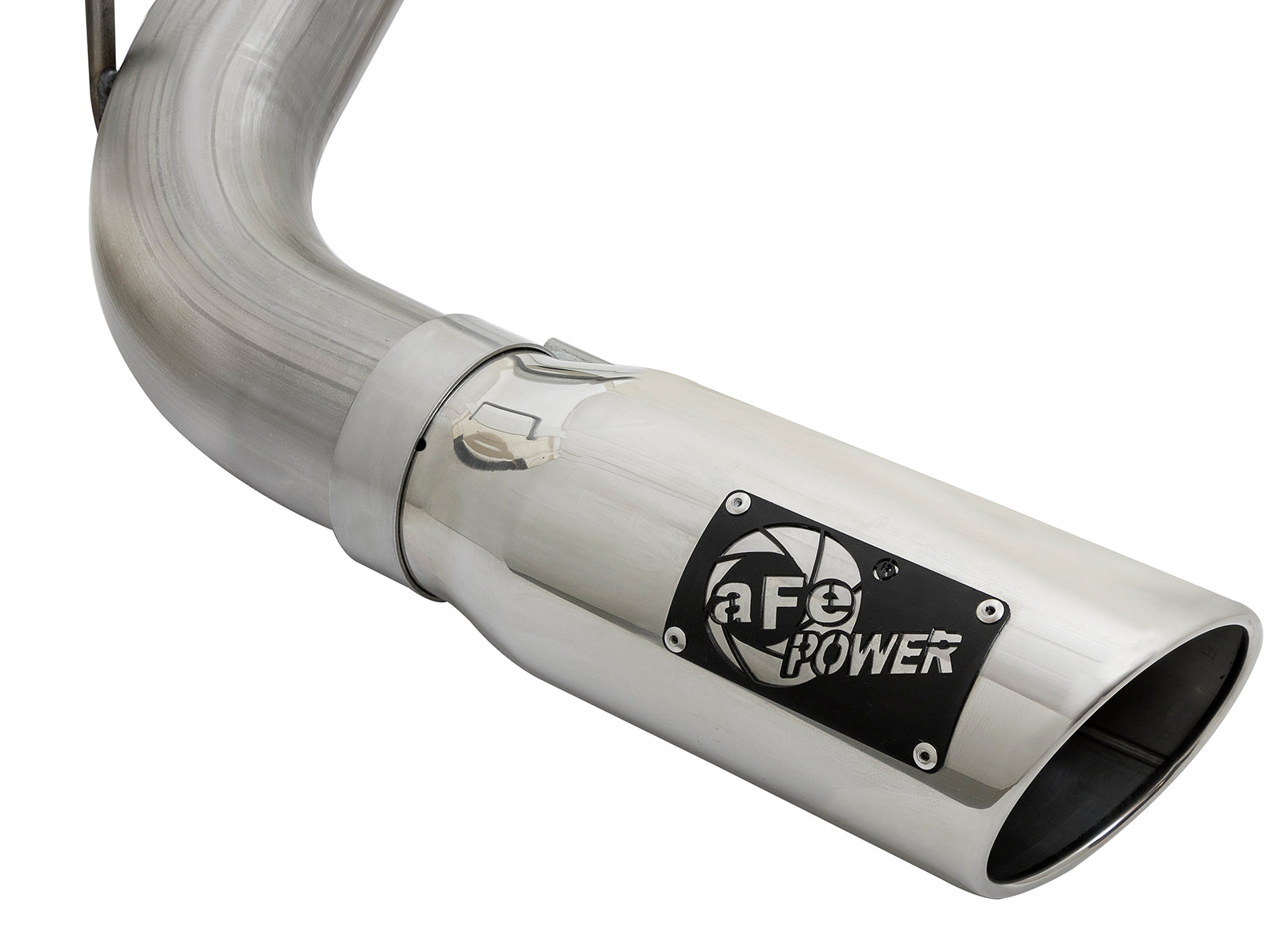

• One selected polished rear side-exit tip; no Rebel dual mid-side exit or extra tips included.
• Existing Titan XD data remains conditional pending exact manufacturer confirmation.

Fitment

Match 139.8-inch wheelbase with the listed standard/single cab and 8-foot bed, King Cab and 6.6-foot bed, or crew cab and 5.6-foot bed. The primary and guide use different standard/long/short bed names for the same dimensions; actual cab, dimensions and wheelbase control. No longer-wheelbase application is inferred. The exact current manufacturer application table and selected guide identify Titan, not Titan XD. Existing Titan XD 2016-2019 named groups are positive in the exact-part retailer table but remain UNVERIFIED against current manufacturer scope. They are retained as legacy data, not cleared for ordering or installation. Obtain exact manufacturer approval for the actual XD gas configuration; omission alone is not proof of physical incompatibility. No new XD S mapping is added. The full exact-part named table supports extending four existing Titan groups: Platinum Reserve, PRO-4X and SV through 2024, S through 2023; SL remains through 2021. No new named groups are added.

Specifications

What's Included

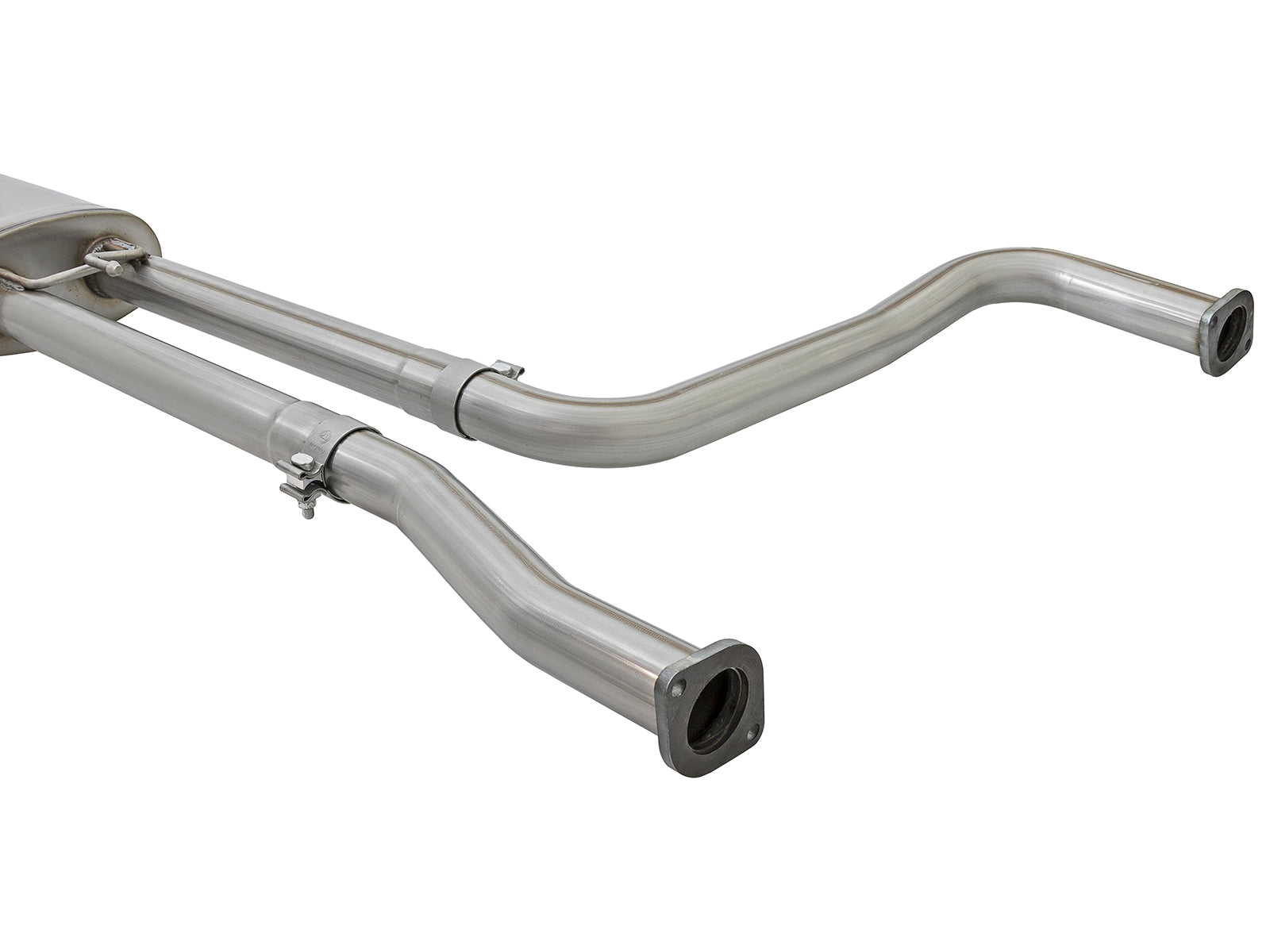

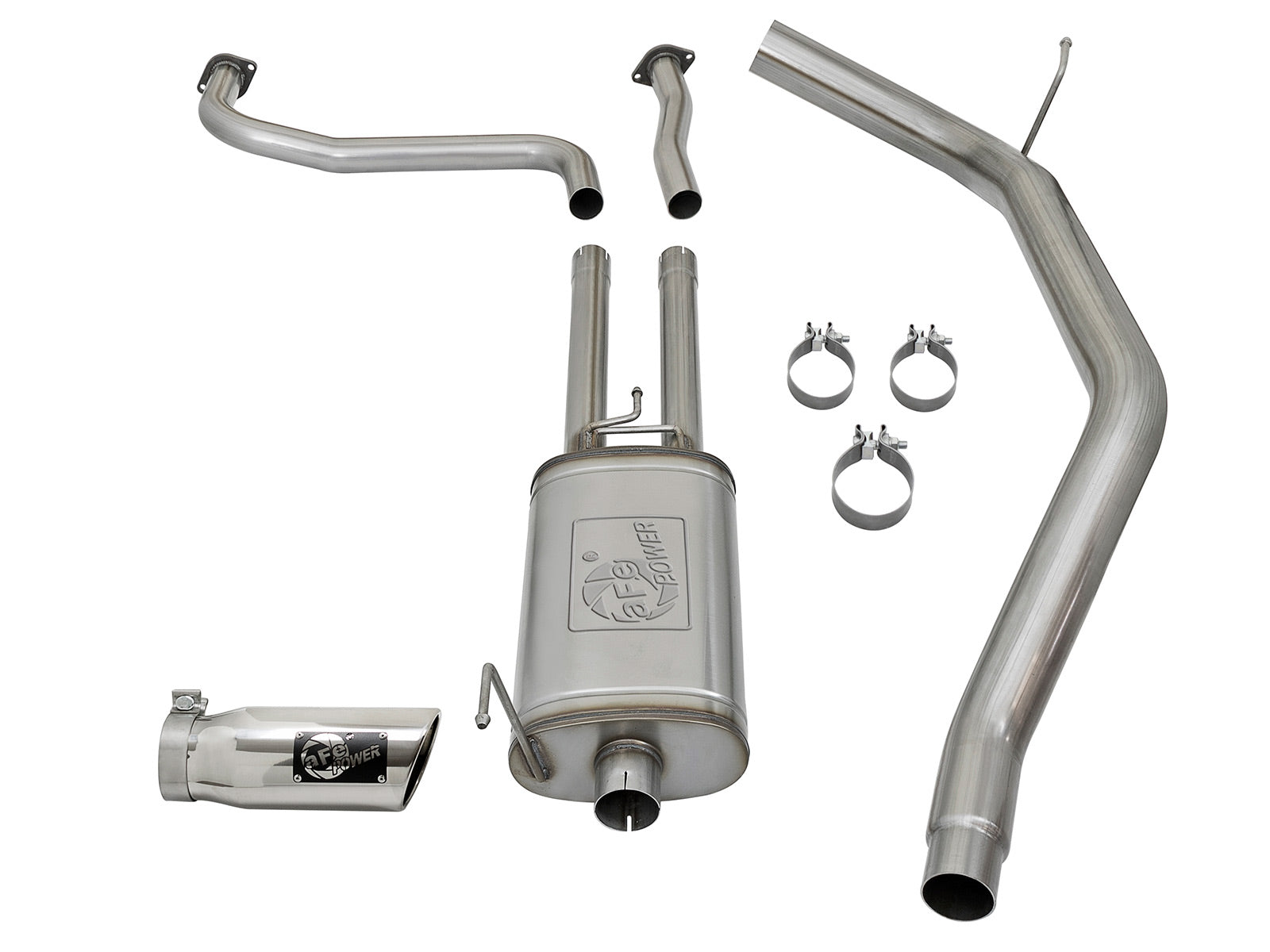

• The 49-46125-P kit includes one left Y/front pipe 05-44653, one right Y/front pipe 05-44654, one muffler 05-144351, one over-axle/tailpipe 05-144352, two 2.5-inch bands 05-41061, one band labeled 3-inch 05-41055 and one selected polished tip 49T35451-P12. The alternative black tip is not an additional included part.
• The selected sheet retains original front-flange hardware but lists no new front gaskets and prints no front-gasket reuse/replacement instruction. Confirm correct flange sealing service for the actual vehicle before disassembly.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact selected Titan primary and current application limits
• Complete selected guide, mounting parts and parts diagram
• Linked single-exit test chart; identity and conditions qualified above
• Full exact-part named application table with legacy XD data qualified
• Shop cat-back exhaust systems

FAQ

It is the selected muffler-equipped single rear side-exit polished-tip MACH Force-Xp cat-back for the listed current Titan gas 5.6L applications.

Match 139.8-inch wheelbase with the listed standard/single cab and 8-foot bed, King Cab and 6.6-foot bed, or crew cab and 5.6-foot bed. The primary and guide use different standard/long/short bed names for the same dimensions; actual cab, dimensions and wheelbase control. No longer-wheelbase application is inferred.

The exact current manufacturer application table and selected guide identify Titan, not Titan XD. Existing Titan XD 2016-2019 named groups are positive in the exact-part retailer table but remain UNVERIFIED against current manufacturer scope. They are retained as legacy data, not cleared for ordering or installation. Obtain exact manufacturer approval for the actual XD gas configuration; omission alone is not proof of physical incompatibility. No new XD S mapping is added.

one left Y/front pipe 05-44653, one right Y/front pipe 05-44654, one muffler 05-144351, one over-axle/tailpipe 05-144352, two 2.5-inch bands 05-41061, one band labeled 3-inch 05-41055 and one selected polished tip 49T35451-P12. The alternative black tip is not an additional included part.

Remove original isolation-mount brackets from the frame to remove the factory exhaust, then restore the original mounts to their factory positions. Reuse original flange bolts and rubber isolators. No Rebel-specific replacement brackets or new isolator are borrowed.

The selected primary and guide specify 3.5-inch main outlet tubing, but the guide labels its outlet band 3-inch 05-41055. This clamp-sizing conflict remains unresolved: confirm the actual outlet joint, required band and packing list with aFe before disassembly. Do not silently replace the printed clamp identity or force an undersized band. The selected sheet retains original front-flange hardware but lists no new front gaskets and prints no front-gasket reuse/replacement instruction. Confirm correct flange sealing service for the actual vehicle before disassembly.

No numeric torque is printed. Align system and tips before final tightening. Maintain the selected guide's at-least-1/2-to-1-inch tailpipe/body spacing and recheck after 50-100 miles: all exhaust components.

The primary claims +18 hp/+24 lb-ft. Its selected linked single-exit chart provides the following distinct point and peak figures; the primary claim is not silently substituted for either. The linked full chart is for a 2017 Titan PRO-4X 5.6L and identifies aFe 49-46125 Single Exhaust, without a finish suffix. At 3,871 rpm it shows 258.31 versus 240.89 hp and 350.50 versus 326.86 lb-ft: +17.42 hp/+23.64 lb-ft. Separate peaks differ by +15.13 hp and +18.01 lb-ft at different peak speeds. Baseline July 18, 2017 uses SAE 1.04; exhaust run August 22 uses SAE 1.02. Both list OE intake/manifold and fourth gear, but their notes differ: baseline OE ECU/headers/exhaust, 275/70R18, open hood/large fan; exhaust run OE wheels, Sport Mode, traction control off, 2,000-rpm start/black fan. Conditions differ; this is not every-vehicle or finish-comparison proof.

Installation Instructions

1. Confirm aFe 49-46125-P against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Confirm exact Titan gas 5.6L, named year range, cab/bed dimensions and 139.8-inch wheelbase. Resolve any legacy XD application and the guide's 3-inch-band versus 3.5-inch-outlet conflict before ordering or disassembly. Confirm front sealing service, actual packing list and safe vehicle support; allow the exhaust to cool.
3. Remove the stock exhaust up to the catalytic converter, working rear toward front and retaining original hardware and isolators. Remove the isolation-mount brackets from the frame as required for removal, then restore the mounts to their original positions.
4. Install the selected two front pipes using original flange bolts without fully tightening. Place the two 2.5-inch bands and slide the selected muffler onto the front pipes.
5. Using the original isolation mounts, install the selected over-axle/tailpipe and polished tip with the correctly confirmed outlet band. Adjust the complete system to the desired position before tightening the bands; no numeric torque is printed.
6. Maintain the guide's at-least-1/2-to-1-inch tailpipe/body spacing, recheck work and retighten all exhaust components after 50-100 miles. No cutting, battery, sensor, ground-strap, crossmember or Rebel hanger conversion is borrowed.
