A connecting pipe for a compatible resonator section

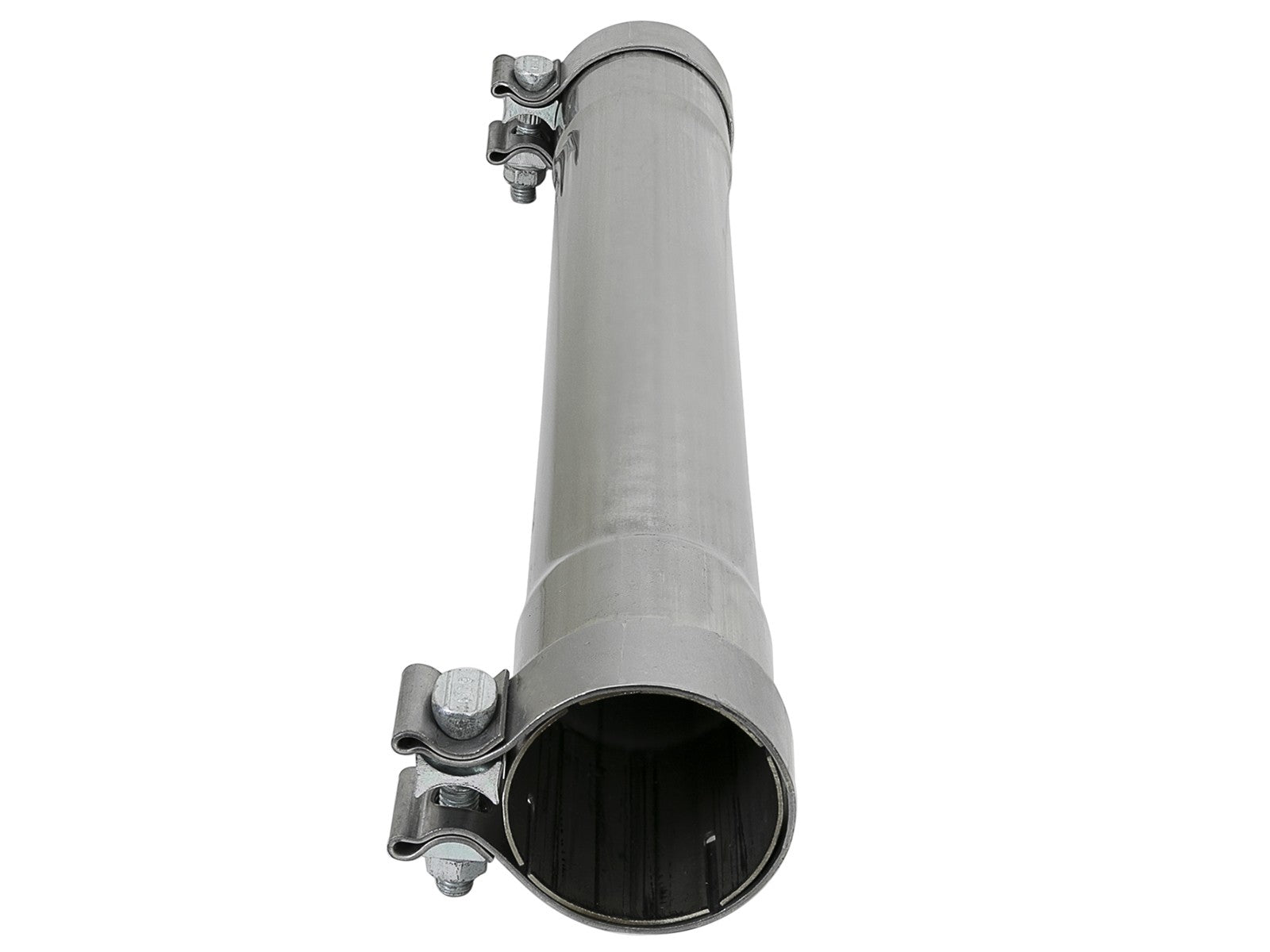

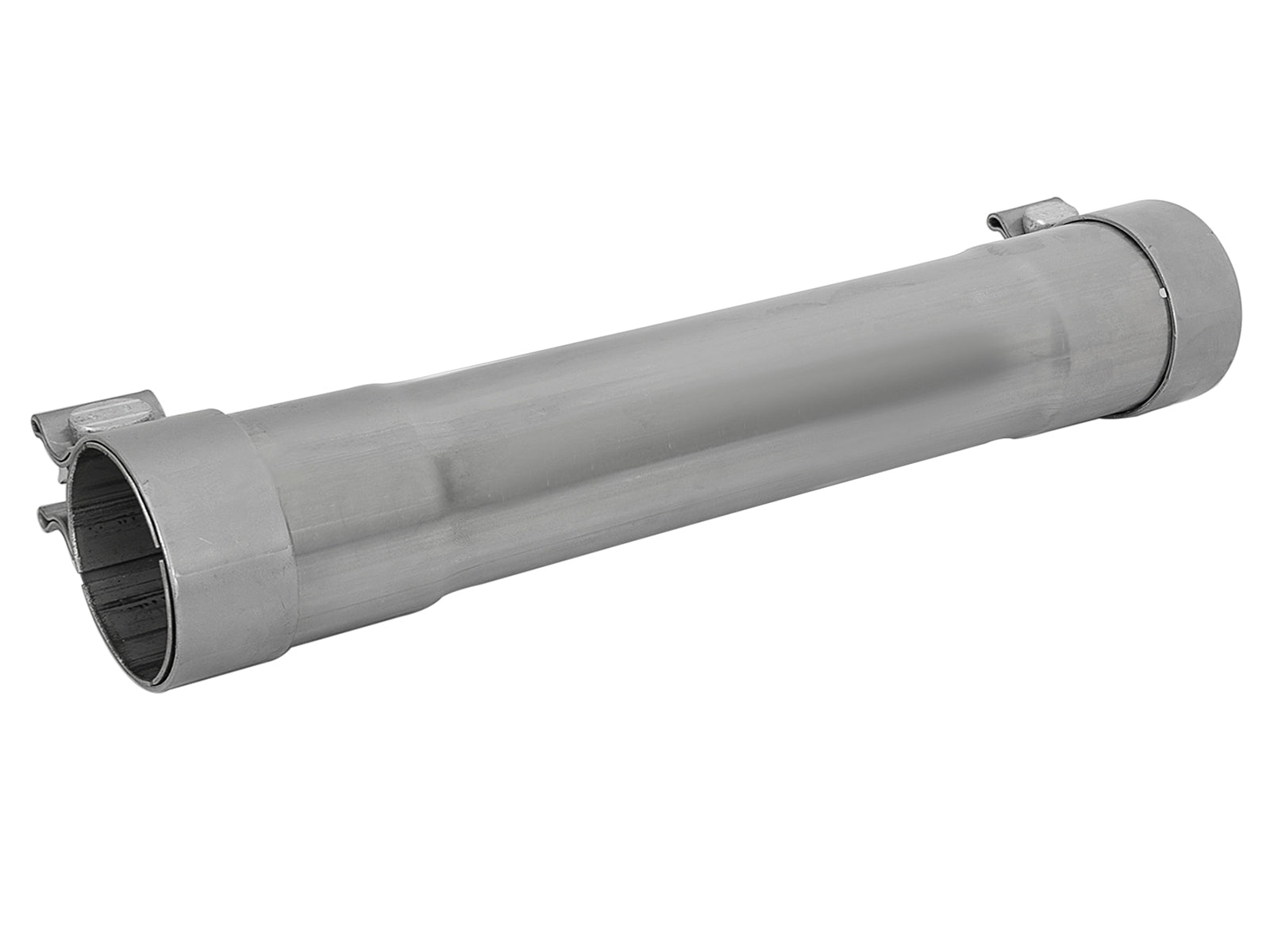

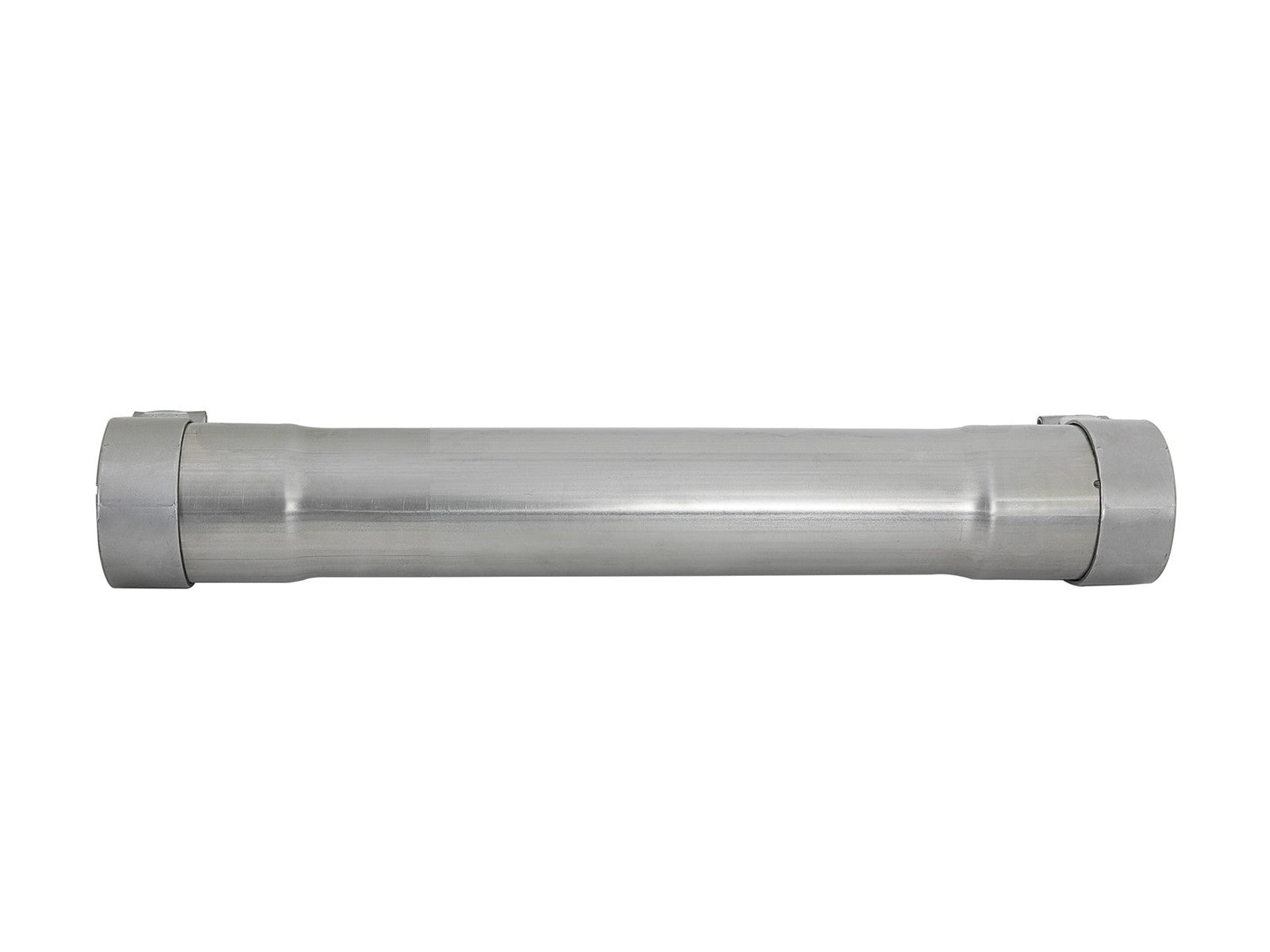

The aFe 49M10007 MACH Force-Xp resonator delete is a 304 stainless connecting pipe with a 3-inch inside diameter and 16-inch overall length. It replaces a compatible resonator section; the manufacturer describes compatibility with most 12-inch-long resonators, subject to the actual exhaust connections.
Key Features
- 304 stainless steel connecting pipe.
- 3-inch inside diameter and 16-inch overall length.

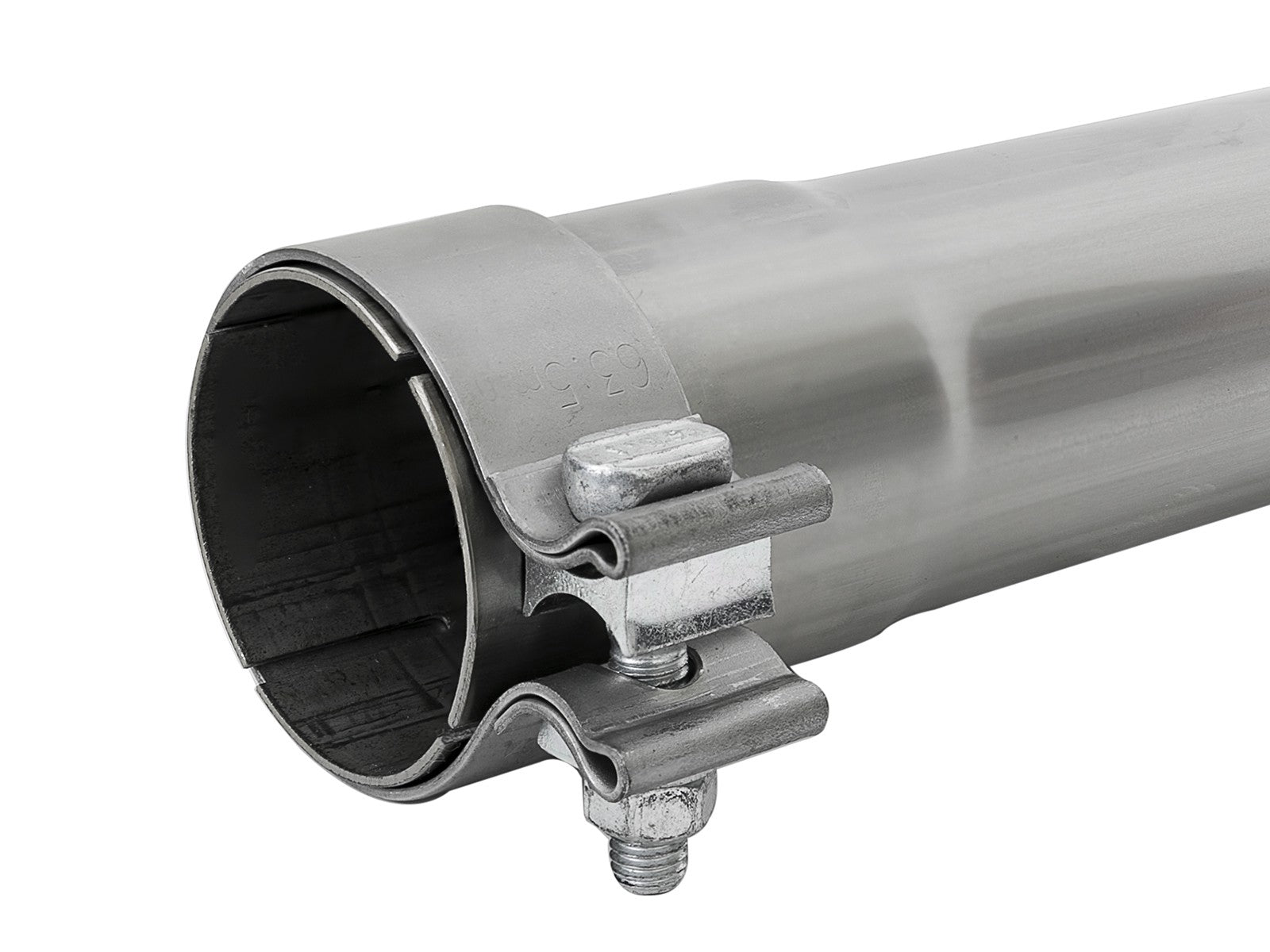

- One delete pipe with two supplied 3-inch band clamps.
- Manufacturer identifies replacement of most 12-inch-long resonators; verify actual interfaces.
- Custom or other-brand applications may require cutting.
- Exact standalone manual provides installation sequence and a 50–100-mile hardware recheck.
Fitment
| Application | Exhaust | Requirements |
|---|---|---|
| Specification-matched | Compatible 3-inch exhaust tubing | Measure actual connection spacing and engagement; most 12-inch resonators is a compatibility statement, not the delete pipe’s length |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49M10007 |
| Product type | Connecting Pipes |
| Function | Resonator delete connection; no resonator body supplied |
| Material | 304 stainless steel |
| Inside diameter / overall length | 3 inches / 16 inches |
| Pipe component | ONE 05-145401 |
| Clamps | TWO 05-41055 3-inch band clamps |
| Instruction sheet | 06-86390; updated August 2020; one page, nine steps |
| Installation / follow-up | Remove rear exhaust before resonator; install pipe at front, then rear exhaust; align and tighten; check leaks; re-tighten all clamps and bolts after 50–100 miles |
| Numeric torque / cut measurement | Neither is specified by the exact manual |
| UPC | 802959691458 |
What's Included
- ONE 304 stainless delete pipe, 05-145401.
- TWO 3-inch band clamps, 05-41055.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact manufacturer installation instructions and component diagram
- Shop the complete aFe Power collection
FAQ
What is the 49M10007?One 304 stainless resonator delete connecting pipe. It replaces a compatible resonator section; it is not an X-pipe crossover, a sound-reducing resonator or a complete exhaust system.
Which dimensions must match?The manufacturer lists 3-inch inside diameter and 16-inch overall length. Confirm actual mating pipe, connection spacing and overlap. The reference to most 12-inch-long resonators does not change this pipe’s overall length.
What is included?The exact manual identifies one delete pipe, component 05-145401, and two 3-inch band clamps, component 05-41055. It does not itemize a gasket, hanger, muffler, tip, sensor, valve motor or intake accessory.
Which exhaust section comes off first?Support the existing exhaust, loosen both resonator clamps and remove the exhaust behind the resonator before removing the resonator. Install the delete pipe at the front connection before reinstalling the rear exhaust with the second supplied clamp.
Is cutting required?The manufacturer notes that custom and other-brand applications may require cutting. No fixed cut location or measurement is supplied. Have the actual exhaust assessed before cutting; universal fit does not guarantee a direct bolt-on for every vehicle.
What torque and recheck instructions are supplied?Align the exhaust and tighten its clamps, start the vehicle and check for leaks, then double-check the work. The manual recommends re-tightening all clamps and bolts after 50–100 miles. It gives no numeric torque or front-to-rear tightening order.
Are horsepower or drone results independently established?No actual selected-part dyno, airflow or measured sound chart was located. Removing a resonator changes the system configuration; no numerical power increase or drone-free result is guaranteed.
What is the emissions statement?The current manufacturer page states that no CARB EO number is required. This does not authorize removing required emissions equipment or waive local noise and usage requirements.
Installation Instructions
- Read the exact instructions and allow the exhaust to cool. The manufacturer recommends a trained professional and protective equipment. Secure the existing exhaust with suitable jack stands.
- Loosen both band clamps on the existing resonator pipe. Remove the exhaust behind the resonator, then remove the resonator.
- Use one supplied 3-inch band clamp to connect the delete pipe at the front of the exhaust. Use the second supplied 3-inch band clamp to reinstall the exhaust behind the delete pipe.
- Align the exhaust and tighten the clamps. The manual supplies no numeric torque or front-to-rear tightening sequence. Custom applications may require cutting, without a specified cut measurement.
- Start the vehicle and check for leaks. Double-check all work and confirm attachment security. Re-tighten all clamps and bolts after 50–100 miles as the exact manual recommends.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
