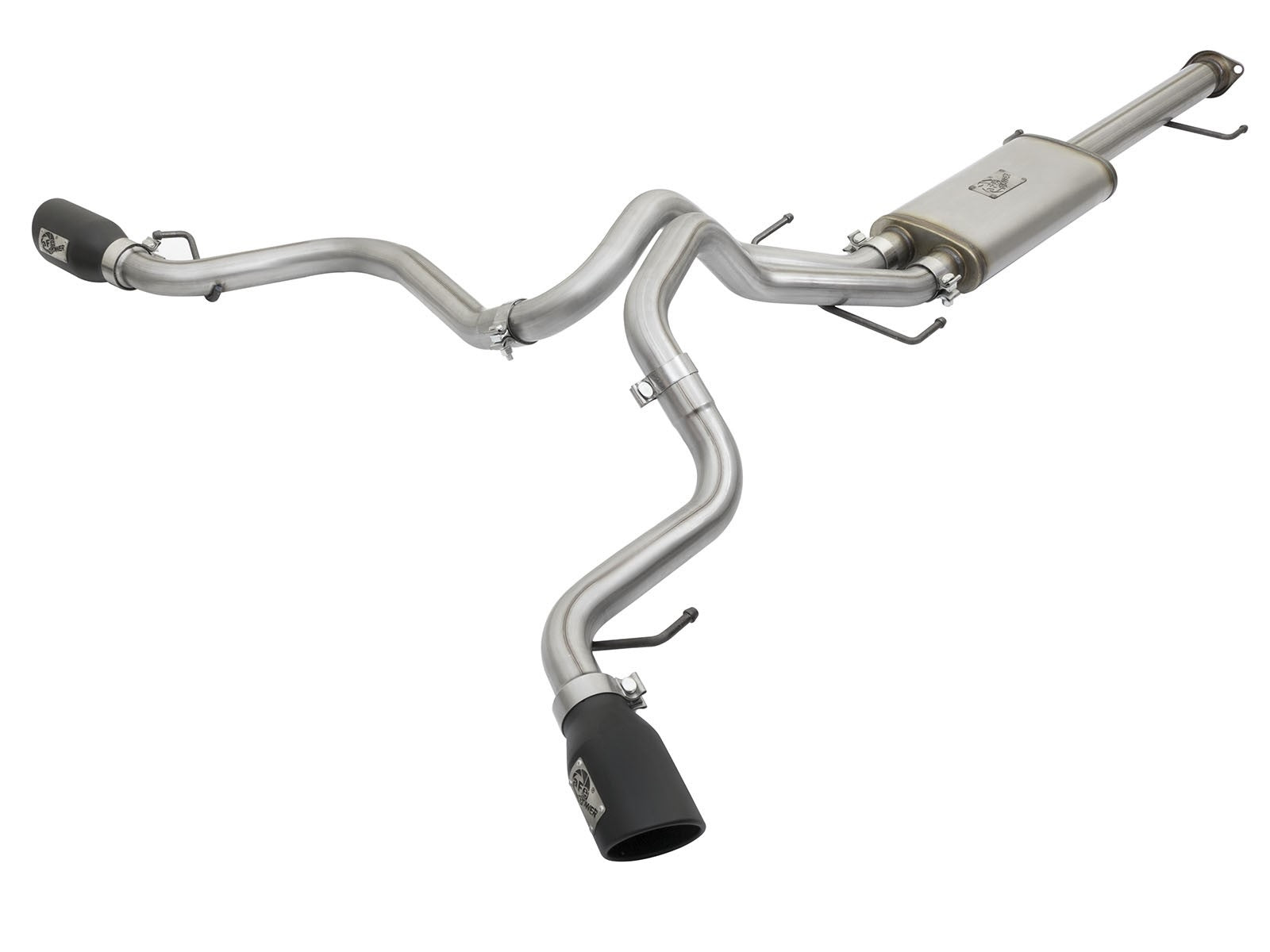

FJ dual-side BLACK cat-back details
aFe 49-46029-B The dual-side system uses a single-in/dual-out muffler,two handed over-axle paths and two 4.5-inch black tips. A supplied bracket and isolation mount support the driver-side tube. TRD installation requires rear skid plate and brace removal.
Key Features
- 3-inch to 2.5-inch mandrel-bent 409 stainless tubing; 100% MIG welded.
- Single-in/dual-out free-flow muffler.
- TWO 4.5-inch-diameter black stainless tips with riveted badges.
- Added DRIVER-SIDE hanger bracket and isolation mount.
- FOUR 2.5-inch bands plus TWO 3-inch bands.
- Original Y-pipe bolts,GASKETS and factory rubber mounts reused.
- TRD:REAR SKID PLATE AND BRACE removal required.
Fitment
Toyota FJ Cruiser 4.0L V6. The manufacturer product page and B/P installation manual list 2007-2017 model scope; the application table supports Base 2007-2014,TRD Special Edition 2007 and Trail Teams Special Edition 2008. The listed named editions are verified for the years shown; later regional applications require separate confirmation. TRD installation REQUIRES REMOVAL of ORIGINAL REAR SKID PLATE AND BRACE. Confirm actual original Y-pipe,gaskets,hangers and dual-side routing; added hanger bracket supports driver-side tube.
| Years | Make | Model | Named edition; actual FJ Y-pipe and TRD underbody restrictions apply |
|---|---|---|---|
| 2007-2014 | Toyota | FJ Cruiser | Base |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition |
Verify 49-46029-B against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-46029-B |
| Listed applications | Base 2007–2014; TRD Special Edition 2007; Trail Teams Special Edition 2008 |
| Manufacturer scope | FJ Cruiser 4.0L V6, 2007–2017 manufacturer model range; see the named applications above |
| Construction | 3-inch to 2.5-inch mandrel-bent 409 stainless; 100% MIG welds |
| Muffler / exit | Single-in/dual-out;dual-side exit |
| Selected tips | LEFT R49T30452-B09 /RIGHT R49T30451-B09;TWO 4.5-inch diameter black stainless |
| Over-axle service-label conflict | BOTH LEFT and RIGHT printed05-144198;confirm handed replacement parts |
| Tailpipes / muffler | LEFT 05-144200 /RIGHT 05-144189 /muffler 05-144197 |
| Bands | FOUR 2.5-inch05-41061;TWO 3-inch05-41055 |
| Hanger support | Bracket05-46222;isolation05-46050;hardware count/thread/length unspecified |
| TRD / retained parts | Remove rear skid plate and brace;reuse OE Y-pipe bolts,GASKETS,rubbers |
| Torque / clearance / recheck | No numeric torque or ordered tightening;half-to-one-inch body;all clamps and bolts after 50-100miles |
| Actual chart qualification | 3-inch REBEL notes,not independent dual-system identity;maximum differences of 6.96 HP and 3.84 lb-ft vs marked differences of 6.53 HP and 12.72 lb-ft |
What's Included
- 1 x 05-144197: Single-in/dual-out muffler assembly.
- 2 handed pipes x 05-144198 printed on BOTH: LEFT and RIGHT over-axle pipes;duplicate label unresolved.
- 1 x 05-144200: LEFT tailpipe assembly.
- 1 x 05-144189: RIGHT tailpipe assembly.
- 1 x R49T30452-B09: LEFT selected BLACK tip.
- 1 x R49T30451-B09: RIGHT selected BLACK tip.
- 4 x 05-41061: 2.5-inch band clamps.
- 2 x 05-41055: 3-inch band clamps.
- 1 shown x 05-46222: Driver-side support bracket;hardware not individually itemized.
- 1 shown x 05-46050: Additional isolation mount.
FIVE main exhaust pieces: muffler 05-144197; LEFT and RIGHT over-axle pipes; LEFT tailpipe05-144200; RIGHT tailpipe05-144189. The manufacturer diagram prints 05-144198 for BOTH left and right over-axle pipes; this duplicate service label is unresolved,confirm the correct handed replacement pipe before ordering service parts. Selected BLACK tips are TWO DIFFERENT service parts: LEFT R49T30452-B09 and RIGHT R49T30451-B09; polished P09 alternatives are not extras. FOUR 2.5-inch bands05-41061 and TWO 3-inch bands05-41055. Diagram also identifies bracket 05-46222 and isolation mount 05-46050. Step 5 calls for bracket hardware but does not itemize fastener count/thread/length. Reuse original Y-pipe bolts,GASKETS and factory isolation mounts; additional supplied isolation mount is used with hanger support. Primary specifies dual4.5-inch-diameter black stainless tips; refer to the manufacturer for other tip dimensions.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 49-46029-B
- Exact illustrated installation manual
- Manufacturer-linked dyno comparison and run configuration
- Shop the complete aFe Power collection
FAQ
What is the 49-46029-B?FIVE main exhaust pieces: muffler 05-144197; LEFT and RIGHT over-axle pipes; LEFT tailpipe05-144200; RIGHT tailpipe05-144189. The manufacturer diagram prints 05-144198 for BOTH left and right over-axle pipes; this duplicate service label is unresolved,confirm the correct handed replacement pipe before ordering service parts. Selected BLACK tips are TWO DIFFERENT service parts: LEFT R49T30452-B09 and RIGHT R49T30451-B09; polished P09 alternatives are not extras. FOUR 2.5-inch bands05-41061 and TWO 3-inch bands05-41055. Diagram also identifies bracket 05-46222 and isolation mount 05-46050. Step 5 calls for bracket hardware but does not itemize fastener count/thread/length. Reuse original Y-pipe bolts,GASKETS and factory isolation mounts; additional supplied isolation mount is used with hanger support. Primary specifies dual4.5-inch-diameter black stainless tips; refer to the manufacturer for other tip dimensions.
Which FJ named editions and TRD restrictions apply?Toyota FJ Cruiser 4.0L V6. The manufacturer product page and B/P installation manual list 2007-2017 model scope; the application table supports Base 2007-2014,TRD Special Edition 2007 and Trail Teams Special Edition 2008. The listed named editions are verified for the years shown; later regional applications require separate confirmation. TRD installation REQUIRES REMOVAL of ORIGINAL REAR SKID PLATE AND BRACE. Confirm actual original Y-pipe,gaskets,hangers and dual-side routing; added hanger bracket supports driver-side tube.
Are the over-axle service numbers and two black tips identical?The installation diagram prints 05-144198 for BOTH over-axle pipes;duplicate service label is unresolved. Confirm handed replacement pipes before ordering service parts. Tips ARE DIFFERENT:LEFT R49T30452-B09 and RIGHT R49T30451-B09. Primary specifies both4.5-inch diameter; refer to the manufacturer for other tip dimensions.
Which driver-side support and original gaskets are used?Bracket05-46222 and added isolator05-46050 support driver-side path. Step 5 includes hardware without fastener count/thread/length. Muffler attaches to ORIGINAL Y-pipe with ORIGINALBOLTS,GASKETS and factory rubber mounts. SUPPORT MUFFLER WITH JACK STAND.
How do the two exhaust paths assemble?Muffler to OE Y-pipe,thenLEFT/RIGHT over-axle pipes on factory mounts. Install supplied hanger bracket/hardware. Fit LEFT/RIGHT tailpipes using factory AND provided isolators,then selected handed BLACK tips. Position tips before aligning whole system and tightening all bands.
What torque,tightening order and recheck apply?No numeric band/flange torque or front-to-rear tightening order is printed. Align tips,then whole system and tighten ALL bands. Maintain half-to-one-inch body clearance. Re-check and tighten ALL CLAMPS AND BOLTS after 50-100miles.
Does linked dyno chart independently identify this dual kit?The manufacturer specifies3-inch to 2.5-inch mandrel-bent 409 stainless tubing,100%MIG welds,single-in/dual-out free-flow muffler and dual4.5-inch black stainless tips with riveted laser-cut badges. Advertised6HP11lb-ft is not a verified peak-to-peak figure. Actual linked2008FJ chart notes aFe3-inch REBEL exhaust,not independent identity of this selected dual system. Marked103.65vs97.12HP and201.81vs189.09lb-ft differ by6.53HP12.72lb-ft at different markerRPM positions; cursor2697 does not establish one common marker speed. Printed MAX198.88vs191.92HP and218.85vs215.01lb-ft differ by6.96HP3.84lb-ft. BaselineJune9AM versus comparisonJune13PM2016 used different weather/humidity48vs39% and SAE1.02vs1.01. Both retained OE intake/manifolds/wheels,traction off,third gear,1800-rpm start and Black Fan. No flow chart or measured drone guarantee is supplied. Current manufacturer states no CARB EO number required; that does not authorize altering unrelated emissions equipment.
Does installation require cutting,battery or sensor changes?The manufacturer states no cutting required,and eight-step installation manual prints no cutting,battery disconnection,sensor/valve transfer or coding step. TRD rear skid plate AND brace removal IS explicit. Follow the selected kit’s illustrated instructions.
Installation Instructions
Verify aFe 49-46029-B.
- Read B/P installation manual and parts diagram. Confirm black selection,actual FJ4.0L Y-pipe and dual-side routing. Inspect kit,allow exhaust to cool and use eye/hand protection. Support vehicle and old exhaust safely. Professional installation is recommended.
- Remove stock exhaust from REAR working FORWARD,preserving original rubber isolation mounts. On TRD Edition,REMOVE ORIGINAL REAR SKID PLATE AND BRACE. The manual does not instruct reinstalling those TRD parts. No cutting procedure is printed for this selected system.
- Lay out components as illustrated. Install muffler 05-144197 onto ORIGINAL Y-PIPE using ORIGINAL BOLTS,GASKETS and factory rubber mounts. SUPPORT MUFFLER WITH JACK STAND while installing. The manual does not specify flange torque.
- Install supplied clamps on muffler and insert LEFT and RIGHT over-axle pipes,hanging them on factory isolation mounts. Both pipe service labels are 05-144198 in own diagram; verify actual handed pipes rather than invent a replacement service number.
- Install supplied HANGER BRACKET 05-46222 and hardware. The installation diagram identifies added ISOLATION MOUNT 05-46050; hardware count,thread,length and numerical torque are not specified. Primary identifies this support for DRIVER-SIDE tube.
- Place supplied bands on LEFT and RIGHT tailpipe assemblies,then slip them onto corresponding over-axle pipes and use FACTORY AND PROVIDED isolation mounts. Install LEFT BLACK tip R49T30452-B09 and RIGHT BLACK tip R49T30451-B09,aligning to desired position. FOUR 2.5-inch and TWO 3-inch bands are supplied; use the supplied clamps at the illustrated connections.
- After tips are positioned,ALIGN WHOLE SYSTEM and tighten ALL BAND CLAMPS. No numeric band/flange torque or front-to-rear tightening sequence is printed in this selected manual. Maintain tailpipes at least ONE-HALF TO ONE INCH from body panels.
- Re-check and tighten ALL CLAMPS AND BOLTS after 50-100miles. The installation manual supplies no battery-disconnection,sensor/valve transfer or coding procedure. Check actual secure connections,clearance and sealing before use.
The manufacturer specifies3-inch to 2.5-inch mandrel-bent 409 stainless tubing,100%MIG welds,single-in/dual-out free-flow muffler and dual4.5-inch black stainless tips with riveted laser-cut badges. Advertised6HP11lb-ft is not a verified peak-to-peak figure. Actual linked2008FJ chart notes aFe3-inch REBEL exhaust,not independent identity of this selected dual system. Marked103.65vs97.12HP and201.81vs189.09lb-ft differ by6.53HP12.72lb-ft at different markerRPM positions; cursor2697 does not establish one common marker speed. Printed MAX198.88vs191.92HP and218.85vs215.01lb-ft differ by6.96HP3.84lb-ft. BaselineJune9AM versus comparisonJune13PM2016 used different weather/humidity48vs39% and SAE1.02vs1.01. Both retained OE intake/manifolds/wheels,traction off,third gear,1800-rpm start and Black Fan. No flow chart or measured drone guarantee is supplied. Current manufacturer states no CARB EO number required; that does not authorize altering unrelated emissions equipment.
