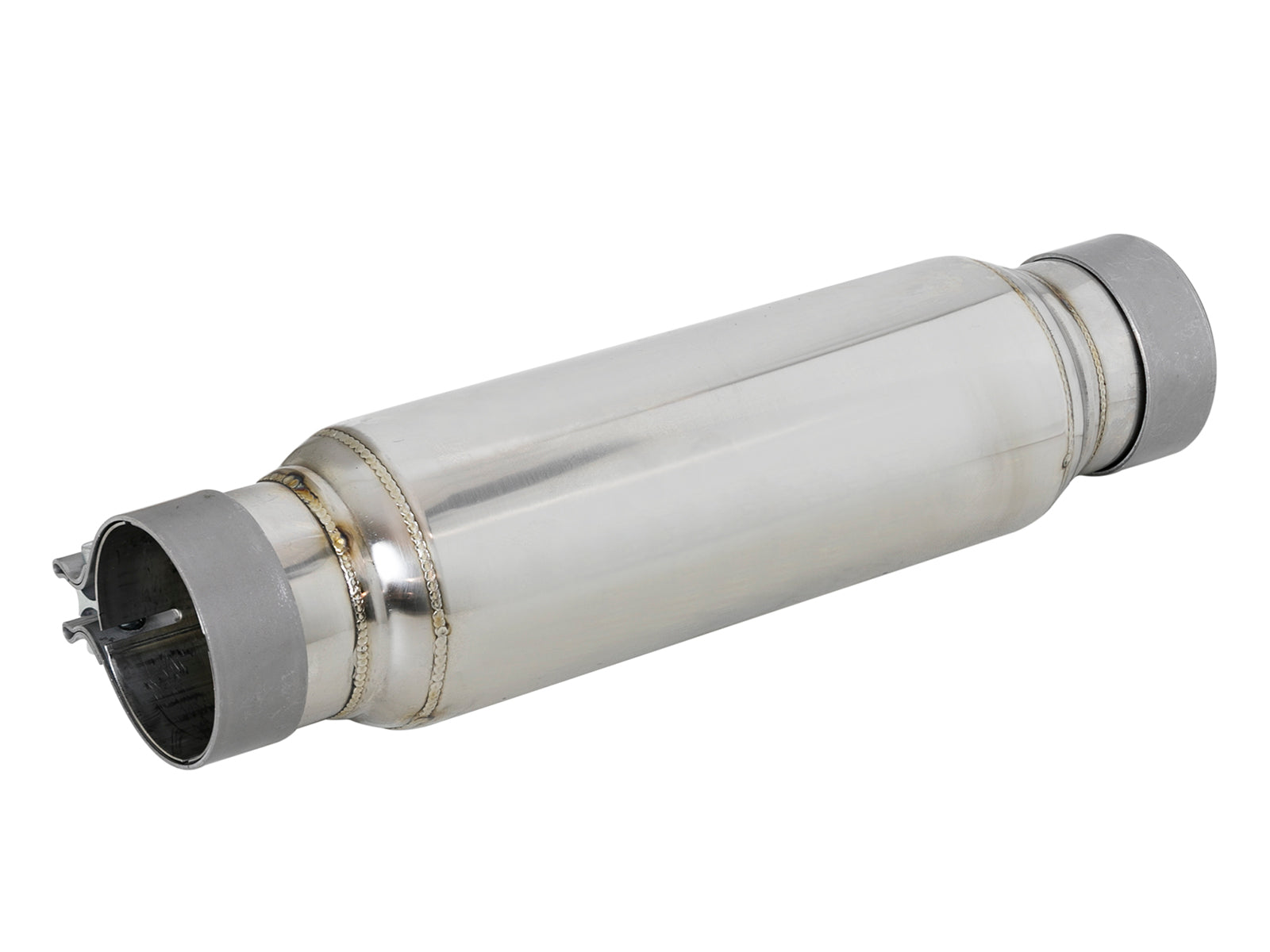

aFe MACH Force-Xp polished 304 stainless resonator, 3-inch inlet/outlet, 4-inch diameter, 12-inch body, 16-inch overall — assembly view

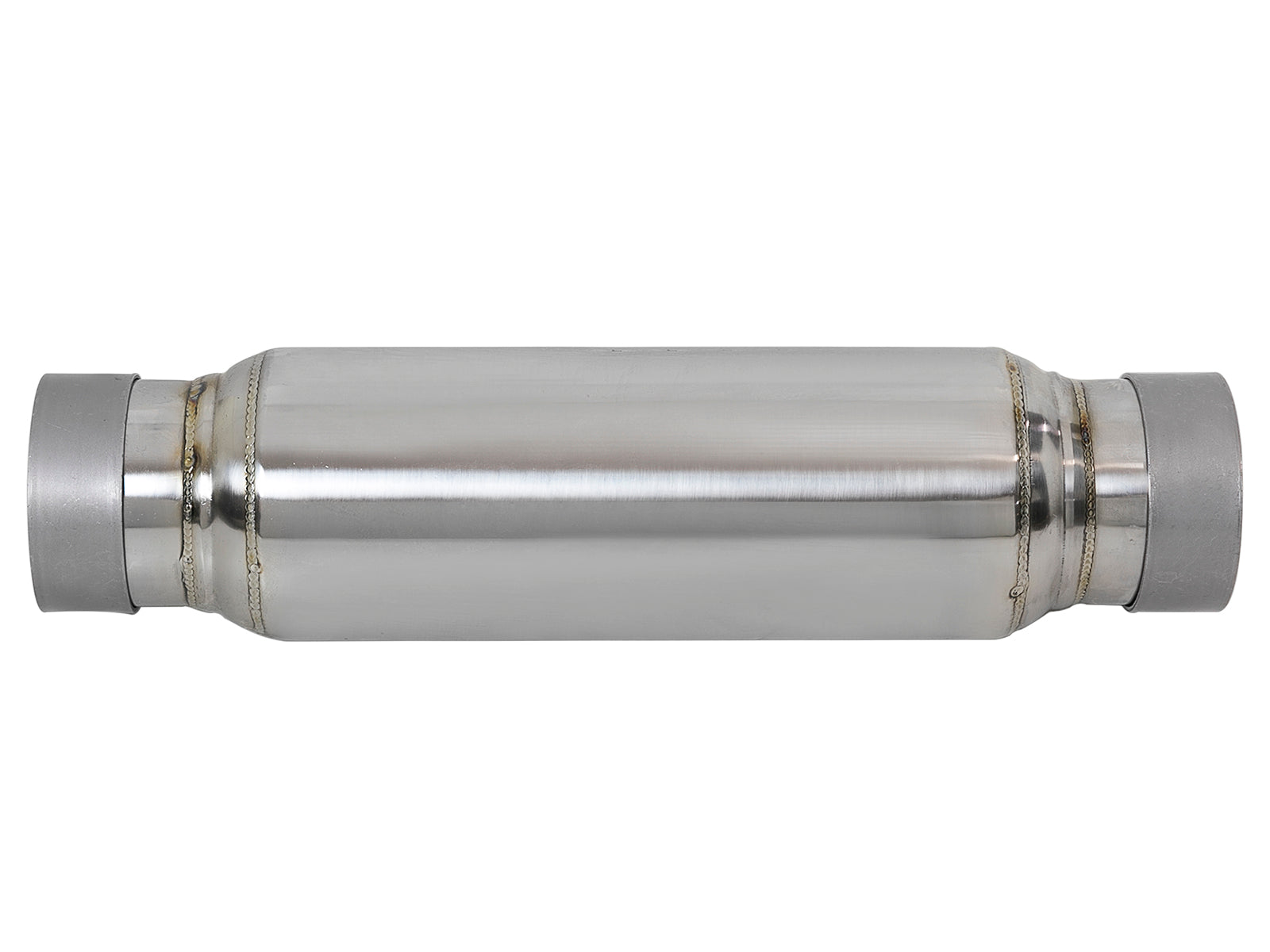

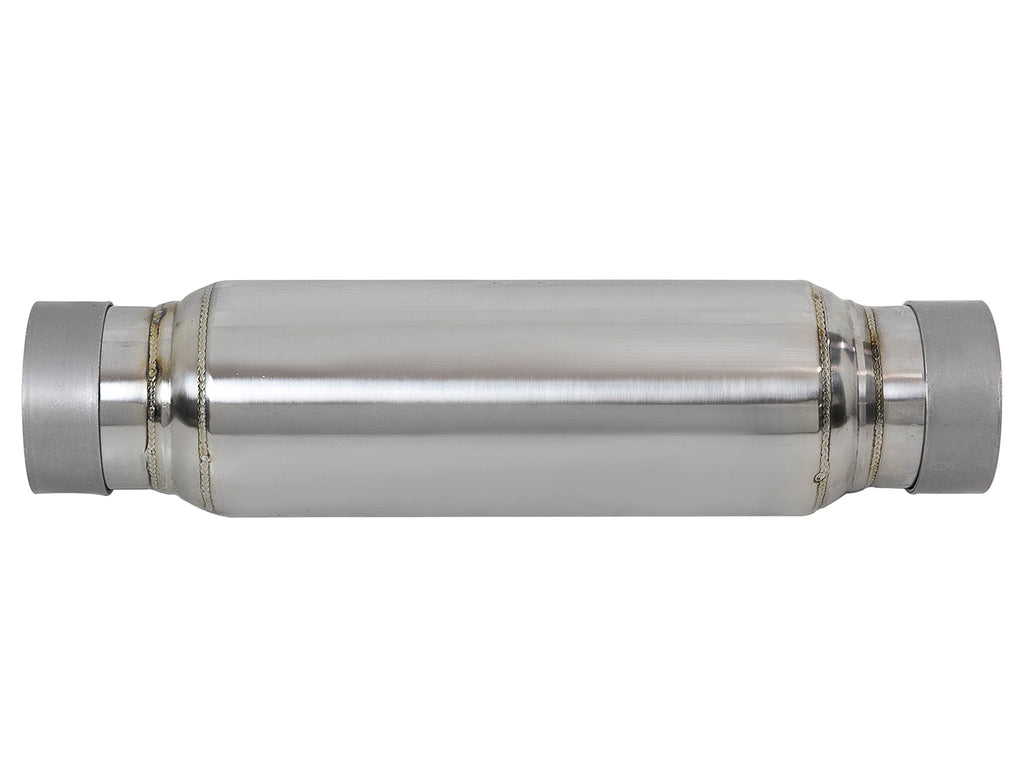

aFe MACH Force-Xp polished 304 stainless resonator, 3-inch inlet/outlet, 4-inch diameter, 12-inch body, 16-inch overall — side view

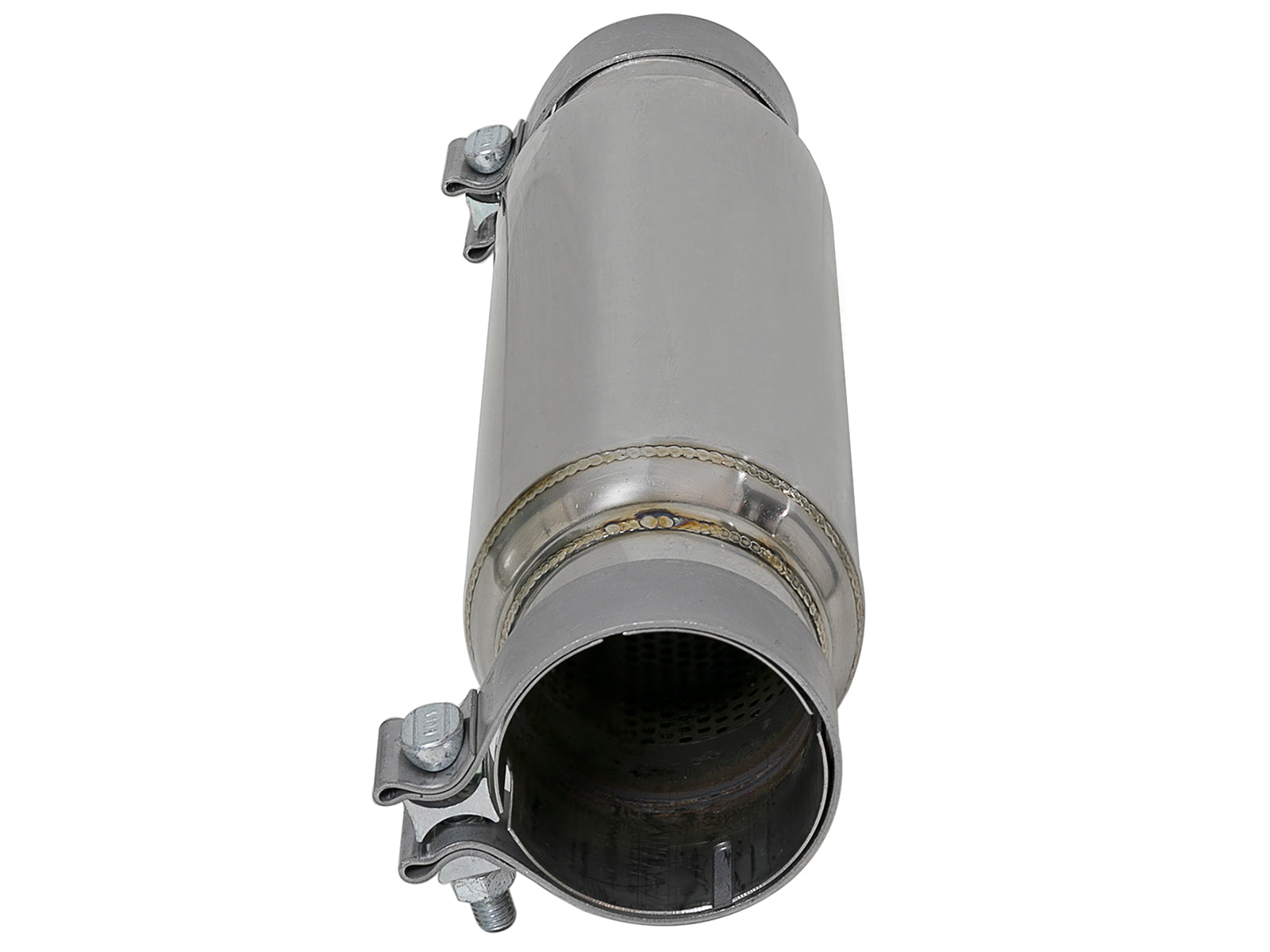

aFe MACH Force-Xp polished 304 stainless resonator, 3-inch inlet/outlet, 4-inch diameter, 12-inch body, 16-inch overall — end view

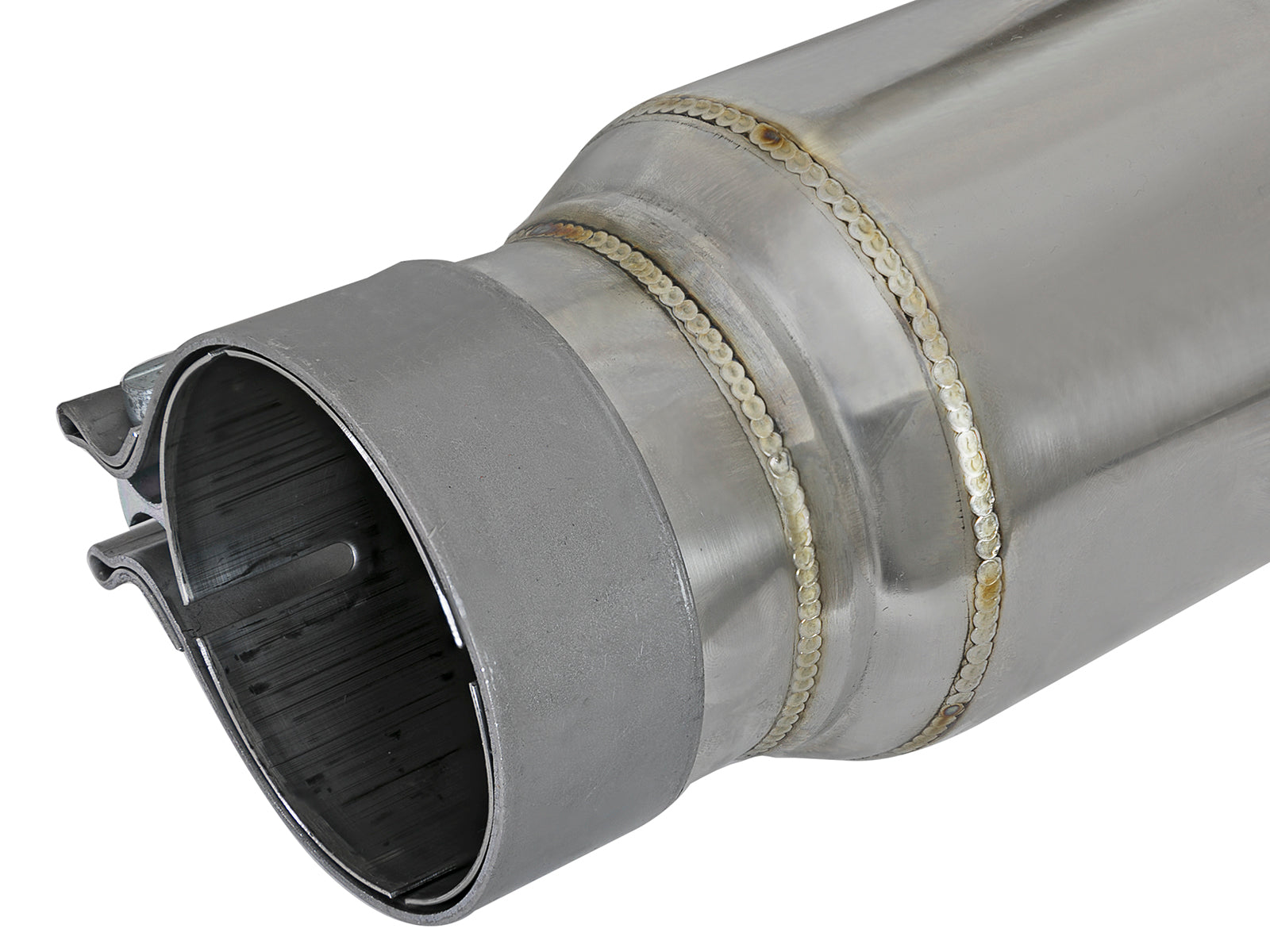

aFe MACH Force-Xp polished 304 stainless resonator, 3-inch inlet/outlet, 4-inch diameter, 12-inch body, 16-inch overall — slotted connection and band clamp

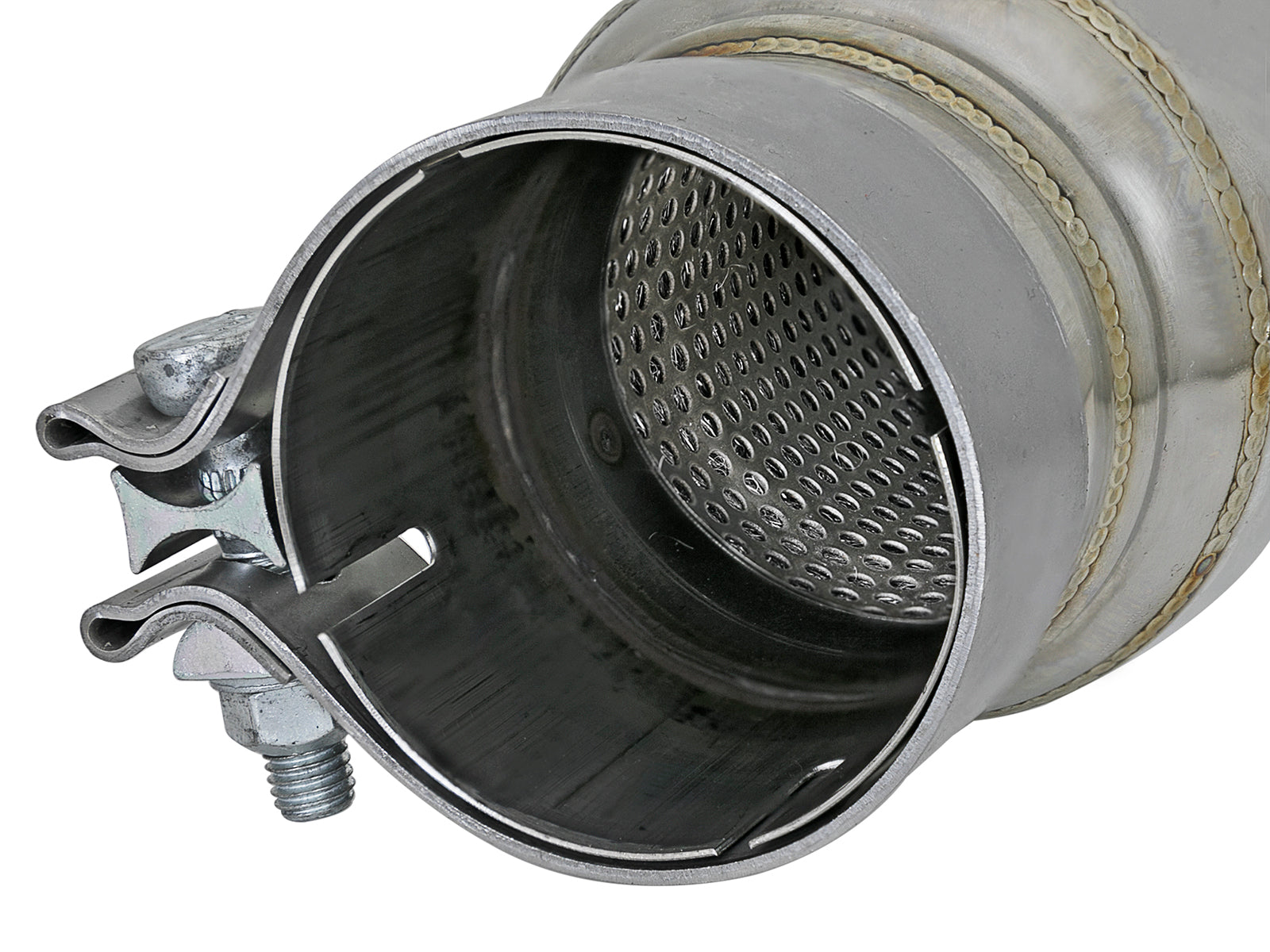

aFe MACH Force-Xp polished 304 stainless resonator, 3-inch inlet/outlet, 4-inch diameter, 12-inch body, 16-inch overall — perforated interior view
Click to zoom in

aFe MACH Force-Xp Resonator — 3-Inch Inlet/Outlet

aFe
AFE49M10001
802959690802
Resonators
11 Units In Stock
$ 140.00 $ 112.00
$ 112.00

Resonance control for compatible exhaust tubing

The aFe 49M10001 MACH Force-Xp resonator is intended to reduce unwanted interior resonance in a compatible 3-inch exhaust. Its polished 304 stainless body measures 4 inches in diameter and 12 inches long, with a 16-inch overall length.

Key Features

  • Polished 304 stainless steel.
  • 3-inch inlet and outlet.
  • 4-inch body diameter; 12-inch body length; 16-inch overall length.
  • Stainless band clamps included.
  • Cutting may be required when adapting to other exhaust brands.
  • Designed to address unwanted interior resonance; results depend on the complete installation.

Fitment

Application Exhaust Requirements
Specification-matched Compatible 3-inch exhaust tubing Confirm connection diameters, available straight length and body clearance; adaptation to another brand may require cutting

Specifications

Detail Value
Brand / line aFe POWER / MACH Force-Xp
Manufacturer Part Number 49M10001
Product type Resonators
Material / finish 304 stainless steel / polished
Inlet / outlet 3 inches / 3 inches
Body diameter / length 4 inches / 12 inches
Overall length 16 inches; distinct from body length
Hardware Stainless band clamps included; exact packaged quantity not specified in selected page text
Installation scope Specification-based exhaust component; possible cutting with other brands
Torque / service interval No numeric clamp torque or fixed recheck mileage established by an exact standalone instruction sheet
UPC 802959690802

What's Included

  • ONE polished 304 stainless resonator.
  • Stainless band clamps; exact quantity not itemized in selected page text.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

FAQ

What is the 49M10001?

One MACH Force-Xp resonator for compatible exhaust tubing. It is a resonance-control component, rather than an X-pipe crossover or a complete exhaust system.

Which dimensions distinguish it?

The connections are 3 inches, the round body is 4 inches in diameter and 12 inches long, and the complete component is 16 inches long. Body length and overall length are different measurements.

What material and finish are verified?

The current manufacturer description specifies polished 304 stainless steel. No TIG or MIG welding process, internal packing composition or wall thickness is established by that description.

What is included?

One resonator and stainless band clamps. The selected page does not itemize an exact clamp quantity; no gasket, hanger, sensor, valve motor, intake filter or coupler is established as part of this exhaust package.

Is installation always a direct bolt-on?

No. The manufacturer identifies compatibility with 3-inch tubing and warns that cutting may be required with other brands. Verify actual pipe engagement and space before removing or cutting existing parts.

Will it eliminate drone or provide a numerical power gain?

It is designed to reduce unwanted interior resonance, but no guarantee of eliminating drone is established. No actual selected-part dyno, airflow or measured sound chart was located; numerical gains are not stated.

What clamp torque or recheck interval applies?

No exact standalone instruction sheet was located. Obtain the correct clamp instructions; no numeric torque, cut dimension, tightening sequence or fixed mileage interval is substituted from another exhaust product.

What emissions statement is supplied?

The manufacturer states that no CARB EO number is required for this component. That statement does not authorize removing required emissions equipment or waive local exhaust and noise requirements.

Installation Instructions

  1. Allow the exhaust to cool. Compare the resonator, supplied clamps, actual pipe connections and available installation space before disassembly.
  2. Plan room for the complete component and its body. The manufacturer warns that other-brand installations may need cutting; have an exhaust installer establish any required cut locations or fabrication. No fixed cut measurement is supplied here.
  3. Fit the resonator and secure its clamps using the correct hardware instructions while checking engagement and surrounding clearance. No numeric torque or tightening order is established by an exact standalone manual.
  4. Inspect attachment and clearance after fitting. No fixed recheck mileage, battery disconnection, sensor transfer, valve procedure or coding instruction is established for this component.
