aFe MACH Force-Xp Catback — Tacoma 2.7L, Polished Tip

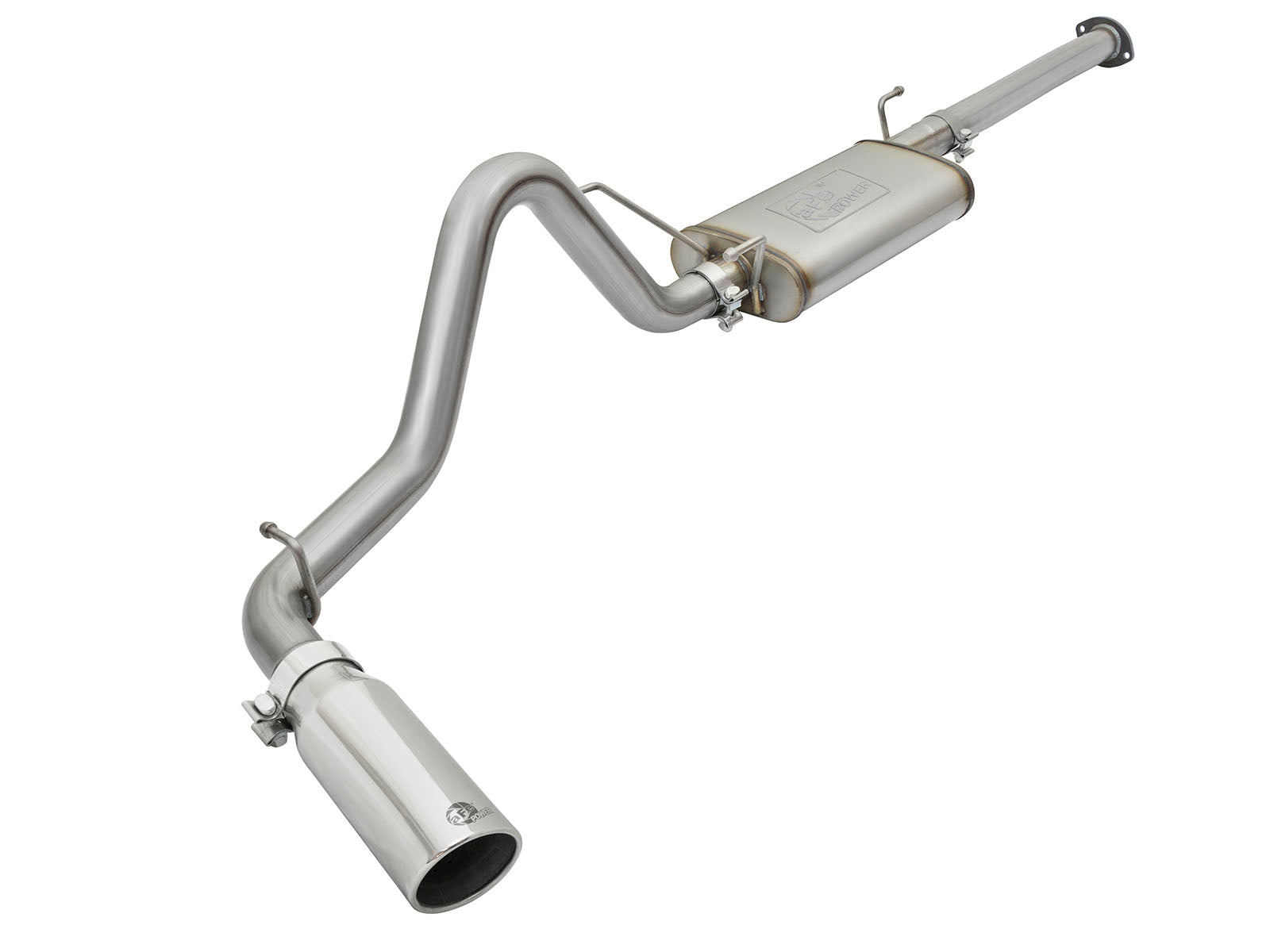

Tacoma 2.7L cat-back with one polished resonated tip

The aFe 49-46031-P MACH Force-Xp uses 2-1/2-inch mandrel-bent 409 stainless tubing, MIG welds and a free-flowing stainless muffler. One 4-inch polished stainless rolled slash-cut resonated tip carries a laser-etched aFe logo. The selected current primary does not print an alloy grade for the tip. The exact selected manufacturer and guide list Tacoma gasoline L4 2.7L, 2005–2012, with Double Cab short/long bed or Access Cab long bed. The current page prints 127.4-inch short-layout and 140.9-inch long-layout wheelbase labels; the selected guide does not supply its own numeric wheelbase branch. Confirm actual truck dimensions and exact engine/body approval with aFe before ordering, especially if a printed wheelbase differs from the vehicle. No regular-cab or V6 approval is inferred.

Key Features

• Selected aFe part 49-46031-P.
• 2-1/2-inch mandrel-bent 409 stainless main tubing and MIG welds, with a free-flowing muffler.

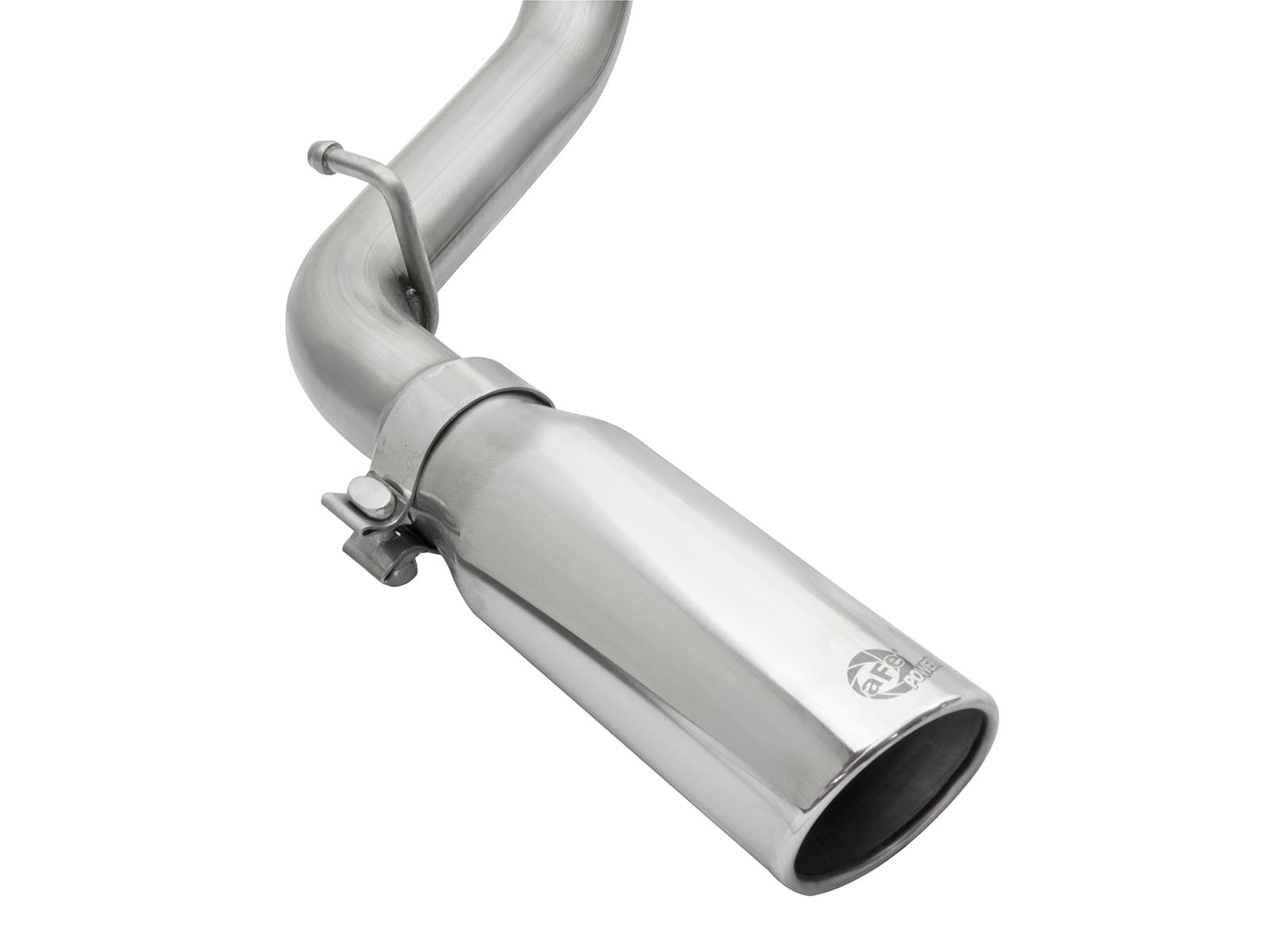

• One 4-inch polished stainless rolled slash-cut resonated tip; no tip alloy grade is guaranteed from a different system.
• The exact selected manufacturer and guide list Tacoma gasoline L4 2.7L, 2005–2012, with Double Cab short/long bed or Access Cab long bed. The current page prints 127.4-inch short-layout and 140.9-inch long-layout wheelbase labels; the selected guide does not supply its own numeric wheelbase branch. Confirm actual truck dimensions and exact engine/body approval with aFe before ordering, especially if a printed wheelbase differs from the vehicle. No regular-cab or V6 approval is inferred.
• one front pipe 05-144190, one extension pipe 05-144191, one muffler assembly 05-44731, one over-axle assembly 05-44732, three 2-1/2-inch bands 05-41061 and one selected polished tip labeled R49-90010-P in the guide. The black alternative R49T30404-B121 is not also included.
• The page assigns the extension to Crew Cab/long bed, but the selected eight-step guide gives no explicit extension-installation branch or trim length. Its procedure also mentions a separate tailpipe installation without labeling a separate tailpipe part in the diagram. Confirm actual packing, section identity, extension placement and joint engagement with aFe before disassembly; do not invent another pipe or borrow another Tacoma system’s extension dimensions.
• Original bolts, gaskets and rubber isolation mounts are reused. The selected guide explicitly supports the muffler assembly with a jack stand during installation.
• No numeric torque in the selected guide. Maintain its at-least 1/2–1-inch tailpipe-to-body spacing and recheck all exhaust components after 50–100 miles.
• aFe claims up to +9 hp/+10 lb-ft, but no exact selected dyno chart is linked. Test configuration and conditions were not established here; no measured gain or drone-free result is guaranteed.

Fitment

The exact selected manufacturer and guide list Tacoma gasoline L4 2.7L, 2005–2012, with Double Cab short/long bed or Access Cab long bed. The current page prints 127.4-inch short-layout and 140.9-inch long-layout wheelbase labels; the selected guide does not supply its own numeric wheelbase branch. Confirm actual truck dimensions and exact engine/body approval with aFe before ordering, especially if a printed wheelbase differs from the vehicle. No regular-cab or V6 approval is inferred. The independently read exact-part named table supports both original Base and Pre Runner ranges, 2005–2012. The tags and their bounds are retained; actual engine/body availability and confirmed extension arrangement remain required. The page assigns the extension to Crew Cab/long bed, but the selected eight-step guide gives no explicit extension-installation branch or trim length. Its procedure also mentions a separate tailpipe installation without labeling a separate tailpipe part in the diagram. Confirm actual packing, section identity, extension placement and joint engagement with aFe before disassembly; do not invent another pipe or borrow another Tacoma system’s extension dimensions.

Specifications

What's Included

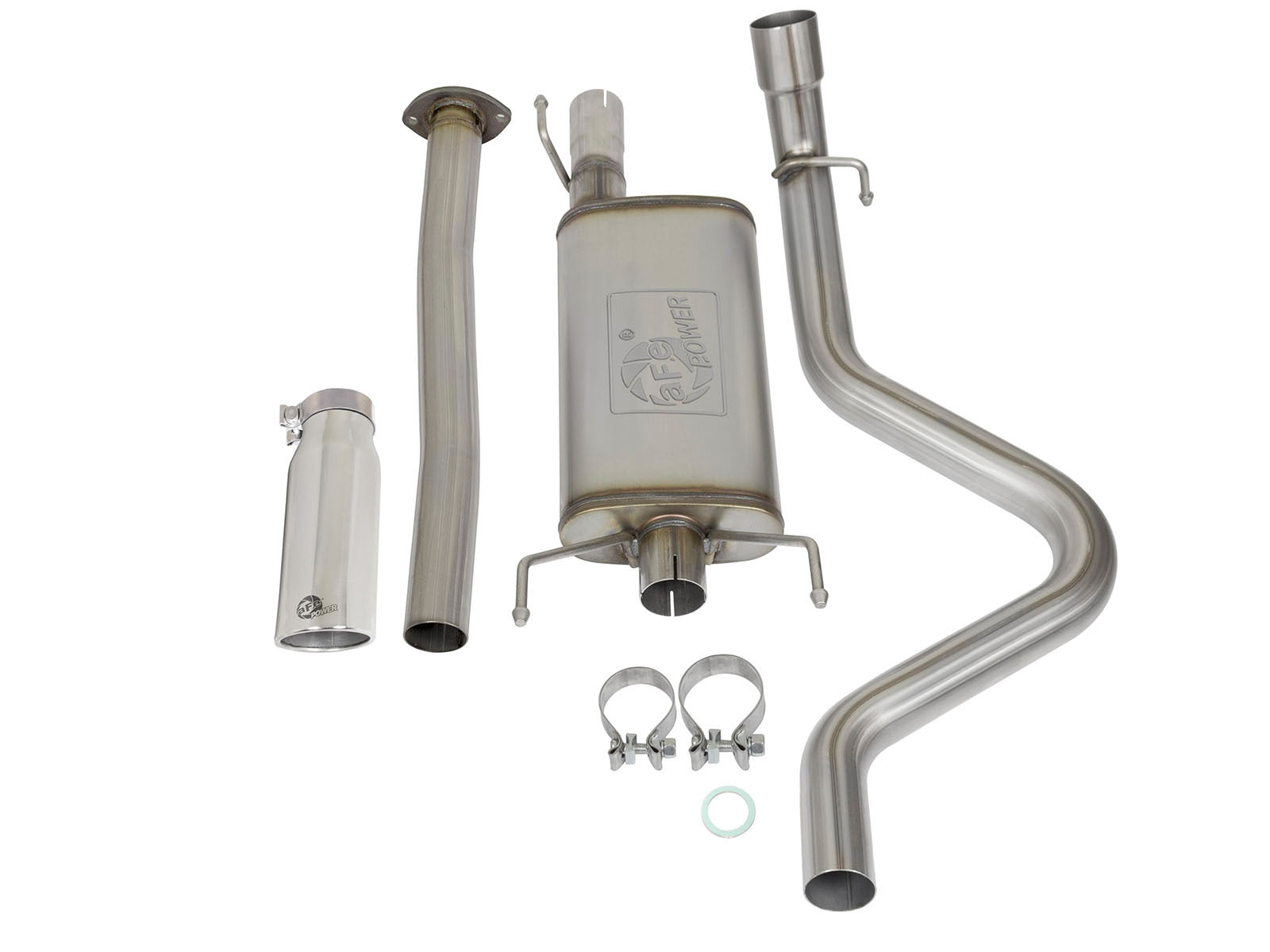

• The 49-46031-P kit includes one front pipe 05-144190, one extension pipe 05-144191, one muffler assembly 05-44731, one over-axle assembly 05-44732, three 2-1/2-inch bands 05-41061 and one selected polished tip labeled R49-90010-P in the guide. The black alternative R49T30404-B121 is not also included.
• The page assigns the extension to Crew Cab/long bed, but the selected eight-step guide gives no explicit extension-installation branch or trim length. Its procedure also mentions a separate tailpipe installation without labeling a separate tailpipe part in the diagram. Confirm actual packing, section identity, extension placement and joint engagement with aFe before disassembly; do not invent another pipe or borrow another Tacoma system’s extension dimensions.
• Retain original front-joint gaskets, bolts and factory isolation mounts. No new catalyst, sensor, intake filter, battery equipment or separately identified replacement tailpipe is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact selected manufacturer system and extension claim
• Complete selected eight-step guide and parts diagram
• Full exact-part named application table
• Shop cat-back exhausts

FAQ

It is the selected 2-1/2-inch 409 stainless cat-back with a muffler and one polished resonated tip for matching Tacoma gasoline 2.7L configurations.

The exact selected manufacturer and guide list Tacoma gasoline L4 2.7L, 2005–2012, with Double Cab short/long bed or Access Cab long bed. The current page prints 127.4-inch short-layout and 140.9-inch long-layout wheelbase labels; the selected guide does not supply its own numeric wheelbase branch. Confirm actual truck dimensions and exact engine/body approval with aFe before ordering, especially if a printed wheelbase differs from the vehicle. No regular-cab or V6 approval is inferred.

The page assigns the extension to Crew Cab/long bed, but the selected eight-step guide gives no explicit extension-installation branch or trim length. Its procedure also mentions a separate tailpipe installation without labeling a separate tailpipe part in the diagram. Confirm actual packing, section identity, extension placement and joint engagement with aFe before disassembly; do not invent another pipe or borrow another Tacoma system’s extension dimensions.

one front pipe 05-144190, one extension pipe 05-144191, one muffler assembly 05-44731, one over-axle assembly 05-44732, three 2-1/2-inch bands 05-41061 and one selected polished tip labeled R49-90010-P in the guide. The black alternative R49T30404-B121 is not also included.

The guide reuses stock bolts, gaskets and rubber isolation mounts. It explicitly supports the muffler with a jack stand while the front pipe and muffler assembly are installed onto the stock Y-pipe.

No numeric torque is printed. Obtain the applicable factory and supplied-hardware settings; keep the tailpipe at least 1/2–1 inch from body panels. No other system’s band torque is borrowed.

The selected guide recommends retightening all exhaust components after 50–100 miles. Resolve extension and pipe-identity questions before disassembly, rather than improvising a joint or extra part.

The current manufacturer claims +9 hp/+10 lb-ft and describes aggressive sound. No exact selected dyno chart is linked to establish the full test conditions, so no measured gain or drone-free result is guaranteed.

Installation Instructions

1. Confirm aFe 49-46031-P against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Confirm exact gasoline L4 2.7L, named years, actual cab/bed and wheelbase. Resolve extension placement, section identity and printed replacement-tip label with aFe before disassembly. Cool and safely support the vehicle and exhaust.
3. Remove original exhaust rear to front up to the catalytic-converter connection, retaining original hardware and rubber isolation mounts. Lay out all actual parts and keep clamps loose until the whole assembly is installed.
4. Install the selected front pipe and muffler assembly onto the stock Y-pipe using stock bolts, gaskets and factory isolation mounts. Support the muffler with a jack stand as the selected guide requires.
5. The manufacturer page assigns the extension to Crew Cab/long bed; the selected procedure does not give its branch, cut length or placement step. Follow the confirmed actual arrangement and packing list before continuing, without borrowing another system’s extension size.
6. Fit the selected over-axle assembly with supplied clamps. The procedure’s separate tailpipe reference lacks a separate diagram part number; confirm actual section identity rather than adding an unlisted pipe. Fit the one polished tip loosely at the desired position.
7. Adjust and straighten the whole assembly, then tighten from front flange toward the rear using applicable settings. No numeric torque is printed. Maintain at least 1/2–1-inch tailpipe-to-body spacing.
8. Retighten all exhaust components after 50–100 miles. No cutting, battery, sensor or REBEL brake-cable-bracket procedure is borrowed.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
