Volkswagen GTI MKVI MACH Force-Xp cat-back

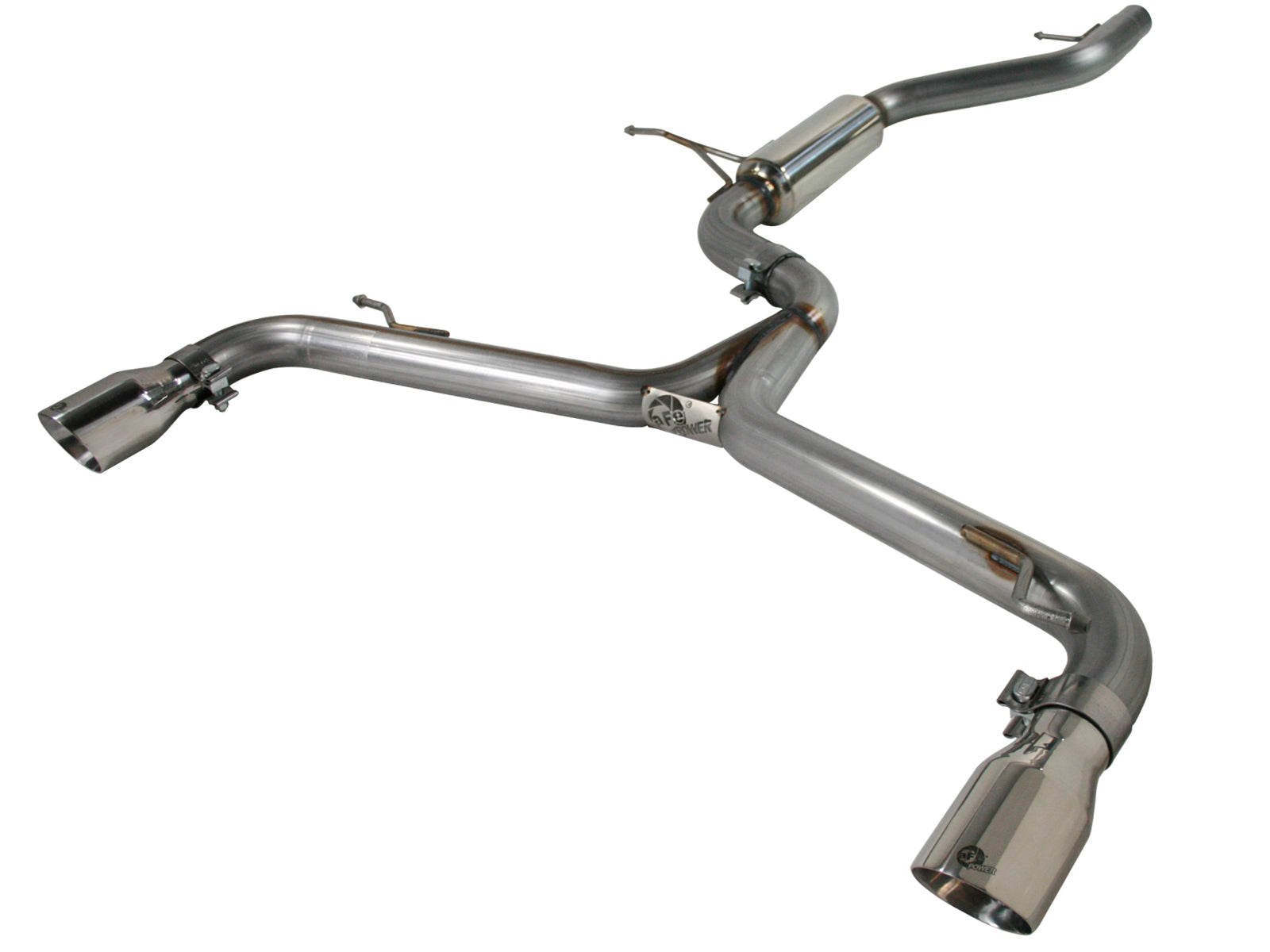

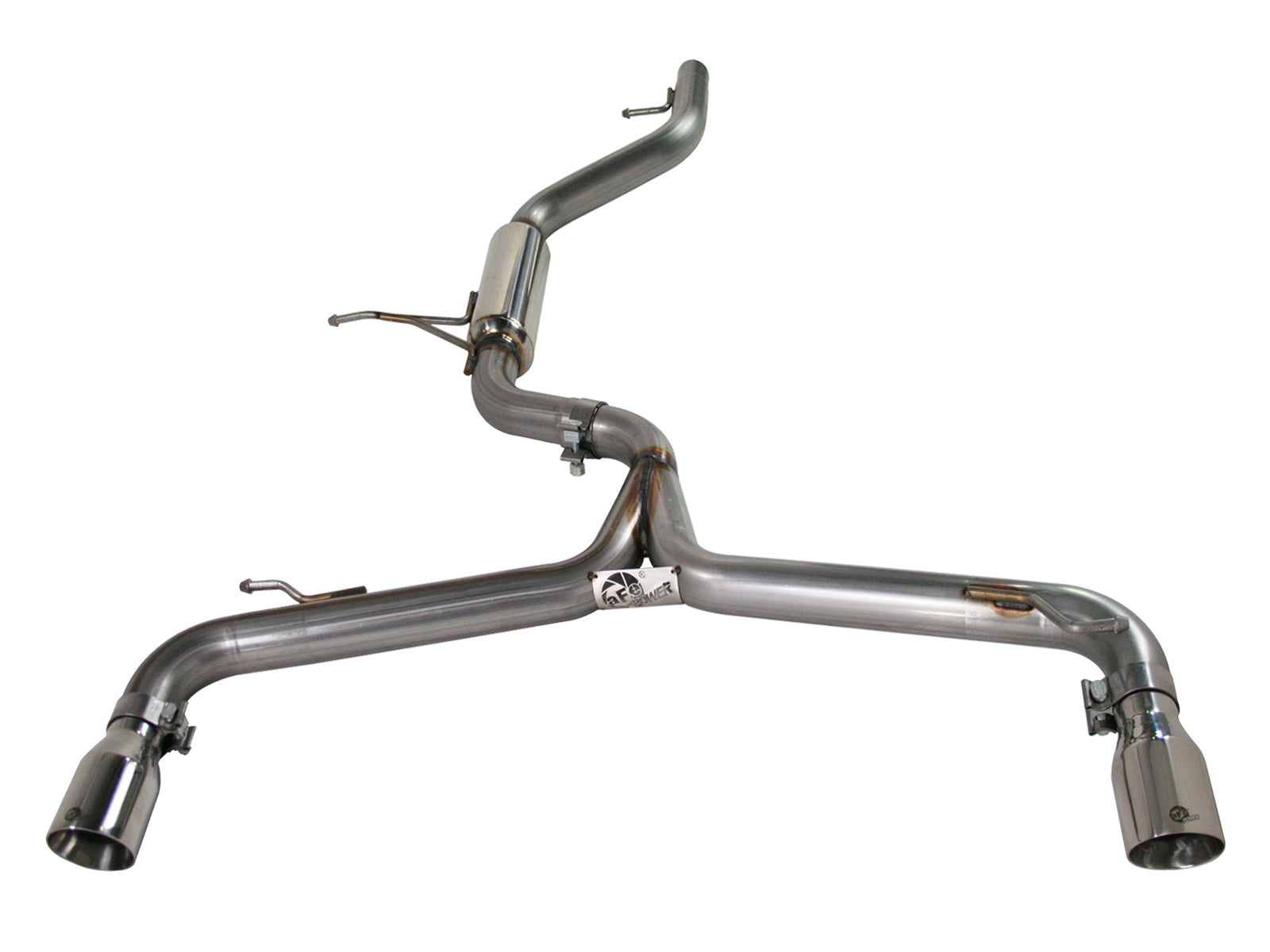

The aFe 49-46405 cat-back uses 2.5-inch mandrel-bent 409 stainless tubing, a resonated mid-pipe and split tailpipe. Two 3.5-inch double-wall, angle-cut polished 304 stainless tips carry laser-etched aFe logos. The selected current application and guide identify GTI MKVI gas L4-2.0L turbo for 2010-2014.
Key Features
- Selected aFe part 49-46405.
- 2.5-inch mandrel-bent 409 stainless tubing.
- Resonated mid-pipe and split rear outlet.
- Two 3.5-inch double-wall angle-cut polished 304 stainless tips.
- Original front exhaust clamp and rubber hanger mounts retained.
- Selected primary describes reduced drone, not a drone-free guarantee.
Fitment
The exact manufacturer table and complete selected guide identify 2010-2014 GTI MKVI gas L4-2.0L turbo. The full exact-part named table supports Base 2010-2013, Driver's Edition 2014 and Wolfsburg Edition 2014. All three existing groups and year ranges remain unchanged; no Golf R, diesel, later generation or other engine is inferred.
| Years | Make | Model | Submodel |
|---|---|---|---|
| 2010-2013 | Volkswagen | GTI | Base |
| 2014 | Volkswagen | GTI | Driver's Edition |
| 2014 | Volkswagen | GTI | Wolfsburg Edition |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49-46405 |
| Product type | Catback |
| Tubing and resonator | 2.5-inch mandrel-bent 409 stainless with a 2.5-inch resonator. Primary explicitly describes MIG-welded hangers; no additional unprinted welding claim is inferred. |
| Tips | Two polished 304 stainless 3.5-inch double-wall angle-cut tips 49T25354-P07. |
| Selected sections | Resonated mid-pipe 05-44676 and split tailpipe 05-44679. |
| Band quantities | Three 2.5-inch bands per procedure: one mid/tail and two tip bands. Only mid/tail band part number 05-41061 is explicitly labeled in the diagram. |
| Original hardware | Reuse original front exhaust clamp and rubber hanger mounts. No new flange gaskets or other original hardware are promised. |
| Tightening and recheck | Align the mid-pipe and tailpipe before tightening the original front exhaust clamp, then the supplied mid/tail 2.5-inch band. Install the two tips with their two supplied 2.5-inch bands and recheck the work. No numeric torque, fixed clearance dimension or mileage interval is printed; none is borrowed from another product. |
| Performance and sound | Manufacturer claims +10 hp/+9 lb-ft without a linked selected chart establishing test conditions, modifications or point/peak values. Reduced drone and sporty sound are manufacturer descriptions, not measured every-vehicle gains or a drone-free guarantee. |
| UPC | 802959491423 |
What's Included
- The 49-46405 kit includes one resonated mid-pipe 05-44676, one split tailpipe 05-44679 and two polished tips 49T25354-P07. The selected steps specify three supplied 2.5-inch bands total: one at the mid/tail joint and two for the tips. The diagram labels the mid/tail band 05-41061 but does not separately print part identities for the two tip bands.
- Original front exhaust clamp and rubber hanger mounts are reused.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact selected GTI construction and current applications
- Complete selected eight-step guide and parts diagram
- Full exact-part named GTI applications
- Shop cat-back exhaust systems
FAQ
What is the 49-46405?It is a resonated 2.5-inch 409 stainless cat-back with two polished 304 stainless tips for the listed GTI MKVI 2.0T applications.
Which GTI applications are covered?GTI MKVI gas L4-2.0L turbo, with Base 2010-2013 and Driver's Edition/Wolfsburg Edition 2014 named scopes. No diesel, Golf R or later GTI generation is inferred.
What parts and bands are included?one resonated mid-pipe 05-44676, one split tailpipe 05-44679 and two polished tips 49T25354-P07. The selected steps specify three supplied 2.5-inch bands total: one at the mid/tail joint and two for the tips. The diagram labels the mid/tail band 05-41061 but does not separately print part identities for the two tip bands.
Which original components are reused?The selected eight-step sheet retains the original front exhaust clamp and rubber hanger mounts. It does not supply a front flange-gasket service procedure or new gaskets.
In what order are the clamps tightened?Align the mid-pipe and tailpipe before tightening the original front exhaust clamp, then the supplied mid/tail 2.5-inch band. Install the two tips with their two supplied 2.5-inch bands and recheck the work. No numeric torque, fixed clearance dimension or mileage interval is printed; none is borrowed from another product.
Does this guide require cutting or brace removal?No selected cutting or chassis-brace removal step is printed. Those procedures are not borrowed from the separate Passat or Jetta systems.
Is there a selected torque or mileage interval?No numeric torque, fixed clearance dimension or mileage interval is printed. Follow the actual selected guide and vehicle service requirements; a 50-100-mile instruction from another product is not substituted.
Are the power and sound claims guaranteed?No. The primary claims +10 hp/+9 lb-ft without a selected linked test chart and describes sporty sound with drone kept to a minimum. No measured every-vehicle gain, fixed noise level or drone-free result is established.
Installation Instructions
- Confirm aFe 49-46405 against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
- Confirm exact GTI MKVI 2.0T and named year range. Cool the exhaust and secure the vehicle on stands at the exact vehicle manual's prescribed support positions.
- Loosen the original mid-pipe exhaust clamp. Remove the original muffler section by sliding it off the rubber hanger mounts.
- Install the selected resonated front mid-pipe using the original rubber hanger mounts, leaving its connection loose.
- Using one supplied 2.5-inch band, slide the selected tailpipe onto the mid-pipe and hanger mounts, leaving the band loose. Align the system, then tighten the original front clamp followed by the supplied mid/tail band.
- Install the two selected polished tips using the two supplied 2.5-inch bands. Recheck the complete installation. The selected sheet gives no numeric torque, fixed clearance or mileage interval, and no cutting, battery, sensor or brace procedure is borrowed.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
