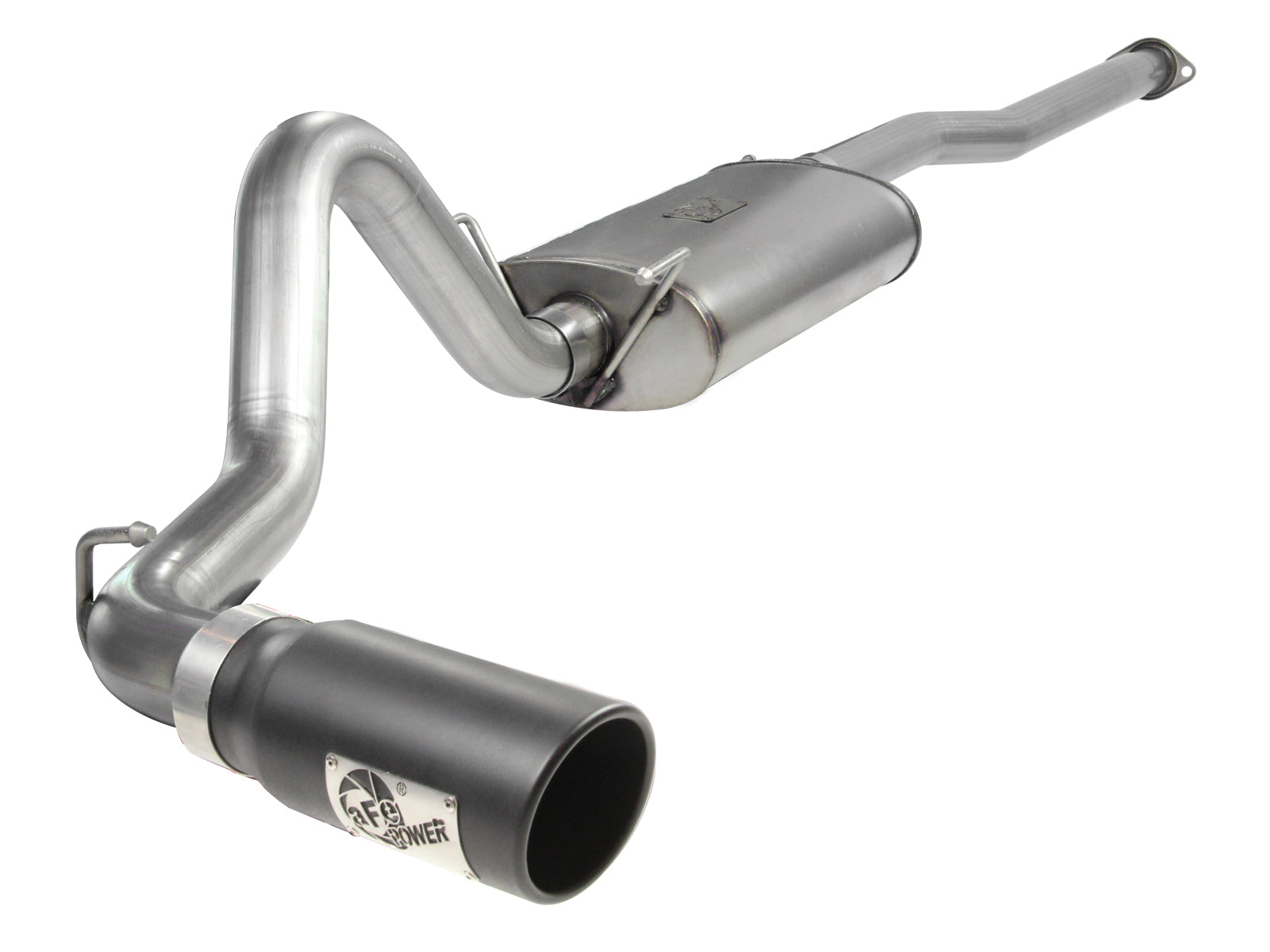

aFe 49-46001-1B 2005–2012 Toyota Tacoma 4.0L, excluding X-Runner: Assembled cat-back with one black tip.

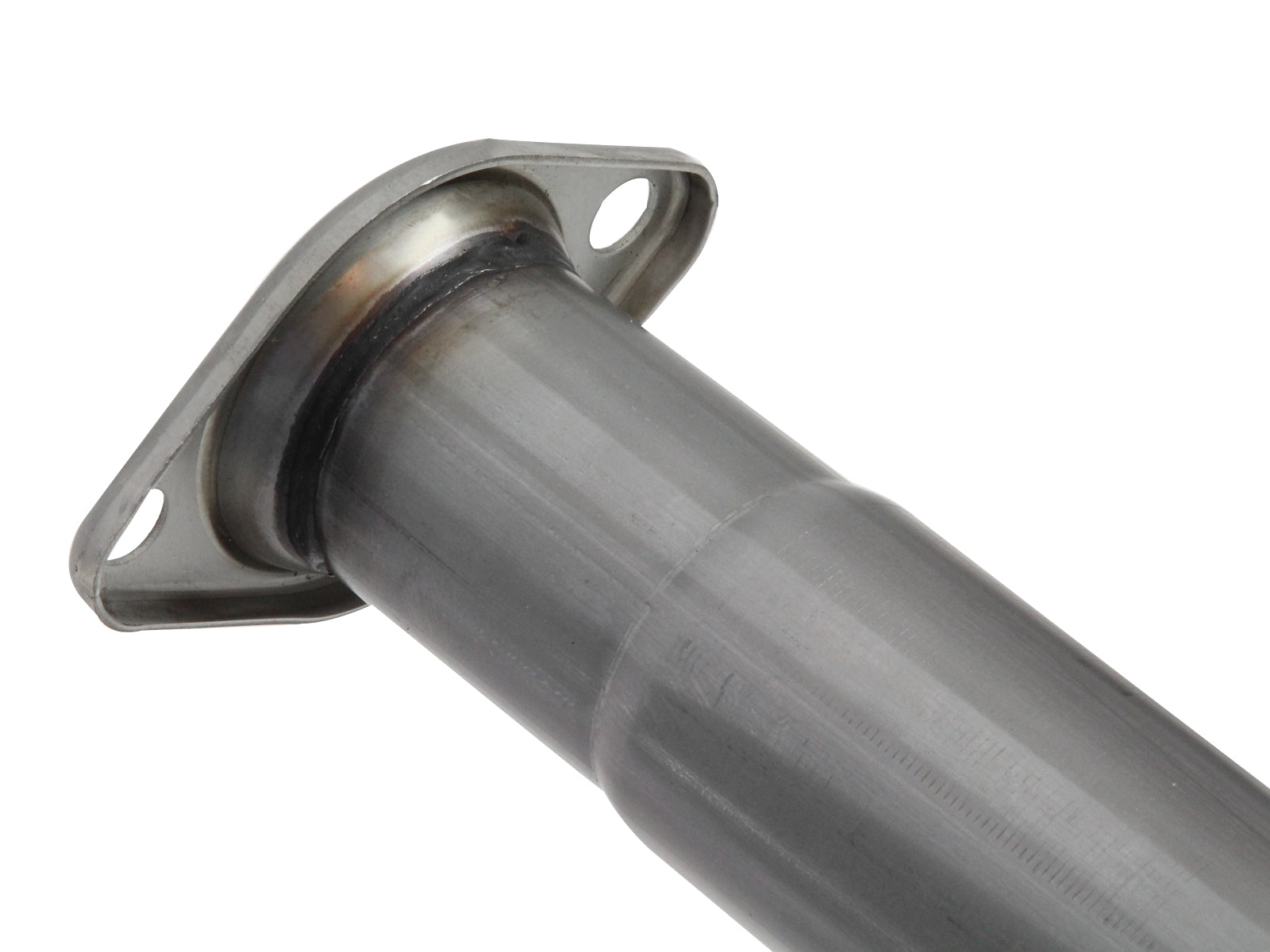

aFe 49-46001-1B 2005–2012 Toyota Tacoma 4.0L, excluding X-Runner: Factory-style front flange close-up.

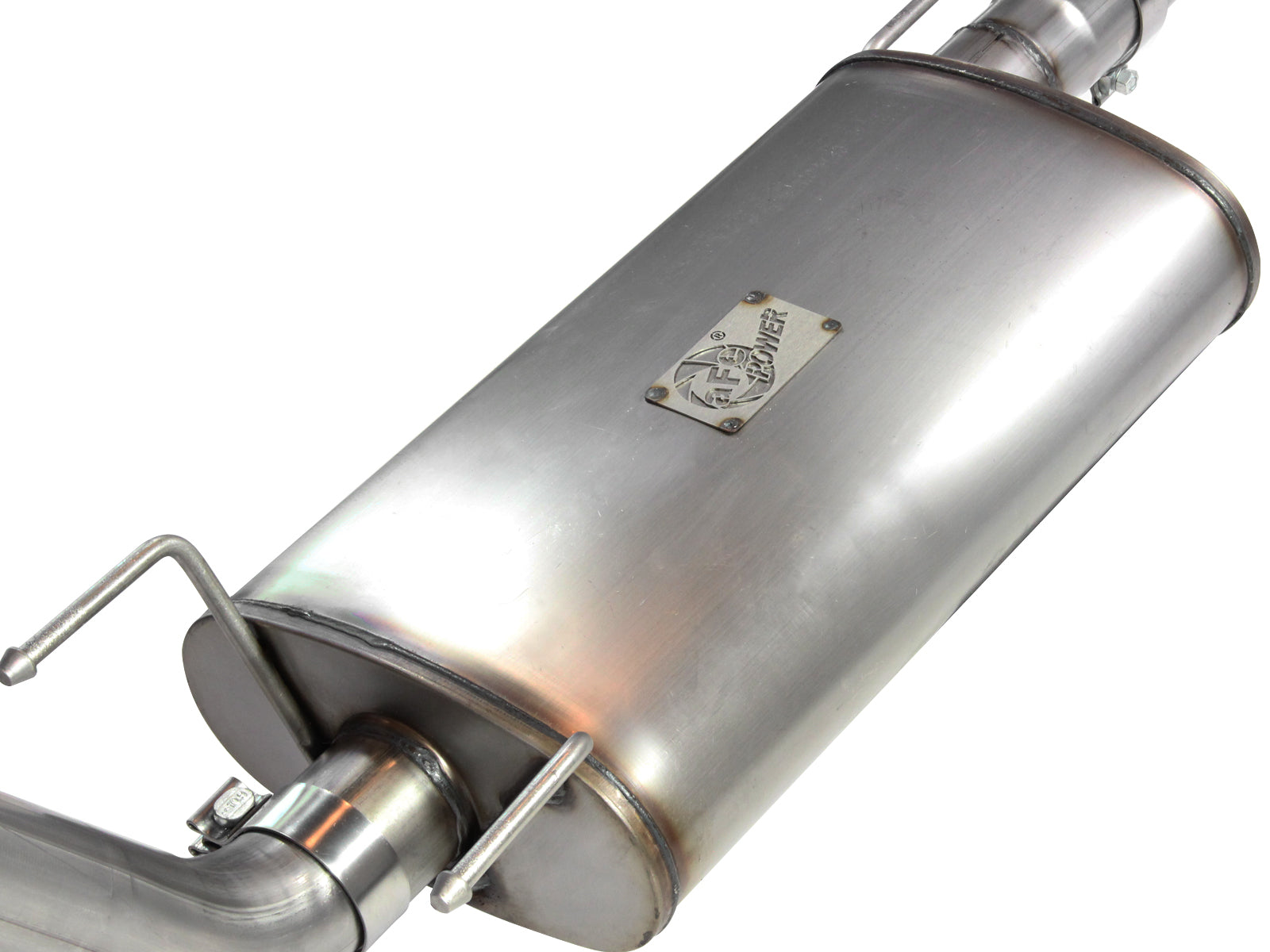

aFe 49-46001-1B 2005–2012 Toyota Tacoma 4.0L, excluding X-Runner: Muffler body and logo close-up.

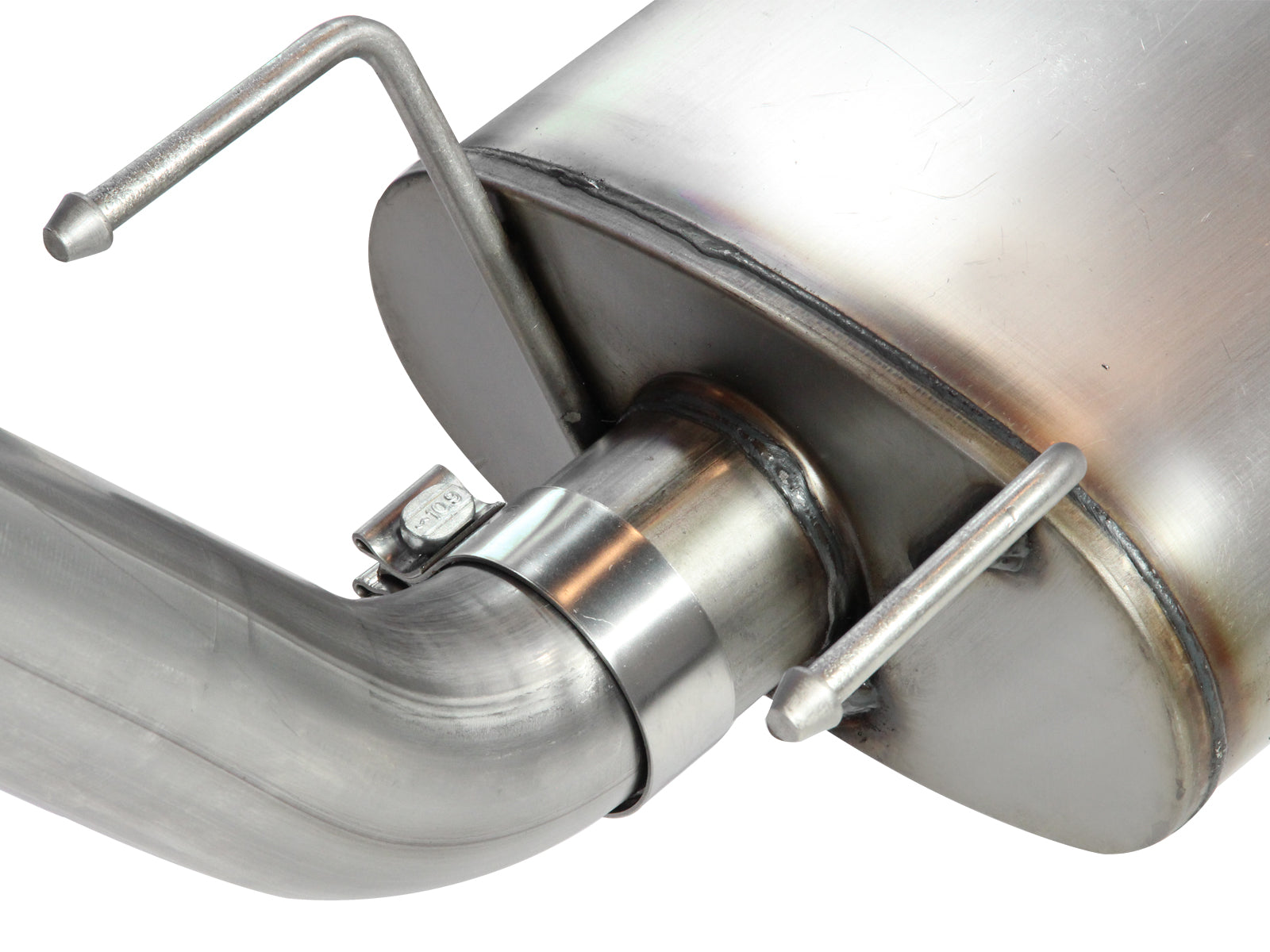

aFe 49-46001-1B 2005–2012 Toyota Tacoma 4.0L, excluding X-Runner: Muffler-to-tailpipe band connection close-up.

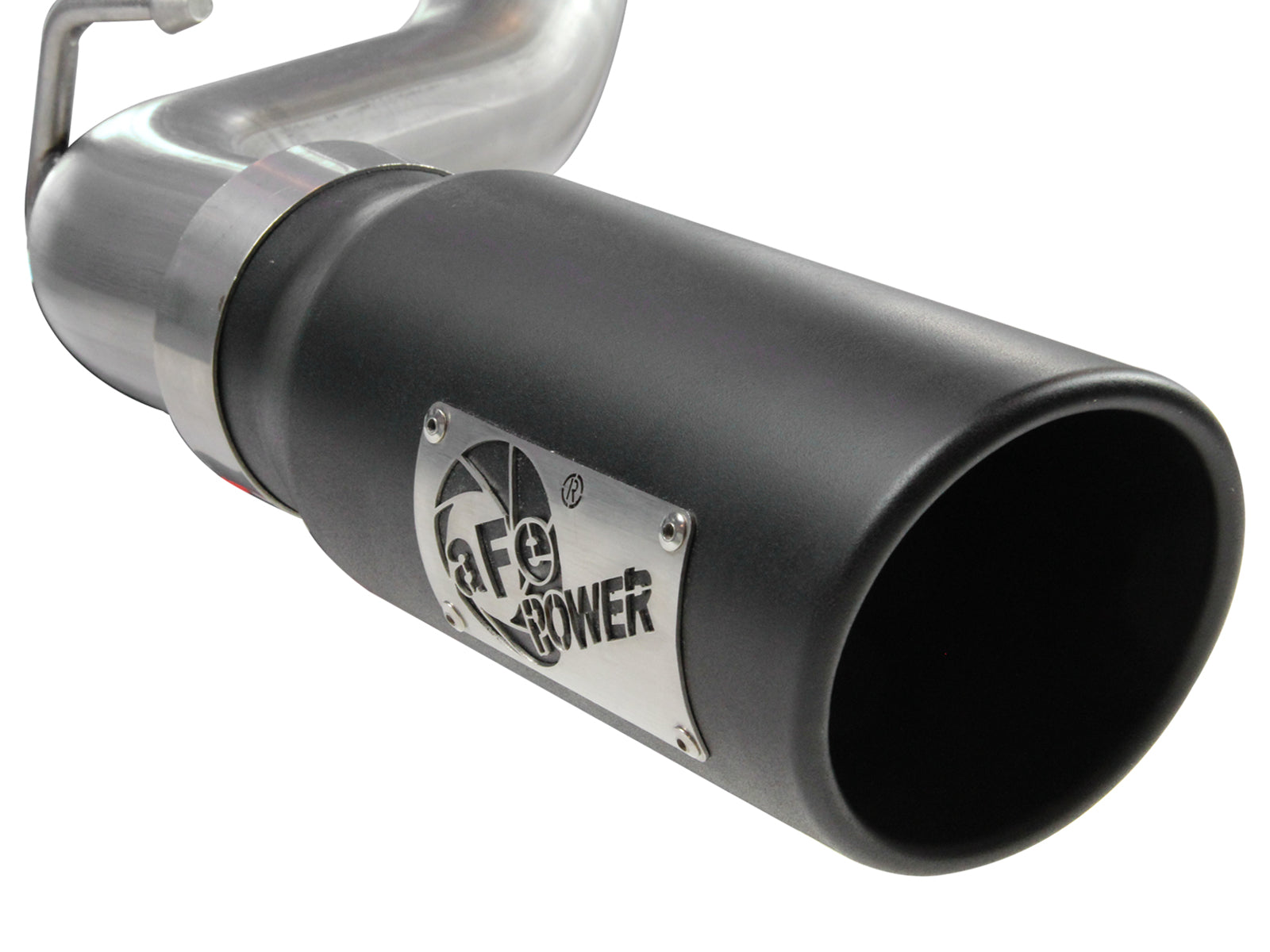

aFe 49-46001-1B 2005–2012 Toyota Tacoma 4.0L, excluding X-Runner: Single black 304 stainless tip close-up.
Click to zoom in

aFe MACH Force-Xp Catback — Tacoma 4.0L, Black Tip

aFe
AFE49-46001-1B
802959496169
Catback
5 Units In Stock
$ 1,191.25 $ 953.00
$ 953.00

Tacoma 4.0L MACH Force-Xp with one black tip

The aFe 49-46001-1B MACH Force-Xp cat-back uses 3-inch mandrel-bent 409 stainless tubing and a free-flowing straight-through muffler. One black 304 stainless rolled slash-cut tip with aFe badge provides the rear-side outlet. The exact current manufacturer explicitly excludes X-Runner.

Key Features

  • Selected aFe part 49-46001-1B.
  • 3-inch mandrel-bent 409 stainless main tubing with a free-flowing straight-through muffler.
  • One selected black 304 stainless rolled slash-cut tip 49T30451-B12; no additional finish or replacement-tip inset part is included.
  • one mid-pipe 05-44736, one muffler assembly 05-44737, one combined over-axle/tailpipe 05-44738, two 3-inch bands 05-41055 and one selected black 304 stainless tip 49T30451-B12. The other finish and replacement-tip sizing inset are alternatives, not extra tips or supplied components.
  • The selected guide requires cutting the SUPPLIED mid-pipe for its printed 127.8-inch wheelbase branch: measure 12 inches from the end opposite the flange, as the diagram indicates, then cut. It is not a cut to the original exhaust or a separate extension. Confirm actual cab/wheelbase, correct slip end, measurement reference and resulting engagement with aFe before cutting if uncertain. Its AC/SB abbreviation does not establish an actual Access Cab short-bed configuration; no regular-cab or other unlisted wheelbase is approved from that shorthand.
  • Original hardware and rubber isolation mounts are reused. The selected guide does not specify gasket reuse or replacement; confirm the actual front-joint sealing requirement before work. Leave new clamps loose until complete assembly and alignment.
  • No numeric torque is printed in the selected guide. Obtain actual factory-flange, band and tip-fastener settings; do not borrow another system’s 40–45 ft-lb setting.
  • Selected guide recommends at least 1/2–1 inch from tailpipe to body panels and retightening all exhaust components after 50–100 miles.
  • The current selected page advertises up to +26 hp/+30 lb-ft, but no exact selected dyno chart is linked among its files. Treat those as manufacturer claims; test vehicle, modifications and full conditions were not established here, and no result is guaranteed.

Fitment

The exact current manufacturer and selected guide specify 2005–2012 Tacoma gasoline V6 4.0L. aFe explicitly excludes X-Runner; its positive retailer row is overridden and removed. The original Base range through 2013 is corrected to 2012. The selected guide requires cutting the SUPPLIED mid-pipe for its printed 127.8-inch wheelbase branch: measure 12 inches from the end opposite the flange, as the diagram indicates, then cut. It is not a cut to the original exhaust or a separate extension. Confirm actual cab/wheelbase, correct slip end, measurement reference and resulting engagement with aFe before cutting if uncertain. Its AC/SB abbreviation does not establish an actual Access Cab short-bed configuration; no regular-cab or other unlisted wheelbase is approved from that shorthand.

Years Make Model Submodel Engine / body / installation qualification
2005-2012 Toyota Tacoma Base Gasoline V6 4.0L; confirm actual supported cab/wheelbase and selected supplied mid-pipe cut before work.
2005-2012 Toyota Tacoma Pre Runner Gasoline V6 4.0L; confirm actual supported cab/wheelbase and selected supplied mid-pipe cut before work.

Specifications

Detail Value
Manufacturer Part Number 49-46001-1B
Product type Catback
Main tubing / muffler 3-inch mandrel-bent 409 stainless tubing and straight-through muffler. No unprinted gauge or flange thickness is inferred.
Selected tip 49T30451-B12; one black 304 stainless rolled slash-cut tip.
Selected system sections one mid-pipe 05-44736, one muffler assembly 05-44737, one combined over-axle/tailpipe 05-44738, two 3-inch bands 05-41055 and one selected black 304 stainless tip 49T30451-B12. The other finish and replacement-tip sizing inset are alternatives, not extra tips or supplied components.
Supplied mid-pipe cutting The selected guide requires cutting the SUPPLIED mid-pipe for its printed 127.8-inch wheelbase branch: measure 12 inches from the end opposite the flange, as the diagram indicates, then cut. It is not a cut to the original exhaust or a separate extension. Confirm actual cab/wheelbase, correct slip end, measurement reference and resulting engagement with aFe before cutting if uncertain. Its AC/SB abbreviation does not establish an actual Access Cab short-bed configuration; no regular-cab or other unlisted wheelbase is approved from that shorthand.
Torque / recheck No numeric fastener torque in this selected guide. Obtain applicable settings and retighten all exhaust components at 50–100 miles.
Tailpipe/body clearance At least 1/2–1 inch from body panels as printed in the selected guide.
Power / sound source qualification The current selected page advertises up to +26 hp/+30 lb-ft, but no exact selected dyno chart is linked among its files. Treat those as manufacturer claims; test vehicle, modifications and full conditions were not established here, and no result is guaranteed. Manufacturer describes a powerful/aggressive sound, not a drone-free guarantee.
Emissions statement aFe says no CARB EO is required for this cat-back. Retain original emissions equipment; this is not blanket approval of the vehicle or other modifications.

What's Included

  • The 49-46001-1B kit includes one mid-pipe 05-44736, one muffler assembly 05-44737, one combined over-axle/tailpipe 05-44738, two 3-inch bands 05-41055 and one selected black 304 stainless tip 49T30451-B12. The other finish and replacement-tip sizing inset are alternatives, not extra tips or supplied components.
  • Reuse original hardware and factory rubber isolation mounts. Confirm front-joint gasket requirements with aFe and actual vehicle service information; the selected guide does not specify reuse or replacement. The selected diagram lists no separate extension, replacement catalyst, sensor, intake filter or electrical equipment.
  • The two separately labeled 3-inch bands are distinct from tip attachment. Confirm actual packing and individual replacement identifiers before purchasing service components.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

FAQ

What is the 49-46001-1B?

It is the selected 3-inch 409 stainless cat-back with one black 304 tip for the listed Tacoma gasoline 4.0L configurations.

Which years and trims are supported?

The exact current manufacturer and selected guide specify 2005–2012 Tacoma gasoline V6 4.0L. aFe explicitly excludes X-Runner; its positive retailer row is overridden and removed. The original Base range through 2013 is corrected to 2012. The selected guide requires cutting the SUPPLIED mid-pipe for its printed 127.8-inch wheelbase branch: measure 12 inches from the end opposite the flange, as the diagram indicates, then cut. It is not a cut to the original exhaust or a separate extension. Confirm actual cab/wheelbase, correct slip end, measurement reference and resulting engagement with aFe before cutting if uncertain. Its AC/SB abbreviation does not establish an actual Access Cab short-bed configuration; no regular-cab or other unlisted wheelbase is approved from that shorthand.

Does the supplied mid-pipe need cutting?

The selected guide requires cutting the SUPPLIED mid-pipe for its printed 127.8-inch wheelbase branch: measure 12 inches from the end opposite the flange, as the diagram indicates, then cut. It is not a cut to the original exhaust or a separate extension. Confirm actual cab/wheelbase, correct slip end, measurement reference and resulting engagement with aFe before cutting if uncertain. Its AC/SB abbreviation does not establish an actual Access Cab short-bed configuration; no regular-cab or other unlisted wheelbase is approved from that shorthand.

What parts and finish are included?

one mid-pipe 05-44736, one muffler assembly 05-44737, one combined over-axle/tailpipe 05-44738, two 3-inch bands 05-41055 and one selected black 304 stainless tip 49T30451-B12. The other finish and replacement-tip sizing inset are alternatives, not extra tips or supplied components.

Which factory parts are reused?

Retain original hardware and rubber isolation mounts during rear-to-front exhaust removal. Reuse original hardware; confirm front-joint gasket or sealing requirements separately, since this guide does not specify them. Keep new clamps loose until the whole assembly is installed.

What torque and clearance are specified?

The selected guide prints no numeric torque. Obtain exact applicable factory-flange, band and tip settings. Keep the tailpipe at least 1/2–1 inch from body panels and do not borrow another guide’s band setting.

When should the assembly be checked again?

The selected guide recommends retightening all exhaust components after 50–100 miles. Verify correct alignment and every retained hanger before returning the truck to service.

Are the advertised gains verified for every truck?

The current selected page advertises up to +26 hp/+30 lb-ft, but no exact selected dyno chart is linked among its files. Treat those as manufacturer claims; test vehicle, modifications and full conditions were not established here, and no result is guaranteed.

Installation Instructions

  1. Confirm aFe 49-46001-1B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
  2. Match exact gasoline V6 4.0L, named year range and actual cab/wheelbase. Do not install this selected system on X-Runner. Resolve printed body abbreviations and the correct cut reference with aFe before any cutting; cool and safely support the vehicle and exhaust.
  3. Remove original exhaust rear to front up to the catalytic-converter connection without damaging reusable factory hardware or isolation mounts. Lay out selected components and leave new clamps loose until fully assembled.
  4. Install the selected muffler into the factory isolation mounts and connect the selected combined over-axle/tailpipe with one supplied 3-inch band. Identify the one selected black tip and its actual attachment.
  5. For the selected guide’s 127.8-inch wheelbase branch, it directs measuring 12 inches from the SUPPLIED mid-pipe end opposite the flange and cutting as its diagram shows. Confirm the actual end, measured reference and engagement before cutting if uncertain; no original-exhaust cut or separate extension cut is substituted.
  6. Install the selected mid-pipe using the other supplied 3-inch band, original front hardware. Confirm the front-joint sealing/gasket requirement separately. Tighten front-joint bolts and clamps to applicable settings; this guide supplies no numeric torque.
  7. Align and secure the assembly with at least 1/2–1-inch tailpipe-to-body spacing as printed. Retighten all exhaust components after 50–100 miles. No battery, sensor, brake-cable bracket or unrelated system procedure is borrowed.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
