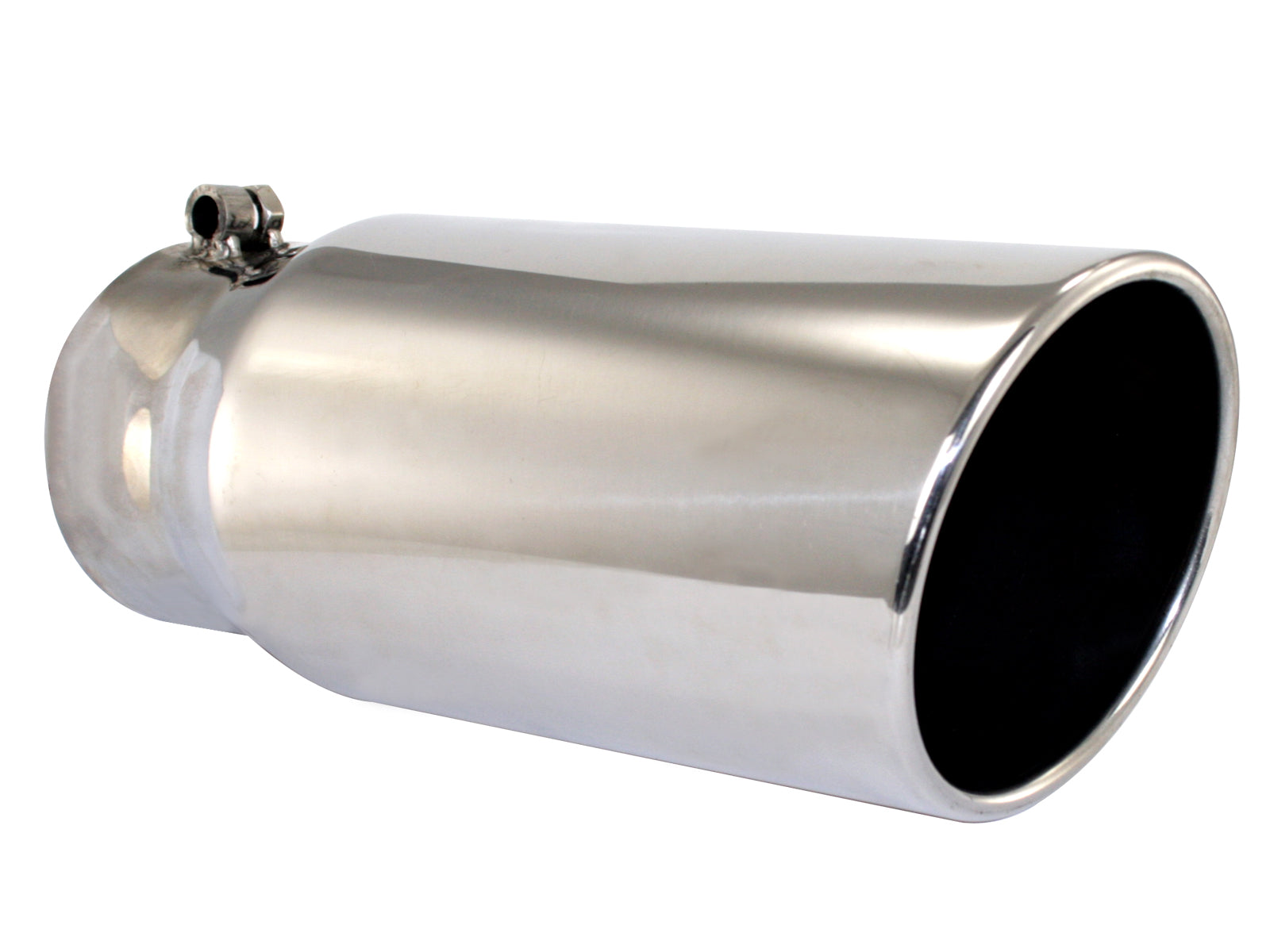

A polished stainless tip for a four-inch exhaust outlet
The aFe 49-90002 MACH Force-Xp tip has a four-inch inlet, 5-inch outlet and 12-inch overall length. Its polished 304 stainless construction has a slash-cut outlet, a logo laser etched into the top and a drain port on the bottom. The manufacturer allows bolt-on or weld-on attachment.
Key Features
- One exhaust tip, not a complete exhaust system or vehicle-specific kit.
- Nominal four-inch inlet, 5-inch outlet and 12-inch overall length.
- Slash-cut stainless design with a polished finish.
- Manufacturer allows bolt-on or weld-on attachment.
- Logo laser etched into the top; bottom drain port.
- Exact manufacturer identifies 304 stainless steel.
Fitment
This is a dimension-based exhaust-tip application. Confirm the actual four-inch pipe interface, attachment method, available straight mounting length and space for the 5-inch outlet and 12-inch overall length. No particular vehicle, engine or complete exhaust-system compatibility is established merely by sharing a nominal pipe diameter.
| Interface | Dimension | Requirement |
|---|---|---|
| Nominal inlet | 4 inches | Check actual pipe interface and attachment geometry |
| Outlet | 5 inches | Check body and equipment clearance |
| Overall length | 12 inches | Confirm mounting length and desired projection |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49-90002 |
| Product type | Tips |
| Material | Polished 304 stainless steel, explicitly identified by the exact manufacturer page. |
| Finish / construction | Polished 304 stainless with slash-cut outlet. |
| Attachment | Manufacturer states the tip can be bolted or welded on. |
| Logo / drainage | Top laser-etched logo; drain port on bottom. |
| Installation information | No selected standalone installation guide, numeric clamp torque, fixed clearance or recheck mileage was established. Complete-system manuals that happen to name this tip are not standalone tip instructions. |
| Performance / emissions | No measured power, temperature or sound benefit is established. Manufacturer says no CARB EO number is required; this tip alone is not proof of complete-system emissions approval. |
| UPC | 802959499023 |
What's Included
- One polished exhaust tip in the stated four-inch-inlet, 5-inch-outlet, 12-inch-length configuration.
- An attachment bolt is visible in the native product photo; no separate formal hardware bill or part-numbered mounting kit was established.
- No exhaust piping, muffler, catalytic converter, DPF, intake filter or silicone coupling is established as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact manufacturer dimensions, finish and attachment information
- Shop exhaust tips
- Shop the aFe Power collection
FAQ
What is the 49-90002?It is one polished stainless exhaust tip with a four-inch inlet, 5-inch outlet and 12-inch overall length, selected by its pipe interface and available clearance.
Does a four-inch inlet guarantee vehicle fitment?No. Confirm the actual pipe interface, attachment geometry, mounting length and surrounding clearance. No make, model or engine application is established simply by a nominal diameter.
What are the outlet and length?The nominal outlet is 5 inches and the overall length is 12 inches. The inlet is four inches. Check those dimensions against the actual exhaust outlet and surrounding equipment.
Which stainless grade is established?Polished 304 stainless steel, explicitly identified by the exact manufacturer page.
How does it attach?The exact manufacturer allows bolt-on or weld-on attachment. Confirm the actual mounting arrangement with a qualified installer; no standalone welding procedure was established.
What finish and visual details does it have?Polished stainless with a slash-cut outlet and a logo laser etched into the top. The manufacturer identifies a drain port on the bottom.
Is this a complete exhaust system?No. This listing supplies one tip. No pipe system, muffler, catalytic converter, DPF or intake service parts are established as included.
What torque or mileage interval applies?No selected standalone numeric torque or recheck-mileage specification was established. Follow aFe’s current instructions for the actual attachment; do not borrow a complete exhaust kit’s clamp value or interval.
Installation Instructions
- Before fitting, verify the actual four-inch outlet interface, available mounting length and space around the larger tip. Let the exhaust cool and use suitable protection. Qualified installation is recommended.
- Choose the manufacturer-allowed bolt-on or weld-on attachment with a qualified installer. Position the bottom drain port as identified by the manufacturer and verify secure seating, alignment and surrounding clearance.
- No selected standalone guide supplied a numeric clamp torque, welding procedure, clearance dimension or mileage interval. Obtain the current attachment instructions from aFe instead of applying instructions for a complete exhaust system.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
