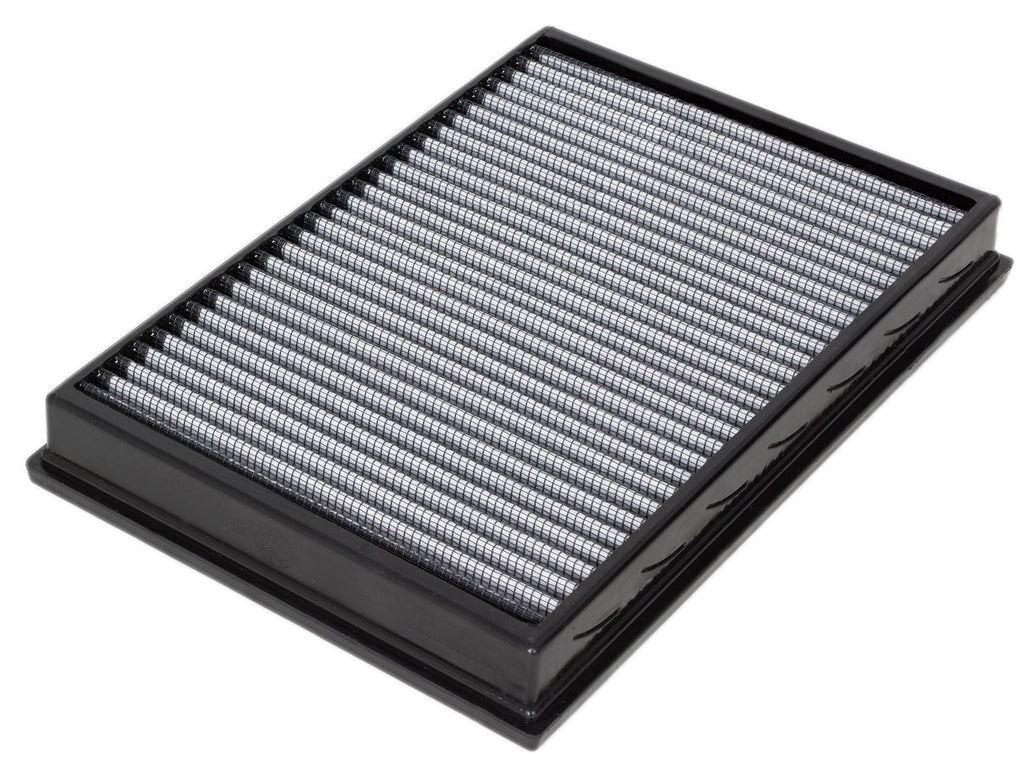

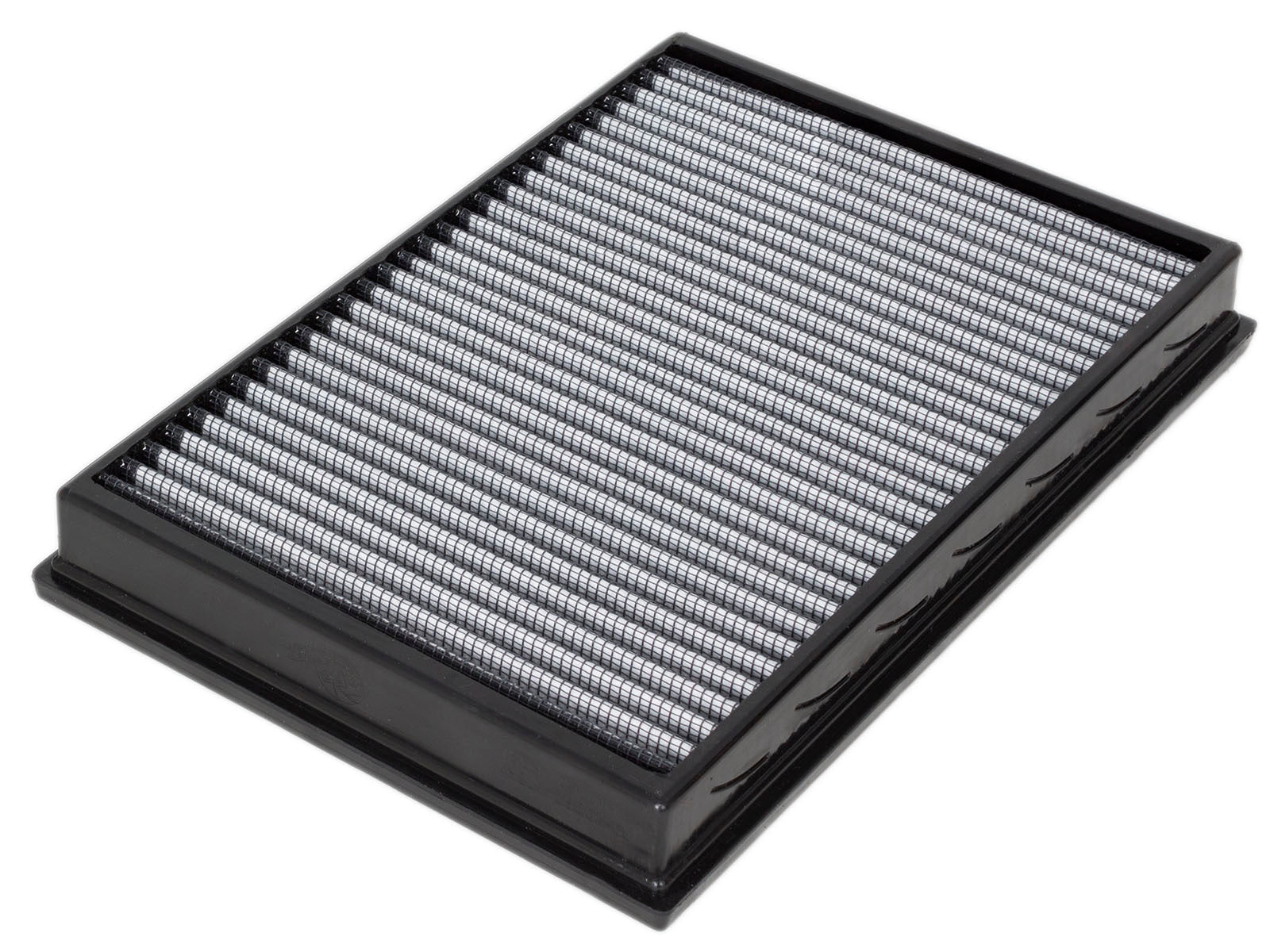

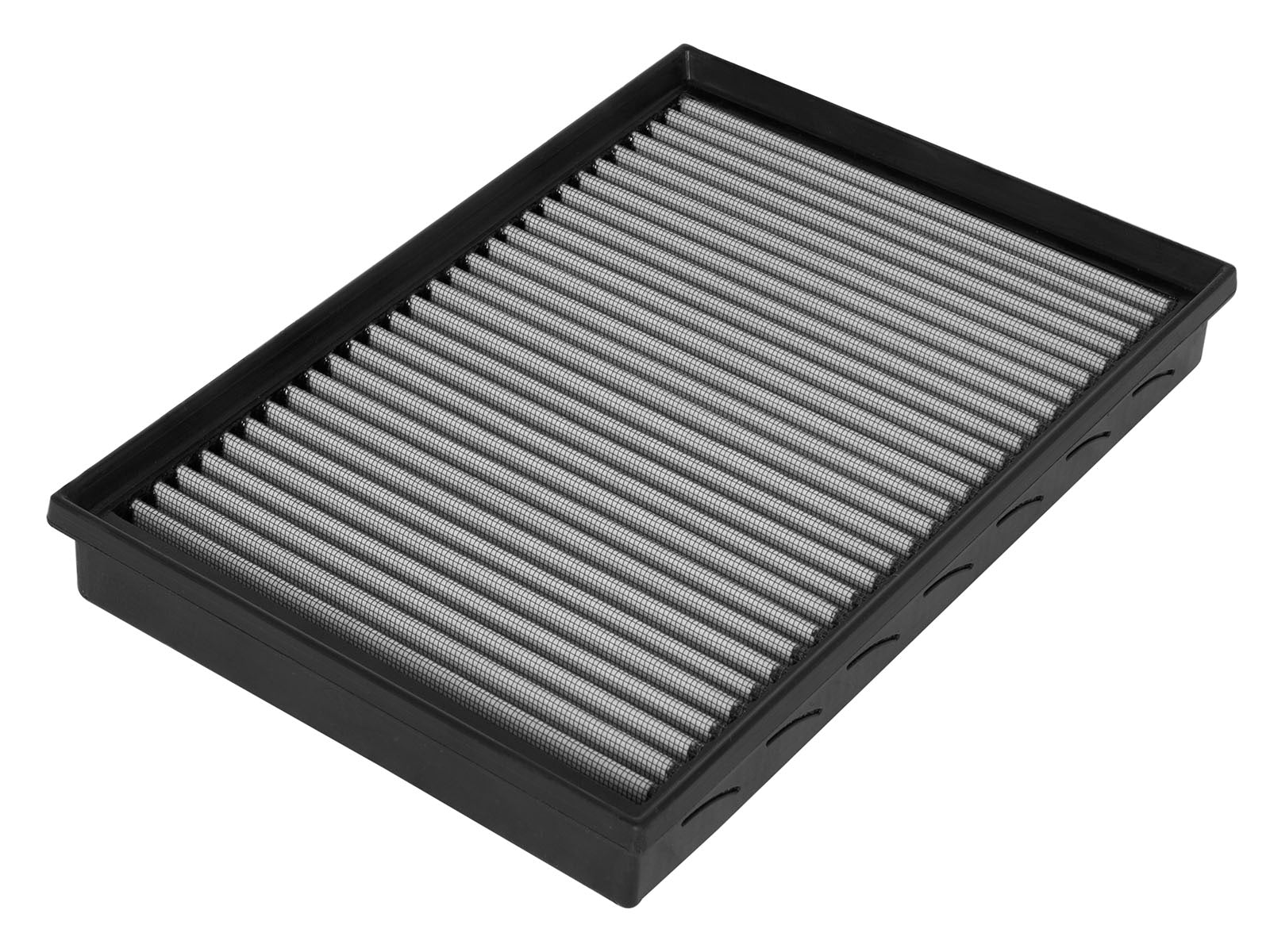

The aFe 31-10269 replaces the original airbox filter in the specified applications with oil-free synthetic media. The exact current manufacturer specifies Nissan Titan XD 2016β2019 with the 5.0L turbo-diesel V8. This is one oil-free three-layer synthetic OE-replacement element, with a 360-degree polyurethane frame, progressive bump seal and 35 mm deep rounded pleats. The 35 mm specification describes pleat depth, not verified overall filter height. All five existing named Titan XD trim groups retain their 2016β2019 bounds with the diesel engine condition. The Titan XD badge was also used on gas-powered trucks, so trim names alone must not be treated as 5.6L gasoline approval. No standard Titan, gasoline engine or later-year housing application is inferred from a related platform or general vehicle catalog label.
| Detail | Value |
|---|---|
| Nissan Titan XD | 2016β2019 5.0L turbo-diesel V8 exact primary scope |
| Named trims | Platinum Reserve, PRO-4X, S, SL and SV original 2016β2019 groups retained, subject to the diesel engine/housing condition |
| Gasoline / other trucks | No 5.6L gas, standard Titan or later-generation approval inferred |
| Configuration | One original-housing replacement element; no complete intake, tube or airbox supplied |
31-10269: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10269 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | 35 mm deep rounded pleats; not overall filter height |

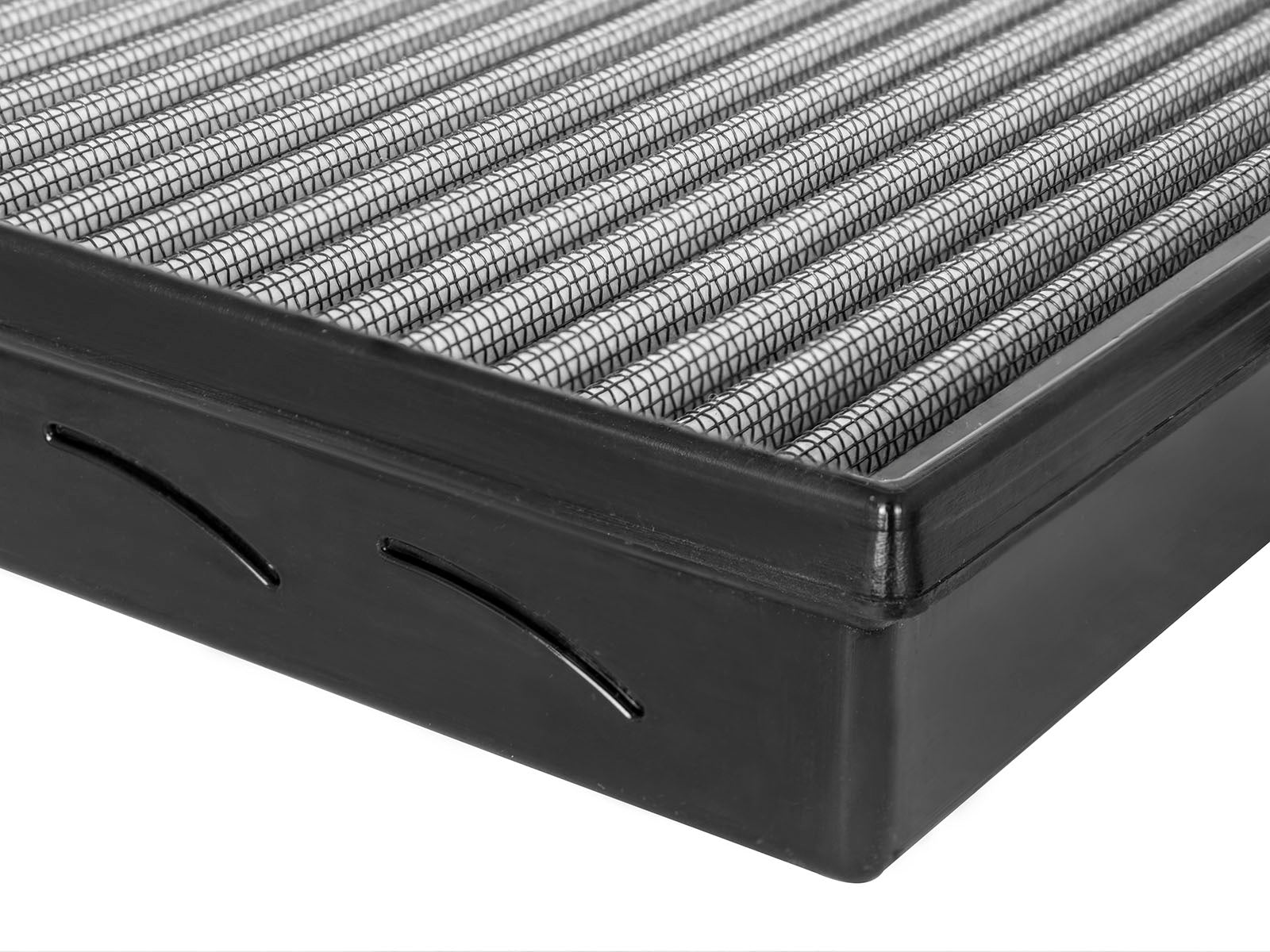

| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. |
| Flow statement | The exact current manufacturer page gives no numerical flow-gain or efficiency percentage. Another media option or diesel catalog family figure is not transferred, and no horsepower gain is guaranteed. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The exact current manufacturer specifies Nissan Titan XD 2016β2019 with the 5.0L turbo-diesel V8. This is one oil-free three-layer synthetic OE-replacement element, with a 360-degree polyurethane frame, progressive bump seal and 35 mm deep rounded pleats. The 35 mm specification describes pleat depth, not verified overall filter height. All five existing named Titan XD trim groups retain their 2016β2019 bounds with the diesel engine condition. The Titan XD badge was also used on gas-powered trucks, so trim names alone must not be treated as 5.6L gasoline approval. No standard Titan, gasoline engine or later-year housing application is inferred from a related platform or general vehicle catalog label.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?The exact current manufacturer page gives no numerical flow-gain or efficiency percentage. Another media option or diesel catalog family figure is not transferred, and no horsepower gain is guaranteed.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Does Titan XD trim fitment include its gasoline version?No gasoline application is established here. The exact primary specifies the 5.0L turbo-diesel engine. Confirm the original engine, filter and housing; the same trim badge alone does not certify the 5.6L gas configuration.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10269: verify the original filter interface before operation.
