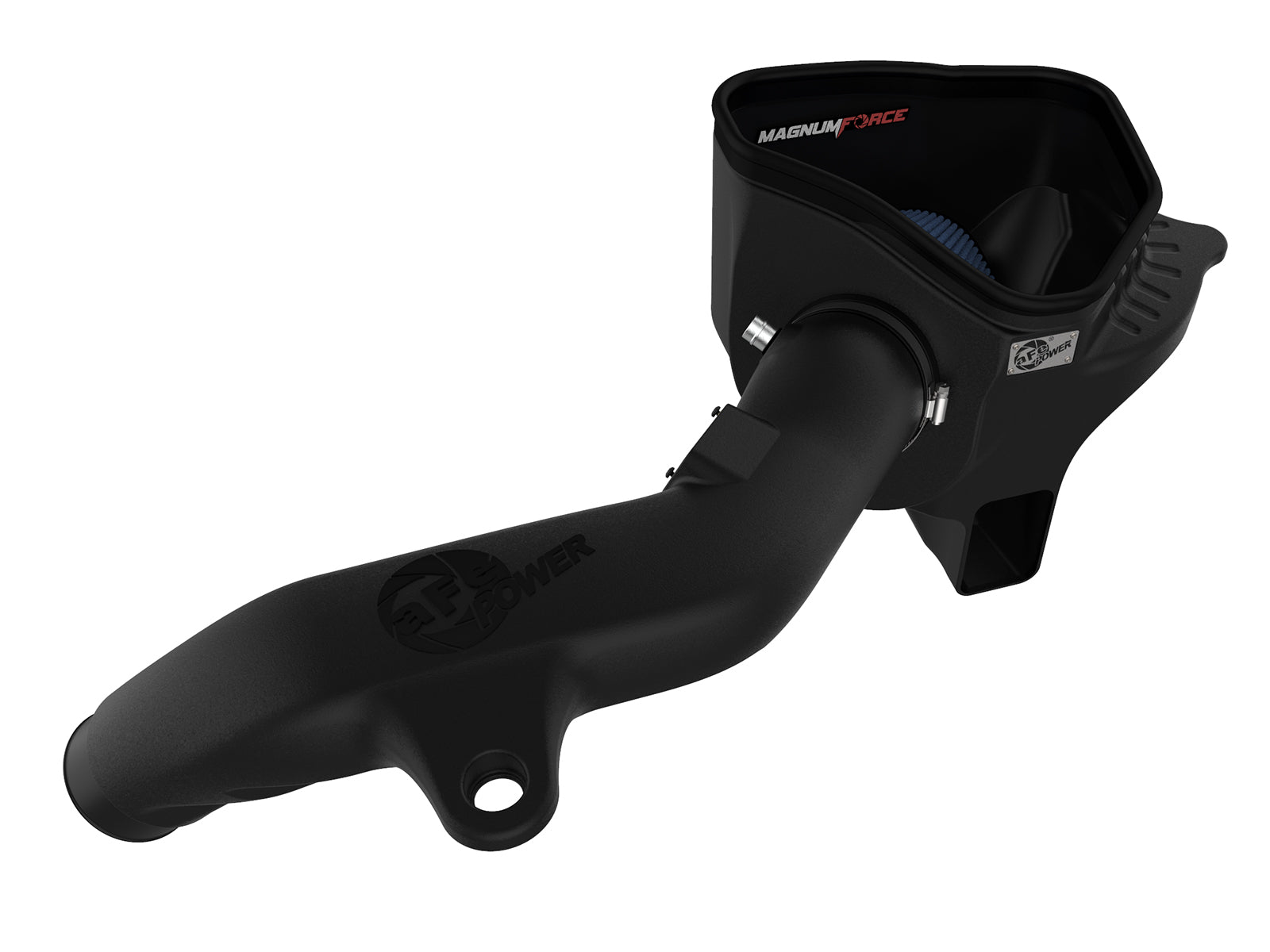

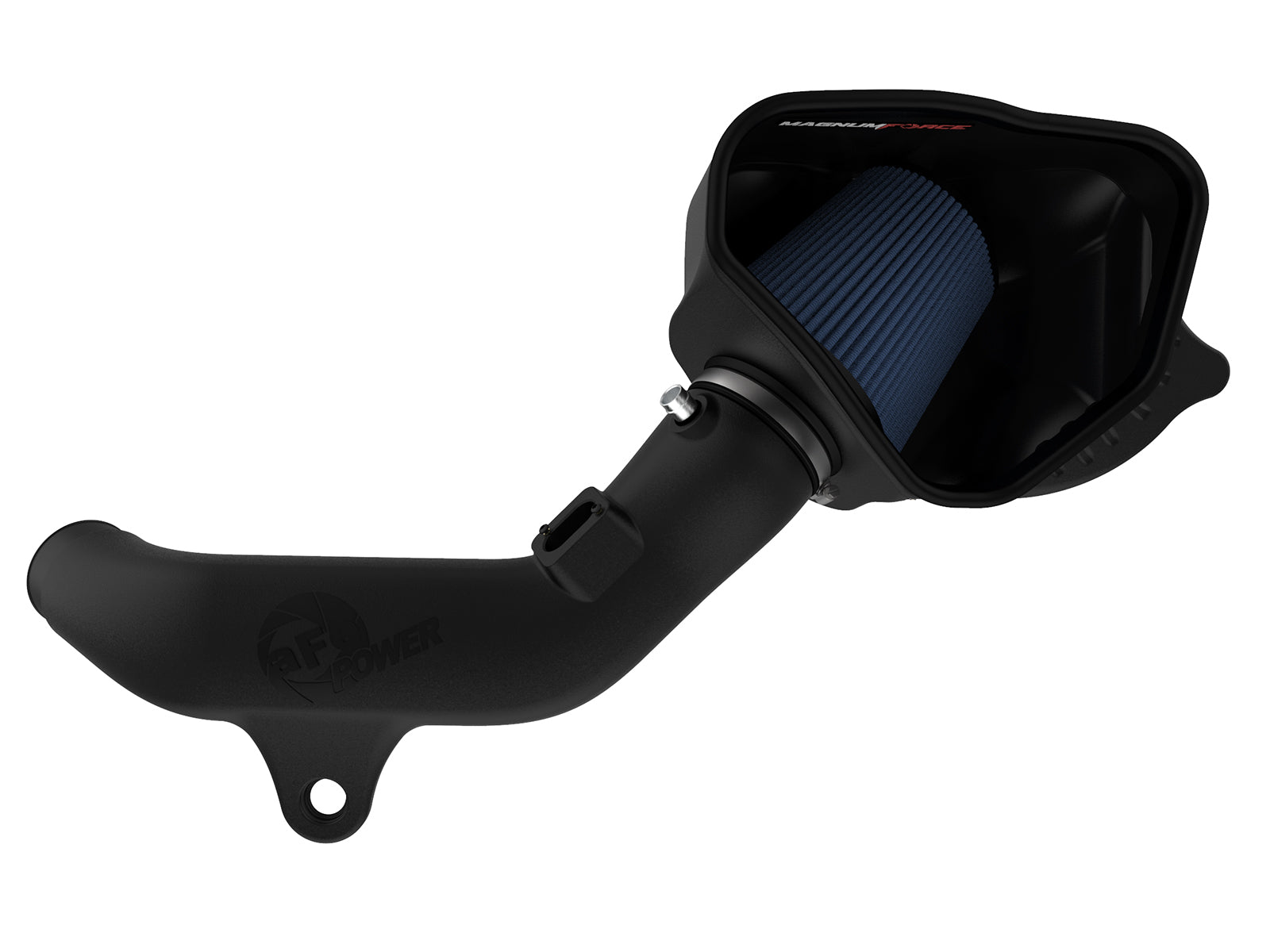

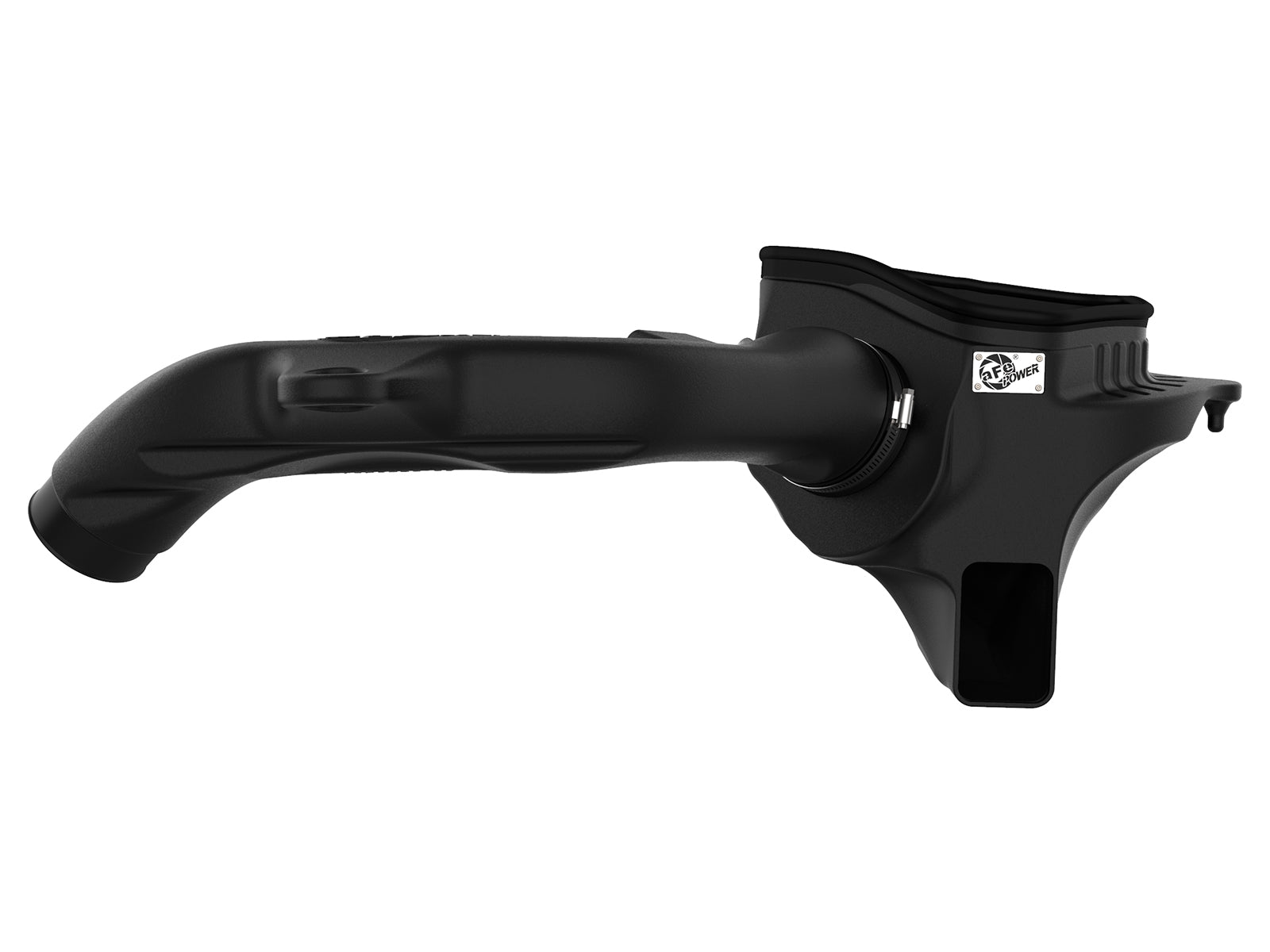

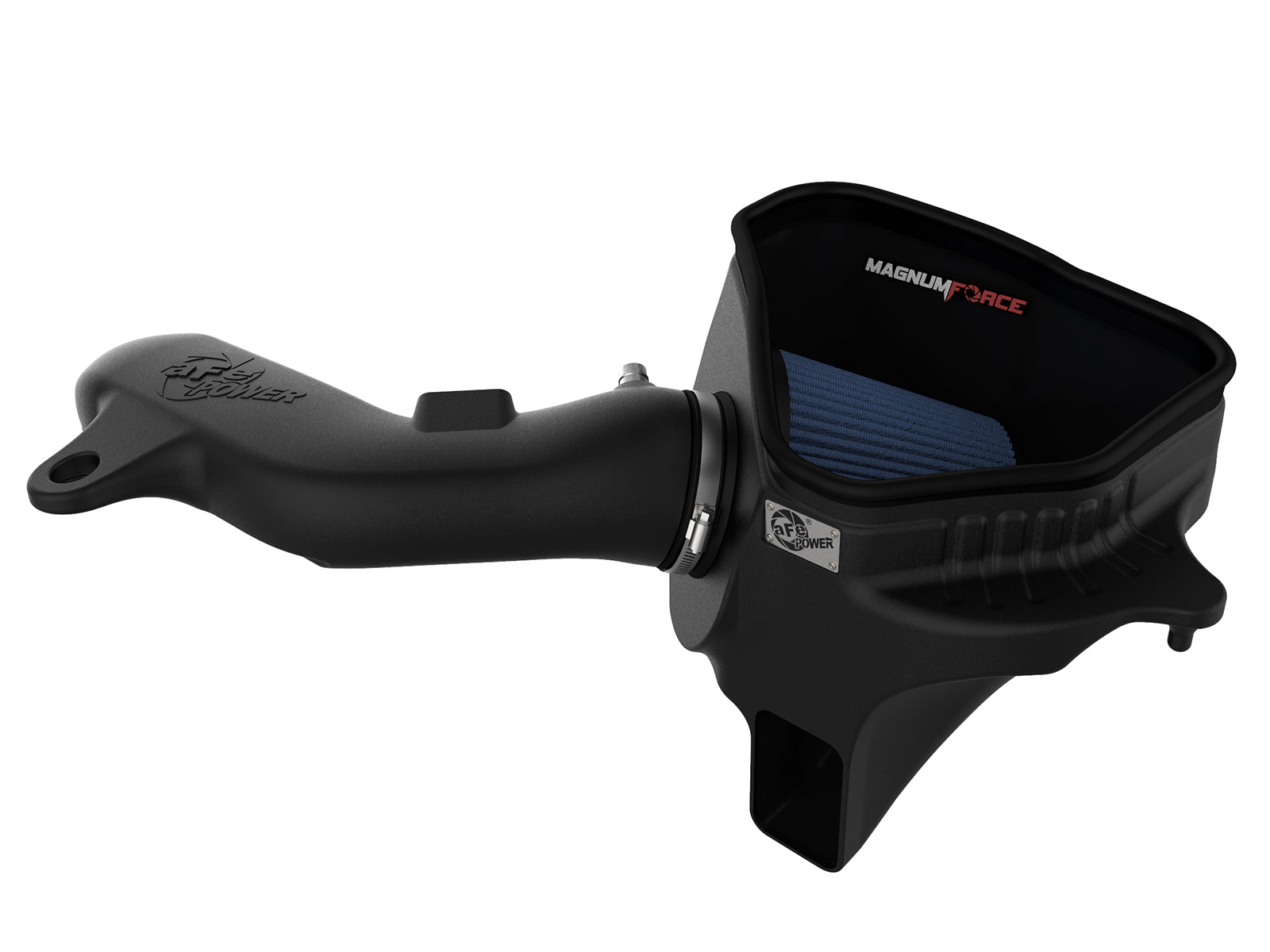

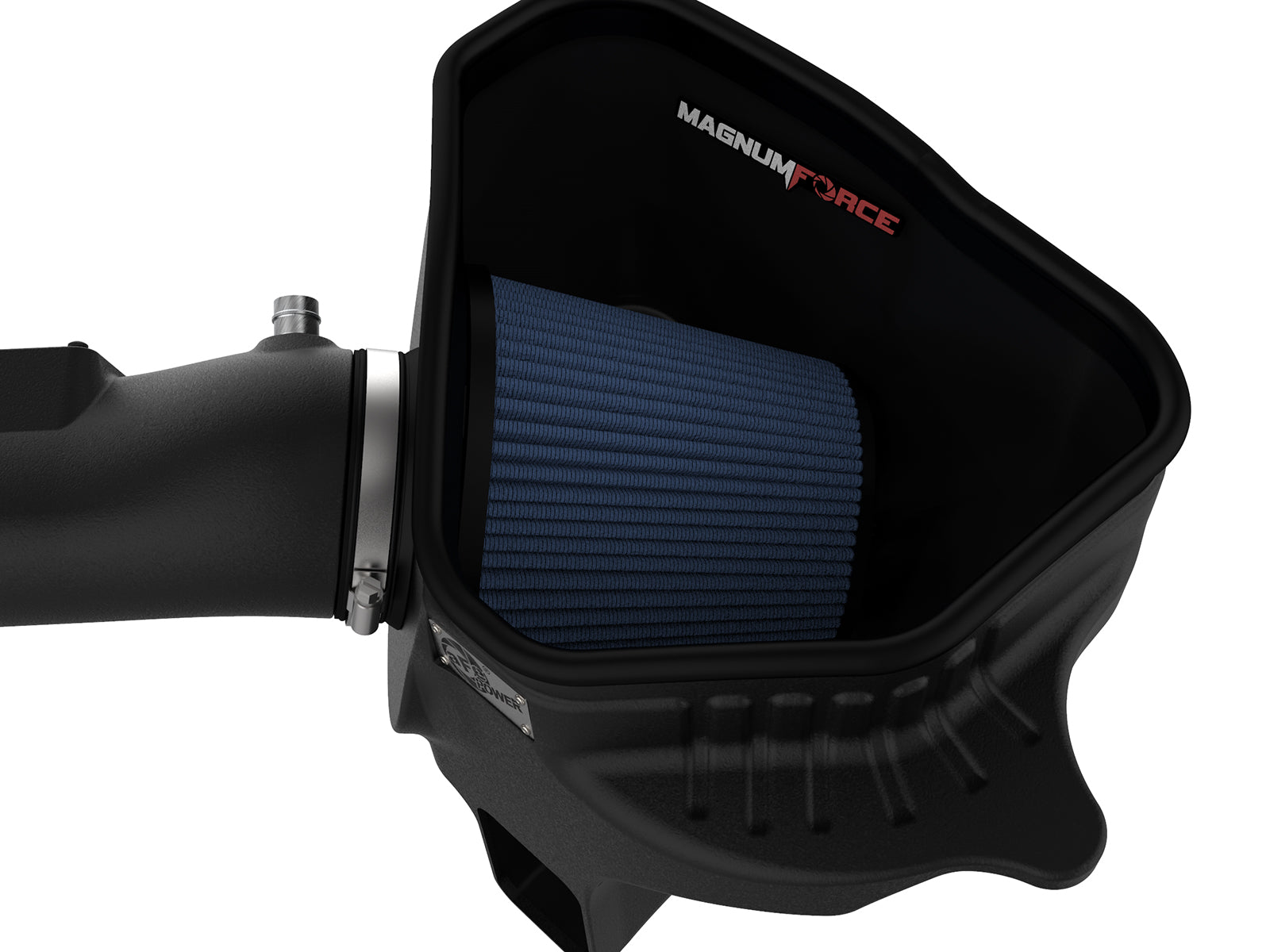

aFe 54-13033R is a Magnum FORCE Stage-2 open-element intake for the qualified BMW N55 chassis and model ranges below. One Pro 5R filter snaps into an XLPE housing aligned with the factory front air duct, and an XLPE tube connects to the retained factory inlet tube. The vacuum fitting reconnects to the automatic-transmission vacuum line where equipped; manual-transmission vehicles use the supplied vinyl cap.
The exact current headline names BMW 335i F30 2012-2015 N55; the linked manual also explicitly includes M2 F87 2016-2018, 335i/ix F30/F34 2012-2015, 435i/ix F32/F33/F36 2014-2016 and M135i/ix/M235i F20/F21/F22 2012-2016. Exact selected-part retailer tables support the retained eight Base rows and the restored M235i xDrive 2015-2016 Base row. Non-US M135i/M135i xDrive entries remain market-qualified follow-up without new mappings. Manual family-wide early years do not extend named rows beyond their exact evidence. Do not infer E-chassis N54, later B58, later M2 Competition/S55 or the separate M235i xDrive Gran Coupe from a model name alone.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2012-2015 | BMW | 335i | Base |
| 2013-2015 | BMW | 335i xDrive | Base |
| 2014-2016 | BMW | 435i | Base |
| 2015-2016 | BMW | 435i Gran Coupe | Base |
| 2014-2016 | BMW | 435i xDrive | Base |
| 2015-2016 | BMW | 435i xDrive Gran Coupe | Base |
| 2016-2018 | BMW | M2 | Base |
| 2014-2016 | BMW | M235i | Base |
| 2015-2016 | BMW | M235i xDrive | Base |
Verify 54-13033R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-13033R |
| System | Magnum FORCE Stage-2; Pro 5R |
| Engine qualification | BMW 3.0L turbo inline-six N55, exact chassis/ranges required |
| Filter | One 24-90113; 7-inch height, 4-inch flange |
| Media | Five cotton-gauze layers; pre-oiled |
| Housing | 05-5413033B1; XLPE rotomolded |
| Tube | 05-82202B1; rotomolded XLPE; connects to retained factory inlet tube |
| Vacuum arrangement | Automatic: original vacuum line reconnected where equipped; manual: cap the supplied aluminum fitting |
| MAF screws | Two M4 Torx screws; no length specified |
| Bench flow | 650 versus stock 450 CFM at 7 inches H2O; calculated 44.44% increase |
| Dyno comparison | At the marked 2,674 rpm, 155.1/144.3 HP and 304.6/283.4 lb-ft differ by 10.8 HP and 21.2 lb-ft. Legend maxima instead differ by 2.9 HP and 16.8 lb-ft (276.7/273.8 HP; 308.0/291.2 lb-ft). The actual sheet states SAE correction and smoothing 5 but gives no dates, vehicle/engine identity, gear, exhaust setup or detailed run notes. This selected-sheet comparison is not a guaranteed result for every application. |
| Emissions | Current exact page: not CARB exempt; not available for purchase in California or use on a California-registered vehicle. Older manual has race-only California wording; it is not a street exemption |
| Recheck | Periodically; no numeric torque or fixed mileage stated |

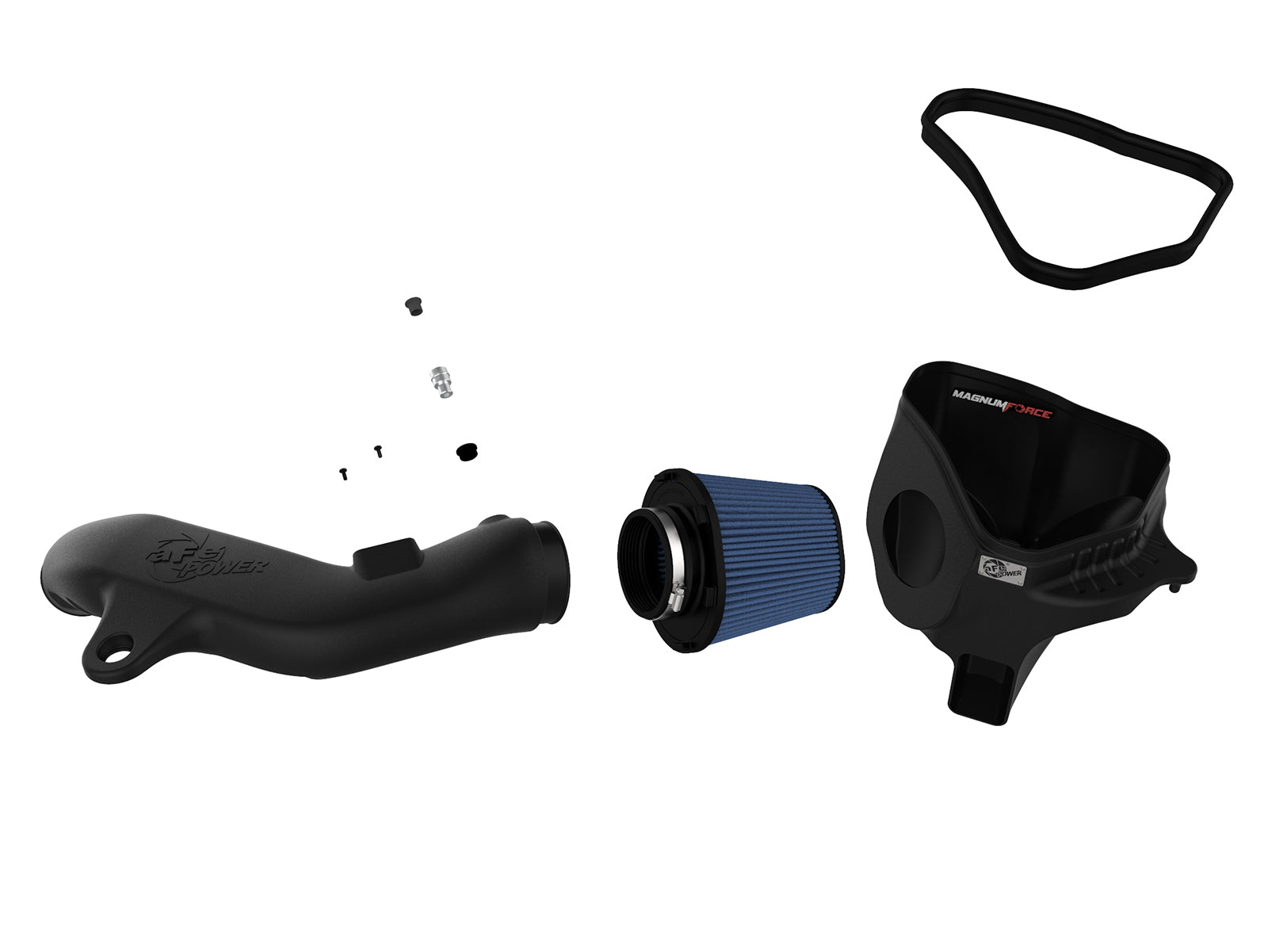

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-90113 | Selected Pro 5R filter |
| 1 | 05-5413033B1 | Rotomolded housing |
| 1 | 05-82202B1 | Rotomolded intake tube |
| 1 | 03-50035 | 3/4-inch-ID vinyl cap |
| 1 | 05-01246 | Aluminum vacuum-line fitting |
| 1 | 03-50033 | Vacuum-port grommet |
| 1 | 03-50066 | T20 Torx bit |
| 1 | 05-01507 | 38-inch trim seal |
| 2 | 03-50490 | M4 Torx screws; length not specified |
The filter entries are alternative media, not two supplied filters. The specific bill lists no separate new bellows coupling, loose coupling-clamp set, replacement MAF, extension harness or new factory mounting grommets, despite the generic Coupler Included flag on the page. Retain the original inlet connection/clamp, original tube mounting grommet and housing mounting grommets; the supplied grommet is the separate vacuum-port piece. Reinstall the original brace with all four original 13 mm-head bolts where equipped. Do not borrow the adjacent intake family's silicone reducer, clamp sizes or numeric screw length.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
The N55 application and exact chassis/year rows shown. Later B58, S55 M2 Competition and the separate M235i Gran Coupe are not established by these rows.
Does the kit include both filter types?No. This selection supplies one 24-90113 Pro 5R filter. The shared manual shows the other media as an alternative.
Is a new silicone coupling listed in the bill?No separate coupling or loose coupling-clamp set is itemized. The tube connects to the retained factory inlet tube; the generic page flag does not replace the exact bill.
How do manual and automatic vacuum connections differ?Install the supplied grommet and aluminum fitting. Cap it with the vinyl cap on a manual-transmission vehicle; reconnect the original vacuum line on an automatic vehicle where equipped.
Are both grommets supplied new?No. Transfer the original tube mounting grommet and reuse the original housing mounting grommets. The supplied grommet serves the vacuum-port fitting.
How is the MAF harness routed?Lift the engine cover and reroute the original MAF harness around the oil-filter housing before reconnecting it. No new extension harness is itemized.
Must the factory brace be restored?Yes, where fitted. Remove its four original 13 mm-head bolts for access and reinstall the original brace and all four bolts after intake installation.
What battery, torque and recheck instructions apply?Disconnect the negative battery terminal before starting. The manual says to recheck clamps periodically; it supplies no numeric torque or fixed mileage interval.
Verify aFe 54-13033R. Read the full illustrated manual, work on a cool engine and disconnect the negative battery terminal. Where fitted, remove the original brace by removing its four 13 mm-head bolts and retain them. Disconnect the MAF and any fitted vacuum line, loosen the factory intake-tube clamp and lift the original intake from its mounting grommets. Transfer the original MAF to the new tube using the supplied T20 bit and two supplied M4 screws; the bill does not specify a screw length. Transfer the original tube mounting grommet. Install the supplied separate grommet and aluminum vacuum fitting into the tube port; cap the fitting with the supplied vinyl cap for manual-transmission vehicles. Remove the filter clamp, lower the selected filter through the top housing opening and snap its flange through the round opening, then refit the flange clamp loosely. Fit the 38-inch trim seal. Press the housing into the factory mounting grommets, aligned with the original front air inlet duct. Insert the tube into the factory inlet tube and the filter, then press its transferred mounting grommet into position, align and tighten clamps. Lift the engine cover and reroute the MAF harness around the oil-filter housing before reconnecting it. Reconnect the vacuum line on automatic vehicles where fitted. Reinstall the original brace and four bolts where equipped. Verify clamps are secure and recheck periodically. No numeric torque, fixed mileage recheck, separate new bellows coupling or wiring extension is provided.
Both own linked 12-page manuals share SHA-256 8fe58041228185196e5f87ae11a63ddf171a7fbe502169cdee817bba25bce2da. Full text, all three contact sheets, the complete bill and Figures A-F were read and visually inspected, including intentionally blank pages. Both selected flow and dyno sheets were visually reviewed. At the marked 2,674 rpm, 155.1/144.3 HP and 304.6/283.4 lb-ft differ by 10.8 HP and 21.2 lb-ft. Legend maxima instead differ by 2.9 HP and 16.8 lb-ft (276.7/273.8 HP; 308.0/291.2 lb-ft). The actual sheet states SAE correction and smoothing 5 but gives no dates, vehicle/engine identity, gear, exhaust setup or detailed run notes. This selected-sheet comparison is not a guaranteed result for every application. Exact current filter dimensions take precedence over older retailer 7.5-inch/5-inch-flange descriptions. The specific bill is retained without inventing parts from generic page flags. Non-US M135i and broader family-cover early years remain qualified holds. Turn14 exact information requires unavailable authenticated access. No guaranteed output, fixed cleaning/recheck mileage, street CARB exemption or price change is claimed.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
