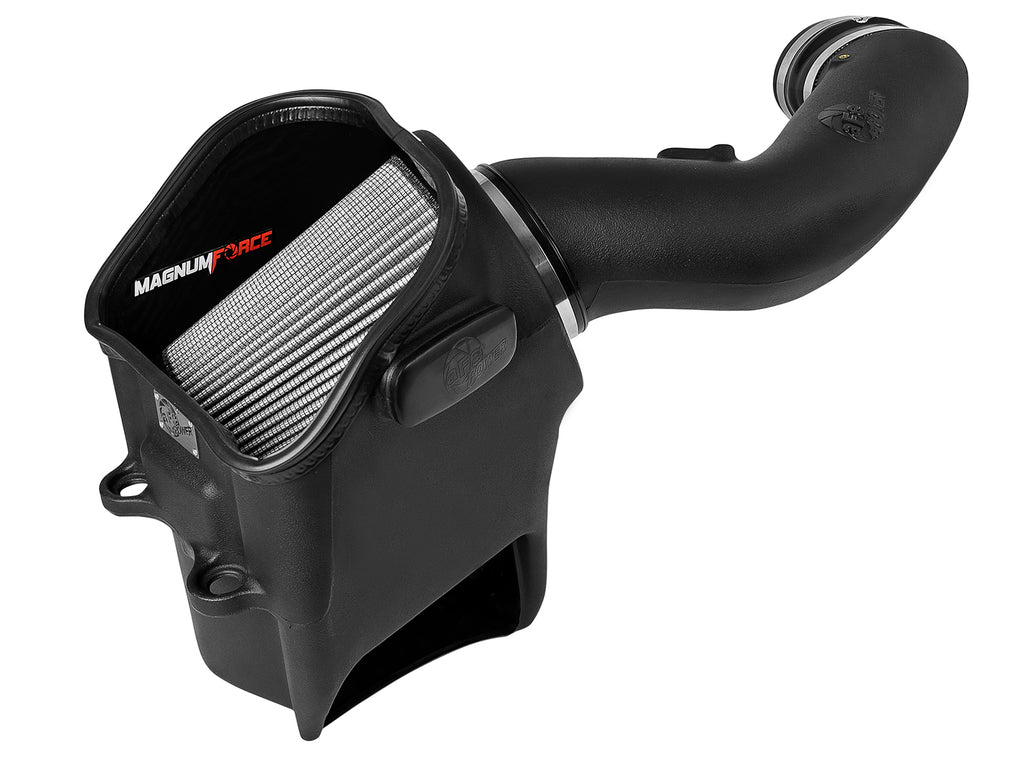

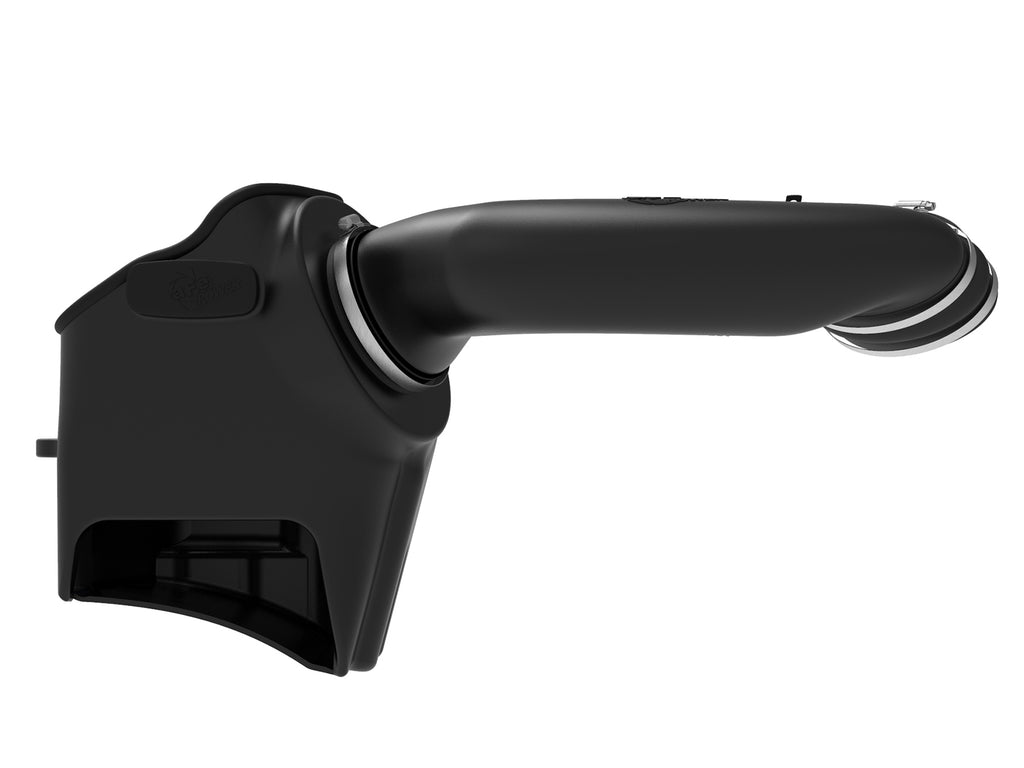

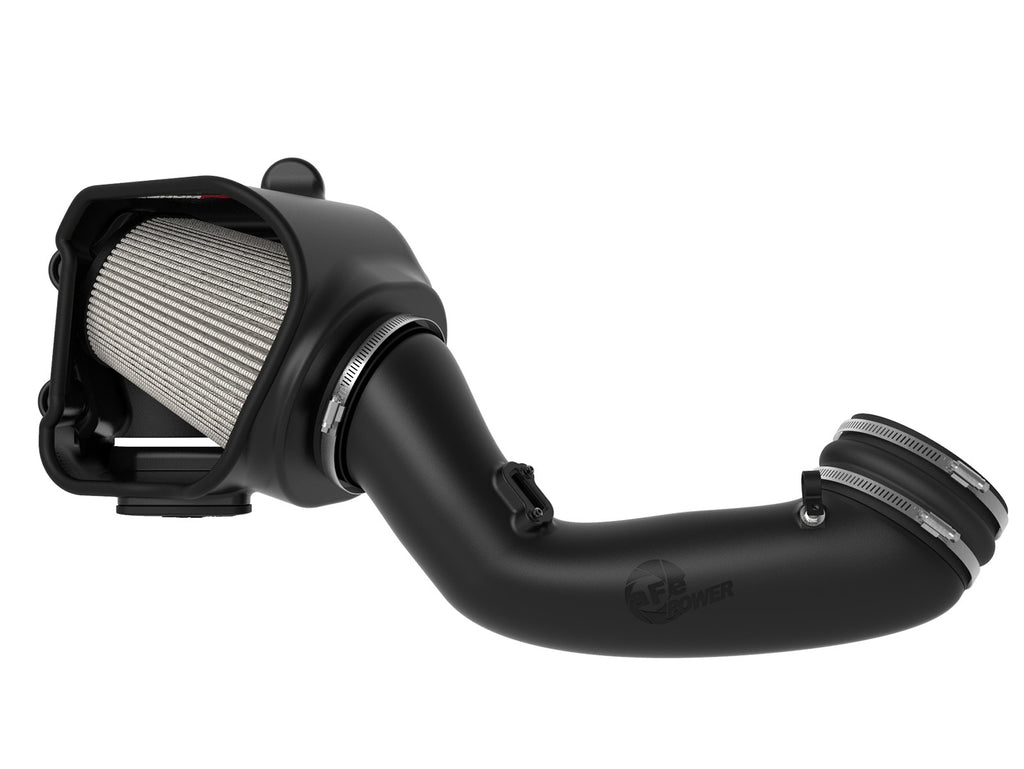

aFe 54-13017D is the Magnum FORCE Stage-2 Pro DRY S intake for qualified 2017-2019 Ford 6.7L Power Stroke turbo-diesel trucks. One nine-inch three-layer oil-free synthetic filter snaps into an open molded XLPE housing and connects to the molded XLPE tube. The included silicone hump coupling connects the tube to the turbo inlet; the original MAF sensor, frame screws and metal-insert mounting grommets are retained.
The exact manufacturer manual lists 2017-2019 Ford F-250, F-350, F-450 and F-550 with the 6.7L Power Stroke turbo diesel. The original F-250 and F-350 model-level 2017-2019 rows and tags are preserved. Exact selected-part retailer tables support King Ranch, Lariat, Platinum, XL and XLT 2017-2019, plus Limited 2018-2019, for each F-250 Super Duty and F-350 Super Duty. The manual supports model-level F-450 and F-550 rows without inferring named chassis-cab trims or later years. Confirm the actual turbo inlet, MAF, mounting and hose arrangement. Conflicting indexed F-150 retailer rows remain unresolved source exceptions and supply no new F-150 fitment; no gasoline engine, 2020-on model or physical-incompatibility conclusion is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2019 | Ford | F-250 | |
| 2017-2019 | Ford | F-350 | |
| 2017-2019 | Ford | F-250 Super Duty | King Ranch |
| 2017-2019 | Ford | F-250 Super Duty | Lariat |
| 2018-2019 | Ford | F-250 Super Duty | Limited |
| 2017-2019 | Ford | F-250 Super Duty | Platinum |
| 2017-2019 | Ford | F-250 Super Duty | XL |
| 2017-2019 | Ford | F-250 Super Duty | XLT |
| 2017-2019 | Ford | F-350 Super Duty | King Ranch |
| 2017-2019 | Ford | F-350 Super Duty | Lariat |
| 2018-2019 | Ford | F-350 Super Duty | Limited |
| 2017-2019 | Ford | F-350 Super Duty | Platinum |
| 2017-2019 | Ford | F-350 Super Duty | XL |
| 2017-2019 | Ford | F-350 Super Duty | XLT |
| 2017-2019 | Ford | F-450 | |
| 2017-2019 | Ford | F-550 |
Verify 54-13017D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-13017D |
| System | Magnum FORCE Stage-2; qualified 2017-2019 Ford 6.7L Power Stroke |
| Filter media | Pro DRY S; three-layer oil-free synthetic |
| Filter | One 21-91120; nine inches tall, five-inch flange, inverted top |
| Tube/housing | Molded XLPE intake tube and open housing |
| Coupling/clamps | One silicone hump coupling; two supplied #072 clamps plus the filter flange clamp |
| Sensor | Original MAF transferred; two supplied M4 Torx screws, no length specified |
| Mounting | Original two frame screws and metal-insert grommets transferred; original front inlet retained |
| Seal/auxiliary inlet | 34-inch 7/16-inch trim seal; plug auxiliary opening unless fitting separate optional scoop |
| Bench flow | 750 CFM versus 455 CFM stock at 7 inches H2O; approximately 64.84% improvement |
| Dyno interpretation | Marked-point differences 12.56 hp and 34.52 lb-ft; separate maximum-value differences 15.03 hp and 29.72 lb-ft at different peak speeds |
| Emissions | Current manufacturer pages state not CARB exempt; not for California sale or California-registered vehicle use |
| Recheck | Check bolts, clamps and connectors after 100-200 miles; no numeric torque specified |

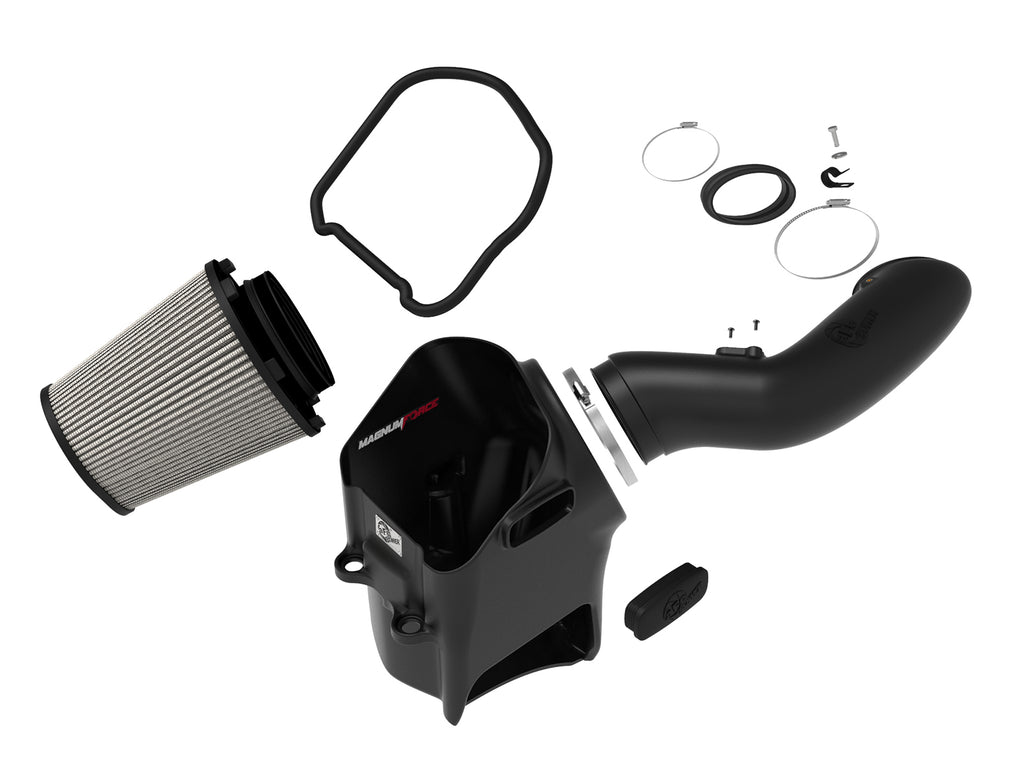

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-91120 | Pro DRY S air filter |
| 1 | 05-5413017B1 | Intake tube |
| 1 | 05-5413017B2 | Open housing |
| 1 | 05-00072 | 7/16-inch trim seal, 34 inches long |
| 1 | 05-01204 | Silicone hump coupling |
| 1 | 03-50070 | M6 washer |
| 2 | 03-50491 | M4 Torx screw; no length in exact bill |
| 1 | 03-50057 | M6 hex-head screw; no length in exact bill |
| 1 | 03-50234 | 3/4-inch hose fixing clamp |
| 2 | 03-50010 | #072 clamp |
| 1 | 05-01225 | Urethane auxiliary-inlet plug |
The shared bill lists alternative media, not two included filters. Transfer the original MAF sensor and original metal-insert mounting grommets; reuse the two original frame screws. Remove and refit the filter flange clamp, which is separate from the two supplied coupling clamps. Secure the original hose with the supplied fixing clamp, M6 screw and washer. No new MAF sensor, separate temperature sensor, factory front inlet or optional scoop is itemized.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 21-91120 with three-layer oil-free synthetic media, nine-inch height and five-inch flange. The other media entry in the shared bill is an alternative.
Which original parts must be retained?The original MAF sensor, two frame screws, metal-insert mounting grommets, original front air inlet and original hose remain in use.
Is a separate temperature sensor transferred?The exact procedure identifies transfer of the original MAF sensor only. It does not itemize a new MAF or a separate temperature sensor.
How is the hose secured?Remove it from the original tube clip and secure it to the new tube with the supplied 3/4-inch fixing clamp, M6 screw and washer. No hose function is inferred beyond the illustrated procedure.
How many coupling clamps are supplied?Two #072 clamps secure the silicone hump coupling. The filter flange clamp is separately removed and refitted during filter installation.
Which end of the tube is seated first?Seat the tube in the filter first, then fit it into the coupling at the turbo inlet. Align the assembly and tighten all clamps.

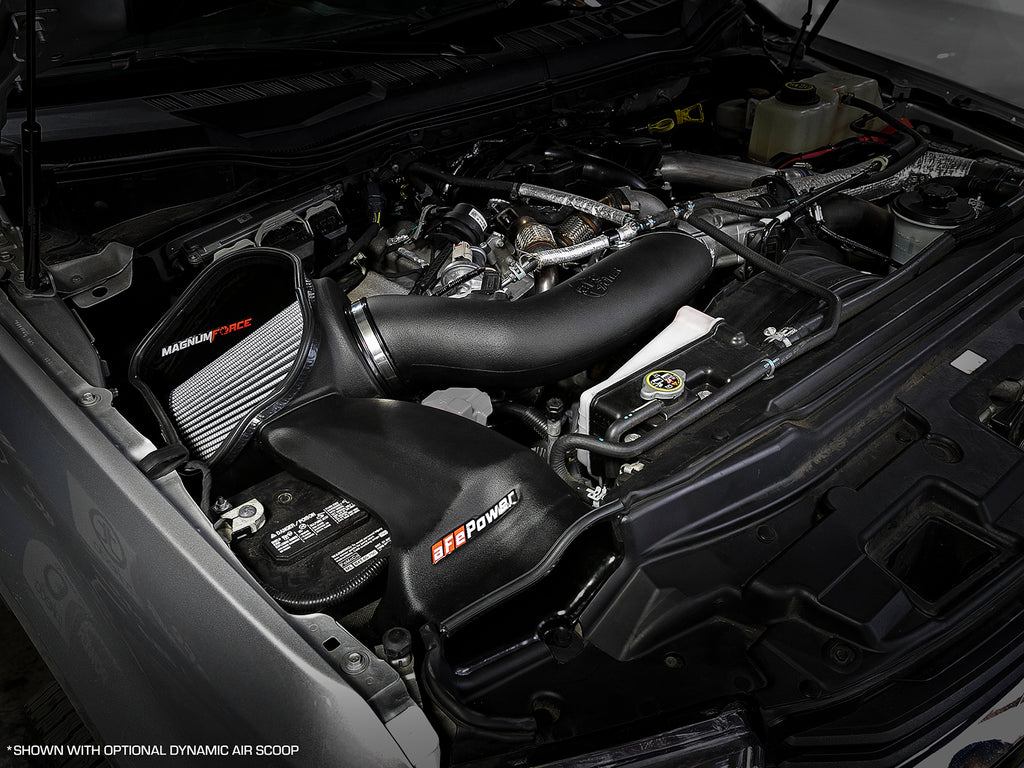

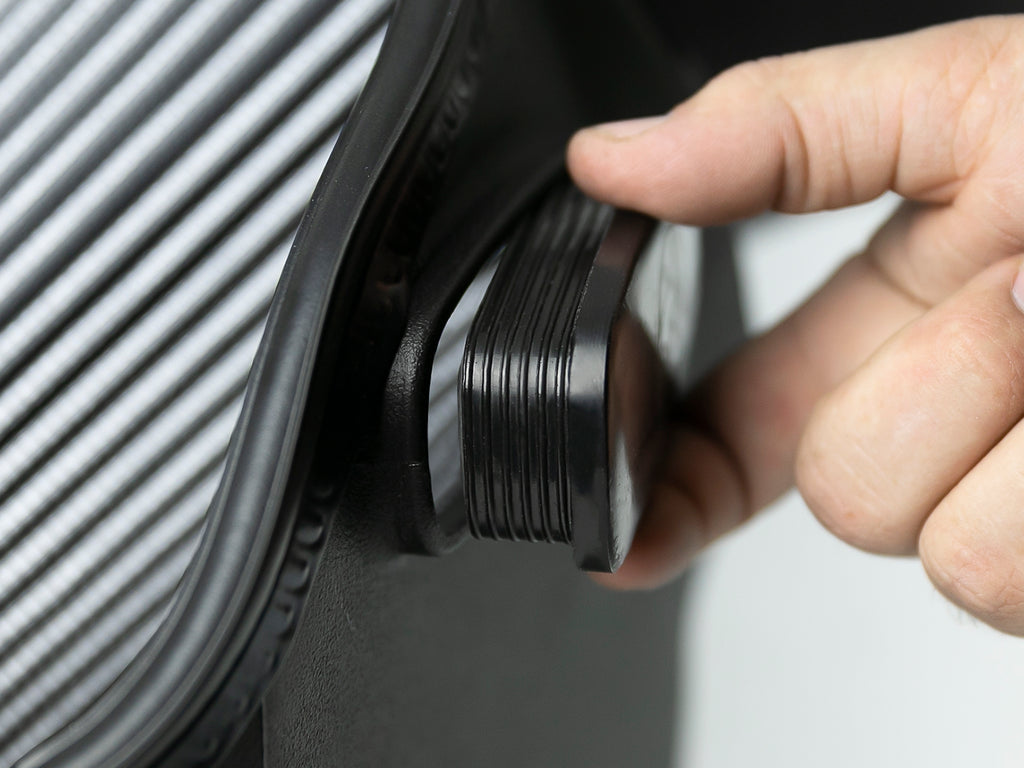

Does the auxiliary opening require a scoop?Install the supplied urethane plug unless fitting the optional Dynamic Air Scoop, which is separate. Retain the original front air inlet.
What performance and installation limits apply?Selected bench flow is 750 versus 455 CFM stock at 7 inches H2O. Marked dyno-point differences 12.56 hp and 34.52 lb-ft differ from separate peak differences 15.03 hp and 29.72 lb-ft; run dates, weather and SAE factors differ. Check bolts, clamps and connectors after 100-200 miles; no numeric torque is given. Current non-CARB restrictions remain applicable.
Verify aFe 54-13017D. Read the complete manual, work on a cool engine and disconnect the negative battery terminal. Loosen the original turbo-inlet and airbox clamps, remove the hose from its tube clip and remove the original tube. Retain the two airbox-to-frame screws and detach the wire clip. Slide back the red locking tab on the bottom of the MAF connector, unplug it and lift out the airbox. Transfer the original metal-insert grommets to the new housing, install the trim seal, seat the housing in the factory grommet and secure it with the two retained frame screws. Remove the filter flange clamp, lower the filter from above, guide its flange through the housing opening and snap it into place, then refit its clamp. Transfer the original MAF to the new tube with the two supplied M4 screws. Place the hump coupling over the turbo inlet and fit both supplied #072 clamps. Install the urethane auxiliary-inlet plug unless using the separate optional scoop. Seat the tube in the filter first, then in the coupling at the turbo inlet, and tighten all clamps. Reconnect the MAF harness and secure the original hose to the tube with the supplied fixing clamp, M6 screw and washer. Verify secure assembly and check all bolts, clamps and connectors after 100-200 miles. No cutting, drilling or numeric torque is specified.
Both exact current manufacturer pages and both own fourteen-page manuals were read in full. All eight contact sheets, complete bill and Figures A-I were visually inspected, including the intentionally blank page and final contact page. All four linked flow/dyno images were inspected. The shared flow chart labels Pro 5R 805, dry 750 and stock 455 CFM at 7 inches H2O; selected-media improvement is approximately 64.84%. The selected dyno chart shows marked-point differences 12.56 hp and 34.52 lb-ft, versus separate maximum-value differences 15.03 hp and 29.72 lb-ft. The charts identify a 2017 F-250 Super Duty 6.7L, DPF-back exhaust, lifted truck with 37x13.50R20 tires, regular fan, 40% load, OBD2 rpm and Linx not connected. The common baseline is October 15, 2018 at 9:23:47 a.m., SAE 0.99, 73.14 F, 29.40 inHg and 11.01% humidity. The selected intake run is October 23, 2018 at 2:52:36 p.m.; 84.87 F, 29.11 inHg, 36.24% humidity with SAE 1.03. Different dates, weather and correction factors limit comparison; point gains and differences between separate maxima are not interchangeable, and no guaranteed output is offered. No gear, fuel-economy or delivered-price claim is inferred. Turn14 exact-product information remains unavailable without authenticated access. Protected commercial data and price are unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
