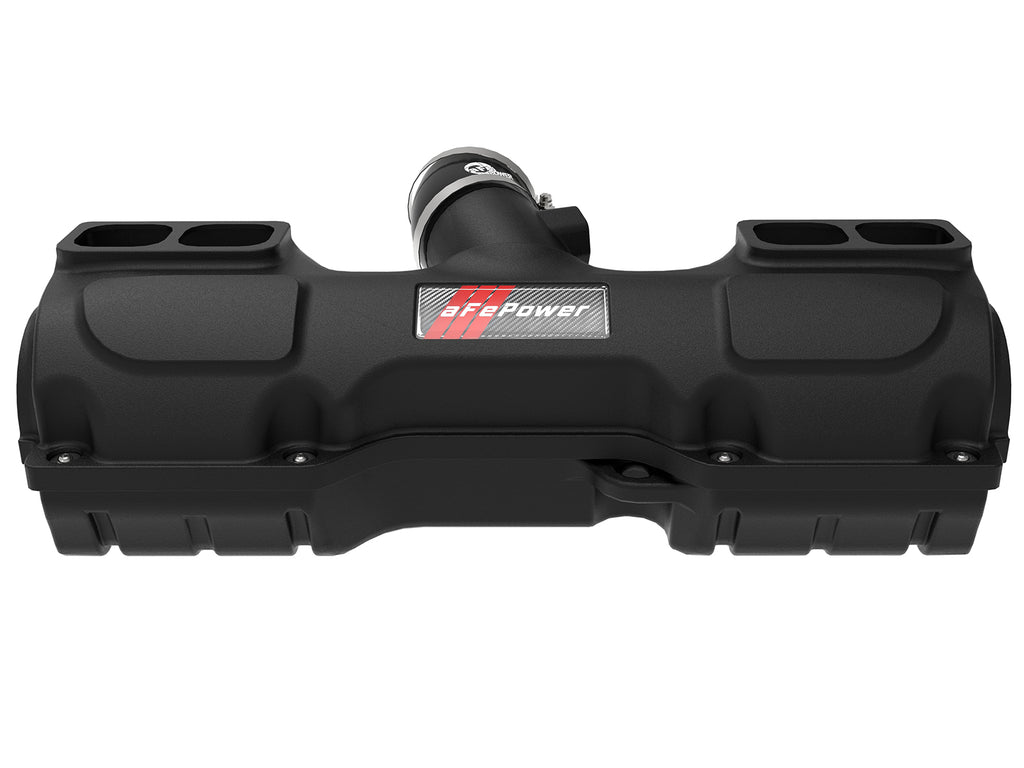

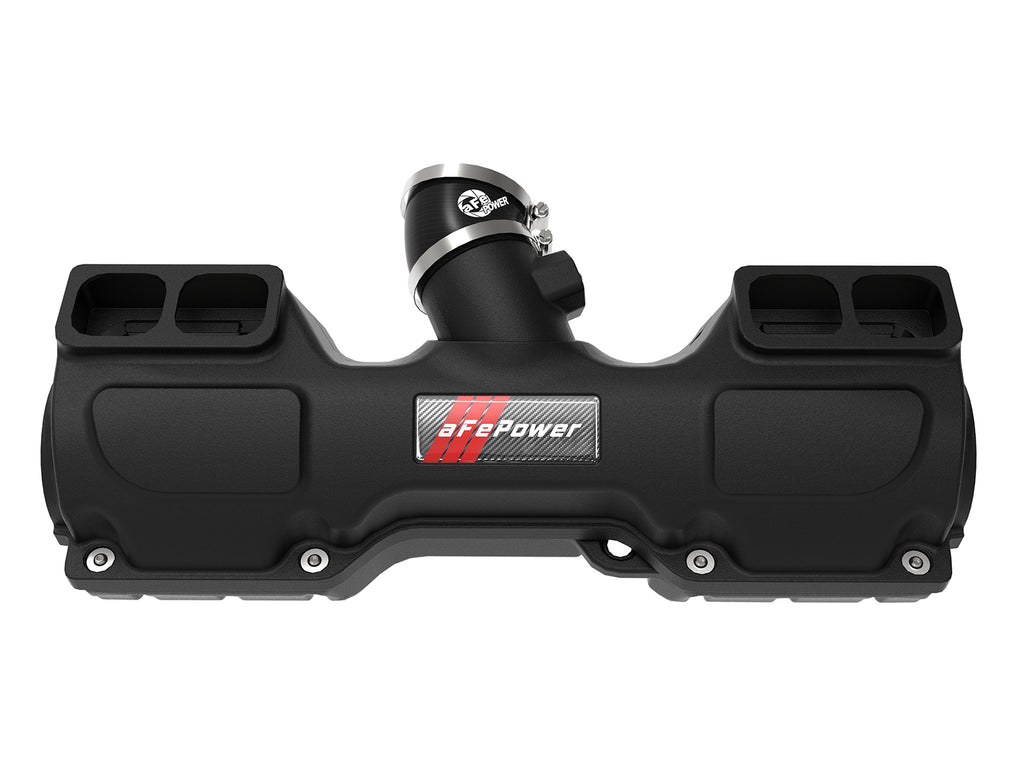

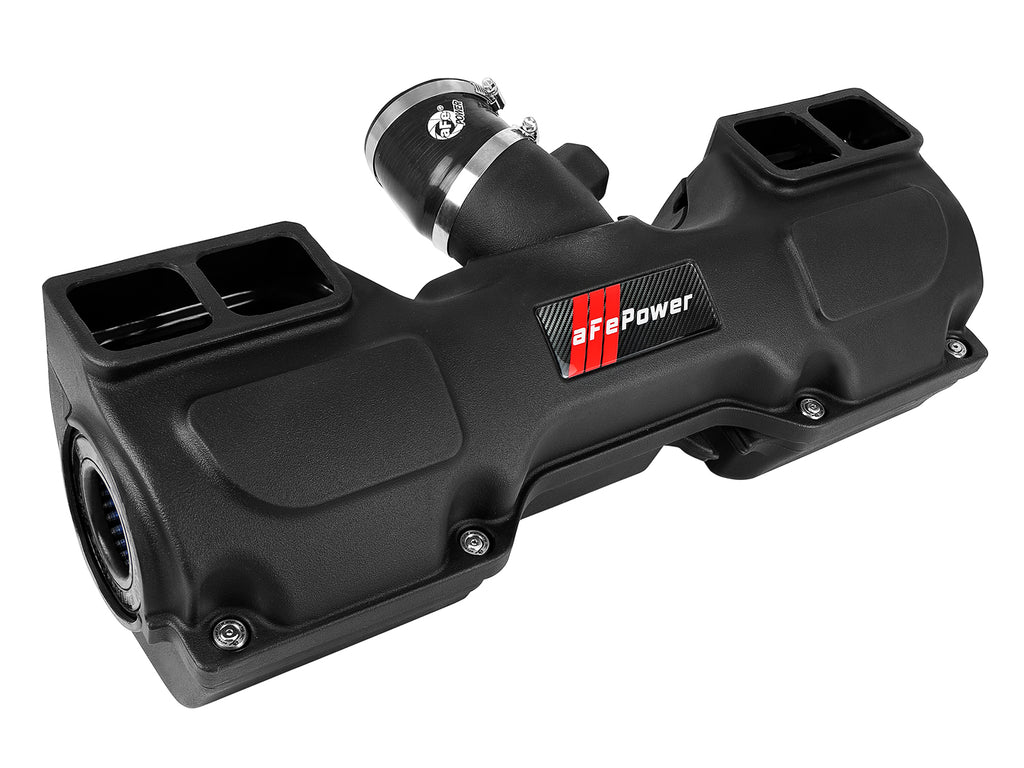

aFe 54-83038R is the Magnum FORCE Stage-2 Si Pro 5R intake with two six-inch-tall inverted-top filters for qualified Porsche 911 Carrera and Targa 997.2 2009-2012 naturally aspirated 3.6L and 3.8L applications. Each 24-91020 element uses five pre-oiled cotton-gauze layers. An XLPE tube, lower housing and separate cover replace the original intake assembly while retaining the original MAF sensor, mounting grommet and two inlet vent screens.
The full twelve-page manufacturer manual explicitly names Carrera and Carrera 4 3.6L, Carrera S and Carrera 4S 3.8L, Targa 4 3.6L and Targa 4S 3.8L, all 997.2 2009-2012. Confirm chassis rather than model year alone where 997 and 991 overlap. Exact selected-part retailer tables additionally list Carrera GTS, Carrera 4 GTS, Speedster and GT3-family entries. Their existing named rows are retained with exact engine and intake-connection confirmation required; GT3/GT3 RS variants are not established by the six Carrera/Targa entries in the manual, and no 4.0L coverage is inferred. Conflicting retailer GT2 and GT2 RS positives are withheld from the certified rows: another exact listing expressly excludes turbocharged vehicles, while Porsche identifies those as the GT2 family. This unresolved source conflict is not a physical installation test. The broad 2009 model-level row requires actual engine and trim verification. No Turbo or later 991 coverage is added.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2009-2012 | Porsche | 911 | Carrera |
| 2009-2012 | Porsche | 911 | Carrera 4 |
| 2012 | Porsche | 911 | Carrera 4 GTS |
| 2009-2012 | Porsche | 911 | Carrera 4S |
| 2011-2012 | Porsche | 911 | Carrera GTS |
| 2009-2012 | Porsche | 911 | Carrera S |
| 2011 | Porsche | 911 | GT3 RS |
| 2011 | Porsche | 911 | Speedster |
| 2009-2012 | Porsche | 911 | Targa 4 |
| 2009-2012 | Porsche | 911 | Targa 4S |
| 2009 | Porsche | 911 | Verify engine and trim |
Verify 54-83038R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-83038R |
| Filters | Two 24-91020 Pro 5R elements; five pre-oiled cotton-gauze layers each |
| Filter dimensions | Each: 4-inch flange, 6-inch base, 4-1/2-inch inverted top, 6-inch height |
| Tube / housing / cover | 05-82892B1 / 05-82892B2 / 05-82892B3; XLPE |
| Coupling / clamps | 05-01494; two #056 03-50009, plus filter-flange clamps |
| MAF / cover screws | Two M4 03-50490 / four M6 03-50102; lengths not stated |
| Cover washers | Four M6 flat washers 03-50070 |
| Changeover-valve cap | 03-50484 vinyl mini cap; illustrated 3.8L S-model procedure |
| Retained parts | MAF sensor, mounting grommet, two vent screens and four screen screws |
| Battery / torque / recheck | Disconnect negative battery terminal; no numeric torque; inspect after 100-200 miles |
| UPC | 802959545553 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

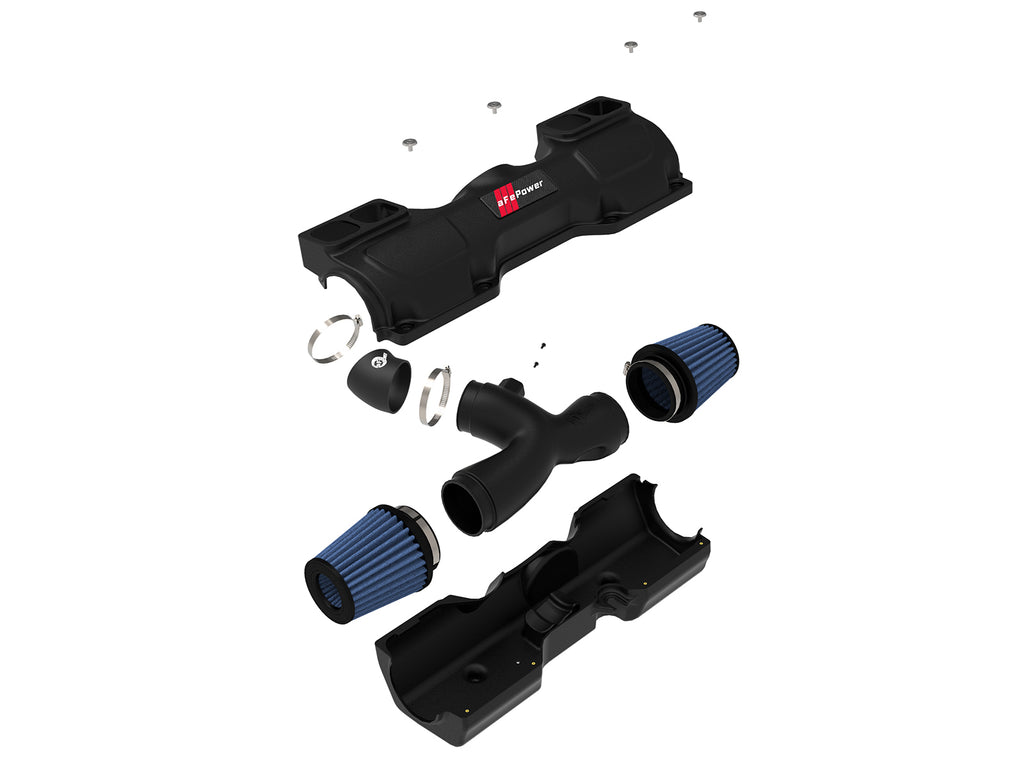

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 2 | 24-91020 | Pro 5R filters; selected media only |
| 1 | 05-82892B1 | Intake tube |
| 1 | 05-82892B2 | Lower housing |
| 1 | 05-82892B3 | Housing cover |
| 1 | 05-01494 | Silicone coupling |
| 2 | 03-50009 | SAE #056 coupling clamps |
| 2 | 03-50490 | M4 screws; length not specified |
| 4 | 03-50102 | M6 screws; length not specified |
| 4 | 03-50070 | M6 flat washers |
| 1 | 03-50484 | Vinyl mini cap |
Two selected oiled filters are supplied; the dry pair in the shared bill represents a separate version. The manual itemizes individual 24-91020 elements; its accessory page and current manufacturer replacement listing identify 24-91020-MA as the pair service package. This does not change the product SKU or create a bundled identifier. Two numbered coupling clamps are separate from the clamps at the two filter flanges. Retain the original MAF, mounting grommet and both vent screens with their four original screws. No new sensor, vent screens, calibration module or mounting-grommet set is itemized.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Two six-inch-tall Pro 5R elements with five pre-oiled cotton-gauze layers each. The dry pair is a different version.
Does a replacement MAF come with the intake?No. Transfer the original MAF with the two supplied M4 screws; their length is not specified.
Are the original vent screens discarded?No. Transfer both screens to the new housing using their four original screws.
What happens to the 3.8L S-model changeover connection?Follow the illustrated removal and supplied-cap procedure for that connection. Confirm the actual valve and hose arrangement before starting.
How should the MAF harness be routed?Reconnect it, place it in the housing slots and protect it while fitting the separate cover.
Does every 2009-2012 911 automatically qualify?No. The manual identifies six 997.2 Carrera/Targa applications. Check chassis, engine and actual intake connections; mixed GT2 and GT2 RS retailer records remain an unresolved source conflict.
Are advertised gains the same as peak-to-peak gains?No. The chart marks gains at 4,000 rpm, while its separate peak legend yields different horsepower and torque differences.
What battery, torque and inspection instructions apply?Disconnect the negative battery terminal. No numeric torque is supplied. Inspect bolts, clamps and connectors again after 100-200 miles.

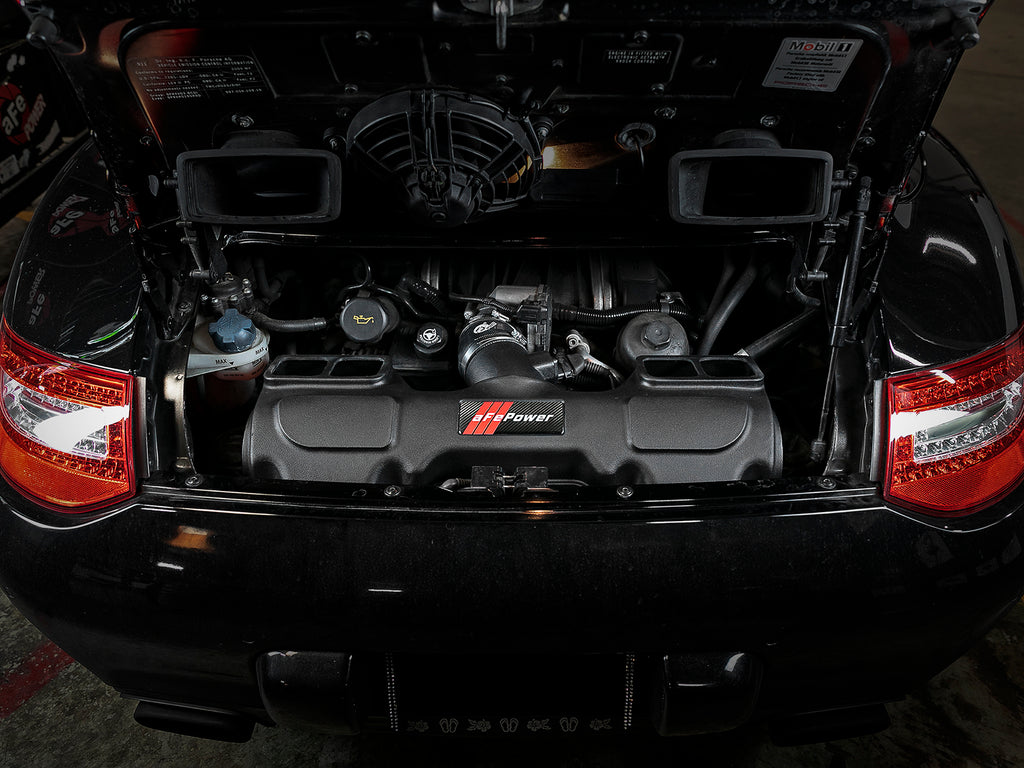

Verify aFe 54-83038R. Read all twelve pages and figures A-F on a cool engine. Disconnect the negative battery terminal. Remove eight original intake screws, detach the MAF harness from the cover and disconnect the sensor. Loosen the throttle-body clamp, remove the factory cover and lift out the intake. On 3.8L S models, detach the changeover valve and disconnect its hose line as illustrated. Transfer the original mounting grommet to the new housing. Remove the original filters to access the two vent screens, then transfer those screens using their four original screws. Transfer the original MAF to the new tube with the two M4 screws. Install both selected filters on the tube and secure their flange clamps. Place the silicone coupling in the vehicle with its logo facing upward; leave its two clamps loose. Seat the new housing firmly in the original grommet. Apply the supplied cap at the changeover-valve connection as shown in the applicable S-model procedure. Position the tube comfortably before securing the coupling clamps. Reconnect MAF and route its harness through the housing slots. Align the rear cover slots and tabs, protect the MAF harness as it passes through the cover, and secure the cover with four M6 screw-and-washer pairs. Verify all connections before reconnecting the battery. No numeric torque is provided. Recheck bolts, clamps and connectors after 100-200 miles.
The actual bench chart shows Pro 5R 520 CFM versus 415 CFM stock at seven inches of water, approximately 25.3% more; the other media value is a separate version. The dyno marks 171.65 versus 163.91 hp and 225.38 versus 215.23 lb-ft at 4,000 rpm, gains of 7.74 hp and 10.15 lb-ft. Its separate peak legend is 282.96 versus 278.20 hp and 242.57 versus 242.03 lb-ft, differences of 4.76 hp and 0.54 lb-ft. The chart identifies a 2009 997.2 3.6L with original headers, exhaust and ECU, 305/30R20 tires, a large fan, open hood, lynx engaged and AWD-dyno notes. Intake testing is August 10, 2018 versus February 26, 2019 baseline, SAE 1.04 for both and smoothing five; the baseline additionally notes fourth gear. Different dates and conditions limit comparison, and these results do not certify every listed engine. The manufacturer states this product is not CARB exempt and restricts California purchase or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
