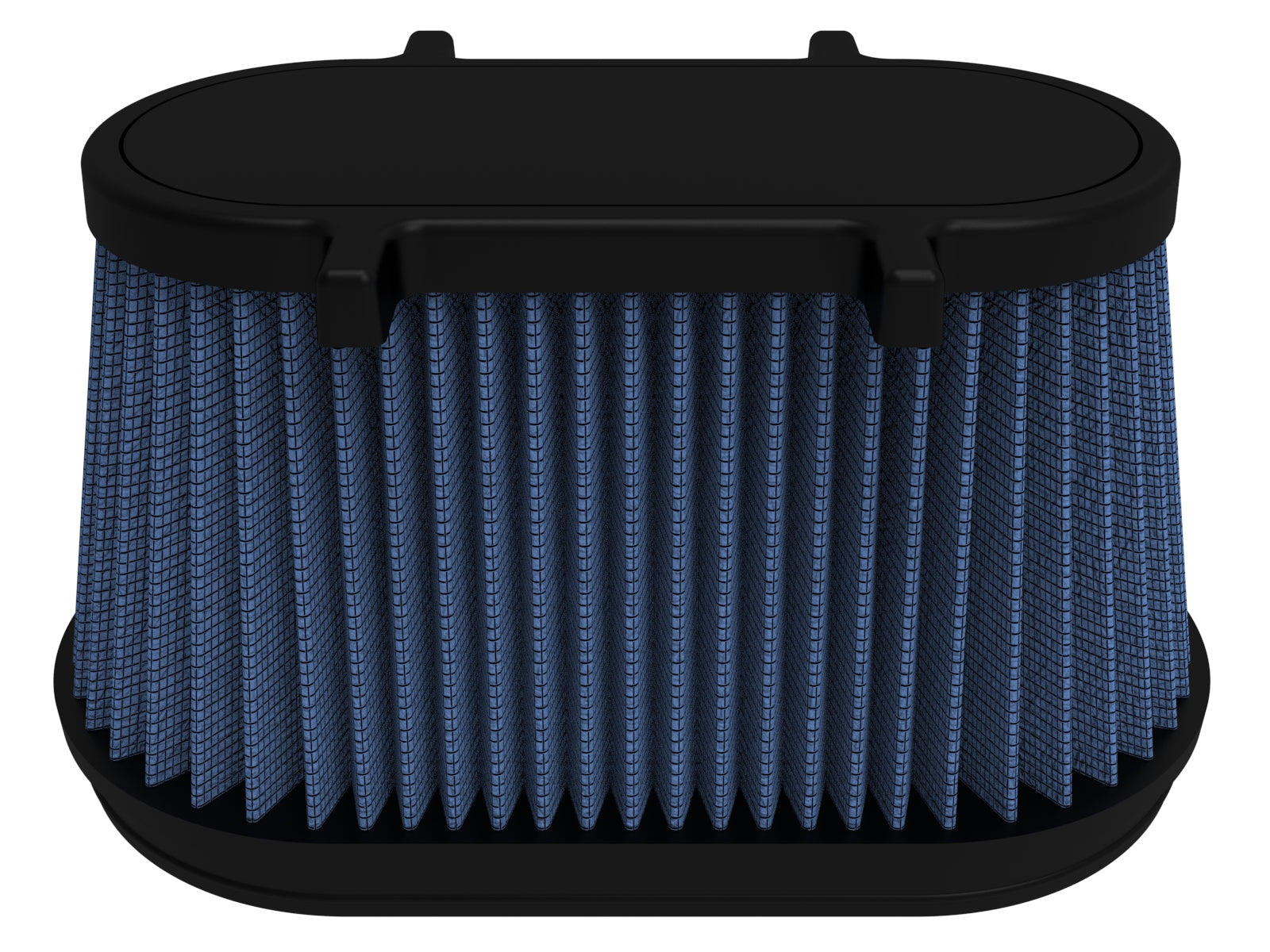

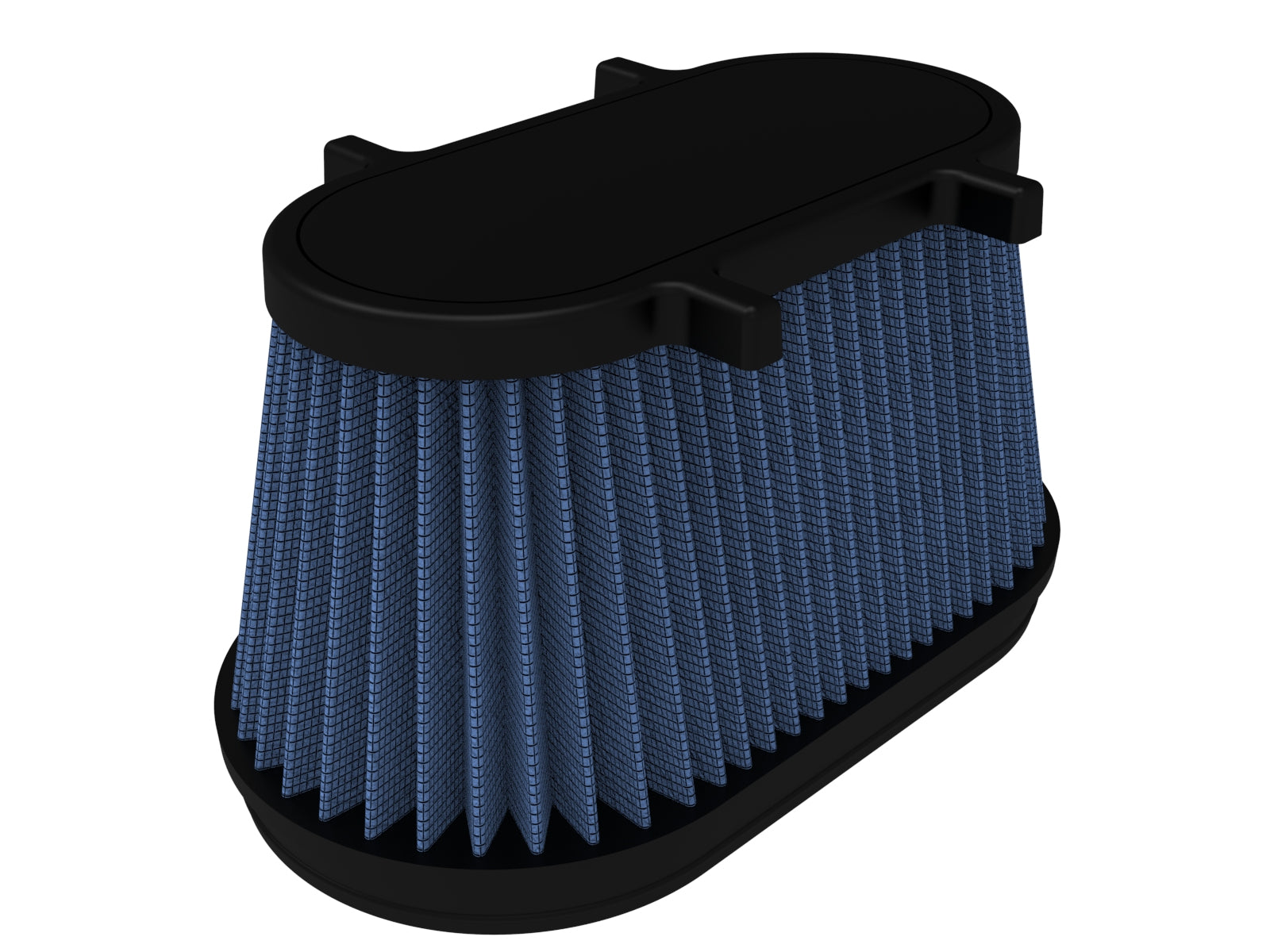

aFe 10-10109 is the Pro 5R oiled-cotton replacement element for its specified factory air-filter housing. It is an air filter, not a complete intake or new airbox.
Current exact manufacturer coverage names GM Express diesel vans 2006-2016, 6.6L, with LLY/LBZ/LMM/LML engine labels. An exact-part family retailer table independently lists Express and Savana 2500/3500 6.6L diesel applications through 2016. That retailer combines multiple media options, so its color, oil/dry status and dimensions are not treated as exact Pro 5R-only facts. Existing named trim bounds and gaps are retained. The manufacturer engine-code wording versus later actual van engines remains a qualification, not new engine approval.
| Existing years | Make | Model | Named row |
|---|---|---|---|
| 2006-2016 | Chevrolet | Express 2500 | Base |
| 2006 | Chevrolet | Express 2500 | LS |
| 2006 | Chevrolet | Express 2500 | LT |
| 2006-2016 | Chevrolet | Express 3500 | Base |
| 2011-2016 | Chevrolet | Express 3500 | LS |
| 2011-2016 | Chevrolet | Express 3500 | LT |
| 2006-2016 | GMC | Savana 2500 | Base |
| 2011-2016 | GMC | Savana 3500 | LS |
| 2011-2016 | GMC | Savana 3500 | LT |
Match 10-10109 to the actual factory housing and sealing surfaces.
| Brand | aFe POWER |
|---|---|
| Manufacturer Part Number | 10-10109 |
| Product type | Air Filters - Direct Fit |

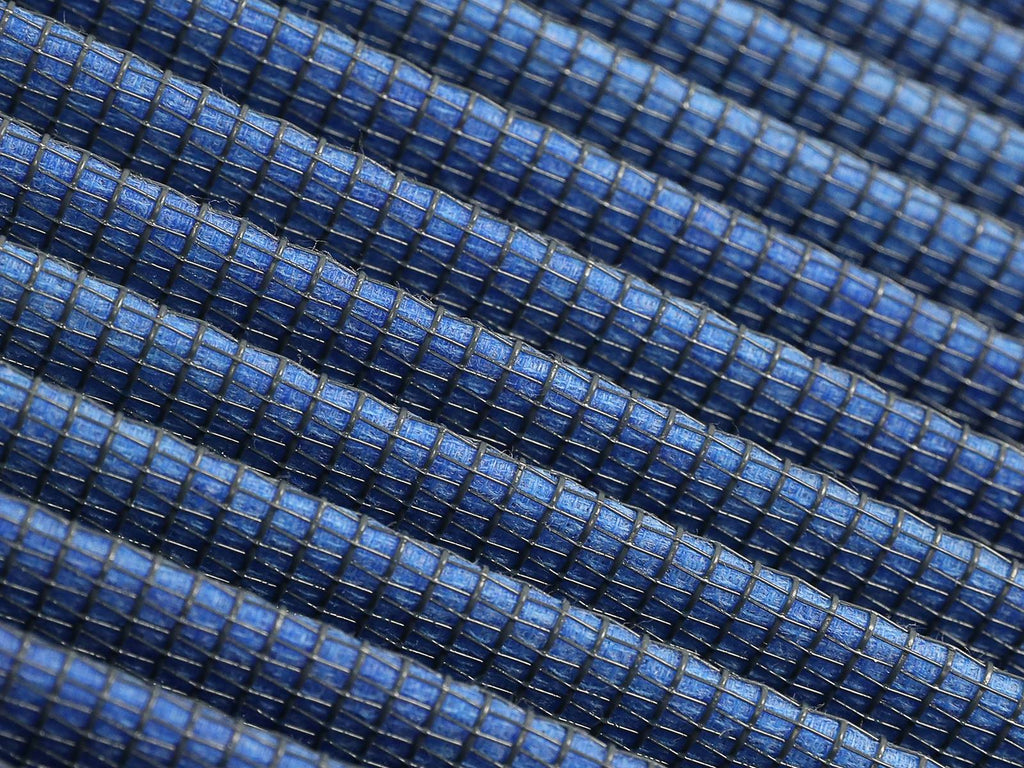

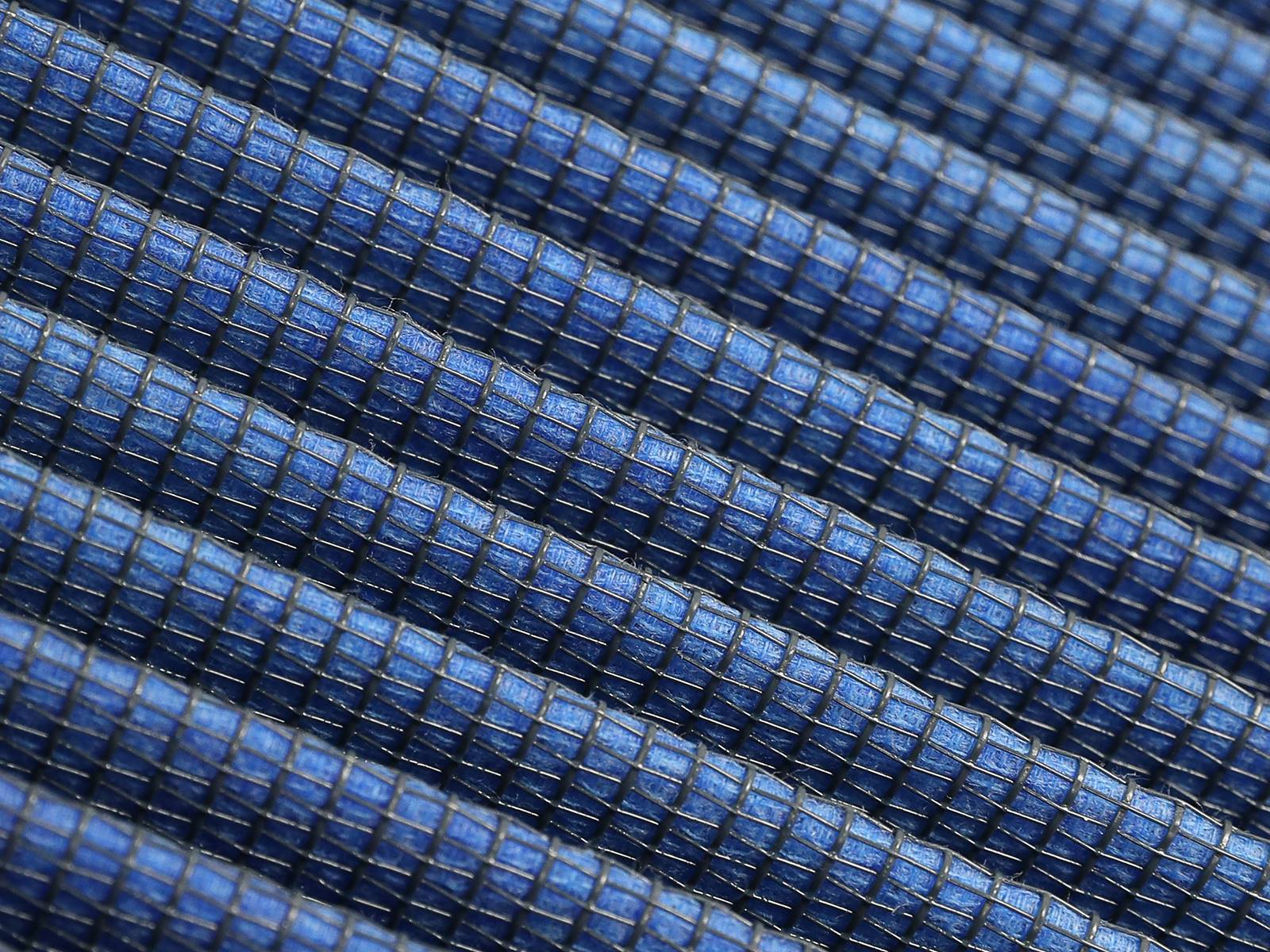

| Media | Pro 5R: five progressively finer layers of oiled cotton gauze |

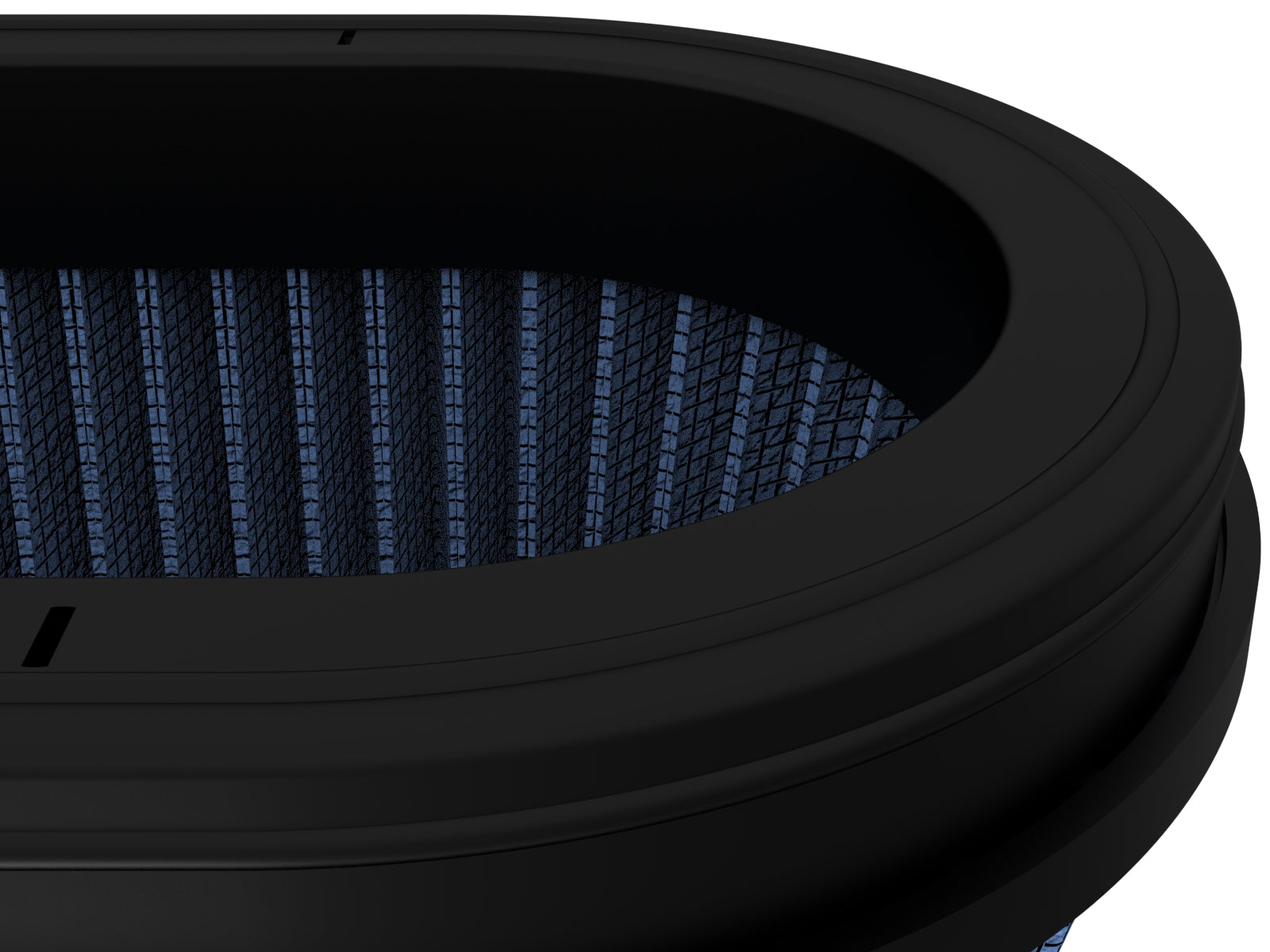

| Frame | Polyurethane top and bottom/base |
| Service | Washable and reusable; use appropriate aFe oiled-filter maintenance products |
| Numeric dimensions | Not established from the current exact product page |
| Emissions | Current exact manufacturer page states this product does not require a CARB EO number |
| UPC | 802959101988 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
One aFe 10-10109 replacement air-filter element. The generic website field “Coupler Included: Yes” does not itemize a separate hose, coupling or clamp; no such extra component is certified as supplied.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
The stated application is the actual 6.6L turbo-diesel and matching factory housing. Model names do not establish gasoline or unrelated engine compatibility.
Why are later years retained?The exact manufacturer headline runs through 2016 and an exact-part family retailer table lists diesel Express/Savana applications through that year. Existing bounds are preserved with engine, trim and housing qualifications.
Does the retailer’s combined table mean this filter is dry?No. That family page combines Pro 5R, Pro DRY S and Pro GUARD 7 variants. This exact manufacturer part uses five layers of oiled cotton gauze; mixed-option color and media fields are not substituted.
Are all manufacturer engine-code labels certified?The current page prints LLY/LBZ/LMM/LML across its van range. Later actual van engine identity must still be checked; that label list does not approve a different engine or housing by inference.
Is a numeric flow percentage published?The exact page does not state one. Its qualitative flow claim does not authorize using another filter’s 17% result or efficiency figure.
What is included?One replacement air-filter element. Confirm how many elements the actual vehicle needs. The generic coupler field does not itemize additional hoses or clamps; a cleaning kit and replacement housing are not listed as supplied.
How should the oiled media be serviced?Follow current aFe Pro 5R cleaning and re-oiling guidance. Confirm the current approved service product. Do not treat cotton gauze as oil-free synthetic media or over-oil it.
Does this OE filter require a CARB EO number?The current exact manufacturer page says it does not require a CARB EO number. That statement concerns this replacement filter and does not establish approval for an entire modified intake or another component.
Verify aFe 10-10109. Match the exact engine, factory housing and required element quantity before removal. Keep debris out of the clean intake side, seat the seal without twisting and confirm the housing closes correctly. No exact installation PDF is linked on the current page; no numeric torque, clip count or cutting procedure is certified. Follow the current manufacturer vehicle-specific guidance and Pro 5R maintenance instructions.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
Manufacturer filter-flow and media-efficiency claims do not guarantee vehicle power gains. Actual engine, original housing and sealing interfaces must match.
