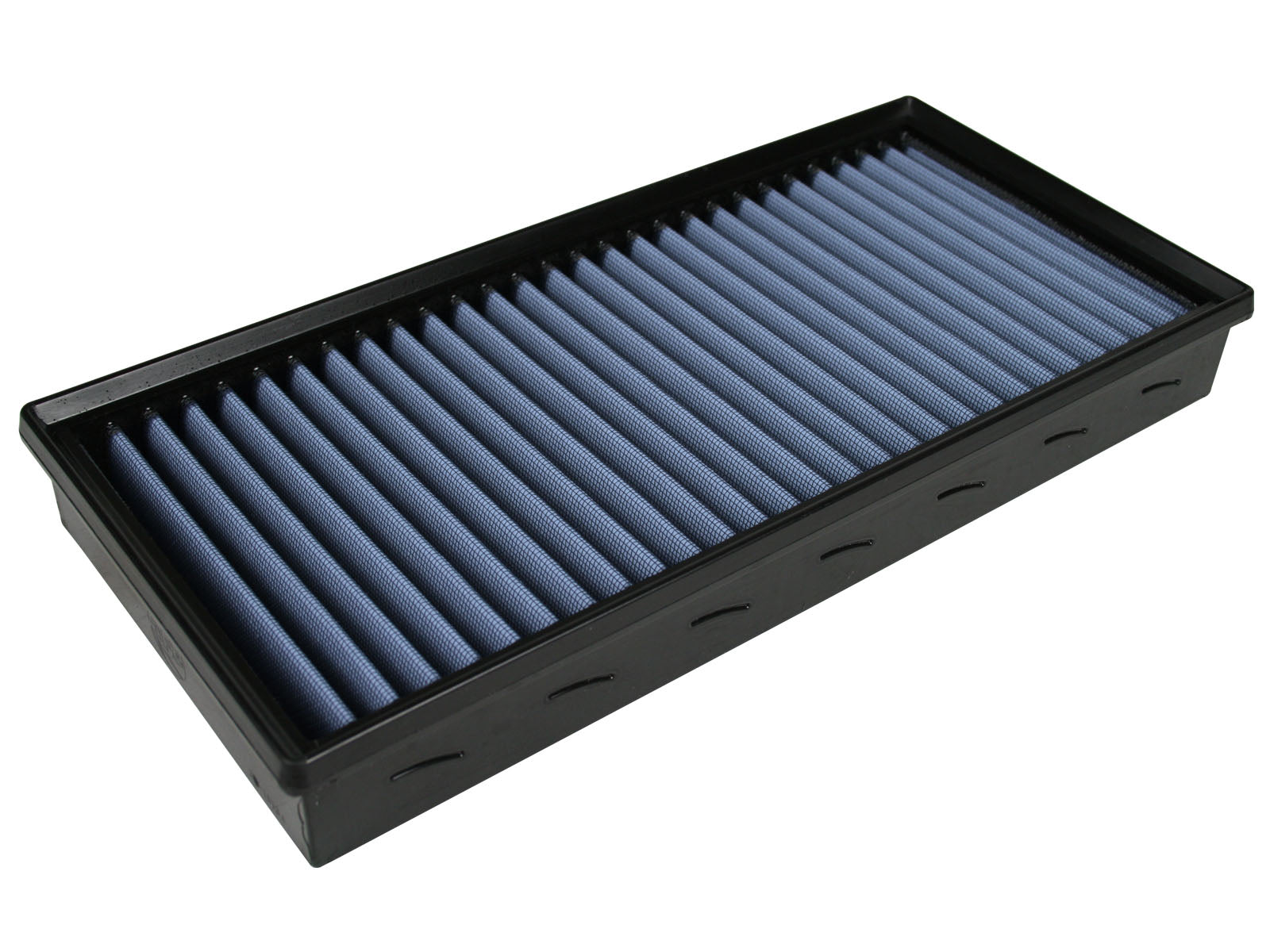

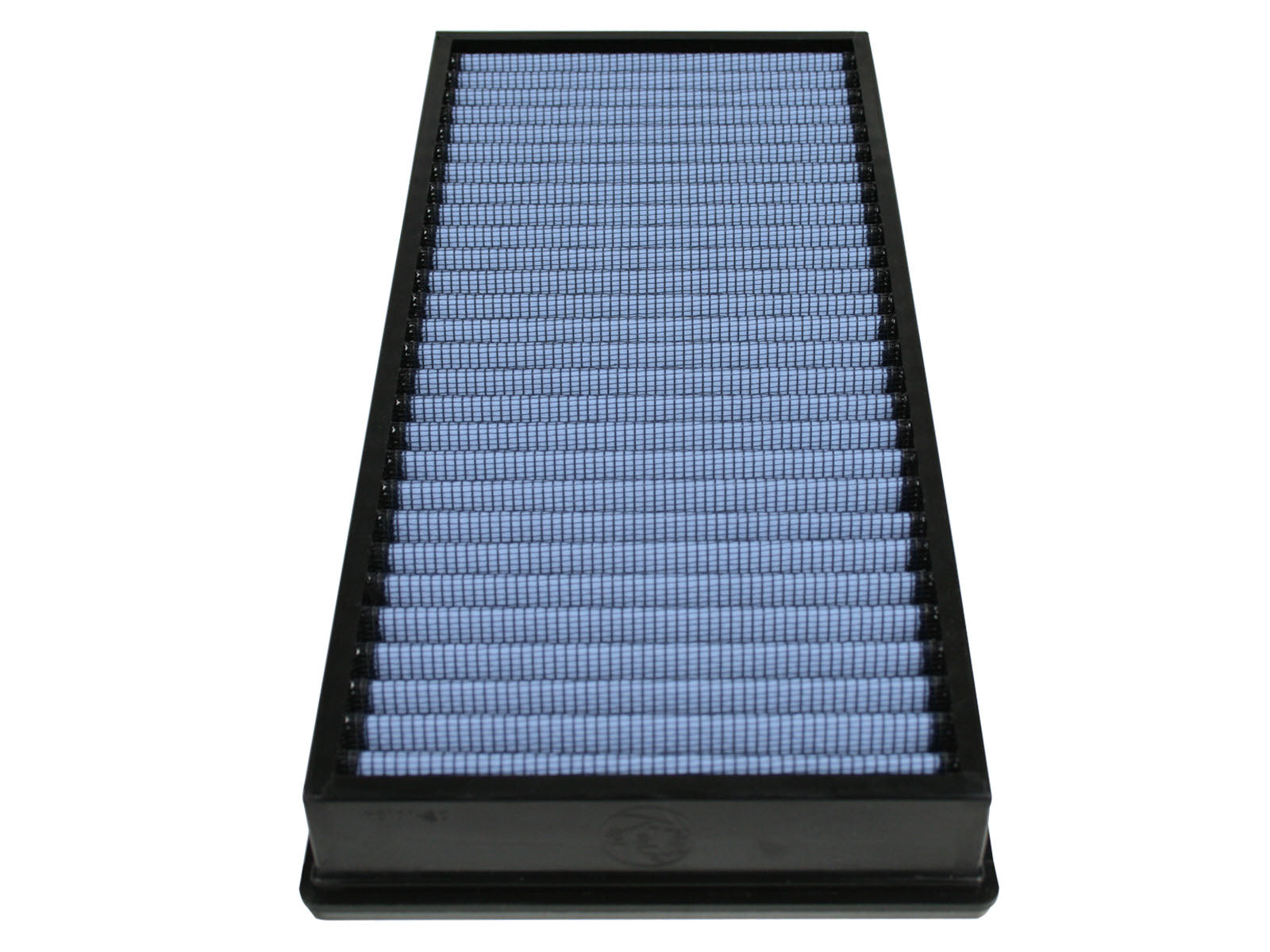

Pro 5R replacement with the correct engine and housing
The aFe 30-10134 replaces the original airbox filter in the specified applications with five layers of factory-pre-oiled cotton gauze. The current manufacturer names Porsche Cayenne 2003–2016 V6/V8 and reports up to 25% greater filter flow. Exact FinditParts, GBP and Sport Compact Warehouse tables separately identify later Cayenne through 2018 and Audi Q7, Volkswagen Touareg and Range Rover applications with individual engines and years. These are exact-part retailer applications, not an assumption that all four brands share a platform or airbox. The restored Cayenne Diesel 2013–2016 and Diesel Platinum Edition 2014 rows are explicitly named in the exact table, while the existing bare 2013–2016 Cayenne row remains an unresolved search-scope qualification rather than being assumed identical to Diesel. The existing Range Rover Sport HSE row is preserved as a separate housing/source hold because the current exact sources reviewed identify Range Rover without certifying that Sport branch. Earlier generic Touareg trim labels retain a factory-name/engine mapping hold; no new engine pseudo-trims are invented. This listing supplies one filter element. Exact ECS notes require two elements for the 2012 Cayenne Turbo 4.8L, and the retailer engine matrix also identifies two-filter Touareg configurations. Verify actual required quantity before ordering; one element is not automatically a complete vehicle set.
Key Features

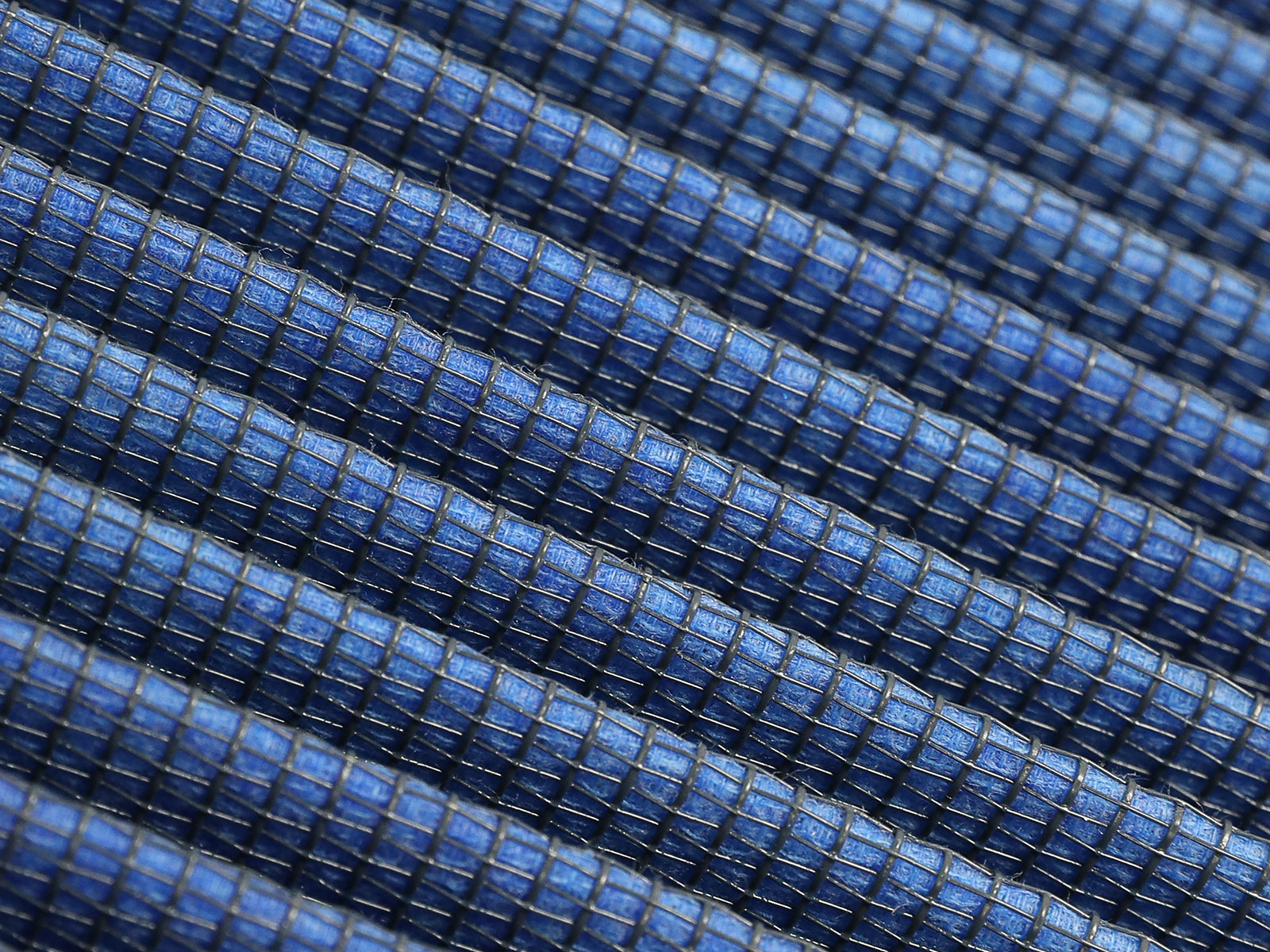

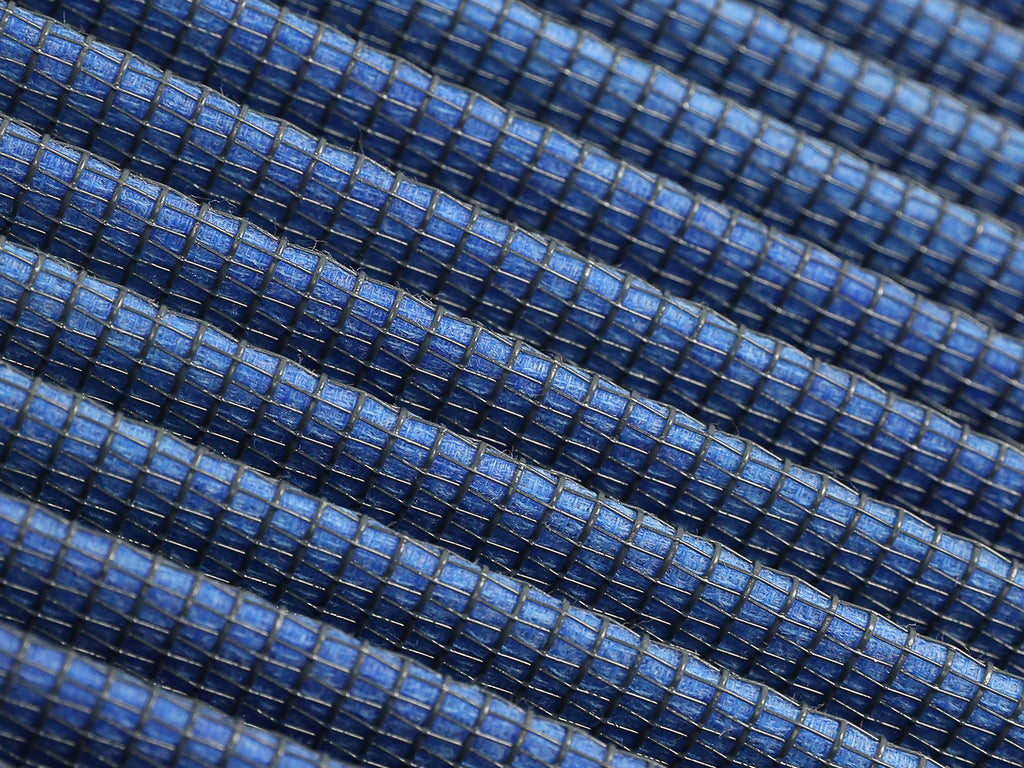

- Five layers of progressively finer oiled cotton gauze.
- Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.
- Rounded open pleats provide usable filter area and dust-holding capacity.

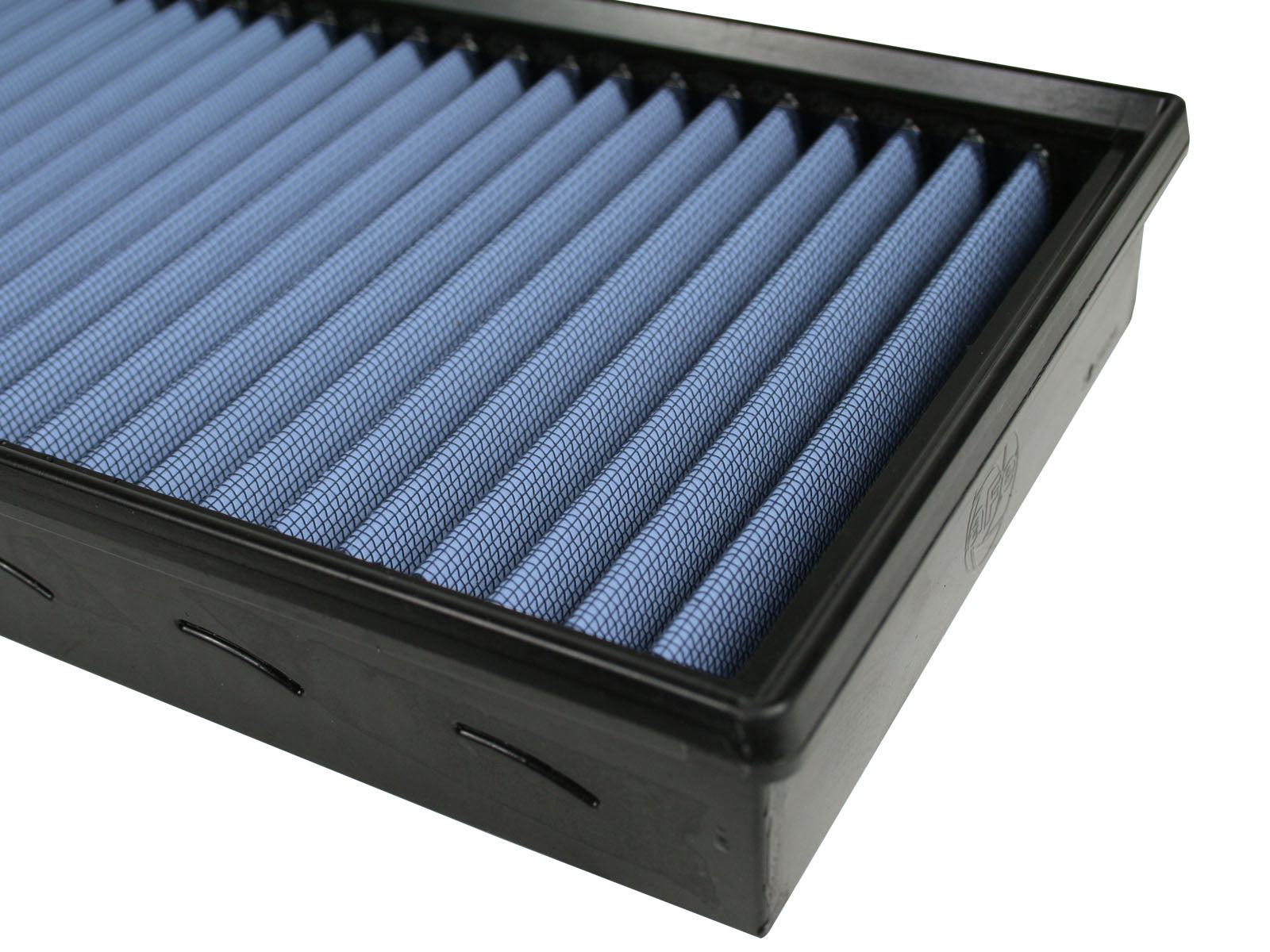

- Full polyurethane perimeter frame and progressive bump seal.
- The manufacturer advertises up to 25% greater filter flow and 98.6% media efficiency. This does not mean 25% more engine power or complete particle removal.
Fitment
| Detail | Value |
|---|---|
| Porsche Cayenne | 2003–2016 manufacturer family; individual exact retailer scopes through 2018 are separately qualified |
| Cayenne Diesel | 2013–2016 Diesel and 2014 Diesel Platinum Edition exact named retailer scopes restored |
| Audi Q7 / Volkswagen Touareg | Existing individually bounded gas / diesel / hybrid retailer applications retain actual engine and housing conditions |
| Range Rover / Range Rover Sport | Range Rover 2006–2009 4.2L supercharged / 4.4L retailer proof; existing Sport HSE branch remains a source hold |
| Element quantity | One supplied; some engines require two, including exact ECS 2012 Cayenne Turbo note and specified retailer Touareg configurations |
30-10134: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 30-10134 |
| Media | Pro 5R; five layers of pre-oiled cotton gauze |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no unverified overall dimensions |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media. |
| Flow statement | The manufacturer advertises up to 25% greater filter flow and 98.6% media efficiency. This does not mean 25% more engine power or complete particle removal. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro 5R OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the Pro 5R cleaning and oiling routine.
Frequently Asked Questions
What is the 30-10134?One Pro 5R OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The current manufacturer names Porsche Cayenne 2003–2016 V6/V8 and reports up to 25% greater filter flow. Exact FinditParts, GBP and Sport Compact Warehouse tables separately identify later Cayenne through 2018 and Audi Q7, Volkswagen Touareg and Range Rover applications with individual engines and years. These are exact-part retailer applications, not an assumption that all four brands share a platform or airbox. The restored Cayenne Diesel 2013–2016 and Diesel Platinum Edition 2014 rows are explicitly named in the exact table, while the existing bare 2013–2016 Cayenne row remains an unresolved search-scope qualification rather than being assumed identical to Diesel. The existing Range Rover Sport HSE row is preserved as a separate housing/source hold because the current exact sources reviewed identify Range Rover without certifying that Sport branch. Earlier generic Touareg trim labels retain a factory-name/engine mapping hold; no new engine pseudo-trims are invented. This listing supplies one filter element. Exact ECS notes require two elements for the 2012 Cayenne Turbo 4.8L, and the retailer engine matrix also identifies two-filter Touareg configurations. Verify actual required quantity before ordering; one element is not automatically a complete vehicle set.
Is the Pro 5R media oiled?Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.
Does the flow percentage guarantee more engine power?The manufacturer advertises up to 25% greater filter flow and 98.6% media efficiency. This does not mean 25% more engine power or complete particle removal.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Does one supplied element service every listed SUV completely?No. The exact ECS 2012 Cayenne Turbo 4.8L listing requires two elements, and the retailer engine matrix identifies other two-filter configurations. Check the actual engine and both original housing positions; this listing is one element, not an automatically complete pair.
When should I clean and re-oil it?Inspect according to actual dust exposure and restriction. Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally and allow the specified oil to wick before reinstalling. Do not use heat, compressed air or excess oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 30-10134 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oiled Pro 5R maintenance directions. Read the manufacturer media maintenance guidance.
30-10134: verify the original filter interface before operation.
California Proposition 65 Warning
- This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
