Pro DRY S replacement with the correct engine and housing
The aFe 31-10104 replaces the original airbox filter in the specified applications with oil-free synthetic media. The exact current manufacturer identifies BMW X5 E532001–2006 3.0L M54. The original X53.0i range remains unchanged. Exact dry-part retailer tables additionally identify E38750iL M73 5.4L outside the short six-cylinder primary heading; its original1996–2001 scope is retained as an engine/housing source qualification, not deleted as presumed contamination or certified manufacturer all-V12 coverage. Confirm the original housing and required vehicle element count; one supplied filter is not automatically a complete multi-airbox service set. No X5V8, diesel, later E70 or other750iL generation is inferred. The exact primary overview says cotton gauze while the Pro DRY S identity and exact retailer synthetic description conflict with that wording. The primary dedicated section specifies three progressive layers and99.2-percent filtration efficiency; older two-layer retailer text is not the current exact primary specification.
Key Features
- Oil-free synthetic filtration media.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.

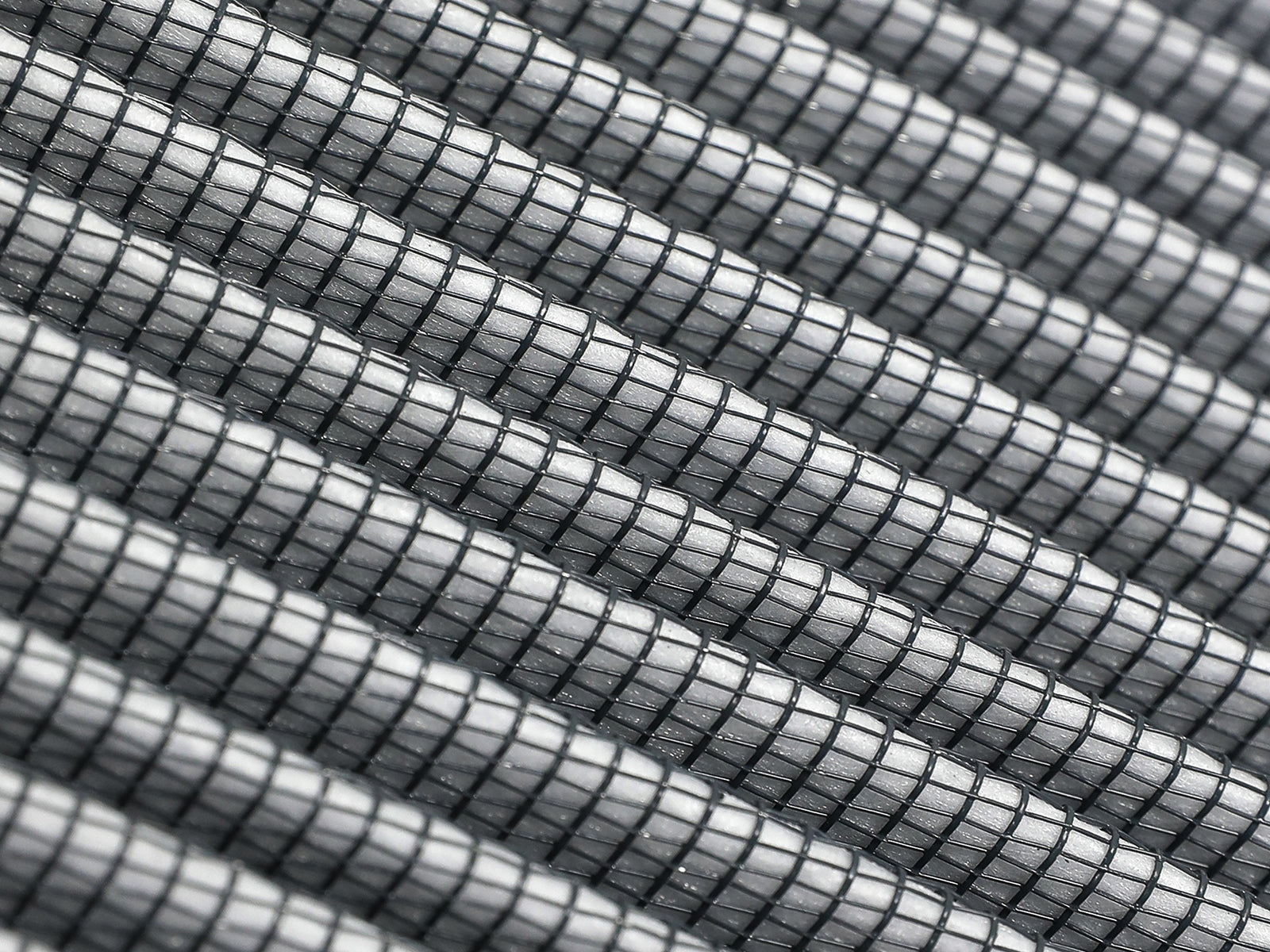

- Rounded open pleats provide usable filter area and dust-holding capacity.
- Full polyurethane perimeter frame and progressive bump seal.
- The current exact primary states99.2-percent efficiency without publishing the test protocol there. No numerical airflow-gain or horsepower result is given; no engine-output guarantee is implied.
Fitment
| Detail | Value |
|---|---|
| Current manufacturer | X5 E532001–2006 M54 3.0L original housing |
| Original750iL hold | E38 M73 5.4L exact retailer positive;1996–2001 retained qualified beyond current X5 headline |
| Package quantity | One OE element; confirm actual vehicle airbox/element count separately |
| Media | Three oil-free Pro DRY S layers; cotton overview and older retailer two-layer descriptions conflict |
| Efficiency | 99.2percent as stated on current exact primary; no test protocol supplied there |
31-10104: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10104 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no verified numeric pleat depth on the exact current primary |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. |
| Flow statement | The current exact primary states99.2-percent efficiency without publishing the test protocol there. No numerical airflow-gain or horsepower result is given; no engine-output guarantee is implied. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro DRY S OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.
Frequently Asked Questions
What is the 31-10104?One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The exact current manufacturer identifies BMW X5 E532001–2006 3.0L M54. The original X53.0i range remains unchanged. Exact dry-part retailer tables additionally identify E38750iL M73 5.4L outside the short six-cylinder primary heading; its original1996–2001 scope is retained as an engine/housing source qualification, not deleted as presumed contamination or certified manufacturer all-V12 coverage. Confirm the original housing and required vehicle element count; one supplied filter is not automatically a complete multi-airbox service set. No X5V8, diesel, later E70 or other750iL generation is inferred. The exact primary overview says cotton gauze while the Pro DRY S identity and exact retailer synthetic description conflict with that wording. The primary dedicated section specifies three progressive layers and99.2-percent filtration efficiency; older two-layer retailer text is not the current exact primary specification.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?The current exact primary states99.2-percent efficiency without publishing the test protocol there. No numerical airflow-gain or horsepower result is given; no engine-output guarantee is implied.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Does the original750iL scope approve every BMW V12?No. Exact retailers identify the E38 M73 application, but the current primary headline names X5 M54. Keep the original bounded engine/housing qualification and verify the element quantity; no other V12 generation is inferred.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 31-10104 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10104: verify the original filter interface before operation.
California Proposition 65 Warning
- This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
