-20%
Click to zoom in
Pro DRY S replacement with the correct engine and housing
The aFe 31-10222 replaces the original airbox filter in the specified applications with oil-free synthetic media. The exact current manufacturer identifies BMW X5 E70 2009–2013 M57 3.0L turbo diesel. It specifies three progressively finer synthetic layers, an oil-free service method and the original-housing polyurethane frame/bump seal. The existing xDrive35d 2009–2013 row matches that current manufacturer family and is retained. The carried 2013 xDrive35i gasoline row appears explicitly in multiple exact retailer tables, including D&S, OneFastShop and ThreePiece; it is not deleted solely because the current primary diesel heading omits it. Manufacturer-explicit gas-housing interchange remains unresolved, so that individual original row remains a qualified source hold rather than a new all-engine approval. ThreePiece also exposes a second conflicting internal fitment field with unrelated broader trims and earlier years; those extra scopes are not copied. Older two-layer/oiled retailer wording conflicts with the current exact three-layer oil-free synthetic description and is not used as the service specification. No F15 diesel, X5 M or arbitrary N55 housing application is added.
Key Features
- Oil-free synthetic filtration media.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.

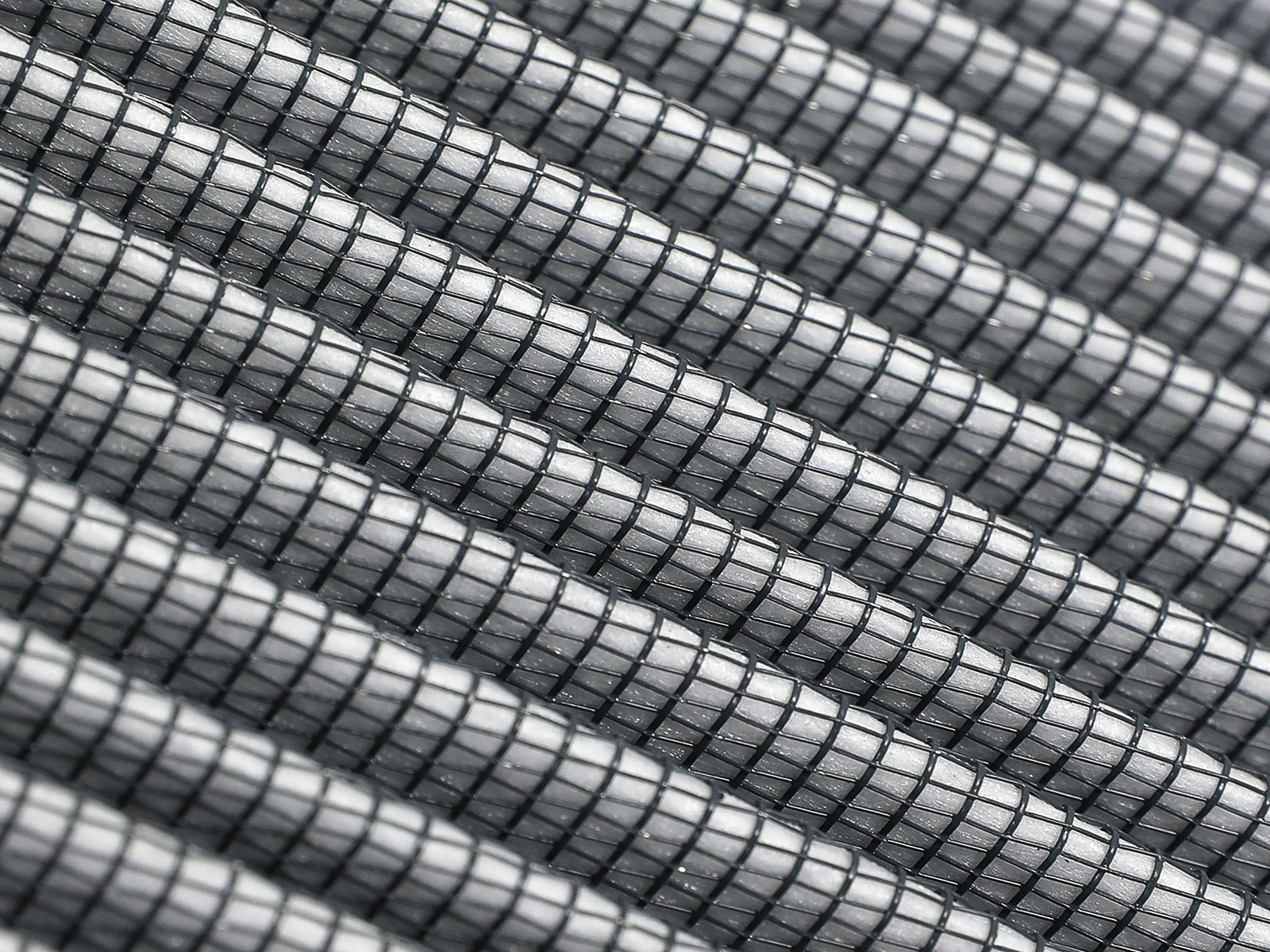

- Rounded open pleats provide usable filter area and dust-holding capacity.

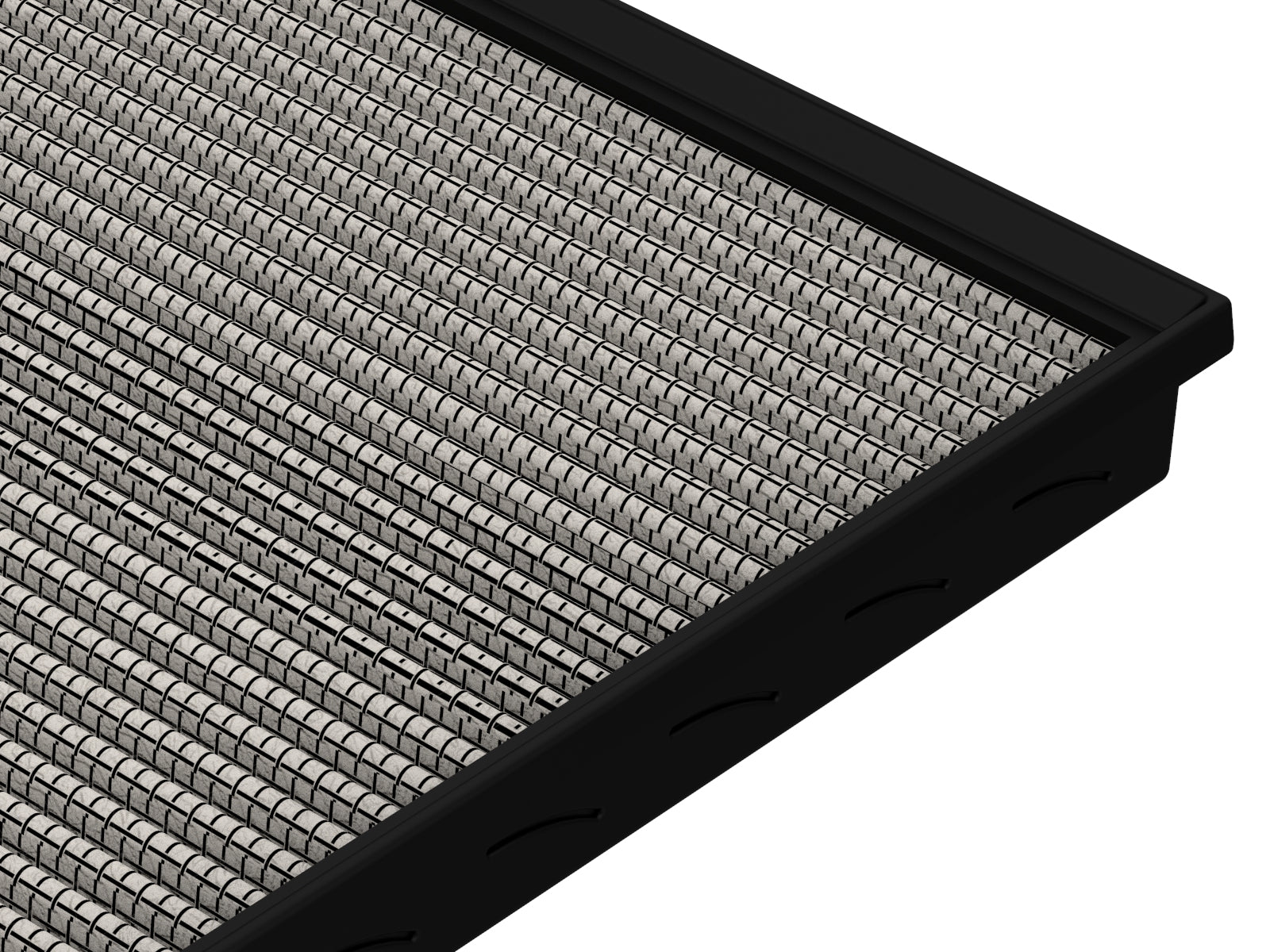

- Full polyurethane perimeter frame and progressive bump seal.
- No numerical airflow-gain, filtration-efficiency or horsepower figure is published on the current exact manufacturer page for this element. A different BMW filter or generic media value is not substituted.
Fitment
| Detail | Value |
|---|---|
| BMW X5 E70 xDrive35d | Original 2009–2013 M57 turbo-diesel row retained; matches current primary family |
| BMW X5 xDrive35i 2013 | Original exact-retailer-positive row retained as manufacturer gas-housing source hold; not blanket all-engine certification |
| Media specification | Current exact primary three synthetic layers, oil-free; older two-layer/oiled retailer fields qualified |
| Other X5 generations / engines | No broad gas, X5 M or F15 mapping inferred from the model name |
| Contents | One OE filter element; not a complete intake or new sensor/housing |
31-10222: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10222 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no verified numeric pleat depth on the exact current primary |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. |
| Flow statement | No numerical airflow-gain, filtration-efficiency or horsepower figure is published on the current exact manufacturer page for this element. A different BMW filter or generic media value is not substituted. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro DRY S OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.
Frequently Asked Questions
What is the 31-10222?One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The exact current manufacturer identifies BMW X5 E70 2009–2013 M57 3.0L turbo diesel. It specifies three progressively finer synthetic layers, an oil-free service method and the original-housing polyurethane frame/bump seal. The existing xDrive35d 2009–2013 row matches that current manufacturer family and is retained. The carried 2013 xDrive35i gasoline row appears explicitly in multiple exact retailer tables, including D&S, OneFastShop and ThreePiece; it is not deleted solely because the current primary diesel heading omits it. Manufacturer-explicit gas-housing interchange remains unresolved, so that individual original row remains a qualified source hold rather than a new all-engine approval. ThreePiece also exposes a second conflicting internal fitment field with unrelated broader trims and earlier years; those extra scopes are not copied. Older two-layer/oiled retailer wording conflicts with the current exact three-layer oil-free synthetic description and is not used as the service specification. No F15 diesel, X5 M or arbitrary N55 housing application is added.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?No numerical airflow-gain, filtration-efficiency or horsepower figure is published on the current exact manufacturer page for this element. A different BMW filter or generic media value is not substituted.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Does the diesel heading prove the original 2013 gasoline row physically incompatible?No. Several exact per-part retailer tables positively list that original row. It remains conditional on the actual engine and housing because manufacturer-explicit gas interchange is unresolved; no broader gasoline application is added.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 31-10222 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10222: verify the original filter interface before operation.
California Proposition 65 Warning
- This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
