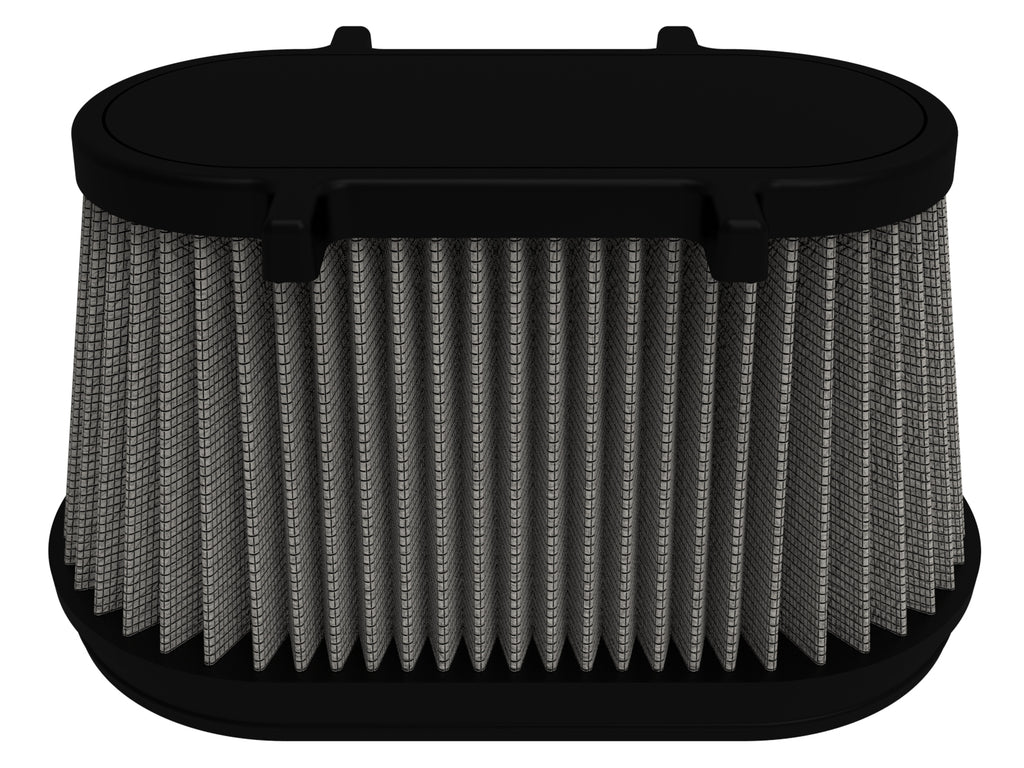

aFe MagnumFLOW Air Filters OER PDS A/F PDS GM Van 06-11 V8-6.6L (td) aFe AFE11-10109
aFe MagnumFLOW Air Filters OER PDS A/F PDS GM Van 06-11 V8-6.6L (td) aFe AFE11-10109
aFe MagnumFLOW Air Filters OER PDS A/F PDS GM Van 06-11 V8-6.6L (td) aFe AFE11-10109
aFe MagnumFLOW Air Filters OER PDS A/F PDS GM Van 06-11 V8-6.6L (td) aFe AFE11-10109
Click to zoom in

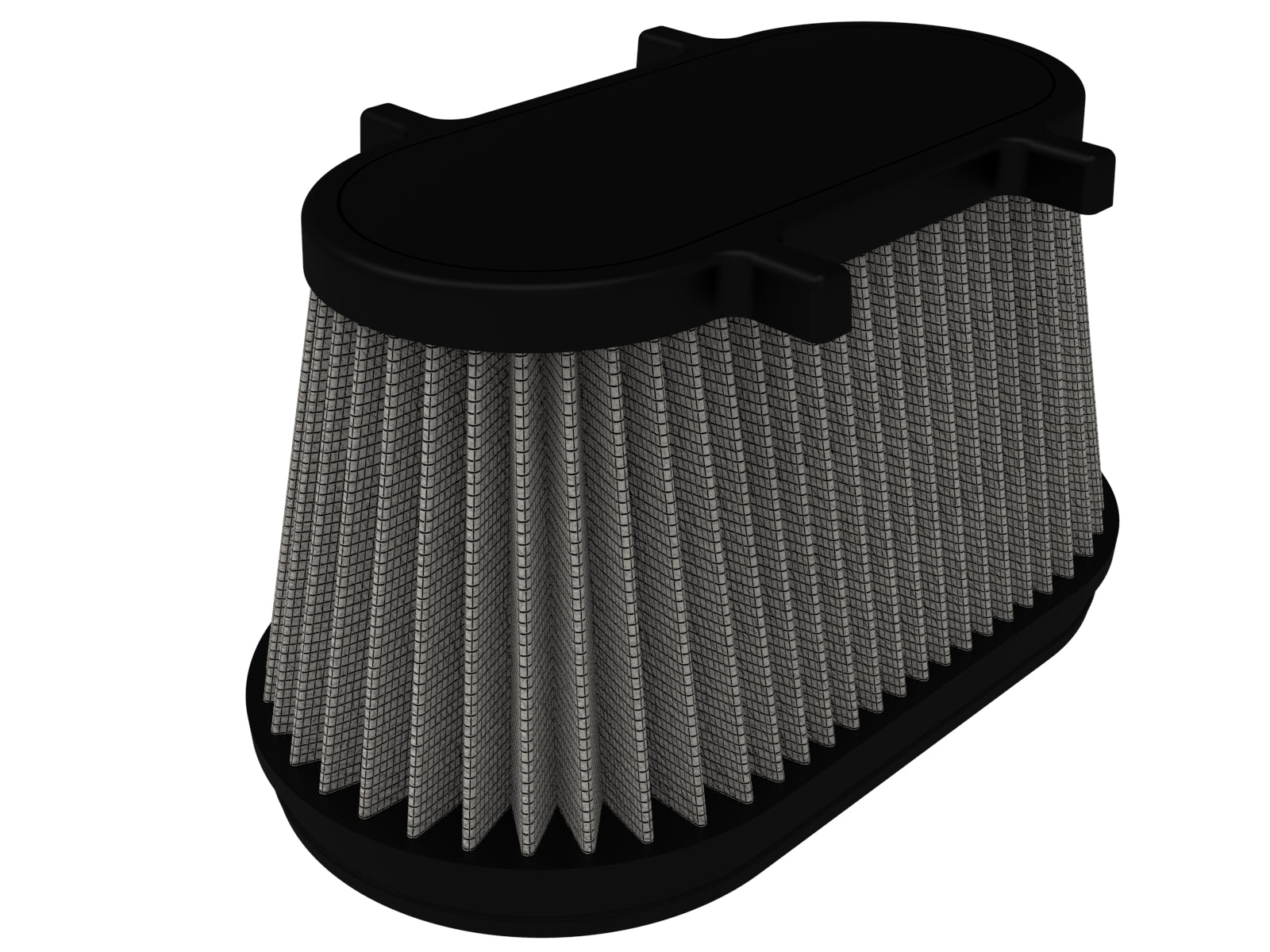

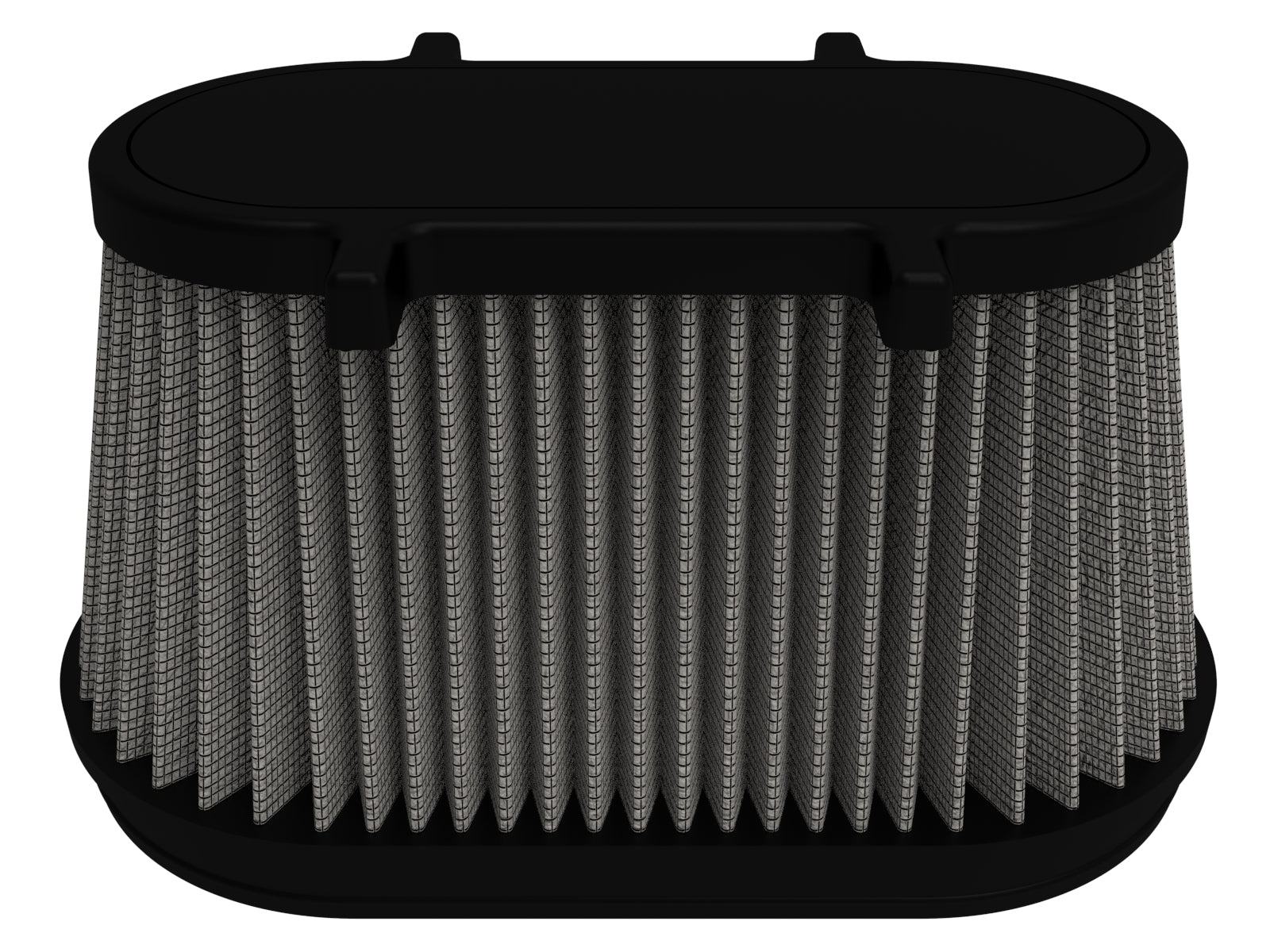

aFe Pro DRY S GM 6.6L Diesel Van Air Filter

aFe
AFE11-10109
802959110607
Air Filters - Direct Fit
3 Units In Stock
$ 140.00 $ 112.00
$ 112.00

Oil-free OE replacement filtration

aFe 11-10109 is the Pro DRY S oil-free synthetic replacement element for its specified factory air-filter housing. It is an air filter, not a complete intake or new airbox.

Key Features

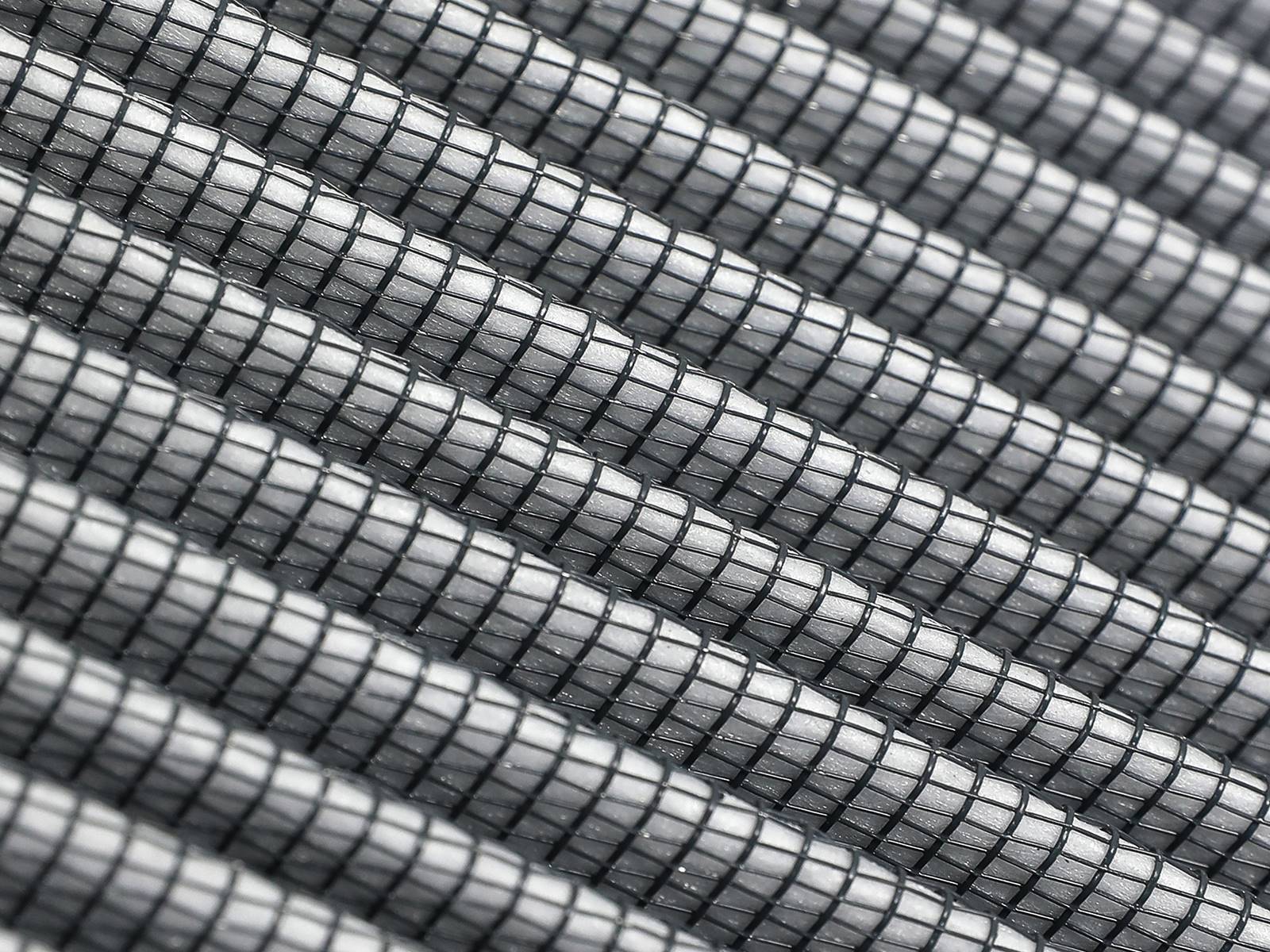

  • Three layers of oil-free synthetic media.
  • Washable and reusable media with tall open pleats.

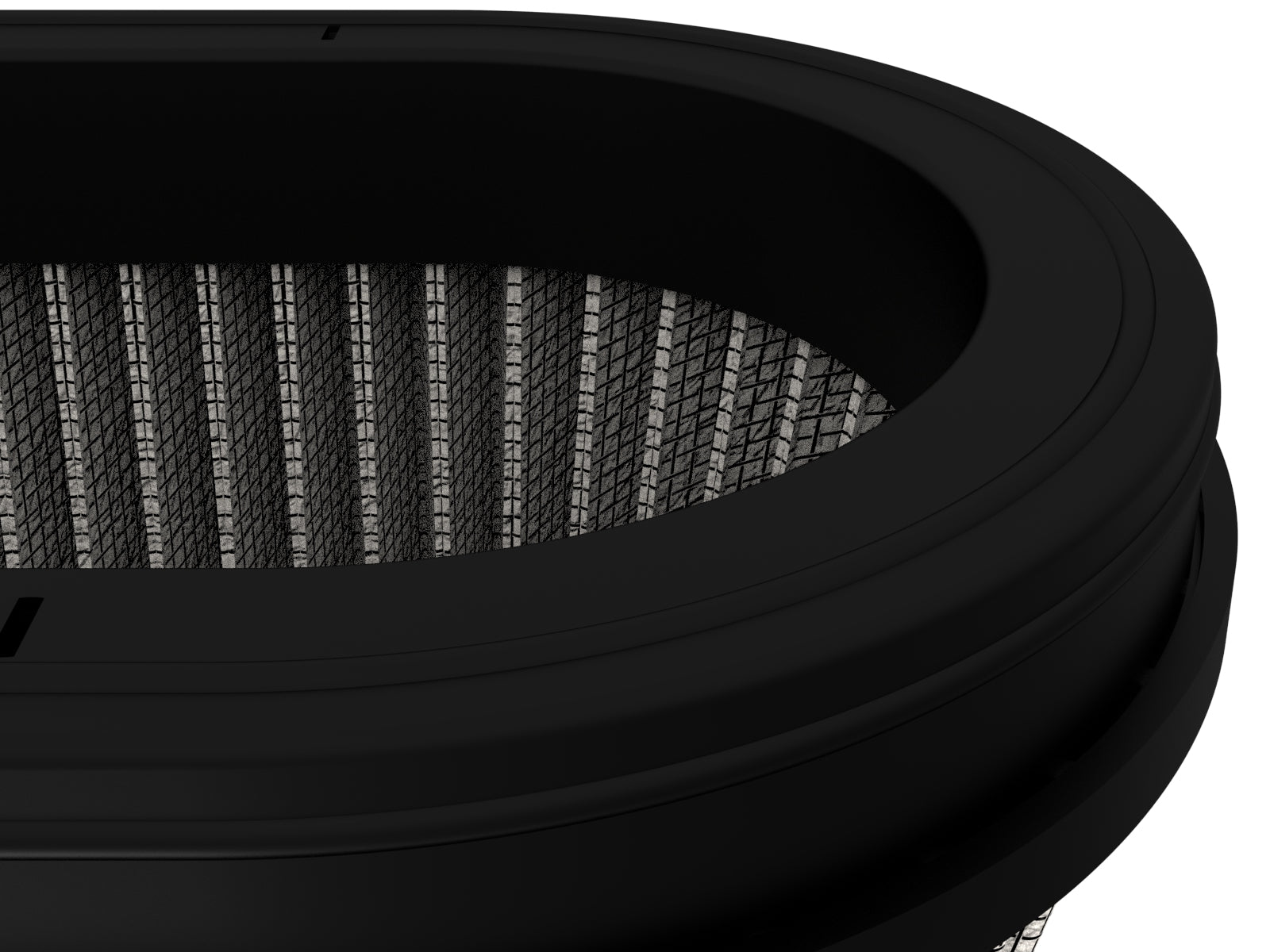

  • Three layers of oil-free synthetic media, rounded deep open pleats and polyurethane base and top. Best suited for street use; clean with specified aFe POWER CLEANER without adding oil. No numeric flow gain, CFM, efficiency or inverted-top feature is stated on the current exact page.

Fitment

The current manufacturer names the GM Express diesel-van family for 2006-2016 with a 6.6L turbo-diesel and lists LLY/LBZ/LMM/LML engine designations. The vehicle table also contains specified GMC Savana rows. Confirm the actual van engine and original housing: a listed engine-family code or shared displacement does not establish interchangeability with a pickup airbox, gasoline van or another body configuration.

Existing years Make Model Named row
2006-2016 Chevrolet Express 2500 Base
2006 Chevrolet Express 2500 LS
2006 Chevrolet Express 2500 LT
2006-2016 Chevrolet Express 3500 Base
2011-2016 Chevrolet Express 3500 LS
2011-2016 Chevrolet Express 3500 LT
2006-2016 GMC Savana 2500 Base
2006-2016 GMC Savana 3500 Base
2011-2016 GMC Savana 3500 LS
2011-2016 GMC Savana 3500 LT

Match 11-10109 to the actual factory housing and sealing surfaces.

Specifications

Brand aFe POWER
Manufacturer Part Number 11-10109
Product type Air Filters - Direct Fit
Media Pro DRY S: three layers of oil-free synthetic media
Frame Polyurethane top and bottom/base
Service Washable and reusable; use appropriate aFe dry-filter cleaner; NO oil
Numeric dimensions Not established from the current exact product page
Emissions Current exact manufacturer page states this product does not require a CARB EO number
UPC 802959110607
WARNING This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.

What's Included

One aFe 11-10109 replacement air-filter element. The generic website field “Coupler Included: Yes” does not itemize a separate hose, coupling or clamp; no such extra component is certified as supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

Frequently Asked Questions

Is this a gasoline-van filter?

The exact manufacturer application is a 6.6L turbo-diesel van with the matching factory airbox. Gasoline compatibility is not established.

Does a shared diesel displacement make it a pickup filter?

No. Match the van airbox and sealing interface. A pickup engine-family designation alone does not establish the same housing.

Why should the actual engine be checked?

The manufacturer headline lists several diesel engine designations across 2006-2016. Confirm the engine actually installed in the van and its original housing rather than relying on a broad family label.

What is the construction?

The exact page describes three synthetic layers with rounded deep open pleats and a polyurethane base and top.

Are numerical airflow or efficiency values stated?

No exact numeric gain, CFM or efficiency result is stated on this dry-filter page. Results for another media version are not assigned here.

What is included?

One replacement air-filter element. Confirm how many elements the actual vehicle needs. The generic coupler field does not itemize additional hoses or clamps; a cleaning kit and replacement housing are not listed as supplied.

How should the oil-free synthetic media be serviced?

Follow current aFe Pro DRY S cleaning guidance. Use the specified cleaner and do not add oil; this part is synthetic dry media.

Does this OE filter require a CARB EO number?

The current exact manufacturer page says it does not require a CARB EO number. That statement concerns this replacement filter and does not establish approval for an entire modified intake or another component.

Installation Instructions

Verify aFe 11-10109. Match the exact engine, factory housing and required element quantity before removal. Keep debris out of the clean intake side, seat the seal without twisting and confirm the housing closes correctly. No exact installation PDF is linked on the current page; no numeric torque, clip count or cutting procedure is certified. Follow the current manufacturer vehicle-specific guidance and Pro DRY S oil-free maintenance instructions.

Important Disclosures

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Manufacturer filter-flow and media-efficiency claims do not guarantee vehicle power gains. Actual engine, original housing and sealing interfaces must match.
