Pro DRY S replacement with the correct engine and housing

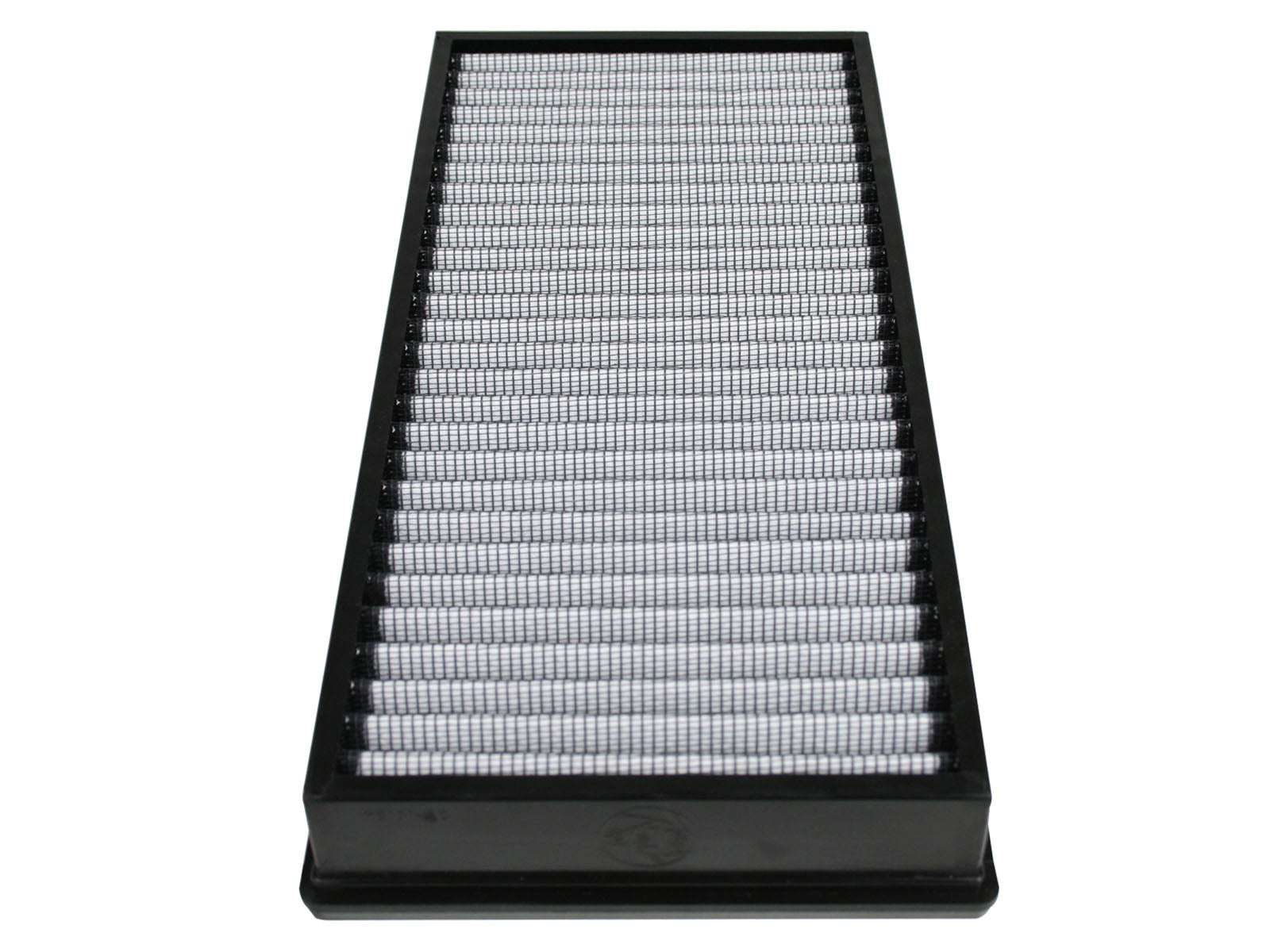

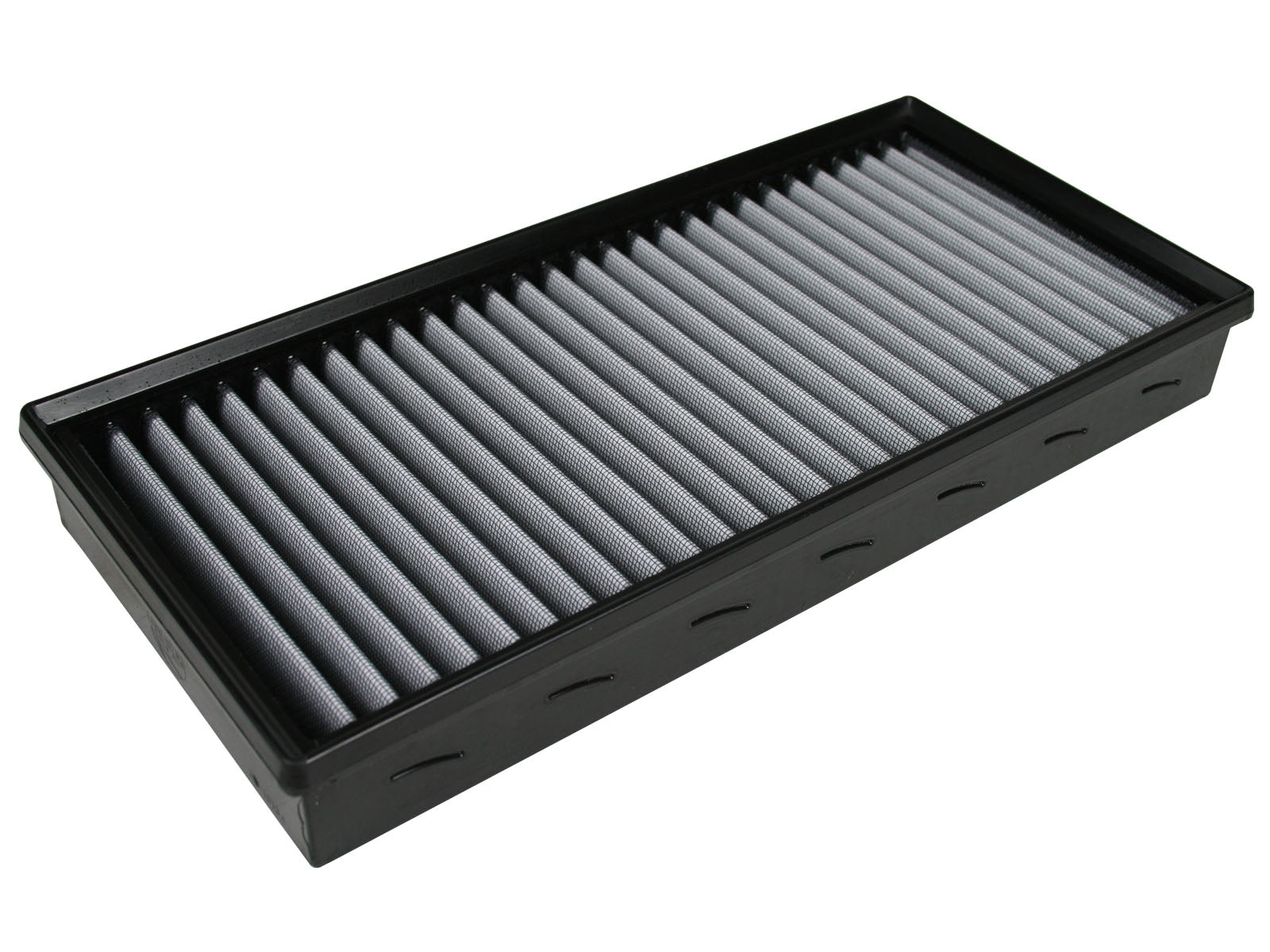

The aFe 31-10134 replaces the original airbox filter in the specified applications with oil-free synthetic media. The current exact manufacturer names Porsche Cayenne2003–2016 V6/V8. Exact per-part retailer engine tables also identify the original Audi Q7 gasoline/TDI,Volkswagen Touareg gasoline/TDI/hybrid and Land Rover Range Rover/Range Rover Sport scopes, plus later Cayenne2017–2018 gasoline and hybrid applications. Those original individual bounds and engine/housing qualifications remain; the narrower current headline alone does not establish physical incompatibility. Hybrid entries refer to the combustion engine airbox, not an electric-drive or battery filter. No2015 base-row gap, newer-generation Cayenne/Q7,all-engine Range Rover or arbitrary diesel interchange is filled from a shared badge. Some original engine combinations and retailer endpoints differ, so confirm the exact original element and number of housings before ordering; one supplied element is not an automatic whole-vehicle multi-airbox set. The primary overview says cotton gauze while the dedicated Pro DRY S section specifies non-oiled synthetic media and three layers. The dedicated specification governs maintenance.
Key Features
- Oil-free synthetic filtration media.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.

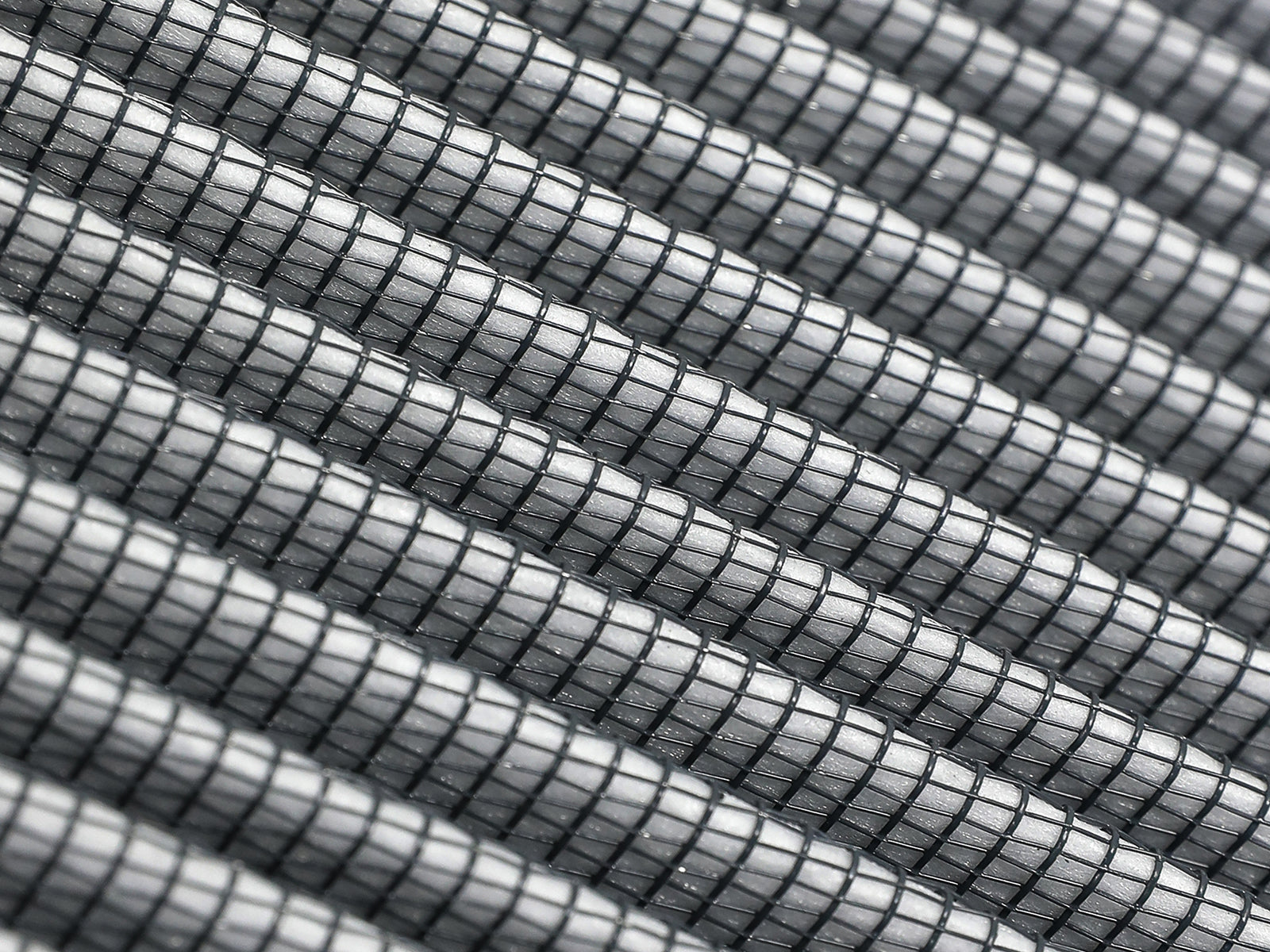

- Rounded open pleats provide usable filter area and dust-holding capacity.

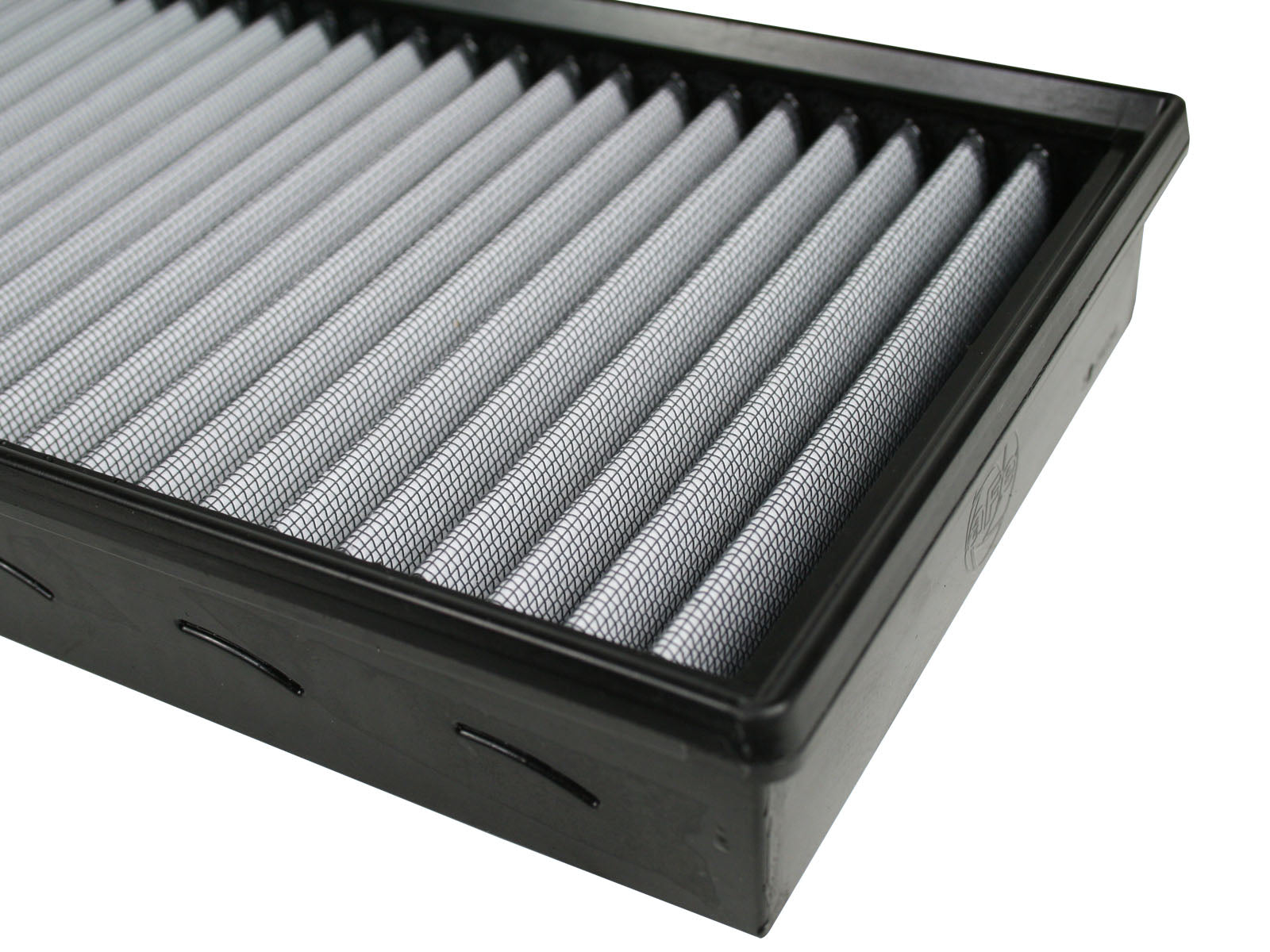

- Full polyurethane perimeter frame and progressive bump seal.
- No numerical airflow-gain, horsepower or filtration-efficiency result is published on the exact current manufacturer page. A retailer percentage, complete-intake figure or another media option’s test is not transferred.
Fitment
| Detail | Value |
|---|---|
| Current manufacturer family | Porsche Cayenne2003–2016 V6/V8; actual engine and original housing required |
| Wider original scopes | Exact per-part retailer engine detail supports original Audi Q7/Touareg/Range Rover scopes; retained qualified |
| Later / hybrid qualifications | Original Cayenne2017–2018 and3.0L hybrid engine-airbox rows retained qualified; no new model-year expansion |
| Unchanged gaps | Original disjoint base/Turbo S/TDI and other ranges retained pending exact chassis/engine detail |
| Package / media | One OE element; three oil-free synthetic layers per dedicated primary; cotton overview conflict recorded |
31-10134: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10134 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no verified numeric pleat depth on the exact current primary |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. |
| Flow statement | No numerical airflow-gain, horsepower or filtration-efficiency result is published on the exact current manufacturer page. A retailer percentage, complete-intake figure or another media option’s test is not transferred. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro DRY S OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.
Frequently Asked Questions
What is the 31-10134?One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The current exact manufacturer names Porsche Cayenne2003–2016 V6/V8. Exact per-part retailer engine tables also identify the original Audi Q7 gasoline/TDI,Volkswagen Touareg gasoline/TDI/hybrid and Land Rover Range Rover/Range Rover Sport scopes, plus later Cayenne2017–2018 gasoline and hybrid applications. Those original individual bounds and engine/housing qualifications remain; the narrower current headline alone does not establish physical incompatibility. Hybrid entries refer to the combustion engine airbox, not an electric-drive or battery filter. No2015 base-row gap, newer-generation Cayenne/Q7,all-engine Range Rover or arbitrary diesel interchange is filled from a shared badge. Some original engine combinations and retailer endpoints differ, so confirm the exact original element and number of housings before ordering; one supplied element is not an automatic whole-vehicle multi-airbox set. The primary overview says cotton gauze while the dedicated Pro DRY S section specifies non-oiled synthetic media and three layers. The dedicated specification governs maintenance.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?No numerical airflow-gain, horsepower or filtration-efficiency result is published on the exact current manufacturer page. A retailer percentage, complete-intake figure or another media option’s test is not transferred.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Are the hybrid rows for the electric-drive system?No. They refer to the listed combustion engine airbox within the original qualified vehicle scope. The actual engine, generation, original filter and required element quantity still govern; no all-hybrid or battery-system filter compatibility is established.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 31-10134 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10134: verify the original filter interface before operation.
California Proposition 65 Warning
- This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
