-20%
Click to zoom in

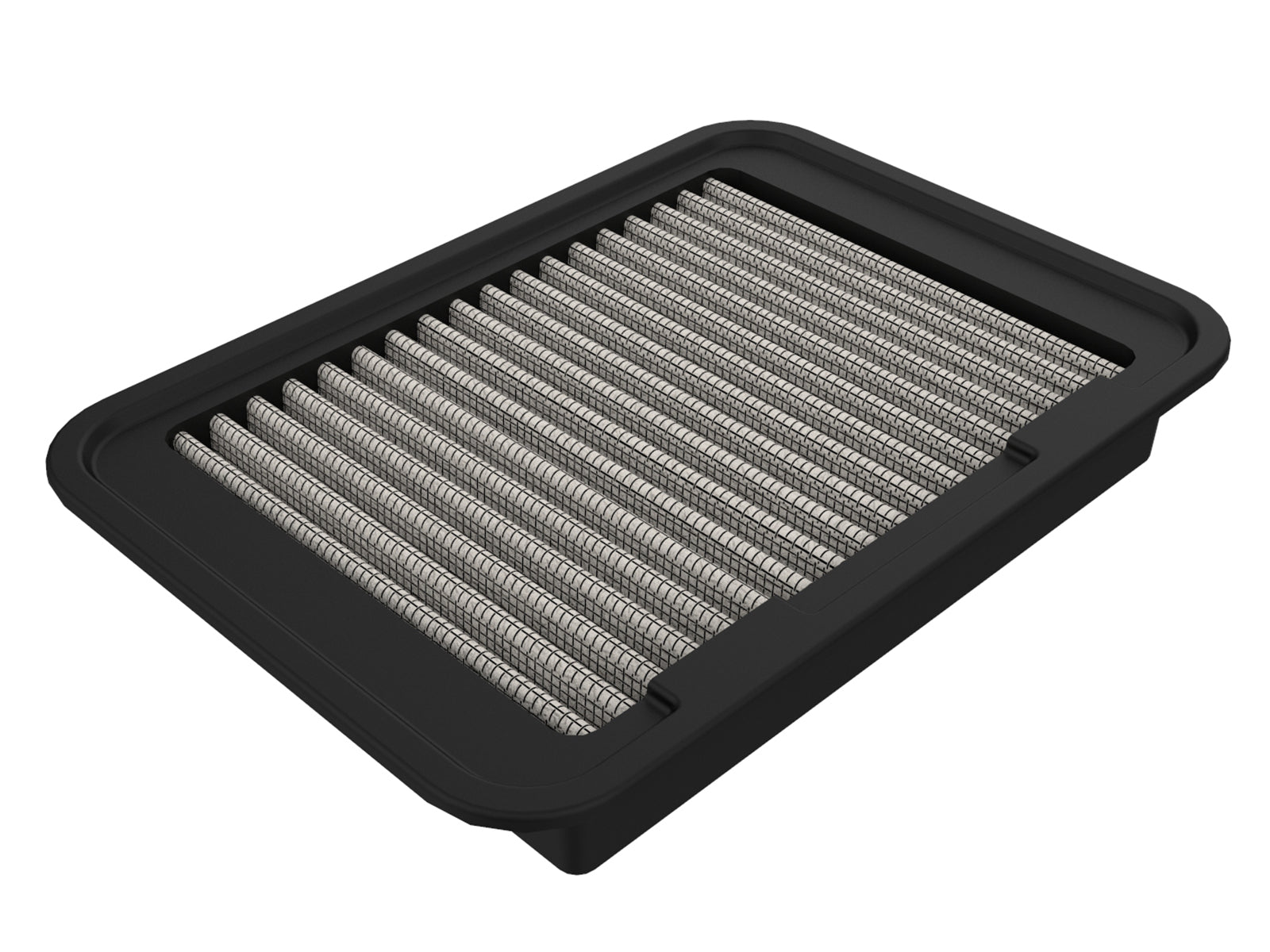

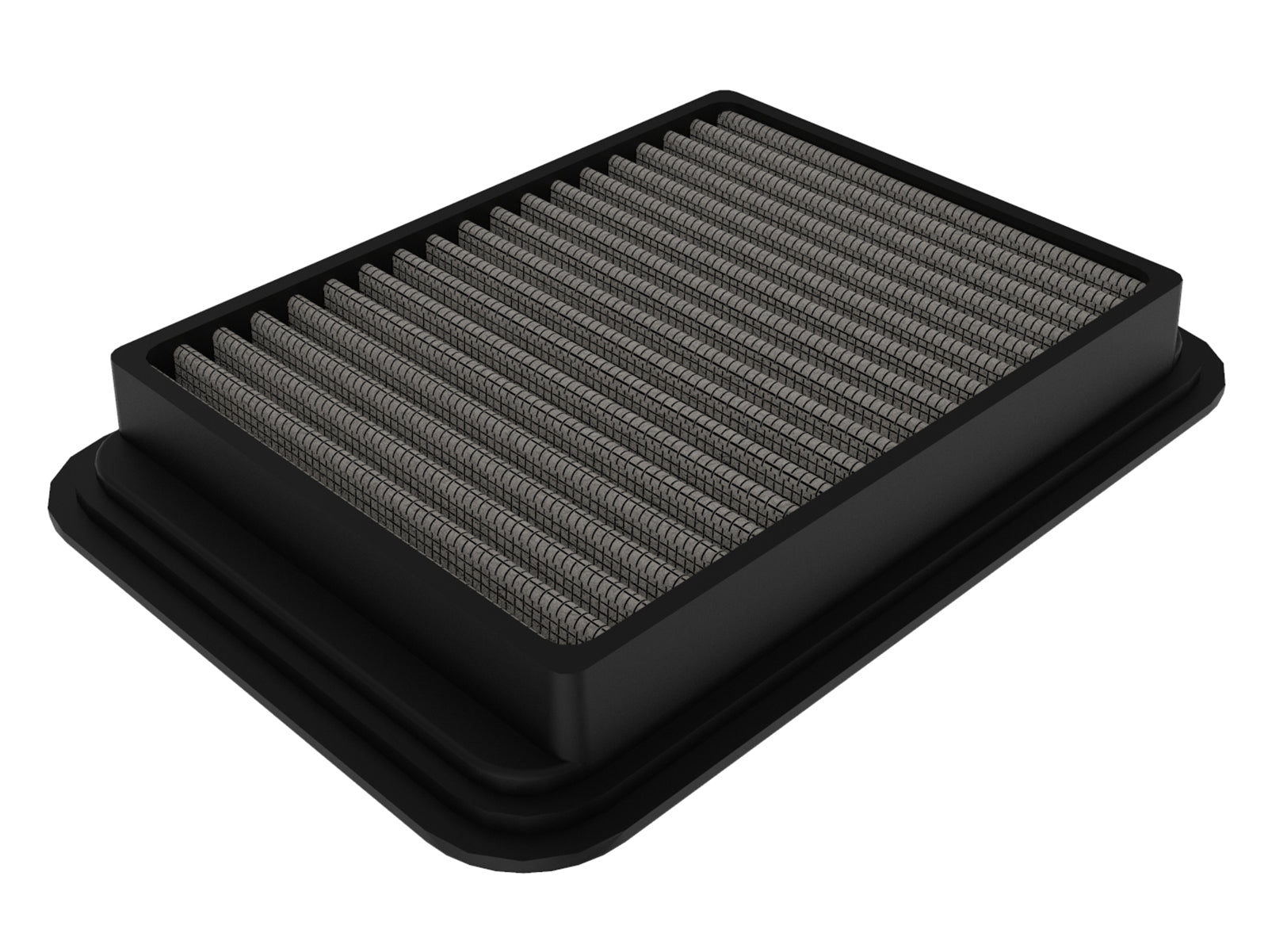

Pro DRY S replacement with the correct engine and housing
The aFe 31-10150 replaces the original airbox filter in the specified applications with oil-free synthetic media. The current manufacturer names Scion xD2008β2016/Toyota Corolla2009β2018 1.8L and Toyota Yaris2006β2018 1.5L. Its exact overview specifies TWO synthetic media layers. Original US xD2008β2014 coverage is retained; the broader primary2016 endpoint does not invent US production years. Exact dry-part retailer tables positively identify carried Pontiac Vibe2009β2010 1.8L,Scion iM2016,Corolla iM2017β2018,Matrix2009β2013 and Corolla2019 including LE Eco. These original engine/housing qualifications remain rather than being deleted from a short primary headline. Missing Corolla XLE2011β2016 years and LE Eco Plus2014 are restored from exact dry-part named detail. Yaris2007β2012 unnamed/base scope is restored without a Base pseudo-trim, alongside the existing exact L/LE/SE/S ranges. Check actual body, engine and original element; this is not approval for every2019 Corolla hatchback, Yaris iA/Mazda-based housing, hybrid or related badge. Older retailer Pro5R/cotton or generic three-layer descriptions do not replace this exact two-layer dry specification.
Key Features
- Oil-free synthetic filtration media.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.

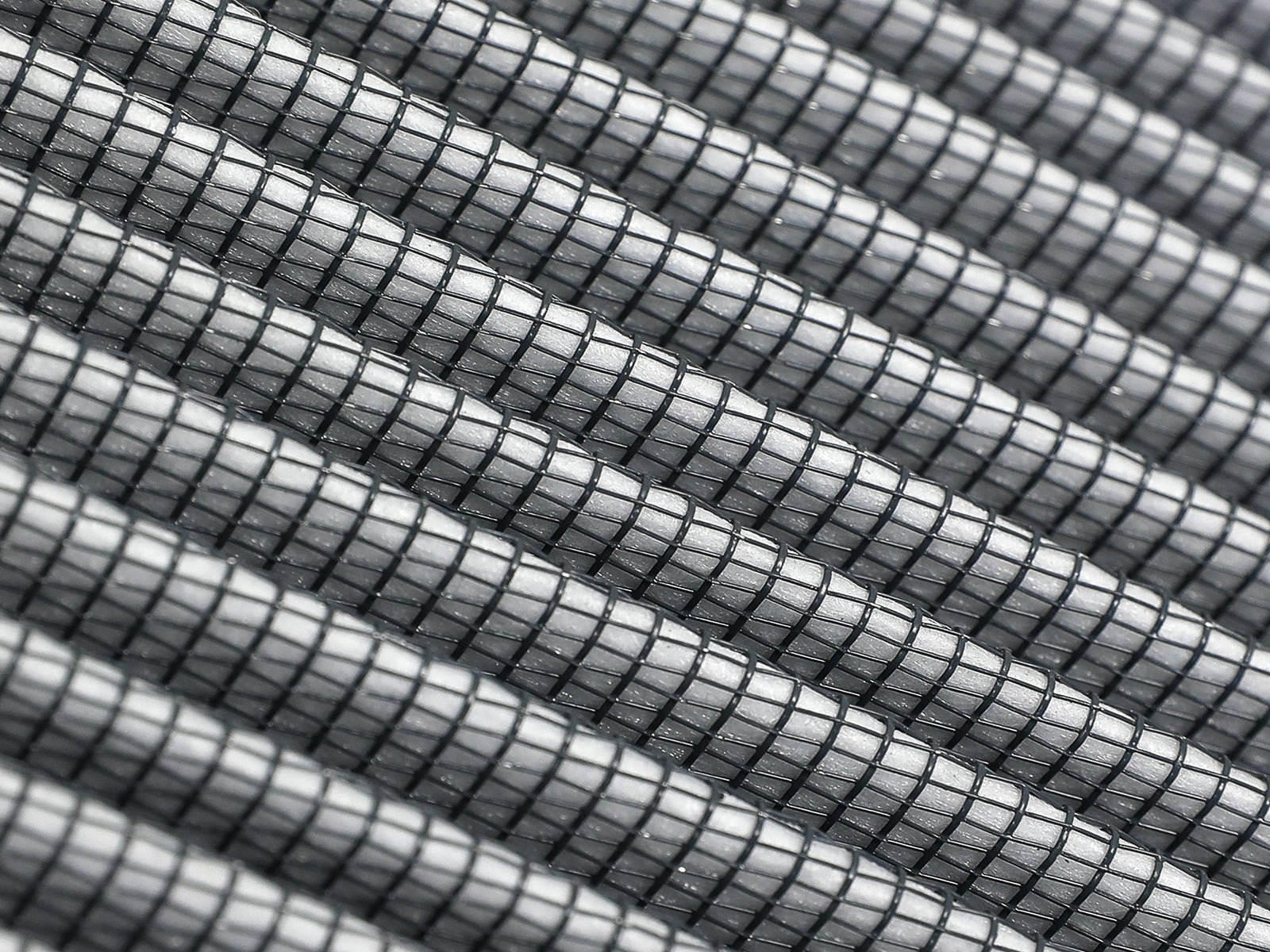

- Rounded open pleats provide usable filter area and dust-holding capacity.

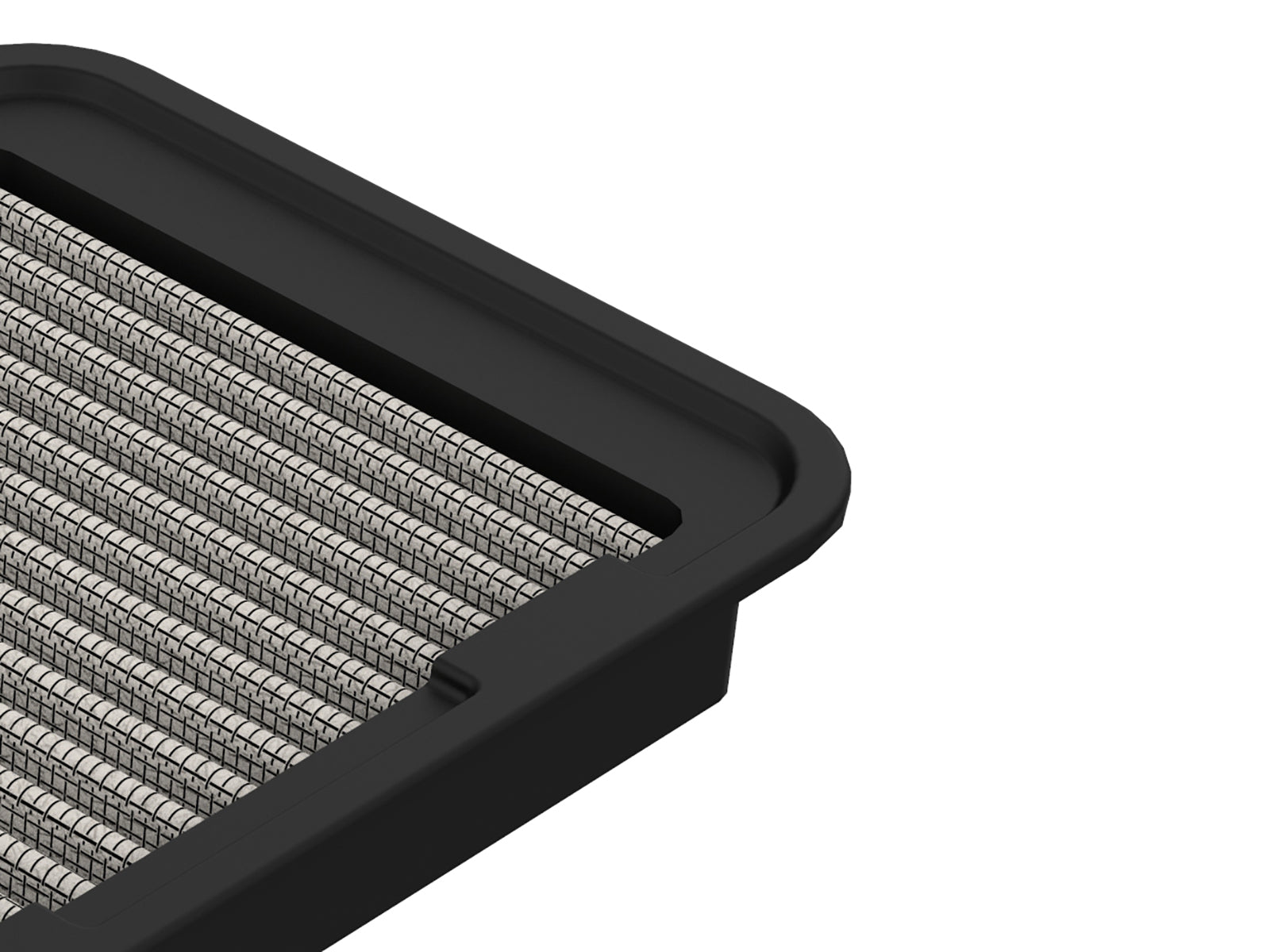

- Full polyurethane perimeter frame and progressive bump seal.
- The exact current primary gives qualitative flow and dust-capacity statements without a numerical airflow-gain or efficiency test. No horsepower or economy gain is guaranteed from installing this panel.
Fitment
| Detail | Value |
|---|---|
| Current manufacturer engines | Scion xD/Corolla1.8L and Yaris1.5L; exact original housing required |
| Current media | TWO progressively finer oil-free synthetic layers per exact primary |
| Restored named scopes | Corolla XLE2011β2016 gap;LE Eco Plus2014;Yaris2007β2012 scope without Base pseudo-trim |
| Broader original rows | Vibe1.8L/iM/Matrix/Corolla2019 retailer scopes retained qualified; not every same-year engine or body |
| US xD endpoint | Original2008β2014 retained despite combined manufacturer headline ending2016 |
31-10150: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10150 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no verified numeric pleat depth on the exact current primary |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media. |
| Flow statement | The exact current primary gives qualitative flow and dust-capacity statements without a numerical airflow-gain or efficiency test. No horsepower or economy gain is guaranteed from installing this panel. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro DRY S OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.
Frequently Asked Questions
What is the 31-10150?One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The current manufacturer names Scion xD2008β2016/Toyota Corolla2009β2018 1.8L and Toyota Yaris2006β2018 1.5L. Its exact overview specifies TWO synthetic media layers. Original US xD2008β2014 coverage is retained; the broader primary2016 endpoint does not invent US production years. Exact dry-part retailer tables positively identify carried Pontiac Vibe2009β2010 1.8L,Scion iM2016,Corolla iM2017β2018,Matrix2009β2013 and Corolla2019 including LE Eco. These original engine/housing qualifications remain rather than being deleted from a short primary headline. Missing Corolla XLE2011β2016 years and LE Eco Plus2014 are restored from exact dry-part named detail. Yaris2007β2012 unnamed/base scope is restored without a Base pseudo-trim, alongside the existing exact L/LE/SE/S ranges. Check actual body, engine and original element; this is not approval for every2019 Corolla hatchback, Yaris iA/Mazda-based housing, hybrid or related badge. Older retailer Pro5R/cotton or generic three-layer descriptions do not replace this exact two-layer dry specification.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?The exact current primary gives qualitative flow and dust-capacity statements without a numerical airflow-gain or efficiency test. No horsepower or economy gain is guaranteed from installing this panel.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Is this the same as every newer Corolla or Yaris filter?No. The engine, body generation and original housing matter. The original exact retailer scopes retain their stated bounds, while no Mazda-based Yaris iA, hybrid or different2019 hatchback airbox is inferred from the badge alone.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 31-10150 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10150: verify the original filter interface before operation.
California Proposition 65 Warning
- This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
