aFe 20-91059 uses Pro 10R oiled cotton gauze media. Match the exact aftermarket intake, sealing interface and dimensions below before ordering.
| Application | Required checks |
|---|---|
| Specification-matched aFe intake replacement | Momentum HD replacement filter with reinforced metal wrap. Current manufacturer base/top dimensions conflict: 8 inches in the headline versus 8-1/8 inches in the detailed paragraph. Confirm the actual revision and housing clearance. The detailed paragraph specifies 70 pleats with 20 mm pleat depth. No exact intake-system part number or top/base material is named. |
Replacing a filter in an aftermarket intake does not establish a factory-airbox or vehicle-wide fitment claim.
| Brand | aFe POWER |
|---|---|
| Manufacturer Part Number | 20-91059 |

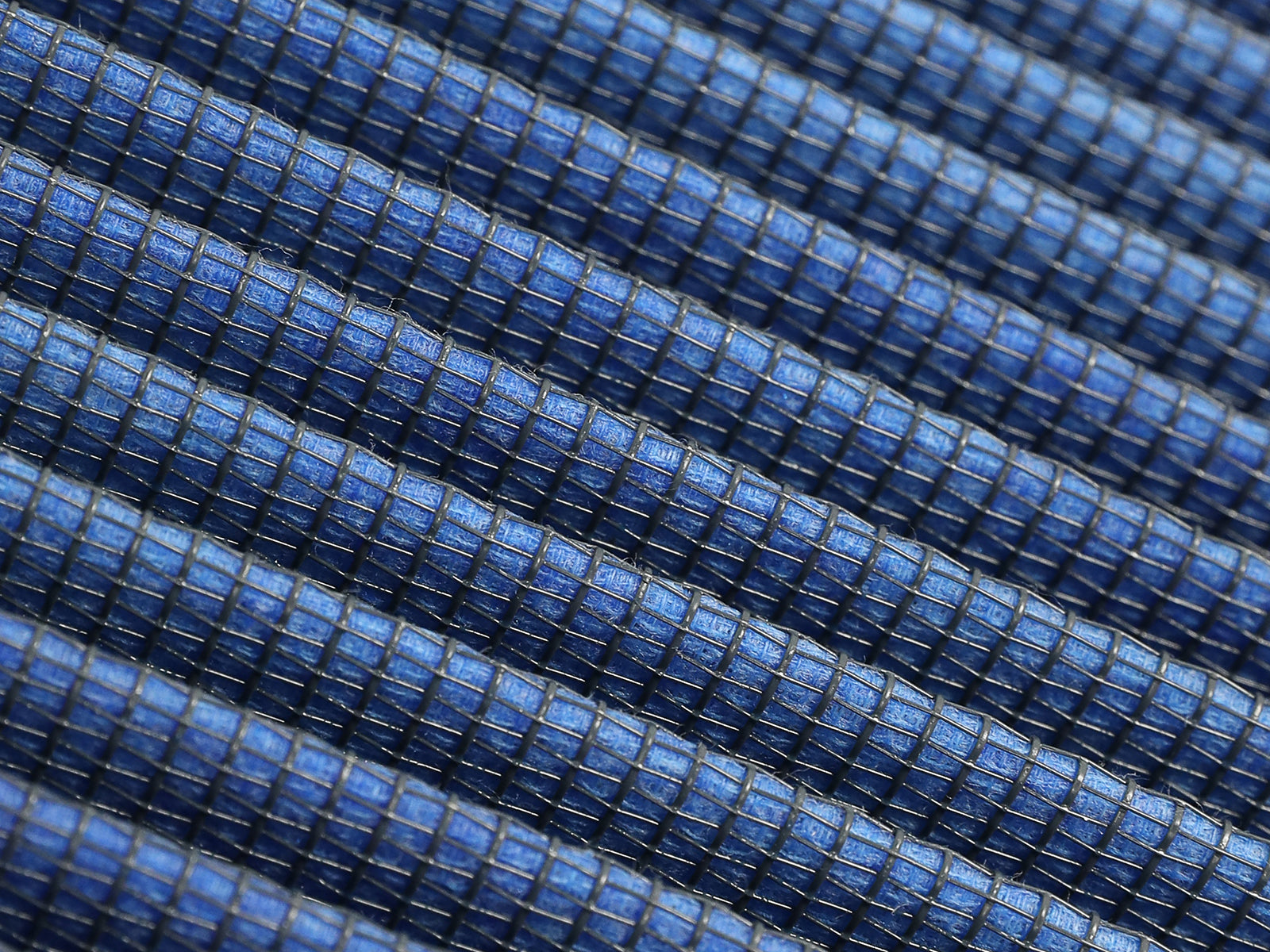

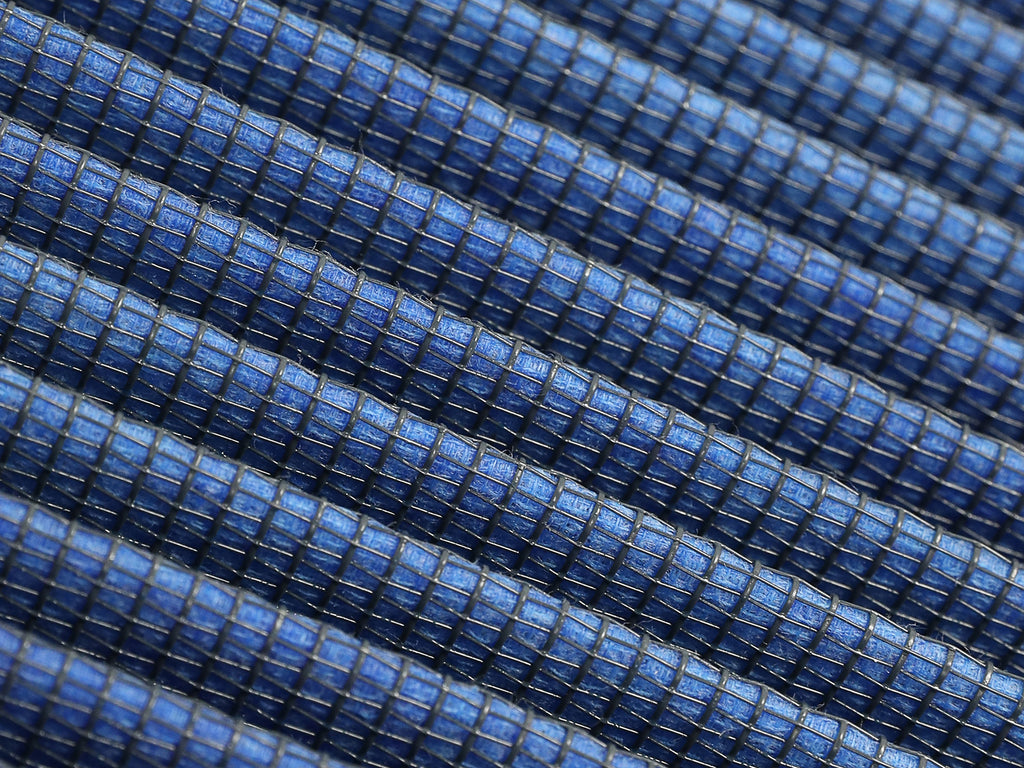

| Media | Pro 10R: ten layers of oiled cotton gauze |
| Flange internal diameter | 6 in |
| Base | Manufacturer headline 8 in; detail 8-1/8 in β verify revision |
| Top | Manufacturer headline 8 in; detail 8-1/8 in, inverted β verify revision |
| Height | 9 in |
| Construction | Reinforced metal wrap; top/base material not separately specified |
| Service | Washable and reusable; aFe cleaner and appropriate blue filter oil |
| Emissions statement | Manufacturer states that this filter does not require a CARB EO number. Complete intake compliance must be checked separately. |
| UPC | 802959200018 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
One Pro 10R air filter. A separate supplied clamp or coupling is not confirmed by an itemized contents list.
The generic manufacturer specifications also say βCoupler Included: Yes,β but no separate coupling is identified in the detailed contents. A coupling is not independently confirmed supplied.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Momentum HD replacement filter with reinforced metal wrap. Current manufacturer base/top dimensions conflict: 8 inches in the headline versus 8-1/8 inches in the detailed paragraph. Confirm the actual revision and housing clearance. The detailed paragraph specifies 70 pleats with 20 mm pleat depth. No exact intake-system part number or top/base material is named.
Is Pro 10R a dry filter?No. It uses ten layers of oiled cotton gauze. The oil is part of its filtration system; do not run the cotton media dry or substitute the oil-free service method for Pro DRY S.
What dimensions should I check?Flange 6 in; base Manufacturer headline 8 in; detail 8-1/8 in β verify revision; top Manufacturer headline 8 in; detail 8-1/8 in, inverted β verify revision; height 9 in. Match the full sealing interface and surrounding clearance.
What comes with the filter?One Pro 10R air filter. A separate supplied clamp or coupling is not confirmed by an itemized contents list. A generic coupler-included field is not an itemized coupling confirmation.
How should I clean and oil it?Use the current manufacturer instructions for Pro 10R. Use the proper aFe cleaner, low-pressure rinsing and natural drying; apply the appropriate blue filter oil without over-oiling. Do not use high pressure, compressed air, high heat or substitute lubricants.
How often should it be serviced?Inspect according to dust exposure, filter condition and restriction. Follow the current instructions for the installed Pro 10R filter; actual dust exposure and restriction determine service needs. No fixed mileage interval is established by the current exact filter page.
Does it replace a factory panel filter?This listing is for an intake replacement element. Do not assume factory-airbox drop-in compatibility or reuse unrelated factory-panel installation steps.
Is a CARB EO required for the filter?The manufacturer states this filter does not require a CARB EO number. That does not certify an entire aftermarket intake or establish its vehicle-specific emissions approval.
Confirm aFe 20-91059 and the exact intake assembly. Keep debris out of the clean intake, inspect the housing seal and seat the filter using the specified locking or retention interface. Follow the applicable intake manual for access, orientation and any supplied clamp. No numeric clamp torque is established by the current filter page.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
