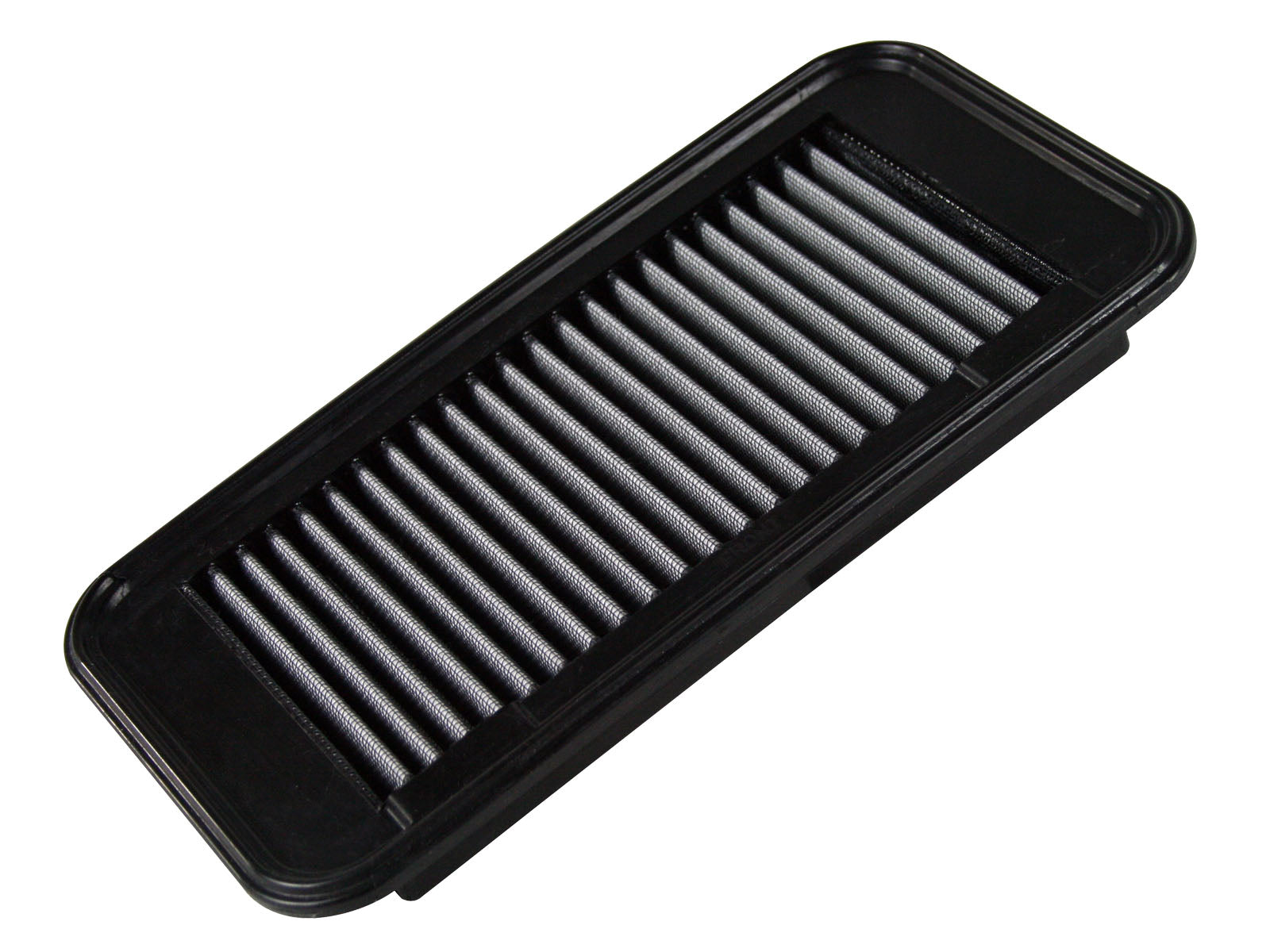

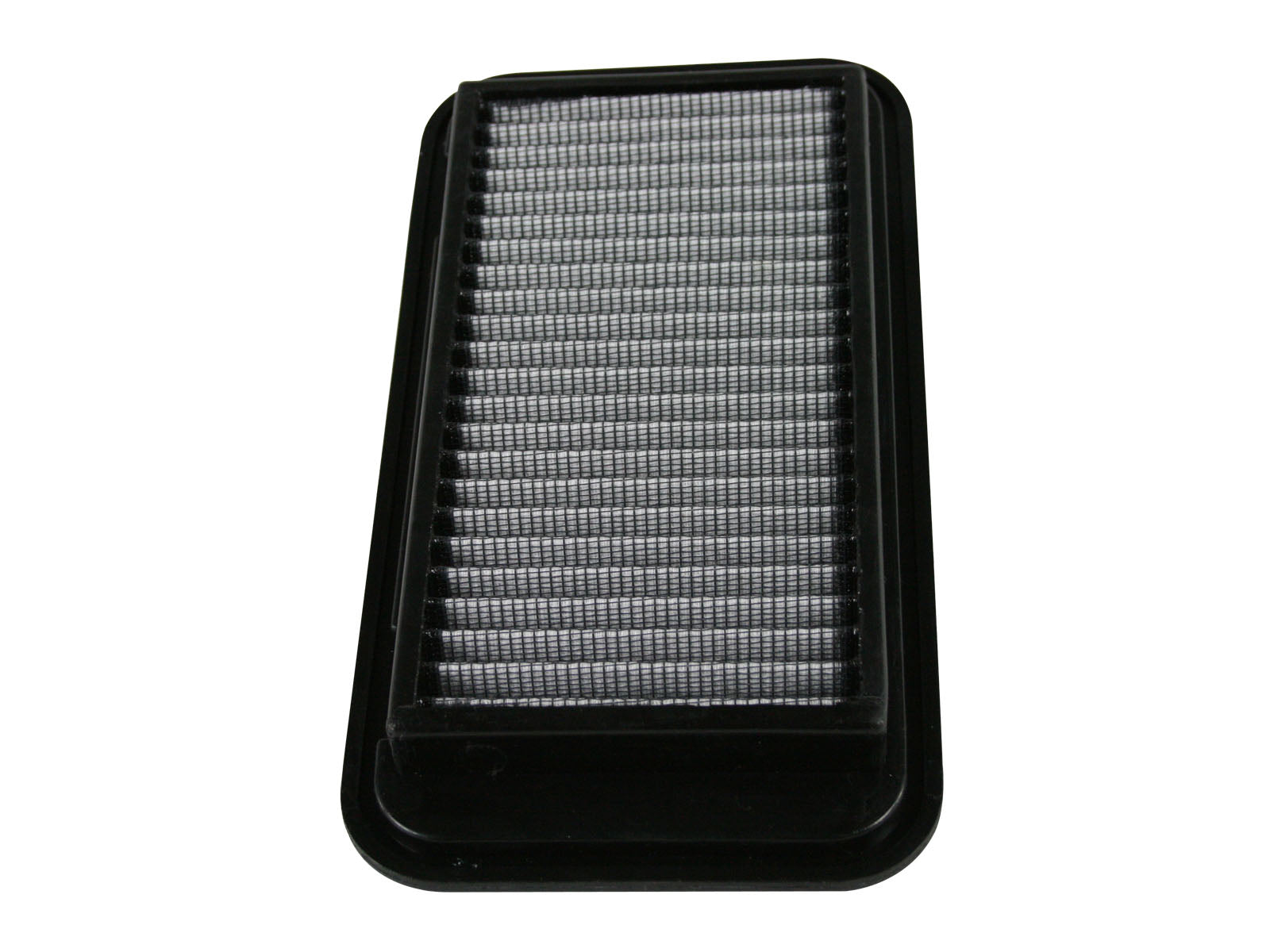

Pro DRY S replacement with the correct engine and housing
The aFe 31-10094-1 replaces the original airbox filter in the specified applications with oil-free synthetic media. The exact current manufacturer names Toyota86/FT86/GT862012–2019,Scion FR-S2013–2016 and Subaru BRZ2013–2019 2.0L. Its exact overview specifies TWO oil-free synthetic media layers; some exact-part retailers instead say three, so the current primary two-layer specification is stated with that source conflict. Exact dry-part named tables restore BRZ Series.HyperBlue2016,Toyota86 Hakone Edition2020 and Corolla XRS2005–2006, subject to their original engine/housing conditions. Original BRZ/Toyota86 scopes through2020 and named tS/Series.Blue entries retain their carried year bounds as exact-part retailer/source qualifications; the current primary headline ends2019 and does not independently settle every later trim or transmission-specific airbox revision. Verify the actual original filter interface, especially manual-versus-automatic and later production changes. Exact dry-part retailers additionally identify the carried Lotus Elise2005–2007,Scion tC2005–2010,Pontiac Vibe/Toyota Matrix/Corolla original scopes beyond the short boxer-engine heading; those bounded engine/housing rows remain qualified rather than assumed contamination. No later2.4L GR86/BRZ,supercharged Lotus,all-engine Matrix/Vibe or all-Scion interchange is newly inferred. No main-filter layer count or oiled-media service instruction is borrowed from related30-prefix parts.
Key Features
- Oil-free synthetic filtration media.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.

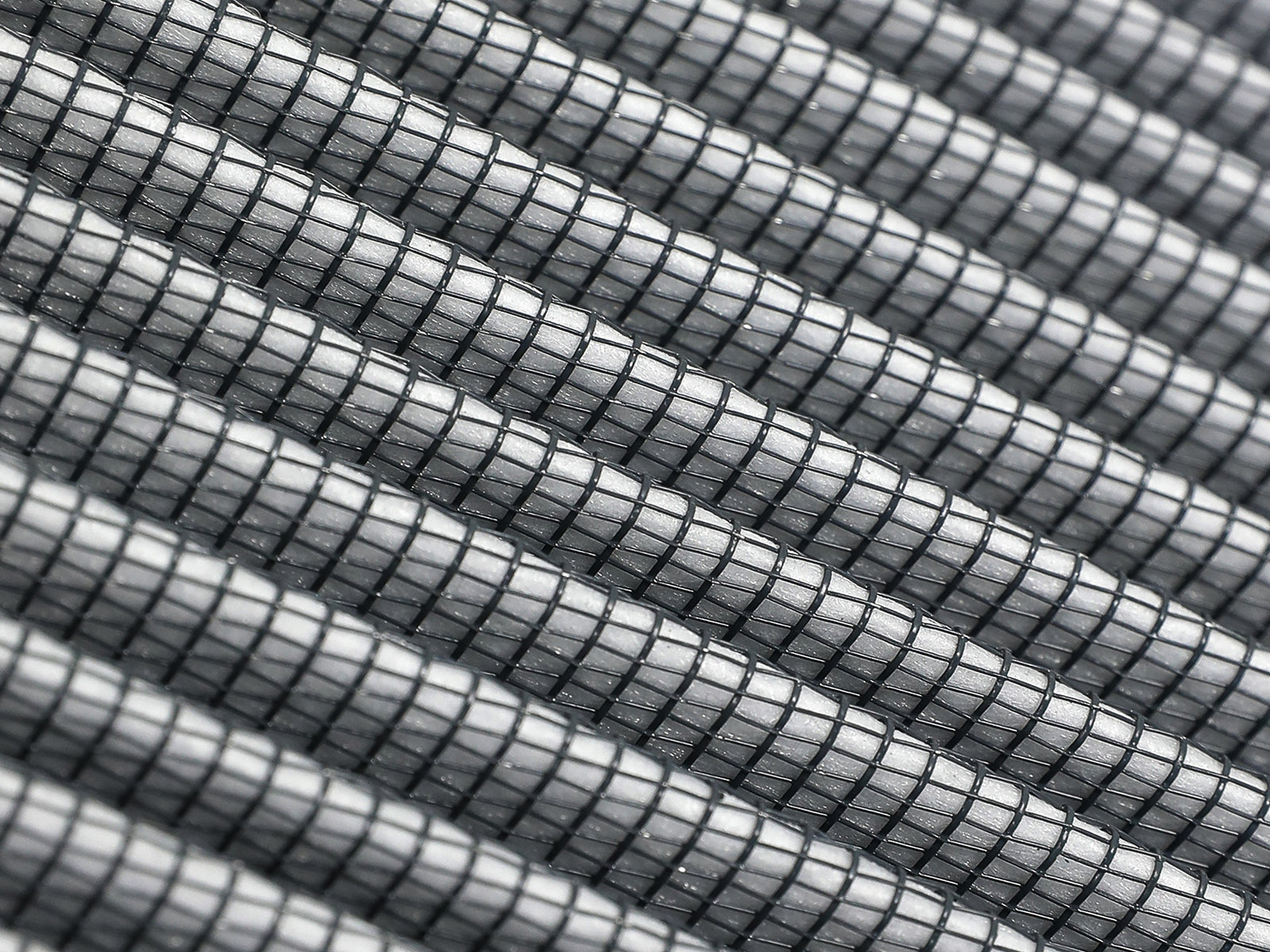

- Rounded open pleats provide usable filter area and dust-holding capacity.

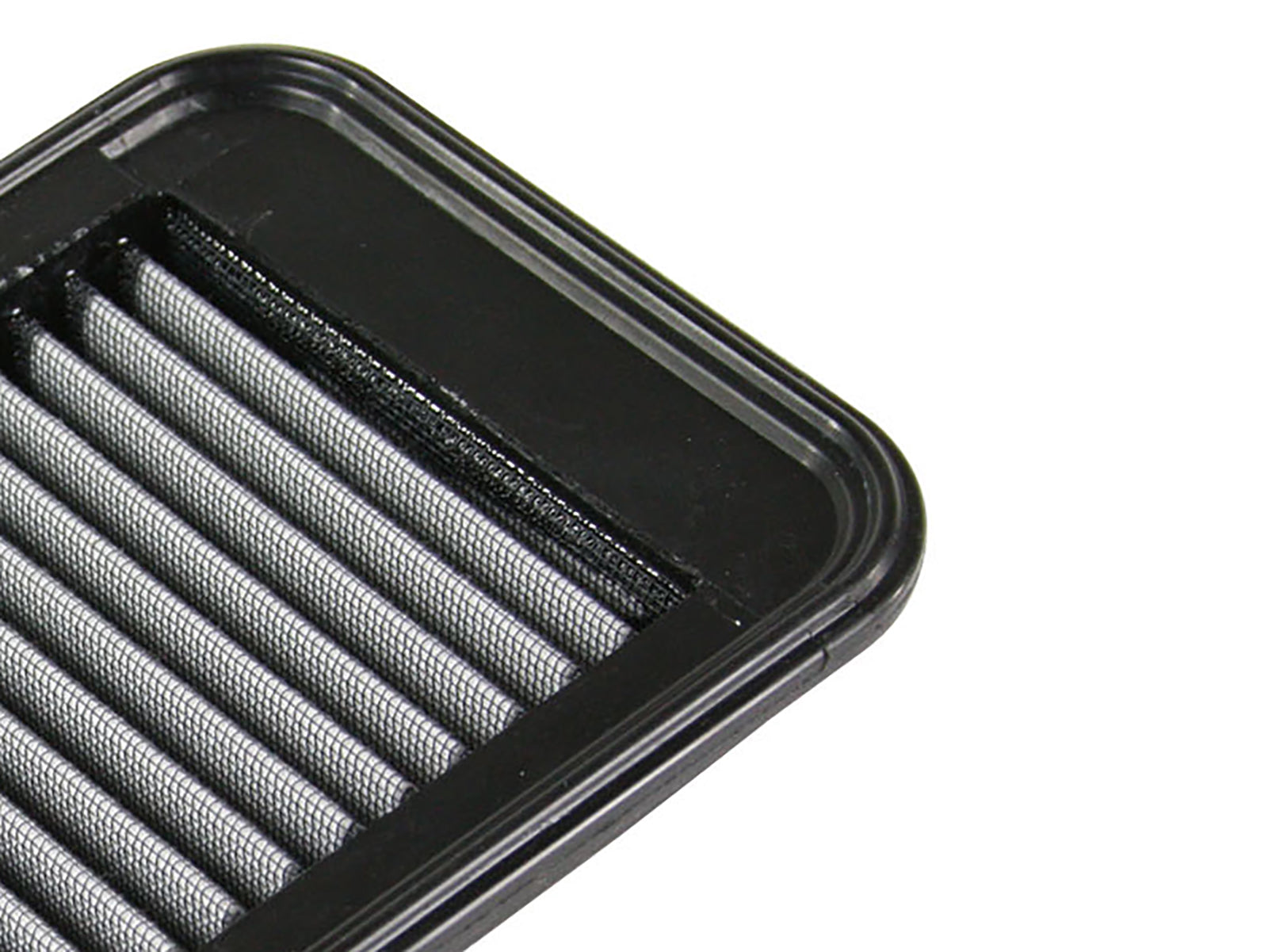

- Full polyurethane perimeter frame and progressive bump seal.
- The current exact primary publishes no numerical airflow-gain, horsepower or efficiency result. A related oiled element or a different Subaru filter’s test is not this part’s demonstrated result.
Fitment
| Detail | Value |
|---|---|
| Current manufacturer family | Toyota86/FT86/GT862012–2019;FR-S2013–2016;BRZ2013–2019;2.0L original housing |
| Original2020 scopes | Carried BRZ/Toyota86 named rows retained with exact housing/transmission/revision qualifications |
| Broader original engines | Lotus Elise/Scion tC/Pontiac Vibe/Toyota Matrix/Corolla source-qualified original scopes retained |
| Current media | TWO oil-free synthetic layers per exact primary |
| Package | One replacement panel; actual original airbox retained; no complete intake or cleaner kit |
31-10094-1: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 31-10094-1 |
| Media | Pro DRY S; oil-free synthetic media |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | Rounded open pleats; no verified numeric pleat depth on the exact current primary |
| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media. |
| Flow statement | The current exact primary publishes no numerical airflow-gain, horsepower or efficiency result. A related oiled element or a different Subaru filter’s test is not this part’s demonstrated result. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
What's Included
- One Pro DRY S OE-replacement air-filter element.
- No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power filter configurations; compare the exact original housing and engine.
- Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.
Frequently Asked Questions
What is the 31-10094-1?One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The exact current manufacturer names Toyota86/FT86/GT862012–2019,Scion FR-S2013–2016 and Subaru BRZ2013–2019 2.0L. Its exact overview specifies TWO oil-free synthetic media layers; some exact-part retailers instead say three, so the current primary two-layer specification is stated with that source conflict. Exact dry-part named tables restore BRZ Series.HyperBlue2016,Toyota86 Hakone Edition2020 and Corolla XRS2005–2006, subject to their original engine/housing conditions. Original BRZ/Toyota86 scopes through2020 and named tS/Series.Blue entries retain their carried year bounds as exact-part retailer/source qualifications; the current primary headline ends2019 and does not independently settle every later trim or transmission-specific airbox revision. Verify the actual original filter interface, especially manual-versus-automatic and later production changes. Exact dry-part retailers additionally identify the carried Lotus Elise2005–2007,Scion tC2005–2010,Pontiac Vibe/Toyota Matrix/Corolla original scopes beyond the short boxer-engine heading; those bounded engine/housing rows remain qualified rather than assumed contamination. No later2.4L GR86/BRZ,supercharged Lotus,all-engine Matrix/Vibe or all-Scion interchange is newly inferred. No main-filter layer count or oiled-media service instruction is borrowed from related30-prefix parts.
Is the Pro DRY S media oiled?Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.
Does the flow percentage guarantee more engine power?The current exact primary publishes no numerical airflow-gain, horsepower or efficiency result. A related oiled element or a different Subaru filter’s test is not this part’s demonstrated result.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Do later BRZ or Lotus badges alone establish fit?No. Verify original engine, airbox, filter interface and production/transmission revision. The carried broader scopes remain bounded qualifications; no later2.4L BRZ/GR86 or different Lotus intake is inferred from a model name alone.
When should I clean it?Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
Installation Instructions
- Read the exact manufacturer product information for 31-10094-1 and the original vehicle airbox service procedure.
- With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
- Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
- Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
- Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies two layers of oil-free synthetic media.
No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.
31-10094-1: verify the original filter interface before operation.
California Proposition 65 Warning
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
