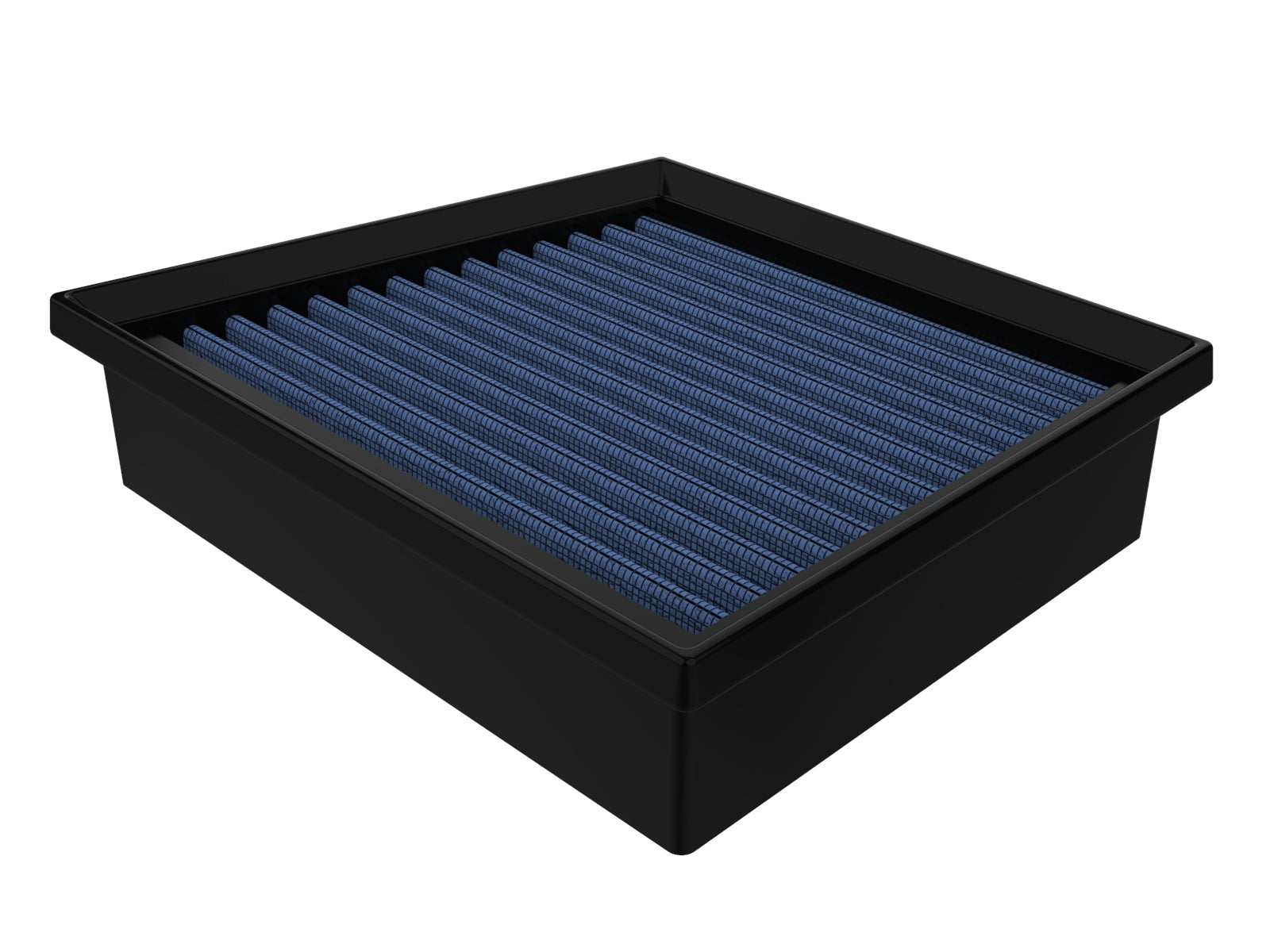

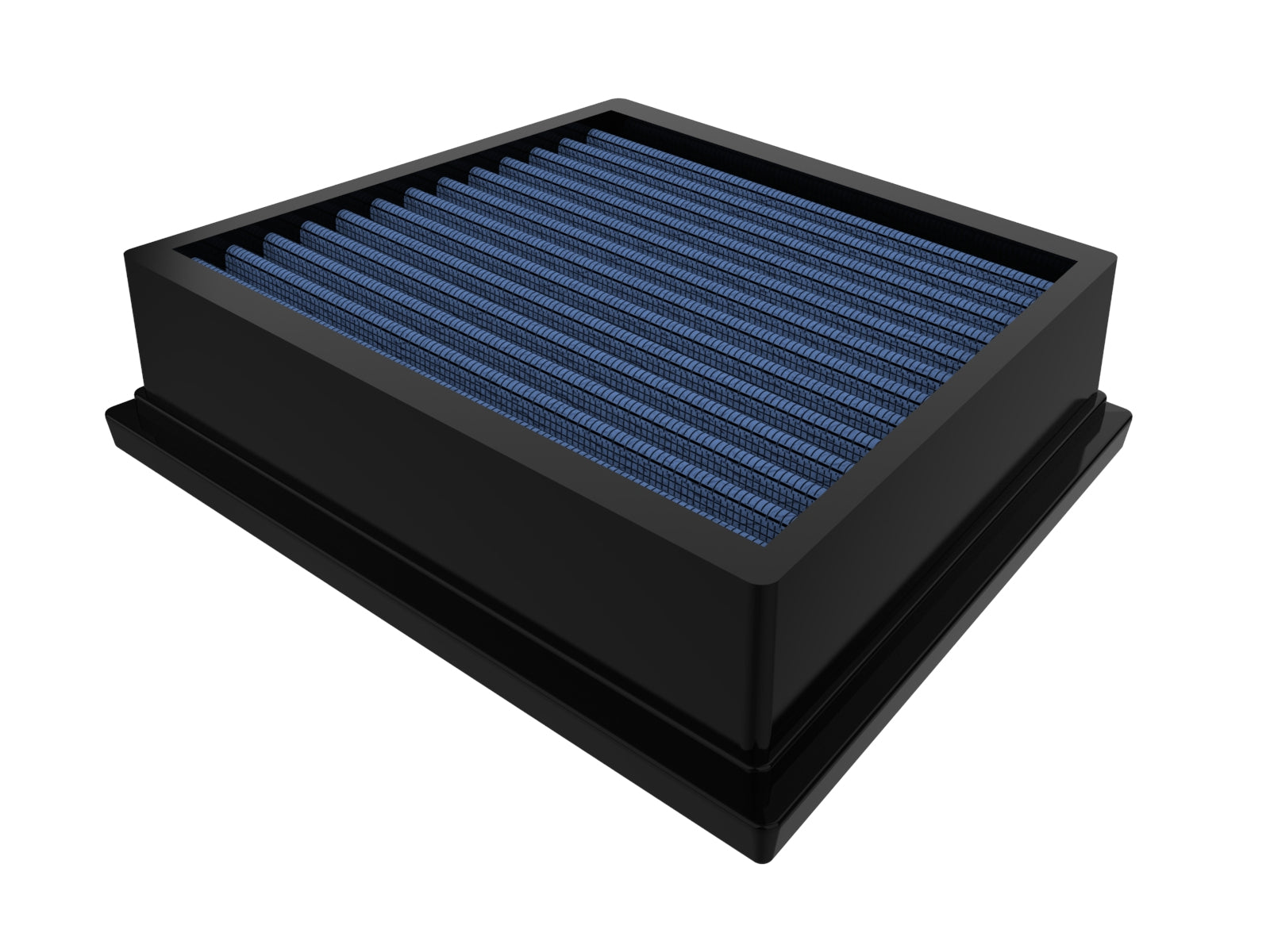

aFe MagnumFLOW Pro 5R OE Replacement Filter 14-19 Ford Fiesta 1.6L Turbo

Pro 5R replacement with the correct engine and housing

The aFe 30-10307 replaces the original airbox filter in the specified applications with five layers of factory-pre-oiled cotton gauze. The exact manufacturer headline identifies Fiesta 2014–2019 with a turbocharged 1.6L four-cylinder. Exact retailer fitment also lists S, SE, ST, ST Line and Titanium in the separate year scopes below. Those broader trim names do not make every engine turbocharged or prove every original filter housing identical. Match the actual engine and original element; non-ST coverage is retailer-supported rather than a complete manufacturer-explicit engine table.

Key Features

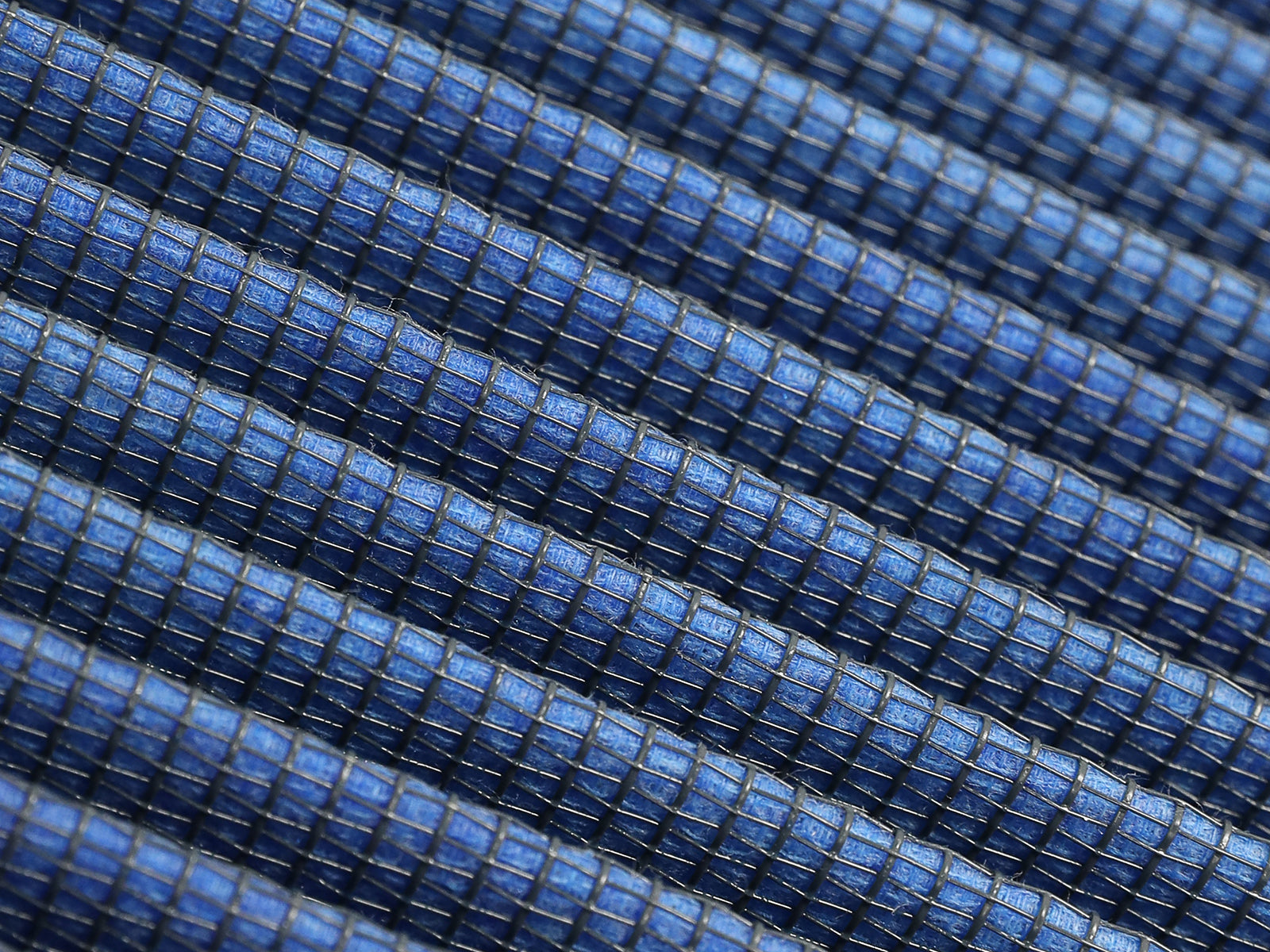

• Five layers of progressively finer oiled cotton gauze.
• Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.
• Rounded open pleats provide usable filter area and dust-holding capacity.

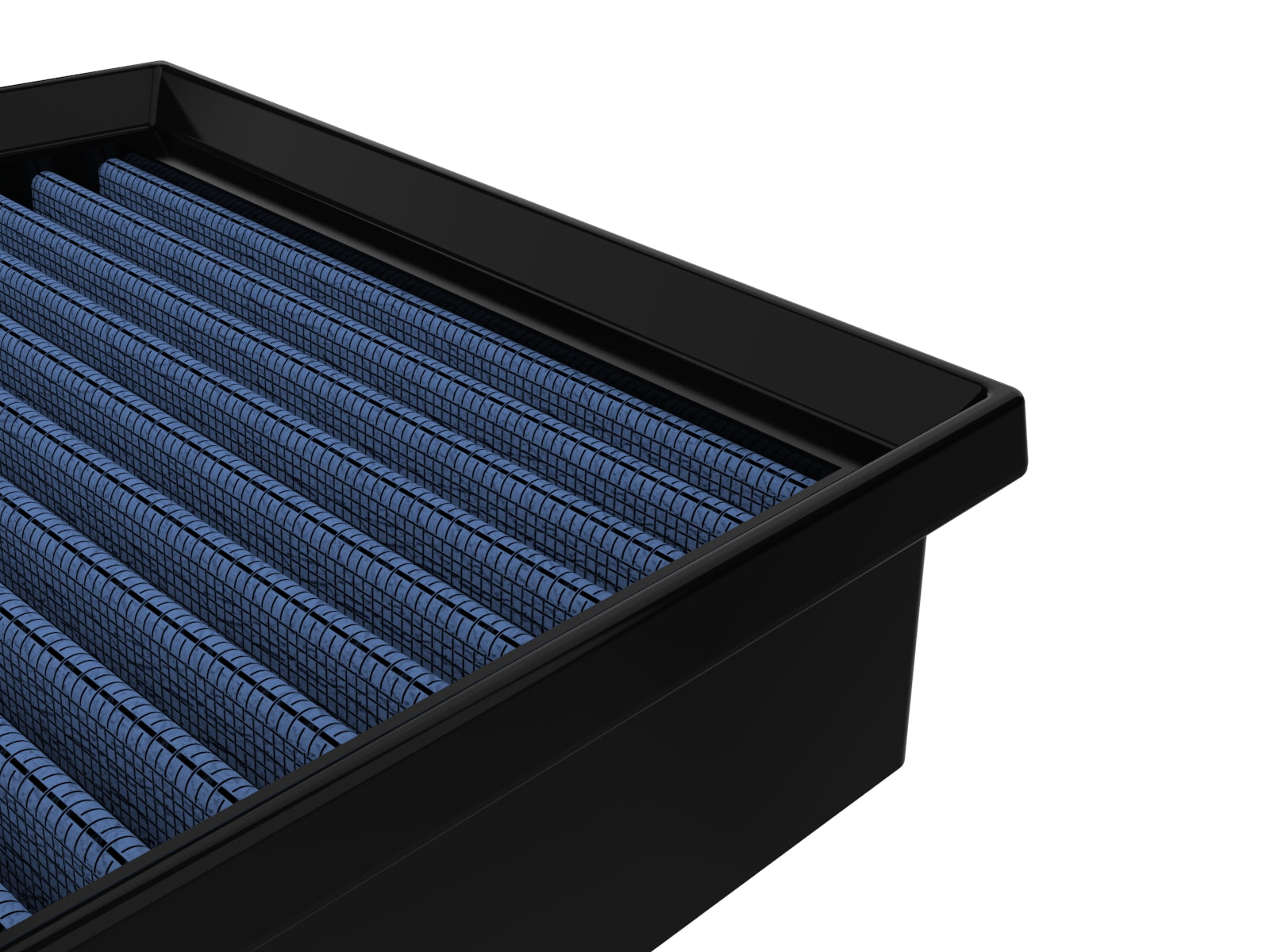

• Full polyurethane perimeter frame and progressive bump seal.
• The exact product page advertises up to 71% greater filter flow than stock. This is not a measured horsepower, torque or fuel-economy guarantee and is not transferable to another filter-media version.

Fitment

30-10307: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.

Specifications

What's Included

• One Pro 5R OE-replacement air-filter element.
• No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power filter configurations; compare the exact original housing and engine.
• Manufacturer filter-media maintenance guidance; follow the Pro 5R cleaning and oiling routine.

Frequently Asked Questions

One Pro 5R OE-replacement air-filter element for the verified original housing and engine application described here; it is not a complete intake system.

The exact manufacturer headline identifies Fiesta 2014–2019 with a turbocharged 1.6L four-cylinder. Exact retailer fitment also lists S, SE, ST, ST Line and Titanium in the separate year scopes below. Those broader trim names do not make every engine turbocharged or prove every original filter housing identical. Match the actual engine and original element; non-ST coverage is retailer-supported rather than a complete manufacturer-explicit engine table.

Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.

The exact product page advertises up to 71% greater filter flow than stock. This is not a measured horsepower, torque or fuel-economy guarantee and is not transferable to another filter-media version.

Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.

The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.

The linked manufacturer Instructions PDF is a general oiled-filter cleaning and warranty sheet, not a vehicle-specific airbox installation manual. Its care steps call for gentle debris removal, about ten minutes of cleaner soaking, a low-pressure rinse from the clean side to the dirty side, natural drying and oil on one side with time to wick through. Avoid a sharp water jet, heat, compressed air, over-oiling and substitute oils. It gives no Fiesta airbox fastener torque. Use the vehicle service procedure for its cover and attachments.

Inspect according to actual dust exposure and restriction. Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.

Installation Instructions

1. Read the exact manufacturer product information for 30-10307 and the original vehicle airbox service procedure.

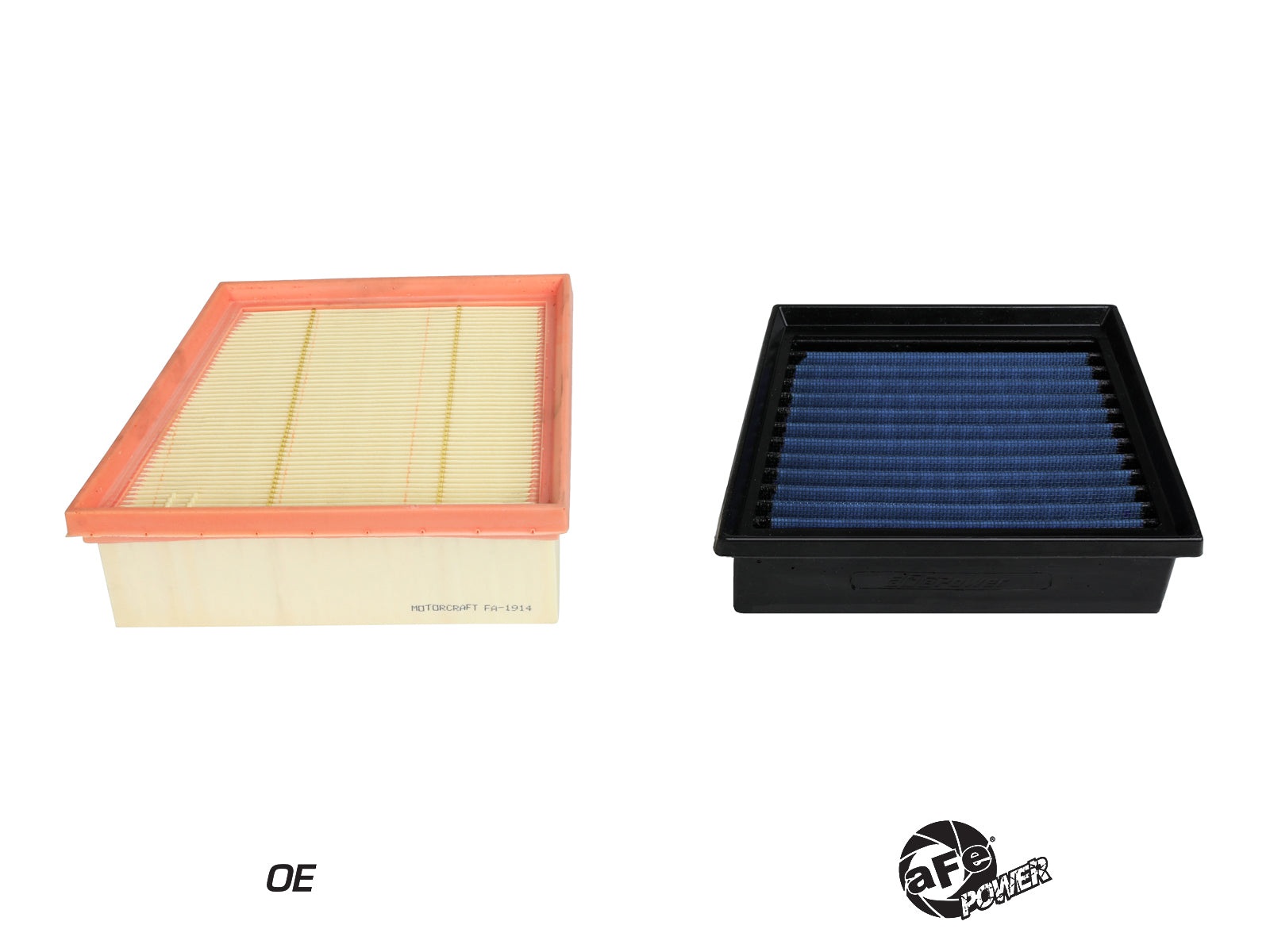

2. With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
3. Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
4. Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
5. Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.

The linked manufacturer Instructions PDF is a general oiled-filter cleaning and warranty sheet, not a vehicle-specific airbox installation manual. Its care steps call for gentle debris removal, about ten minutes of cleaner soaking, a low-pressure rinse from the clean side to the dirty side, natural drying and oil on one side with time to wick through. Avoid a sharp water jet, heat, compressed air, over-oiling and substitute oils. Read the manufacturer linked care sheet.

30-10307: verify the original filter interface before operation.
