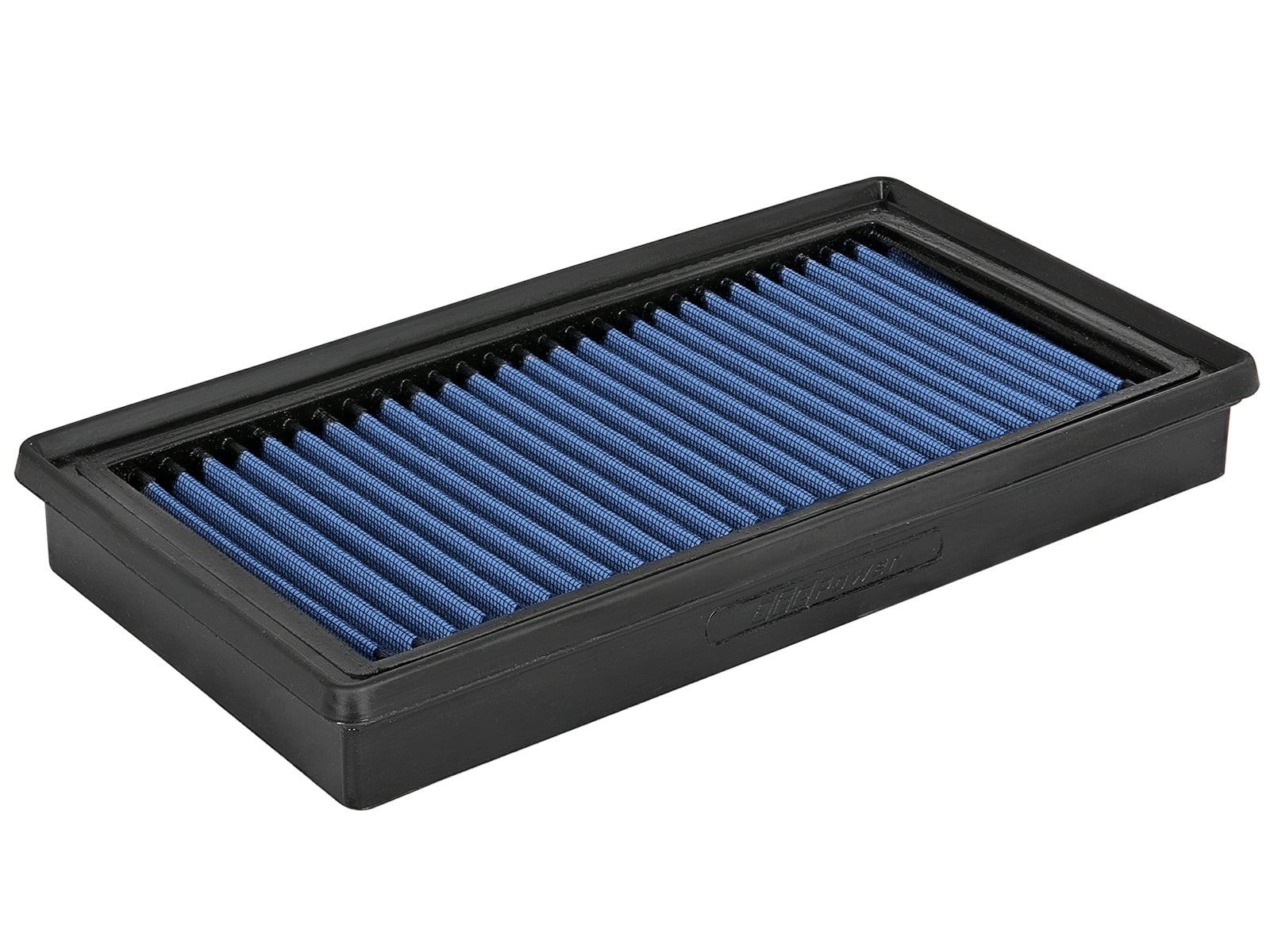

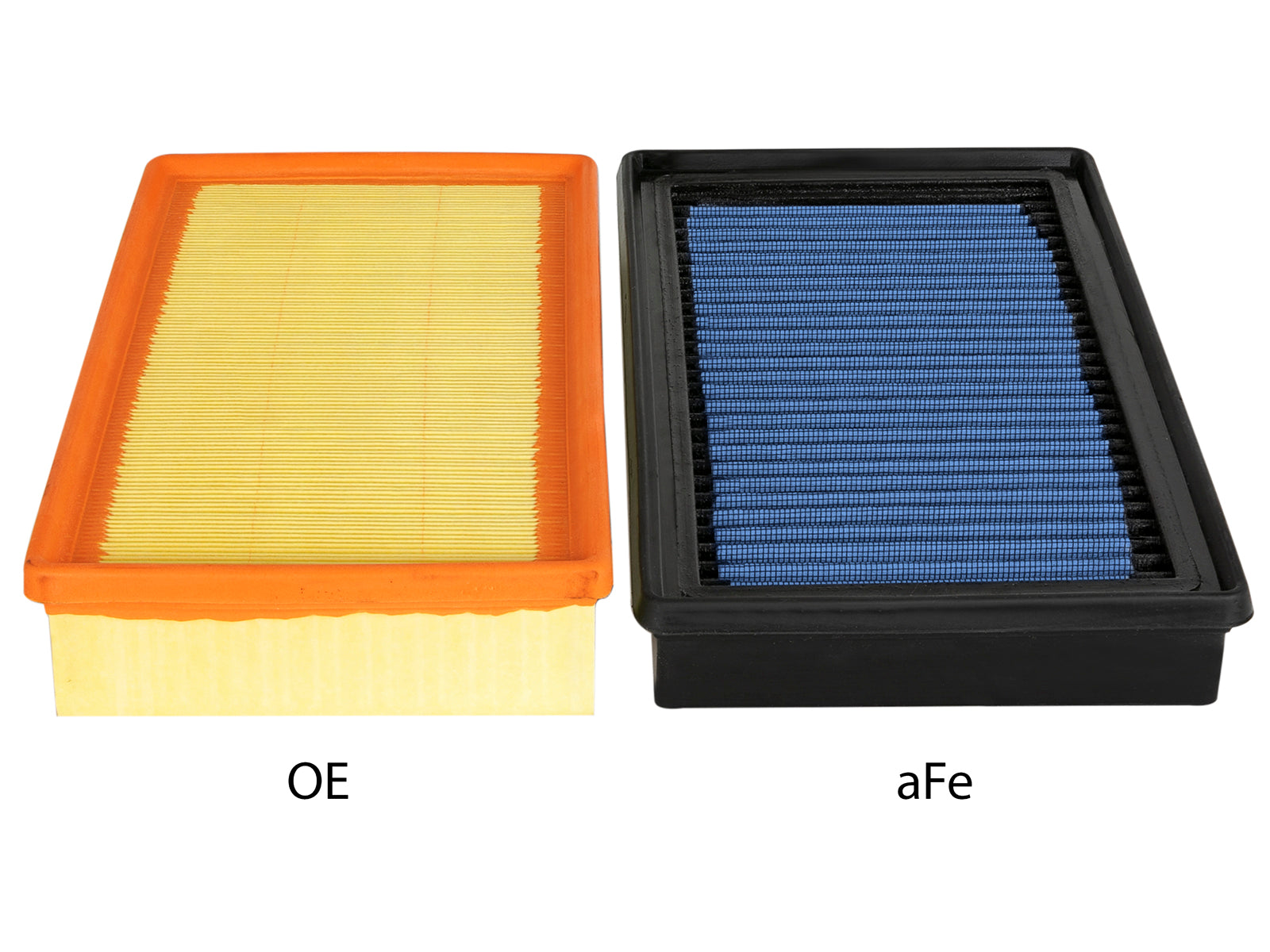

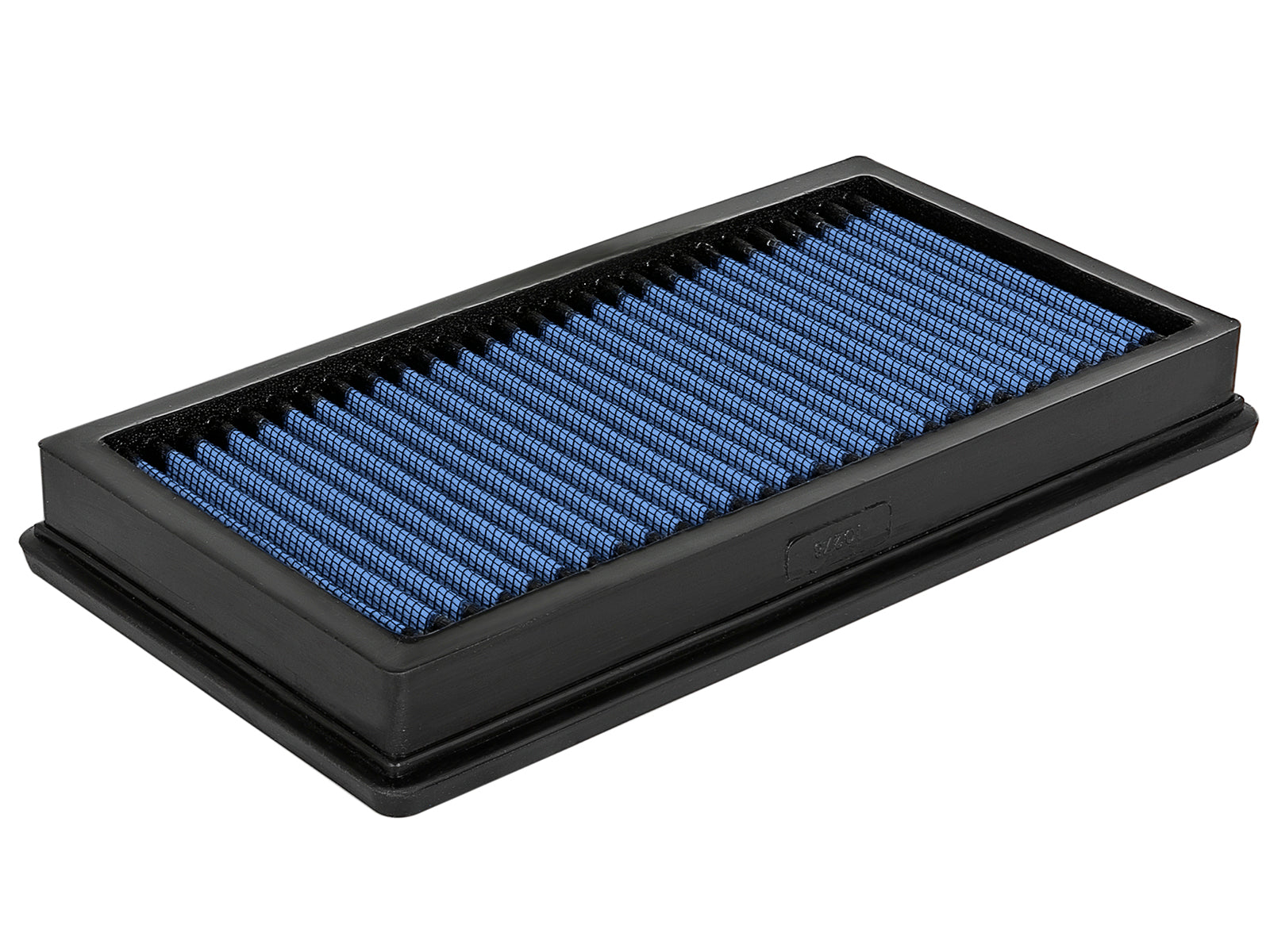

The aFe 30-10278 replaces the original airbox filter in the specified applications with five layers of factory-pre-oiled cotton gauze. The exact manufacturer page lists Atlas 2018–2025 with 2.0L turbo four-cylinder or 3.6L V6 applications. These engines are year-dependent, not both available in every year. An exact Automotive Stuff table separately confirms named Atlas and Atlas Cross Sport rows through 2024, with individual trim ranges. Cross Sport coverage is identified as exact retailer evidence rather than inferred solely from a shared platform. Later 2025 named-trim entries appear in indexed retailer tables, but their complete current table could not be independently read at the original redirected page; no new 2025 named-trim or 2026 extension is made here. The current manufacturer specifies 25 mm pleat depth; an older retailer 35 mm claim conflicts and is not used as an overall height.
| Detail | Value |
|---|---|
| Volkswagen Atlas | 2018–2025 manufacturer family; 2.0L turbo or 3.6L by year; actual housing required |
| Atlas named trims | Individual verified retailer ranges through 2024; original Launch Edition / S / SEL Premium ranges retained |
| Volkswagen Atlas Cross Sport | Exact retailer named-trim table 2020–2024; individual S / SE R-Line / SEL Premium ranges end in 2021, not all through 2024 |
| Later / measurement holds | 2025 named-trim and 2026 additions held; 25 mm current manufacturer pleat depth conflicts with older 35 mm retailer text and is not overall filter height |
30-10278: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 30-10278 |

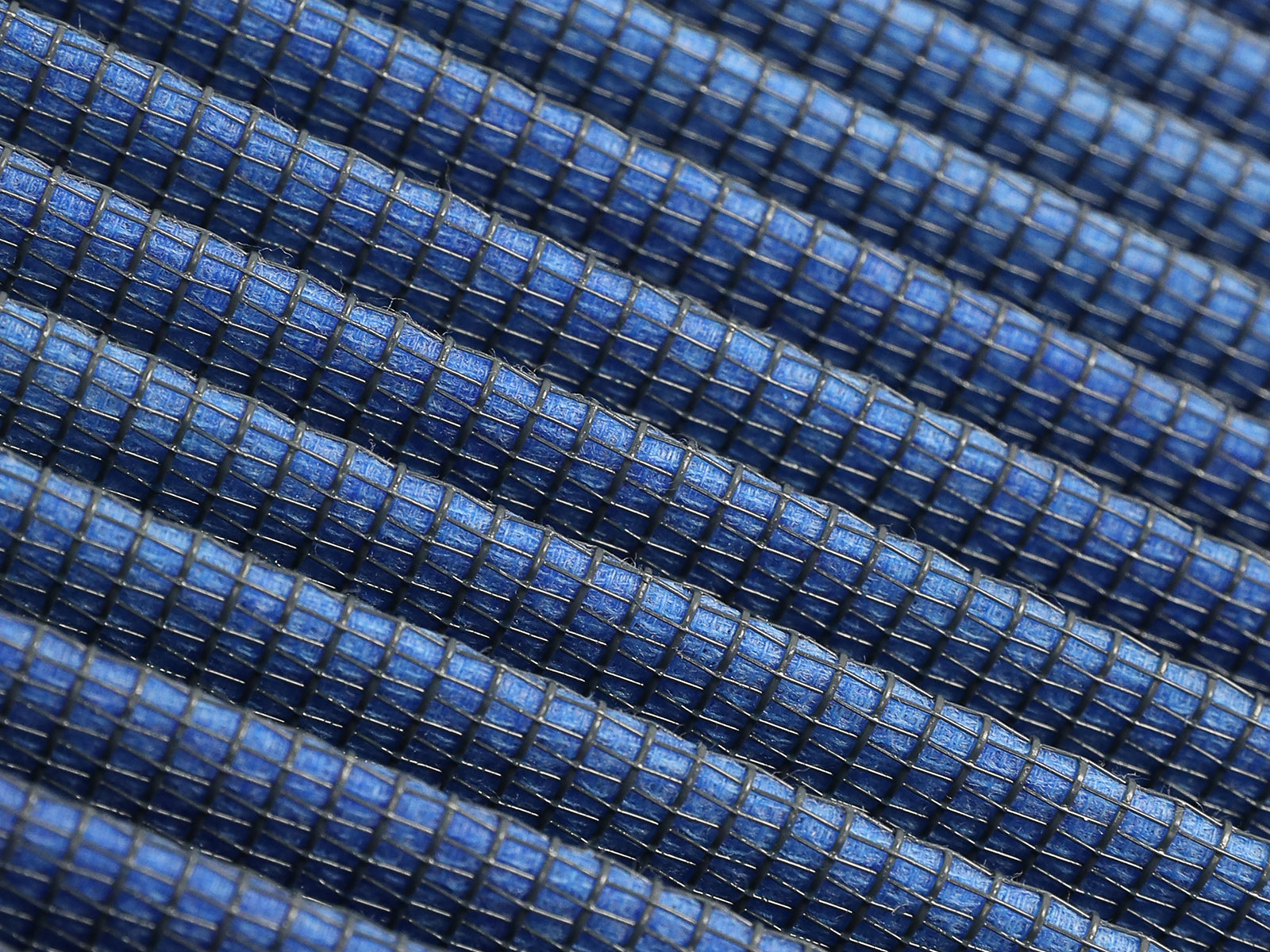

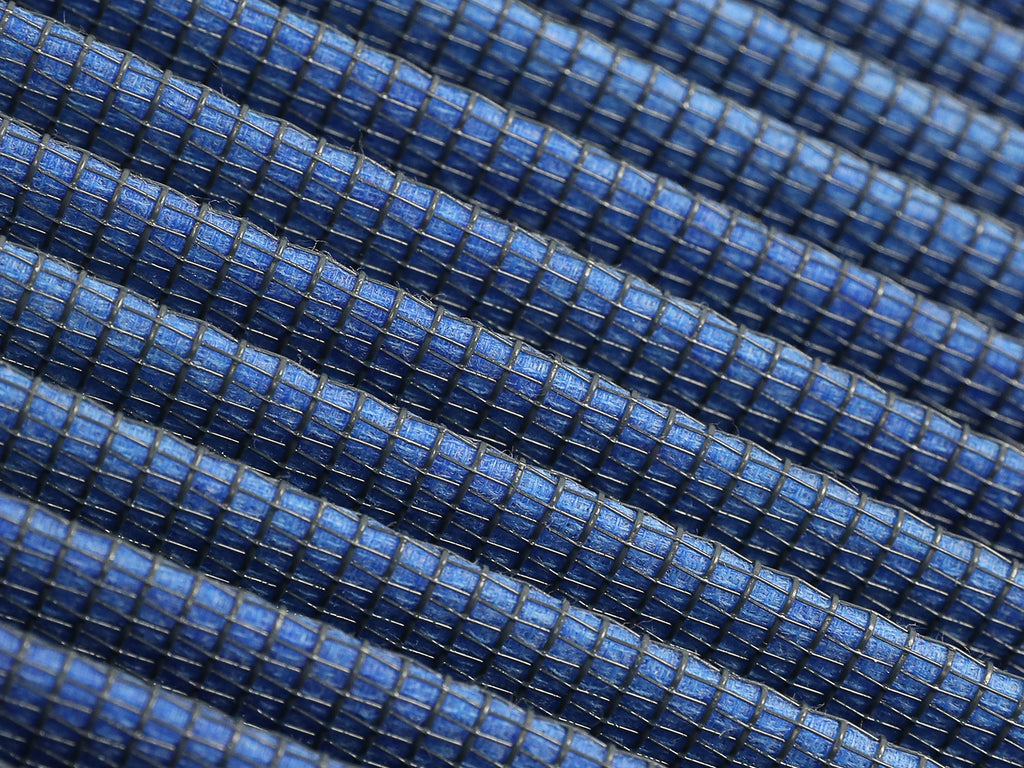

| Media | Pro 5R; five layers of pre-oiled cotton gauze |
| Configuration | One OE-replacement air-filter element; original housing retained |
| Pleat description | 25 mm pleat depth per current manufacturer; not overall height; older retailer 35 mm conflicts |

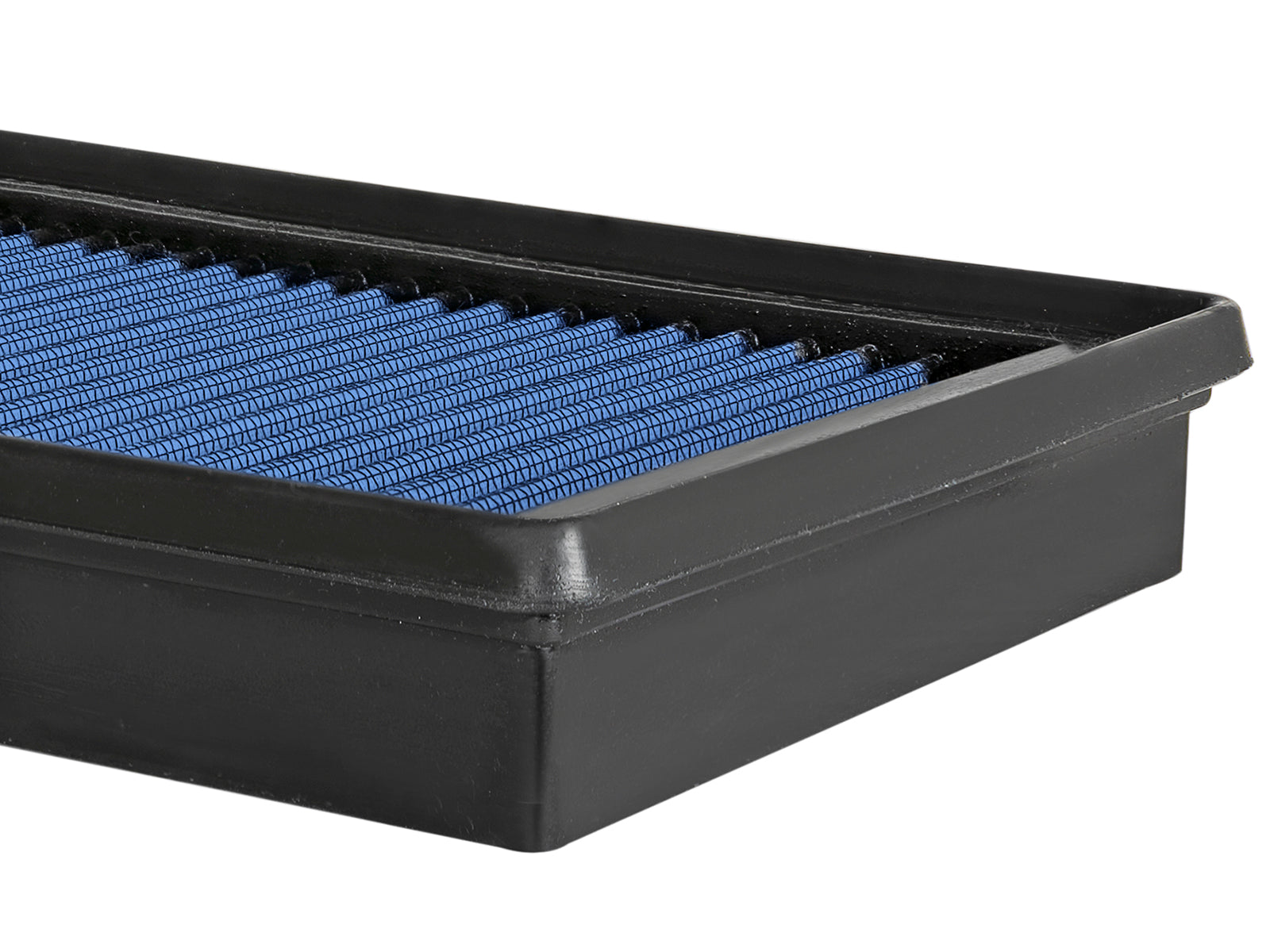

| Frame / seal | Polyurethane perimeter frame; progressive bump seal |
| Service | Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media. |
| Flow statement | The exact manufacturer advertises up to 63% increased filter flow. This is a filter comparison, not a 63% engine-power gain. |
| Emissions | Exact manufacturer page states this filter does not require a CARB EO number; other modifications are not certified by that statement |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One Pro 5R OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.
Which application should I verify?The exact manufacturer page lists Atlas 2018–2025 with 2.0L turbo four-cylinder or 3.6L V6 applications. These engines are year-dependent, not both available in every year. An exact Automotive Stuff table separately confirms named Atlas and Atlas Cross Sport rows through 2024, with individual trim ranges. Cross Sport coverage is identified as exact retailer evidence rather than inferred solely from a shared platform. Later 2025 named-trim entries appear in indexed retailer tables, but their complete current table could not be independently read at the original redirected page; no new 2025 named-trim or 2026 extension is made here. The current manufacturer specifies 25 mm pleat depth; an older retailer 35 mm claim conflicts and is not used as an overall height.
Is the Pro 5R media oiled?Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media.
Does the flow percentage guarantee more engine power?The exact manufacturer advertises up to 63% increased filter flow. This is a filter comparison, not a 63% engine-power gain.
How does this filter seal?Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.
Are a hose coupler and cleaning kit supplied?The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.
Is this filter 25 mm or 35 mm tall?The current exact manufacturer says 25 mm DEEP pleats, while older retailer text says 35 mm. Neither statement independently certifies overall filter height. Match the complete original element and sealing interface rather than use pleat depth as the housing dimension.
When should I clean and re-oil it?Inspect according to actual dust exposure and restriction. Washable and reusable oiled cotton media. Use aFe POWER CLEANER and the specified blue air-filter oil; this is not oil-free Pro DRY S media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally and allow the specified oil to wick before reinstalling. Do not use heat, compressed air or excess oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.
No vehicle-specific numeric airbox torque is verified. Follow the original housing service procedure and correct oiled Pro 5R care directions. Read the manufacturer media maintenance guidance.
30-10278: verify the original filter interface before operation.
