aFe Jeep Wrangler JK 3.8L Stage-2 Pro 5R

Engine-specific Magnum FORCE intake for Jeep Wrangler JK

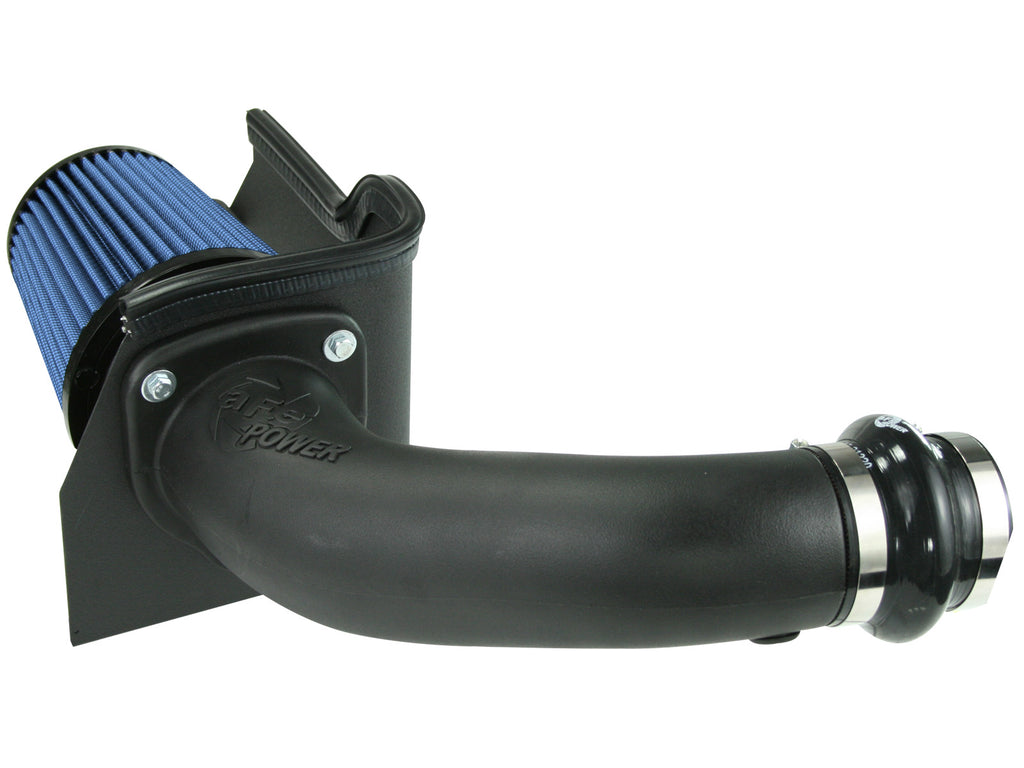

aFe 54-11252-2 is the Magnum FORCE Stage-2 Pro 5R intake for the specified 2007–2011 Jeep Wrangler JK 3.8L V6. It combines one oiled five-layer cotton-gauze filter, a black rotomolded intake tube and a black powder-coated 18-gauge steel heat shield. Its sensor, CCV connection, spacers and supplied hardware follow the engine-specific manual.

Key Features

• One washable, reusable Pro 5R filter with five oiled cotton-gauze layers and polyurethane frame.
• Exact replacement filter 24-91057: 4-inch flange, 6-inch base, 4.5-inch inverted top, 7-inch height. The flange measurement is not the element height.

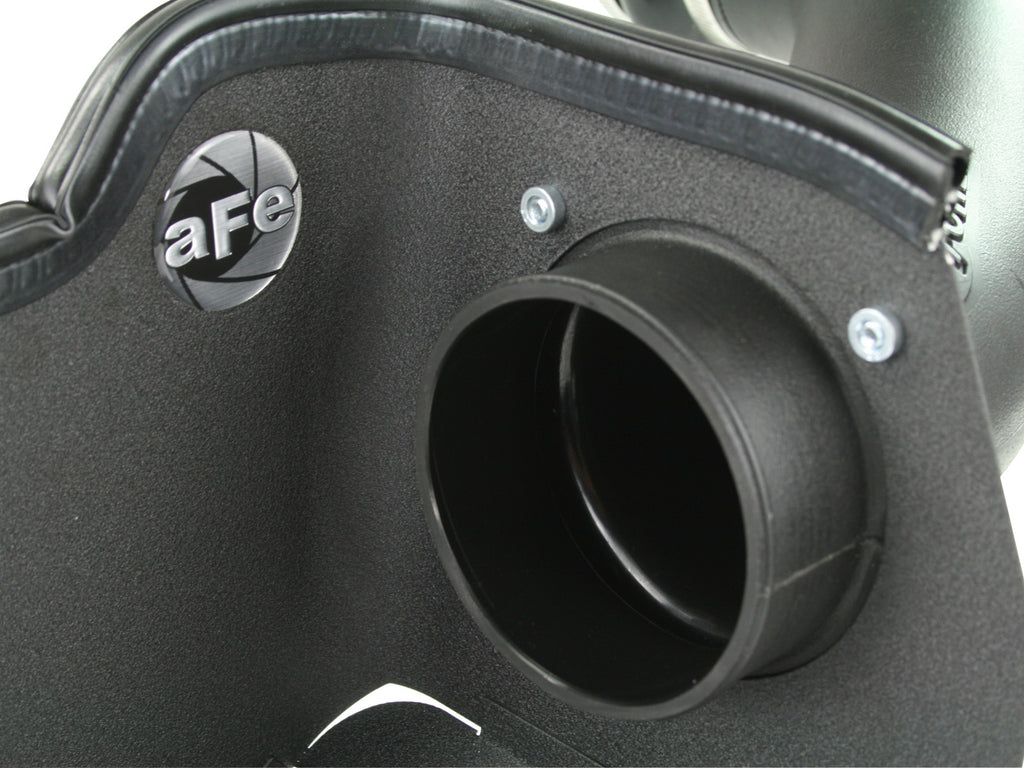

• One-piece black powder-coated 18-gauge steel heat shield and heat-insulating rotomolded tube; an open filter arrangement rather than a sealed airbox.

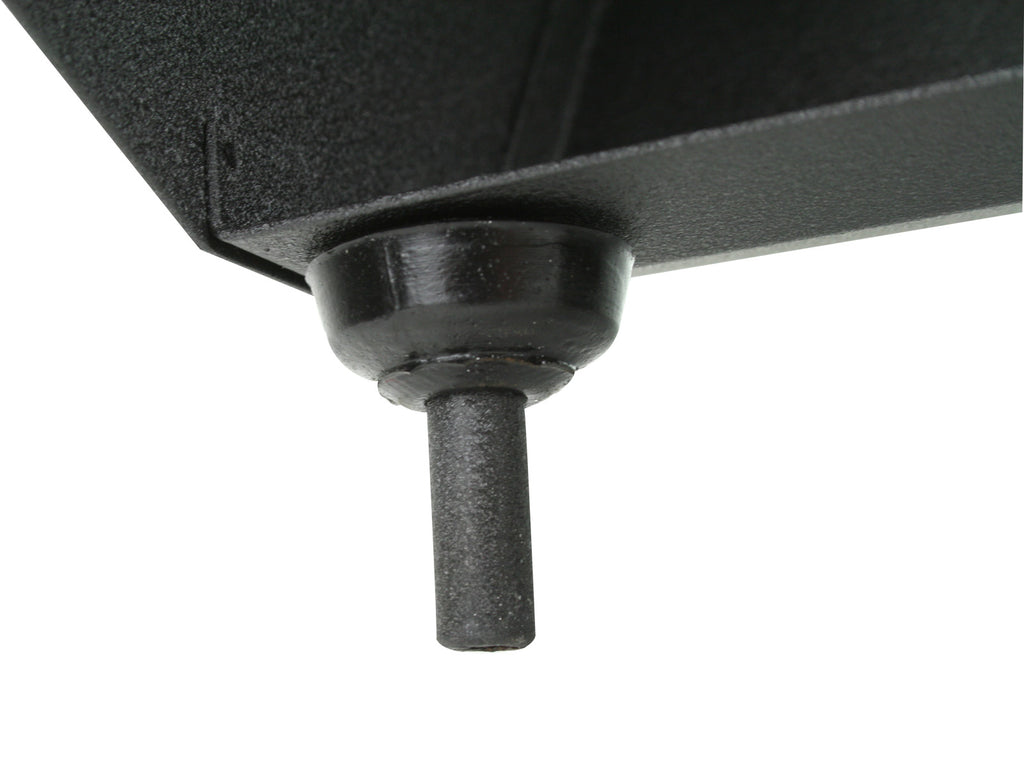

• Two supplied urethane shield spacers, new sensor grommet and original inner-fender mounting bolt retained.
• Original temperature sensor transfers using the straight-pull removal and red connector lock described by the exact manual.
• Original CCV hose retained with a supplied mini clamp; check bolts and clamps after 100 miles.

Fitment

Jeep Wrangler JK 2007–2011 with the factory 3.8L V6, as explicitly stated by the exact current manufacturer page and illustrated manual. Do not extend to the 2012-up 3.6L engine merely because the body is also called JK. The exact selected-part retailer names the missing Unlimited Sahara group, which is restored below. Existing named bounds and gaps are retained. This does not establish another engine, body generation or conversion.

Verify 54-11252-2 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

The manual shows alternative filter media; only this selected Pro 5R filter is supplied. Retain the original intake-temperature sensor and original fender mounting bolt. Reuse the ORIGINAL CCV hose with the new mini clamp. The three screws, flat washers and lock washers secure the new tube as shown; this kit does not use the later 3.6L filter-adapter screw set or new 9-inch hose. An older retailer describes a 16-gauge shield/cover, conflicting with the current manufacturer’s 18-gauge specification; this listing follows the current exact manufacturer source and illustrated open configuration.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-11252-2
• Exact illustrated installation manual
• Exact replacement filter specifications and dimensions
• Shop the complete aFe Power collection

Frequently Asked Questions

Jeep Wrangler JK 2007–2011 with the factory 3.8L V6, as explicitly stated by the exact current manufacturer page and illustrated manual. Do not extend to the 2012-up 3.6L engine merely because the body is also called JK. The exact selected-part retailer names the missing Unlimited Sahara group, which is restored below. Existing named bounds and gaps are retained. This does not establish another engine, body generation or conversion.

One 24-91057 oiled Pro 5R element is included. It is 7 inches tall, with a 4-inch flange opening. Its five cotton-gauze layers must be cleaned, dried and recharged using aFe’s correct oil procedure. The dry and gold filters shown in the manual are alternatives, not additional included elements.

After releasing the red connector lock, disconnect the harness carefully. Pull the sensor straight out of the original tube without bending it side-to-side. Install it in the new supplied grommet before fitting the tube, reconnect the harness and push the red lock forward.

Yes. Disconnect it at the original airbox, then attach that original hose to the new intake-tube port and secure it with the supplied mini clamp. A new 9-inch replacement hose from the later 3.6L kit is not part of this BOM.

Install both urethane spacers with their flat sides toward the housing, fit the 16.25-inch trim and reuse the original M6 inner-fender bracket bolt to secure the shield. Install the new tube using its three screws, flat washers and lock washers.

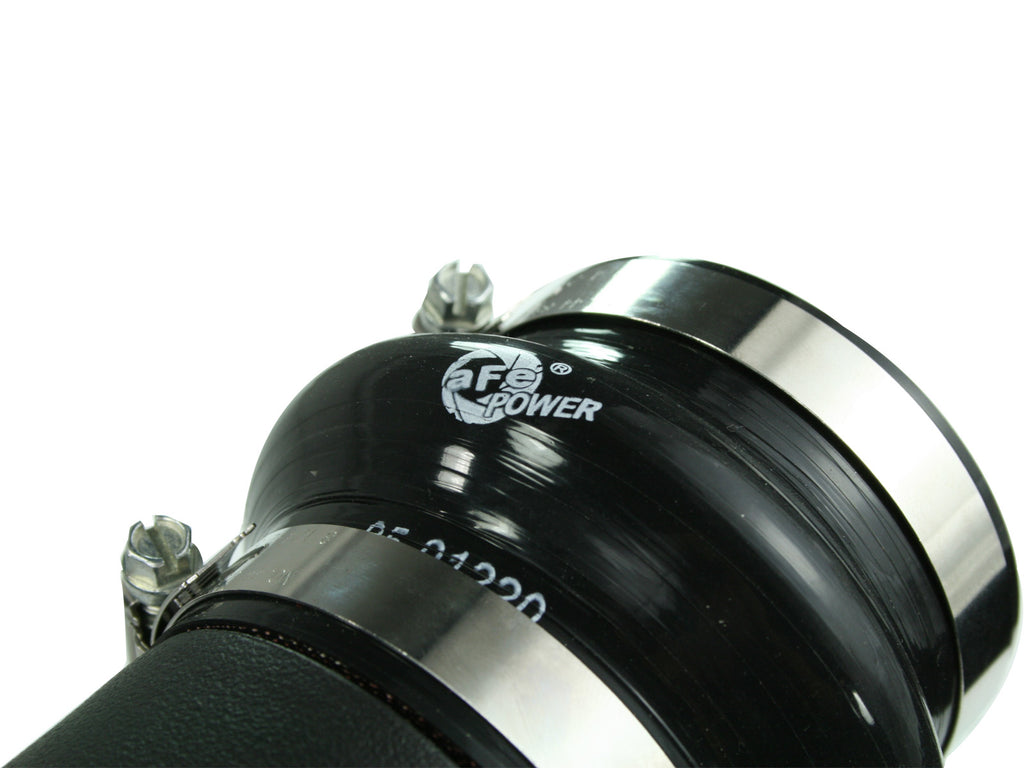

Align and secure the tube before tightening its hump-coupling clamps, secure the original CCV hose with the mini clamp and restore the red sensor-connector lock. Check bolts and clamps after 100 miles; no numerical torque is stated.

The manufacturer advertises up to 10 hp and 11 lb-ft with 58% more flow. The current exact page links installation instructions but no test chart with a verifiable baseline and vehicle configuration. These are manufacturer headline claims, not independently verified peak-to-peak gains or guaranteed output on your vehicle.

Check all connectors, clamps, mounting bolts and clearances; recheck bolts and clamps after 100 miles. No numerical torque is given. The current exact product page cites CARB EO D-550-27. The official indexed order table explicitly lists the selected kit for 2007–2011 Jeep Wrangler 3.8L engines. This is an indexed application row, not independent access to a fresh complete signed order or a blanket approval for a different engine or later year. Confirm current complete order conditions and install the enclosed EO identification label on or near the device on a smooth clean surface as required for inspection.

Installation Instructions

Verify aFe 54-11252-2. Work on a cool engine, disconnect the negative battery terminal and retain factory parts. Loosen the throttle-body and housing clamps. Slide the intake-temperature-sensor connector’s RED tab back, press its release and disconnect carefully without breaking the connector. Remove the original intake tube. Disconnect the original CCV hose at the rear of the original airbox, then pull the airbox straight upward to remove it. Install both new urethane spacers on the bottom of the shield with each spacer’s FLAT side facing the housing. Remove and retain the M6 inner-fender mounting-bracket bolt. Pull the original temperature sensor STRAIGHT out of its tube; do not rock or bend it side-to-side and do not borrow the 3.6L kit’s twist-release instruction. Install the 16.25-inch trim on the new shield, fit the shield and secure it with the retained M6 fender bolt. Seat the new rubber grommet in the new intake tube and insert the original sensor before fitting the tube. Install the tube with the supplied three M6 hex-head screws, flat and lock washers, hump coupling and two size-048 clamps. Align and secure the assembly before tightening the coupling clamps. Put the supplied mini clamp on the ORIGINAL CCV hose, attach that hose to the intake-tube port and tighten the mini clamp. Reconnect the original sensor harness and slide its RED locking tab forward. Install the selected single filter on the tube end and secure its filter clamp. Check clamps and bolts after 100 miles of driving. No numerical tightening torque is stated.

Important Disclosures

The current exact product page cites CARB EO D-550-27. The official indexed order table explicitly lists the selected kit for 2007–2011 Jeep Wrangler 3.8L engines. This is an indexed application row, not independent access to a fresh complete signed order or a blanket approval for a different engine or later year. Confirm current complete order conditions and install the enclosed EO identification label on or near the device on a smooth clean surface as required for inspection. The filter and open heat shield are not waterproof or an increased-fording-depth certification. The manufacturer advertises up to 10 hp and 11 lb-ft with 58% more flow. The current exact page links installation instructions but no test chart with a verifiable baseline and vehicle configuration. These are manufacturer headline claims, not independently verified peak-to-peak gains or guaranteed output on your vehicle.
