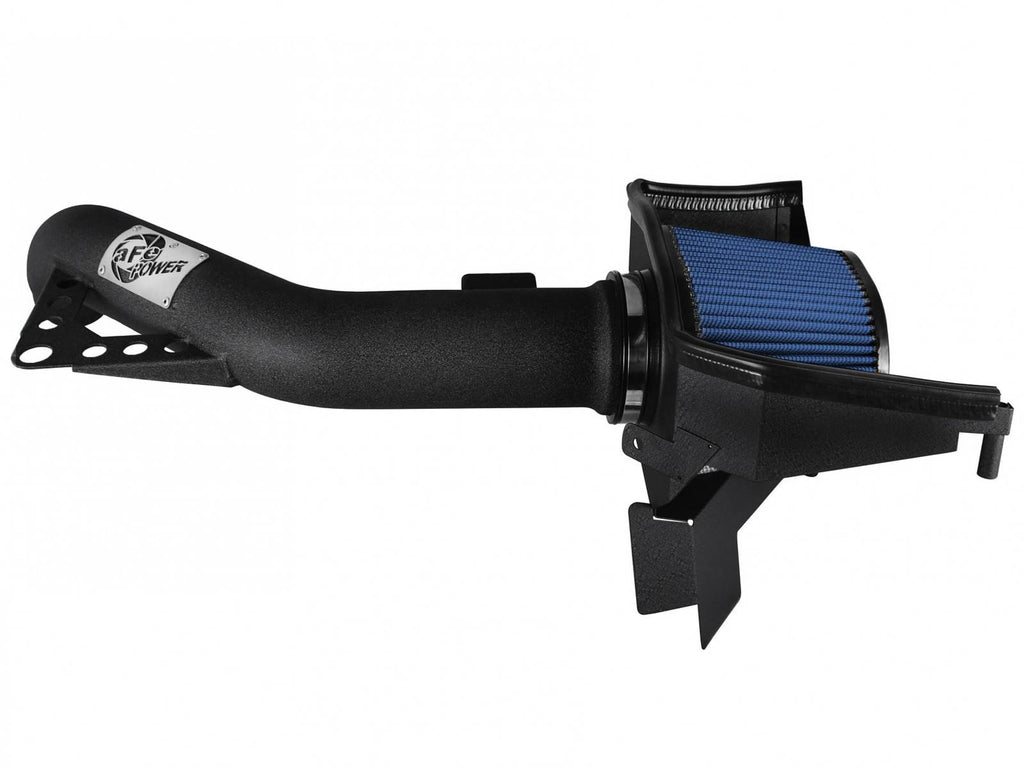

aFe 54-12202 is the Stage-2 Pro 5R intake for specified BMW N55 turbo 3.0L applications. The exact manufacturer manual explicitly covers this oiled selection and its separate dry alternative. It provides one selected 24-91074 filter, new tube and shield, with different vacuum-port arrangements for automatic and manual transmissions. Transfer the original MAF and mounting grommet, and restore the factory brace when equipped.
Exact manufacturer shared manual names M2 F87 2016-2018; 335i/xi F30/F34 2012-2015; 435i/xi F32/F33/F36 2014-2016; and M135i/xi/M235i F20/F21/F22 2012-2016, all with N55 turbo 3.0L. Exact retailer named tables support the original Base rows and restore missing M235i Base 2014-2016. Original years and gaps remain unchanged, including the positive 335i GT xDrive endpoint that extends beyond the compressed manual 2015 line, and the original 335i xDrive 2012 source/market qualification. The retailer also advertises M2 2019 N55, conflicting with the manual 2016-2018 and BMW S55 Competition configuration; no 2019 M2 mapping is added. No new M135i, S55, other engine, market or chassis applications are inferred from the broad shared line. Confirm the actual MAF, mount, turbo inlet and transmission-specific vent arrangement.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2012-2015 | BMW | 335i | Base |
| 2014-2016 | BMW | 335i GT xDrive | Base |
| 2012-2015 | BMW | 335i xDrive | Base |
| 2014-2016 | BMW | 435i | Base |
| 2015-2016 | BMW | 435i Gran Coupe | Base |
| 2014-2016 | BMW | 435i xDrive | Base |
| 2015-2016 | BMW | 435i xDrive Gran Coupe | Base |
| 2016-2018 | BMW | M2 | Base |
| 2015-2016 | BMW | M235i xDrive | Base |
| 2014-2016 | BMW | M235i | Base |
Verify 54-12202 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-12202 |
| Product type | Stage-2 Pro 5R Cold Air Intake |
| Engine | Specified N55 turbo 3.0L inline-six applications |
| Selected filter | One oiled Pro 5R 24-91074; five-layer cotton-gauze description from exact retailer |
| Tube / shield | 05-12202B1 / 05-12202B2; exact manual illustrated design |
| Dimensional qualification | Retailer states 3.5-inch mandrel-bent tube, 18-gauge shield and 6-inch filter; current exact PDP unlocated, revision dimensions unconfirmed |
| MAF fasteners | Two M4 03-50490; no length/pitch in exact bill |
| Trim seal | 24 inches, 7/16-inch bulb, 05-00072 |
| Mounting hardware | Quarter-20 x 3/4-inch bolt and quarter-20 clip nut |
| Automatic vent provision | Quarter-NPT elbow, 14-inch 1/2-inch-ID hose, aluminum vacuum fitting, mini #006 clamp |
| Manual vent provision | Quarter-NPT hex plug instead of elbow |
| Original parts | MAF, radiator-support grommet, applicable vent connection, turbo-inlet clamp and equipped brace/four original bolts |
| Performance qualification | Legacy official flow/dyno links return placeholder images; advertised 14 hp/18 lb-ft/29% not certified |
| Emissions | Exact manual states not currently CARB exempt; California purchase/registered-vehicle use restricted |
| Procedure limits | No numeric torque or battery step; periodic clamp recheck with no mileage interval |
| UPC | 802959504659 |

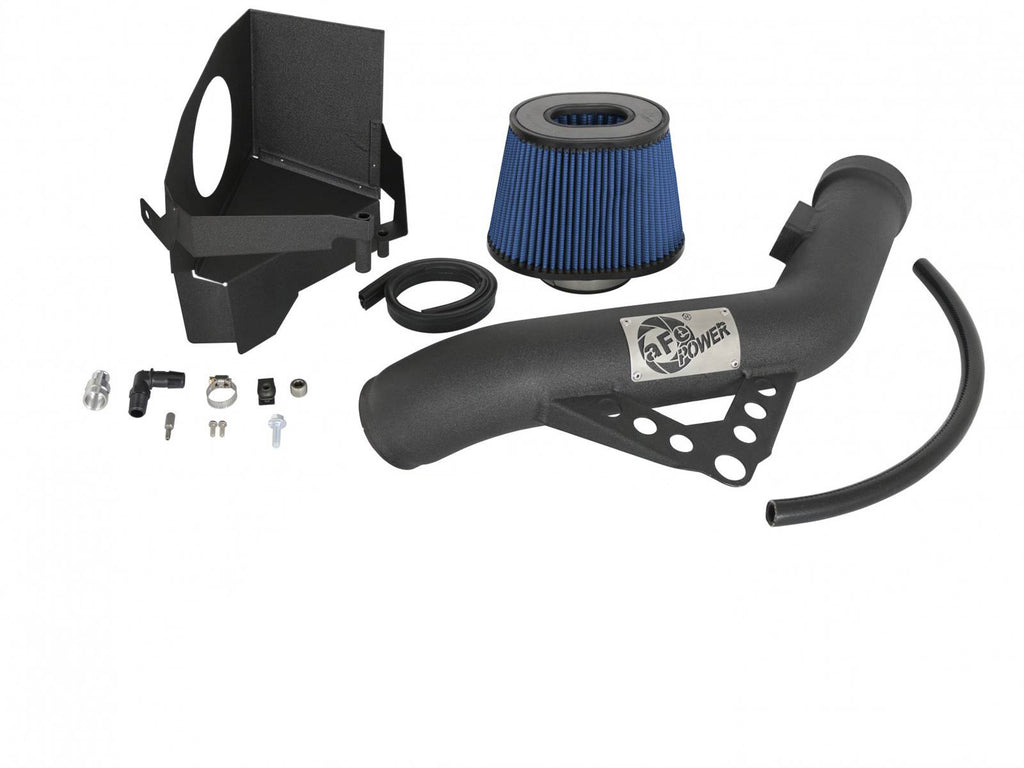

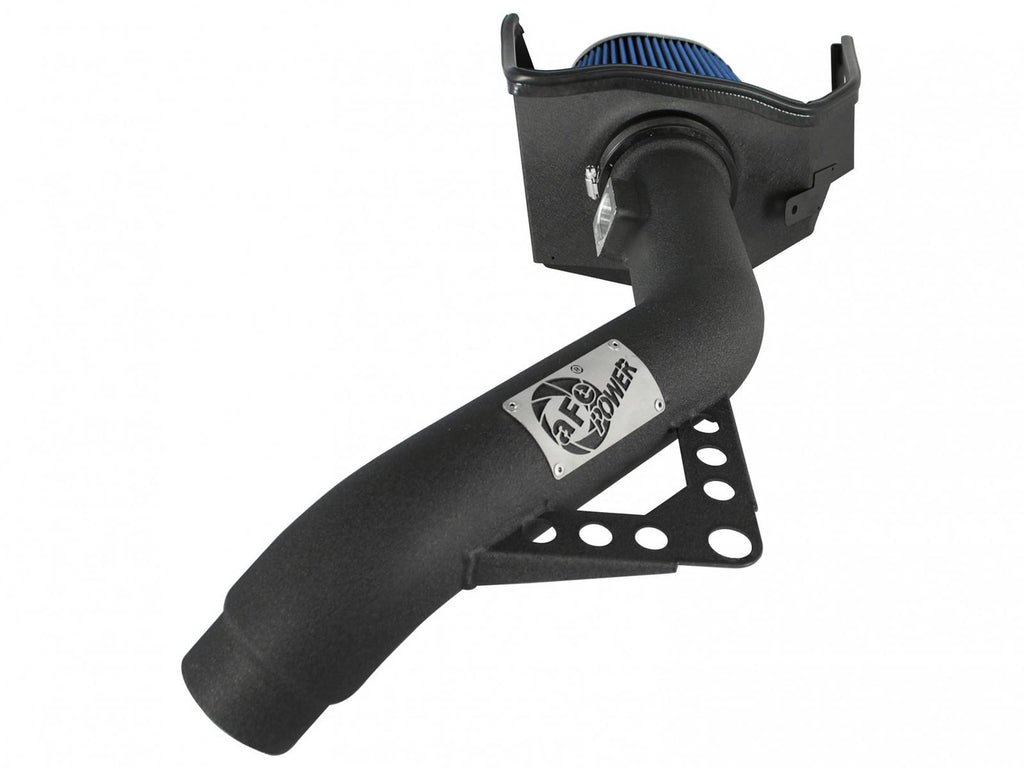

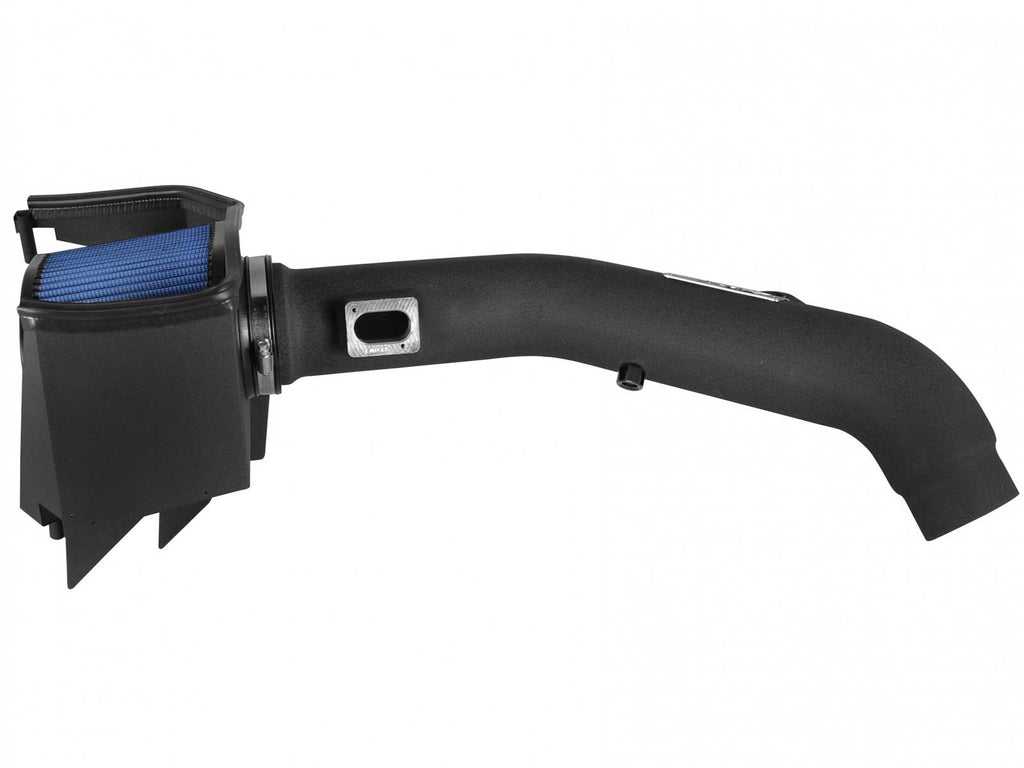

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91074 | Selected oiled Pro 5R filter A2 |
| 1 | 05-12202B1 | Tube B |
| 1 | 05-12202B2 | Shield/housing C |
| 2 | 03-50490 | M4 screws D; length unspecified |
| 1 | 05-00072 | 24-inch 7/16-inch-bulb trim seal E |
| 1 | 03-50100 | Quarter-20 x 3/4-inch hex-head bolt F |
| 1 | 03-50149 | Quarter-NPT elbow G; automatic arrangement |
| 1 | 05-01246 | Aluminum vacuum-line fitting H |
| 1 | 03-50025 | Mini #006 clamp I |
| 1 | 03-50389 | Quarter-20 clip nut J |
| 1 | 05-01396 | 14-inch 1/2-inch-ID breather hose K |
| 1 | 03-50531 | Quarter-NPT hex-head plug L; manual alternative |
| 1 | 03-50066 | Torx bit M; bill labels it M4 |
The complete shared A1/A2-M bill contains alternative filter media; only the selected oiled A2 filter is supplied here. The automatic elbow/hose/vacuum-fitting arrangement and manual threaded plug are alternative installation paths, not simultaneous open ports. The manual does not itemize an additional large coupling or numbered filter-clamp specification. Retain the original MAF, radiator-support grommet, turbo-inlet clamp, original brace and its four bolts when fitted. Do not infer extra hardware, screw dimensions or a dry element from photos.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One selected oiled Pro 5R filter, tube, shield, trim seal, MAF screws, mounting hardware, vent fittings/hose/clamp, threaded plug and Torx bit as itemized. The dry filter is an alternative.
How do automatic and manual installations differ?Automatic uses the quarter-NPT elbow, supplied breather hose, aluminum vacuum fitting and mini clamp. Manual uses the threaded plug instead of the elbow.

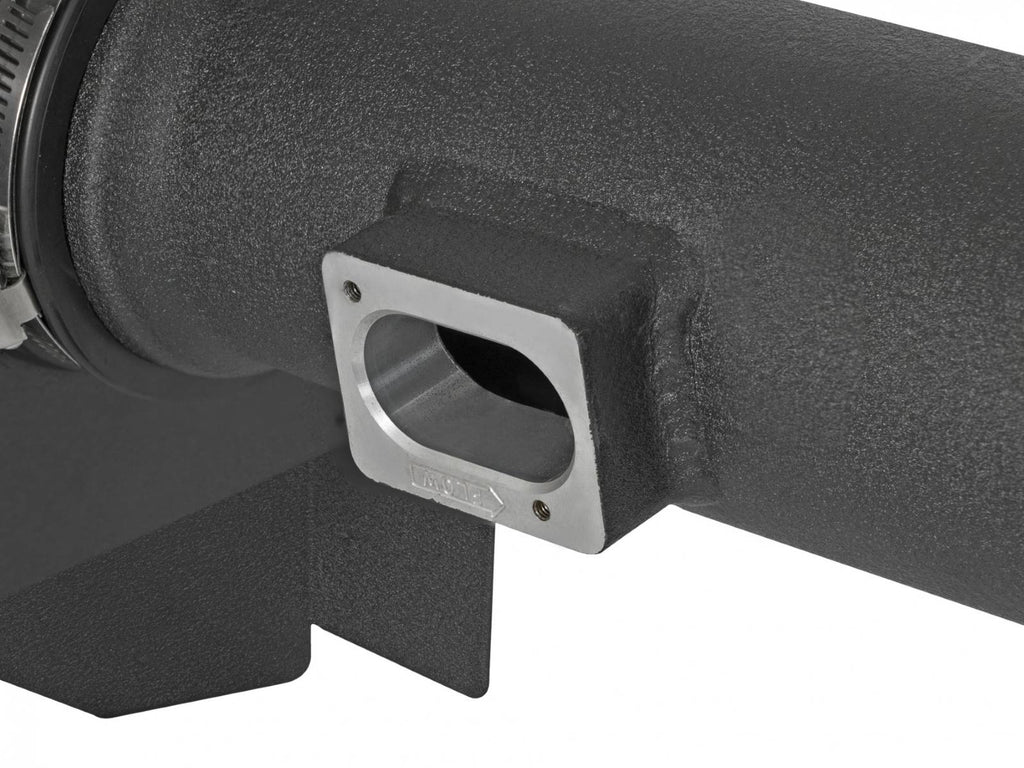

Which original sensor and grommet are reused?Transfer the original MAF into the new tube and move the original radiator-support grommet onto the new tube mounting bracket.
Must the factory brace be removed permanently?No. If equipped, temporarily remove its four original bolts, retain them, and reinstall the brace after the intake is aligned and clamped.

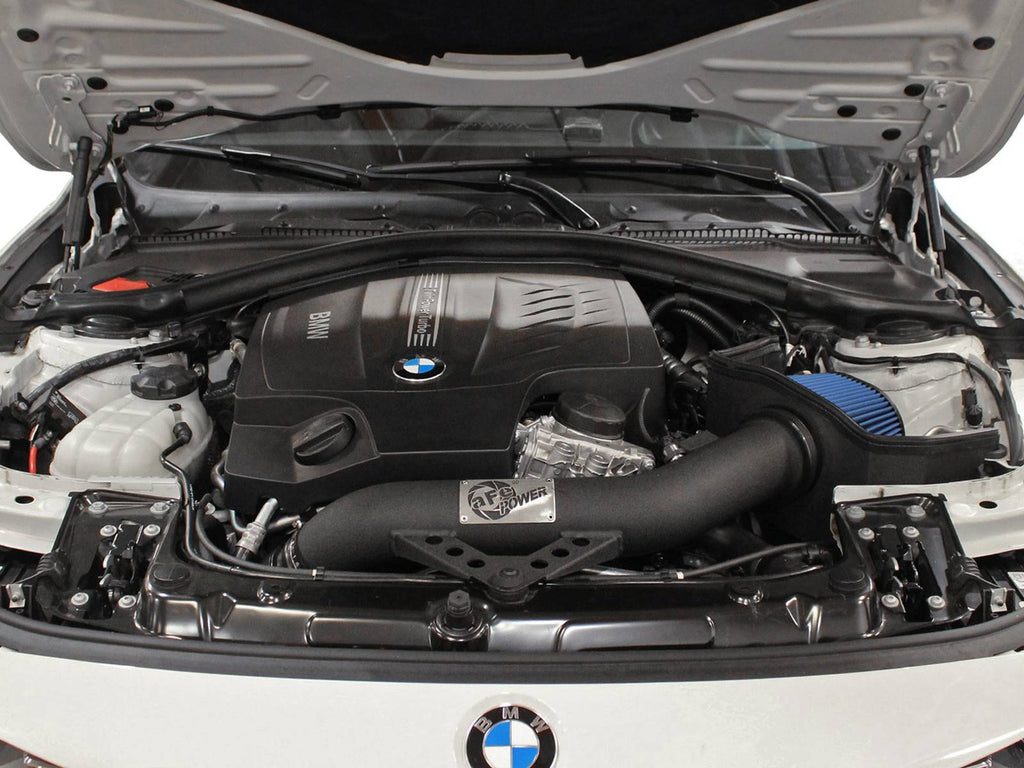

Which end of the new tube is installed first?Insert the turbo-inlet end first, then the filter end, then seat the tube on the radiator-support peg. Connect the applicable vent hose and MAF wiring before final checks.
Does the filter need separate screws at the shield?The exact manual seats the filter flat in the shield opening using its molded retention lip and groove. Confirm complete seating before fitting the assembly.
Are the advertised power and flow gains verified here?No. Legacy manufacturer dyno/flow links returned placeholder images. No current exact quantitative report or 2019 S55 M2 application is certified.
What emissions, torque, battery and recheck directions apply?The manual states not currently CARB exempt and restricts California purchase/use. It supplies no numeric torque or battery step and specifies periodic clamp checks without a mileage interval.
Verify aFe 54-12202. Read the entire exact manual and work only with a cool engine. If equipped, remove the brace by releasing its four 13mm-head bolts and save them. Disconnect the MAF harness and applicable vacuum line. Loosen the original intake clamp with a 6mm driver, slide the original intake off the turbo inlet and lift the assembly out. Transfer the MAF using the supplied screws and Torx bit. Transfer the radiator-support grommet onto the new tube. For an automatic, install the elbow, supplied hose, aluminum vacuum fitting and mini clamp; for a manual, use the threaded plug instead. Fit trim seal to the shield edge, then slide the selected filter into the shield until flat, fully retained in its molded lip and groove. Fit the clip nut in the supporting-strut channel and push the shield into factory grommets, securing it with the supplied bolt and clip nut. Install the tube into the turbo inlet first, then the filter, then the radiator-support peg. Leave clamps loose until alignment is correct. Connect the applicable vent hose, routing it under the tube as illustrated, and reconnect MAF wiring. Seat all parts, tighten clamps, then restore the original brace and four original bolts if fitted. The exact manual directs periodic clamp checks without numeric torque, battery-disconnection instruction or mileage interval.
Current exact manufacturer PDP was not located; this targeted correction uses the official indexed 12-page manual explicitly naming both selected oiled and dry part numbers. All three page contacts, complete A1/A2-M bill and figures A-F were read and viewed. Exact-part retailers corroborate named Base applications and selected oiled media. Their 3.5-inch tube, 18-gauge shield and 6-inch filter dimensions remain revision qualifications because the current exact PDP was unavailable; no blanket size certification is inferred. M4 screw length/pitch are absent from the current bill. Torx bit is labeled M4 by that bill; no unprinted drive size is substituted. Manufacturer procedure differentiates automatic vent elbow/hose/fitting from manual threaded plug, explicitly restores the brace and calls for periodic rechecks with no numeric mileage interval, battery step or torque. Legacy official flow and dyno URLs linked by the exact retailer currently return generic placeholder images, visually verified, so 14 hp, 18 lb-ft and 29% are held unverified. Existing model-year positives and differences from compressed manual bounds are retained with actual-engine qualifiers. No 2019 S55 M2 or unrelated-market mapping is inferred. The exact manual states not currently CARB exempt and restricts California purchase/use on California-registered vehicles. Original About and Prop 65 presence/absence are preserved. Turn14 authenticated exact-product access remains unavailable. Price and protected commercial data remain unchanged.
