aFe Ram 1500 5.7L Rapid Induction Pro 5R Intake 2009-2024

Ram 1500 5.7L Rapid Induction intake details

aFe 54-12402 is the Rapid Induction intake for Dodge/Ram 1500 5.7L HEMI trucks in the manufacturer-specified body generations: Dodge Ram 1500 2009-2010, Ram 1500 2011-2018 and Ram 1500 Classic 2019-2024. One five-layer oiled filter and metal heat shield latch onto the original lower airbox. A new 3.5-inch black powder-coated aluminum tube connects through two supplied couplings and retains the original intake-temperature sensor through a supplied grommet.

Key Features

• One 24-91040 five-layer oiled Pro 5R filter; current service listing gives 5.5-inch flange and 5.75-inch height.

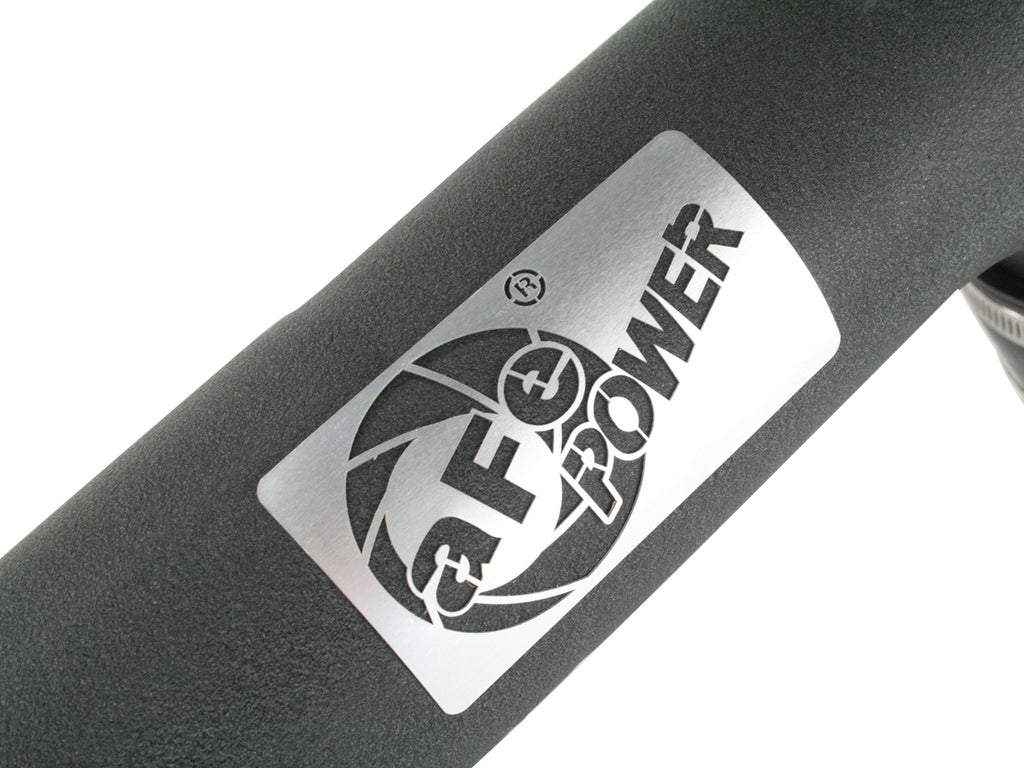

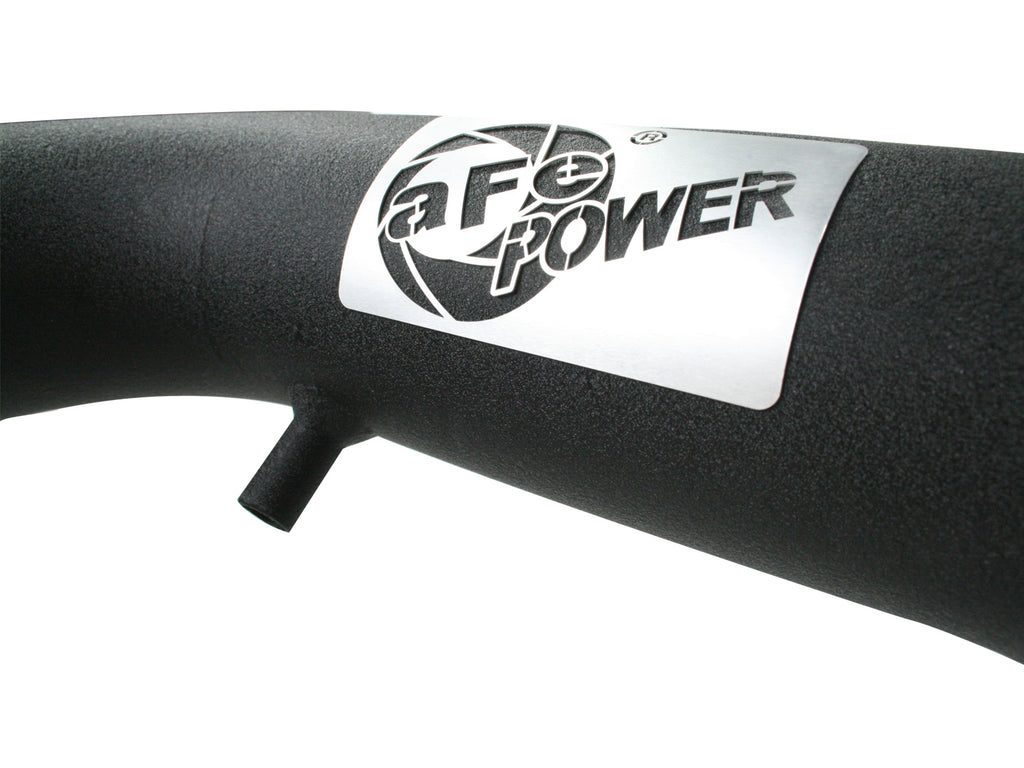

• New 3.5-inch aluminum tube, not a factory-tube-only or generic molded-plastic configuration.
• Metal heat shield, three-angle adaptor and five button-head screws retain the lower original airbox and four clips.
• One silicone elbow coupling, one coupling listed 3.5 x 2, one #064 and three #056 clamps.
• Two crankcase-hose lengths, 21 inches and 4.5 inches, plus 3/4 x 5/8 fitting and 5/8 elbow.
• Original crankcase elbow participates in the illustrated hose conversion; no complete original hose interchange is assumed.

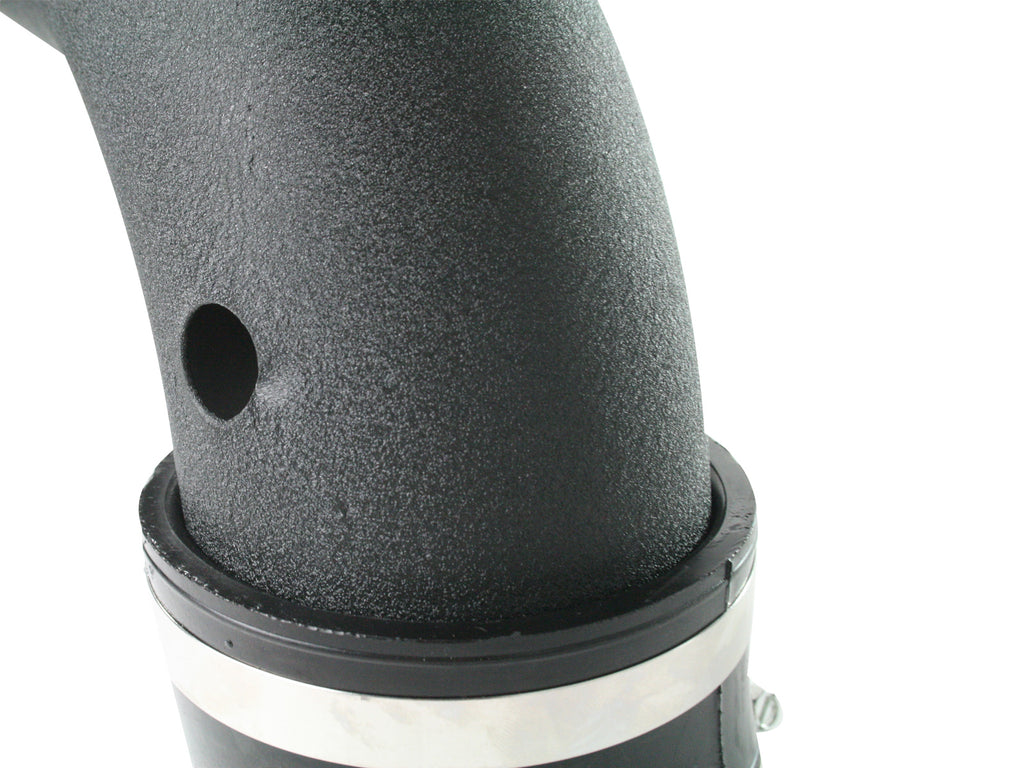

• Transfer the original temperature sensor through the new grommet, following the manual O-ring removal detail; no new sensor or O-ring is billed.
• Install tube filter-end first; no battery step or numeric torque in current manual, with 100-200-mile connection check.

Fitment

Current exact primary identifies Dodge/Ram 1500 2009-2018 and 1500 Classic 2019-2024 with the 5.7L HEMI. The full sixteen-page manual separates Dodge 2009-2010, Ram 2011-2018 and Classic 2019-2023; the current primary supports the later Classic 2024 endpoint. Restore a Classic model-level 2019-2024 row without extending every named-trim row. Exact selected-part retailer application evidence also supports restoring Ram Laramie 2011-2018 and Special Service 2014-2018, conditional on the actual 5.7L engine and matching lower airbox, temperature sensor and crankcase routing. All original named ranges/gaps remain unchanged. Some original 2019 non-Classic rows have positive exact retailer evidence but conflict with the manufacturer body-generation split; retain them as an unresolved source conflict rather than declaring physical incompatibility or inferring DT/eTorque support. Later named Classic trims and Canadian SXT scope require separate exact confirmation. Match the underhood engine test group; LCRXT05.75P2, MCRXT05.75P2 and NCRXT05.75P2 are excluded in the current primary/linked order.

Verify 54-12402 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

One selected oiled filter is supplied, not both filters in the shared illustrations. Coupling clamps and filter clamp have different roles. Keep the lower original airbox, its four clips and the original temperature sensor. The original crankcase elbow is disconnected from its old line and used in the illustrated new hose/fitting arrangement. No complete lower airbox, new MAF/temperature sensor, replacement sensor O-ring, optional cover, tuning device or maintenance chemicals are billed. The exact printed #056 service number begins 05 rather than the commonly seen related-kit 03 prefix; verify it independently before purchasing service hardware. Do not invent screw sizes or borrow coupling dimensions from a different revision.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-12402
• Exact illustrated installation manual
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One oiled filter, metal shield, new tube, adaptor, two couplings, four coupling clamps, five screws, trim seal, sensor grommet, two hose lengths, fitting and elbow.

The exact primary specifies 2019-2024 Classic. Positive original 2019 non-Classic retailer rows remain source conflicts; DT/eTorque fitment is not inferred.

Yes. The shield/filter assembly clips to the original lower box with its four original clips. It does not supply a complete lower box.

A new aluminum tube is itemized and installed. A contradictory generic sentence on the primary does not override the exact bill and illustrated replacement procedure.

Transfer the original intake-temperature sensor through the supplied grommet. Figure H directs removal of its original O-ring before seating; no new sensor or O-ring is billed.

Remove the old line at the engine, separate its original elbow and build the illustrated arrangement with the 21-inch and 4.5-inch hoses, supplied fitting and elbow.

No exact flow chart or fully documented dyno run is linked. D-550-58 covers listed earlier trucks and Classic through 2023 with excluded engine families; it does not establish 2024 or 2019 non-Classic coverage for this intake.

Install filter-end first, then throttle-body end. The current manual gives no battery step or numeric torque and requires connection verification after 100-200 miles.

Installation Instructions

Verify aFe 54-12402. Read all sixteen pages and compare the full bill. Work on a cool engine. Release the four upper-airbox clips, disconnect the temperature-sensor harness and loosen the tube clamp. Disconnect the crankcase line from the box and release the temperature-wire fastener for slack; remove the upper intake/tube and lift off the engine cover. Remove the original crankcase vent line at the engine, separate its original elbow and reassemble the supplied hose/fitting pieces in the exact Figure D configuration. Attach the adaptor to the shield with five supplied button-head screws, fit the selected filter and clamp, and install the 29.25-inch trim seal. Latch the shield/filter assembly onto the retained lower airbox with the original clips. Position the supplied couplings/clamps in the illustrated routing. Install the new grommet in the tube; carefully remove the original temperature sensor and follow Figure H, which directs removal of its original O-ring before seating the sensor in the new grommet. No new sensor or O-ring is supplied. Insert the tube filter-end first, then throttle-body end; connect the converted crankcase line and reconnect the temperature harness. Check alignment, clearances and every connection for a proper seal, and verify all connections remain secure at 100-200 miles. Current manual supplies no battery-disconnection step, numeric torque, MAF transfer or cutting/drilling procedure. Its engine-cover removal is shown but no separate restoration step is given; do not invent one. EO sticker placement is specified but does not extend actual exemption coverage.

Important Disclosures

The exact current primary and complete sixteen-page shared manual were read, including all four contact sheets, A/A2-O bill, Figures A-I, blank pages and contact page. The current aluminum-tube narrative and illustrated replacement tube conflict with generic retailer rotomolded language and the primary sentence claiming factory inlet-tube reuse; the actual new tube is itemized. The filter overview dimension is not conflated with exact service height. The manual bill gives no adaptor-screw thread/length, and its #056 clamp service prefix is qualified rather than silently changed. Temperature-sensor O-ring removal is a manual instruction, not proof that a new seal is supplied. Original broader named rows, including positive 2019 non-Classic retailer entries, remain qualified; no blanket physical-incompatibility deletion occurs. Current Classic 2024 model coverage does not prove all later named trims or emissions exemption. The primary-linked dyno was inspected but has no baseline/intake run legend, selected-media identity, vehicle details, dates, weather, correction factors or peak-value table. Its colored solid/dashed curves cannot independently certify the advertised 18 HP/23 lb-ft pair or a peak comparison. No exact flow chart is linked, so the 27% claim is not independently verified and older retailer 73/98% claims are not substituted. The current manufacturer references D-550-58; its complete previously read official text and Exhibit A were reviewed for the exact part. That exhibit covers 2009-2012 Dodge Ram pickup, 2013-2018 Ram pickup and 2019-2023 Classic 5.7L, excluding Classic families LCRXT05.75P2, MCRXT05.75P2 and NCRXT05.75P2. It does not establish Classic 2024 or 2019 non-Classic coverage for this intake. Existing D-550-27 operational tag is preserved as historical data, not current blanket legality certification. Turn14 exact-product information remains unavailable without authentication. Protected commercial data and price remain unchanged.
