aFe Jeep Cherokee 3.2L Magnum 5R

Intake for the specified Cherokee KL 3.2L V6

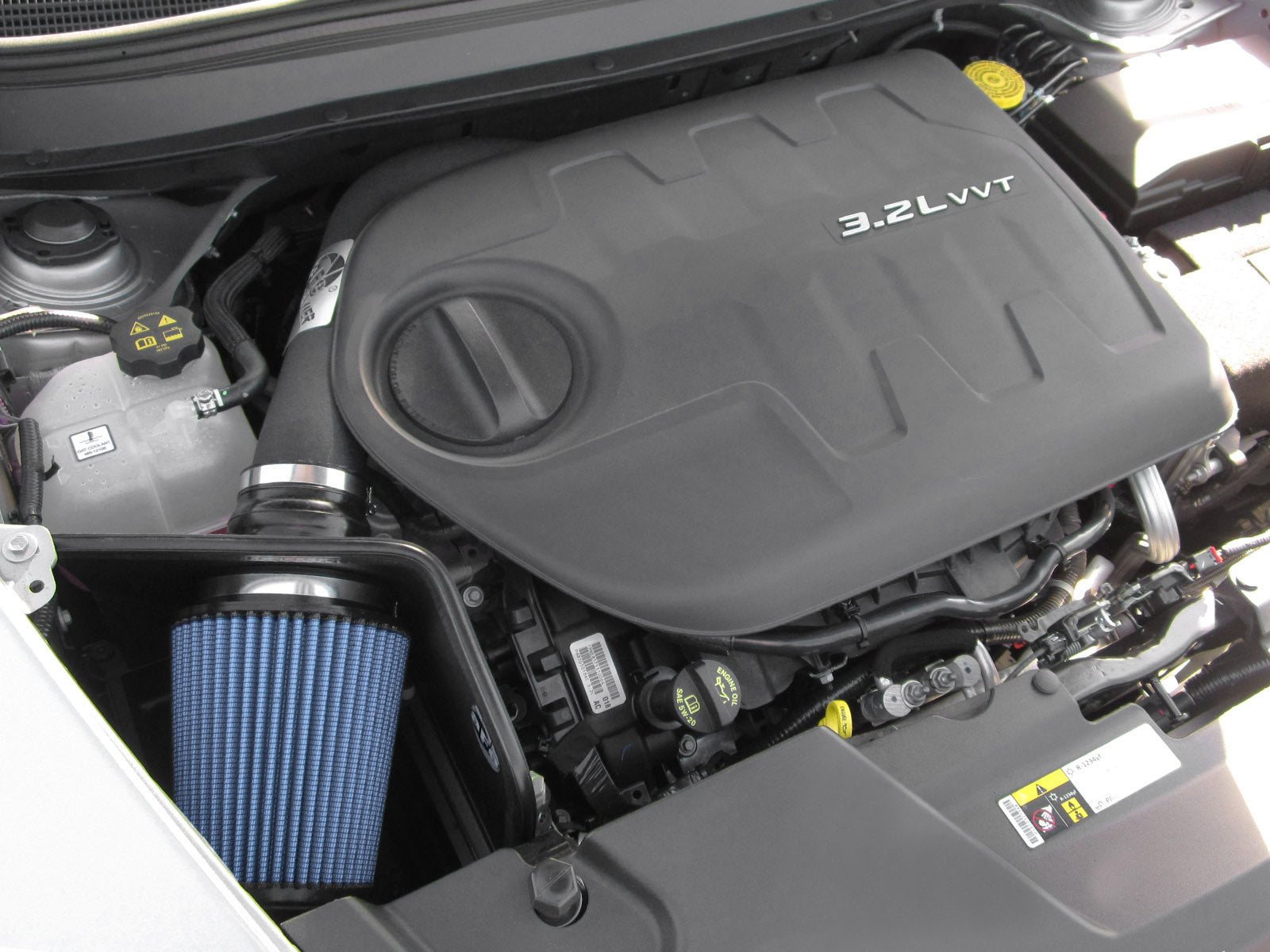

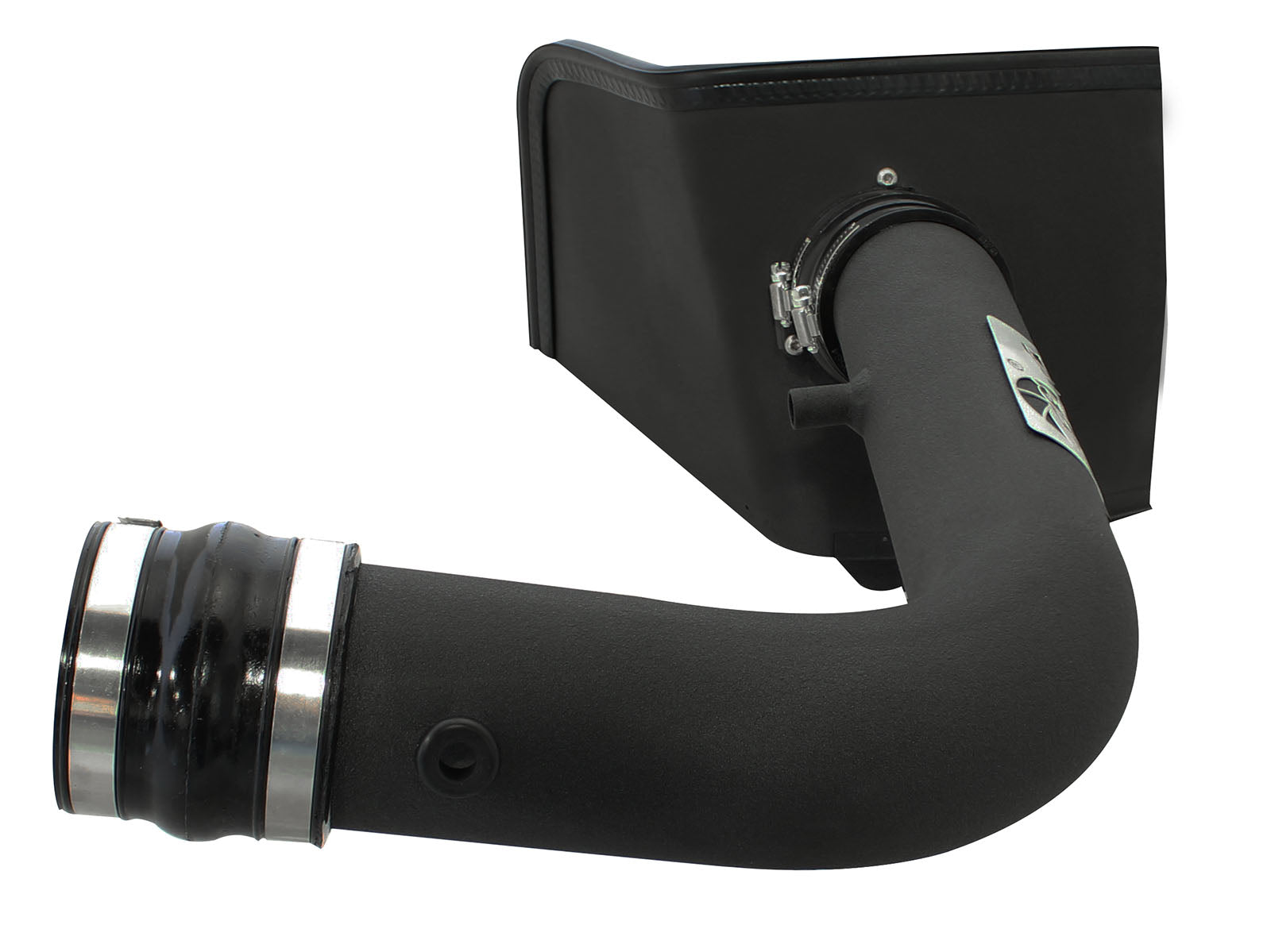

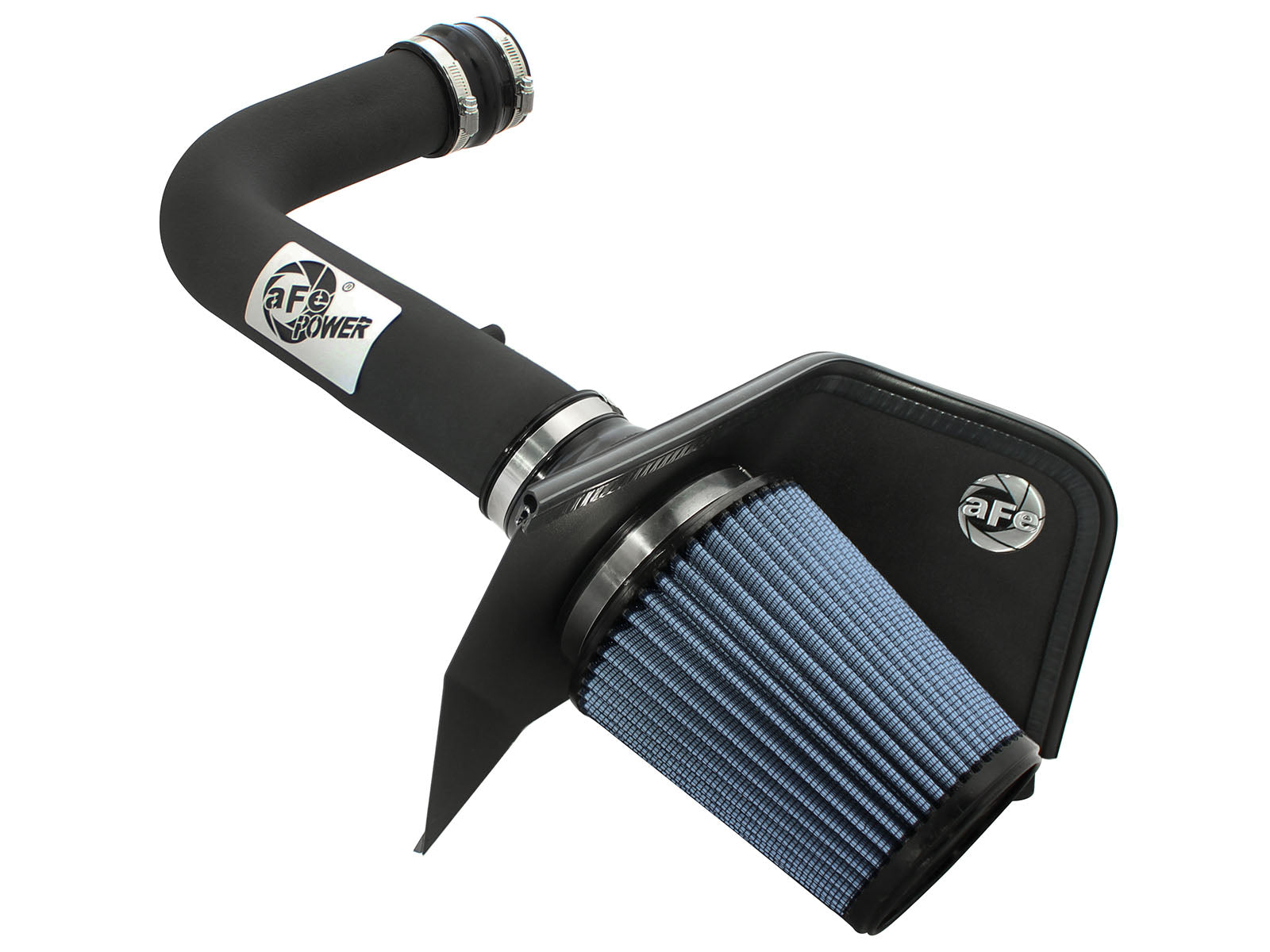

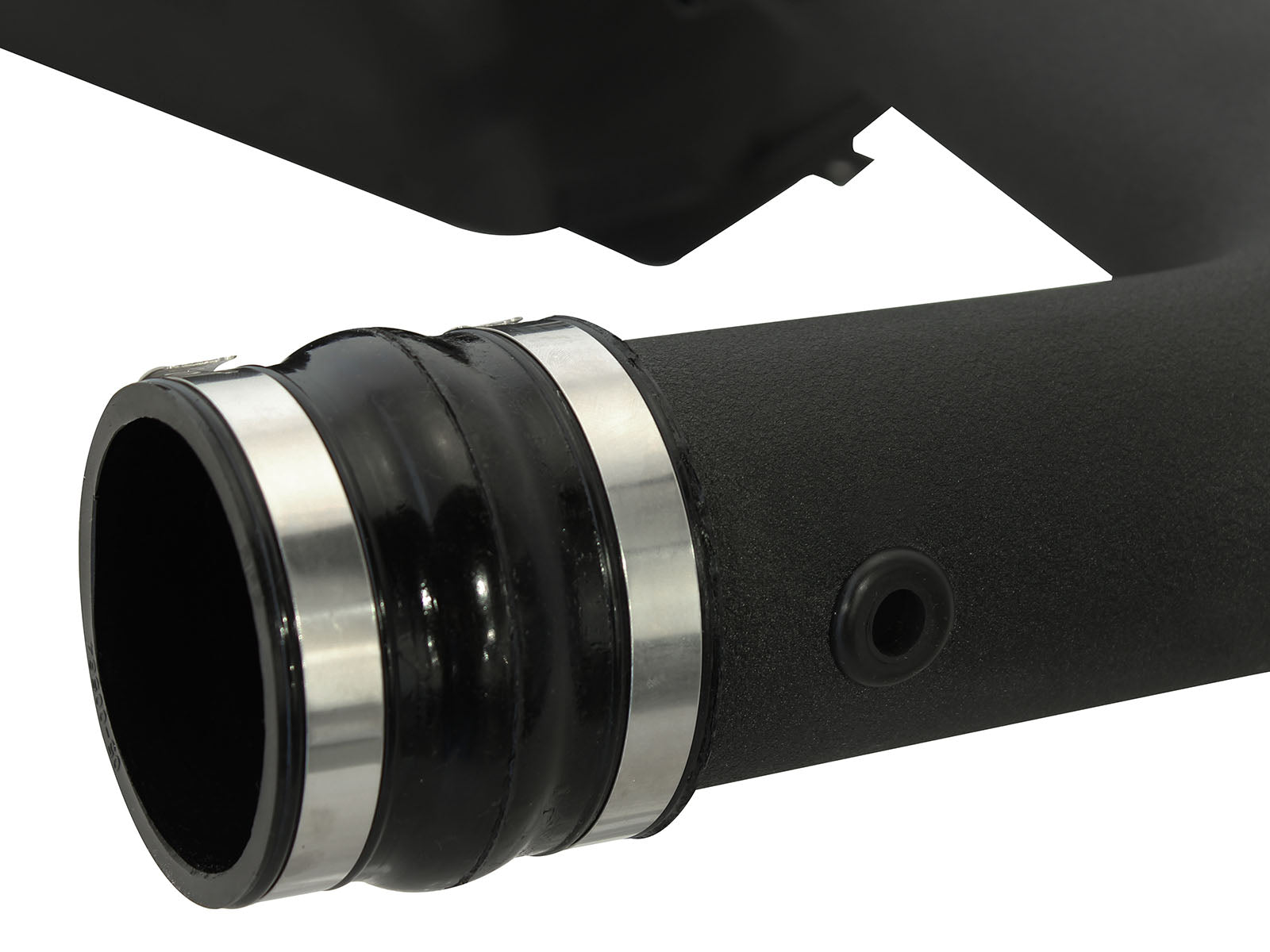

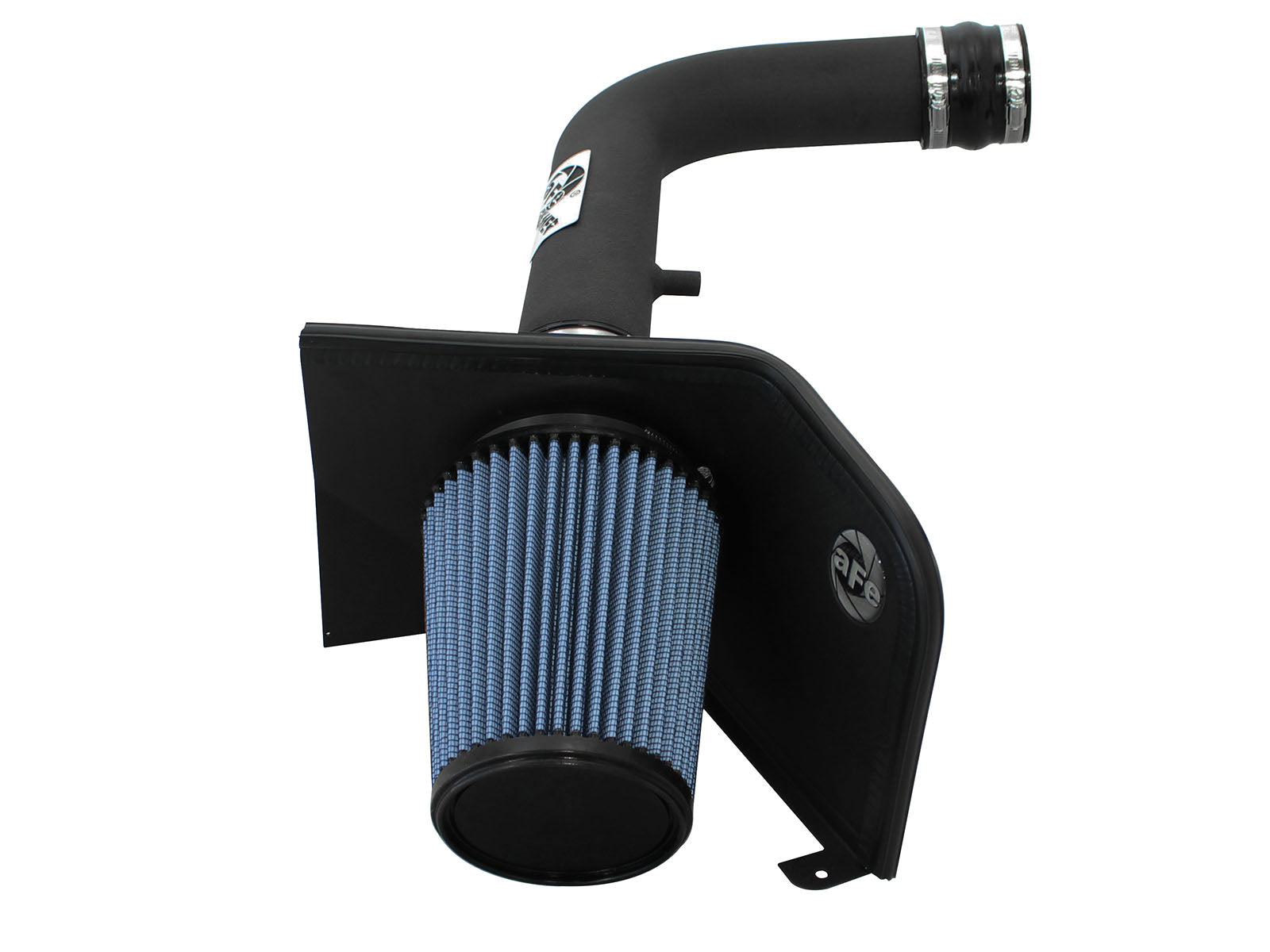

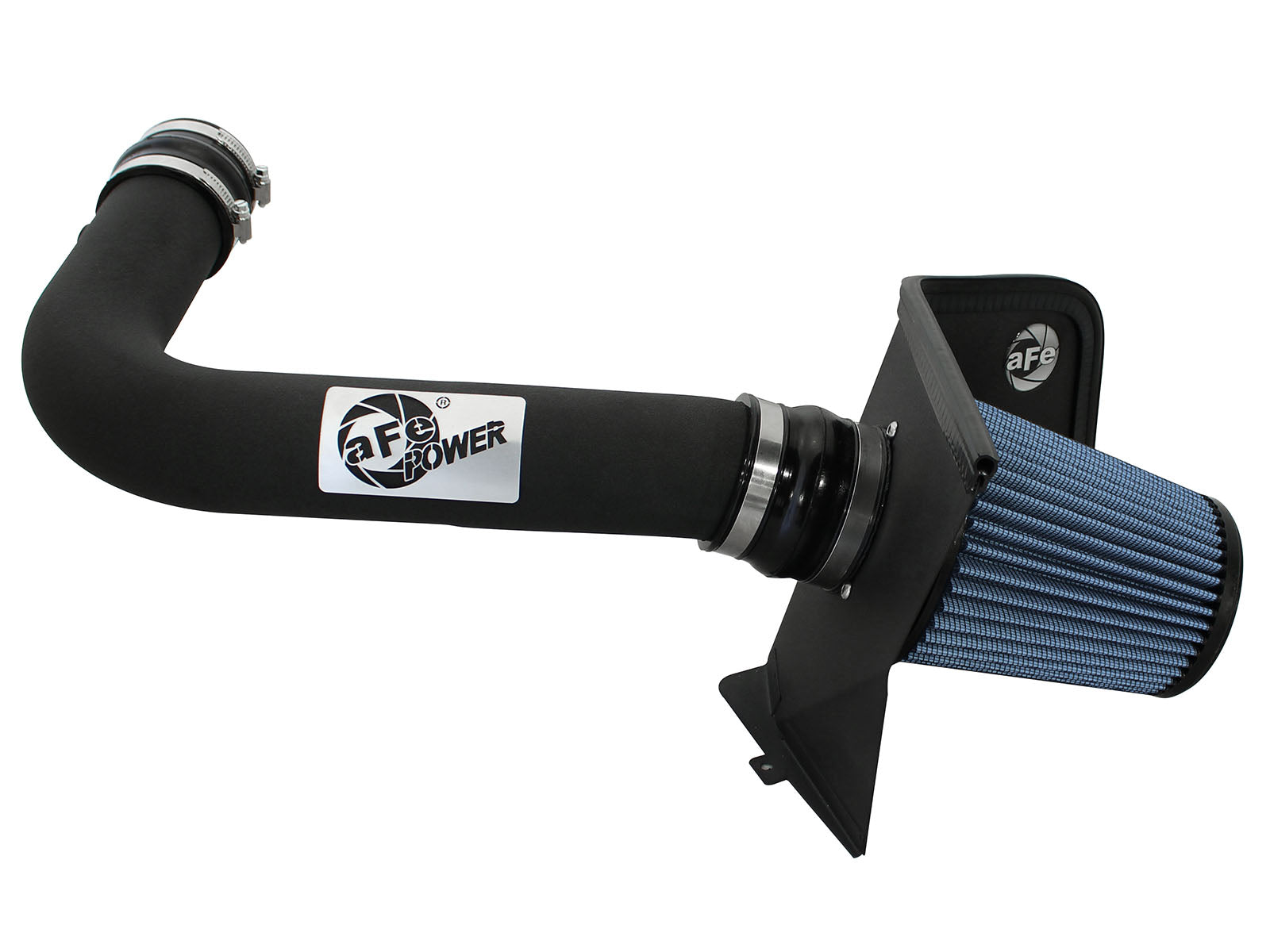

aFe 54-12462 Magnum FORCE Stage-2 intake uses one seven-inch Pro 5R oiled cotton-gauze filter for the specified Cherokee KL 3.2L V6. Its powder-coated heat shield mounts on the original lower airbox with spacers; two hump couplings connect the separate tube and adapter.

Key Features

• One 24-45507 Pro 5R element with five pre-oiled cotton-gauze layers; use the appropriate cleaner and oil when servicing.
• Current manufacturer specifies an 18-gauge powder-coated heat shield and mandrel-bent wrinkle-black tube; older retailer text saying 16-gauge/molded plastic is conflicting and does not override the exact current page. Exact tube alloy is not established.
• Retains the factory lower airbox and original mounting screws with three new spacers; no replacement lower airbox is supplied.
• Thirteen-and-a-half-inch, 5/8-inch-ID supplied hose serves the crankcase vent; it is not a new fuel-system connection.
• Reuses the original intake-temperature sensor; no new mass-airflow sensor is supplied. The original engine cover is reinstalled.
• No cutting or drilling of factory parts per the current product page.
• The manufacturer advertises 27% more flow, but no separate flow chart is linked on this exact current page; its bench-test pressure and baseline have not been independently established here.

Fitment

2014–2018 Jeep Cherokee KL with the naturally aspirated 3.2L V6 only, matching the original throttle body, intake plenum, crankcase line, temperature sensor and mounting layout. Current exact manufacturer page and manual support this family range. Each kit’s own retailer table supports the named rows below, including the original 2016–2017 Sport range; an older generic additional-information field mentioning 2014 Sport does not establish a new named 3.2L application. The earlier stored 2017 endpoints for Latitude, Limited, Trailhawk and Overland are restored through 2018 and the missing 2018 Latitude Plus row is added, using this exact kit’s current manufacturer/manual range and named table. The older manufacturer performance paragraph says 2014–2016; that test description is narrower than the current application headline and manual. No 2.4L, diesel, Grand Cherokee, 3.6L or later-year interchange is inferred.

Verify 54-12462 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

The shared manual lists other filter media as alternatives; this selected kit includes only its Pro 5R filter. The three new button-head screws attach the filter adapter; three saved factory screws with spacers mount the shield. Four listed clamps serve the two couplings, separate from the filter connection. No tube-resin or coupling-material specification is borrowed from another kit.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-12462
• Exact illustrated installation manual
• Manufacturer-linked dyno; read the test configuration and media qualification
• Shop the complete aFe Power collection

Frequently Asked Questions

2014–2018 Jeep Cherokee KL with the naturally aspirated 3.2L V6 only, matching the original throttle body, intake plenum, crankcase line, temperature sensor and mounting layout. Current exact manufacturer page and manual support this family range. Each kit’s own retailer table supports the named rows below, including the original 2016–2017 Sport range; an older generic additional-information field mentioning 2014 Sport does not establish a new named 3.2L application. The earlier stored 2017 endpoints for Latitude, Limited, Trailhawk and Overland are restored through 2018 and the missing 2018 Latitude Plus row is added, using this exact kit’s current manufacturer/manual range and named table. The older manufacturer performance paragraph says 2014–2016; that test description is narrower than the current application headline and manual. No 2.4L, diesel, Grand Cherokee, 3.6L or later-year interchange is inferred.

Yes. This selected kit uses the 24-45507 Pro 5R filter with five cotton-gauze layers, supplied pre-oiled. Use the correct cleaner and filter oil; alternative media shown in the manual is not an extra included filter.

The heat shield attaches above the original lower airbox with three factory screws and three supplied spacers. Three separate new button-head screws attach the filter adapter; retain the stock lower airbox.

Use the supplied 13.5-inch, 5/8-inch-ID hose in the vent routing shown by the exact manual, replacing the original hose/quick-connector arrangement. Its BOM fuel-hose wording does not turn it into a fuel-system connection.

Transfer the original temperature sensor directly into the supplied 03-50050 tube grommet and reconnect its harness. No Momentum-style NPT vent fitting or sensor adapter is listed for this kit.

Yes. This exact manual directs reinstalling the original engine cover after the intake and sensor/vent connections are complete. Do not borrow a cover-removal restriction from another Jeep intake.

The linked dyno baseline identifies a 2014 Cherokee V6-3.2L, while the intake run is labeled aFe Prototype AIS and V6-3.6L. The page’s intended application remains 3.2L; the chart discrepancy is not a new 3.6L fitment approval. Marked values differ by 9.29 HP and 10.03 lb-ft, while peak-to-peak differences are 6.40 HP and 5.68 lb-ft. Both runs list OE exhaust, fourth gear and 10% brake; this prototype/chart engine-label inconsistency prevents independently certifying an exact current production-kit result. Actual results depend on vehicle and test setup; no individual gain is guaranteed. The manufacturer advertises 27% more flow, but no separate flow chart is linked on this exact current page; its bench-test pressure and baseline have not been independently established here.

The current manufacturer page says some or all applications are exempt under CARB D-550-50. The official indexed table names this exact kit family for 2014–2018 Cherokee 3.2L naturally aspirated applications. The full EO conditions were not independently reviewed because official direct access was previously blocked; match the actual vehicle/engine and label, retain emissions equipment and install the supplied EO identification label as the manual directs. An exemption or exclusion belonging to a different 2.4L kit is not applied to this 3.2L product. Confirm mounting, clamp alignment, sensor and vent connections, restored line/clip routing and engine cover. Recheck all connections after 100–200 miles; no numeric clamp torque is supplied.

Installation Instructions

Verify aFe 54-12462. Read the complete manual on a cool engine and disconnect the negative battery terminal. Remove the engine cover, unplug the temperature-sensor harness, loosen the throttle-body and plenum clamps and release reservoir/vacuum-line clips. Save the original upper-airbox screws and remove the original vent hose, intake and filter while retaining the factory LOWER airbox. Carefully remove the plenum from its rubber mounts without breaking the front mount. Transfer the original temperature sensor to the supplied tube grommet. Assemble the heat shield with its 21-inch trim seal and attach the filter adapter using the three provided button-head screws. Fit one hump coupling and clamps to the adapter, then mount the shield over the stock lower airbox with the three factory screws and supplied 3/8-inch spacers. Fit the other coupling to the throttle body, install the selected filter on its adapter, position the tube at the filter side and throttle-body coupling, then replace the original vent hose/quick connector arrangement with the supplied 13.5-inch hose as illustrated. The BOM calls this fuel hose, but this procedure uses it as a crankcase VENT hose, not a new fuel connection. Reconnect the temperature-sensor harness, align and secure all clamps without overtightening, restore retained line/clip routing and REINSTALL the engine cover. The manual does not specify numeric torque or an NPT sensor adapter for this kit; do not borrow the Momentum procedure. Recheck all connections after 100–200 miles.

Important Disclosures

The current manufacturer page says some or all applications are exempt under CARB D-550-50. The official indexed table names this exact kit family for 2014–2018 Cherokee 3.2L naturally aspirated applications. The full EO conditions were not independently reviewed because official direct access was previously blocked; match the actual vehicle/engine and label, retain emissions equipment and install the supplied EO identification label as the manual directs. An exemption or exclusion belonging to a different 2.4L kit is not applied to this 3.2L product. The linked dyno baseline identifies a 2014 Cherokee V6-3.2L, while the intake run is labeled aFe Prototype AIS and V6-3.6L. The page’s intended application remains 3.2L; the chart discrepancy is not a new 3.6L fitment approval. Marked values differ by 9.29 HP and 10.03 lb-ft, while peak-to-peak differences are 6.40 HP and 5.68 lb-ft. Both runs list OE exhaust, fourth gear and 10% brake; this prototype/chart engine-label inconsistency prevents independently certifying an exact current production-kit result. Actual results depend on vehicle and test setup; no individual gain is guaranteed. Installation and BOM differ from other intakes for the same engine; do not interchange sensor adapters, hoses, coupling counts or mounting hardware without exact manufacturer confirmation. The heat shield retains the factory lower airbox; it is not the separate sealed Momentum housing.
