aFe Armada/Patrol/QX80 Momentum GT Pro DRY S Intake

Nissan and Infiniti oil-free intake details

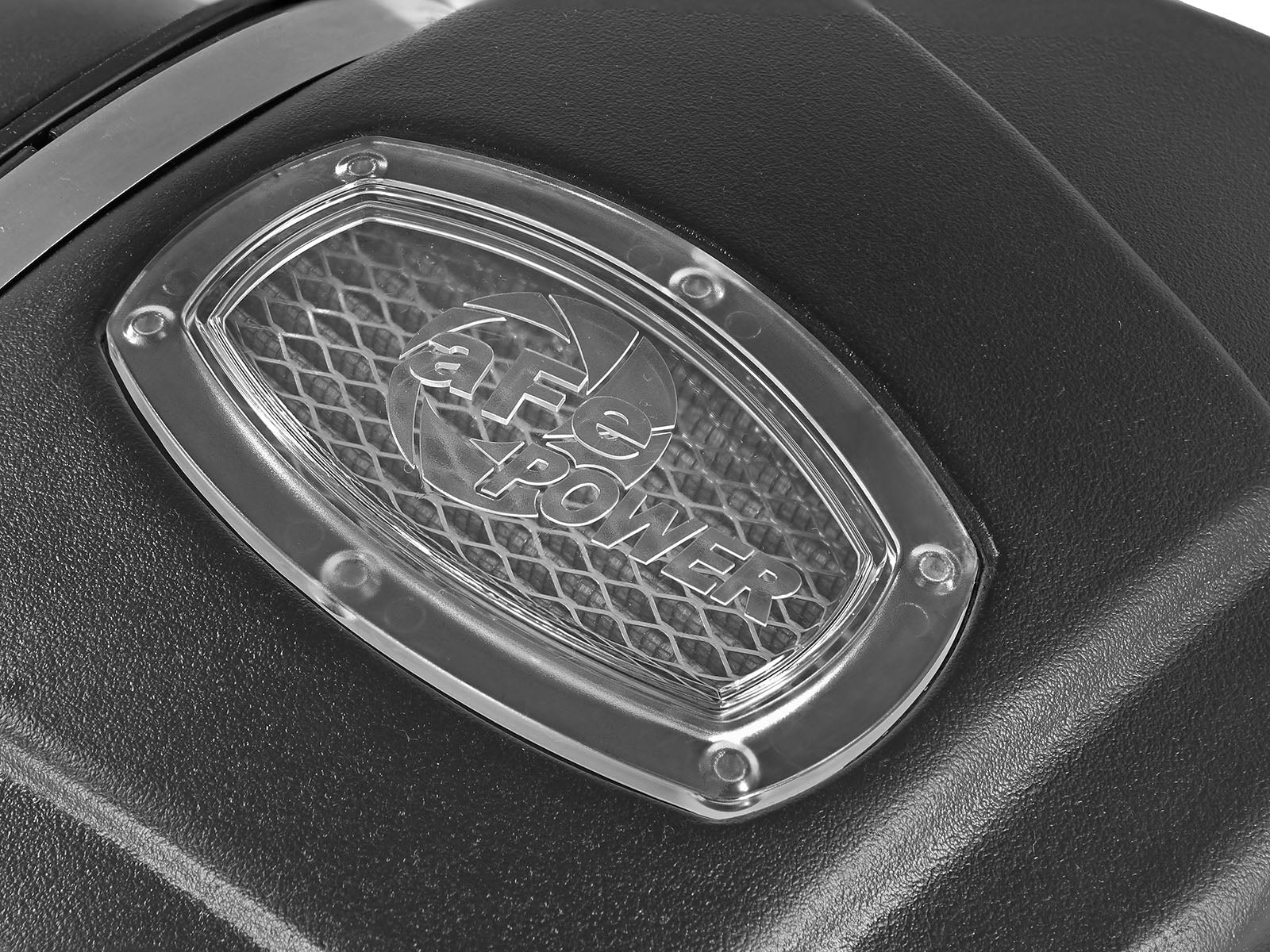

aFe 51-76103 is the Momentum GT intake with one 21-91061 Pro DRY S filter for qualified Nissan Armada, non-US Patrol Y62, Infiniti QX56 and QX80 5.6L applications. Three oil-free synthetic layers, molded housing with inspection window, rotomolded tube and branched silicone CCV adaptor form the selected configuration. Match the current bellows and worm-clamp revision to the actual supplied parts.

Key Features

• One 21-91061 Pro DRY S filter with three oil-free synthetic layers and 9-inch height.
• Current replacement oval flange measures 7 x 4.75 inches; base and inverted top measure 9 x 7 inches.
• Updated manual lists 05-01389 bellows and two size 056 worm clamps, replacing older hump-coupling/T-bolt wording.
• Original MAF and its two screws transfer; three original steel sleeves and rubber grommets support the housing.
• Four 12-inch, 50-lb cable ties secure evap hose and MAF wiring.

Fitment

Current exact dry manufacturer page and updated exact manual identify QX56 2011-2013, QX80 2014-2024, Armada 2017-2024 and non-US Patrol Y62 2010-2024, each with the actual 5.6L configuration. Exact dry retailer tables and indexed full tables restore QX80 Luxe 2019-2024, Premium Select and Sensory 2021-2024, Armada Midnight Edition 2021-2024 and S 2021-2023; existing Armada Platinum, SL and SV extend through 2024. Existing Platinum Reserve 2018-2020 and both Limited ranges retain their gap. Existing QX80 Base through 2019 is preserved with source qualification: retailer named tables generally end at 2018 while some exact selected-part indexed tables list later Base labels. Earlier Armada 2010-2015 has positive exact retailer and official EO evidence but conflicts with current manufacturer/manual application scope; additional early named rows are held for exact configuration reconciliation, not declared physically incompatible. No invented Patrol Base trim or later 3.5L application is added.

Verify 51-76103 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

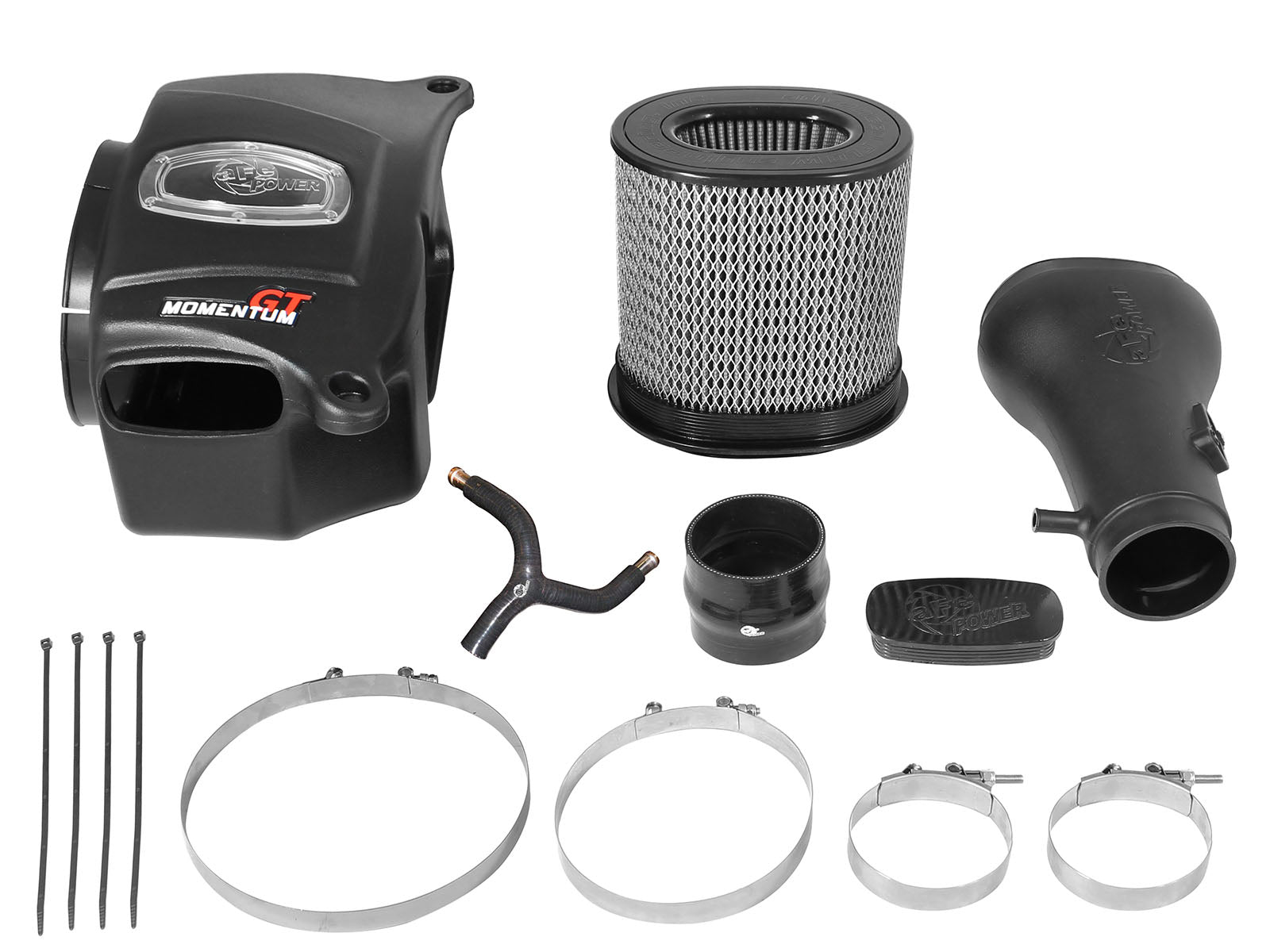

What's Included

The oiled and Pro GUARD 7 filter rows in the updated shared bill identify separate versions. Reuse the original MAF sensor and two screws, three housing mounting bolts, three steel sleeves and rubber grommets, both original CCV hoses with spring clamps and engine-cover bolts. Transfer the original duckbill drain only if equipped; otherwise the manual leaves that opening unobstructed. The updated manual explicitly warns that clamps in older photos may differ. Its bellows and two worm clamps replace the older fourteen-page guide 05-01264 hump and two 03-50265 T-bolts. Do not combine revision bills or add three alternative filters.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 51-76103
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One 21-91061 Pro DRY S filter with three oil-free synthetic layers and 9-inch height. Alternative media rows in the shared manual are separate versions.

The exact current dry page and manual identify Momentum GT. The older title is corrected to that product line.

One 05-01389 bellows, two size 056 worm clamps and one large filter-housing T-bolt clamp are itemized. Older hump and all-T-bolt photos describe a different revision.

The updated procedure retains the original MAF sensor and both original screws.

Transfer it if the original housing is equipped with one; otherwise the updated manual leaves the drain opening unobstructed.

The adaptor plain end fits the intake tube, its two stainless ends enter the original CCV hoses with original spring clamps, and a supplied tie secures the evap hose to the adaptor.

No. The reviewed order lists specific selected-family years ending in 2017 and does not establish later-year or Patrol exemption. Its early Armada row is also qualified against the current manufacturer scope.

The updated manual states no numeric torque or battery-disconnection step and calls for retightening after approximately 100-200 miles.

Installation Instructions

Verify aFe 51-76103. Read all sixteen pages and figures A-I of the updated manufacturer-authored manual. Work on a cool engine. Remove the two engine-cover bolts and lift the cover toward you. Loosen the throttle-body clamp and remove the three original housing bolts. Disconnect MAF, retain its two screws and release all three wiring clips. Slide back both CCV spring clamps, remove both CCV hoses from the resonance chamber and release the evap-hose clips, then remove the original intake. Clean the housing and both filter-flange mating surfaces as directed, assemble housing, selected filter and tube, and secure the filter joints. Fit both worm clamps to the bellows and tighten only its tube-side joint initially. Transfer MAF with the original screws. Transfer all three steel sleeves and rubber grommets; restore the duckbill drain if equipped. Place the full assembly coupling over the throttle body, compress it from the driver side while lowering the housing and align all three mounts. Restore the three original bolts, then secure the throttle-body clamp. Restore an equipped vent hose to its housing slot and reconnect MAF. Fit the CCV adaptor plain end over the tube nipple and both stainless-fitting ends into the original CCV hoses; restore spring clamps. Tie the evap hose to the adaptor and secure MAF wiring with the supplied ties. Restore engine cover and verify secure connections. Retighten after approximately 100-200 miles. For an actually exempt configuration, follow the manual EO-label placement instruction. The updated manual specifies no battery-disconnection step or numeric torque; the older fourteen-page guide separately directed battery disconnection.

Important Disclosures

The actual dry-linked flow chart identifies Pro DRY S 540 versus original 465 CFM at 7 inches H2O, approximately 16.1 percent; its 570-CFM Pro 5R value is a different media choice. The current dry page advertises 15 hp / 29 lb-ft but links a dyno explicitly labeled 54-76103, so that sheet does not independently certify dry performance. That oiled chart marks separate-rpm differences of 15.44 hp and 28.96 lb-ft; run maxima differ by 14.43 hp and 10.10 lb-ft. Its December 11 versus December 17, 2014 runs use SAE 1.01, original headers, exhaust and tune, AWD mode, no load, closed hood and third gear; weather differs and the intake notes over 400 miles driven. Current exact sixteen-page manual, complete bill and all four contacts with figures A-I were read and viewed. Older manuals and pictures differ in coupling and clamp revision, so do not combine bills. Official D-550-25 text and rendered Exhibit A identify this selected part for QX56 2011-2013, QX80 2014-2017, and Armada 2010-2015 and 2017, subject to the order conditions. That order does not establish later-year or non-US Patrol exemption. Early Armada positive exact dry retailer tables and EO evidence conflict with the current manufacturer/manual 2017-up scope; earlier new named rows remain held, without declaring physical incompatibility. Exact dry later named-table proof supports the restored groups. Existing QX80 Base through 2019 is preserved with exact dry regional retailer qualification despite other named tables ending in 2018.
