aFe BMW M5 / M6 S85 Twin Pro 5R Intake 2006-2010

BMW S85 two-sided intake details

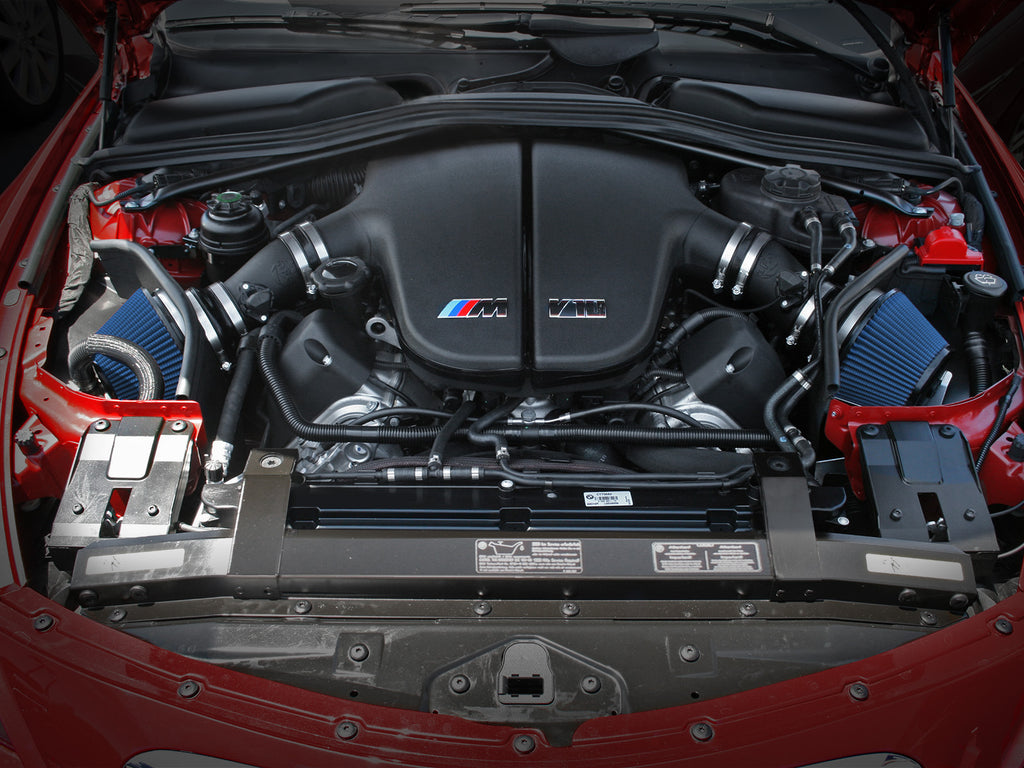

aFe 54-11272 is the two-sided Magnum FORCE Stage-2 intake for BMW M5 E60 and M6 E63/E64 2006-2010 5.0L V10 applications. It supplies one oiled Pro 5R filter and a separate tube, housing, adaptor and air-diverter arrangement for each side. The passenger and driver installations differ in mounting, trim, smog-line and washer-reservoir details. Both original MAF sensors transfer; this is not a one-filter or scoop-only package.

Key Features

• Two 24-90052 five-layer oiled Pro 5R filters, one per side.
• Passenger tube 05-00889 and driver tube 05-00969 are different service parts.
• Two metal heat shields; current exact primary specifies 18-gauge powder-coated construction.
• Each side uses air-filter diverter 05-00970 and housing diverter 05-00983. The manual warns missing diverters can cause a check-engine light.
• Four couplers total: two 4-1/4 x 3-1/2-inch reducers and two 3-1/2 x 2-inch straight couplers.
• Eight main clamps plus one passenger smog-line mini clamp.
• Original passenger smog line is connected at the filter-top elbow and positioned above the lower ram-air unit.
• Driver washer inlet reservoir is restored to the housing tab; exact manual requires rechecking connections after approximately 100-200 miles.

Fitment

Current exact primary and both manual pages identify BMW M5 E60 and M6 E63/E64 2006-2010 V10 5.0L applications. Original M5 Base and M6 Base groups, tags, bounds and native model memberships are preserved. Confirm the actual S85 engine, side-specific tubes, sensor arrangement, lower ram-air units and body clearance before purchase. No later turbocharged M5/M6, Gran Coupe, larger-displacement conversion, special-edition engine or unrelated chassis is inferred. Manufacturer cites D-550-38 for some or all applications; indexed exact-family rows are available but full order conditions and exclusions remain held after the prior challenge.

Verify 54-11272 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

The two alternate dry 21-90052 filters in the shared lists are not additional selected contents. Totals above combine both side-specific bills: eight main clamps plus one mini clamp, fourteen button-head screws/wavy washers, and four MAF screws. The driver filter cap and prefilter are mentioned in step 28 but not separately itemized, so do not assume their supplied status; verify the actual filter-top closure and package before installation. No replacement MAF sensors or new smog hose are listed. The passenger sheet removes an original smog elbow while the bill also lists a plastic elbow; identify the actual supplied/original fitting rather than assuming an unlisted reuse or extra piece.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-11272
• Exact illustrated installation manual
• Shop the complete aFe Power collection

Frequently Asked Questions

Two oiled 24-90052 Pro 5R filters and distinct passenger 05-00889 and driver 05-00969 tubes, with a housing and adaptor for each side. Dry filters are alternatives, not extra contents.

No. Each side uses filter diverter 05-00970 and housing diverter 05-00983. The exact manual warns that failing to install them may cause a check-engine light.

Four couplers, eight main clamps and one passenger mini clamp: two reducers, two straight couplers, two #072, six #060 and one #012.

Both original MAF sensors transfer with two supplied gaskets and four M4 x 0.7 x 16 screws total. Replacement sensors are not listed.

It connects at the passenger filter-top elbow using the mini clamp and is routed above the lower ram-air unit. The sheet removes an original elbow while the bill lists a plastic fitting; identify the actual assembly before selecting the fitting.

Restore the washer inlet reservoir to the housing tab and confirm the filter-top cap. Step 28 mentions a prefilter, but cap/prefilter supplied status is not established by the bill. Driver trim includes an extra 3.5-inch corner section.

No numeric flow or dyno report is linked for 117%, 28 hp or 24 lb-ft. The manufacturer cites D-550-38, but full exact conditions and exclusions remain held despite an indexed family row.

Neither exact page supplies a battery step or numeric torque. The final driver step requires rechecking all connections after approximately 100-200 miles.

Installation Instructions

Verify aFe 54-11272. Read both complete side-specific pages and match all components before work. Passenger side: disconnect the MAF harness, loosen the tube clamps and disconnect the original smog line. Release the lower airbox bolts and lower ram-air retaining clip and remove the airbox. Attach its filter adaptor with three supplied button-head screws/wavy washers, then install both required diverters and the 16.5-inch trim. Loosen the lower ram-air-unit T30 fastener, attach the housing tab and restore that fastener and original mounting nut. Transfer the original MAF into passenger tube 05-00889 with its supplied gasket and screws, then install and position the tube with its two couplers and four main clamps. Follow the illustrated elbow-removal and filter-top connection, using the listed fitting and mini clamp as appropriate to the actual assembly; retain the original smog line and position it above the ram-air unit. Install the filter and reconnect the MAF harness. Driver side: move the lines from the airbox top, disconnect MAF and remove its original tube, release lower mounting bolts and ram-air clip, and remove the airbox. Assemble its adaptor, both required diverters, 13-inch edge trim and 3.5-inch corner trim. Mount to the front radiator support with the supplied M6 hex screw and flat washer and restore the original mounting nut. Transfer the original MAF to driver tube 05-00969 using the gasket and screws, install its two couplers/four main clamps and position securely. Restore the washer inlet reservoir to the housing tab. Install the driver filter and confirm its top cap is fitted; the sheet also says install prefilter, but its supplied status is not established by the bill. Reconnect the MAF and restore retained line supports. The manual instructs placing the applicable EO label near the intake, but full exact order and vehicle conditions must be verified. Recheck all connections after approximately 100-200 miles. Neither page gives a battery step or numeric torque. Follow actual side illustrations where the duplicated passenger step 12 or driver step-4 nut cross-reference is ambiguous.

Important Disclosures

Current exact primary, all text, both complete bills and every installation photograph on the two manufacturer pages were reviewed at full resolution. Passenger page is dated May 2008 and driver page July 2017. There are two oiled filters, two housings and two distinct tubes, not one generic assembly. The four diverter pieces are required by the explicit check-engine-light warning. Side-specific trim, supports, MAF hardware, passenger air-pump line and driver reservoir restoration are documented. Driver cap/prefilter supplied status and passenger elbow identity remain qualified where procedure and bill differ; no missing package contents are invented. Current primary 18-gauge metal shields and molded tubes take priority over generic material copy. Original two fitment groups and bounds remain unchanged. No linked flow or dyno report establishes the advertised gains, so they remain manufacturer claims. The exact indexed D-550-38 family row does not substitute for the full order conditions, which remain held after prior challenged access; no retry or blanket exemption is claimed. No battery step, screw length or numeric torque is borrowed from another kit. Turn14 authenticated exact-product access remains unavailable. Protected commercial fields and pricing remain unchanged.
