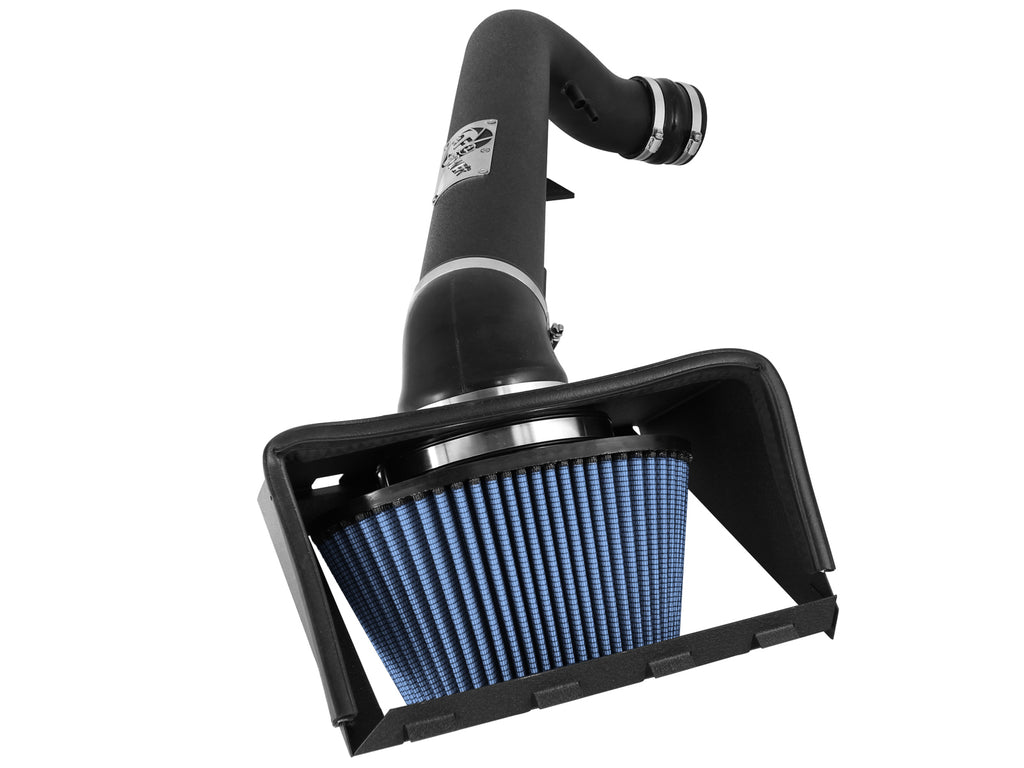

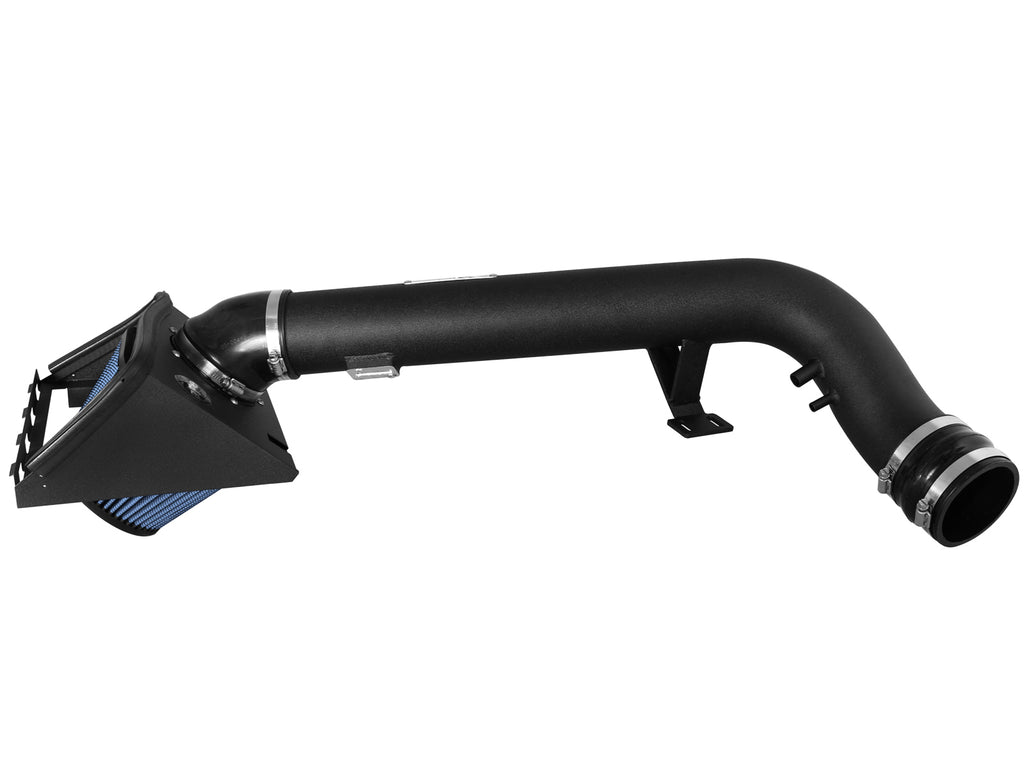

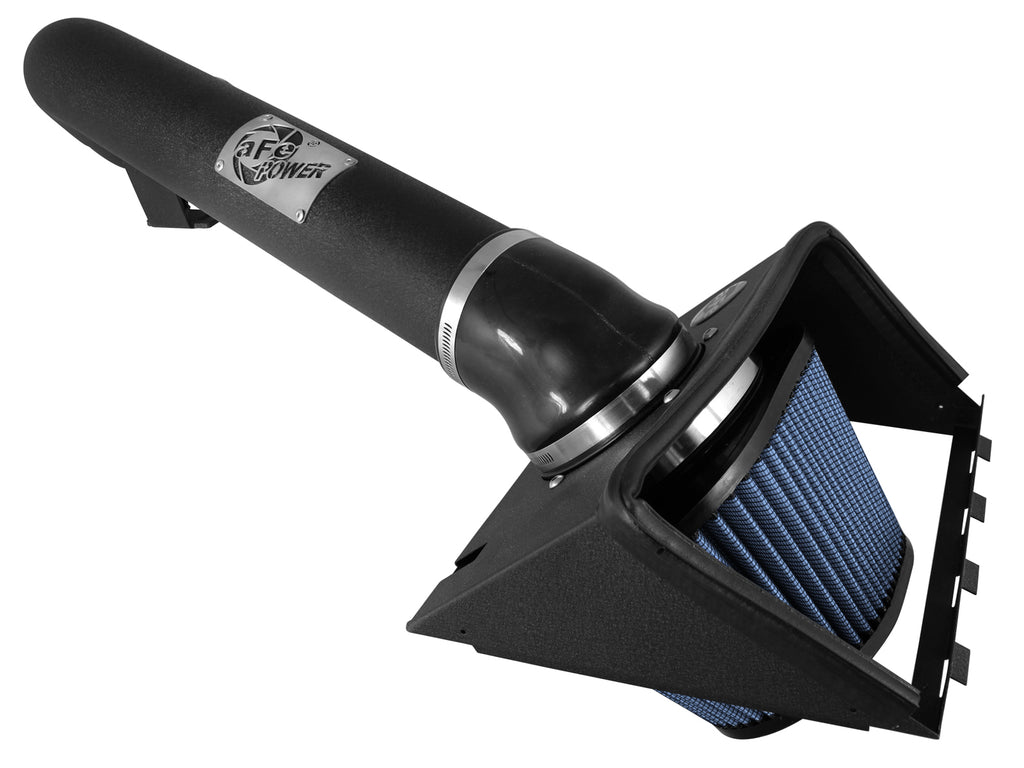

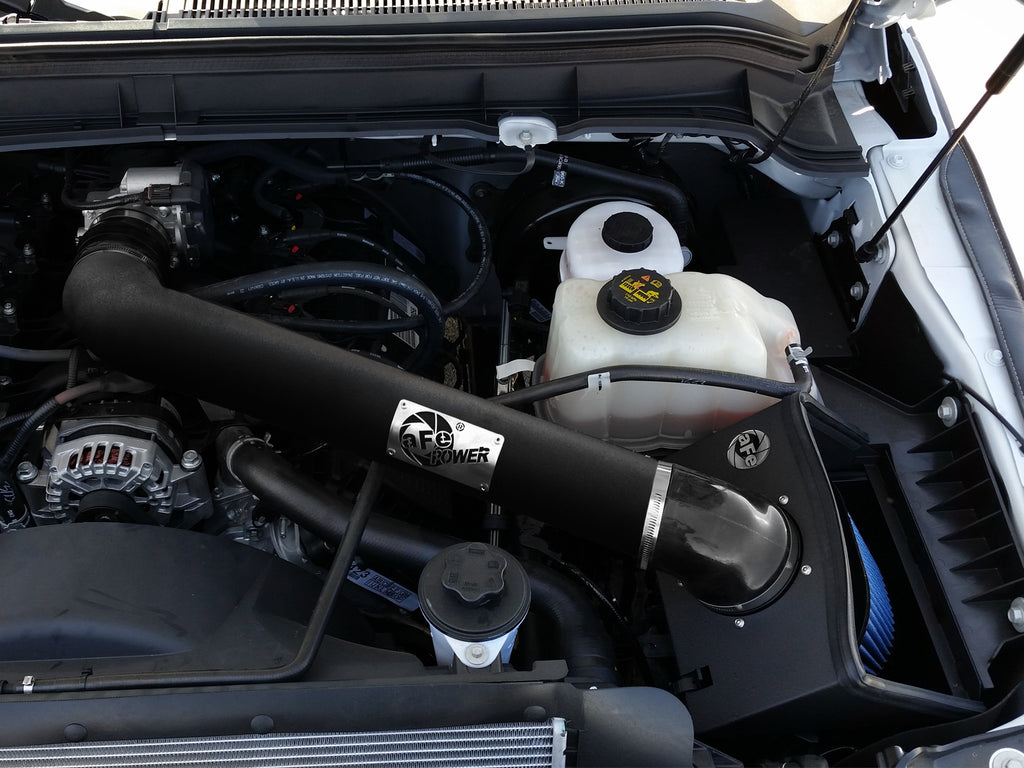

aFe 54-11972-1B is the black-tube Rapid Induction Pro 5R intake for 2011-2016 Ford F-250/F-350 Super Duty with the 6.2L gasoline V8. One blue oiled filter and metal heat shield retain the lower factory airbox. The exact manual transfers the original MAF, replaces the crankcase vent hoses and provides a cap for applications without the smaller vacuum line. This is not a 6.7L diesel intake.
Exact current primary and full 16-page shared manual specify F-250/F-350 Super Duty 2011-2016 with the 6.2L gasoline V8. Original broad F-250 and F-350 model-only rows and years are retained. Existing separate Super Duty model collections are also relevant to that exact application and receive explicit product selections using their existing sources. The model rows do not certify every engine or package; 6.7L diesel is excluded from this kit scope. No invented Base, engine or output trim is added. Named-trim tables and market-specific package details remain a follow-up; original model bounds are not widened. An older exact manufacturer manual indexed at the retailer limits D-550-15 claims to 2011-2014; full exact EO scope remains unverified, so 2015-2016 mechanical fitment is not blanket emissions exemption.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2011-2016 | Ford | F-250 | Actual 6.2L gasoline application required |
| 2011-2016 | Ford | F-350 | Actual 6.2L gasoline application required |
Verify 54-11972-1B against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-11972-1B |
| Current product line | Rapid Induction Pro 5R; older Stage-2 title is historical |
| Application | 2011-2016 F-250/F-350 Super Duty, 6.2L gas V8 |
| Filter | One five-layer oiled Pro 5R 24-91040; 5.5-inch flange and 5.75-inch height per exact replacement reference |
| Tube | One black 05-11973B1; current detailed primary powder-coated aluminum, not generic molded-plastic overview |

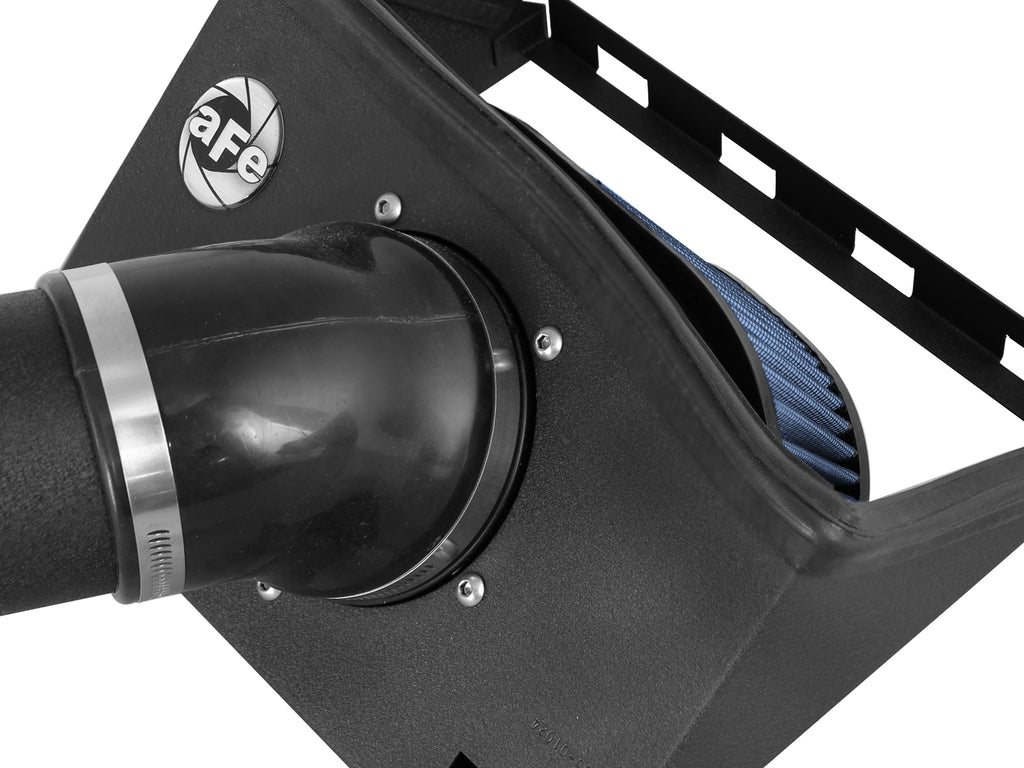

| Shield / adaptor | Metal 05-01024 / 05-00611; selected primary specifies 18-gauge shield |
| Couplings / clamps | 05-00464 elbow; 05-00565 hump; three #056 03-50009 and one #064 03-50006 |
| Trim / hoses | 23-inch trim; 18-inch 5/8-inch hose and 24-inch 3/8-inch hose |
| MAF fasteners | Two slotted M4 03-50034; exact bill gives no length |
| Support mounting | Quarter-20 bolt/nylon locknut, two quarter-inch fender washers; half-inch nylon spacer only if needed |
| Unused vent | 3/8-inch cap when smaller vacuum line absent; mini #006 clamp as needed at valve cover |
| Dyno qualification | Printed peak differences 16 hp / 18 lb-ft, not advertised 18/22; no marked matched-point delta |
| Flow qualification | Advertised 47%; no exact linked flow report |
| Emissions qualification | D-550-15 referenced; older exact manufacturer source limits to 2011-2014, full exact order not read |
| Procedure limits | Negative battery instruction, no numeric torque; approximate 100-200-mile re-tightening |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91040 | Selected oiled filter A2 |
| 1 | 05-01024 | Shield B |
| 1 | 05-11973B1 | Selected black tube C1; polished C2 alternative |
| 1 | 05-00072 | 23-inch trim seal D |
| 1 | 05-00611 | Filter adaptor E |
| 1 | 05-00464 | Elbow coupling F |
| 1 | 05-00565 | Hump coupling G |
| 1 | 05-00069 | 18-inch 5/8-inch hose H |
| 1 | 05-00110 | 24-inch 3/8-inch hose I |
| 3 | 03-50009 | #056 clamps J |
| 1 | 03-50006 | #064 clamp K |
| 5 | 03-50102 | Button-head screws L; thread/length not printed |
| 2 | 03-50034 | Slotted M4 screws M; length not printed |
| 2 | 03-50074 | Quarter-inch fender washers N |
| 1 | 03-50073 | Quarter-20 nylon-insert locknut O |
| 1 | 03-50072 | Quarter-20 hex bolt P; length not printed |
| 1 | 03-50066 | T20 Torx bit Q |
| 1 | 03-50119 | 3/8-inch cap R; unused smaller vacuum port |
| 1 | 03-50120 | Half-inch nylon spacer S; conditional use |
| 1 | 03-50025 | Mini #006 clamp T; conditional use |
One filter and one black tube are selected from the shared alternatives. Retain the original MAF and lower airbox; use original front and rear clips only. Hoses labeled fuel hose in the bill are used for crankcase/vacuum connections by the actual procedure. The spacer is used only if the bracket position needs it, and the mini clamp only if needed at the valve-cover fitting. The cap closes the unused smaller vent on vehicles lacking that line. No parent plenum, new MAF, optional cover or polished tube is supplied. Do not invent unprinted screw lengths or substitute current service-coupling dimensions for the exact bill.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One selected blue oiled filter, black tube, shield/adaptor, two couplings, four main clamps, trim, vent hoses, mounting/MAF hardware and conditional cap/spacer/mini clamp. Polished and dry alternatives are separate.
Is this a diesel intake?No. The exact primary and manual specify the 6.2L gasoline V8 in 2011-2016 F-250/F-350 Super Duty. Do not apply it to the 6.7L diesel.

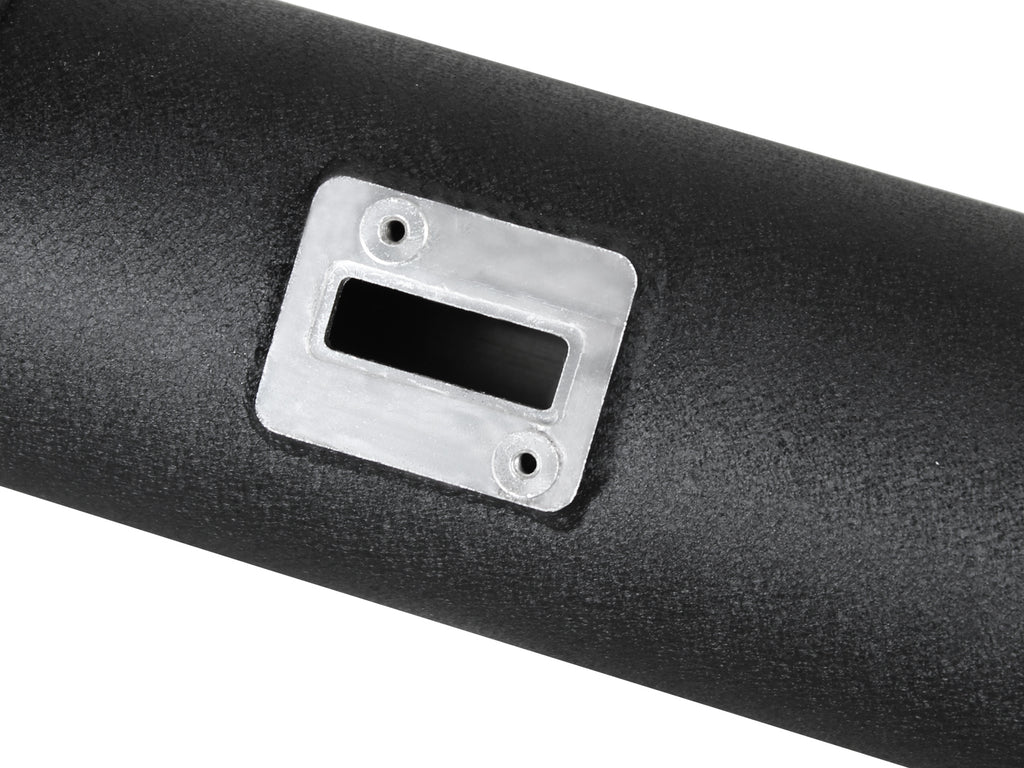

Which factory airbox and sensor parts remain?Retain the lower airbox and its front/rear clips. Transfer the original MAF with the supplied M4 screws; remove the original upper assembly and plenum.

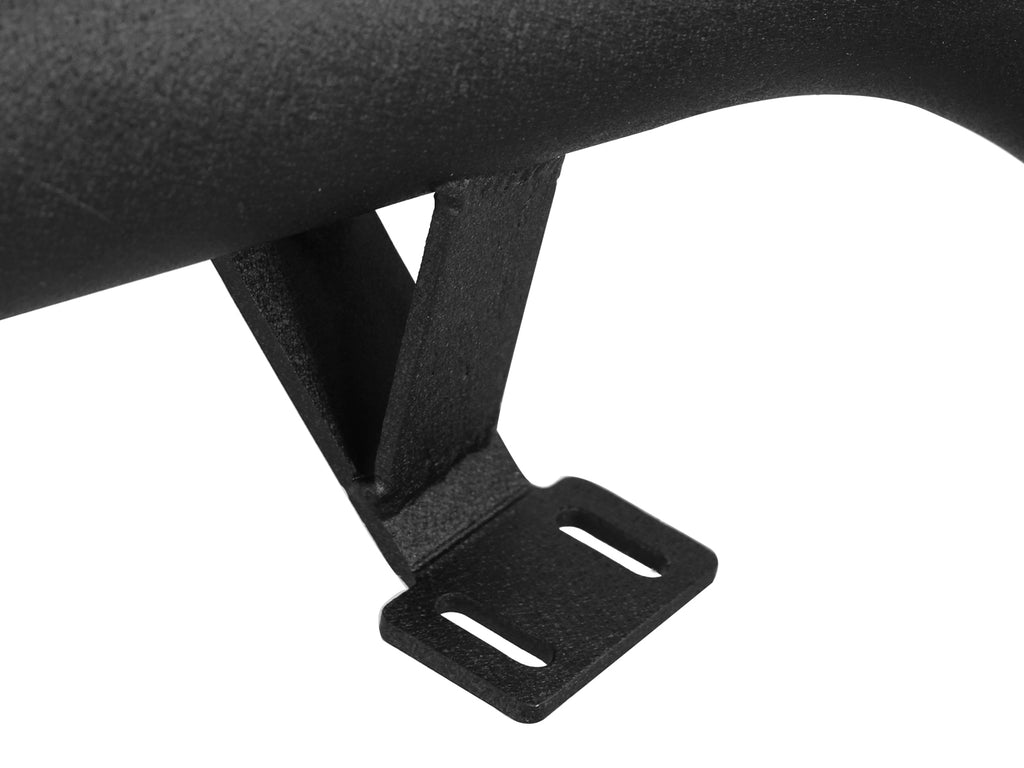

How is the tube supported?Use the quarter-20 bolt, two fender washers and locknut. Select the fitting dual bracket position and add the half-inch nylon spacer only if needed.
What if the smaller vacuum line is absent?Use the supplied 3/8-inch cap on that unused tube vent. The mini #006 clamp is used only if needed at the valve-cover vent fitting.
Which coupling end is installed first?Fit the tube into the filter-side elbow first, then the throttle-body hump coupling. Rotate both tube and elbow to align before tightening.
Are 18 hp, 22 lb-ft and all 2016 emissions claims verified?No. Printed dyno peak differences are 16 hp/18 lb-ft, no exact flow report is linked, and older manufacturer EO wording is limited to 2011-2014 pending full exact-order review.
What battery, torque and recheck instructions apply?Follow negative-battery disconnection and restore it after work. No numeric torque is supplied. Retighten connections after approximately 100-200 miles.
Verify aFe 54-11972-1B. Read the full manual, work with a cool engine and follow its negative-battery instruction. Disconnect MAF wiring, loosen the tube/plenum clamp and disconnect crankcase vent tubes. Unclip and remove the original upper airbox, tube and filter. Loosen the plenum-to-throttle-body clamp and remove its mounting bolts; some models lift off instead. Assemble adaptor, selected filter and shield with supplied fasteners, then fit the elbow with clamps loose. Fit the hump coupling at the throttle body. Transfer the original MAF to the new tube using the supplied M4 screws. Clip the shield to the original lower airbox using front and rear clips only. Insert the tube into the filter-side elbow first, then the throttle-body coupling. Rotate tube and elbow to align before tightening. Support the tube with the quarter-20 bolt, fender washers and locknut, choosing the appropriate one of the dual bracket positions and adding the nylon spacer only if needed. Replace the original vent tubes with the supplied hoses; apply the mini clamp at the valve cover if necessary. If no 3/8-inch vacuum line exists, close its unused tube port with the supplied cap. Reconnect MAF wiring and tighten the filter clamp without damaging the filter base. Restore battery connection after work; no separate final battery step is printed. Retighten connections after approximately 100-200 miles and apply the appropriate EO label for the exempt application. No numeric torque is supplied.
Current exact primary and full 16-page shared manual were read; all four page contacts, complete A1/A2/B/C1/C2/D-T bill and figures A-G were viewed. Selected black aluminum tube and 18-gauge metal shield follow the detailed current primary over generic molded-tube overview and legacy 16-gauge retailer text. One 5.5-inch-flange filter is not a 5.5-inch-height claim; exact replacement height is 5.75 inches. Manual specifies optional spacer, dual support-bracket positions, conditional mini clamp and cap for absent smaller vacuum line. Fuel-hose labeling does not direct fuel-system changes. No unprinted fastener length is invented. Actual linked Mustang dyno printed September 17, 2010 compares August 12 11:21 with August 13 10:18 runs, third gear, with partial RS2.0 notes and no explicit exact kit/vehicle/ambient configuration. Printed peaks 309 versus 293 hp and 352 versus 334 lb-ft yield 16 hp and 18 lb-ft, not advertised 18/22; no marked point delta is given. It is manufacturer test context, not guaranteed isolated gains. No flow chart is linked for 47%. Current primary references D-550-15; older exact manufacturer manual indexed at Lowriders limits that EO wording to 2011-2014. Full exact order was not obtained, so later mechanical fitment is not certified as emissions exempt. Original tags and bounds remain, with separate native Super Duty aliases verified from exact primary/manual scope. Named-trim and market coverage remains follow-up; no fabricated Base trim. Turn14 authenticated source remains unavailable. Prices and protected commercial data remain unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
