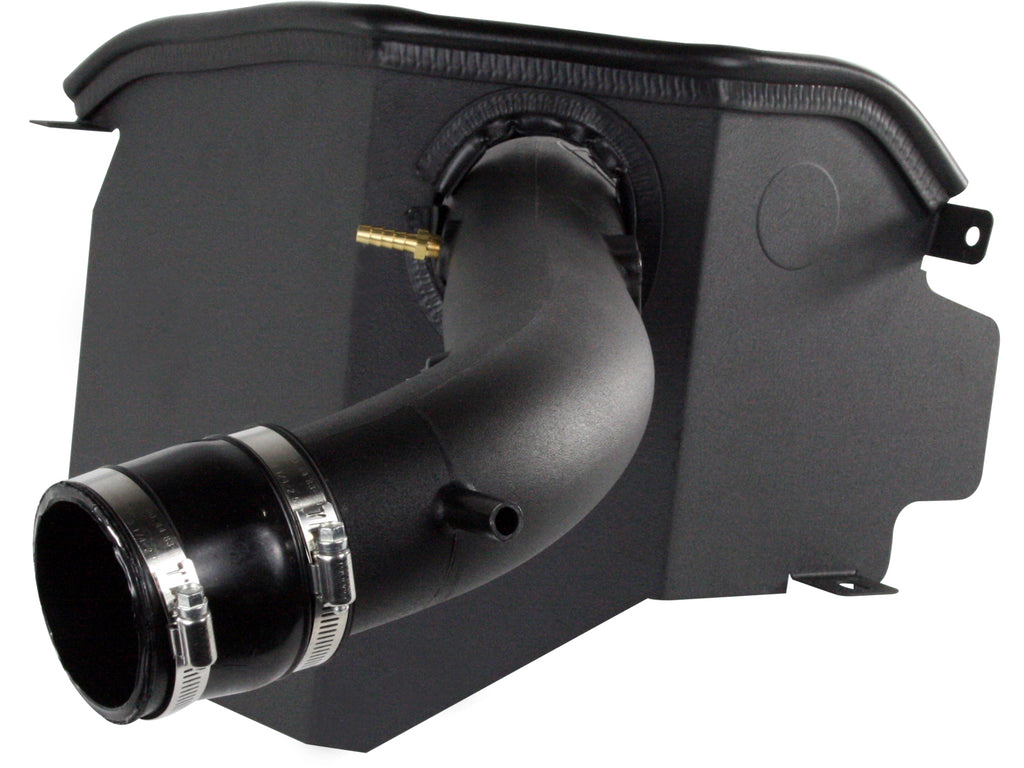

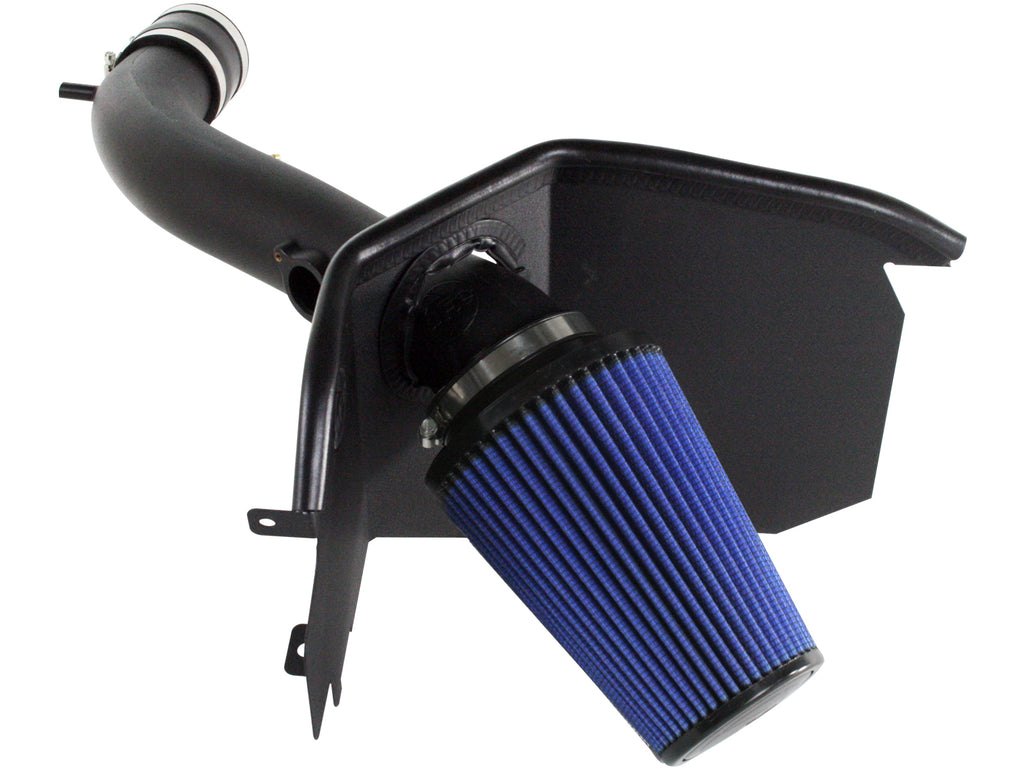

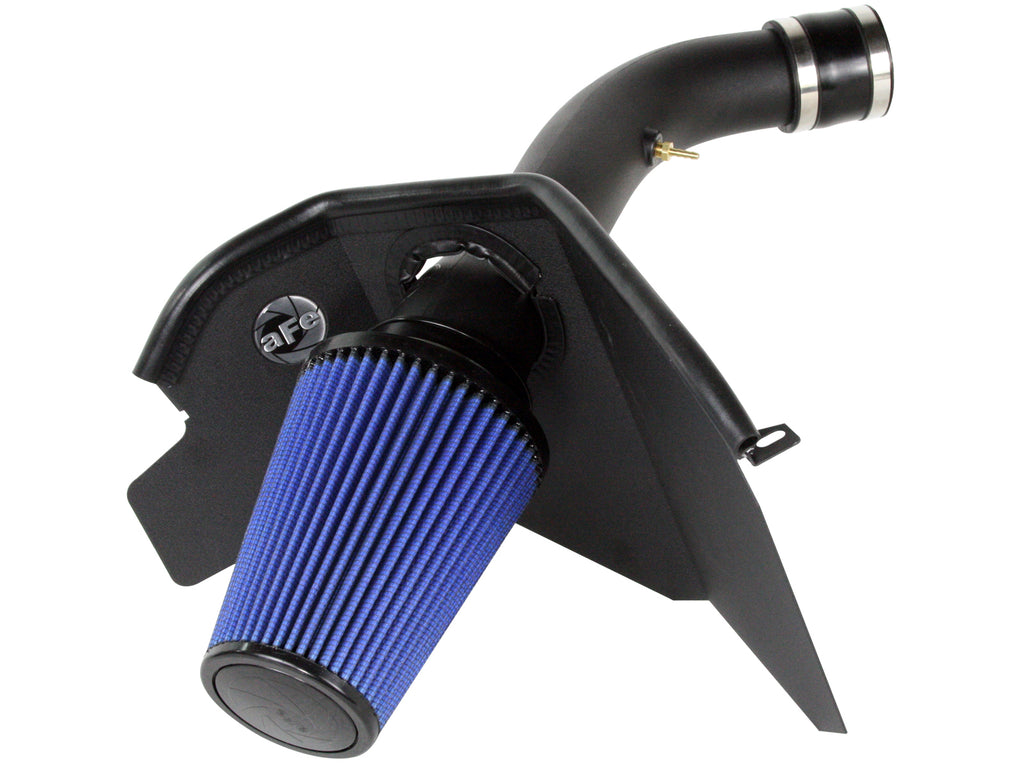

aFe 54-11502 The Stage 2 system pairs a pre-oiled five-layer cotton filter with an XLPE molded tube and an open 18-gauge steel heat shield. Its MAF spacers, grounding reconnection and retained EVAP hose are specific to this kit.
Toyota Tacoma 1999-2004 and 4Runner 1999-2002 with the V6-3.4L gasoline engine. Exact-part catalog tables support the named rows shown; this is not a 2.7L, 4.0L or later-generation application.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 1999-2000 | Toyota | Tacoma | Limited |
| 1999-2000 | Toyota | Tacoma | SR5 |
| 1999-2002 | Toyota | 4Runner | Limited |
| 1999-2002 | Toyota | 4Runner | SR5 |
| 1999-2004 | Toyota | Tacoma | Base |
| 1999-2004 | Toyota | Tacoma | Pre Runner |
| 2001-2004 | Toyota | Tacoma | S-Runner |
| 2001 | Toyota | 4Runner | Base |
Verify 54-11502 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-11502 |
| Application | Tacoma 1999-2004 / 4Runner 1999-2002, V6-3.4L |
| Filter | One 24-35008 / five-layer oiled cotton / 7-inch height, 3.5-inch flange, inverted top |
| Tube / shield | XLPE / one-piece black powder-coated 18-gauge steel |
| Coupling / clamps | One straight 2.75 x 3-inch coupling / two #44 clamps |
| MAF / mount | Two nylon spacers and gasket / isolation mount between tube bracket and shield |
| Hoses | 22-inch large vent and 14-inch vacuum replacement; original EVAP hose retained |
| Performance qualification | The current page advertises 99% more airflow and 8 hp/10 lb-ft. Its linked dyno image has red power and blue torque curves but no legend identifying each run, no labeled maxima or comparison cursor, no exact vehicle year, correction factor or test configuration. It does not independently establish the advertised numeric gain or a peak-to-peak result. No flow chart is linked on the exact page. |
| Recheck / torque | After a few hours of operation / no numeric torque or mileage interval |
| Emissions | The actual signed D-550-16 Exhibit A lists this exact kit for Tacoma 1999-2004 and 4Runner 1999-2002, V6-3.4L. Exemption is limited to those exact applications and the covered design, installation and stock calibration. Follow the required EO identification-label instructions. Do not extend this to other engines, altered emissions equipment or different tuning. |
| UPC | 802959502723 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-35008 | Selected five-layer oiled Pro 5R filter |
| 1 | Unnumbered in exact bill | Roto-mold intake tube, XLPE per current page |
| 1 | Unnumbered in exact bill | 18-gauge steel heat shield per current page |
| 2 | M6 | Nuts |
| 2 | M4 x .7 x 16 | MAF screws |
| 1 | M6 x 1 x 12 | Hex screw |
| 2 | M8 x 1.25 x 12 | Hex screws |
| 3 | 6 mm | Wavy washers |
| 2 | 6 mm | Flat washers |
| 2 | 8 mm | Split-lock washers |
| 2 | 8 mm | Flat washers |
| 2 | #44 | Hose clamps |
| 1 | M6 x 1 x 1 | Rubber isolation mount; dimensions as printed |
| 1 | 2.75 x 3-inch | Straight coupling |
| 1 | 1/2-inch ID x 22-inch | Replacement vent hose |
| 1 | 3/16-inch ID x 14-inch | Replacement vacuum hose |
| 1 | Small bulb / 13-inch | Seal trim |
| 1 | Large bulb / 21-inch | Seal trim |
| 1 | 5/16-inch | Brass nipple |
| 1 | 3/16-inch | Brass nipple |
| 1 | MAF | Gasket |
| 2 | MAF | Nylon spacers |
One 24-35008 pre-oiled five-layer cotton Pro 5R filter is selected; dry alternatives in the shared manual are separate products. The current primary specifies a 7-inch inverted-top filter with 3.5-inch flange, XLPE tube and one-piece 18-gauge black powder-coated STEEL heat shield. The exact manual requires TWO nylon spacers and the supplied gasket between the MAF sensor and tube, plus a rubber isolation mount BETWEEN the tube bracket and shield. It replaces the large vent and small vacuum hose while RETAINING the original EVAP hose closest to the shield. No new sensor or complete sealed housing is listed.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Toyota Tacoma 1999-2004 and 4Runner 1999-2002 with the V6-3.4L gasoline engine. Exact-part catalog tables support the named rows shown; this is not a 2.7L, 4.0L or later-generation application.
Which filter, tube and shield are included?One 24-35008 pre-oiled five-layer cotton Pro 5R filter is selected; dry alternatives in the shared manual are separate products. The current primary specifies a 7-inch inverted-top filter with 3.5-inch flange, XLPE tube and one-piece 18-gauge black powder-coated STEEL heat shield. The exact manual requires TWO nylon spacers and the supplied gasket between the MAF sensor and tube, plus a rubber isolation mount BETWEEN the tube bracket and shield. It replaces the large vent and small vacuum hose while RETAINING the original EVAP hose closest to the shield. No new sensor or complete sealed housing is listed.

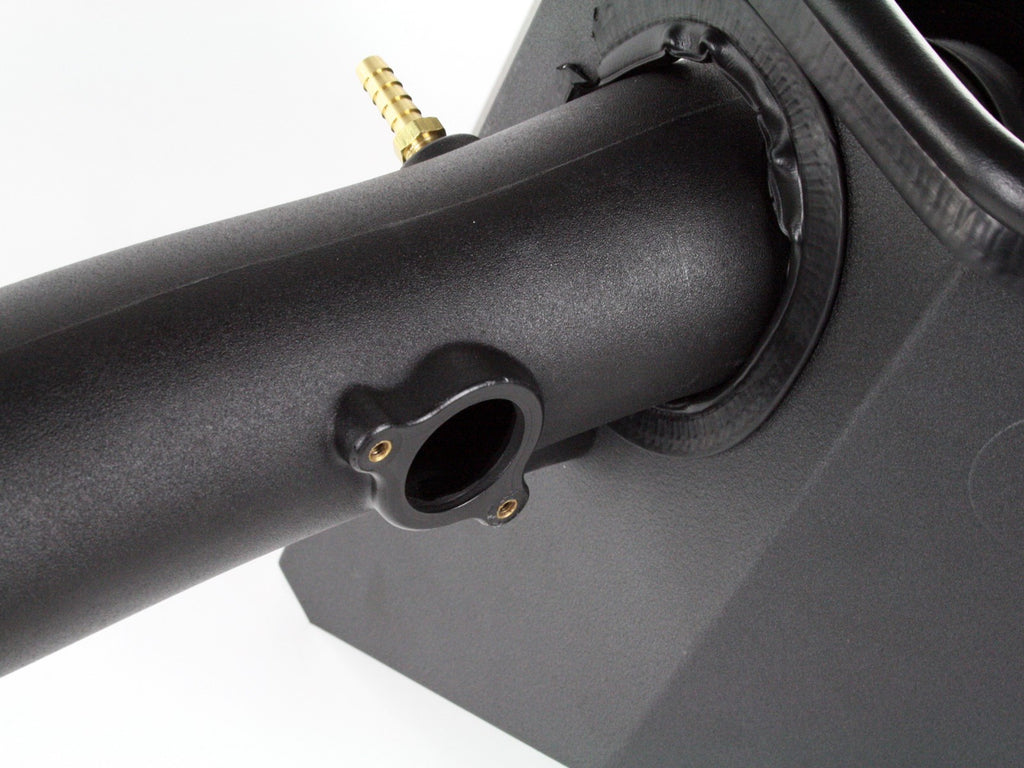

Where do the MAF spacers and gasket go?The two nylon spacers and supplied gasket go BETWEEN the original sensor and the new tube. Use the specified two M4 screws; do not omit the spacers.
What happens to the 4Runner ground wires?Temporarily disconnect the inner-fender grounds for shield installation and RECONNECT them to the fender as the manual shows.
Which hoses are replaced and which stays?Replace the large throttle-body vent hose and small vacuum hose with the supplied hoses; retain the original EVAP hose closest to the shield.

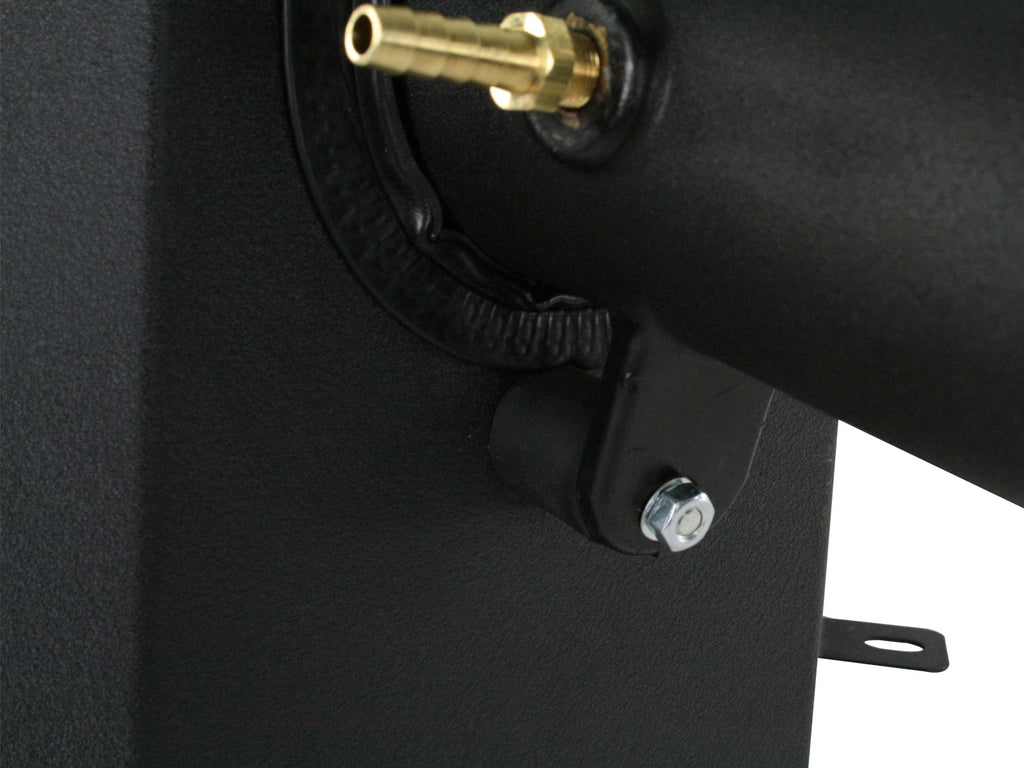

Where does the isolation mount go?Between the tube bracket and heat shield, secured by the provided M6 hardware. This is not a different kit's A/C-bracket mount.
Does the dyno image prove the headline gain?The current page advertises 99% more airflow and 8 hp/10 lb-ft. Its linked dyno image has red power and blue torque curves but no legend identifying each run, no labeled maxima or comparison cursor, no exact vehicle year, correction factor or test configuration. It does not independently establish the advertised numeric gain or a peak-to-peak result. No flow chart is linked on the exact page.
When are connections rechecked and what legal scope applies?After a few hours of operation; no numeric torque or mileage interval is given. The actual signed D-550-16 Exhibit A lists this exact kit for Tacoma 1999-2004 and 4Runner 1999-2002, V6-3.4L. Exemption is limited to those exact applications and the covered design, installation and stock calibration. Follow the required EO identification-label instructions. Do not extend this to other engines, altered emissions equipment or different tuning.
Verify aFe 54-11502. Unplug the original MAF harness, disconnect all three original tube hoses and remove the stock airbox. On 4Runner, temporarily disconnect the inner-fender ground wires and RECONNECT them when mounting the heat shield with its supplied hardware. Fit the top trim. Transfer the original MAF to the tube using the two M4 screws, TWO nylon spacers and gasket BETWEEN sensor and tube. Fit the 3/16 and 5/16-inch brass nipples. Install the straight throttle-body coupling with two #44 clamps, insert the tube and place the rubber isolation mount BETWEEN its bracket and shield; fit the inner-hole trim after inserting the tube. Replace the original large vent hose at the throttle body and small vacuum hose with the supplied 22-inch and 14-inch hoses as illustrated. RETAIN and reconnect the original EVAP hose closest to the shield. Install the selected filter, reposition and tighten its clamp without oil or grease on the assembly connection, and reconnect the original MAF plug. This connection instruction does not change the filter media service requirement to re-oil cotton after cleaning. Check all hoses, wiring and clamps; recheck connections after a FEW HOURS of operation as this exact manual states. No numeric torque or mileage interval is provided.
Toyota Tacoma 1999-2004 and 4Runner 1999-2002 with the V6-3.4L gasoline engine. Exact-part catalog tables support the named rows shown; this is not a 2.7L, 4.0L or later-generation application. The actual signed D-550-16 Exhibit A lists this exact kit for Tacoma 1999-2004 and 4Runner 1999-2002, V6-3.4L. Exemption is limited to those exact applications and the covered design, installation and stock calibration. Follow the required EO identification-label instructions. Do not extend this to other engines, altered emissions equipment or different tuning. The current page advertises 99% more airflow and 8 hp/10 lb-ft. Its linked dyno image has red power and blue torque curves but no legend identifying each run, no labeled maxima or comparison cursor, no exact vehicle year, correction factor or test configuration. It does not independently establish the advertised numeric gain or a peak-to-peak result. No flow chart is linked on the exact page.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
