aFe Volkswagen R32 2008 Pro 5R Intake / Audi A3 Eos

Volkswagen R32 and 3.2L Pro 5R intake details

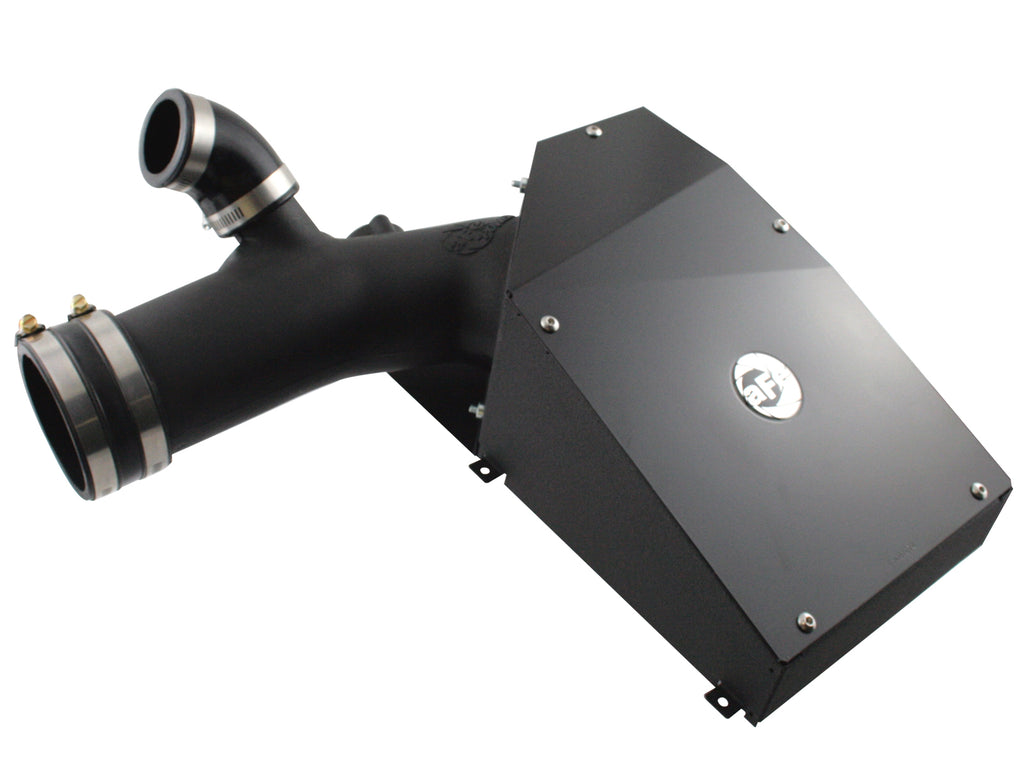

aFe 54-11772 is the Rapid Induction Pro 5R intake currently identified by aFe for the 2008 Volkswagen R32 MKV 3.2L. The exact shared Stage 2-Si manual also names 3.2L Audi A3 Quattro and Volkswagen Eos applications. One blue oiled filter, molded tube, metal housing and black cover replace the stated original assembly while retaining the MAF. The manual provides an elbow for the cabin sound-chamber connection and a plug for configurations without that connection.

Key Features

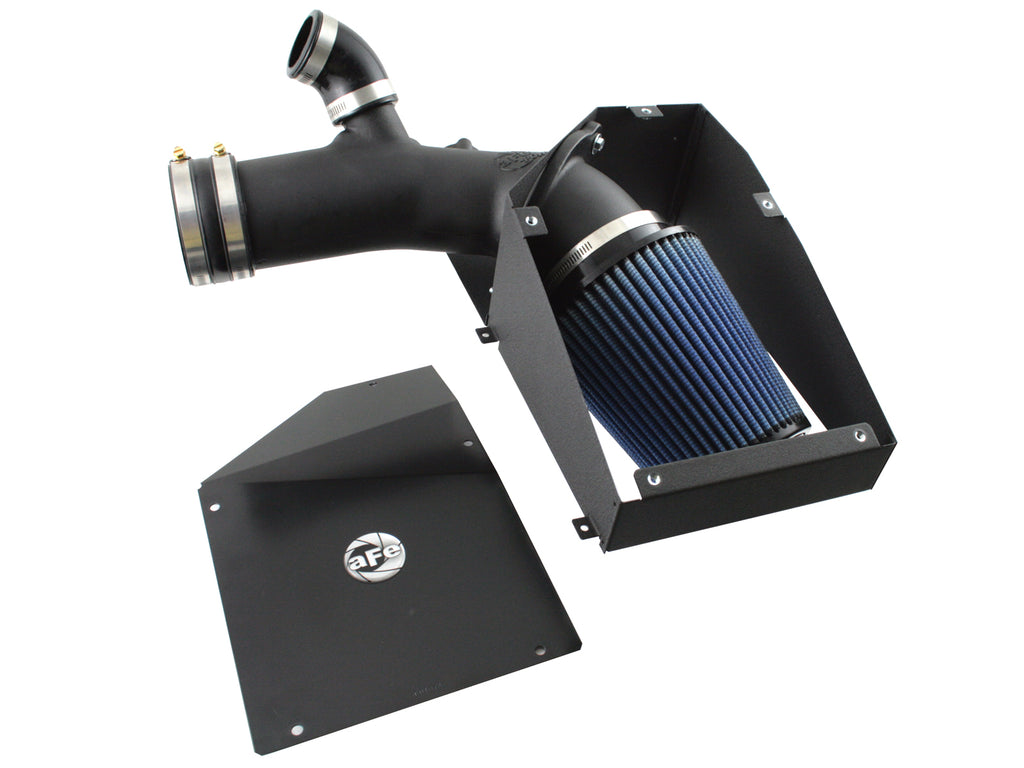

• One blue five-layer oiled Pro 5R filter 24-45507; dry 21-45507 shown in the shared bill is an alternative.

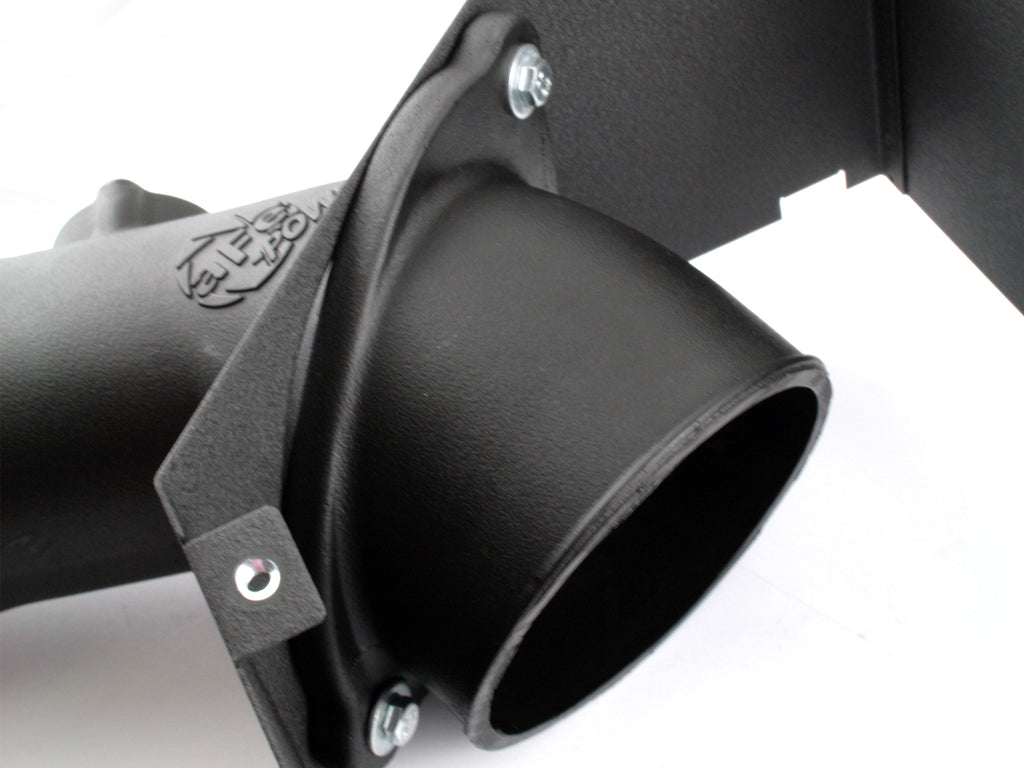

• Molded intake tube 05-01076 and 16-gauge powder-coated metal housing 05-01074, not a polymer housing.

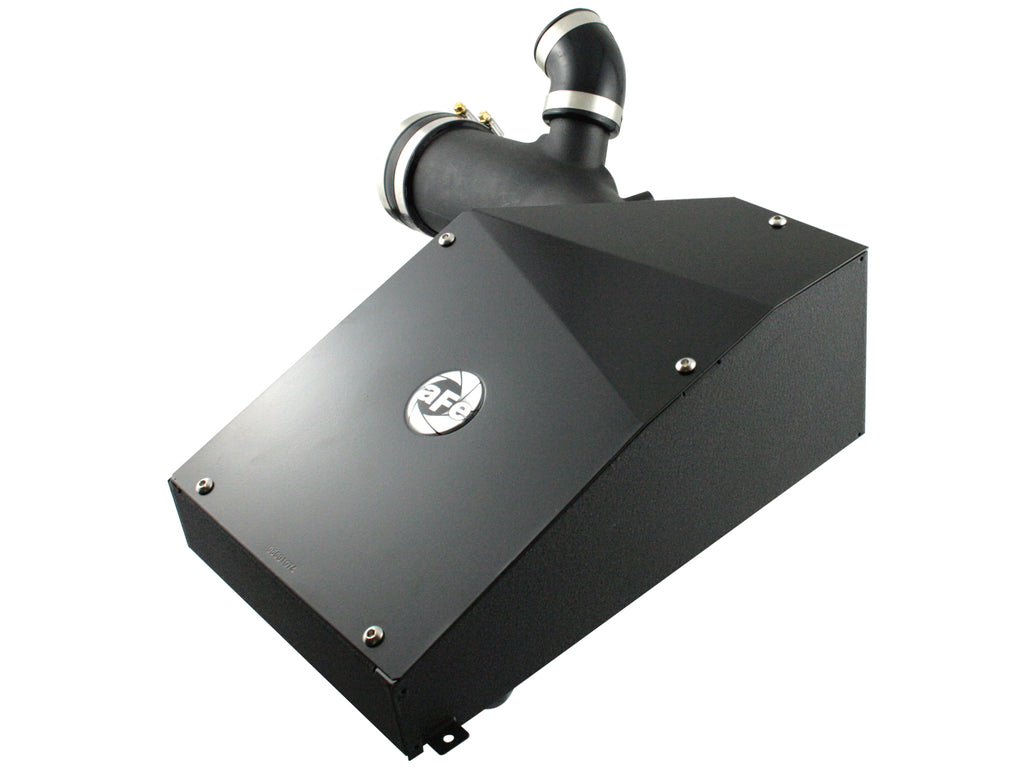

• Black cover 05C01074 is included and secured with five button-head screws.
• Straight silicone coupling 05-01223 with two #032 clamps at the throttle body.
• Elbow coupling 05-01075 with two #052 clamps for the cabin sound chamber; plug 05-01128 is a conditional alternative.
• Transfer original MAF with gasket 05-00118 and two supplied M4 screws.
• Two M6 bolts and two flat washers join tube and housing; reuse four original screws to secure housing in its factory location.
• Negative battery disconnect and reconnect are explicit; no numeric torque or mileage recheck appears in the exact manual.

Fitment

Current exact primary identifies Volkswagen R32 MKV 2008, 3.2L. Original coverage is retained exactly: Audi A3 Quattro Base 2006-2009, Volkswagen Eos 3.2 2007, Eos VR6 2008 and R32 Base 2008, with actual 3.2L engine, MAF, housing mount and sound-chamber configuration required. The manual lists A3 Quattro 2004-2009 and Eos 2007-2008, but earlier A3 market/chassis proof is not inferred into new US coverage. R32 2009 appears in retailer headlines but is not in the current primary, manual or the reviewed D-550-30 exhibit; original R32 bounds remain 2008 only. The reviewed order’s exact selected-part row covers Volkswagen R32 2008 with 3.2L, not Audi A3 or Eos under this part. Their positive fitment remains separate from California exemption. All original native vehicle memberships remain unchanged.

Verify 54-11772 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

One oiled filter is selected, not both media. The black cover is included. The elbow sound-chamber connection and plug are conditional configurations, not simultaneous open connections. Reuse original MAF and four original housing screws. No new sensor, sound chamber, restore kit, prefilter or extra factory duct is included. Two wavy washers appear in the bill although no separate numbered placement step is provided; confirm actual hardware arrangement without inventing a different fastener specification.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-11772
• Exact illustrated installation manual
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One blue oiled filter, molded tube, metal housing, black cover, straight and elbow couplings, four main clamps, MAF gasket, listed fasteners/washers and a conditional sound-chamber plug.

The current primary, manual and reviewed selected-part EO exhibit name 2008 R32 MKV 3.2L. A 2009 retailer headline does not extend the original 2008 row.

Yes. Original A3 Quattro Base 2006-2009, Eos 3.2 2007 and Eos VR6 2008 remain with actual 3.2L, sensor and housing configuration requirements.

The black cover is included. The original MAF transfers with the supplied gasket and two M4 screws; no replacement sensor is supplied.

The manual provides it for vehicles without the cabin sound chamber or when that connection is bypassed. The elbow/chamber connection and plug are alternatives; verify applicable configuration and exemption conditions.

Join tube and housing using the supplied M6 bolts and flat washers, then secure the housing in the factory location with four original screws.

No. The reviewed D-550-30 selected-part row covers 2008 VW R32 3.2L. It does not establish A3/Eos exemption, and the incomplete chart does not independently certify advertised power or flow figures.

Disconnect and reconnect the negative battery as directed. No numeric torque or mileage-based recheck interval appears in the exact manual.

Installation Instructions

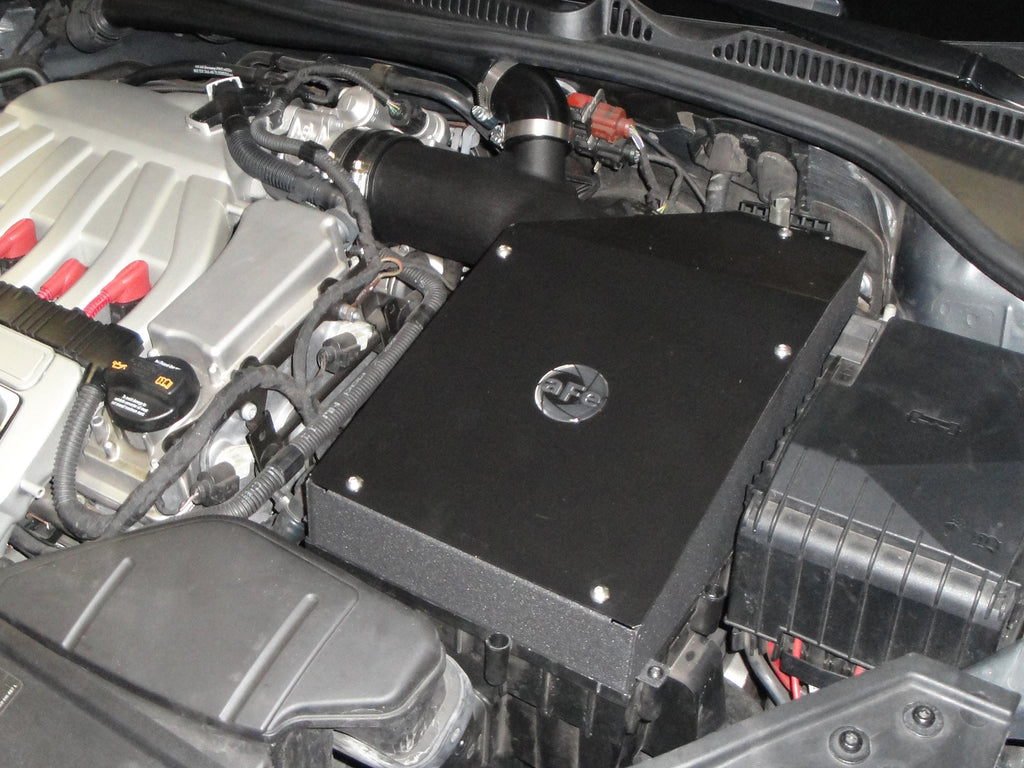

Verify aFe 54-11772. Read all 12 pages, cool the engine and disconnect the negative battery. Unplug MAF wiring, loosen both stock tube clamps, remove four original housing screws and loosen the cabin sound-chamber duct clamp. Remove the original upper intake box and tube. Join new tube and metal housing with two supplied M6 bolts and flat washers. Transfer original MAF with supplied gasket and two M4 screws. Fit straight silicone coupling with two #032 clamps to the throttle body loosely. Fit the elbow and two #052 clamps to the sound chamber; the manual provides the plug if the vehicle lacks the chamber or that connection is bypassed. Confirm the actual sound-chamber configuration and applicable exemption before selecting that option. Position assembly at factory location and secure housing with four original screws. Align and tighten the coupling clamps, then fit selected filter and tighten its clamp. Install the included cover with five button-head screws, reconnect MAF wiring and reconnect the negative battery. Check all components are secure. No numeric torque or mileage-based recheck is supplied. Follow the matching EO installation and label conditions for the exempt application.

Important Disclosures

Exact current primary, all 12 shared-manual pages, all three contacts, complete A1/A2/B-O bill and figures A-E were read/viewed, together with the actual linked dyno graphic. Detailed primary metal housing and black cover correct generic polymer-housing wording. The stylized chart labels red horsepower, blue torque, dashed aFe and solid stock, but lacks a numerical result table, exact vehicle, dates, correction and complete run configuration; no 14 hp or 10 lb-ft figure is certified by visual estimation. No exact airflow report is linked for 58%. The previously saved complete eight-page manufacturer-hosted D-550-30 package was re-reviewed visually, including cover correspondence, order conditions and exhibit. Its selected-part exemption row names only VW R32 2008 3.2L. The old manual race-only language therefore does not override the later order for that exact exempt configuration, nor does the order certify A3/Eos or a different sound-chamber configuration. Positive A3/Eos physical application coverage is retained separately. Original four rows, gaps, bounds and native memberships remain unchanged. Earlier A3 years and 2009 R32 retailer headline differences remain market/configuration holds, not presumed physical incompatibility. Turn14 authenticated exact-product access remains unavailable. Prices, media and protected commercial data remain unchanged.
