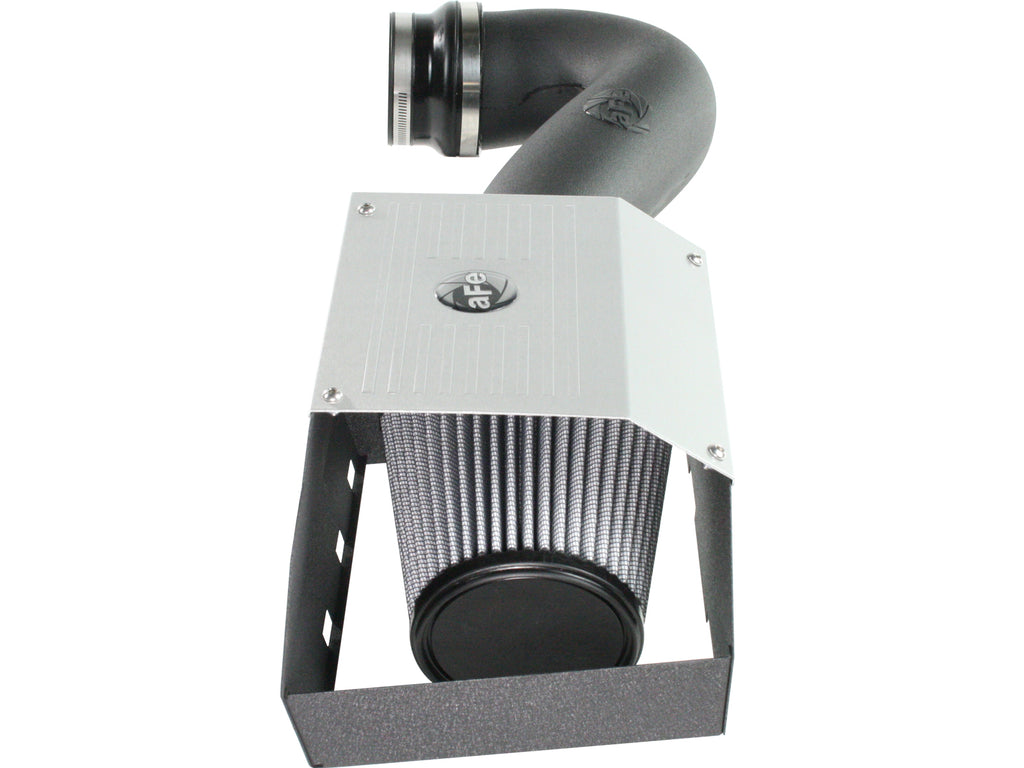

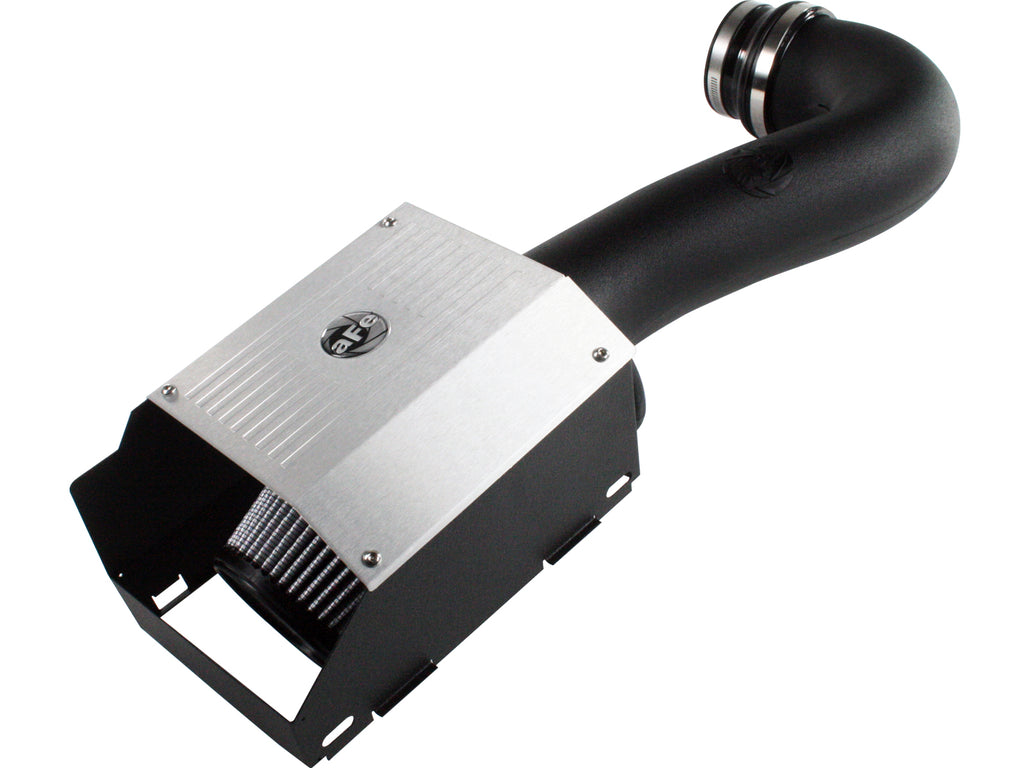

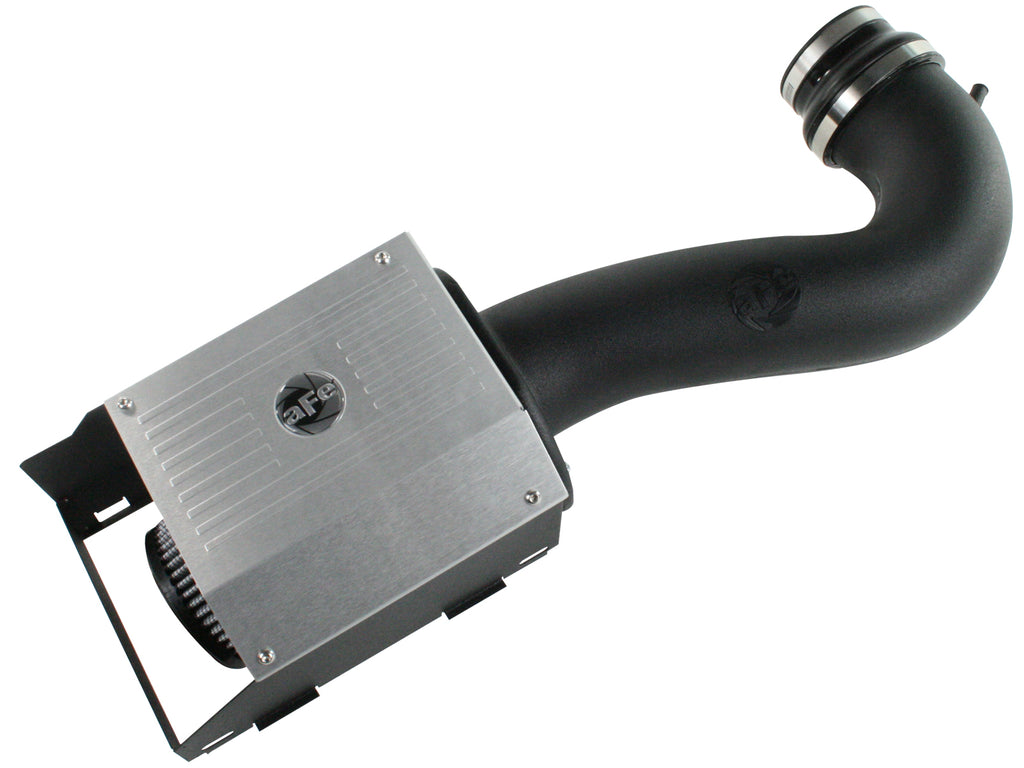

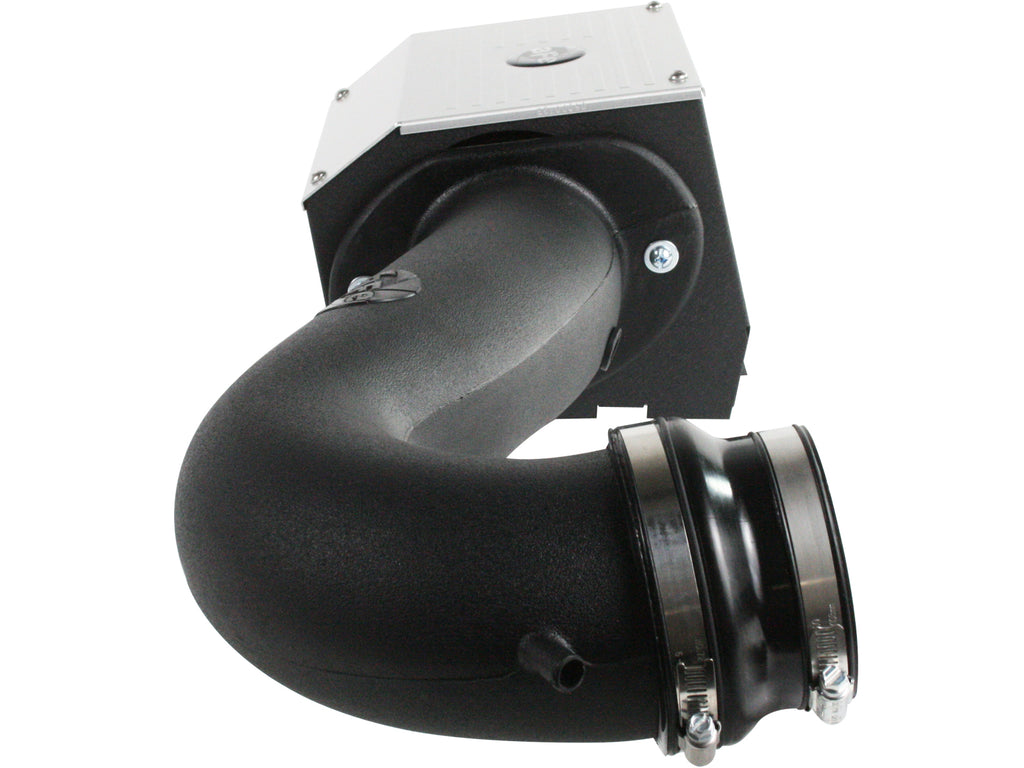

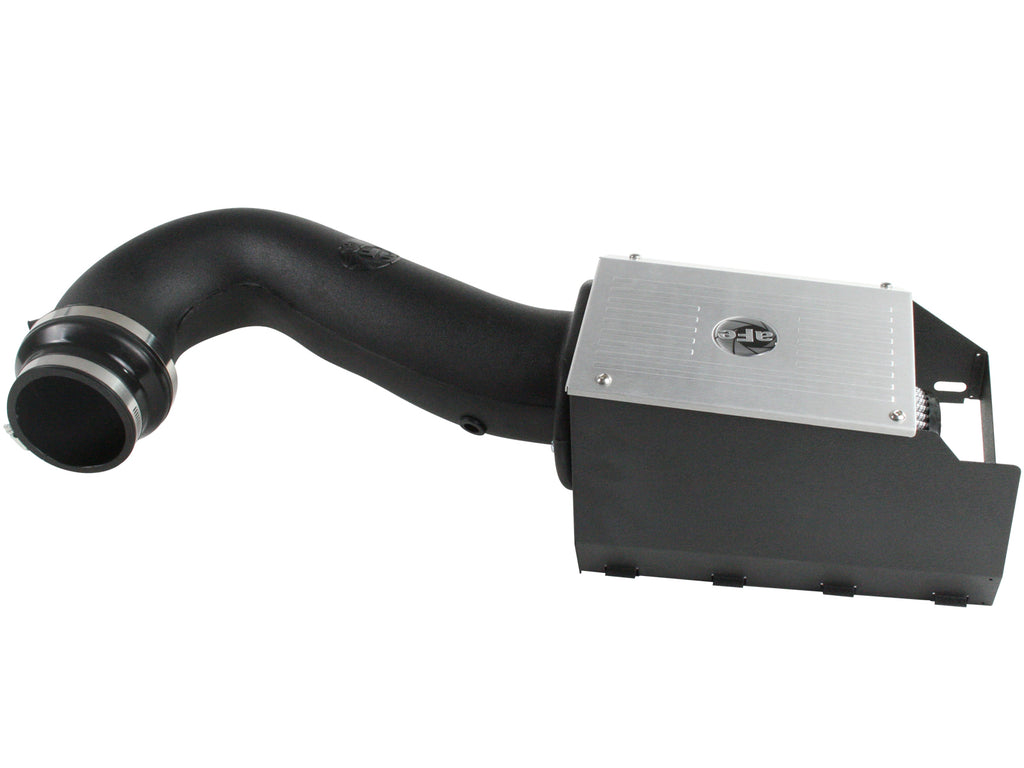

aFe 51-10242 Intake pairs a Pro DRY S filter, molded plastic tube and 18-gauge heat shield with a clear-coated aluminum cover for the specified Grand Cherokee WK and Commander XK 5.7L HEMI V8. The original lower airbox and two retaining clips stay in use.
Grand Cherokee WK 2005–2010 and Commander XK 2006–2010 with the 5.7L HEMI V8 only. Both the current manufacturer page and illustrated installation sheet support these ranges; the older store title’s 2007 endpoint is narrower and is corrected. This kit’s exact retailer table supports the existing named rows; no year extension or extra trim is inferred. Match the original lower airbox, sensor and crankcase line.
| Years | Make | Model | Named trim; specified V8 engine and body required |
|---|---|---|---|
| 2005-2010 | Jeep | Grand Cherokee | Limited |
| 2006-2009 | Jeep | Grand Cherokee | Overland |
| 2006-2010 | Jeep | Commander | Limited |
| 2007-2009 | Jeep | Commander | Overland |
| 2010 | Jeep | Commander | Sport |
| 2010 | Jeep | Grand Cherokee | Laredo |
Verify 51-10242 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 51-10242 |
| Product Type | Cold Air Intakes |
| Application | Grand Cherokee WK 2005–2010 and Commander XK 2006–2010 with the 5.7L HEMI V8 only. Both the current manufacturer page and illustrated installation sheet support these ranges; the older store title’s 2007 endpoint is narrower and is corrected. This kit’s exact retailer table supports the existing named rows; no year extension or extra trim is inferred. Match the original lower airbox, sensor and crankcase line. |
| Filter | 21-45003; Pro DRY S; one selected-media element |
| Heat shield | 18-gauge powder-coated; current exact manufacturer specification |
| Tube configuration | One plastic tube |
| Vent hose | 1/2-inch ID x 23 inches; two mini clamps |
| Performance qualification | The current dry-media page advertises 19 HP, 25 lb-ft and 73% more flow; an older exact-part retailer lists 64% flow. Neither an actual selected-media dyno nor a flow sheet is linked on the current page, so test configuration, pressure, baseline and the differing percentages are not independently reconciled. These are manufacturer claims, not guaranteed dry-kit results. |
| Emissions qualification | The current manufacturer page says some or all applications are exempt under D-550-27. The official indexed table names this kit family for Grand Cherokee 2005–2010 and Commander 2006–2010, 5.7L. Full-document conditions were not independently reviewed because direct official access was previously blocked. Match the actual vehicle/engine and current label; no broader exemption is implied. The illustrated manual requires the enclosed EO identification label on or near the intake for inspection. |
| UPC | 802959510247 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-45003 | Selected Pro DRY S oil-free filter |
| 1 | Not individually numbered | 18-gauge heat shield/housing |
| 1 | Not individually numbered | Clear-coated aluminum housing cover |
| 1 | Not individually numbered | Molded plastic intake tube |
| 1 | Not individually numbered | Reducer coupling; exact material not established |
| 1 each | No. 072 and No. 060 | Coupling clamps |
| 2 | Mini No. 006 | Breather-hose clamps |
| 1 | Not individually numbered | Original temperature-sensor grommet provision |
| 1 | Not individually numbered | 1/2-inch-ID x 23-inch breather hose |
| 4 | Not individually numbered | Cover button-head screws |
| 2 | 1/4-20 x 1 inch | Tube/housing screws |
| 2 | 1/4-20 | Nuts |
| 4 | Not individually numbered | Flat washers |
Each selected kit includes one filter. Other media shown on its shared instruction sheet are alternatives, not additional included filters. Individual service identifiers are not supplied for most hardware; no part numbers are invented. The original ground-strap fastener is reused.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Grand Cherokee WK 2005–2010 and Commander XK 2006–2010 with the 5.7L HEMI V8 only. Both the current manufacturer page and illustrated installation sheet support these ranges; the older store title’s 2007 endpoint is narrower and is corrected. This kit’s exact retailer table supports the existing named rows; no year extension or extra trim is inferred. Match the original lower airbox, sensor and crankcase line.
Does this selected filter need oil?No. 21-45003 is Pro DRY S with three synthetic layers. The generic oiling instructions at the bottom of the shared sheet concern other media and do not authorize oil on this filter.
What housing and factory mounting parts are used?The original lower airbox stays in the vehicle. Attach the new housing using its original retaining clips and fit the supplied aluminum housing cover; this cover is not the removed OEM engine cover.
Which vent connection applies?Use the supplied 23-inch, 1/2-inch-ID hose with both mini clamps in place of the original breather line.
Is a new mass-airflow sensor supplied?No. Transfer the original intake-air-temperature sensor into the supplied grommet and reconnect its harness. Do not substitute a different kit’s NPT adapter or drilling procedure.
How many intake tube sections and couplings are documented?One intake tube and one reducer coupling with No. 072 and No. 060 coupling clamps, plus the filter connection.
Do the performance claims guarantee my result?The current dry-media page advertises 19 HP, 25 lb-ft and 73% more flow; an older exact-part retailer lists 64% flow. Neither an actual selected-media dyno nor a flow sheet is linked on the current page, so test configuration, pressure, baseline and the differing percentages are not independently reconciled. These are manufacturer claims, not guaranteed dry-kit results.
What recheck and emissions requirements apply?The current manufacturer page says some or all applications are exempt under D-550-27. The official indexed table names this kit family for Grand Cherokee 2005–2010 and Commander 2006–2010, 5.7L. Full-document conditions were not independently reviewed because direct official access was previously blocked. Match the actual vehicle/engine and current label; no broader exemption is implied. The illustrated manual requires the enclosed EO identification label on or near the intake for inspection. The exact sheet calls for periodic clamp/connection checks without a fixed mileage interval or numeric torque.
Verify aFe 51-10242. Read the full illustrated sheet and retain original parts. Detach the two factory upper-airbox clips and loosen the clamp. Remove the oil cap as needed to lift off the engine cover as illustrated, restore the cap, and release the plenum mounting bolt/throttle-body clamp to remove the original upper box and plenum. Keep the original lower airbox. Transfer the original intake-air-temperature sensor from the bottom of the plenum into the supplied grommet on the new tube. Attach the tube to the heat shield with the supplied quarter-inch hardware. Place the reducer coupling on the throttle body and initially tighten only that end. Fit the assembly over the retained lower box and reattach both original clips; align the tube and tighten its coupling connection. Replace the original breather line with the supplied 23-inch, 1/2-inch hose and both mini clamps. Install the selected dry filter, then fit the aluminum housing cover with four button-head screws. The cover supplied with the intake is separate from the removed OEM engine cover; the sheet does not expressly document OEM cover reinstatement, so do not invent a cutting or clearance solution. No numeric torque or fixed mileage interval is supplied; the sheet calls for PERIODIC clamp and connection checks. The generic oiling footer applies to other filter media, not this oil-free Pro DRY S element.
The current manufacturer page says some or all applications are exempt under D-550-27. The official indexed table names this kit family for Grand Cherokee 2005–2010 and Commander 2006–2010, 5.7L. Full-document conditions were not independently reviewed because direct official access was previously blocked. Match the actual vehicle/engine and current label; no broader exemption is implied. The illustrated manual requires the enclosed EO identification label on or near the intake for inspection. The current dry-media page advertises 19 HP, 25 lb-ft and 73% more flow; an older exact-part retailer lists 64% flow. Neither an actual selected-media dyno nor a flow sheet is linked on the current page, so test configuration, pressure, baseline and the differing percentages are not independently reconciled. These are manufacturer claims, not guaranteed dry-kit results. Match the actual body, engine, sensor and vent configuration. The dimensional or service details of a different Jeep intake do not establish interchange. The current manufacturer calls this family Rapid Induction while its older illustrated sheet calls it Stage-2; exact part number and components govern.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
