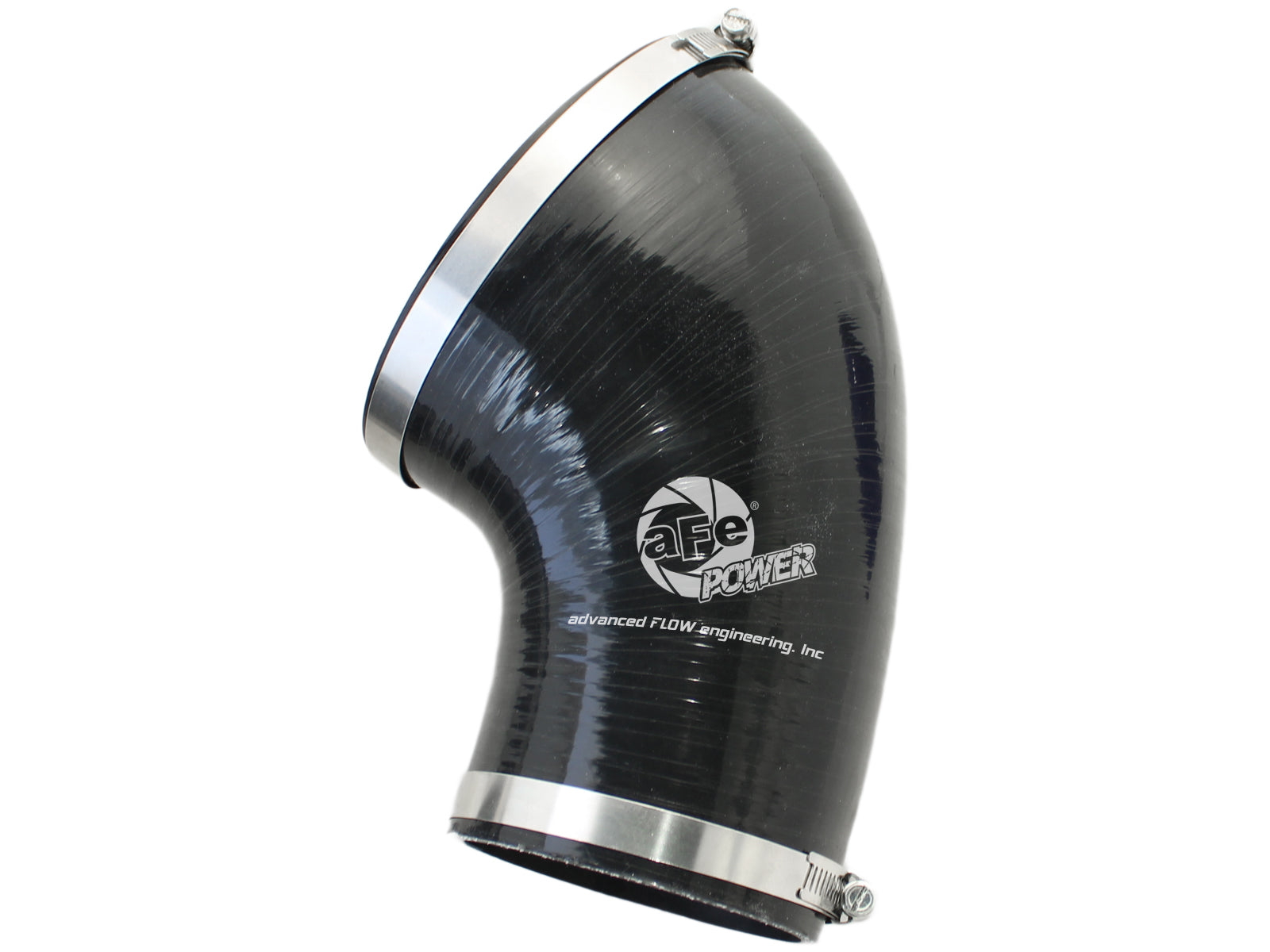

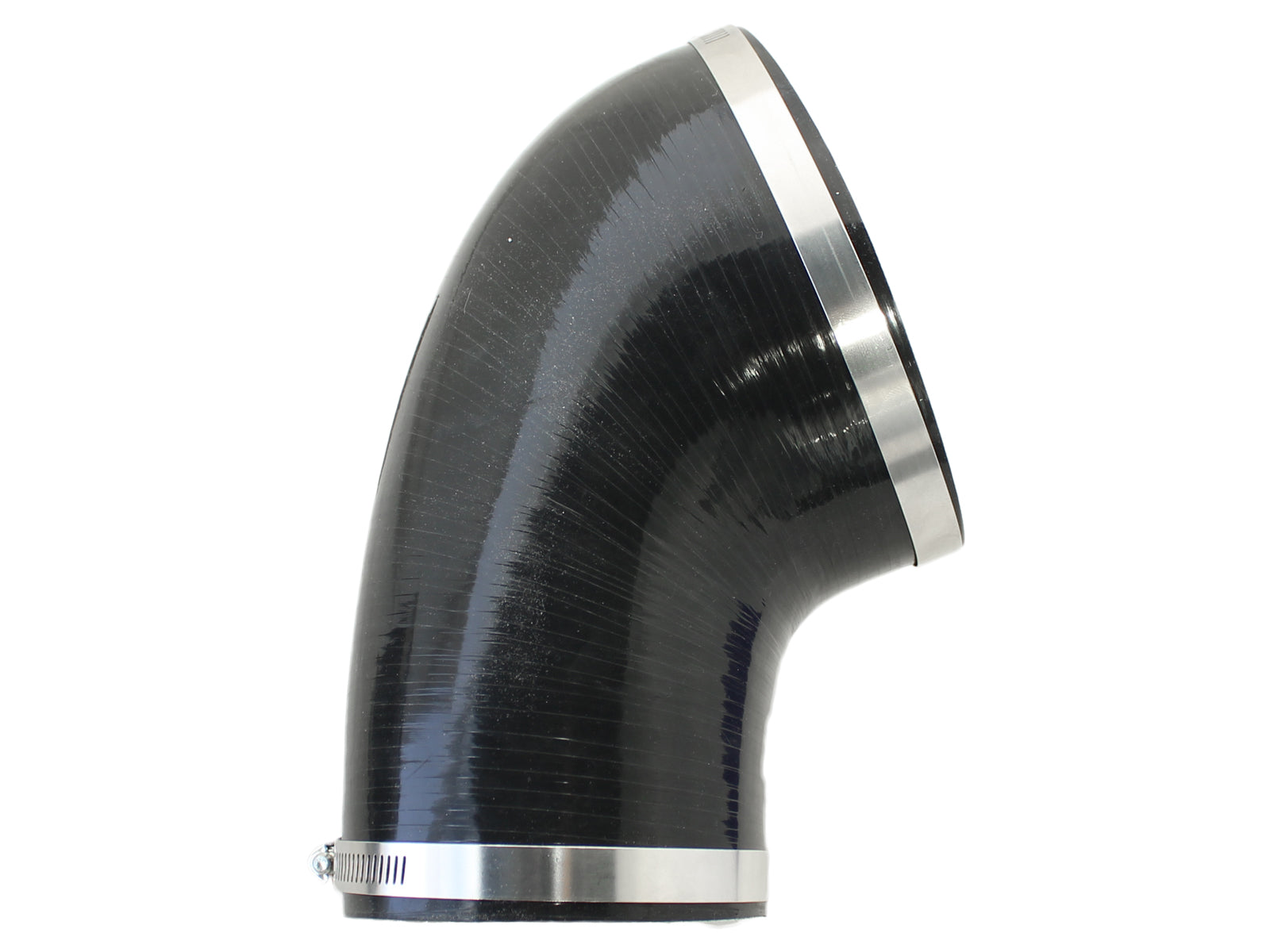

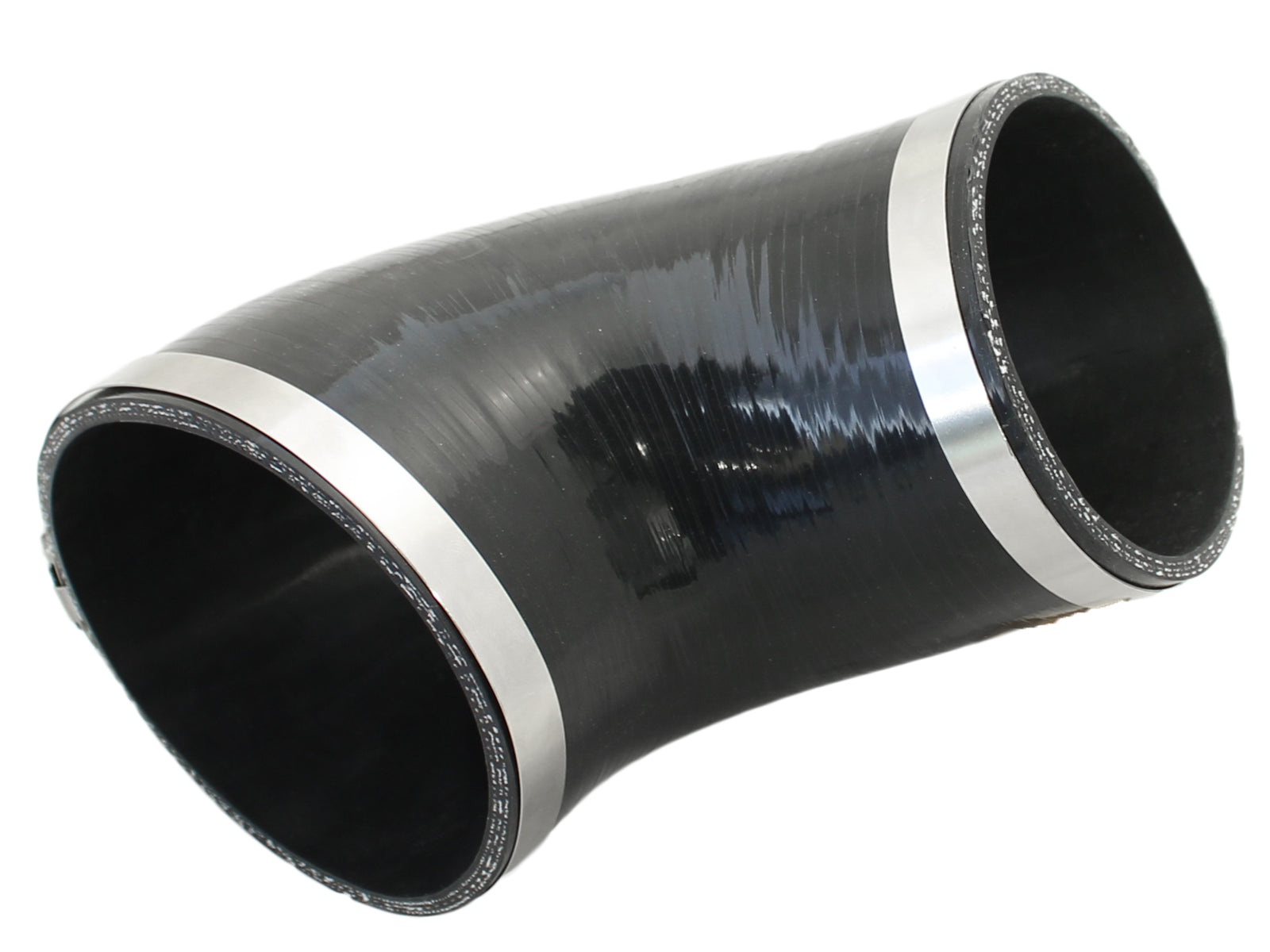

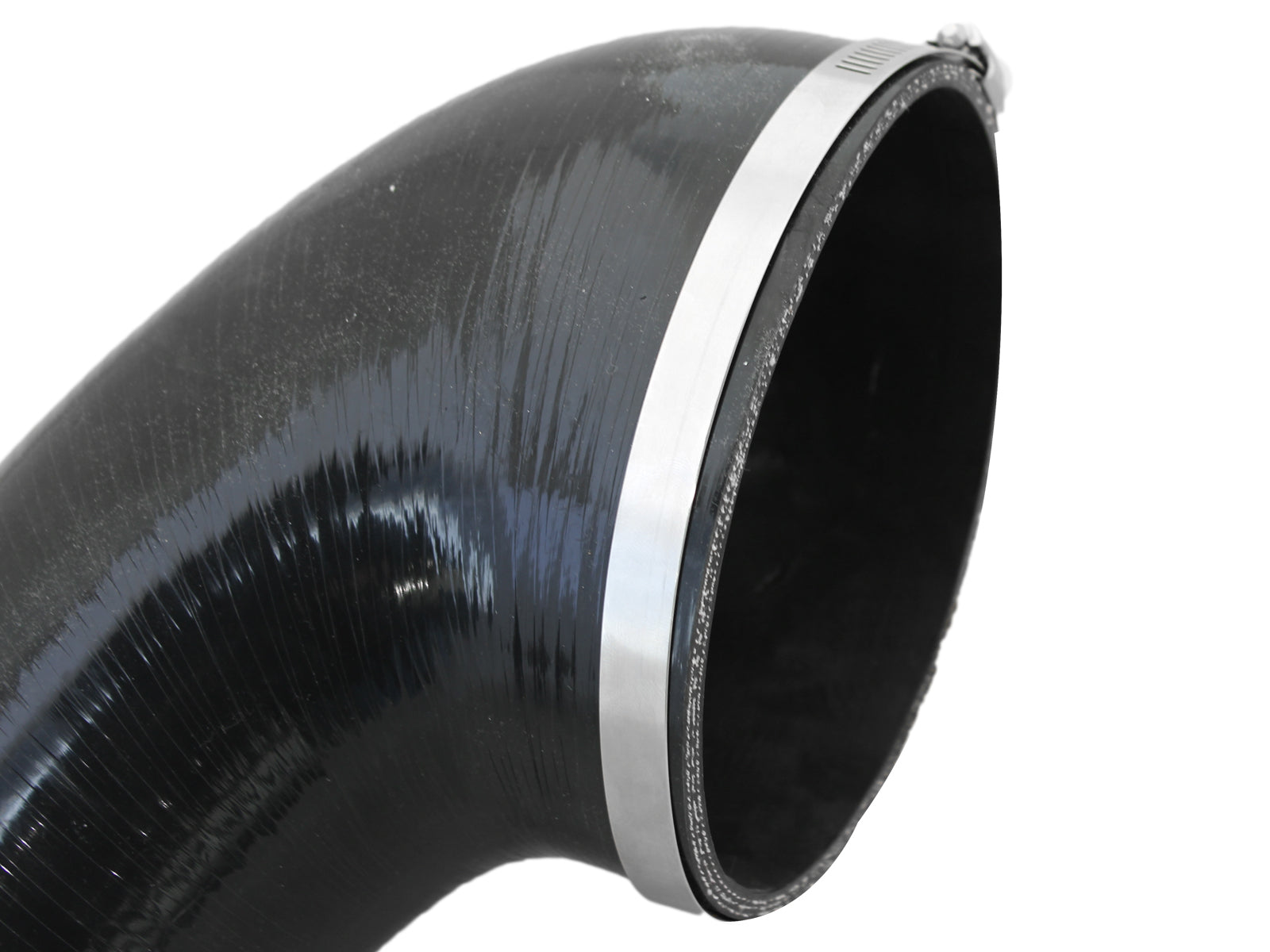

aFe 54-10469-B is the black silicone Magnum FORCE Torque Booster Tube for BMW E46 M3 2001-2006 3.2L applications. This component replaces the intake elbow in a compatible stock system or upgrades the specified aFe Stage-1 intake connection. It supplies one black tube and two clamps, with no air filter, heat shield or complete intake package included.
Current exact headline and the full illustrated manual identify BMW M3 E46 2001-2006 with the 3.2L engine. Preserve the existing Base row and bounds. Current primary describes both factory-intake elbow replacement and an upgrade to the specified aFe Stage-1 kit; match the actual adaptor/plenum connections and retain required original systems. A 2001-2007 reference remains in primary overview and exact retailers, but that conflicting later year is not used to extend the current 2001-2006 row. Do not map Z4 M, later M3 generations or a different engine simply because an S54 engine reference appears in a retailer widget. The official indexed D-550-38 table lists the exact tube family for M3 2001-2006 3.2L; full exact order conditions and exclusions remain held after the prior challenge.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2001-2006 | BMW | M3 | Base |
Verify 54-10469-B against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-10469-B |
| Product type | Air Intake Components; Torque Booster Tube |
| Selected color/material | Black, three-ply reinforced silicone |
| Selected tube service reference | 05-10469B1; one supplied |
| Vehicle scope | BMW E46 M3 2001-2006, 3.2L |
| Intake configuration | Factory elbow replacement or specified aFe Stage-1 upgrade |
| Clamp one | One #064 / 03-50006; 2-1/2 to 4-1/2-inch range |
| Clamp two | One #088 / 03-50005; four- to six-inch range |
| Clamp material | Stainless steel per primary |
| Reused systems | Original vacuum line and strut bar/nuts restored |
| Air filter/housing | Not included despite generic primary specification flag |
| Performance evidence | No selected numeric gains or linked flow/dyno reports |
| Emissions | D-550-38 indexed exact-family row; full conditions held |
| Recheck | Periodically; no numeric torque or mileage interval |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 05-10469B1 | Selected black silicone tube |
| 1 | 03-50006 | Clamp #064, 2-1/2 to 4-1/2-inch range |
| 1 | 03-50005 | Clamp #088, four- to six-inch range |
The shared bill shows blue and black alternatives; this selected package includes one black tube, not both colors. The nonsilicone shared-family identifier does not change the selected black silicone material. Clamp ranges are hardware ranges and are not substituted for precise tube opening dimensions. No filter, housing, separate coupler, vacuum hose, strut brace, sensor or additional mounting hardware is listed. The primary filter-included flag conflicts with this exact three-item selected bill.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One black three-ply silicone intake tube and two specified clamps. The air filter, intake housing and complete Stage-1 system are separate.
Does it work only with an aFe intake?Current exact primary also permits replacement of the factory intake elbow. Match the actual stock or specified Stage-1 connections; the illustrated procedure shows a compatible adaptor/plenum arrangement.
Are both blue and black tubes supplied?No. The bill shows alternatives; this selection supplies the black 05-10469B1 tube only.
Which clamps are supplied?One #064 clamp with a 2-1/2 to 4-1/2-inch range and one #088 with a four- to six-inch range. Those ranges do not establish exact tube opening diameters.
Must the factory strut brace and vacuum line be restored?Yes. The exact procedure reconnects the plenum vacuum line and reinstalls the original strut brace and nuts after tube alignment.
Does the older 2007 reference extend the listed fitment?No extension is made. Current headline, exact manual and indexed selected-family EO row identify 2001-2006 E46 M3; confirm the actual chassis and configuration.
Are an aluminum tube, filter and numeric gains part of this selection?The selected tube is black silicone, no filter is in the bill and no selected numeric flow/dyno result is linked. Generic retailer material and product-page flags do not change those facts.
What battery, torque and recheck instructions apply?Disconnect the negative battery terminal and restore it before operation; final numbered steps omit that repeat. Recheck clamps periodically. No numeric torque or mileage interval is stated.

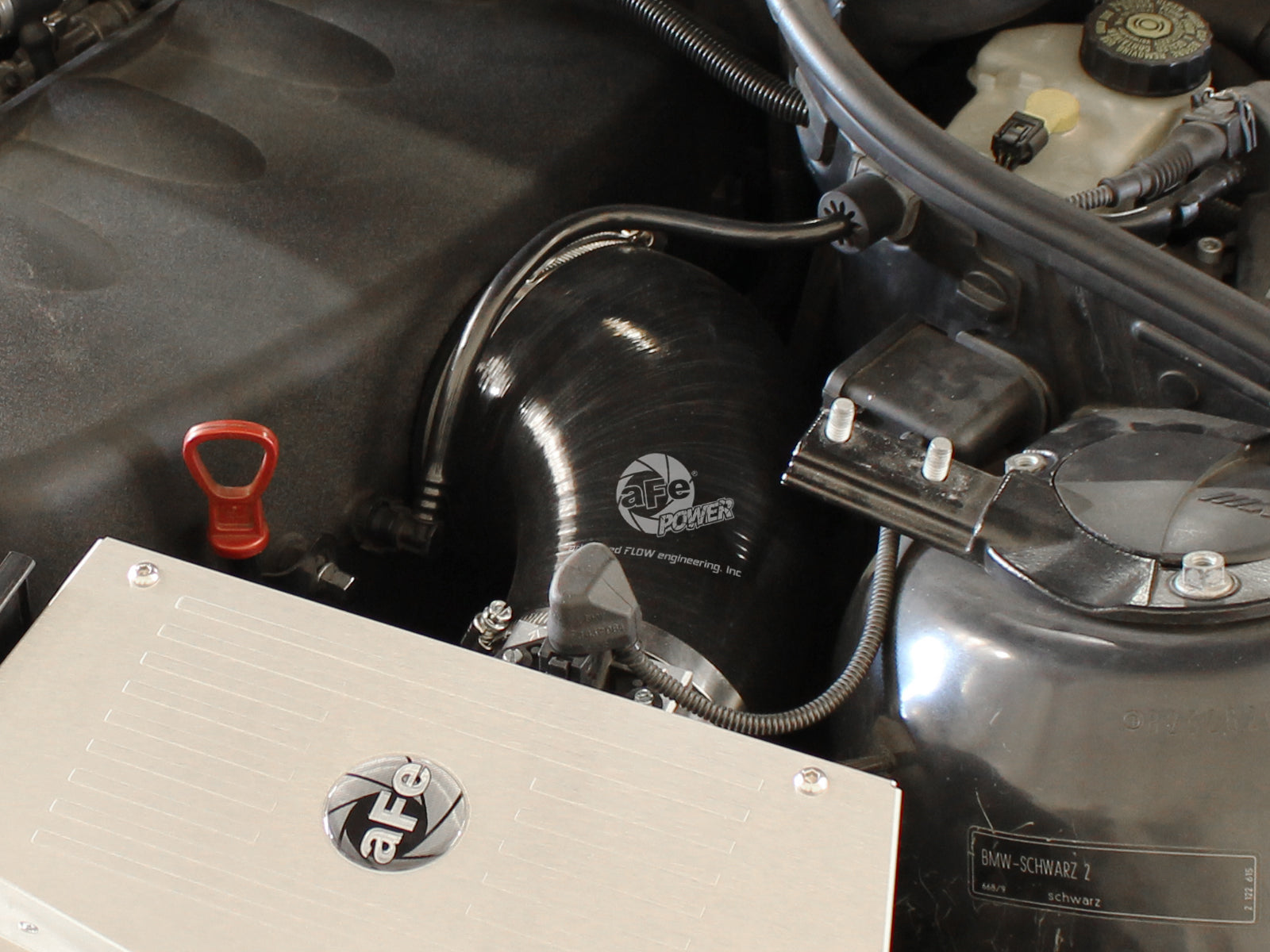

Verify aFe 54-10469-B. Read all twelve pages, including the selected bill and Figures A-C. Work only after the engine has cooled and disconnect the negative battery terminal as the general instructions require. Remove the factory strut-bar nuts using 13mm tooling and lift out the brace. Disconnect the original vacuum line at the intake plenum. Loosen the original intake-elbow clamp using 1/4-inch nut-driver tooling and remove the original tube. Place the two supplied clamps on the selected black silicone tube, fit it to the actual plenum/adaptor connections, align it and tighten the clamps. Reconnect the original plenum vacuum line and reinstall the factory strut brace and nuts. Verify every clamp is secure and recheck periodically. Restore the negative battery connection before operation; the final numbered steps do not explicitly repeat that action. Verify exact application and emissions conditions before relying on the EO-sticker instruction. No numeric clamp/brace torque or mileage interval is stated.
Current exact primary and the complete twelve-page manual were reviewed, including the selected A2/B/C bill, exploded diagram, Figures A-C, blank pages, related-product page and warranty/contact pages. The selected package is one three-ply black silicone tube and two clamps. Product-page filter inclusion and retailer aluminum descriptions do not override the exact selected material and bill. The Stage-1 intake and air filters pictured as related products are separate purchases. Current headline/manual and indexed exact-family EO coverage are 2001-2006; the broader 2007 overview/retailer reference remains a source conflict without a new year extension. No Z4 M or other shared-engine application is inferred. No selected dyno or flow report is linked, so no numeric performance gain is claimed. Full D-550-38 conditions remain held after earlier challenged access; indexed coverage is qualified. Original application row, bounds, tags and vehicle memberships are preserved. The general battery-disconnect instruction requires restoration before operation although the final numbered procedure does not repeat it. No torque, tube-opening diameter or mileage interval is borrowed.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
