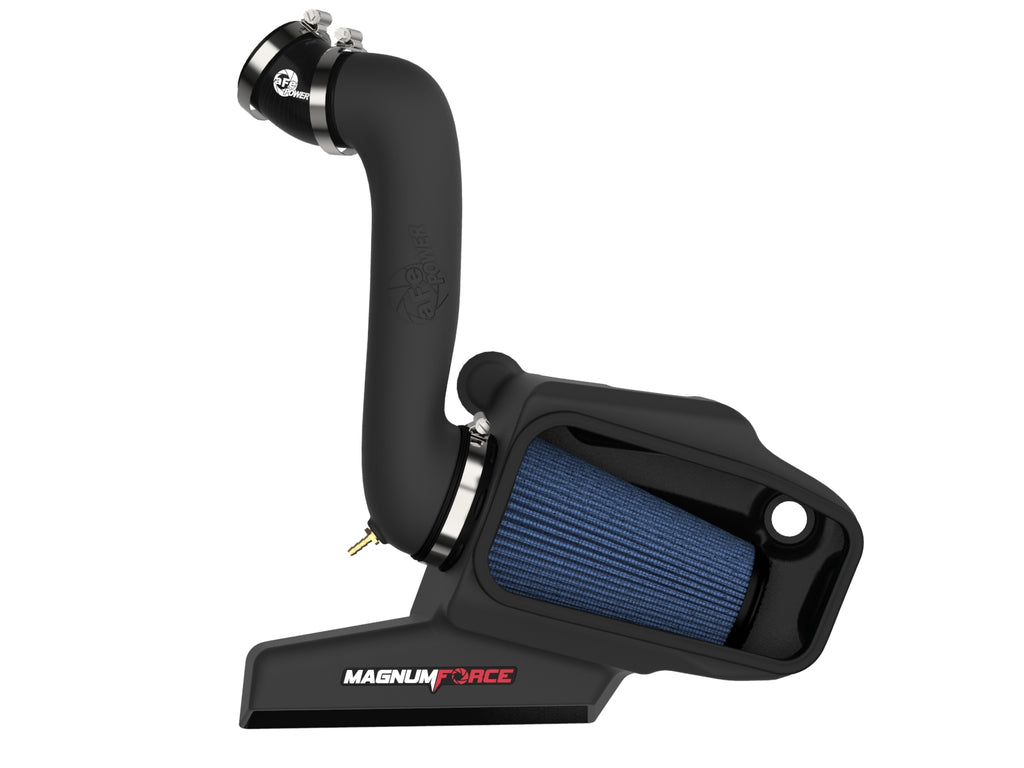

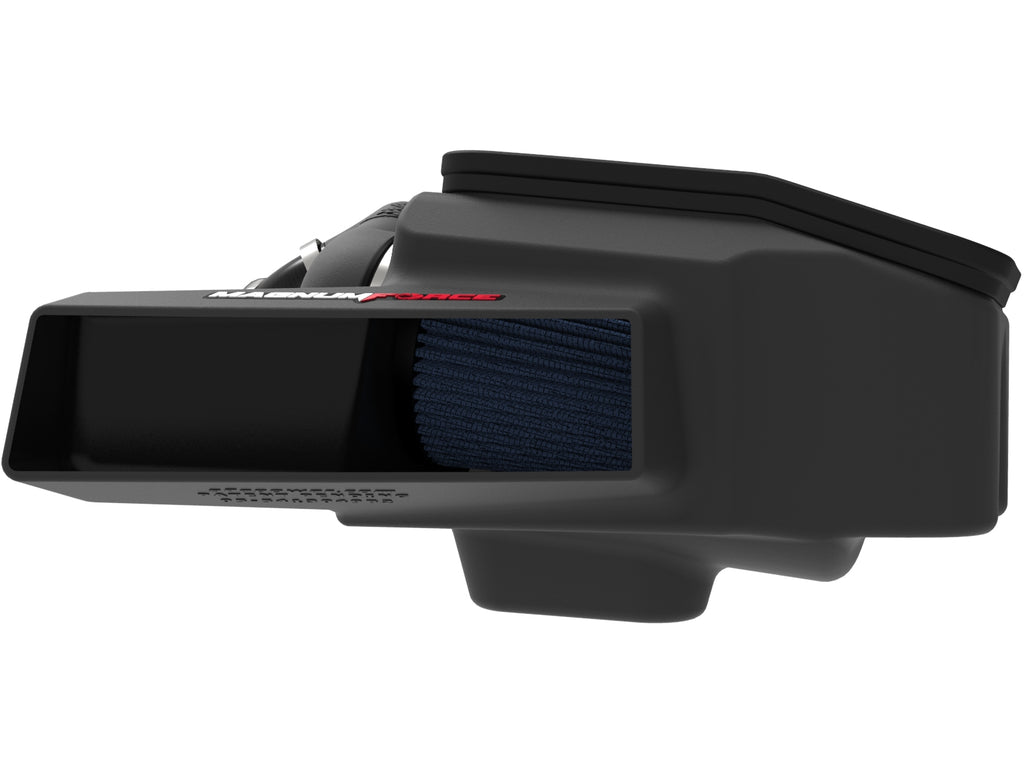

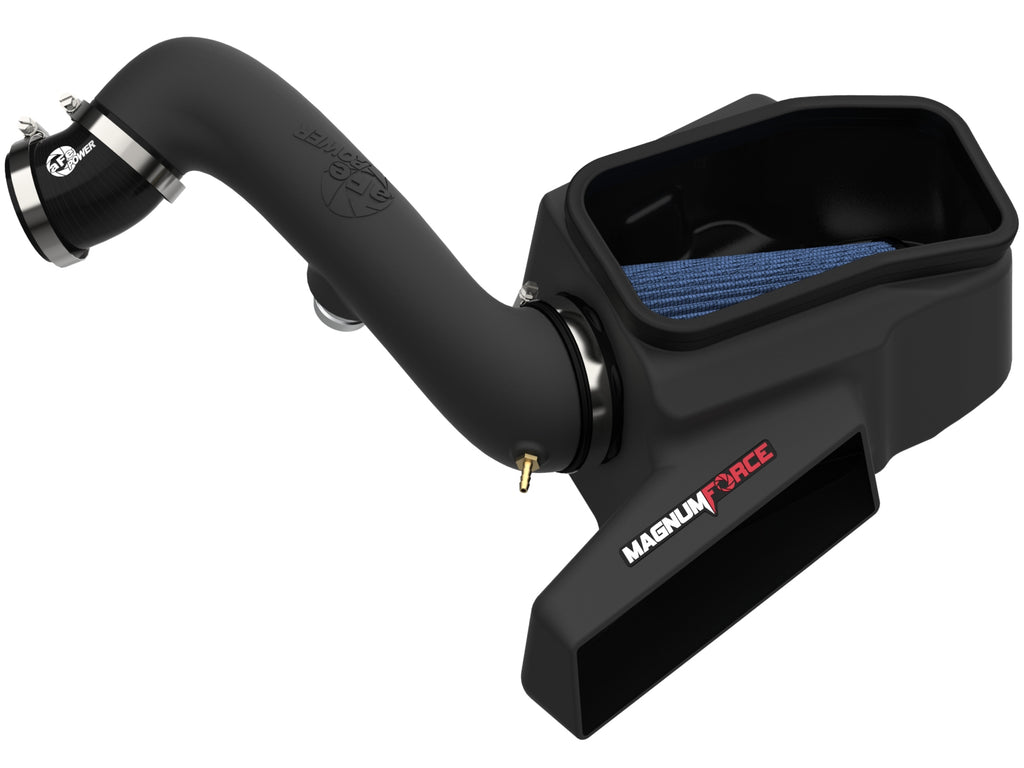

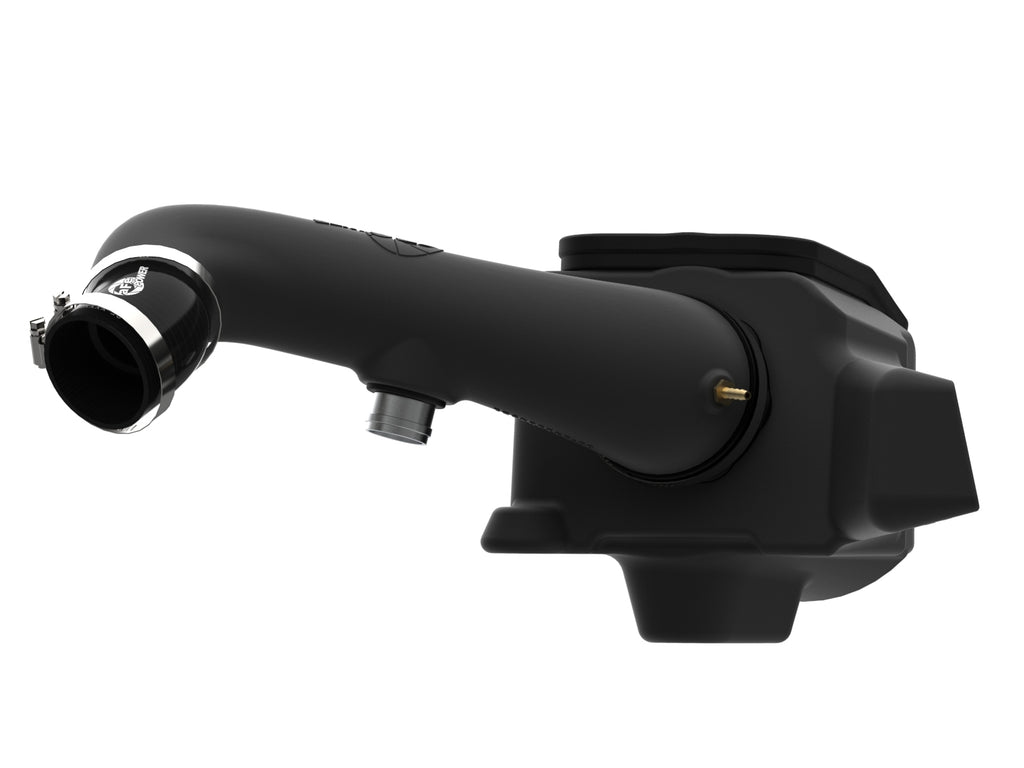

aFe 54-13049R is a Magnum FORCE Stage-2 intake for the qualified 2019-2021 Volkswagen Jetta MKVII 1.4L turbo. One Pro 5R filter fits an XLPE housing with an integrated air-inlet scoop, connected to the turbo-inlet elbow through an XLPE tube. The supplied smog-pump fitting or cap is selected for the actual vehicle equipment, and the original crankcase-breather hose reconnects to a separate brass nipple.
Current manufacturer page identifies Jetta MKVII 2019-2021 with the 1.4L turbo engine. The linked manual cover ends in 2020; current primary and exact selected retailer tables support retaining the original five named 2019-2021 rows below. Canadian-market Comfortline/Execline/Highline/Trendline and 2020 Wolfsburg retailer positives remain qualified follow-up entries, without new mappings here. Do not infer later 1.5L, GLI 2.0L or another Volkswagen model from a related filter or broad vehicle widget.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2019-2021 | Volkswagen | Jetta | R-Line |
| 2019-2021 | Volkswagen | Jetta | S |
| 2019-2021 | Volkswagen | Jetta | SE |
| 2019-2021 | Volkswagen | Jetta | SEL |
| 2019-2021 | Volkswagen | Jetta | SEL Premium |
Verify 54-13049R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-13049R |
| System | Magnum FORCE Stage-2; Pro 5R |
| Filter | One 24-91117; 3.5-inch flange, 8-inch height |
| Media | Five cotton-gauze layers; pre-oiled |
| Tube/housing | XLPE polymer |
| Elbow | 05-01529 silicone elbow; aFe logo on top |
| Coupling clamps | Two size 044 clamps; filter flange clamp separate |
| Bench flow | 230 versus stock 210 CFM at 7 inches H2O, a calculated 9.52% increase |
| Dyno comparison | The marked 5,360-rpm values are 146.61/141.21 HP and 143.67/138.37 lb-ft, differences of 5.40 HP and 5.30 lb-ft. Legend maxima instead differ by 7.60 HP and 2.25 lb-ft (148.81/141.21 HP; 192.78/190.53 lb-ft). The graph identifies the selected prototype intake and a stock-intake baseline, with black/red fans and fourth-gear runs. Baseline was September 30, 2019, SAE 1.03; intake was October 2, 2019, SAE 1.02. No exact vehicle/year/engine identity is printed in the run notes. Different-date prototype results do not certify every production installation. |
| Emissions | Current exact manufacturer page and manual: not CARB exempt; not for purchase in California or use on a California-registered vehicle |
| Recheck | 100-200 miles; no numeric torque supplied |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91117 | Selected Pro 5R filter |
| 1 | 05-5413049B2 | XLPE housing |
| 1 | 05-5413049B1 | XLPE tube |
| 29 inches | 05-01507 | 3/4-inch bulb trim |
| 1 | 05-01529 | Silicone elbow |
| 1 | 05-01096 | Aluminum smog-pump fitting |
| 1 | 03-50179 | Alternative smog-pump port cap |
| 3 | 03-50647 | Housing mounting grommets |
| 2 | 03-50019 | Size 044 coupling clamps |
| 1 | 03-50139 | Flat rubber tube-port grommet |
| 1 | 03-50191 | Brass breather nipple |
The shared bill depicts alternative media, not two filters supplied. The filter has its own flange clamp in addition to the two loose size 044 clamps. Reconnect the original crankcase-breather hose and smog-pump line where fitted; use the cap only for a vehicle without that pump. No new sensor, sensor screws, electrical harness or breather hose is itemized. These exact tube, elbow, brass-nipple and trim service parts differ from the adjacent 2.0L intake; do not substitute that kit's reducer or size 048 clamp.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
A Stage-2 system for the qualified Jetta MKVII 1.4L turbo using one Pro 5R filter, XLPE housing and XLPE tube.
Does it include both filter media?No. This selection supplies one 24-91117 Pro 5R filter. The shared manual shows the other media as an alternative.
Which way does the elbow face?Install the silicone elbow with the aFe logo on top. Leave the turbo-inlet size 044 clamp loose initially so the elbow can rotate for final alignment.
Are the two coupling clamps different sizes?No. This kit lists two size 044 clamps. Its filter flange clamp is separate; do not borrow a size 048 clamp from another intake.
How is the smog-pump connection handled?Install the flat tube grommet and the supplied aluminum fitting for a pump-equipped vehicle, then reconnect its line. Use the supplied cap for a vehicle without that pump.
How should the filter and housing be seated?Engage all three housing grommets on the battery-tray pins. Install the filter from the top with its retention bumps outside the housing; insert the tube into the filter first and rotate down into the elbow.
Does the older manual cover end the application at 2020?The cover ends in 2020, while the current manufacturer page and exact selected retailer tables support the retained 2019-2021 1.4L rows. No later 1.5L or GLI application is inferred.
What recheck and measured-gain limitations apply?Recheck screws, clamps and connectors after 100-200 miles. No numeric torque or battery step is given. Read selected-media flow separately; the different-date dyno sheets identify prototype intakes and their marked gains differ from peak-to-peak changes.
Verify aFe 54-13049R. Read the full manual and work on a cool engine. Disconnect the smog-pump line where fitted and the original crankcase-breather line. Release the factory turbo-inlet clamp with the specified channel-lock pliers, then lift the original housing/tube from the grommets while rotating the rear forward to clear the scoop. Fit the three mounting grommets and top trim to the new housing, trimming the supplied seal to fit as instructed. Install the flat grommet into the one-inch tube port and choose the aluminum smog-pump fitting or cap according to equipment. Install the separate brass nipple using an 11 mm wrench; the manual gives no numeric torque. Place the elbow with logo UP and one size 044 clamp at the turbo inlet, leaving it loose to rotate for alignment. Press the housing onto all three battery-tray pins. Install the selected filter with retention bumps outside and its flange clamp loose. Insert the tube into the filter FIRST, rotate down into the elbow using the second size 044 clamp, align the elbow/tube and tighten the clamps. Reconnect the breather line at the SIDE nipple and any smog-pump line. Verify connections and recheck screws, clamps and connectors after 100-200 miles. No battery-disconnection, MAF-transfer, sensor-screw replacement or numeric torque instruction is provided.
Both own linked 16-page manuals have the same SHA-256 hash, 1ee849ed57c62ae938ce4b1b2b428e868806b6d970097995162c60f81a05297f. Full text, all four contact sheets, the complete bill and Figures A-J were read and visually inspected; each selected flow and dyno image was separately inspected. The marked 5,360-rpm values are 146.61/141.21 HP and 143.67/138.37 lb-ft, differences of 5.40 HP and 5.30 lb-ft. Legend maxima instead differ by 7.60 HP and 2.25 lb-ft (148.81/141.21 HP; 192.78/190.53 lb-ft). The graph identifies the selected prototype intake and a stock-intake baseline, with black/red fans and fourth-gear runs. Baseline was September 30, 2019, SAE 1.03; intake was October 2, 2019, SAE 1.02. No exact vehicle/year/engine identity is printed in the run notes. Different-date prototype results do not certify every production installation. All original fitment tags, bounds, native memberships and unrelated metadata remain unchanged. Turn14 exact-product information remains unavailable without authenticated access. No guaranteed power, emissions exemption, fixed filter-cleaning mileage or price change is claimed.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
