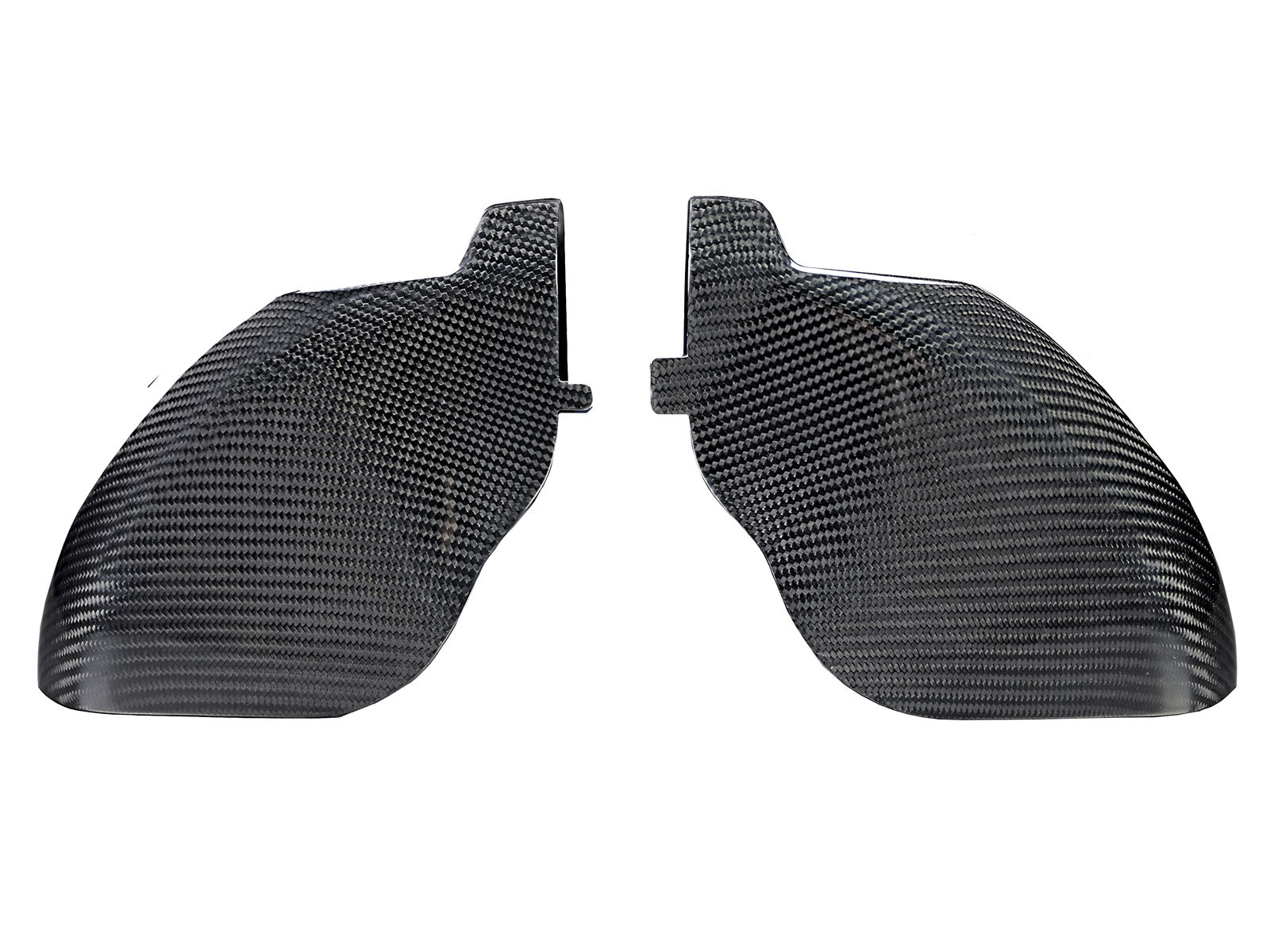

The aFe 58-10005SC is a pair of carbon fiber Dynamic Air Scoops for the 2018–2023 BMW M5 F90 4.4L twin-turbo S63. One driver-side and one passenger-side scoop connect the front grille airflow path to the inlet ducts. This is not an intake or filter kit, and vehicles with the Night Vision front camera are excluded.
| Years | Make | Model | Application |
|---|---|---|---|
| 2018–2023 | BMW | M5 (F90) | 4.4L twin-turbo S63; without Night Vision front camera |
58-10005SC: the current exact manufacturer page and manual agree on this F90 range. Existing named-trim entries do not replace verification of engine and equipment. The Night Vision exclusion applies to the scoops; do not infer that every front camera is identical.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 58-10005SC |
| Configuration | Driver/passenger scoop pair; no filter or complete intake |
| Material | 100% twill-weave carbon fiber |
| Application | 2018–2023 BMW M5 F90; 4.4L twin-turbo S63 |
| Equipment restriction | No Night Vision front camera |
| Emissions | Not currently CARB exempt; unavailable for California purchase or use on California-registered vehicles. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

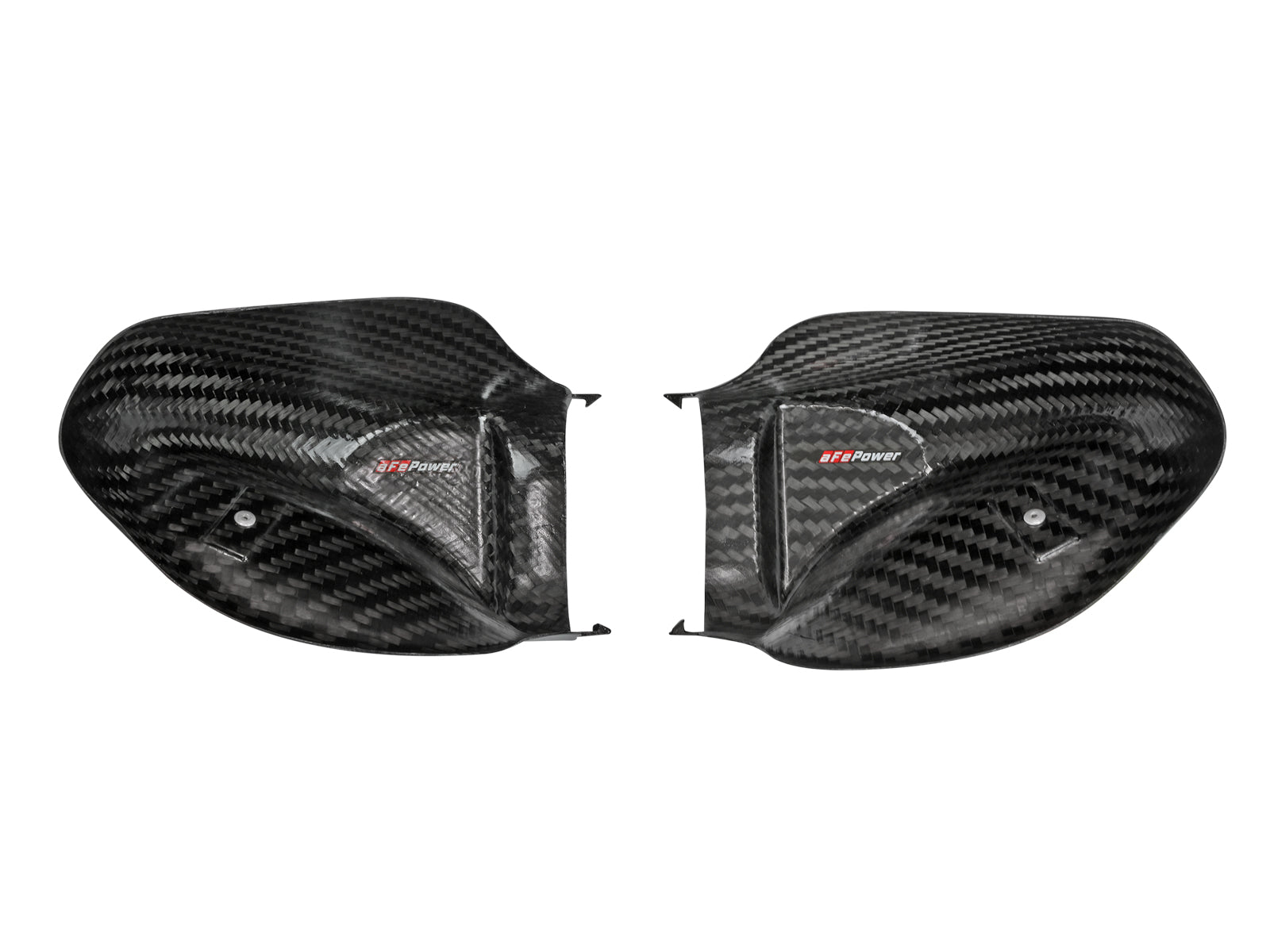

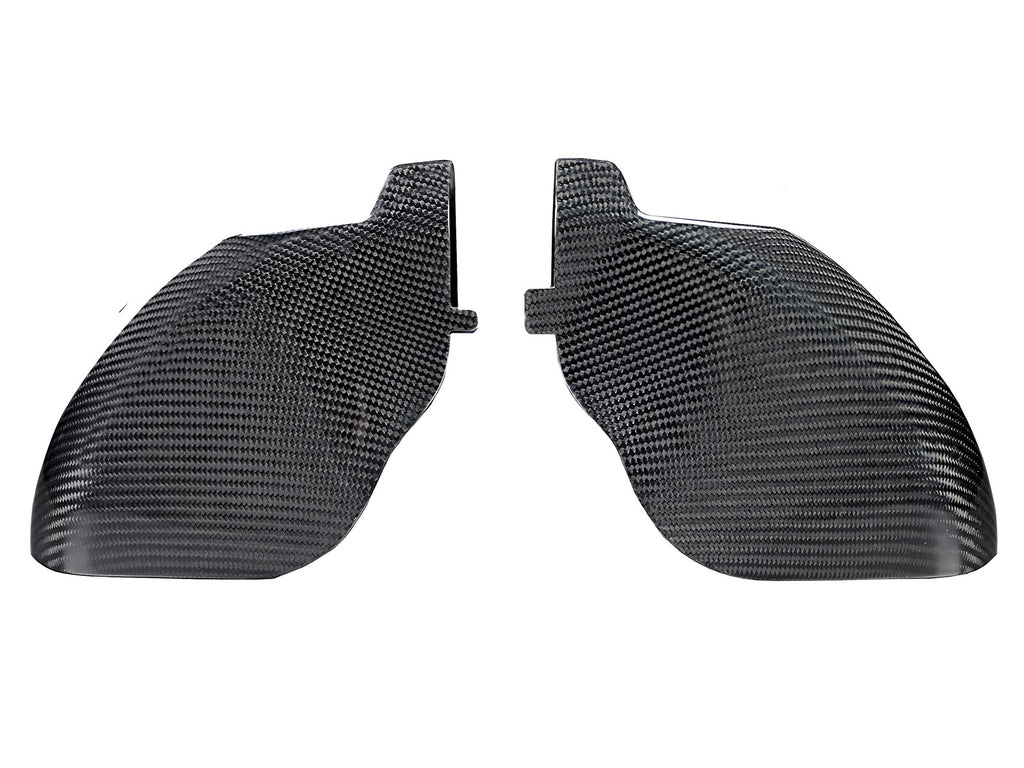

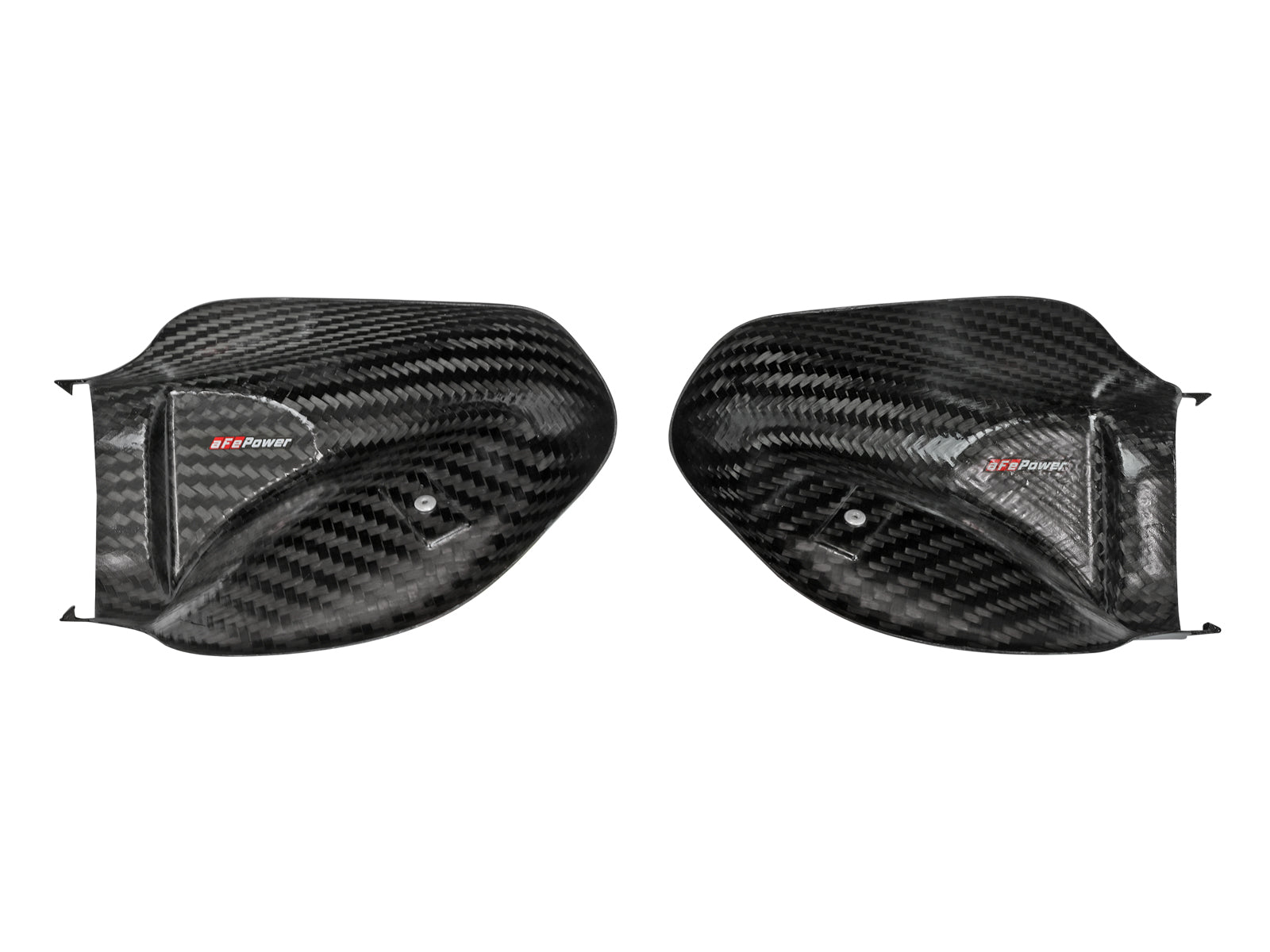

A driver/passenger pair of carbon fiber Dynamic Air Scoops for the exact BMW M5 F90 application above.
Is this a complete intake?No. Only the two scoops are listed; filters, intake tubes and housings are not included.
Does it work with the factory intake?Yes. The manufacturer explicitly lists the factory intake and the matched aFe Black Series dry/oiled intake configurations.
Does it fit with Night Vision?No. The exact page and manual exclude vehicles equipped with the Night Vision front camera.
Are filters and couplers included?No. Generic page fields say yes, but the exact manual lists only two scoops and the overview describes a hardware-free scoop installation. Those generic fields do not establish extra kit contents.

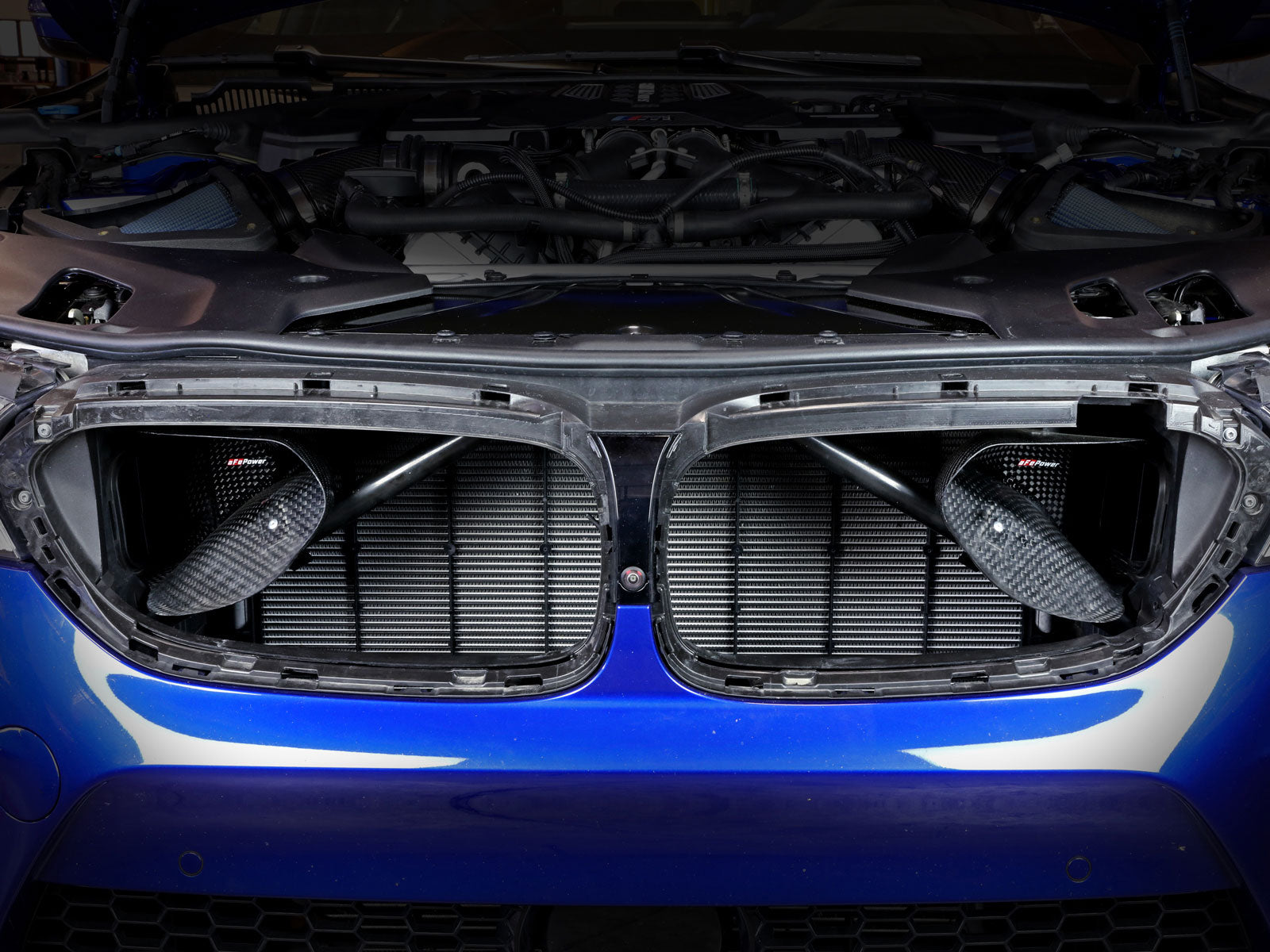

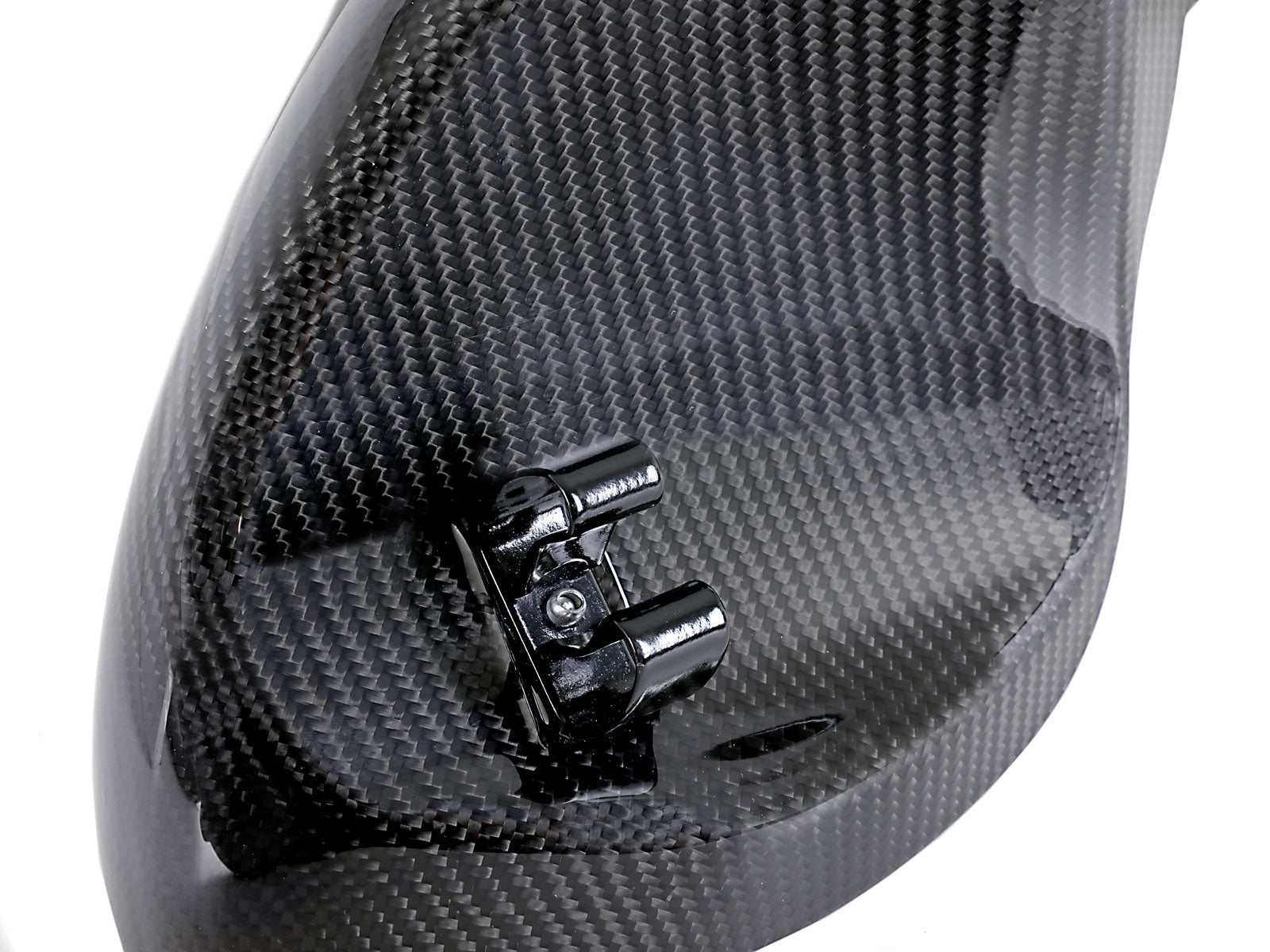

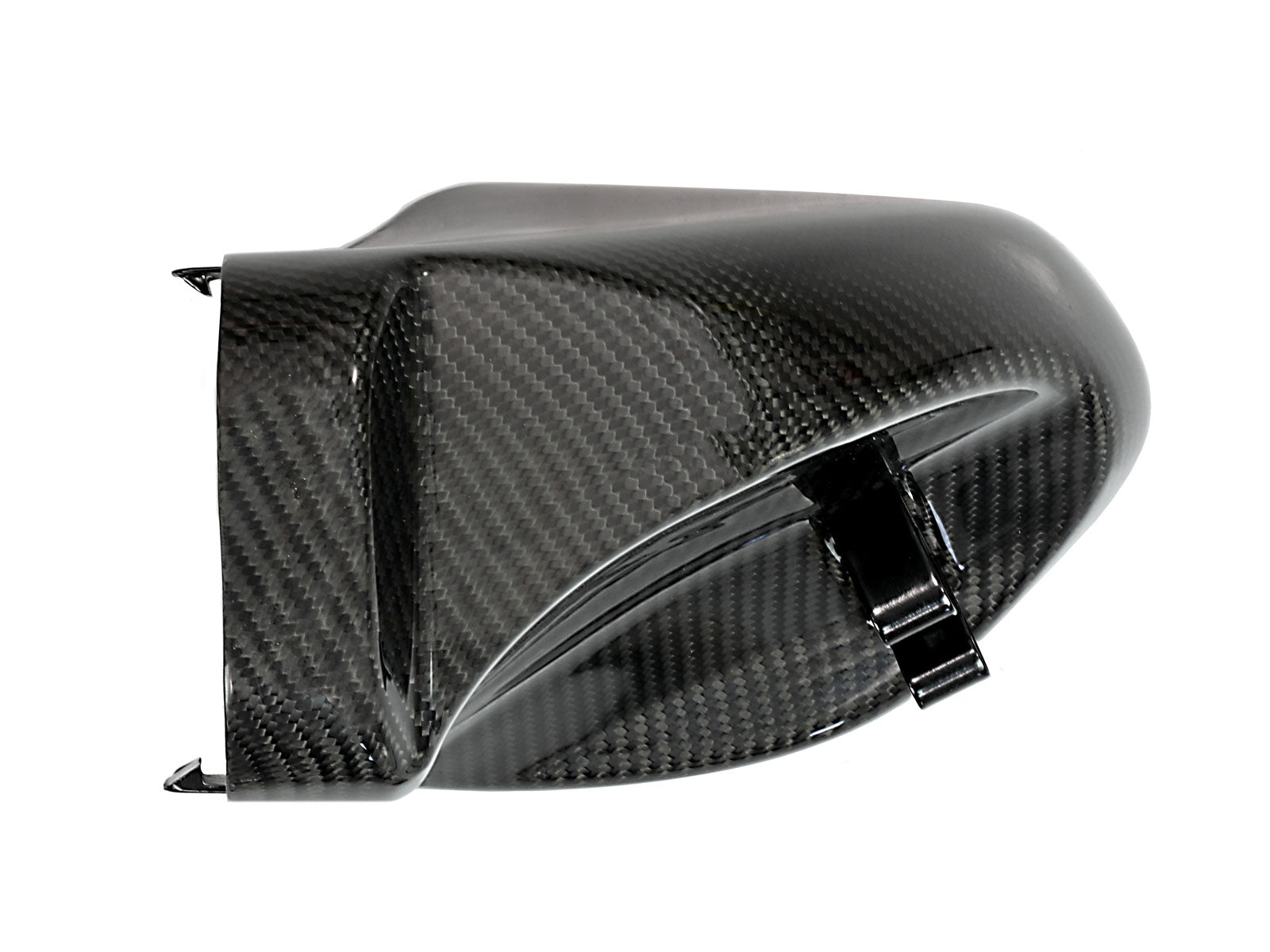

Is extra mounting hardware required?No. The scoops position over the V-support brace and clip into the factory inlet ducts.

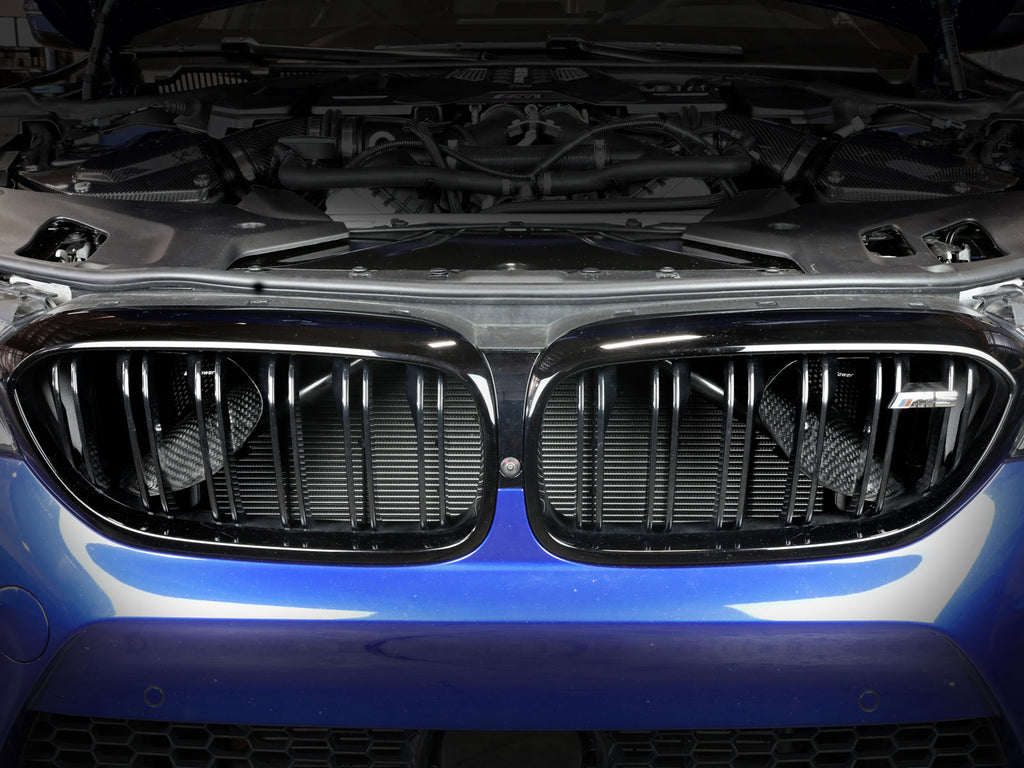

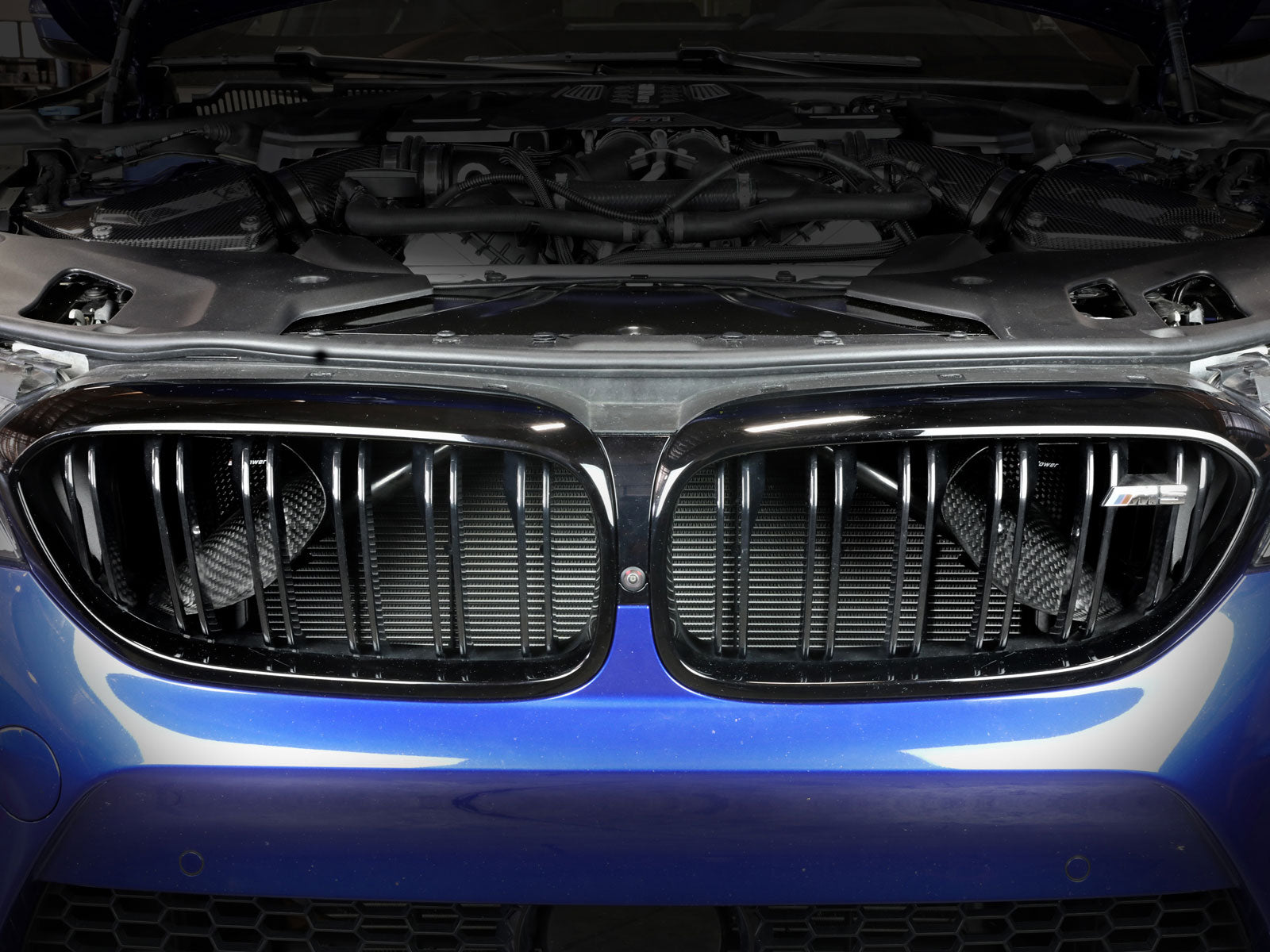

Do the front grilles need removal?Yes. The manual directs releasing the three top grille tabs on each side, removing the original inlet ducts and installing the scoops before refitting the grilles.
Is this CARB exempt?The exact manufacturer page and manual state it is not currently CARB exempt and is unavailable for California purchase or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
