aFe Ford Super Duty 7.3L Momentum GT Pro 5R Intake

Ford Super Duty 7.3L Momentum GT intake details

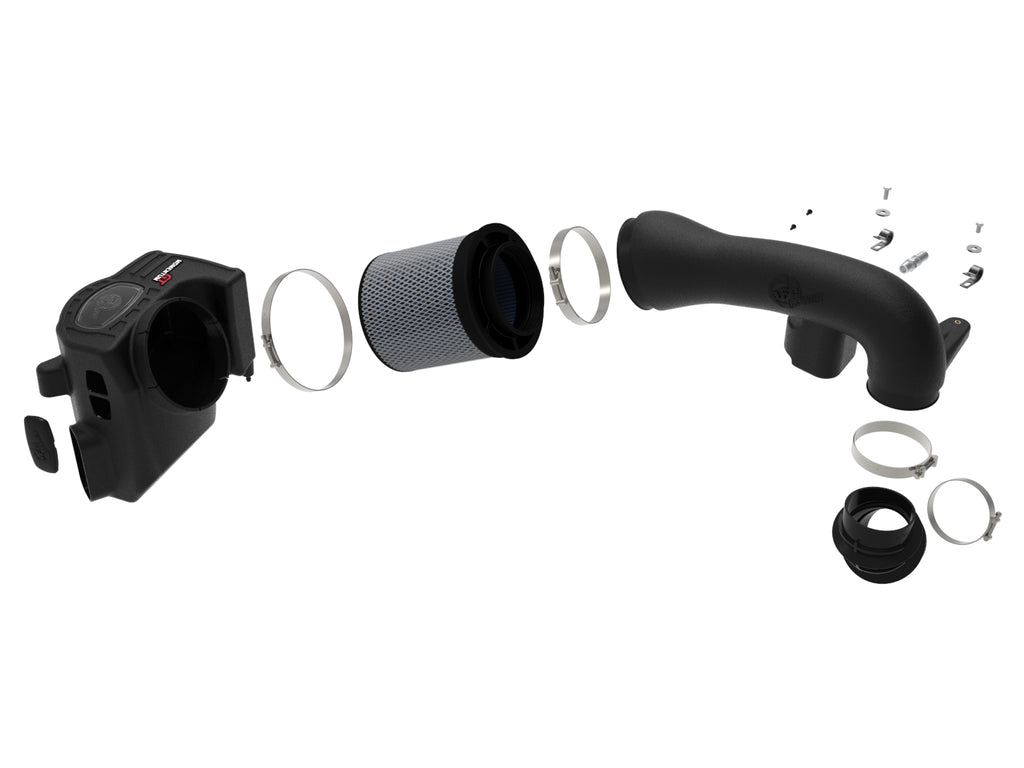

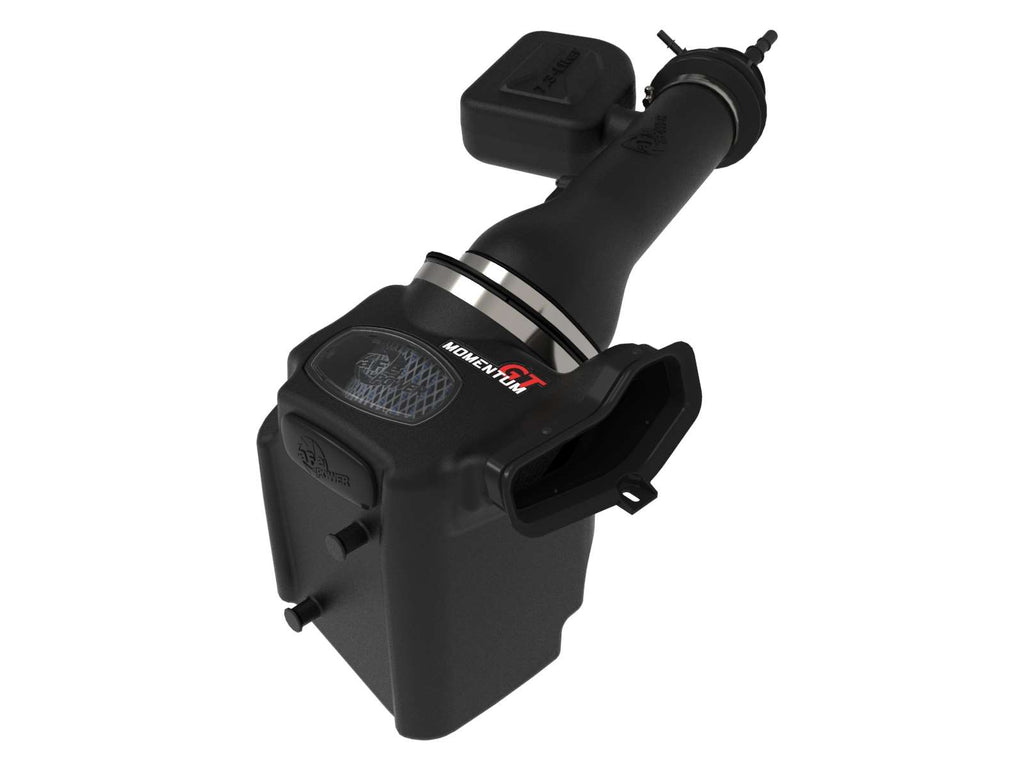

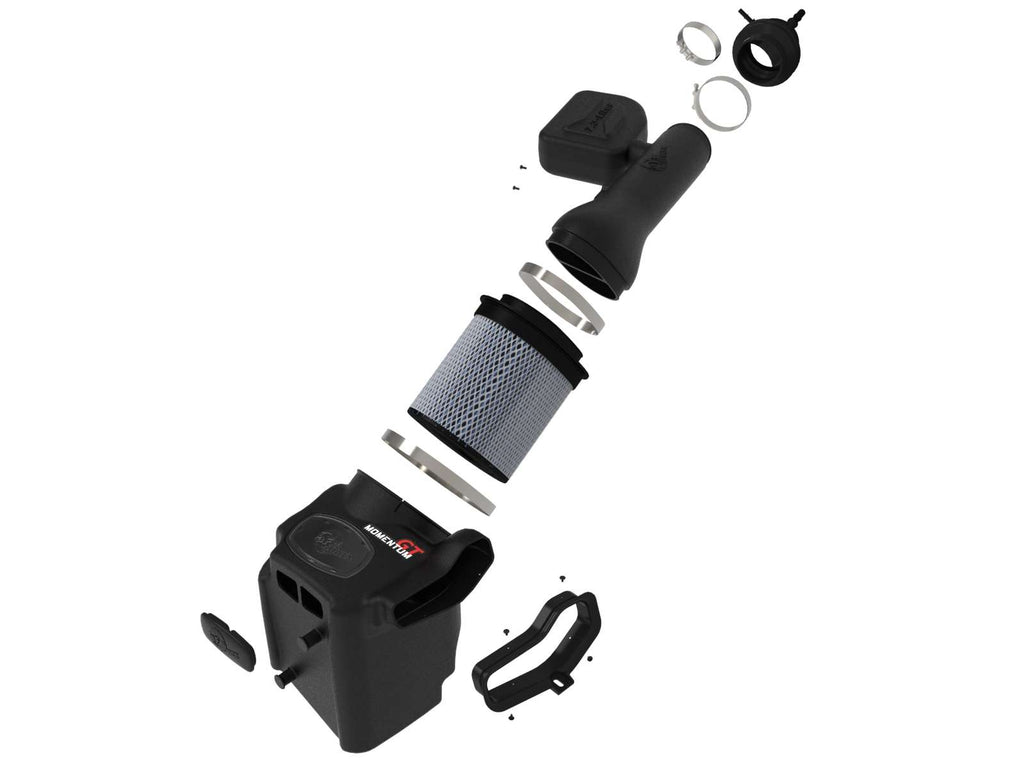

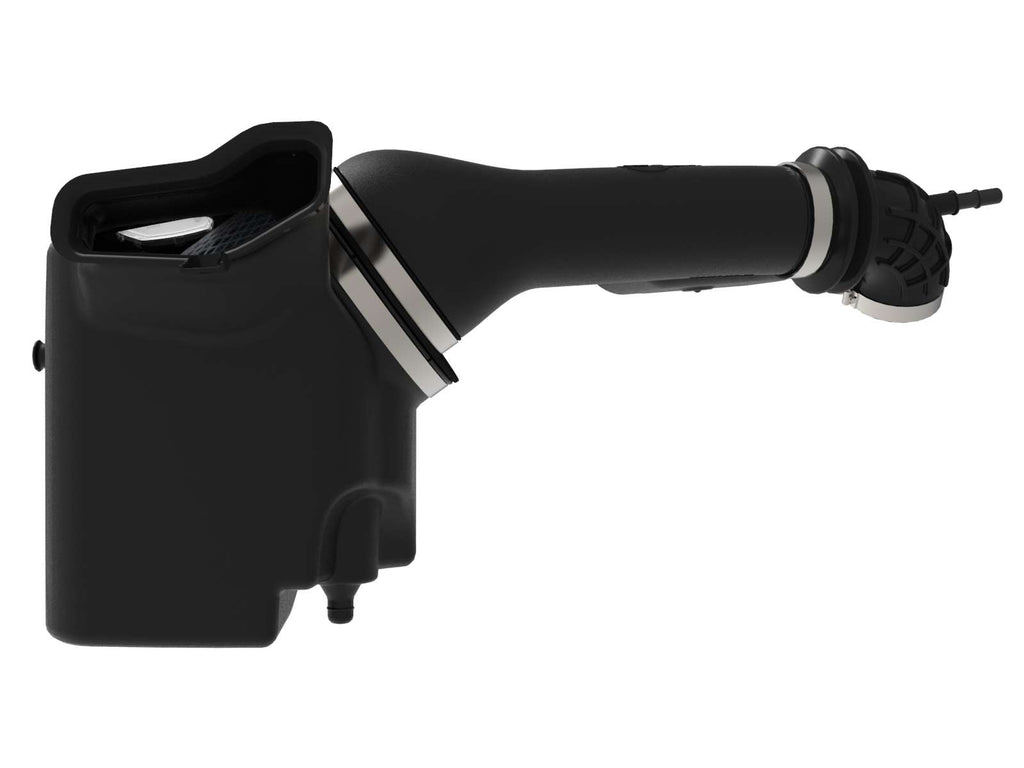

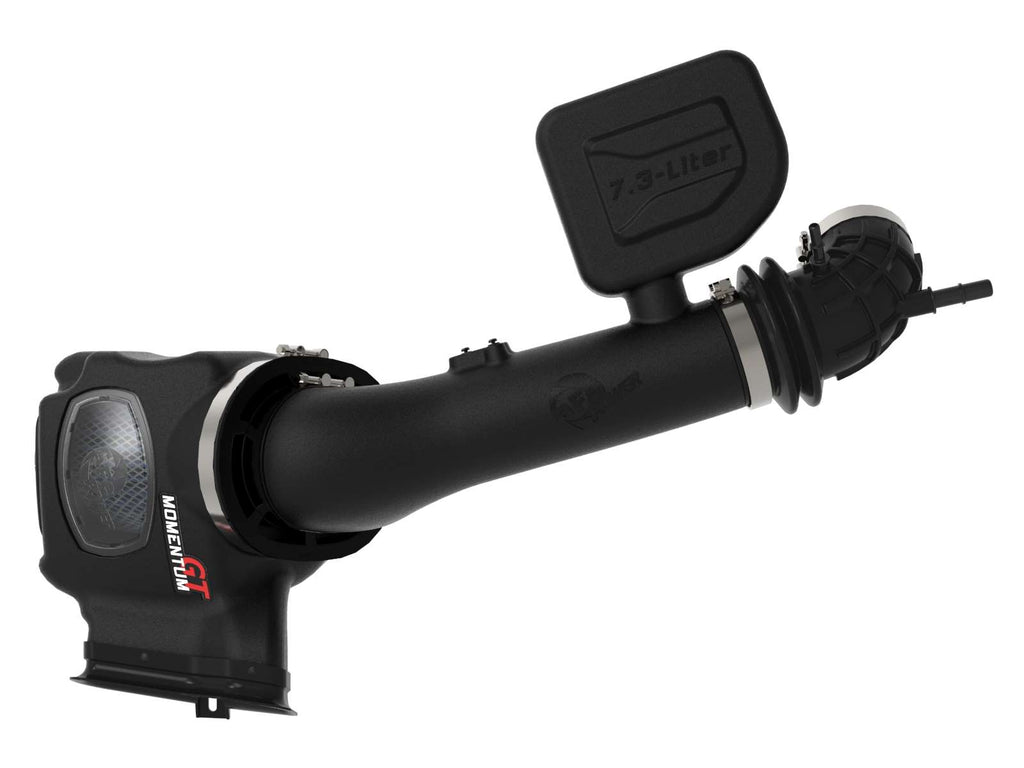

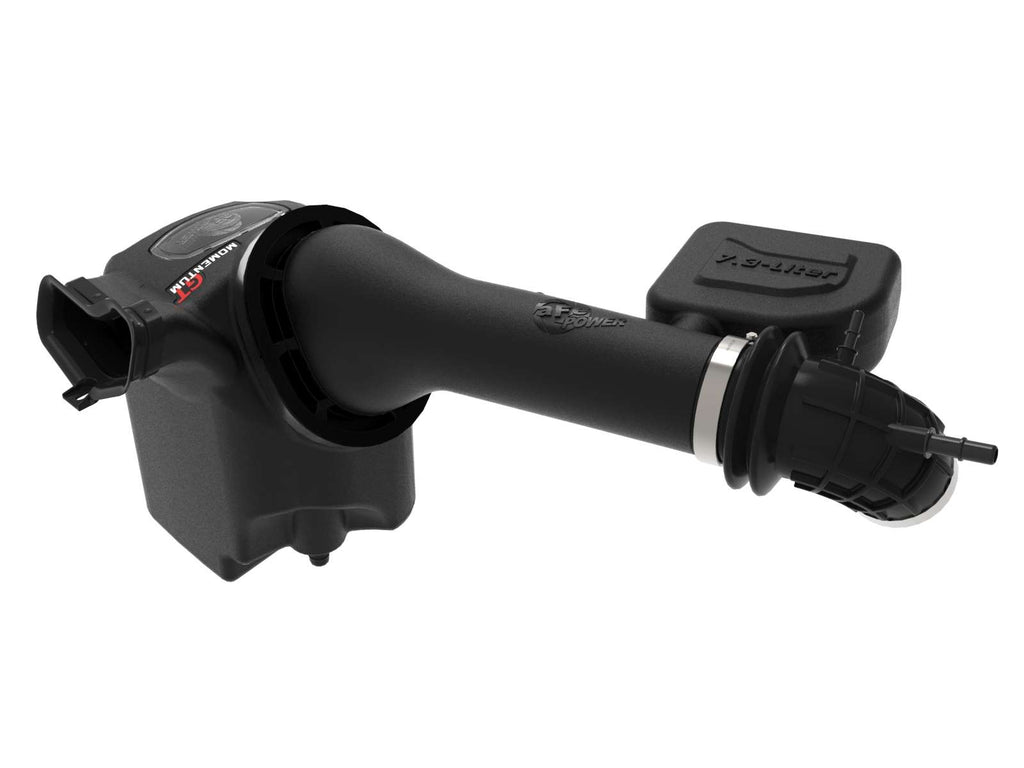

aFe 50-70058R is the Momentum GT Pro 5R intake for qualified 2020-2022 Ford F-250/F-350 Super Duty trucks with the 7.3L gasoline V8. It supplies one five-layer pre-oiled cotton-gauze filter, XLPE tube and sealed XLPE window housing. The original MAF transfers with two supplied M4 x 10 mm screws. Current coupling hardware is #056/#060 worm clamps; older T-bolt photographs do not change the exact current bill. Preserve the original mounting grommets, scoop seal clip and both breather quick connections.

Key Features

• One 24-91061 Pro 5R filter, with five pre-oiled cotton-gauze layers.
• Filter service geometry: 9-inch height, 7 x 4-3/4-inch oval flange and 9 x 7-inch base/inverted top.
• XLPE intake tube 05-5070058B1 and housing 05-5070058B2.
• Silicone bellows 05-01537 with #056 clamp at the throttle body and #060 at the tube side.
• One large housing T-bolt clamp; filter-flange clamp operation is separate and illustrations note hardware may vary.
• Two M4 x 10 mm Torx screws 03-50490 for the original MAF; no replacement MAF is supplied.
• Scoop seal trim 05-01553 and four retaining clips 05-01554; reuse the separate original vehicle seal clip.
• Two transferred side grommets must seat past their beads; lower housing pin seats in the retained vehicle mounting grommet.

Fitment

Both exact current primary and complete own manual specify Super Duty F-250/F-350 2020-2022 with the 7.3L gasoline V8. Exact selected-part named tables corroborate King Ranch, Lariat, Platinum, XL and XLT for both Super Duty models across that range. Those ten genuine named groups are restored. The two original broad F-250/F-350 model rows retain their 2020 start and extend from 2021 through 2022, subject to the actual 7.3L engine and matching MAF/breather arrangement. Both existing broad model collections and separate Super Duty collections are relevant destinations. No later 2023 revision, 6.2L/6.8L gasoline or 6.7L diesel application, F-450/F-550 or additional named trim is inferred. Shared filter/housing service parts do not make a complete different-engine intake interchangeable.

Verify 50-70058R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

One selected filter is supplied, not both media alternatives. The filter-flange clamp is separately described from the itemized housing T-bolt and two coupling worm clamps; the manual explicitly notes that clamps shown may vary. Do not turn older illustrated coupling T-bolts into a current bill claim. No new MAF, IAT adaptor, loose vent fittings, coolant-hose bracket or housing bolts are itemized. Transfer the original MAF with the two specified screws. Reuse the two side grommets, original lower vehicle mounting grommet, original scoop-seal retaining clip and both breather quick connections.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 50-70058R
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One selected filter, XLPE tube and housing, silicone bellows, #056/#060 worm clamps, one housing T-bolt clamp, scoop seal, four clips, two MAF screws and optional inlet plug.

No. The current bill specifies #056 and #060 worm clamps at the bellows. The housing retains its large T-bolt; the filter clamp is separately described and photos note hardware may vary.

Yes. The five-layer Pro 5R cotton-gauze filter is pre-oiled and needs its appropriate oiled-filter service process.

No. Transfer the original MAF to the new tube using the two supplied M4 x 10 mm Torx screws, then reconnect its harness.

Transfer both side grommets past their beads, retain the lower vehicle grommet, and reuse the original vehicle seal clip. The seal sits behind the original plastic trim cover.

The exact current primary and manual specify 2020-2022 7.3L gasoline F-250/F-350 Super Duty. A shared housing does not approve diesel, another gasoline engine or a later complete-kit revision.

No. The selected marked-point differences are 10.55 hp and 14.58 lb-ft, while maxima differ by minus 1.01 hp and plus 5.49 lb-ft. Those are distinct comparisons under the printed conditions.

The throttle-body bellows end first, then the filter. Restore both breather quick connections and MAF harness. No numeric torque or battery step is given; recheck after 100-200 miles.

Installation Instructions

Verify aFe 50-70058R. Read all sixteen pages and figures A-K. Work on a cool engine and retain factory parts. Remove and save the original plastic scoop-seal clip and release the three cover tabs. Disconnect both original breather fittings. Loosen the throttle-body clamp and disconnect the MAF harness and its retaining clip. Remove the original cover/tube assembly, then lift the lower housing off its mounts. Fit the new scoop seal to the housing, align its holes and fully seat all four supplied retaining clips. Transfer both side grommets past their beads. Seat the bottom housing pin fully in the retained vehicle grommet and engage both side pins/grommets in their bracket. Put the scoop seal behind the original plastic trim and restore the saved original seal clip. Place the large housing clamp and selected filter with its flange clamp, initially loose. Fit the optional auxiliary inlet plug if desired; the manual associates maximum airflow with the opening uncovered. Put the bellows and #056 clamp at the throttle body, and #060 on the bellows open end, both initially loose. Remove the original MAF with a T20 tool and install it on the new tube with the two supplied M4 x 10 mm screws. Insert the tube into the throttle-body bellows first, then the filter. Align and tighten the connections, reconnect both breather quick connectors and the MAF harness, and verify security and clearance. The current bill specifies coupling worm clamps even where old photos show T-bolts. No battery-disconnection step or numeric torque is supplied; recheck after 100-200 miles.

Important Disclosures

Both exact current selected product pages and byte-identical own 16-page manuals, complete bill and figures A-K were read and viewed. Both primary and manual reach 2022. Exact selected-part named application tables corroborate the restored groups; current coupling worm clamps and M4 x 10 mm MAF hardware follow this bill rather than a related-engine kit or older photograph. The actual flow chart shows oiled 495, dry 465 and stock 350 CFM at seven inches H2O. Selected increase is 41.43%, rounded to 41%. The selected dyno marks 276.44 versus 265.89 hp and 382.09 versus 367.51 lb-ft at 3800 rpm: differences of 10.55 hp and 14.58 lb-ft. Maxima are 355.31 versus 356.32 hp and 382.22 versus 376.73 lb-ft, differences of minus 1.01 hp and plus 5.49 lb-ft. The 2020 F-250 7.3L selected run is November 18, 2020 at 12:10:19 PM, SAE 1.00 versus November 13 baseline at 12:33:36 PM, SAE 1.00. Both notes identify original exhaust, fourth gear, 20% run load, 2000-rpm start, 91-octane fuel and red/silver fans on Dynojet 424xLC Linx. Intake RPM source is software-defined while baseline is OBD2. Full weather and hood configuration are not printed. The differing dates/configuration limit generalization; rounded point claims do not establish a positive difference between peak horsepower values or guaranteed gains. Current manufacturer non-CARB status and California purchase/registered-vehicle restrictions apply.
