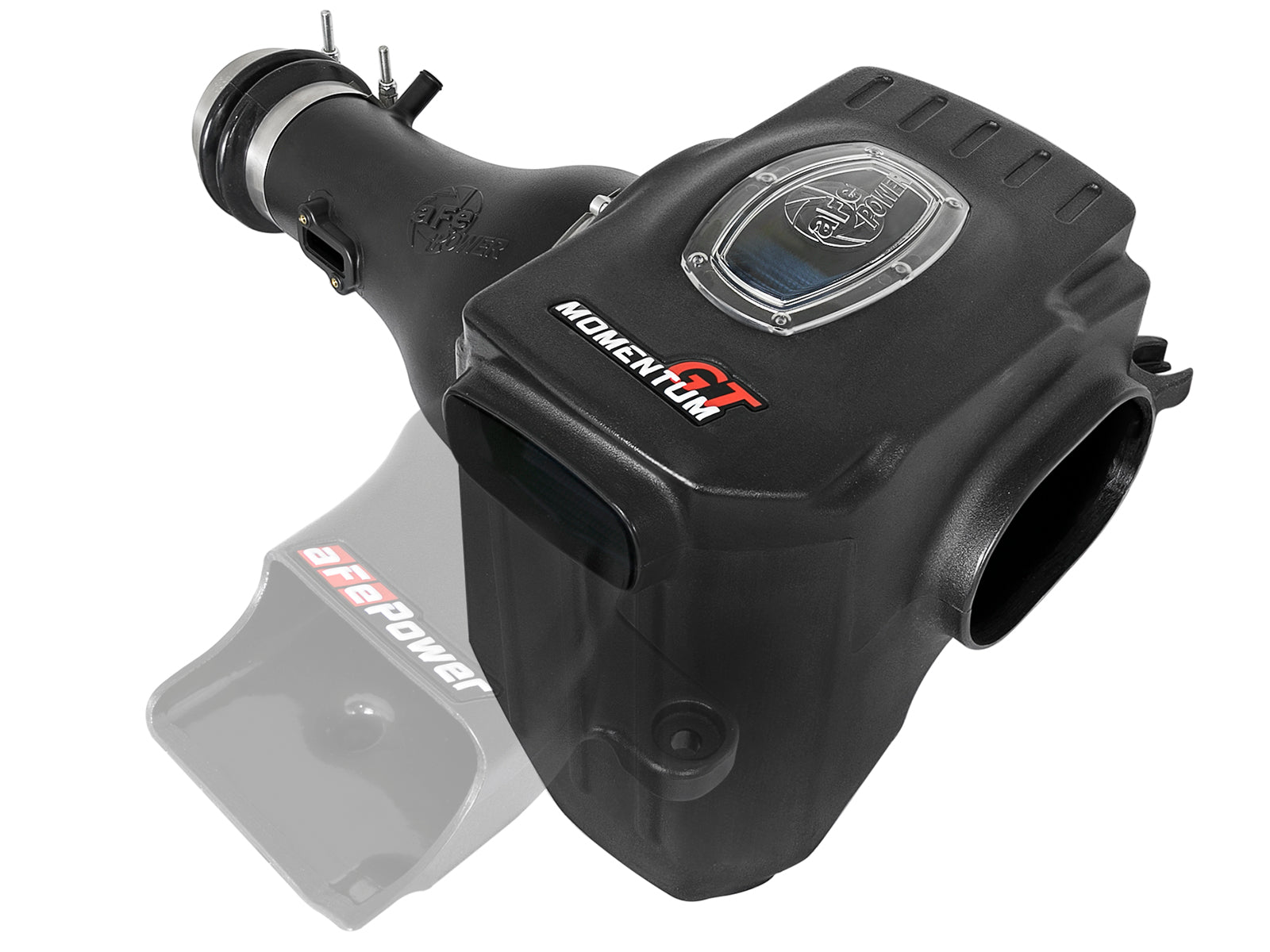

aFe 54-76108 Momentum GT intake combines one Pro 5R oiled filter with an XLPE housing and tube for qualified Nissan Titan 5.6L applications. A silicone double-hump throttle-body coupling and branched CCV adaptor restore the two original crankcase-vent connections. The external Dynamic Air Scoop is sold separately.
Exact selected-part retailer tables support Titan Platinum Reserve, PRO-4X and SV 2017-2024, S 2017-2023 and SL 2017-2021. The four existing ranges with later supported endpoints are extended; SL remains unchanged. Current manufacturer headline runs through 2024, while the older exact manual cover ends at 2020. These differences are qualified by exact named-row evidence rather than extending all trims uniformly. Current manufacturer explicitly excludes Titan XD; a retailer table listing XD is a source conflict and does not establish added XD fitment.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2024 | Nissan | Titan | Platinum Reserve |
| 2017-2024 | Nissan | Titan | PRO-4X |
| 2017-2023 | Nissan | Titan | S |
| 2017-2021 | Nissan | Titan | SL |
| 2017-2024 | Nissan | Titan | SV |
Verify 54-76108 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-76108 |
| Product line | Momentum GT cold air intake |
| Selected filter | One 24-91124 Pro 5R; five oiled cotton-gauze layers |
| Filter dimensions | Current replacement oval flange 6.75 x 4.75 inches; height 7.75 inches versus 8-inch overview |
| Main materials | XLPE housing and tube; silicone coupling and CCV adaptor |
| Bench flow | 270 versus original 228 CFM at 1.5 inches H2O; approximately 18.4% |
| Separate flow statement | Page also states 500 CFM at 7 inches H2O; different pressure basis |
| Dyno qualification | Marked differences 16.50 hp / 18.29 lb-ft; run maxima +29.90 hp / +14.20 lb-ft |
| Emissions | Not CARB exempt; manufacturer California purchase/use restriction applies |
| UPC | 802959543689 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

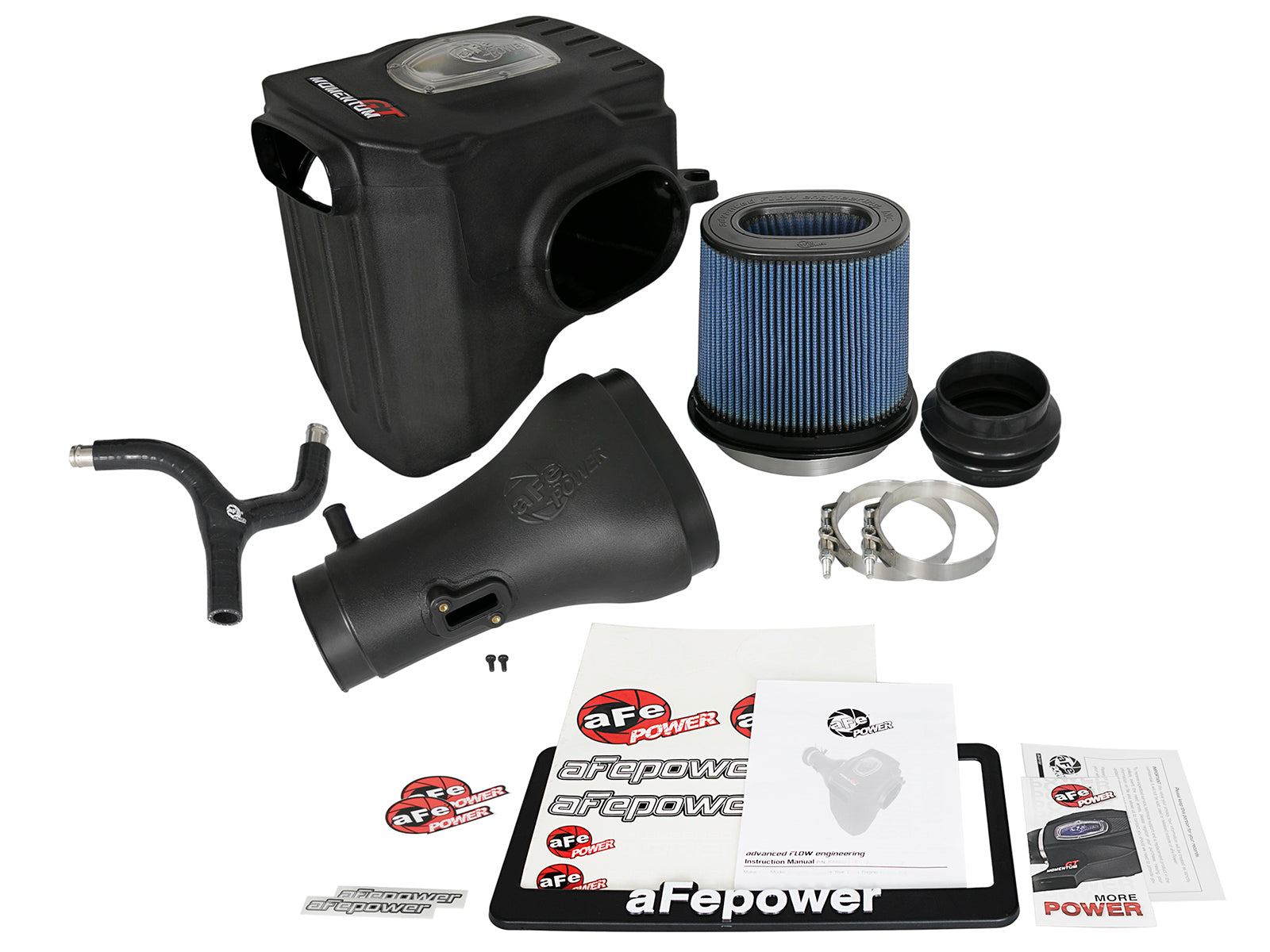

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91124 | Selected Pro 5R oiled filter |
| 1 | 05-76103B1 | XLPE tube |
| 1 | 05-76108B2 | XLPE housing |
| 2 | 03-50006 | Size 064 clamps |
| 1 | 05-01389 | Silicone double-hump coupling |
| 1 | 05-01346 | Silicone branched CCV adaptor with stainless fittings |
| 1 | 05-01202 | Optional urethane auxiliary-inlet plug |
The dry filter in the shared bill belongs to a separate version. Transfer the original housing steel sleeves and rubber grommets, retain the original housing bolt, MAF sensor and its two screws, both original CCV hoses and spring clamps, and original engine cover. The separate external scoop is an optional purchase and is not in this intake bill. Restore safe original MAF wiring and evap-hose routing after releasing their clips.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 24-91124 Pro 5R with five oiled cotton-gauze layers. Its current replacement height is 7.75 inches; the overview rounds it to 8 inches.
Does this intake fit Titan XD?The current manufacturer explicitly excludes Titan XD. A positive XD retailer table is recorded as a source conflict, with no added XD mapping.
Which later named trims are supported?Exact selected-part tables support Platinum Reserve, PRO-4X and SV through 2024, S through 2023, and SL through 2021.
Are new MAF screws supplied?The procedure transfers the original MAF sensor using its two original screws.
How does the CCV adaptor connect?Its plain end fits the new tube nipple; the two stainless-fitting ends enter the original CCV hoses, secured with their original spring clamps.
Is the external Dynamic Air Scoop included?It is a separate optional accessory. The intake bill includes the auxiliary-opening plug, not the external scoop.
Are 270 CFM and 500 CFM directly comparable?They use different pressures: the linked comparison is 270 versus 228 CFM at 1.5 inches H2O; the separate page rating is 500 CFM at 7 inches H2O.
What torque and follow-up check apply?No numeric torque is stated. Check all bolts, clamps and connectors after 200 miles.
Verify aFe 54-76108. Read all sixteen pages and figures A-H. Work on a cool engine and disconnect the negative battery terminal. Lift the engine cover up and toward you. Loosen the throttle-body clamp, remove the original housing bolt, disconnect MAF and release its harness clips. Compress and slide back the spring clamps on both CCV hoses and disconnect them from the original resonance chamber. Release both plastic evap-hose clips and remove the original intake. Transfer original housing steel sleeves and rubber grommets. Install the selected filter and housing, securing the housing with its original bolt; the plug optionally closes the auxiliary inlet. Transfer the MAF using both original screws. Insert the new tube into the filter, then fit the double-hump coupling and two supplied clamps between tube and throttle body. Adjust and secure clamps. Place the CCV adaptor end without a metal fitting over the tube nipple; insert its two stainless-fitting ends into the original CCV hoses and restore spring clamps. Reconnect MAF and verify secure connections and safe wiring and hose routing. Reinstall the engine cover. Check all bolts, clamps and connectors after exactly 200 miles. No numeric torque is supplied.
The linked selected-part flow chart shows 270 versus 228 CFM at 1.5 inches H2O, approximately 18.4 percent higher. The separate page statement of 500 CFM at 7 inches H2O uses a different pressure basis. The linked 2017 Titan PRO-4X dyno marks 303.54 versus 287.04 hp and 335.57 versus 317.28 lb-ft near 4,751 rpm, differences of 16.50 hp and 18.29 lb-ft. Run maxima are 351.60 versus 321.70 hp and 340.04 versus 325.84 lb-ft, differences of 29.90 hp and 14.20 lb-ft. These are distinct measurements. Baseline November 20, 2017 uses SAE 1.04; intake February 9, 2018 uses SAE 1.02. Both list original ECU, headers and exhaust, 275/70R18 tires, open hood, large fan and fourth gear. Dates and correction factors differ, limiting generalization. Neither this chart nor its notes certifies an independent external-scoop gain. California restrictions apply. Turn14 access is unavailable and prices remain unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
