aFe Jeep Wrangler JL 2.0L Pro 5R Intake

Momentum GT intake for the Jeep JL 2.0L turbo

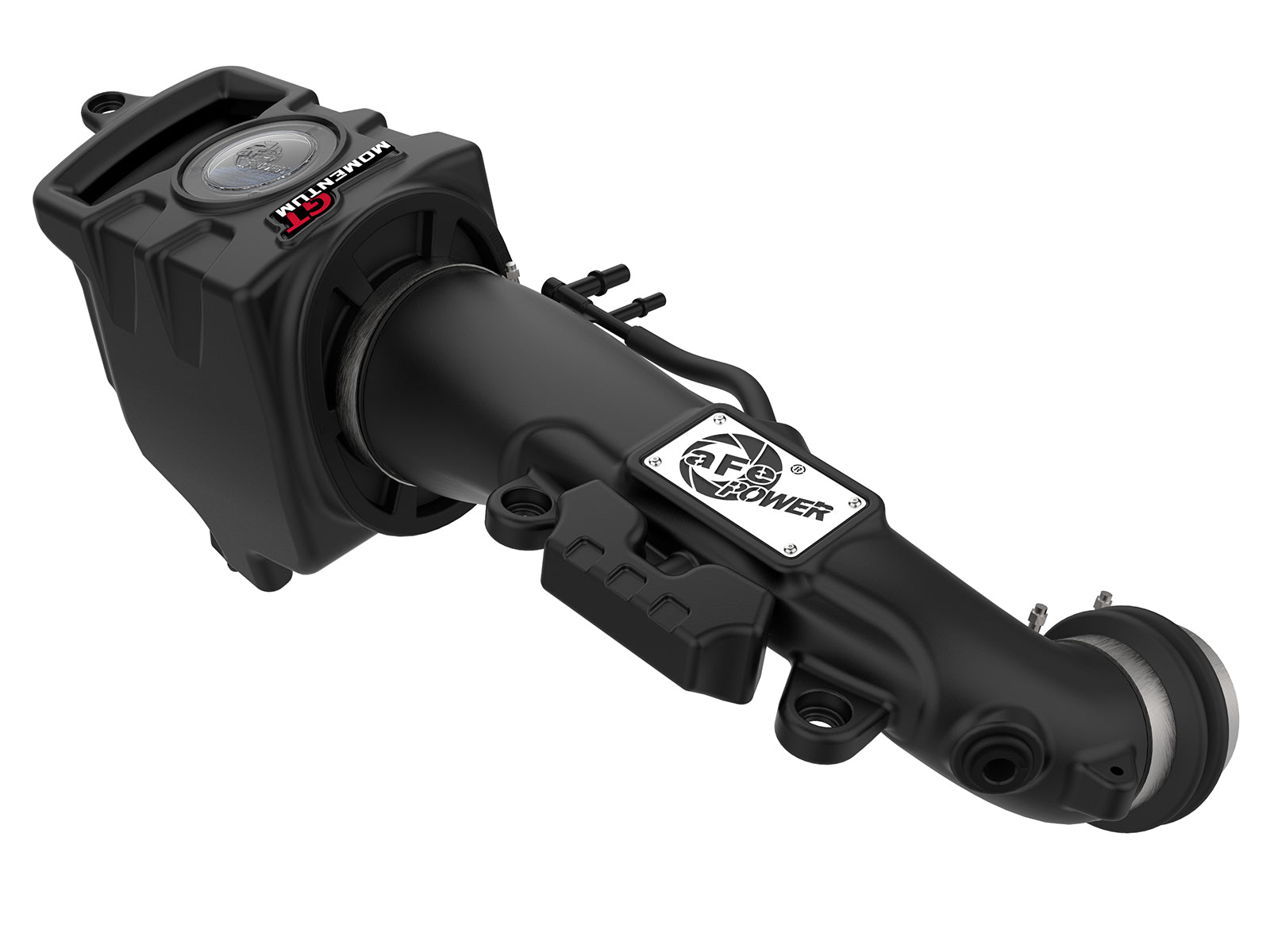

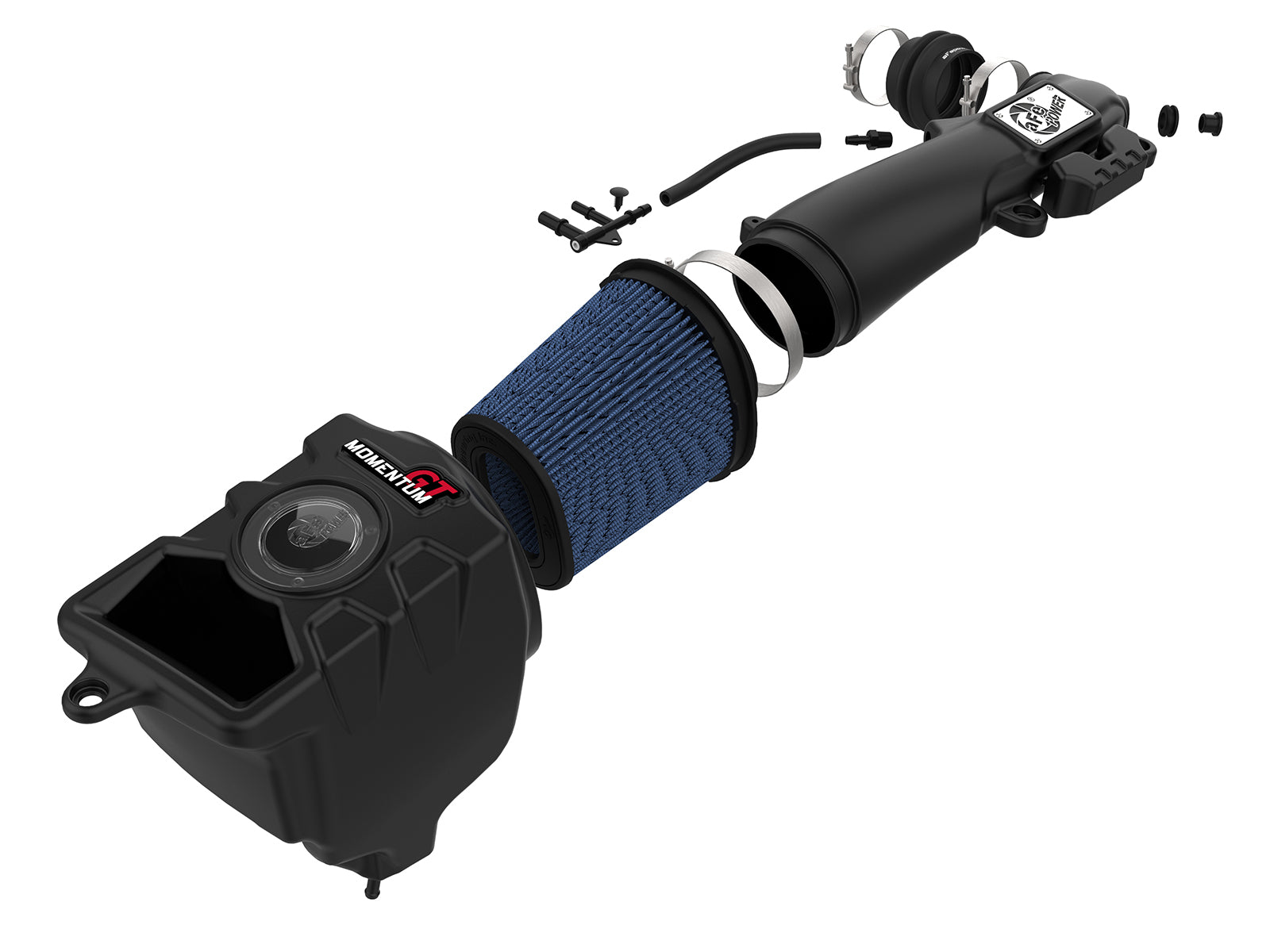

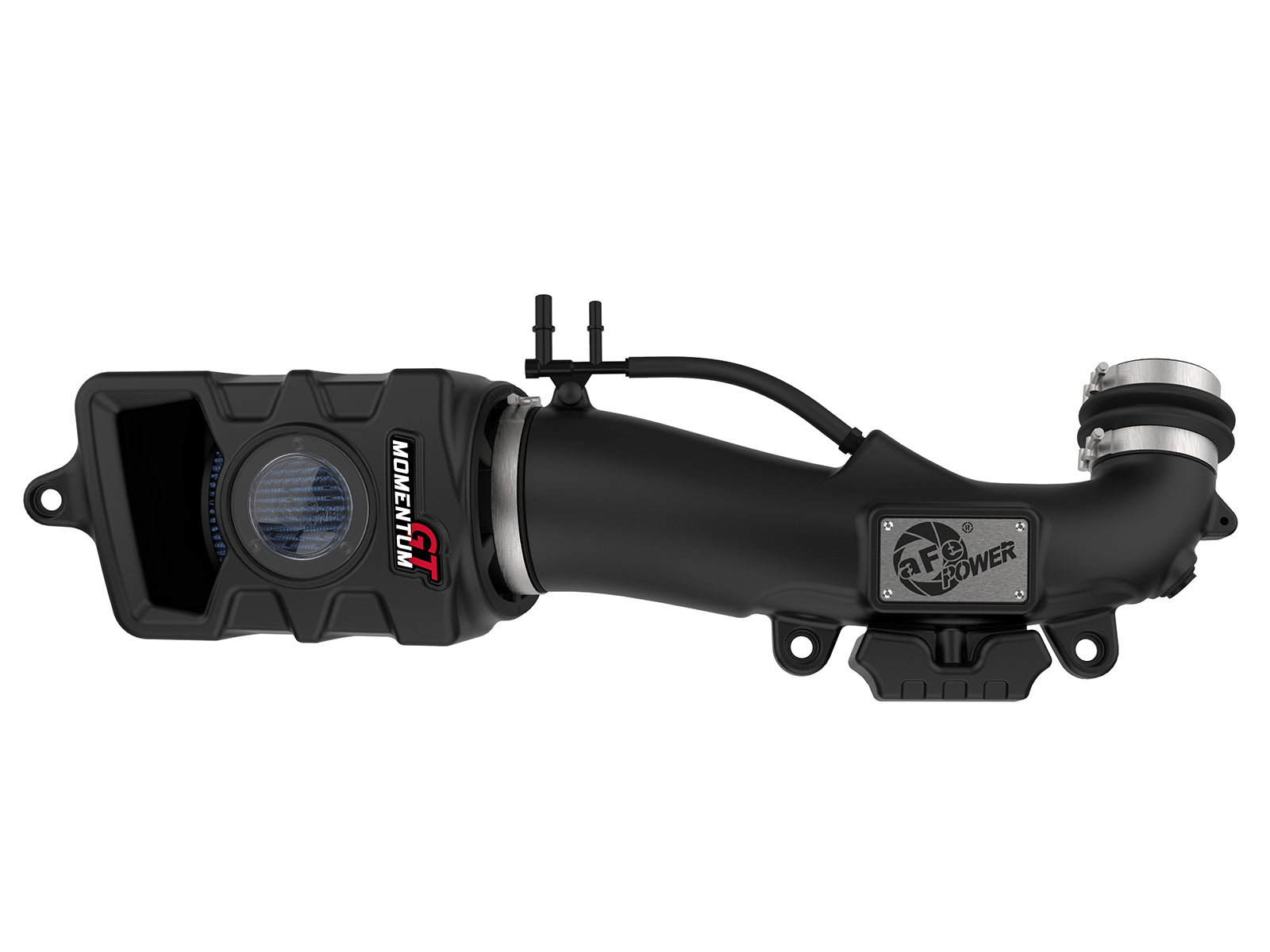

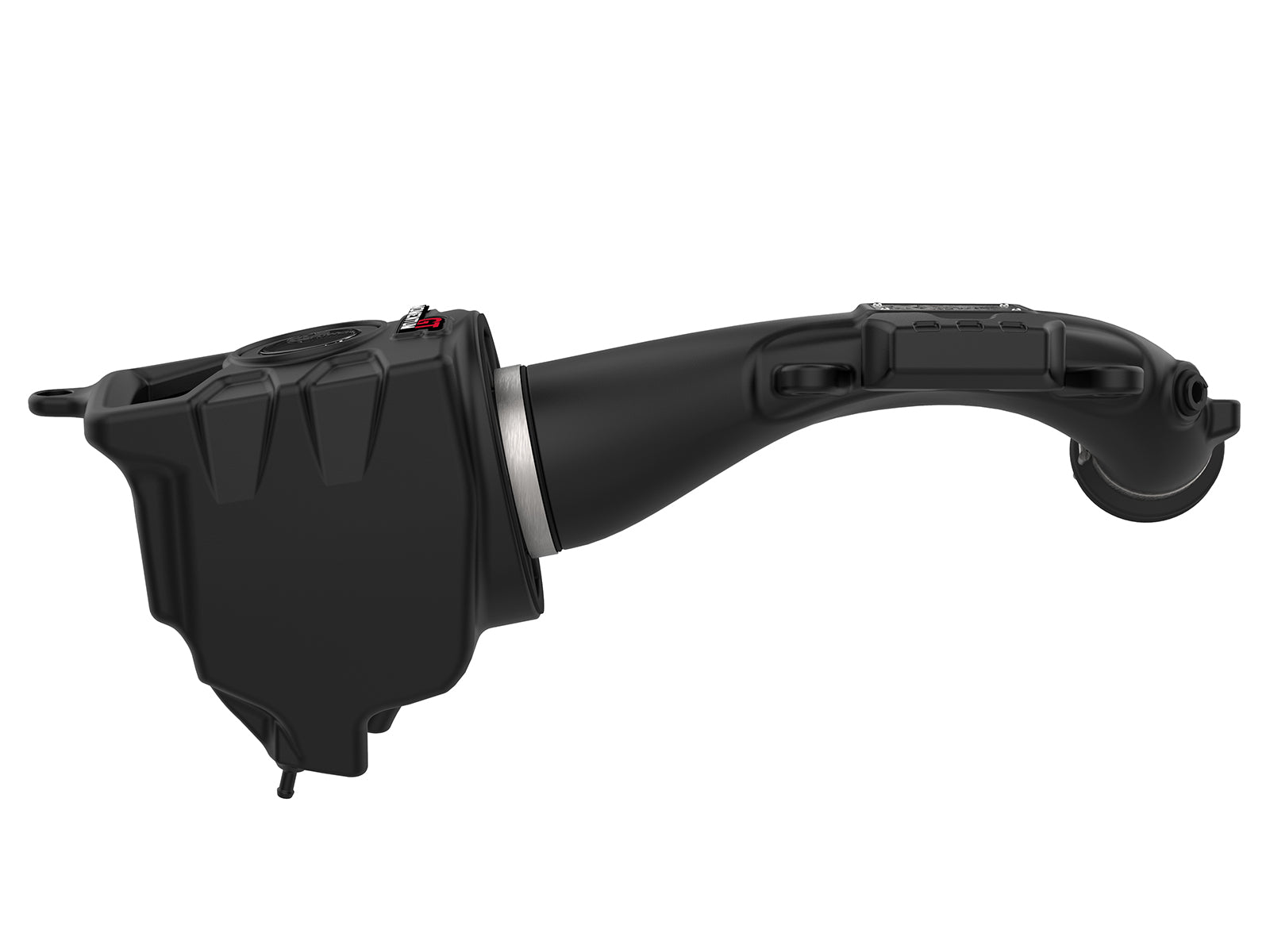

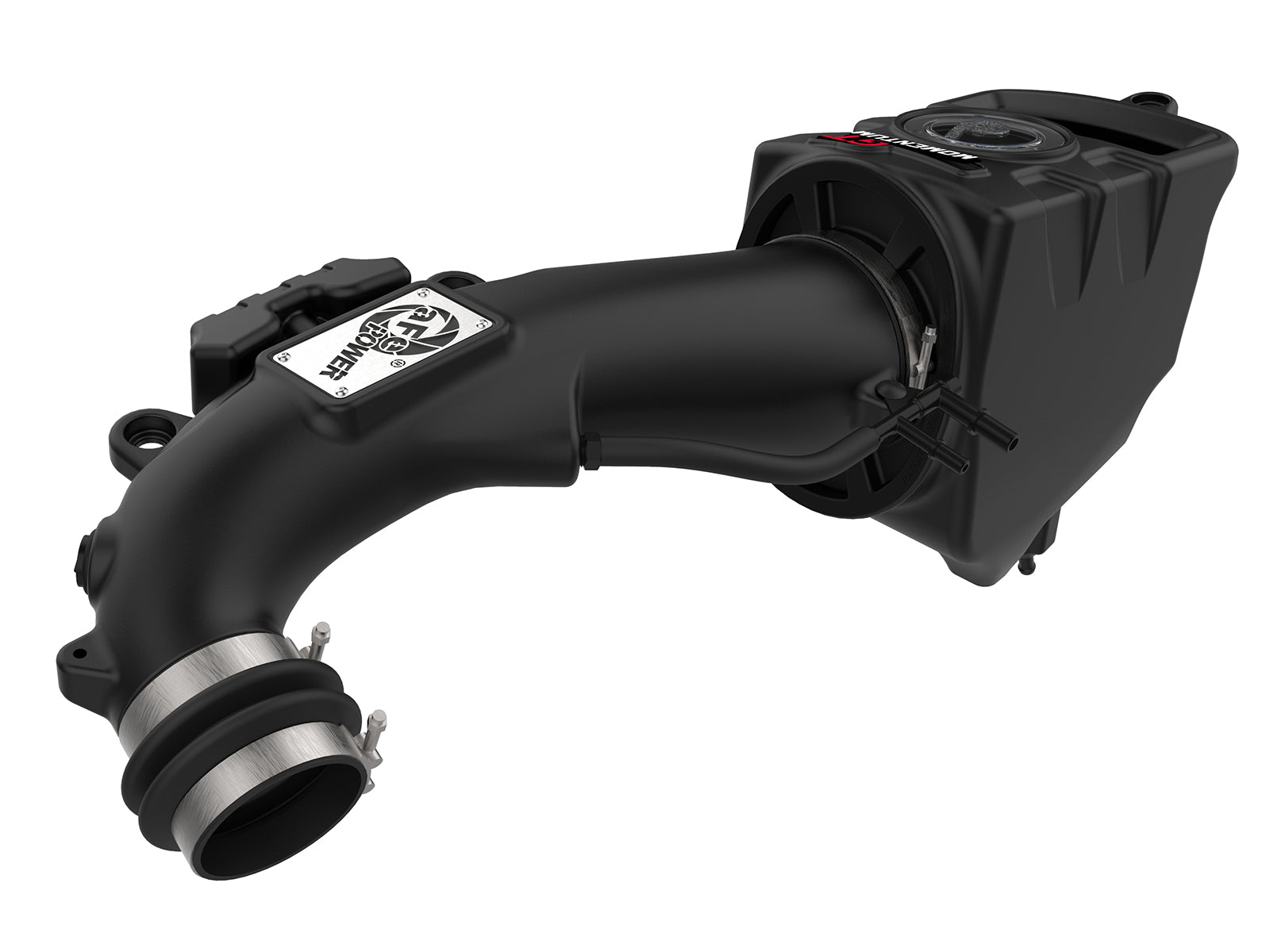

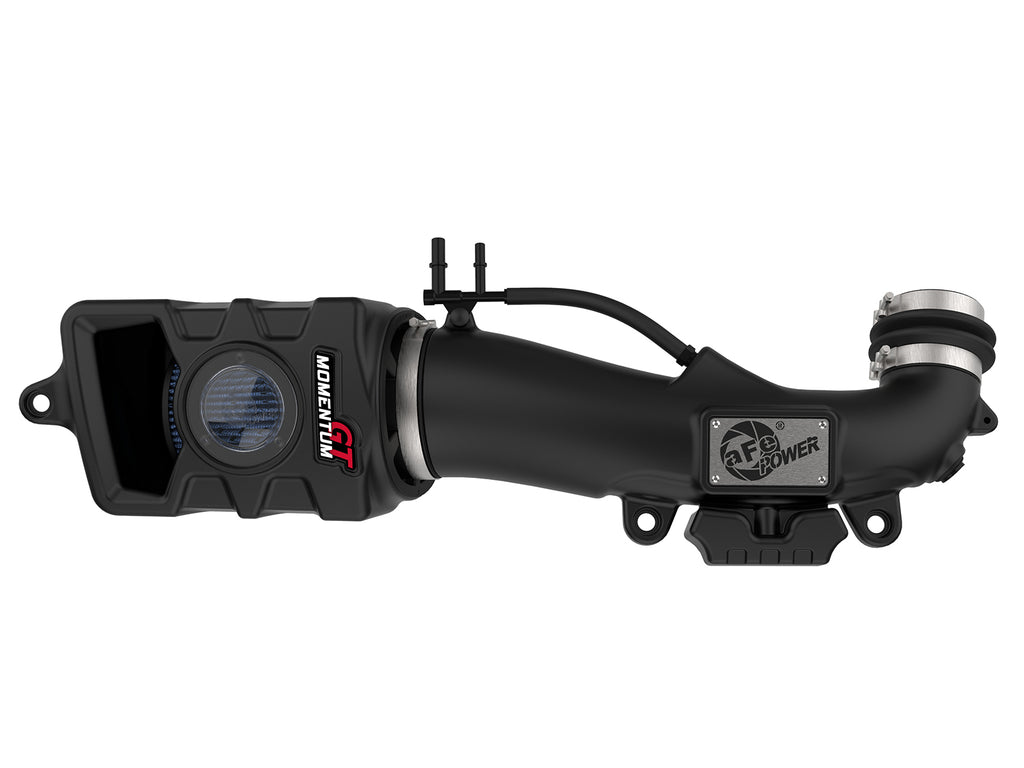

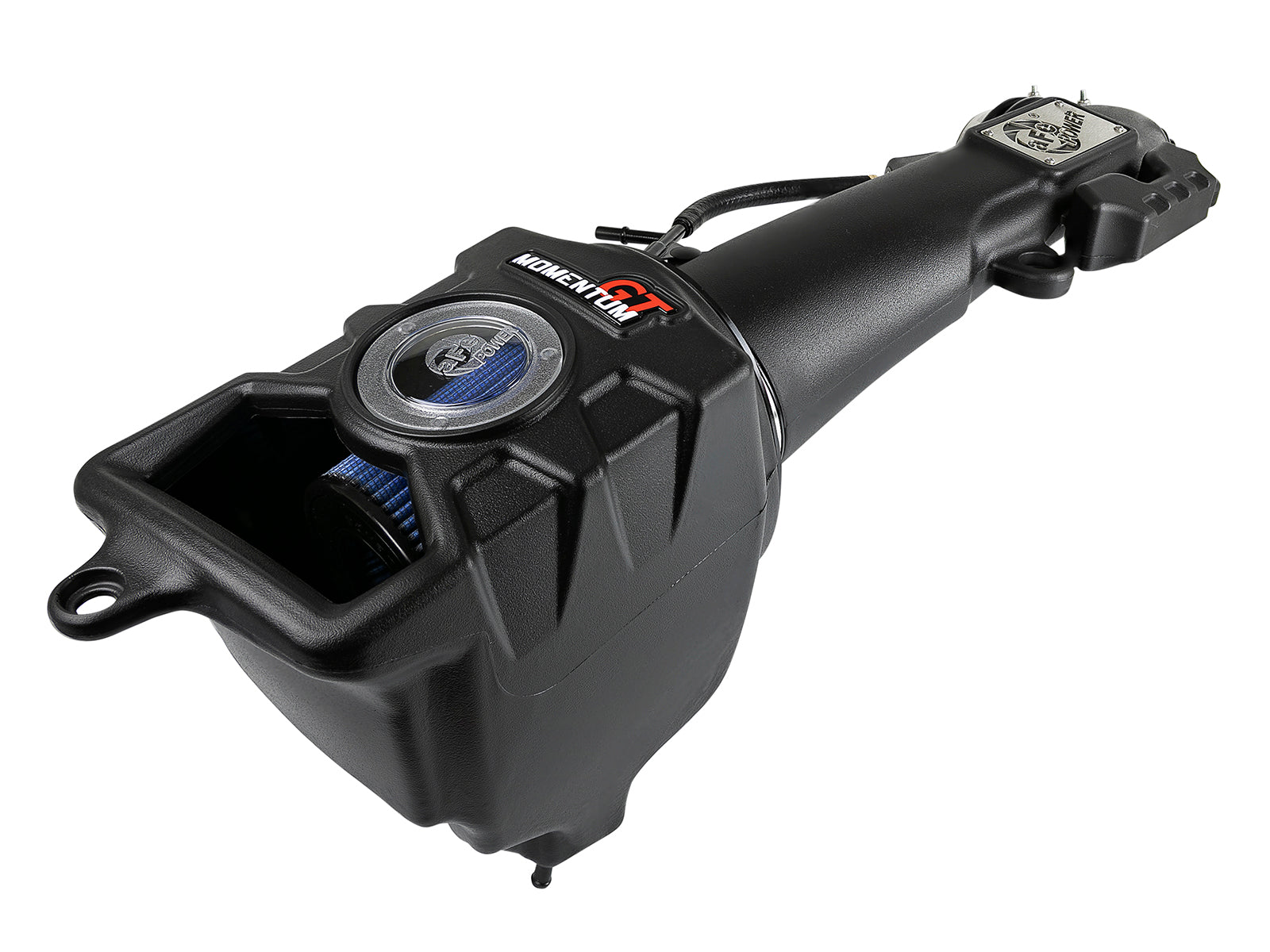

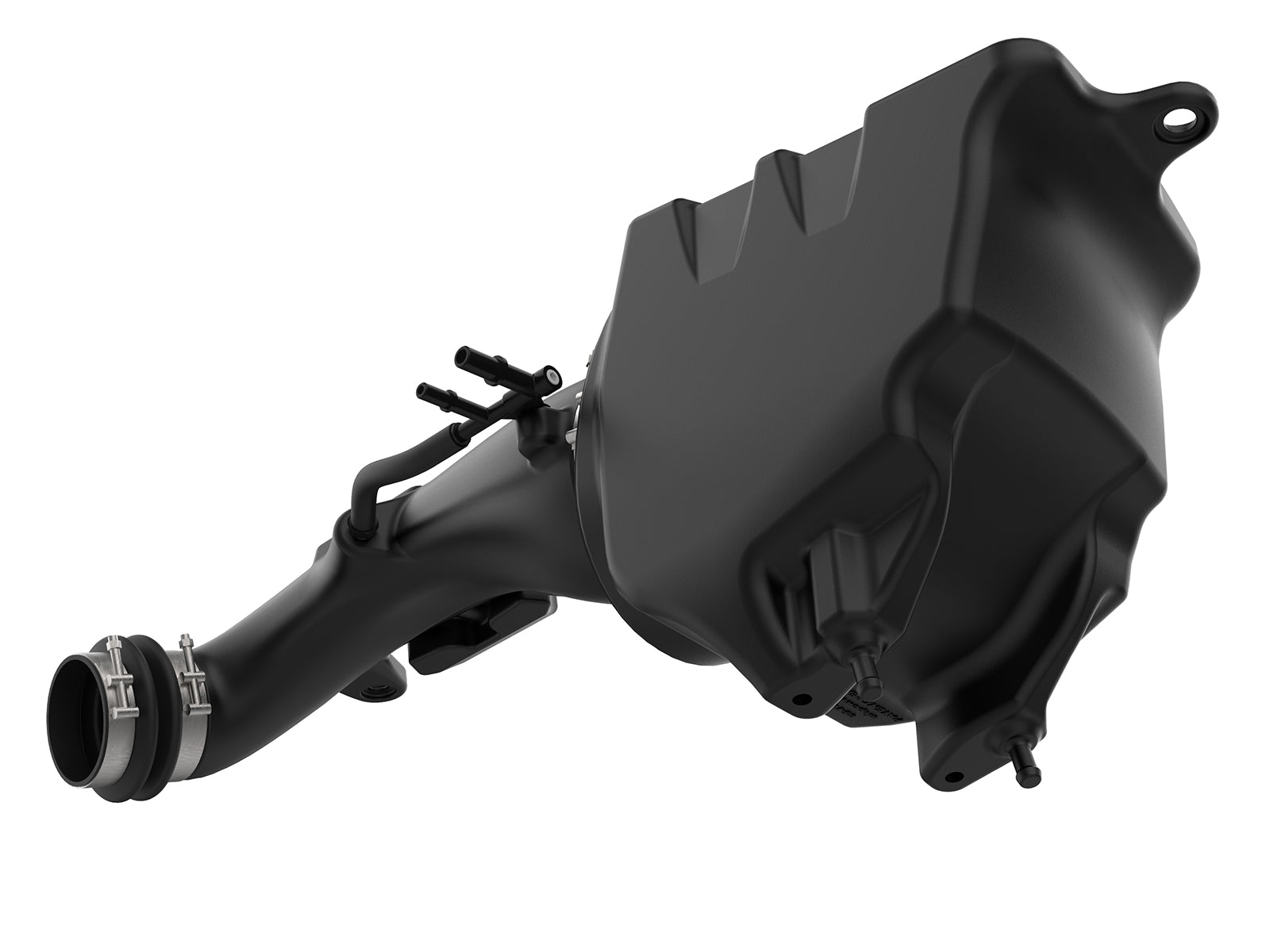

aFe 50-70035R Momentum GT replaces the intake on the 2018–2023 Jeep Wrangler JL with the 2.0L turbocharged four-cylinder engine. This version includes one Pro 5R element, a sealed XLPE housing with an inspection window, and a roto-molded intake tube with a resonance chamber. Its silicone bellows and vent-fitting assembly differ from the 3.6L and EcoDiesel systems.

Key Features

• Pre-oiled Pro 5R with five layers of progressively finer cotton gauze.
• One nominal 8-inch-tall inverted-top radial-flow filter with a 5-inch round flange; the other media entries in the shared manual are alternative kits.
• One-piece cross-linked polyethylene housing and sight window; the tube is described as roto-molded with a resonance chamber, without a separately established tube-resin specification.

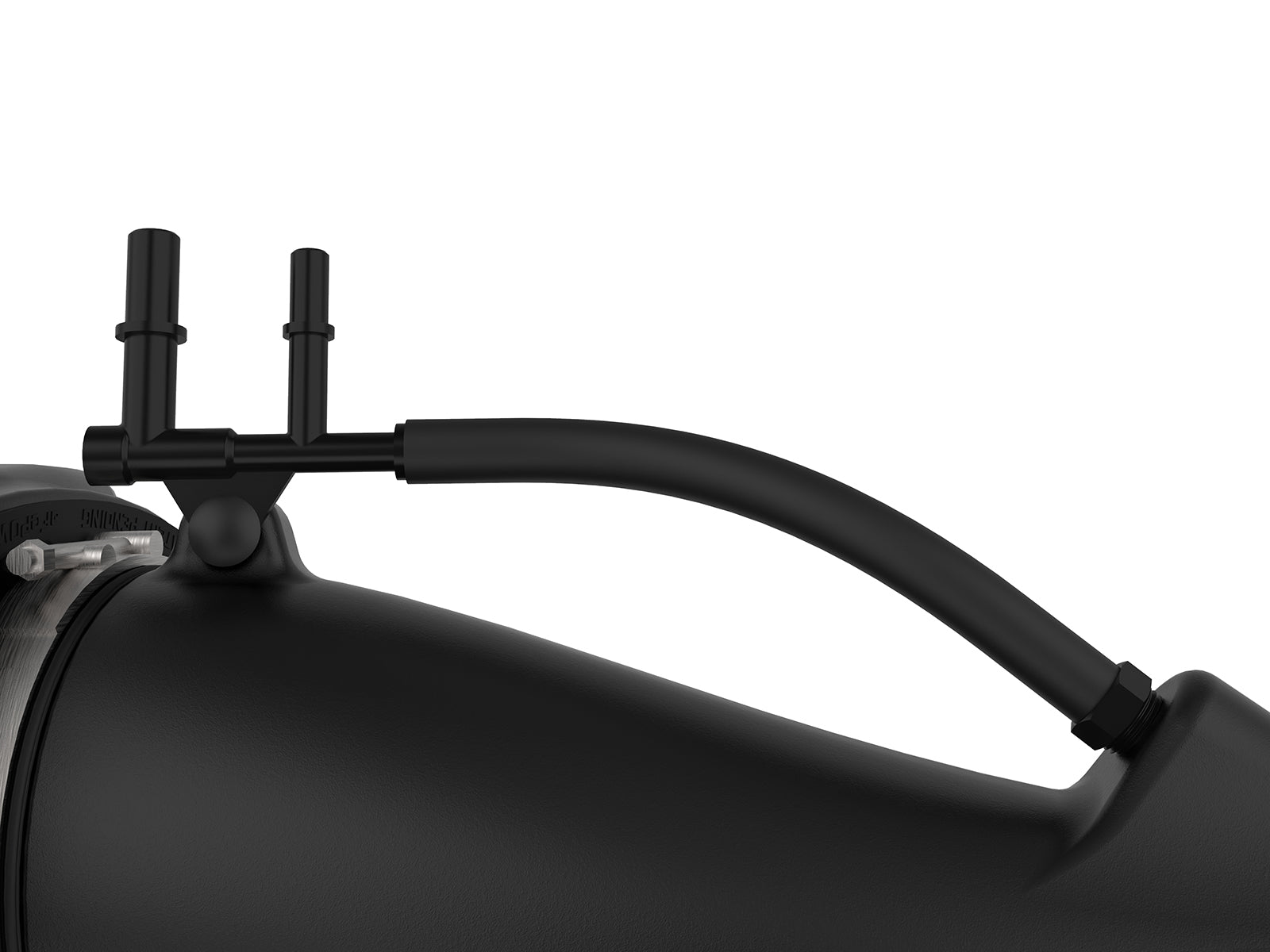

• Supplied 3/8-inch brass barb, 7-inch silicone breather hose, plastic CCV vacuum fitting and retaining clip reconnect the two original vent lines.
• Reuses the original intake-air-temperature sensor, original mounting sleeves/grommets and three mounting screws; no new MAF sensor is listed.

Fitment

The manufacturer's exact current product page and shared manual specify 2018–2023 Wrangler JL 2.0L turbo. Named gasoline rows below are supported by this exact part's engine-specific retailer table; actual engine, production, vent fittings, sensor and mounting interfaces must match. This is not a JK 3.6L/3.8L, JL 3.6L, 392 or EcoDiesel kit. Retailers also list 2021–2023 4xe applications; no new hybrid application is approved here without confirming the exact early-4xe intake and vent interfaces. The manufacturer's separate 4xe system currently starts at model year 2024; that newer design does not itself disprove earlier retailer fitment, and it does not justify extending this kit beyond 2023.

Verify 50-70035R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

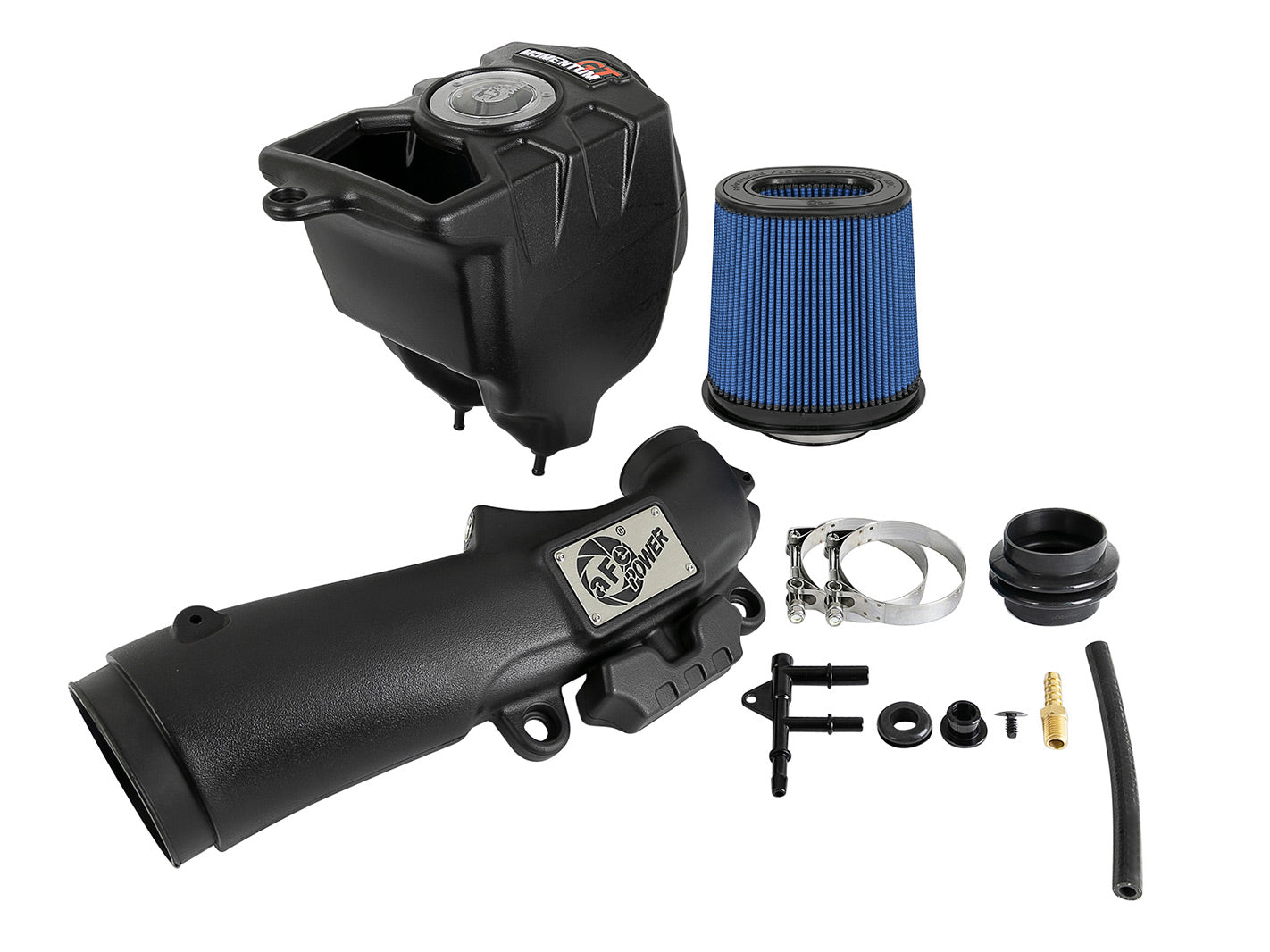

What's Included

The original IAT sensor, original tube and housing mounting sleeves/grommets, three mounting screws and vent-line retaining arrangement are reused. The manual separately lists two new T-bolt clamps, then instructs tightening three clamps including the filter connection; do not count that as an independently itemized third new T-bolt. No new sensor, tune or numeric clamp torque is listed. Use the correct Pro 5R cleaning and re-oiling procedure. Do not substitute dry-filter maintenance or assume PG7 synthetic layers.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 50-70035R
• Exact illustrated installation manual
• Manufacturer bench airflow comparison for all three media
• Manufacturer Pro5R JL dyno; inspect actual test configuration
• Manufacturer-hosted signed D-550-60; limited model-year scope
• Shop the complete aFe Power collection

Frequently Asked Questions

The manufacturer specifies Wrangler JL 2018–2023 with the 2.0L turbocharged four-cylinder engine. Match the actual vent connections and sensor arrangement; a shared trim name does not approve a 3.6L, V8, diesel or older JK.

Pre-oiled Pro 5R with five layers of progressively finer cotton gauze. Only one filter is supplied. Use the correct Pro 5R cleaning and re-oiling procedure. Do not substitute dry-filter maintenance or assume PG7 synthetic layers.

370 CFM; manufacturer reports approximately 51% above the 245-CFM factory bench result. Those figures are measured at 7 inches H2O. They are bench-flow results, not the same percentages of horsepower or torque.

No. This kit's procedure transfers the original IAT sensor to a supplied grommet and adaptor. Rotate it into place until locked and check that the adaptor bead cannot pull out.

The supplied brass barb, short silicone hose and supplied plastic CCV fitting form the new connection. Align each original quick connector with its proper port, lock both, and refit the line clip so the tubes do not rest on each other.

No. Exact retailers list earlier 2021–2023 4xe applications, but actual intake/vent and emissions requirements still need confirmation. The manufacturer's separate 4xe kit currently starts in 2024 and has its own valve/interface note; no cross-year substitution is inferred.

No. The manufacturer-hosted signed order names 2020–2022 2.0L Wrangler for these exact kits. The current pages cite it while the linked manual still says non-exempt. Verify the complete applicable conditions and do not presume 2018–2019, 2023 or every hybrid configuration is covered.

Confirm filter-tab engagement, sensor and vent locks, the three reused mounting screws and line clearance. Tighten connections without overtightening and recheck after approximately 100–200 miles; the manual gives no numeric clamp torque.

Installation Instructions

Verify aFe 50-70035R. Let the engine cool and disconnect the negative battery terminal. Remove the three original intake mounting screws, loosen the two old tube clamps, release the grey locks on the two vent lines and unplug the IAT sensor. Move its harness and retaining clips aside and remove the old tube/housing, returning any displaced rubber mounting grommets to their brackets. Install the supplied brass barb in the new tube with the specified wrench, connect the short silicone hose between that barb and plastic CCV fitting, and secure the CCV fitting with the supplied push clip. Seat the new IAT grommet and adaptor with its retaining bead correctly located. Release the original sensor tab, turn it a quarter-turn counterclockwise to remove it, then rotate it clockwise into the new adaptor until the small tab clicks. Transfer the original tube mounting sleeves/grommets, assemble the bellows and two T-bolts, and transfer the original housing sleeve/grommet. Snap the filter tabs fully into the housing, seat the housing on its grommets and reuse one original screw at the fender. Connect the new tube to the filter and turbo inlet, reconnect and clip the IAT harness, and reuse the other two screws at the core support. Separate the clip holding the two original vent tubes together, align each with its proper new CCV-fitting port and push both on until locked; refit the clip so the tubes do not rest against one another. Tighten all connections without overtightening and check the three screws and connectors. Recheck bolts, clamps and connectors after approximately 100–200 miles. No numeric torque or specific thread-sealant grade is supplied.

Important Disclosures

Match the actual 2.0L engine and production-specific intake/vent hardware. Retailer-positive earlier 4xe applications require their own exact hybrid fitment and emissions confirmation; the separate manufacturer 2024–2025 4xe intake uses a different valve/interface application, so no later-year extension is inferred. The manufacturer-linked signed D-550-60 document names these exact kits for 2020–2022 Wrangler 2.0L, while the older linked manual retains non-exempt wording. Do not describe every 2018–2023 or hybrid application as exempt; match the full order, vehicle configuration and identification label before any emissions-dependent selection. Flow and dyno results are test-specific, not guaranteed vehicle gains, water protection, fault-code or warranty outcomes.
