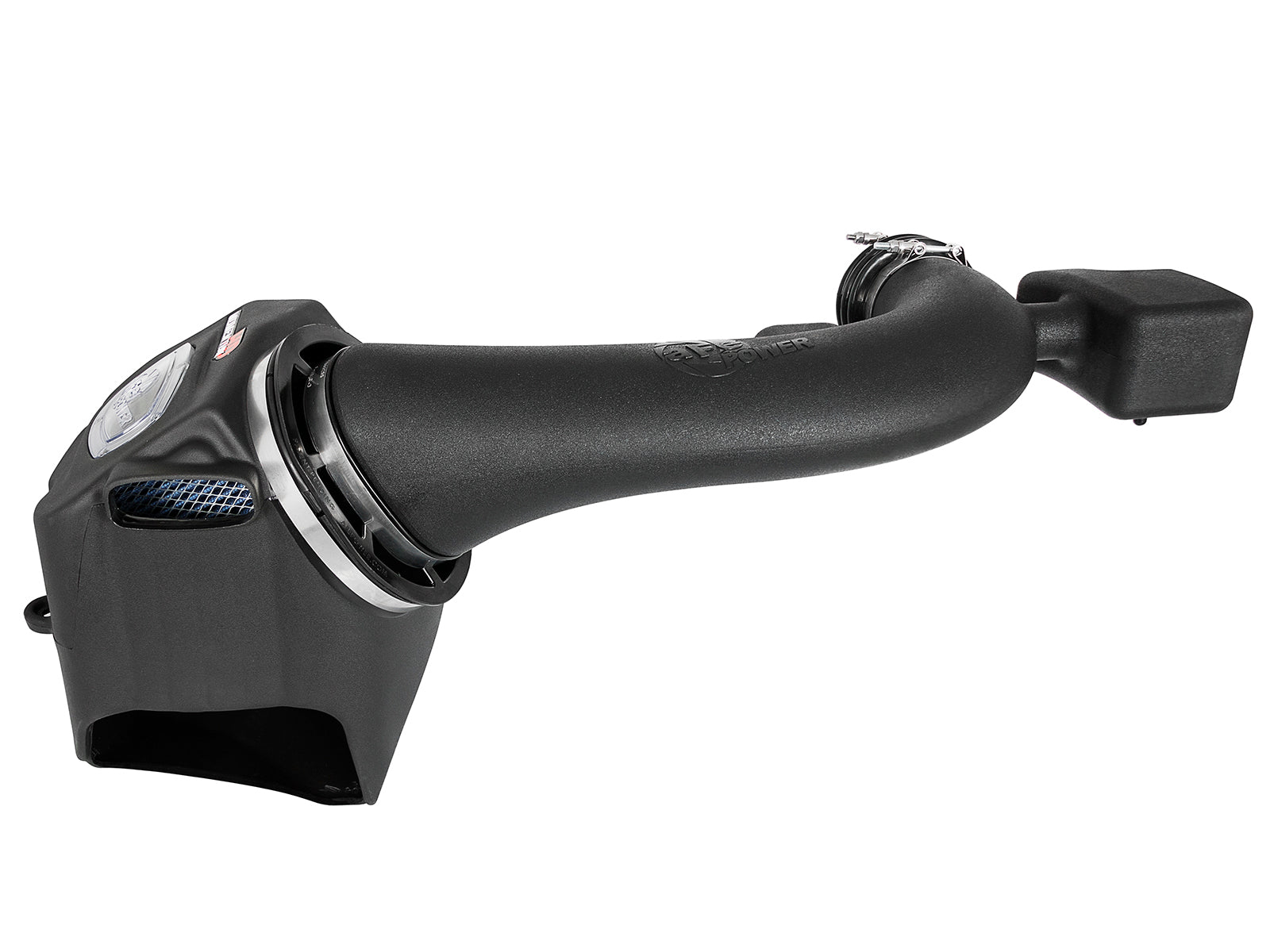

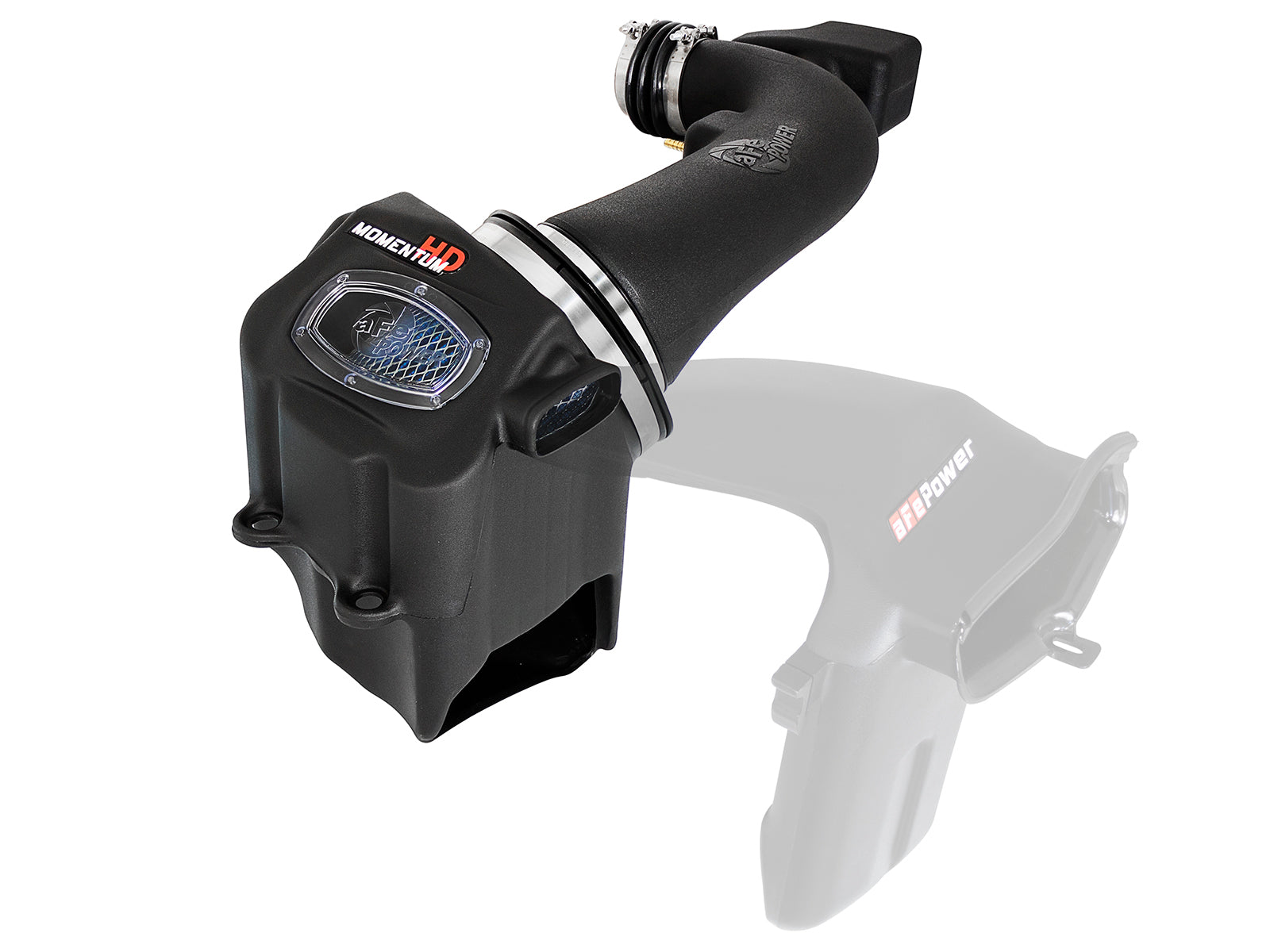

aFe 54-73116 Momentum GT intake combines one Pro 5R oiled filter, molded housing and tube shaped for the original mechanical fan on 2017-2019 F-250/F-350 Super Duty 6.2L gasoline applications. Vent-line routing differs when the original passenger-side hose is absent; the supplied brass plug closes that unused tube port.
Current exact manufacturer page and sixteen-page manual identify 2017-2019 F-250/F-350 Super Duty 6.2L V8 gasoline with original mechanical-fan configuration. Exact selected-part retailer tables support King Ranch, Lariat, Platinum, XL and XLT for each Super Duty model in those years. These ten named groups are restored while original two F-250/F-350 model-only rows and bounds remain. Later 2021 retailer headline wording conflicts with current 2017-2019 primary/manual scope and is not added. No 6.7L diesel, 6.8L or 7.3L gas application is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2019 | Ford | F-250 | |
| 2017-2019 | Ford | F-350 | |
| 2017-2019 | Ford | F-250 Super Duty | King Ranch |
| 2017-2019 | Ford | F-250 Super Duty | Lariat |
| 2017-2019 | Ford | F-250 Super Duty | Platinum |
| 2017-2019 | Ford | F-250 Super Duty | XL |
| 2017-2019 | Ford | F-250 Super Duty | XLT |
| 2017-2019 | Ford | F-350 Super Duty | King Ranch |
| 2017-2019 | Ford | F-350 Super Duty | Lariat |
| 2017-2019 | Ford | F-350 Super Duty | Platinum |
| 2017-2019 | Ford | F-350 Super Duty | XL |
| 2017-2019 | Ford | F-350 Super Duty | XLT |
Verify 54-73116 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-73116 |
| Product line | Momentum GT cold air intake |
| Selected filter | One 24-91061 Pro 5R; five oiled cotton-gauze layers; 9-inch height |
| Filter dimensions | 7 x 4.75-inch oval flange; 9 x 7-inch base and inverted top |
| Fan requirement | Tube designed for original mechanical fan |
| Bellows | 05-01434; 3.5 x 4-inch ID ends, 3.5-inch length |
| Vent hose | 5/16-inch ID x 9-inch length; conditional passenger-side connection |
| Bench flow qualification | Linked chart 269 versus original 228 CFM at 1.5 inches H2O; primary separately states 550 CFM at 7 inches |
| Dyno qualification | Marked +15.15 hp / +16.56 lb-ft at 4799 rpm; run maxima +8.94 hp / +10.75 lb-ft |
| Emissions | Current manufacturer and exact manual state not CARB exempt |
| UPC | 802959543047 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

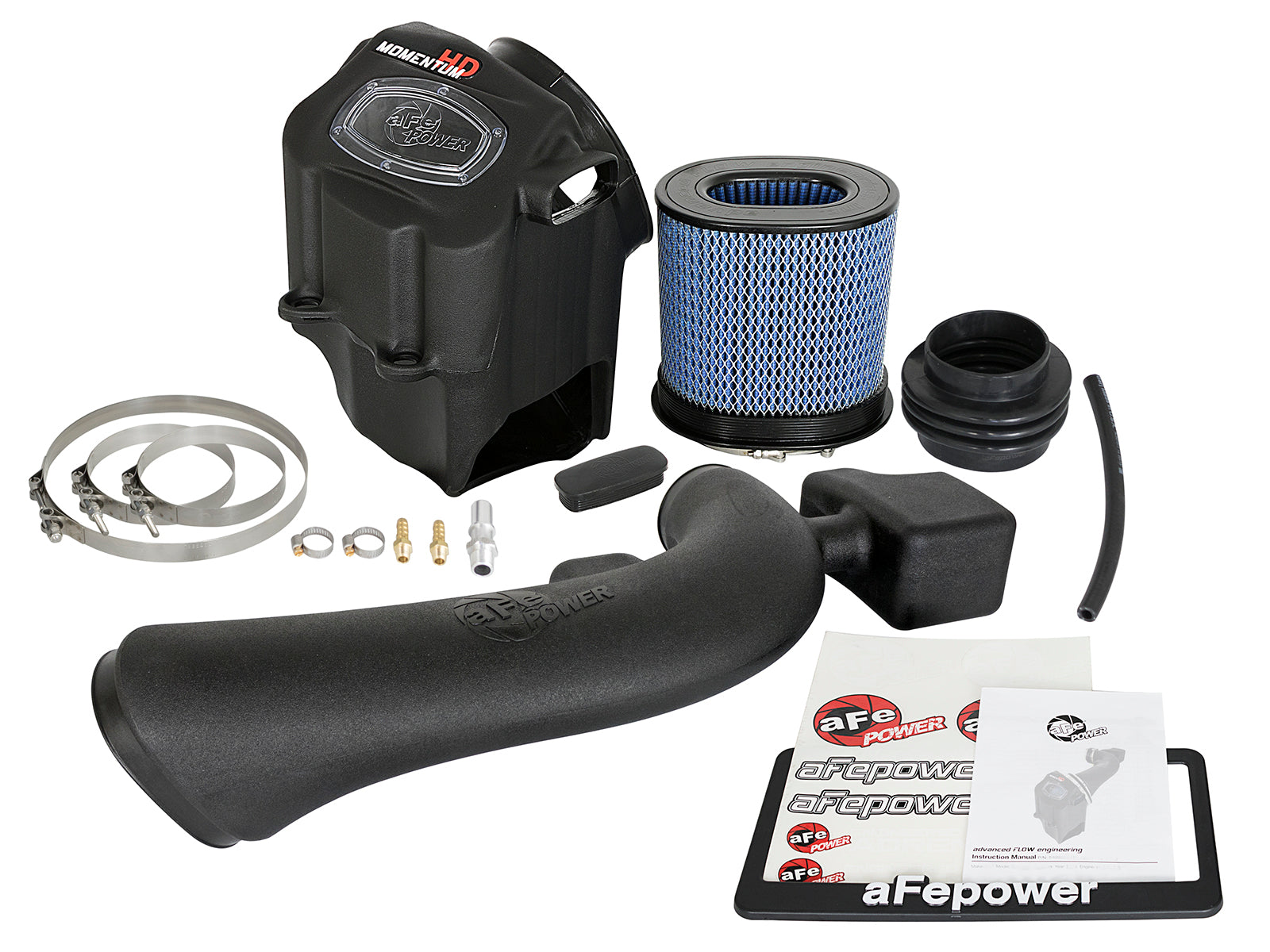

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91061 | Selected Pro 5R oiled filter |
| 1 | 05-73116B1 | Intake tube |
| 1 | 05-73006B2 | Housing |

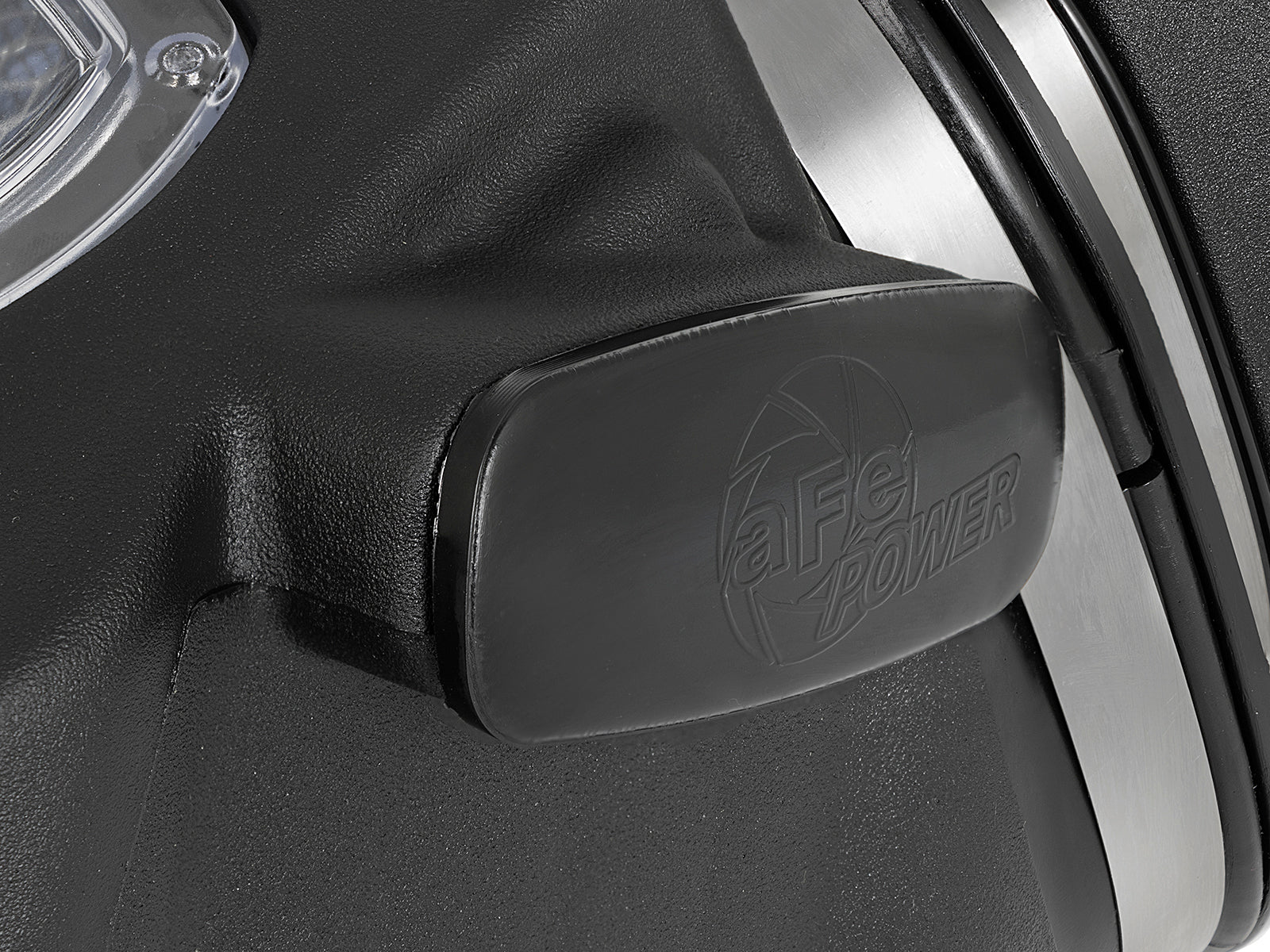

| 1 | 05-01225 | Auxiliary inlet plug |
| 1 | 05-01434 | Silicone bellows coupling |

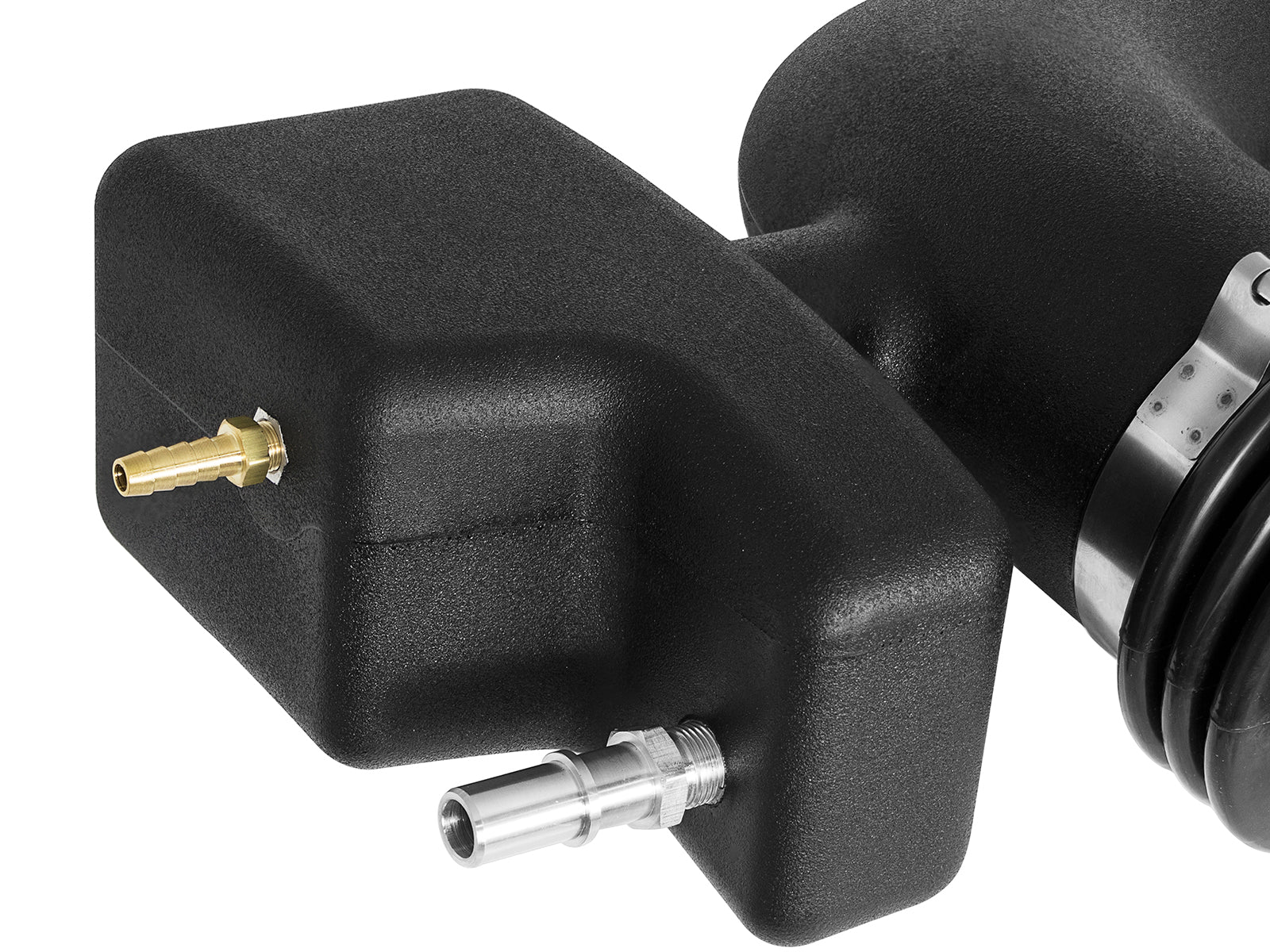

| 1 | 05-01339 | SAE 15.82 / 5/8-inch to 3/8-inch NPT fitting |

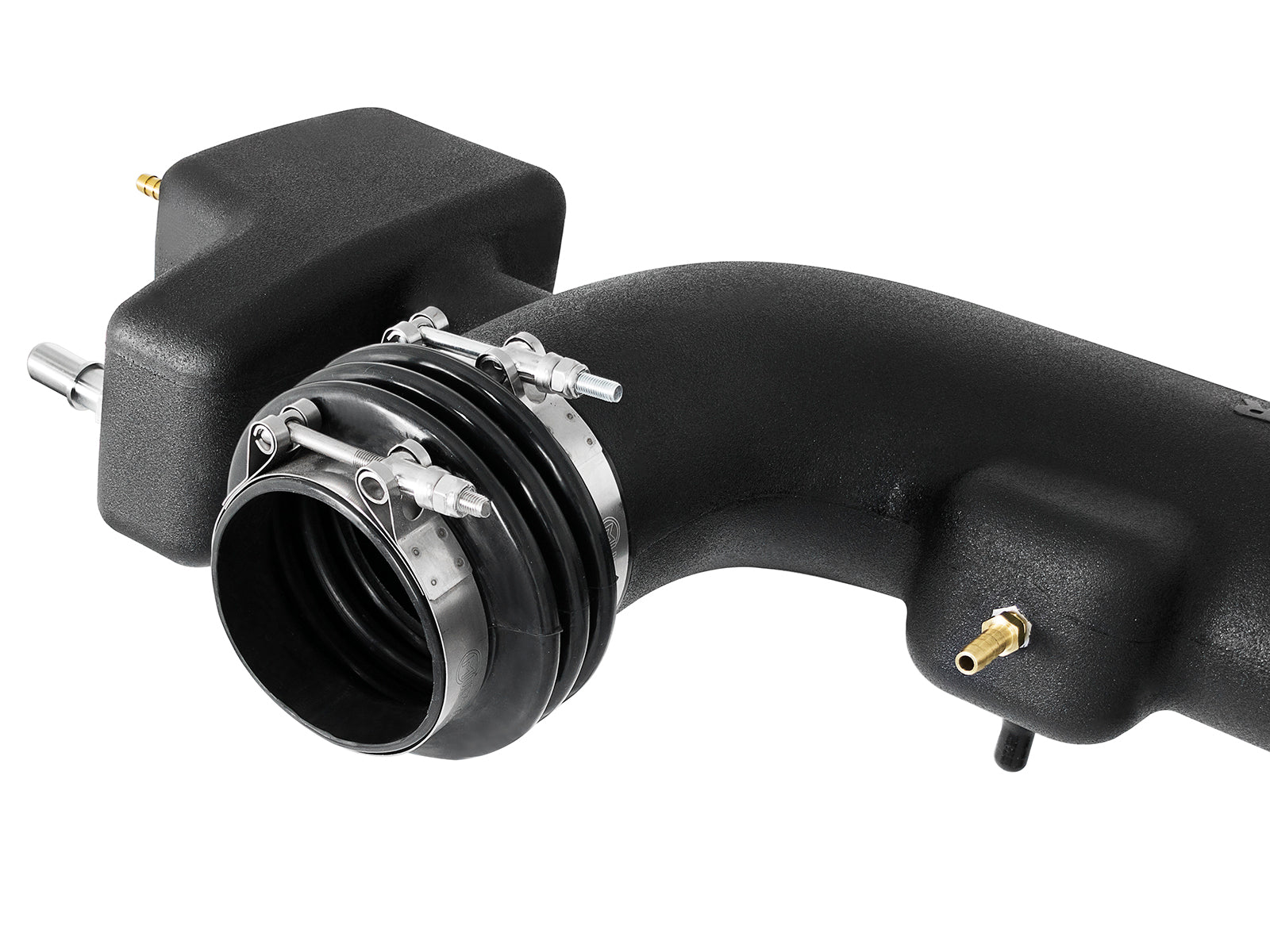

| 2 | 03-50192 | Brass nipples, 5/16-inch ID hose x 1/8-inch NPT |
| 2 | 03-50097 | Mini 004 clamps |
| 1 | 03-50267 | Large stainless housing T-bolt clamp |
| 1 | 03-50009 | Size 056 clamp |
| 1 | 03-50006 | Size 064 clamp |
| 1 | 05-00112 | 5/16-inch ID hose, 9-inch length |
| 1 | 03-50410 | Brass hex-socket plug, 1/8-inch NPT |
The dry-filter bill row is a separate configuration. The hose is described as fuel hose in the bill but the actual procedure uses it at the passenger-side vent connection and white plastic tee, not in fuel plumbing. If that original hose is absent, use the 1/8-inch NPT plug and omit the passenger-side hose/mini-clamp connection. The procedure calls for provided threadlocker at the fittings; it is not separately quantified in the bill. No new MAF or MAF screws are itemized. Reuse the two original housing screws, housing grommets and original tube-support mounts. The optional scoop is not included.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 24-91061 Pro 5R oiled filter with five cotton-gauze layers and 9-inch height. The dry alternative is separate.
Does this apply to the diesel Super Duty?Current manufacturer and manual identify 2017-2019 6.2L gasoline with original mechanical fan; no diesel application is established.
What if the passenger-side hose is absent?Use the supplied 1/8-inch NPT plug to close that tube port and omit the conditional hose connection.
Where does the supplied 9-inch hose connect?On an equipped vehicle it joins the passenger-side brass fitting to the original white plastic tee, secured by the two mini clamps.
Does the optional scoop come in the box?No. It is sold separately and uses its own installation instructions. The intake includes an auxiliary-opening plug.
Are new MAF screws included?No MAF or MAF screws are itemized in this exact bill or sensor-transfer procedure.
Why are two airflow numbers shown?The chart shows 269 CFM at 1.5 inches H2O; the primary separately states 550 CFM at 7 inches H2O. Different pressure conditions require qualification.
What torque and recheck apply?The manual gives no numeric torque or battery-disconnection step. Check clamps and connectors after 100-200 miles.
Verify aFe 54-73116. Read all sixteen pages and figures A-I on a cool engine. Remove and retain the two housing screws and loosen the original tube clamps. Lift out the original housing. Disconnect the original vent hoses, releasing an equipped passenger-side hose at its white plastic tee. Some vehicles lack that hose. Pull the original tube upward and away from throttle body, keeping its mounting grommets in place. Transfer original airbox grommets to new housing. Insert selected filter, install its clamps and tighten only the larger housing T-bolt initially. Seat housing in the original mount. Fit bellows and clamps loosely to the small tube end. Install the two brass nipples and aluminum fitting with the threadlocker directed by the manual. If there is no original passenger-side hose, close that tube port with supplied 1/8-inch NPT plug. Slide coupling over throttle body first, then connect the other tube end to the filter and tighten clamps. Restore original vent connections; for an equipped passenger-side hose, connect the supplied 9-inch hose between the tube brass fitting and original white tee, securing both ends with mini clamps. Restore the original two housing screws. An optional separately purchased scoop follows its own sheet; without it, choose the housing opening plugged or open as directed, recognizing engine-compartment air and sound tradeoffs. Verify every connection. Check clamps and connectors after 100-200 miles. No battery-disconnection step or numeric torque is stated.
Actual linked bench chart shows selected intake 269 versus original 228 CFM at 1.5 inches H2O, approximately 18 percent. The product page separately gives 550 CFM at 7 inches H2O; these are different pressure conditions and are not interchangeable readings. The 2017 F-250 6.2L dyno marks 327.22 versus 312.07 hp and 358.18 versus 341.62 lb-ft at 4799 rpm, differences of 15.15 hp and 16.56 lb-ft. Run maxima differ by 8.94 hp and 10.75 lb-ft. Intake June 21, 2017 uses SAE 1.04; baseline June 12, 2017 uses SAE 1.01. Both list cat-back exhaust, 40-inch tires, third gear and 20 percent preload; different dates and correction factors limit generalization. Current manufacturer and exact manual state not CARB exempt and unavailable for purchase in California or use on California-registered vehicles. Turn14 authenticated access is unavailable; prices remain unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
