aFe Momentum GT intake details

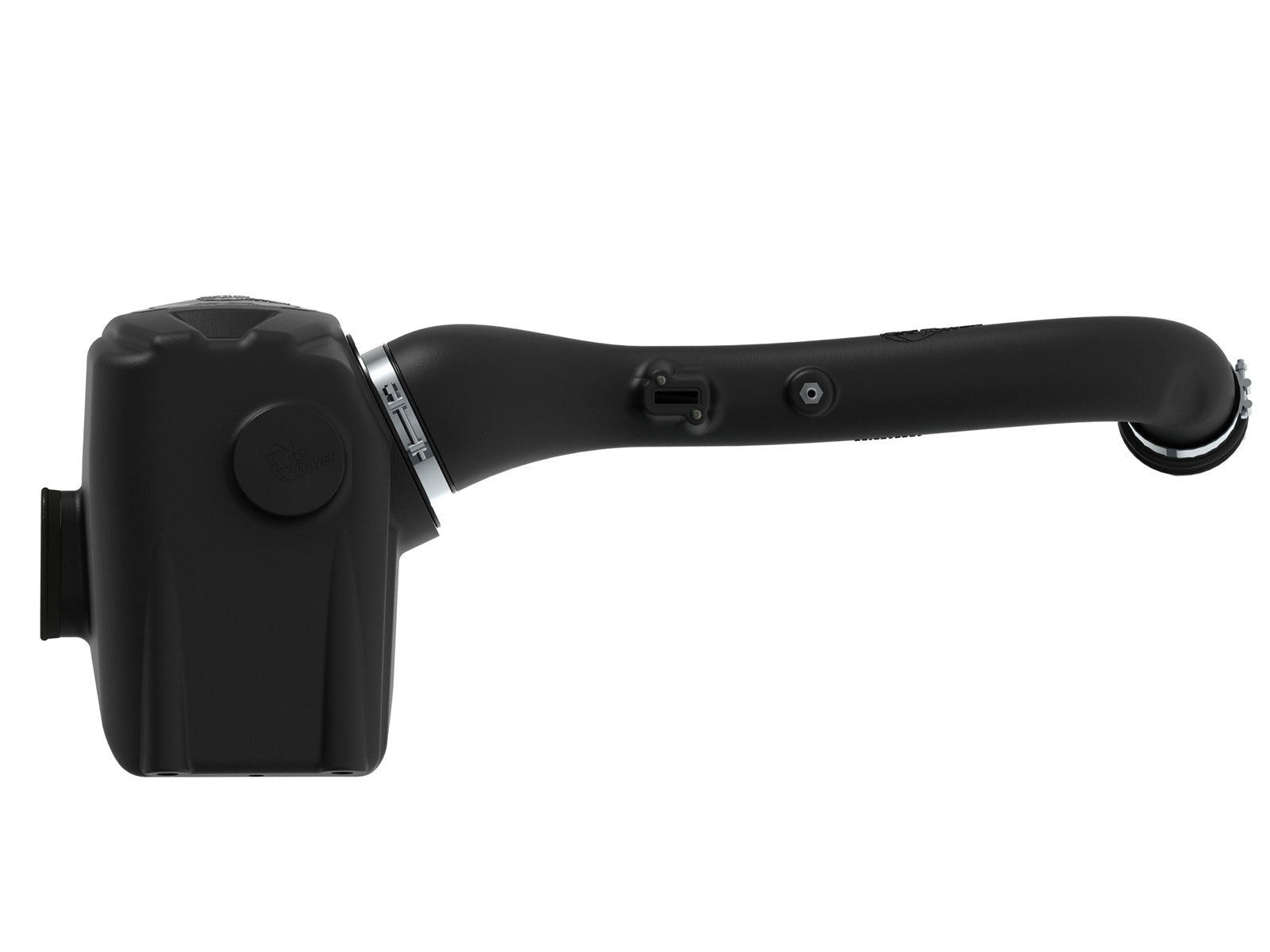

aFe 54-74109 is the Momentum GT intake for specified Chevrolet Colorado and GMC Canyon 2017–2022 3.6L V6 applications, including the documented Denali application. One Pro 5R filter fits the window housing. The molded tube and silicone hump reducer retain the original MAF and two vent connections, with the original vent-hose branch reconfigured exactly as illustrated.
Key Features
- One 24-91092 inverted-top filter: 6.75 x 4.75-inch oval flange, 8.25 x 6.25-inch base, 7.25 x 5-inch top and 9-inch height.
- Selected media: five-layer pre-oiled cotton gauze Pro 5R.
- Molded tube 05-74109B1 and window housing 05-74106B2.
- Silicone hump reducer 05-01400 with two different supplied T-bolt clamps.
- Two Torx M4 x 0.7 x 8mm screws and SAE 9.89-to-1/8-inch-NPT fitting 05-01692.
- 7/16-inch seal trim, 18 inches long, and optional auxiliary-inlet urethane plug 05-01361.
Fitment
Both current exact product pages and their shared 20-page manual specify Colorado and Canyon 2017–2022 V6-3.6L; the manual explicitly includes Denali. Exact selected-part retailer tables support the named rows below. R coverage remains at its existing 2022 endpoints. For D, four Colorado and one Canyon Denali ranges extend from 2021 to 2022; missing Canyon AT4, Elevation and Elevation Standard 2021–2022 and SLT 2017–2020 groups are restored. Original gaps and remaining endpoints are preserved. A retailer engine table also claims 2021 diesel coverage, conflicting with the exact primary 3.6L application; no diesel scope is added. This is the midsize Colorado/Canyon kit, not a Silverado/Sierra application. Match the actual engine, MAF, vent layout and mounting points.
| Years |
Make |
Model |
Named trim; actual engine and hood requirements apply |
| 2017-2022 |
Chevrolet |
Colorado |
LT |
| 2017-2022 |
Chevrolet |
Colorado |
WT |
| 2017-2022 |
Chevrolet |
Colorado |
Z71 |
| 2017-2022 |
Chevrolet |
Colorado |
ZR2 |
| 2018-2020 |
GMC |
Canyon |
All Terrain |
| 2021-2022 |
GMC |
Canyon |
AT4 |
| 2017-2020 |
GMC |
Canyon |
Base |
| 2017-2022 |
GMC |
Canyon |
Denali |
| 2021-2022 |
GMC |
Canyon |
Elevation |
| 2021-2022 |
GMC |
Canyon |
Elevation Standard |
| 2017-2020 |
GMC |
Canyon |
SLE |
| 2017-2020 |
GMC |
Canyon |
SLT |
Verify 54-74109 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
Specifications
| Brand |
aFe POWER |
| Manufacturer Part Number |
54-74109 |
| Product type |
Momentum GT enclosed cold air intake |
| Selected filter |
One 24-91092; 6.75 x 4.75-inch flange and 9-inch height |
| Media |
Five-layer pre-oiled cotton gauze, washable/reusable |
| Tube / housing |
05-74109B1 / 05-74106B2 |
| Coupling |
05-01400 silicone hump reducer |
| T-bolt clamps |
One 03-50292, 3-1/4 to 3-9/16 inches; one 03-50320, 3-1/16 to 3-3/8 inches |
| Sensor screws |
Two Torx M4 x 0.7 x 8mm, 03-50491 |
| Vent fitting |
05-01692, SAE 9.89 to 1/8-inch NPT |
| Seal trim |
05-00072, 7/16-inch profile, 18-inch length |
| Auxiliary inlet |
Optional urethane plug 05-01361 |
| Mounting |
Transfer two original grommets with metal spacers; reuse original nuts and lower chassis grommet |
| Torque / inspection |
No numeric torque; check bolts, clamps and connectors after 200 miles |
| UPC |
802959543023 |
| WARNING |
This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

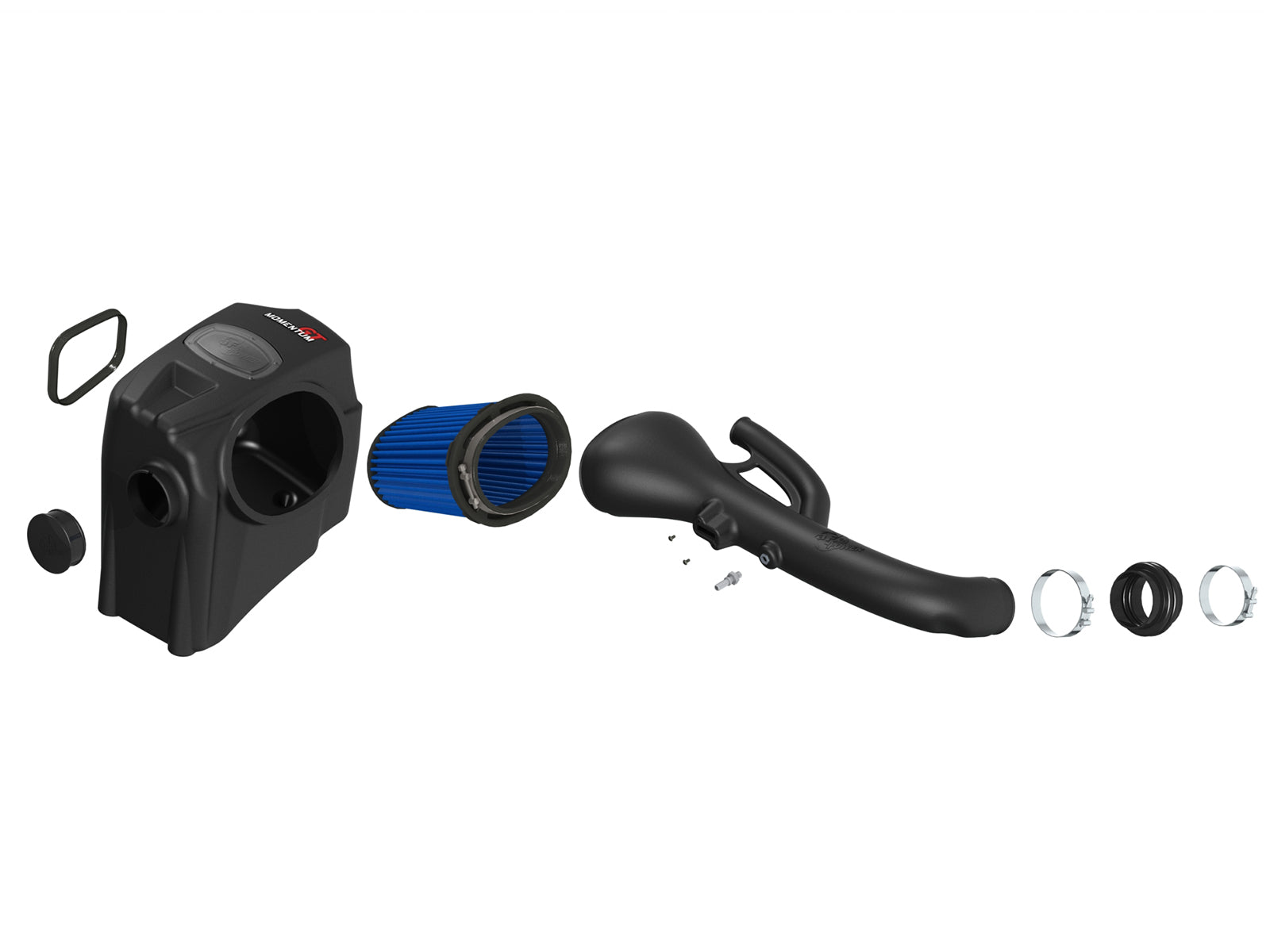

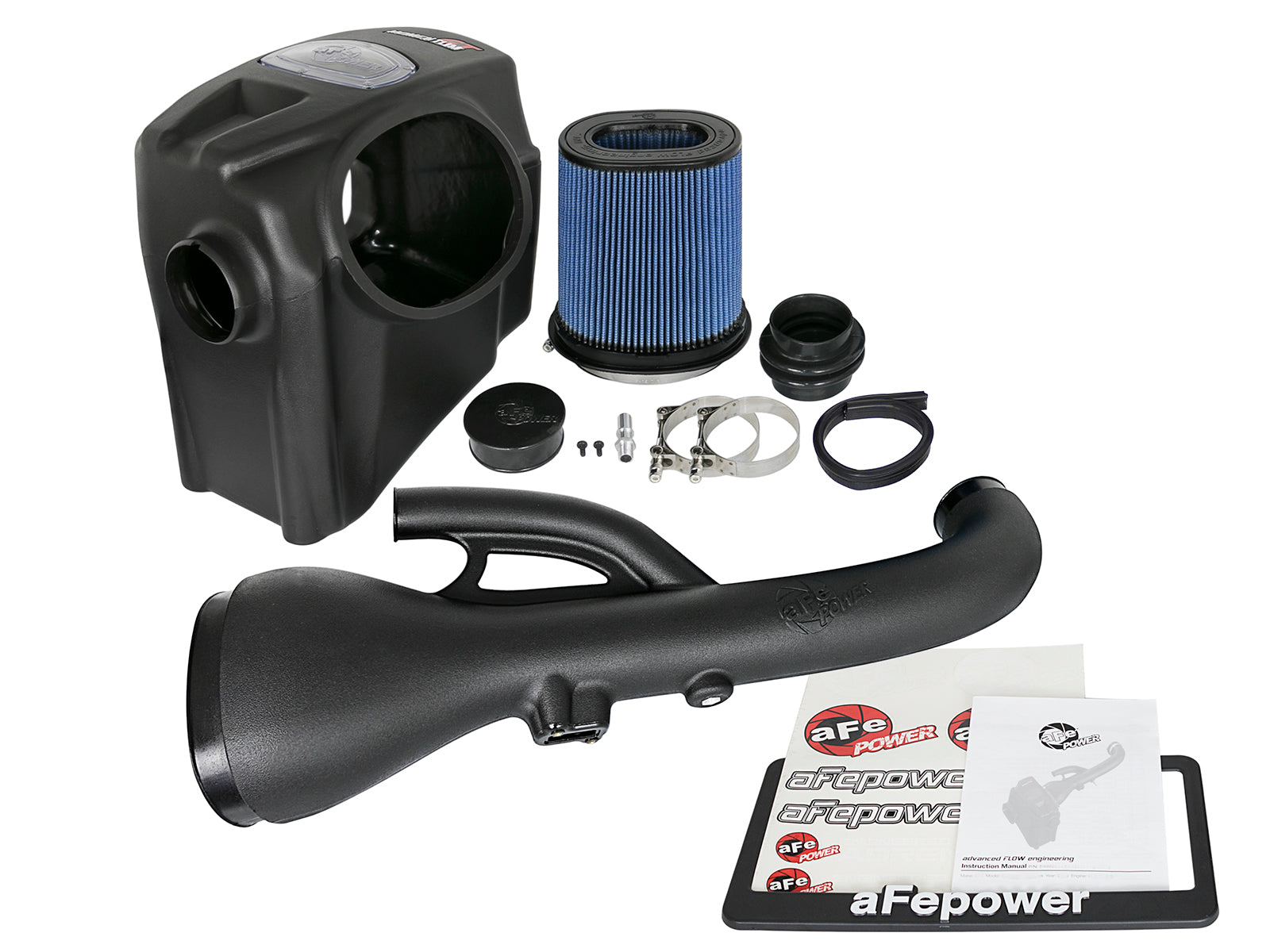

What's Included
| Quantity |
Manufacturer service part |
Component |
| 1 |
24-91092 |
Selected filter; alternate-media rows are not additional filters |
| 1 |
05-74109B1 |
Molded tube |
| 1 |
05-74106B2 |
Window housing |
| 1 |
05-01361 |
Optional auxiliary-inlet urethane plug |
| 1 |
05-00072 |
7/16-inch seal trim, 18 inches |
| 1 |
03-50292 |
T-bolt clamp, 3-1/4 to 3-9/16 inches |
| 1 |
05-01400 |
Silicone hump reducer |
| 2 |
03-50491 |
Torx M4 x 0.7 x 8mm screws |
| 1 |
05-01692 |
SAE 9.89 to 1/8-inch NPT fitting |
| 1 |
03-50320 |
T-bolt clamp, 3-1/16 to 3-3/8 inches |
The original vent-hose assembly is reused and reversed by rotating its T connector and reversing the end fittings, following the SHORT/LONG labels in Figures K and L. This is not a hose-cutting instruction and no replacement hose is listed. Rotate the coolant-reservoir hose-clamp ears upward for clearance without opening the coolant circuit. Transfer the two airbox grommets with metal spacers to the new housing, reuse both original mounting nuts, and seat its lower pin into the chassis grommet. The original engine cover is part of the removed intake-tube assembly; the final illustration shows the replacement tube without a separate engine-cover restoration step. The manual includes a negative-battery disconnection instruction with awkward plural wording; follow the actual vehicle’s battery isolation procedure, without inferring an extra battery. A filter clamp is illustrated without a separate BOM code. No new scoop, MAF, extension harness, coolant hose or threadlocker is listed. Service supplies are separate.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
Frequently Asked Questions
How many filters are supplied for 54-74109?One 24-91092 Pro 5R filter. The shared manual’s other media rows are alternatives, not extra filters.
Does the dry filter need oil?No. D uses three-layer oil-free synthetic media; R uses five-layer pre-oiled cotton gauze.
Is this a Silverado or Sierra kit?No. Exact current primary documents specify the midsize Colorado/Canyon 2017–2022 3.6L V6, including Denali.
Must the original vent hose be cut?No. Rotate the T connector and reverse the end fittings to match the illustrated new SHORT/LONG configuration.
What happens to the coolant-reservoir hose clamps?Rotate their ears upward for clearance. The instruction does not require opening or cutting the coolant hose.
Which original mounting parts transfer?Transfer two airbox grommets with metal spacers, reuse both saved mounting nuts and seat the lower pin in the original chassis grommet.
Does the removed integrated engine cover have a restoration step?No separate restoration step appears in this exact manual; its final illustration shows the replacement intake tube.
What torque and inspection interval apply?No numeric torque is specified. Follow the negative-battery instruction and check bolts, clamps and connectors after 200 miles.
Installation Instructions
Verify aFe 54-74109. Work on a cool engine and follow the manual’s negative-battery isolation instruction using the vehicle’s specified procedure. Loosen the original throttle-body, airbox and breather clamps with an 8mm nut driver, disconnect the small breather hose, remove the three 10mm screws, then remove the oil cap and integrated engine-cover/intake-tube assembly. Reinstall the oil cap. Disconnect MAF and release the airbox wire-loom clip. Remove and save the two 10mm airbox nuts, then lift the airbox and attached inlet off its lower mounting grommet. Rotate the coolant-reservoir hose-clamp ears upward using pliers. Transfer MAF with T20 and the two supplied M4 x 0.7 x 8mm screws without overtightening, and install the supplied aluminum fitting with a 17mm or adjustable wrench. Fit the supplied 18-inch seal trim to the housing opening. Transfer the two original grommets and metal spacers, seat the housing lower pin in its chassis grommet and its front mounts over both studs, then reuse the saved nuts. Seat the selected filter and clamp without tightening. Fit the silicone hump reducer and supplied clamps at the throttle body, tightening only the throttle-body end initially. Release the stock vent hose at both clips, rotate its T connector and reverse the end fittings as shown in Figures K and L, then reinstall it in the new SHORT/LONG configuration. Insert the tube into the filter first, then the coupling, align and tighten all clamps. Reconnect and clamp the larger vent hose, snap the smaller breather fitting onto the tube’s aluminum port, and reconnect MAF. Fit the optional auxiliary-inlet plug if desired and verify clearance and security. Complete battery reconnection under the vehicle procedure and recheck bolts, clamps and connectors after 200 miles. No numeric torque or coolant-hose cutting is specified.
Important Disclosures
Both product pages advertise 350 CFM at 7 inches H2O, 29-percent airflow and 9 hp/7 lb-ft gains. Both linked flow images are byte-identical R-labeled charts showing 191 versus stock 148 CFM at 1.5 inches H2O, approximately 29.1 percent; the separate 350-CFM/7-inch page claim is not the same-pressure measurement. Both linked dyno images are also identical. Their 2017 Colorado Z71 3.6L comparison marks 257.62 versus 248.78 hp near 6,751 rpm, an 8.84 hp difference, and 200.45 versus 193.56 lb-ft, a 6.89 lb-ft difference. Independent maxima 257.68 versus 249.07 hp differ by 8.61 hp and 221.25 versus 213.94 lb-ft differ by 7.31 lb-ft. The intake-run note names an insert and a different part-number string, so selected production-media identity is not independently resolved by the shared chart. The January 26 and March 30, 2017 runs state OEM exhaust manifolds/exhaust, hood open, blade fan, third gear in automatic manual-shift mode, traction control off and 20-percent preload. Baseline conditions are 58.44°F/29.65 in-Hg/27% humidity with SAE 0.97; intake conditions are 79.01°F/29.24 in-Hg/28% with SAE 1.01. The shared chart’s insert/part-label ambiguity remains explicit for the selected R kit as well. Point and peak comparisons are distinct and do not guarantee gains for every vehicle. Exact current pages and the manual state this intake is not CARB exempt and unavailable for California purchase or California-registered vehicles.
