aFe 4Runner FJ Cruiser Magnuson Pro DRY S

Toyota 4Runner and FJ Cruiser Magnuson intake

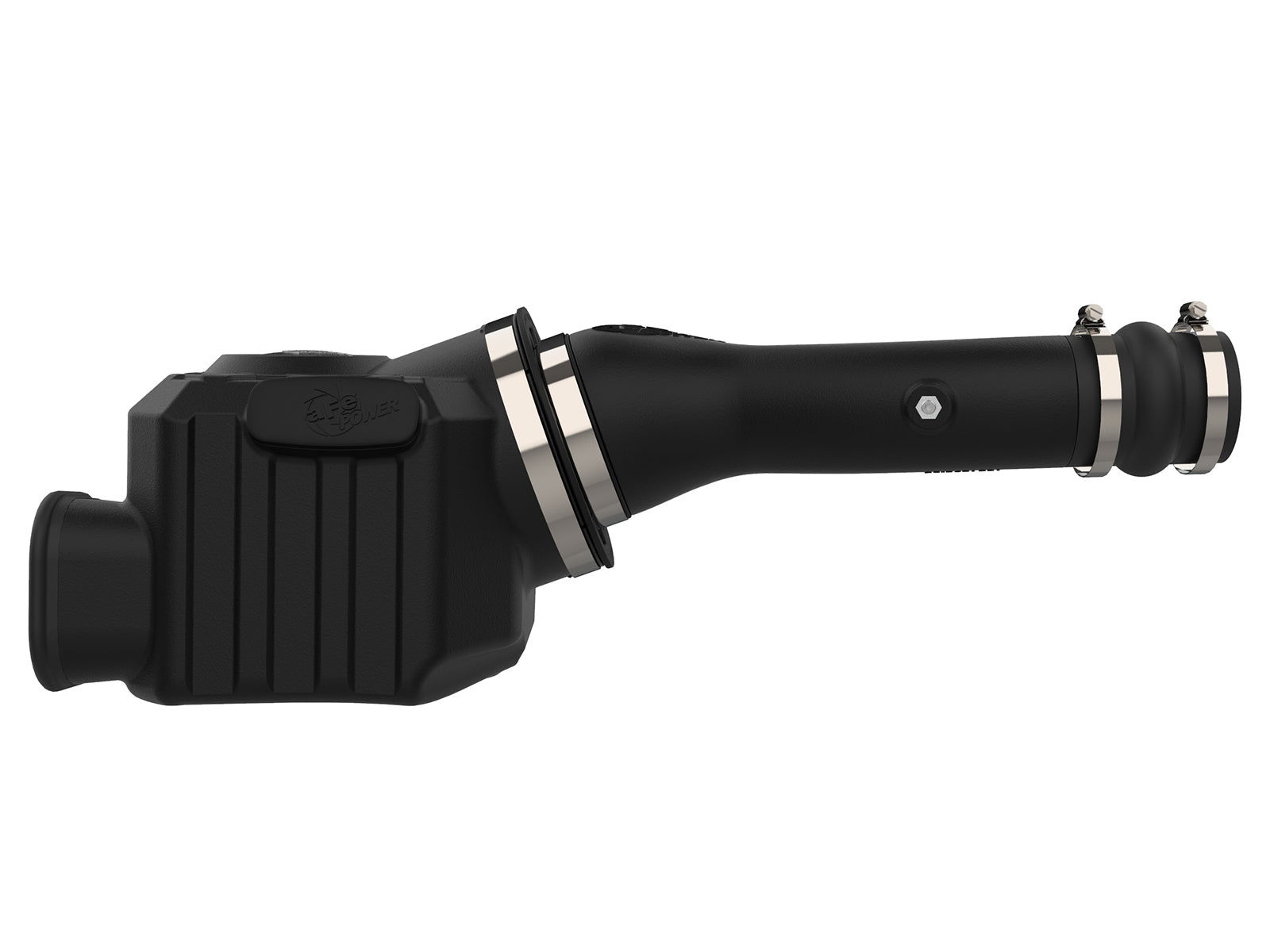

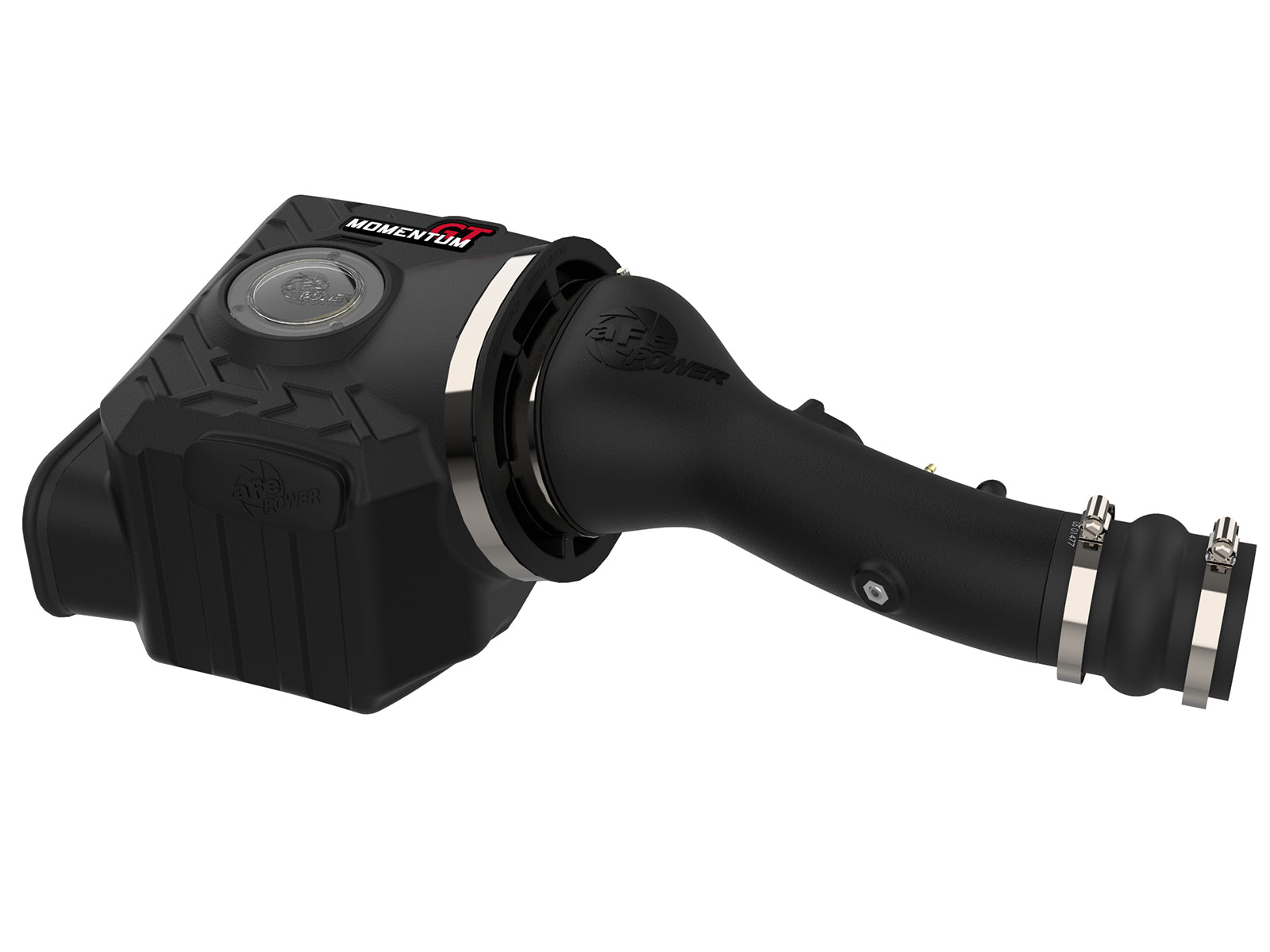

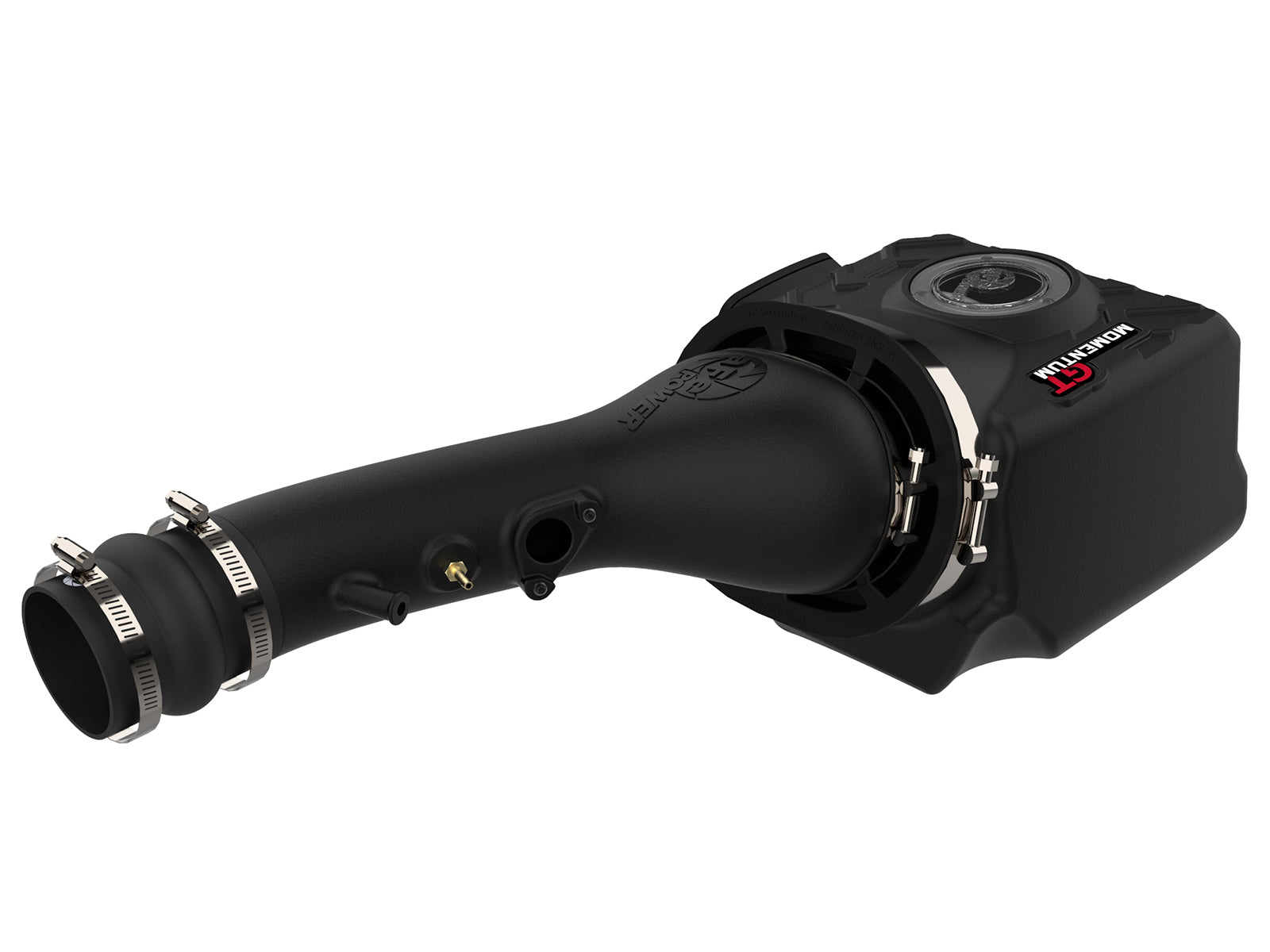

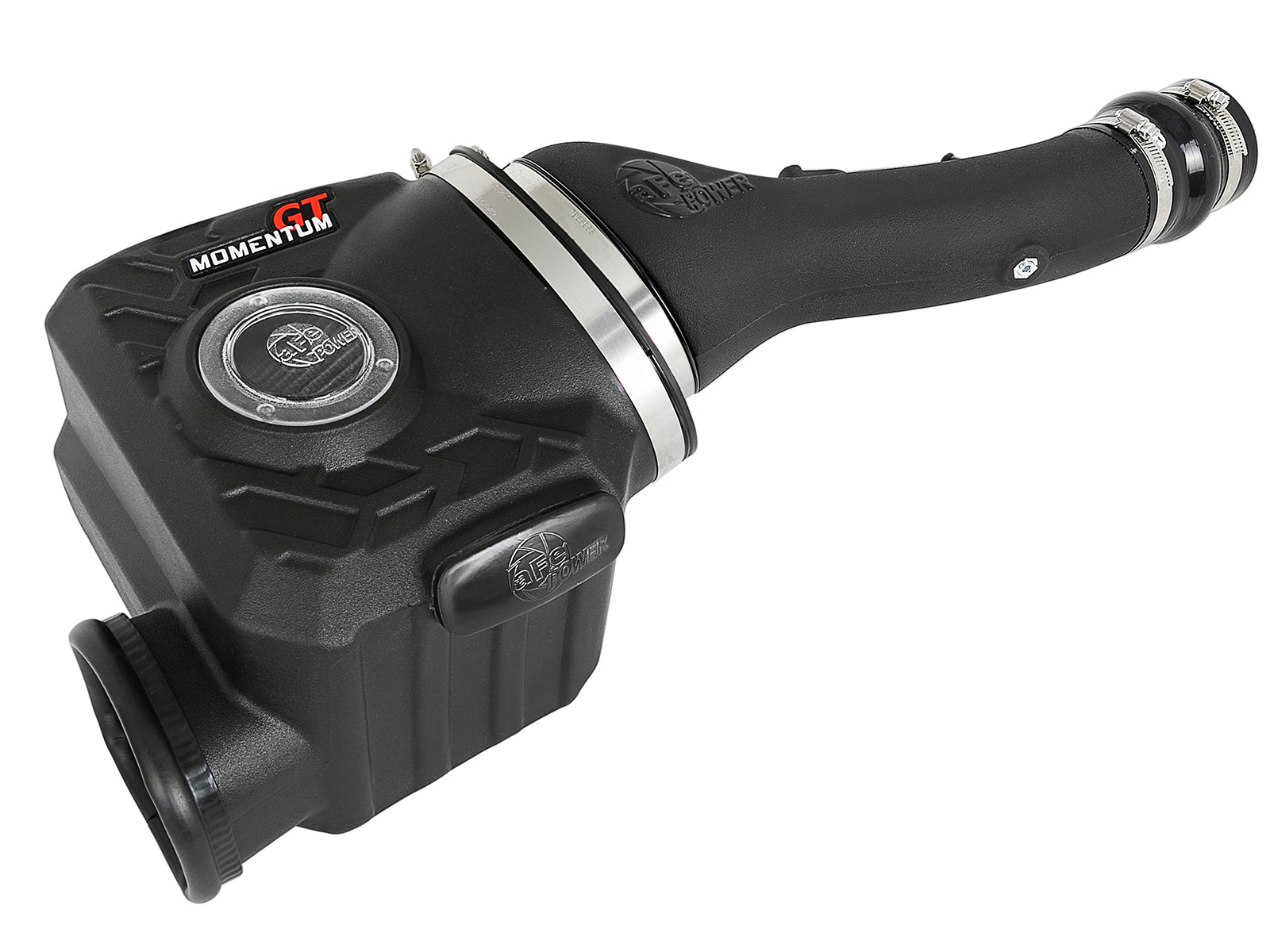

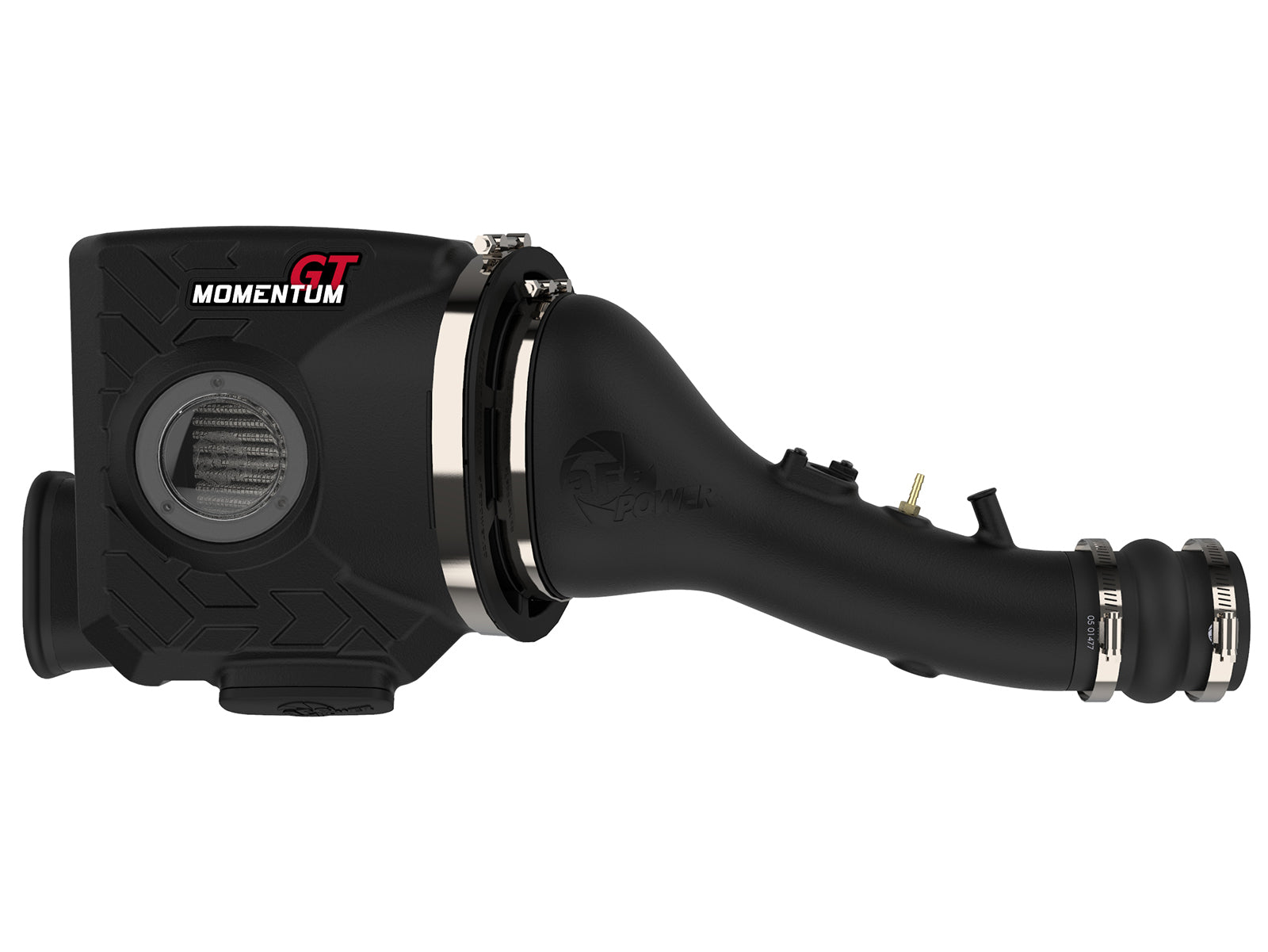

aFe 51-76013 Momentum GT uses one three-layer oil-free synthetic Pro DRY S filter, black XLPE supercharger-specific tube and sealed sight-window housing. It requires the installed Magnuson supercharger on the specified 4Runner or FJ Cruiser 4.0L V6 and is not a naturally aspirated intake or a supercharger kit.

Key Features

• One 21-91116 Pro DRY S filter; current 8-inch height.
• Black XLPE tube and sealed sight-window housing with optional inlet plug.
• Two #052 coupling clamps and one large filter/housing T-bolt.
• Original MAF and BOTH original vent/vacuum hoses retained.
• Front threaded-hole rubber isolation mount; hand tighten only.
• Front optional injection port closed with supplied 1/8-NPT threaded plug.
• The actual linked chart labels this exact selected-media intake at 207 CFM versus stock 148 CFM, measured at 1.5 inches H2O, approximately 40% higher using the plotted rounded numbers. The current product page instead describes 207 CFM at 7 inches H2O with a 39% headline. The test-pressure discrepancy is explicitly unresolved; do not treat these as equivalent test conditions or an independent power/efficiency guarantee.

Fitment

ONLY for vehicles already equipped with the required Magnuson supercharger: Toyota FJ Cruiser 2010-2014 and Toyota 4Runner 2010-2024, both V6-4.0L, as explicitly named by the exact current manufacturer pages and updated shared manual. This is an intake, not a supplied supercharger or approval for the naturally aspirated configuration. The legacy named-trim rows below are conditional on that installed equipment; they do not independently establish compatibility. Later named-trim coverage and missing trim combinations require exact supercharger/housing proof. Existing original year bounds remain qualified rather than expanded into unconditional coverage.

Verify 51-76013 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

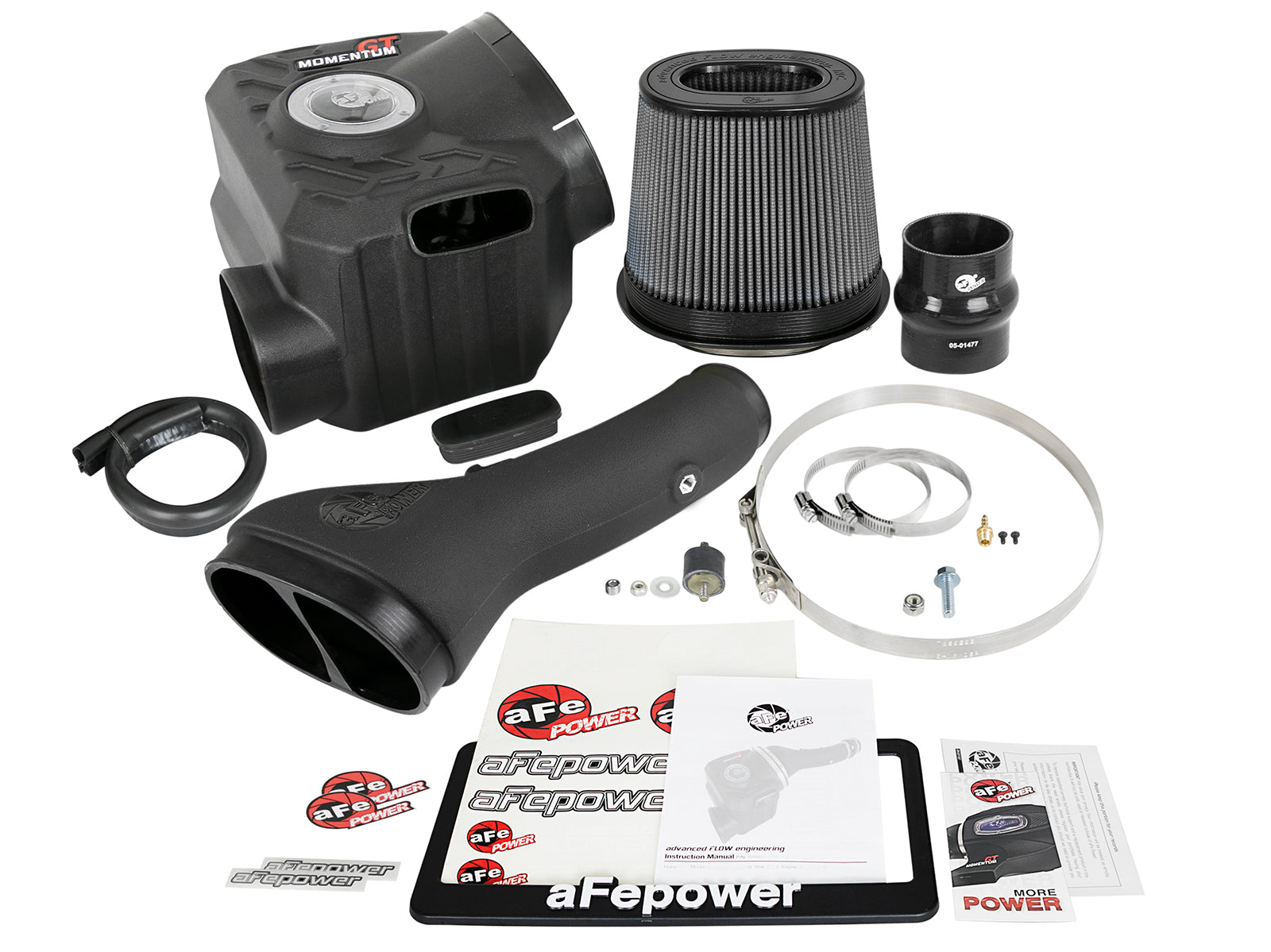

What's Included

One selected Pro DRY S filter is supplied, not all three alternatives in the shared BOM. Current exact pages describe an 8-inch filter. The dry exact-part retailer table describes a 7 x 4.75-inch oval flange, while older oiled retailer copy describes a 5-inch round flange; the exact listed service filter and actual housing interface govern, and conflicting copied flange dimensions are not certified for the box. Reuse the original MAF, BOTH original vent/vacuum hoses, two rear steel sleeves/grommets and the specified original housing bolt. No new MAF, hose set, supercharger, injection nozzle/pump, or engine-cover relocation hardware is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 51-76013
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

ONLY for vehicles already equipped with the required Magnuson supercharger: Toyota FJ Cruiser 2010-2014 and Toyota 4Runner 2010-2024, both V6-4.0L, as explicitly named by the exact current manufacturer pages and updated shared manual. This is an intake, not a supplied supercharger or approval for the naturally aspirated configuration. The legacy named-trim rows below are conditional on that installed equipment; they do not independently establish compatibility. Later named-trim coverage and missing trim combinations require exact supercharger/housing proof. Existing original year bounds remain qualified rather than expanded into unconditional coverage.

One 21-91116 Pro DRY S three-layer oil-free synthetic filter; the exact current page describes 8-inch height. Wash, fully dry and do not oil dry media. Conflicting copied retailer flange descriptions do not certify the boxed dimension.

No. It is an intake for an already correctly supercharged configuration. A naturally aspirated truck, another engine or an arbitrary aftermarket supercharger is not approved by model name alone.

Transfer the two rear original steel sleeves and rubber grommets. Install the new rubber isolation mount into the front-most threaded hole and HAND TIGHTEN ONLY. This exact kit does not use the earlier Tacoma A/C-bracket screw replacement step.

Yes. Transfer the original MAF using the two supplied M4 Torx screws, install the brass nipple and reconnect BOTH original crankcase vent and 5/32-inch vacuum hoses. No replacement hose set or new sensor is listed.

The front tube fitting is an optional methanol-injection port. Install the supplied 1/8-NPT socket plug for the instructed installation. No injection nozzle, pump, reservoir, controller or supercharger is supplied; the auxiliary-airbox plug is a separate part.

The actual linked chart labels this exact selected-media intake at 207 CFM versus stock 148 CFM, measured at 1.5 inches H2O, approximately 40% higher using the plotted rounded numbers. The current product page instead describes 207 CFM at 7 inches H2O with a 39% headline. The test-pressure discrepancy is explicitly unresolved; do not treat these as equivalent test conditions or an independent power/efficiency guarantee. Both linked dyno charts are identical and identify Prototype AIS #1 on a Magnuson-supercharged configuration, without identifying the selected filter medium or a vehicle year/model in the notes. At the marked high-rpm location, power is 257.68 versus 282.64 hp (24.96 hp difference) and torque 258.71 versus 281.47 lb-ft (22.76 lb-ft difference). Run maxima are 261.33 versus 282.64 hp and 282.71 versus 300.07 lb-ft, or 21.31 hp and 17.36 lb-ft peak-to-peak at different peak rpm. Both runs list blade fan, Magnuson supercharger, fourth gear and 20% load; the baseline additionally says 2WD and OE intake, while the prototype specifies stock exhaust. Both SAE factors are 0.99 and RPM comes from OBD2; temperature and humidity differ. Hood, tires and a repeated exhaust configuration are unspecified. The advertised 24 hp/24 lb-ft headline is not every point or peak-to-peak difference, an independent dry/oiled comparison or a guarantee for every supercharged vehicle.

Recheck all connections after 100-200 miles; no numeric torque is supplied. This exact manual does not prescribe engine-cover stud transfer or cover reinstallation. The optional airbox plug does not establish a fording depth. The current exact manufacturer pages and shared manual state that this product is not currently CARB exempt and is unavailable for purchase in California or use on a vehicle registered with the California DMV. Supercharger compatibility does not establish emissions approval or permission to remove emissions equipment.

Installation Instructions

Verify aFe 51-76013. With a cool engine, loosen the original throttle and airbox clamps, disconnect BOTH original vent hoses and unplug the original MAF, releasing its wire clips. Release the four airbox lid clips and remove the lid/filter, then remove the three lower-airbox mounting screws and retain them. Install the supplied M8 rubber isolation mount in the FRONT-MOST THREADED HOLE and HAND TIGHTEN ONLY; do not borrow the earlier Tacoma A/C-bracket replacement step. Fit and trim the 17-inch inlet seal. Transfer TWO original steel sleeves and rubber grommets to the rear housing mounts. Secure the housing with the specified original bolt at the left mount, supplied M8 bolt at the right rear, and nut/washer at the new isolation mount. Fit the selected filter and large T-bolt loosely. Transfer the original MAF with the two T20 Torx screws and install the brass nipple near the sensor. Close the FRONT 1/8-NPT optional methanol-injection port with the supplied threaded plug using the specified 3/16-inch Allen key; no injection system is included. Fit the silicone hump coupling and first #052 clamp at the throttle body, leaving the second clamp loose. Insert the tube first into the throttle coupling and then into the filter. Reconnect BOTH original crankcase vent and 5/32-inch vacuum hoses and original MAF. Align and secure all connections. Choose whether to fit the auxiliary-inlet urethane plug. Recheck bolts, clamps and connectors after 100-200 miles. The manual gives no numeric torque and does not prescribe engine-cover stud transfer or a cover-reinstallation step.

Important Disclosures

ONLY for vehicles already equipped with the required Magnuson supercharger: Toyota FJ Cruiser 2010-2014 and Toyota 4Runner 2010-2024, both V6-4.0L, as explicitly named by the exact current manufacturer pages and updated shared manual. This is an intake, not a supplied supercharger or approval for the naturally aspirated configuration. The legacy named-trim rows below are conditional on that installed equipment; they do not independently establish compatibility. Later named-trim coverage and missing trim combinations require exact supercharger/housing proof. Existing original year bounds remain qualified rather than expanded into unconditional coverage. The current exact manufacturer pages and shared manual state that this product is not currently CARB exempt and is unavailable for purchase in California or use on a vehicle registered with the California DMV. Supercharger compatibility does not establish emissions approval or permission to remove emissions equipment. Both linked dyno charts are identical and identify Prototype AIS #1 on a Magnuson-supercharged configuration, without identifying the selected filter medium or a vehicle year/model in the notes. At the marked high-rpm location, power is 257.68 versus 282.64 hp (24.96 hp difference) and torque 258.71 versus 281.47 lb-ft (22.76 lb-ft difference). Run maxima are 261.33 versus 282.64 hp and 282.71 versus 300.07 lb-ft, or 21.31 hp and 17.36 lb-ft peak-to-peak at different peak rpm. Both runs list blade fan, Magnuson supercharger, fourth gear and 20% load; the baseline additionally says 2WD and OE intake, while the prototype specifies stock exhaust. Both SAE factors are 0.99 and RPM comes from OBD2; temperature and humidity differ. Hood, tires and a repeated exhaust configuration are unspecified. The advertised 24 hp/24 lb-ft headline is not every point or peak-to-peak difference, an independent dry/oiled comparison or a guarantee for every supercharged vehicle.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
