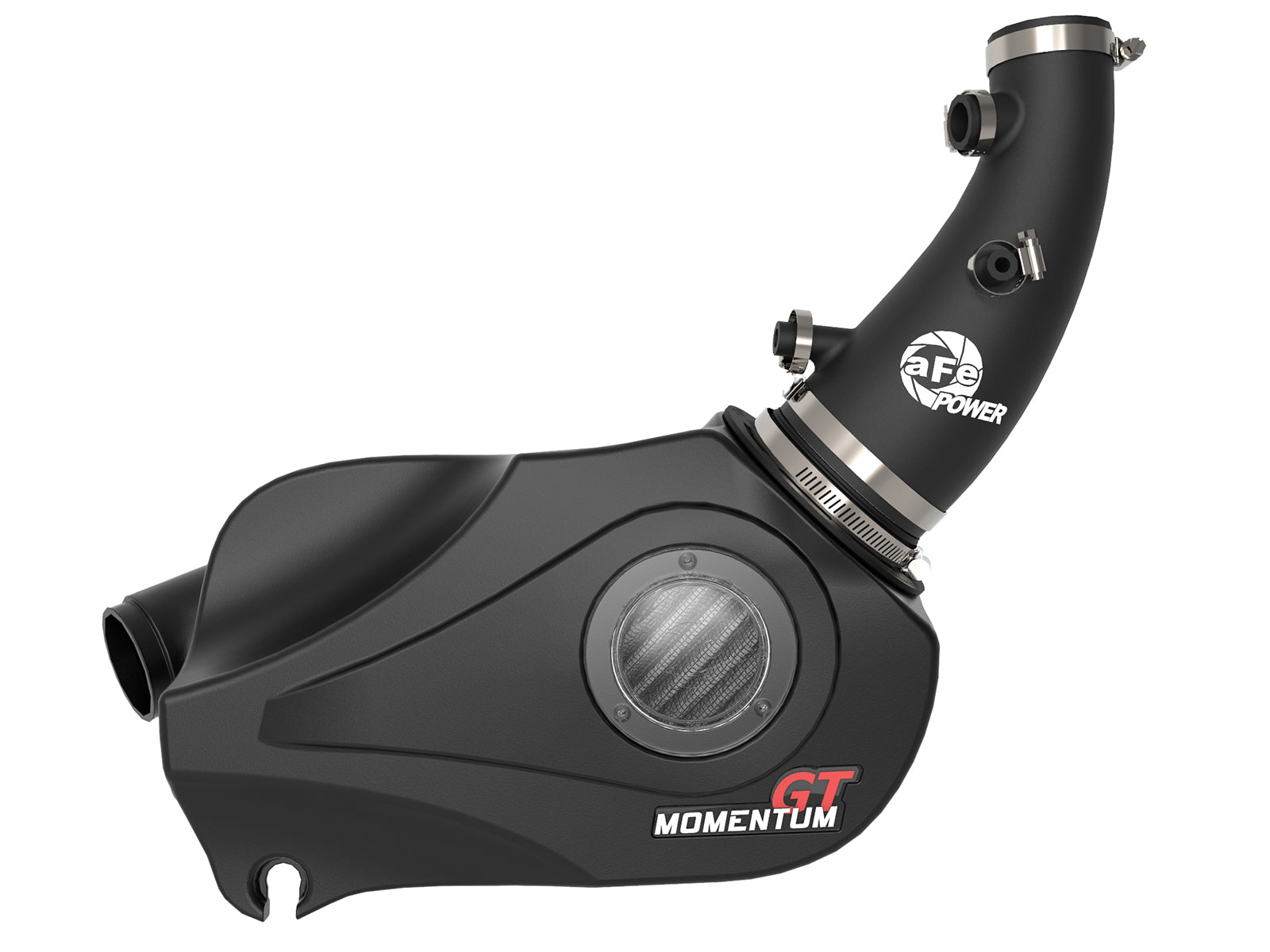

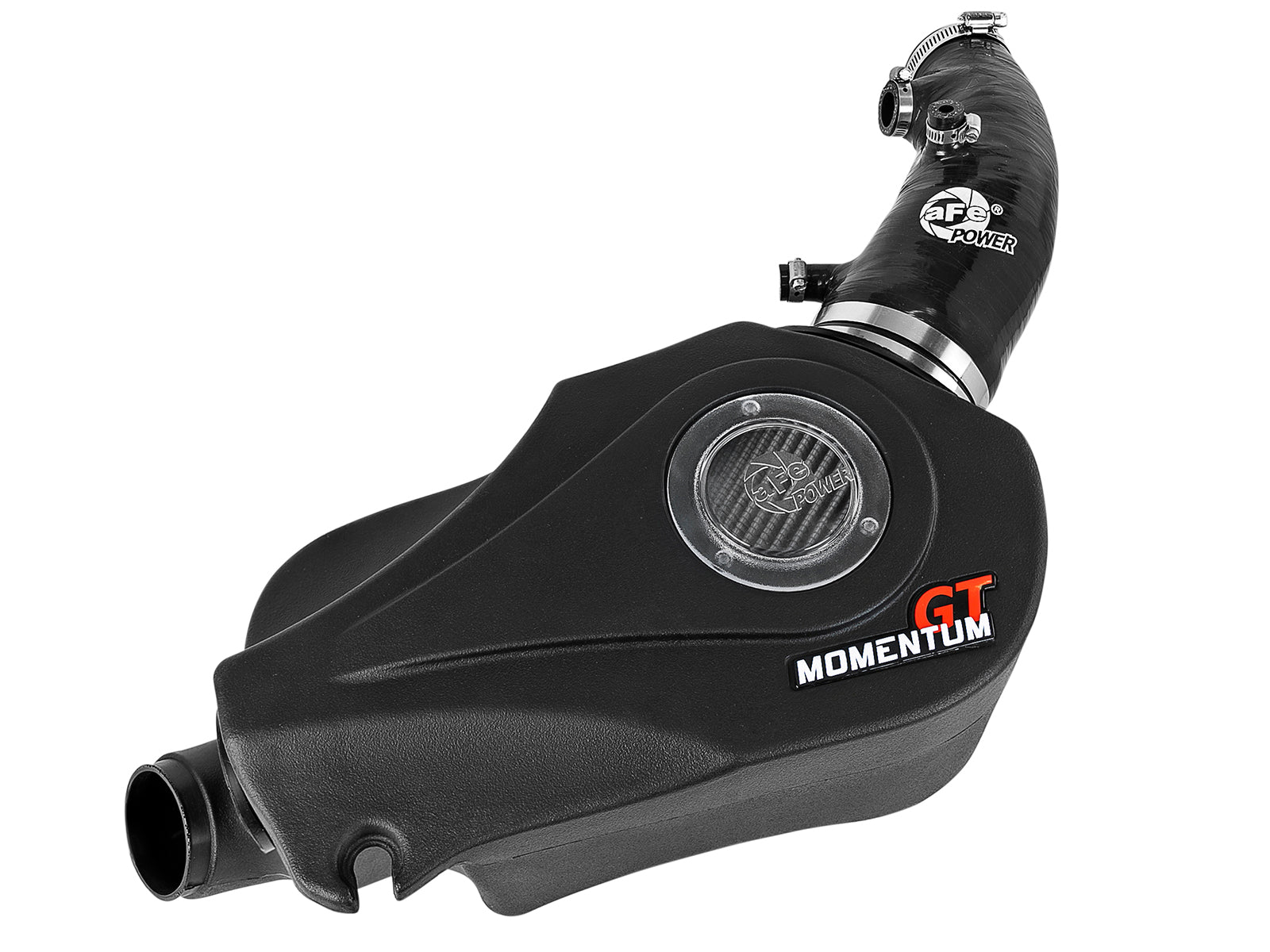

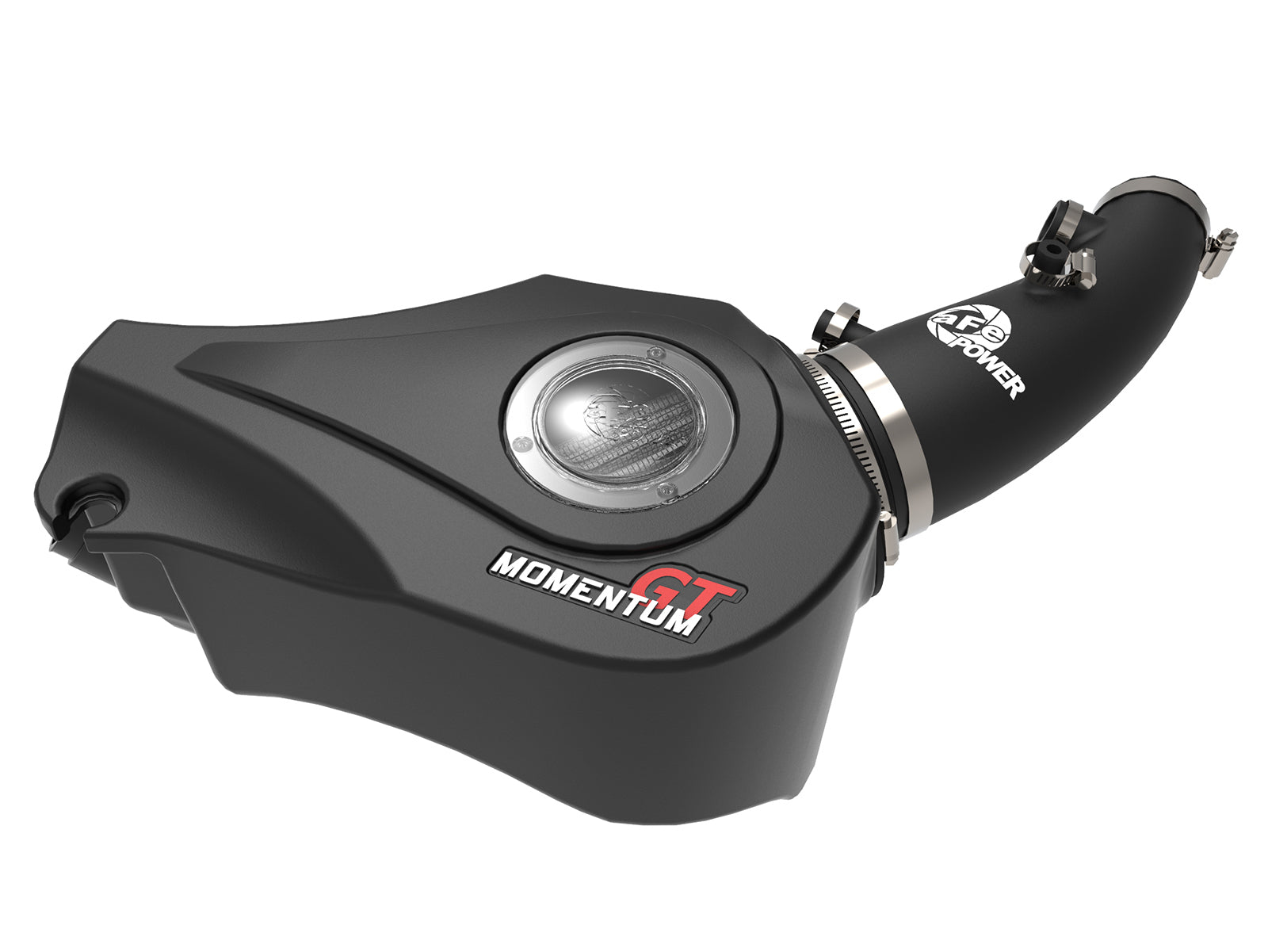

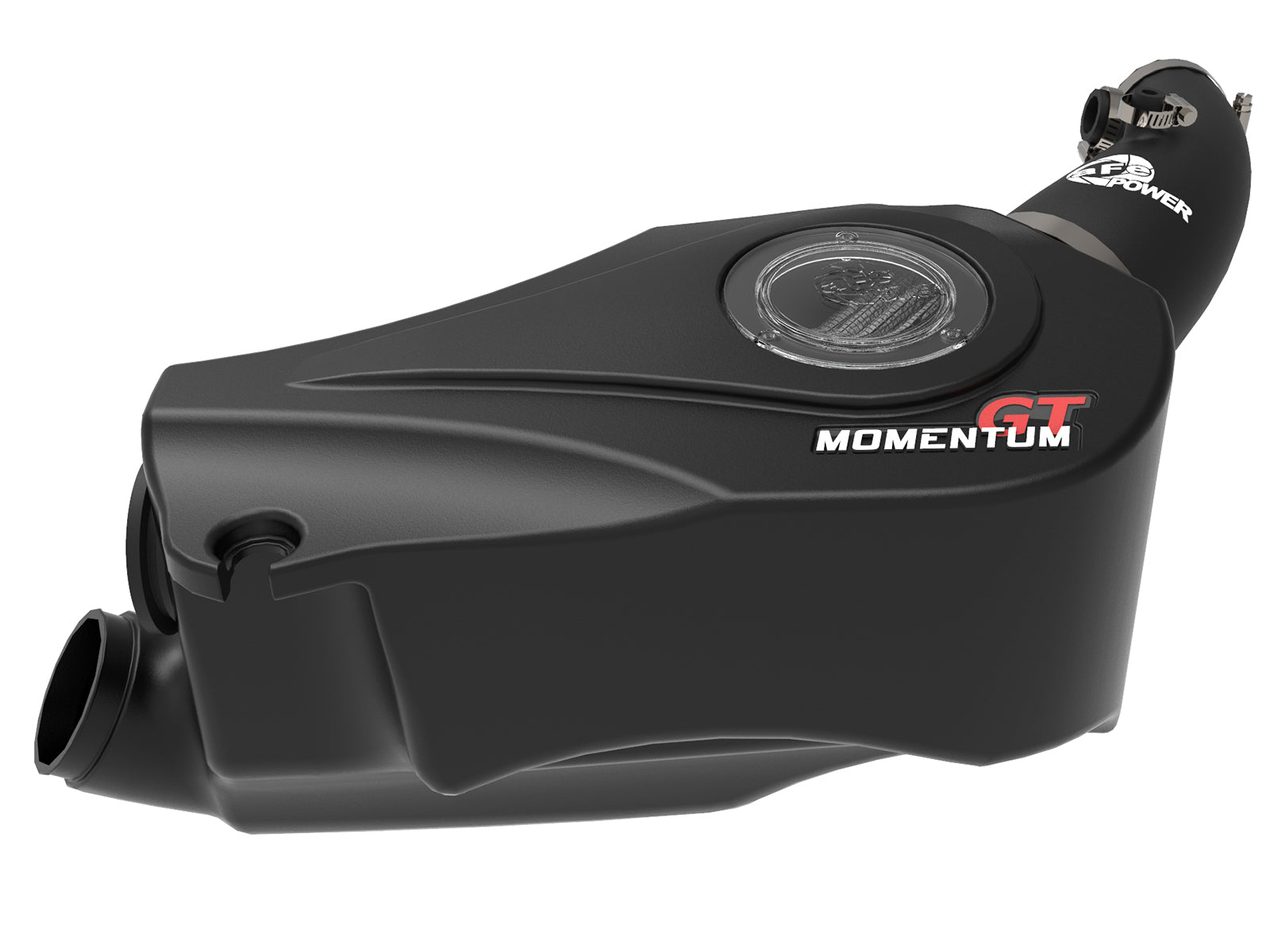

aFe 51-76901 is the Momentum GT Pro DRY S intake for qualified Fiat 124 Spider 1.4L turbo applications, including Abarth. It supplies one 21-91103 washable element with three oil-free synthetic layers, a reinforced silicone tube and an enclosed cross-linked polyethylene housing with an inspection window and optional auxiliary-inlet plug.
Current manufacturer specifications and the exact shared manual identify 2017-2020 Fiat 124 Spider 1.4L turbo, explicitly including Abarth. Existing named application ranges are retained: Abarth, Classica and Lusso 2017-2020; Urbana 2019-2020. Exact selected-part retailer tables corroborate those four rows. No Mazda or other engine application is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2020 | Fiat | 124 Spider | Abarth |
| 2017-2020 | Fiat | 124 Spider | Classica |
| 2017-2020 | Fiat | 124 Spider | Lusso |
| 2019-2020 | Fiat | 124 Spider | Urbana |
Verify 51-76901 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 51-76901 |
| Product line | Momentum GT cold air intake |
| Filter | One 21-91103 Pro DRY S; three oil-free synthetic layers |
| Filter dimensions | 7.5-inch height; 3.5-inch flange; 5-inch base; 4.5-inch inverted top |
| Housing / tube | Cross-linked polyethylene housing / reinforced silicone tube |
| Selected dry bench flow | 202 CFM versus stock 172 CFM at 7 inches H2O; approximately 17.44% |
| Dyno qualification | Linked chart names earlier oiled 54 version; not a selected dry gain certification |
| Emissions | Not CARB exempt; current manufacturer California purchase/use restriction applies |
| UPC | 802959543337 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

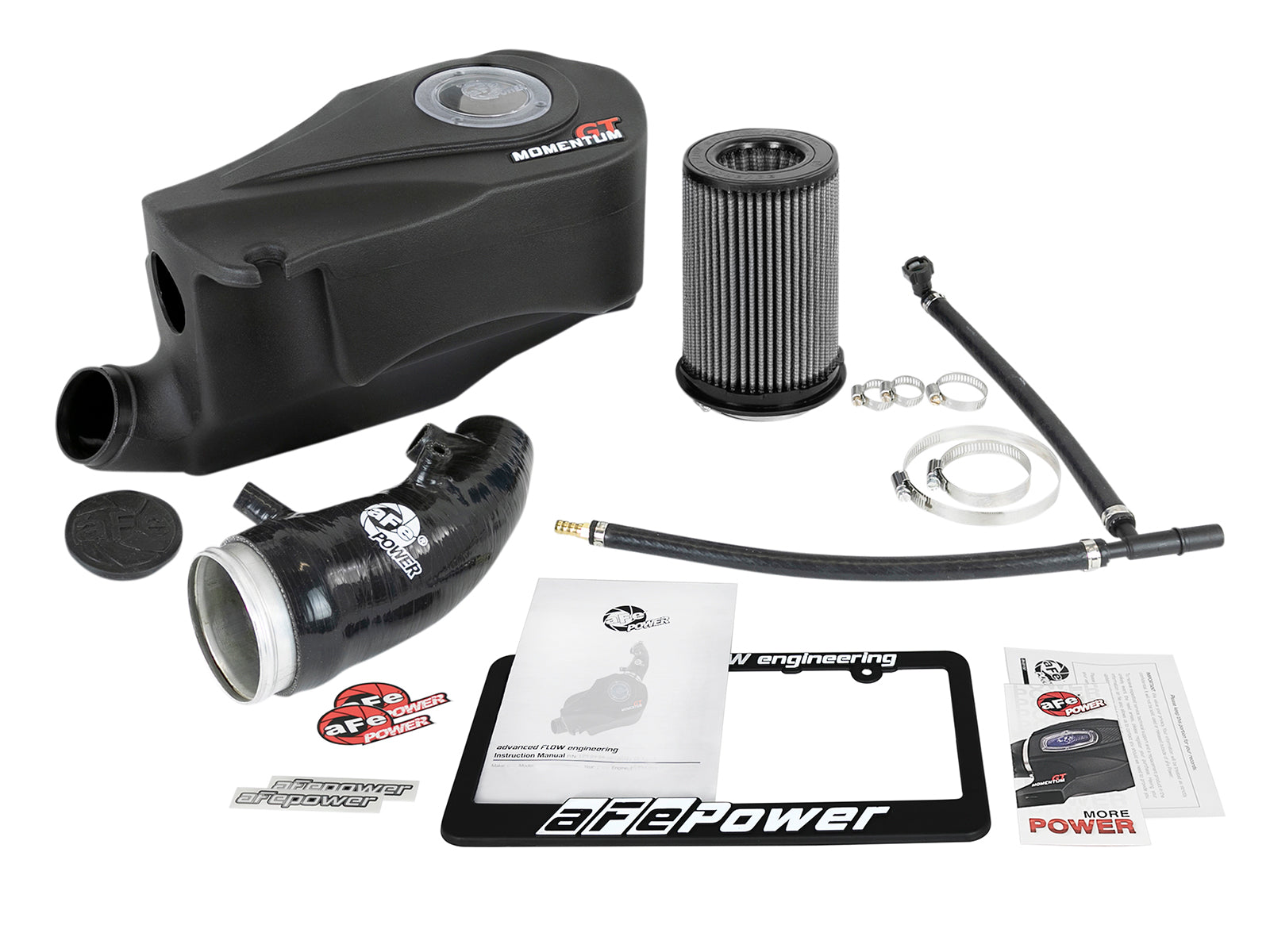

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-91103 | Selected Pro DRY S oil-free air filter |
| 1 | 05-76901B1 | Reinforced silicone intake tube |
| 1 | 05-76901B2 | Molded housing with inspection window |
| 1 | 05-01468 | Multiport hose/fitting assembly |
| 1 | 05-01482 | Optional silicone housing plug |
| 1 | 03-50016 | No. 032 clamp |
| 1 | 03-50009 | No. 056 clamp |
| 1 | 03-50023 | Mini No. 012 clamp |
| 2 | 03-50025 | Mini No. 006 clamps |
The oiled element shown in the shared bill is an alternative and is not included with this selected dry version. Retain the original plastic PCV tube, factory hose clamps, mounting bolts, inlet, grommets, metal sleeve and engine cover. The small hose with light-blue connectors and the turbo-inlet roll pin are removed and are not reused. The illustrated tube connection includes an aluminum coupler; the bill lists the tube as one service assembly, without a separate coupler part number. No new sensor, calibration module or restore kit is itemized.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 21-91103 Pro DRY S element with three oil-free synthetic layers. The oiled element in the shared bill is a separate media option.
Does this include Abarth?Yes. The manufacturer explicitly includes Abarth 1.4L turbo models within the reviewed 2017-2020 range.
Which original parts are retained?The plastic PCV tube, original air inlet, mounting grommets and metal sleeve, mounting bolts, applicable factory hose clamps and engine cover.
Is the light-blue-connector hose reused?No. The manual replaces that small original hose with the supplied multiport hose/fitting assembly. The turbo-inlet roll pin is also removed without reuse.
When is the housing mounting bolt installed?After seating the housing, filter and intake tube and restoring the PCV connections. The manual specifically delays that bolt during initial housing placement.
What does the auxiliary plug do?It closes the housing auxiliary opening to draw through the original inlet and reduce intake noise. Leaving it open can admit warmer engine-compartment air.
Does the linked dyno certify dry-filter gains?No. It identifies the earlier oiled configuration. Its marked differences of 9.55 hp and 11.21 lb-ft also differ from its peak-to-peak values of 7.39 hp and 4.27 lb-ft, with different test dates and correction factors.
What torque or recheck mileage is specified?The exact manual gives neither a numeric tightening torque nor a mileage-based inspection interval. Follow its connection and clamp checks without borrowing values from another kit.
Verify aFe 51-76901. Read all twenty pages and figures A-L. Work on a cool engine and disconnect the negative battery terminal. Release the green locking tabs carefully; remove the small light-blue-connector hose. Disconnect the PCV hoses, remove its bolt and lift the coolant hose out of the original intake-tube groove. Remove the intake and PCV tube together, discard the turbo-inlet roll pin, then separate and retain the PCV tube. Move the green-connector hose to the left of the upper radiator hose. Keep the original air inlet in place while removing the airbox. Transfer its grommets and metal sleeve. Seat the new housing and filter but defer the radiator-support bolt. Fit the clamps and original PCV tube loosely, install and align the intake, then secure its turbo and filter connections. Restore the PCV bolt, large and small vacuum hoses with factory clamps, 90-degree vacuum elbow and housing bolt. Connect the supplied assembly to the green-tab fitting and the engine, ensure the green lock engages, and secure the brass barb in the remaining intake opening with its mini clamp. Check every connection and restore the engine cover. Choose whether to install the auxiliary-inlet plug. The manual provides no numeric tightening torque or mileage-based recheck interval. The filter must lock into the housing. Restore electrical power before operating the vehicle after the prescribed battery disconnection.
The exact current dry manufacturer page, all twenty manual pages, full bill, assembly illustrations and figures A-L were inspected. The linked airflow chart separately identifies dry 202 CFM, oiled 208 CFM and stock 172 CFM at 7 inches H2O. The selected dry comparison is approximately 17.44%; the oiled result is separate. The linked dyno actually identifies earlier oiled 54-76901, so it does not certify gains for this dry configuration. Its test-file label says 2016 Fiat 124Spider without establishing a 2016 application. At the marked 4,470 rpm it shows 147.38 versus 137.83 hp and 173.16 versus 161.95 lb-ft, differences of 9.55 hp and 11.21 lb-ft. Separate run maxima are 147.52 versus 140.13 hp and 181.86 versus 177.59 lb-ft, differences of 7.39 hp and 4.27 lb-ft at potentially different peak rpm. The advertised 10 hp / 11 lb-ft should not be read as selected dry peak-to-peak gains. Baseline August 16, 2017 and intake September 6, 2017 use SAE 1.01 and 1.03 respectively, with different conditions. Both note original exhaust, fourth gear and a blower fan; the baseline identifies automatic transmission. The current primary states not CARB exempt and restricts California purchase/use on California DMV-registered vehicles. Older manual race-use wording establishes no current street exemption.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
