aFe 50-70069D is the Momentum GT Pro DRY S intake for qualified 2020-2022 Ford F-250/F-350 Super Duty trucks with the 6.2L gasoline V8. It supplies one three-layer oil-free synthetic filter, XLPE tube and sealed XLPE window housing. The new scoop seal uses four supplied retaining clips plus the original vehicle seal clip. Existing quick-release, vacuum and coolant-hose connections are restored. This exact intake is not established for a 6.7L diesel or 7.3L gasoline engine merely because the truck model matches.
The exact current selected manufacturer page specifies F-250/F-350 2020-2022 with the 6.2L gasoline V8, while the own manual cover stops at 2021 and explicitly identifies Super Duty. Exact selected-part named tables corroborate 2020-2022 King Ranch, Lariat, Platinum, XL and XLT for both F-250 Super Duty and F-350 Super Duty. Those ten genuine named groups are restored, and both original broad F-250/F-350 model rows retain their start year and extend to the current primary 2022 endpoint. All rows require the actual 6.2L engine and matching interfaces. Later 6.8L/7.3L gasoline and 6.7L diesel configurations, F-450/F-550 and additional named trims are not inferred. Both the existing broad model collections and separate Super Duty collections are relevant to these exact applications.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2020-2022 | Ford | F-250 | 6.2L gasoline configuration only |
| 2020-2022 | Ford | F-350 | 6.2L gasoline configuration only |
| 2020-2022 | Ford | F-250 Super Duty | King Ranch |
| 2020-2022 | Ford | F-250 Super Duty | Lariat |
| 2020-2022 | Ford | F-250 Super Duty | Platinum |
| 2020-2022 | Ford | F-250 Super Duty | XL |
| 2020-2022 | Ford | F-250 Super Duty | XLT |
| 2020-2022 | Ford | F-350 Super Duty | King Ranch |
| 2020-2022 | Ford | F-350 Super Duty | Lariat |
| 2020-2022 | Ford | F-350 Super Duty | Platinum |
| 2020-2022 | Ford | F-350 Super Duty | XL |
| 2020-2022 | Ford | F-350 Super Duty | XLT |
Verify 50-70069D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 50-70069D |
| Product line | Momentum GT Pro DRY S |
| Application | Qualified 2020-2022 F-250/F-350 Super Duty, 6.2L gasoline V8 |
| Selected filter | One 21-91061; three-layer dry synthetic |
| Filter service geometry | 9-inch height; 7 x 4-3/4-inch oval flange; 9 x 7-inch base and inverted top |
| Tube / housing | 05-5070069B1 / 05-5070058B2; XLPE |
| Bellows | 05-01508 silicone; exact manual does not print dimensions |
| Connection clamps | 03-50265: 3-13/16 to 4-1/8 inches; 03-50498: 3-9/16 to 3-7/8 inches |
| Housing clamp | 03-50267 T-bolt, 8-5/16 to 8-5/8-inch range |
| Scoop seal / clips | 05-01553 trim and four 05-01554 retainers, plus reused original seal clip |
| Bench flow | 495 vs stock 420 CFM at 7 inches H2O; 17.86% |
| Torque / recheck | No numeric torque; check bolts, clamps and connectors after 100-200 miles |
| Emissions | Not currently CARB exempt; manufacturer California purchase/registered-vehicle restriction applies |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-91061 | Selected Pro DRY S filter |
| 1 | 05-5070069B1 | XLPE tube |
| 1 | 05-5070058B2 | XLPE window housing |
| 1 | 05-01508 | Silicone bellows |
| 1 | 03-50265 | Larger coupling T-bolt clamp |
| 1 | 03-50498 | Smaller throttle-body T-bolt clamp |
| 1 | 05-01553 | Scoop seal trim |
| 1 | 03-50267 | Large housing T-bolt clamp |
| 1 | 05-01429 | Optional auxiliary inlet silicone plug |
| 4 | 05-01554 | Scoop seal retaining clips |
| 1 | 05-01339 | SAE 15.82 / 5/8-inch to 3/8-inch NPT aluminum vent fitting |
| 1 | 03-50192 | 5/16-inch-ID hose to 1/8-inch NPT brass fitting |
The shared alternate media row does not mean two filters are supplied. The filter-flange clamp shown in the procedure is separate from the three itemized housing/connection clamps; no extra service size is invented. No MAF or IAT transfer, new sensors or sensor screws are prescribed. Retain the original bottom mounting grommet, transfer both side grommets, and reuse the original scoop-seal retaining clip, quick-release connection, vacuum hose/clamp and coolant hose clip. Sharing the housing service number with a different-engine kit does not establish complete-kit interchangeability.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

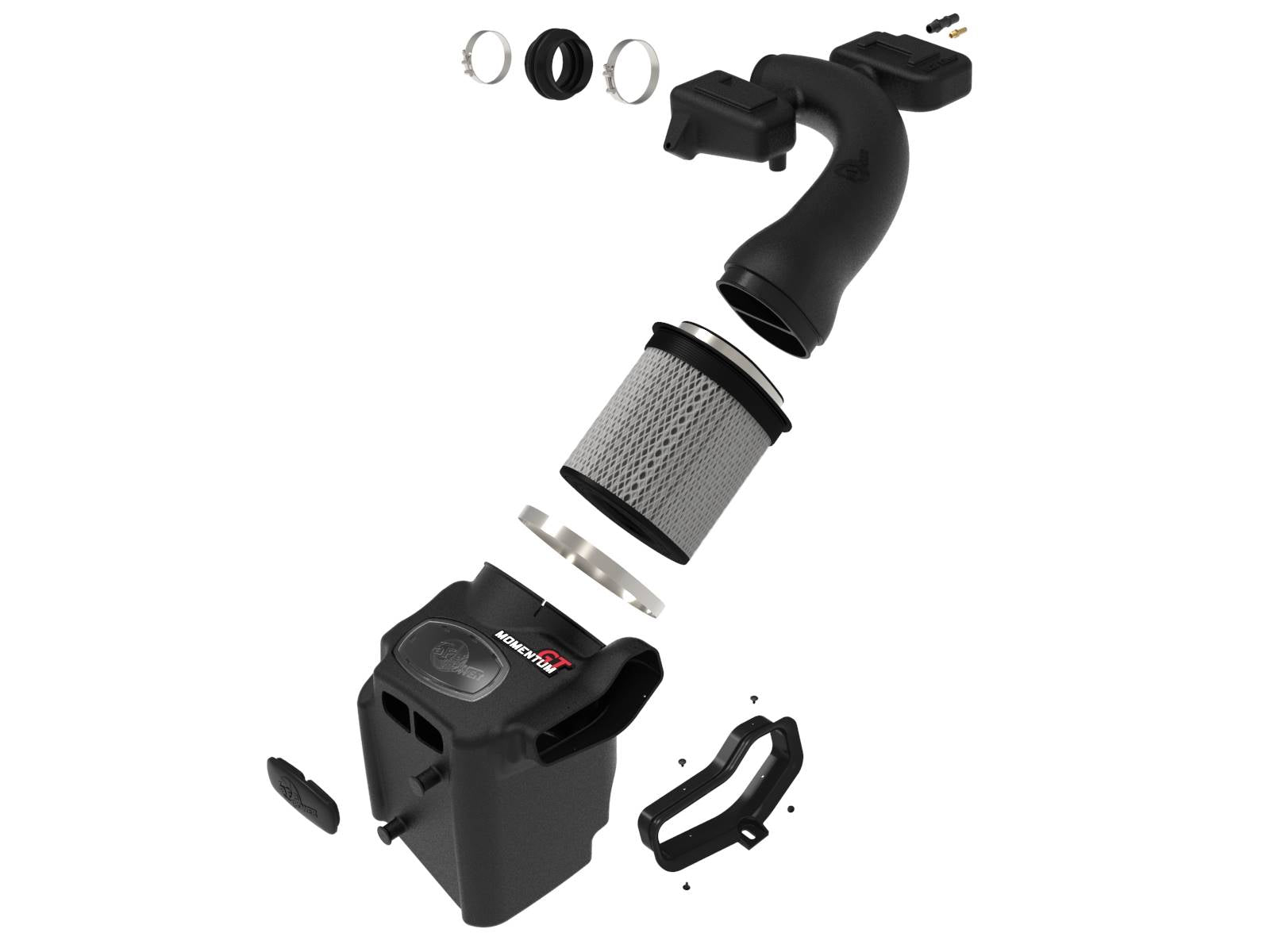

One selected filter, XLPE tube and window housing, silicone bellows, three itemized T-bolt clamps, scoop seal, four seal clips, two vent/vacuum fittings and optional inlet plug.
Does this fit the diesel or 7.3L engine?The exact selected application is the 6.2L gasoline V8. A shared housing part number or matching truck badge does not approve a different complete engine arrangement.
Which media needs oil?The selected three-layer synthetic Pro DRY S filter is serviced without oil.
How is the scoop seal retained?Four supplied clips secure the new seal to the housing. The seal must sit behind the original plastic trim cover and reuse the original vehicle retaining clip.
Are sensors transferred or replaced?No sensor transfer or new MAF/IAT is specified. Reconnect the original quick-release and vacuum connections and restore the coolant-hose clip.
Which mounting grommets are reused?Transfer the two side grommets fully past their beads. Seat the bottom housing pin in the retained vehicle grommet and engage both side mounts.
Do the marked gains equal differences between maxima?No. Selected marked-point differences are 5.18 hp and 7.35 lb-ft, while maxima differ by 0.17 hp and 0.02 lb-ft. The intake and baseline use different dates and correction factors.
Which end installs first and when is it rechecked?Install the tube into the throttle-body coupling first, then the filter. No numeric torque or battery step is given; recheck bolts, clamps and connectors after 100-200 miles.
Verify aFe 50-70069D. Read all sixteen pages and figures A-L. Work on a cool engine and retain factory parts. Remove and save the original plastic clip holding the scoop seal; release the three original housing-cover tabs. Loosen the throttle-body clamp. Release the coolant-hose clip and move the hose aside. Disconnect the quick-release coupling and vacuum hose/clamp, remove the original cover/tube assembly, then lift the lower housing from its mounts. Fit the new scoop seal trim to the housing and fully seat all four supplied retaining clips. Transfer both side grommets from the old housing, seating them past the beads. Seat the new housing bottom pin fully in the vehicle grommet and engage both side pins/grommets in the bracket. Place the scoop seal behind the original plastic trim cover and secure it with the saved original clip. Put the large housing clamp and selected filter with its flange clamp in place, initially loose. Fit the optional auxiliary plug if desired; the manual associates maximum airflow with the opening uncovered. Fit the bellows and smaller T-bolt clamp at the throttle body and tighten that side; place the larger connection clamp on its open end loosely. Install the supplied aluminum vent and brass hose fittings in the new tube. Insert the tube into the throttle-body coupling first, then into the filter; align and tighten all connections. Reattach the coolant hose clip to the new tube and reconnect the quick-release and vacuum hose connections. Verify all security and clearance. No battery-disconnection step, sensor transfer or numeric torque is supplied; recheck bolts, clamps and connectors after 100-200 miles.
Both exact current selected product pages and byte-identical own 16-page manuals, complete bill and figures A-L were read and viewed. The current 2022 endpoint is later than the manual 2021 cover; both exact selected-part named tables corroborate the 2020-2022 6.2L applications. The separate broad model and Super Duty collections remain distinct matching destinations. Actual flow reports show oiled 505, dry 495 and stock 420 CFM at seven inches H2O. Selected increase is 17.86%, rounded to 18%. The selected dyno marked point at 3700 rpm is 258.49 versus 253.31 hp and 366.84 versus 359.49 lb-ft, differences of 5.18 hp and 7.35 lb-ft. Maxima are 347.81 versus 347.64 hp and 378.29 versus 378.27 lb-ft, differences of 0.17 hp and 0.02 lb-ft. The 2021 F-250 6.2L selected run is June 10, 2021 at 12:59:37 PM, SAE 1.01 versus the later June 17 baseline at 9:58:34 AM, SAE 1.03. Both notes identify original exhaust, third gear starting at 2000 rpm, red/silver fans, 40% load and 91-octane fuel on Dynojet 424xLC Linx with software-defined RPM. Full weather/hood conditions are not printed. The differing run dates and correction factors limit generalization; rounded point claims are not differences between maxima or guaranteed gains. Current manufacturer non-CARB status and California purchase/registered-vehicle restrictions apply.
