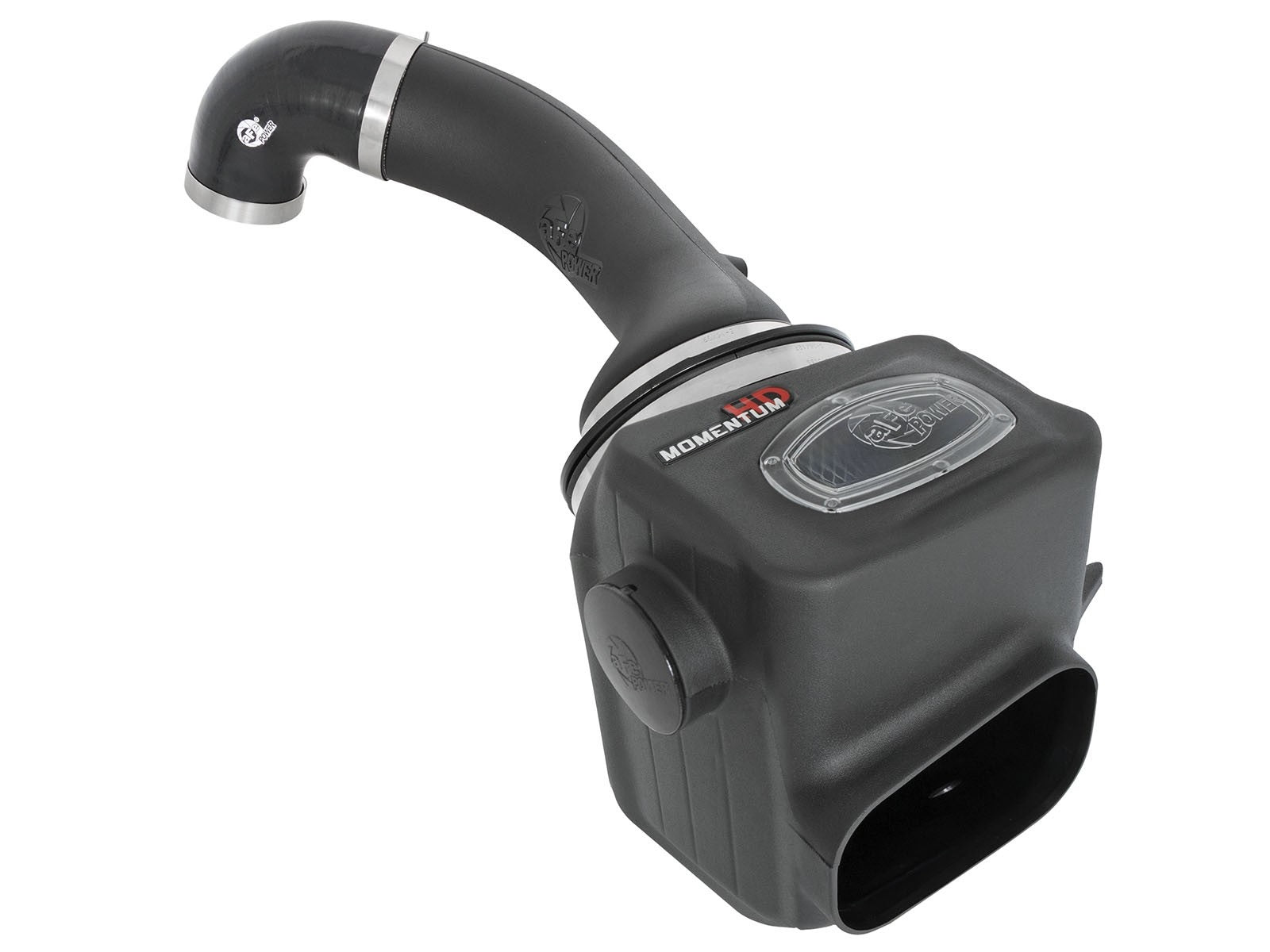

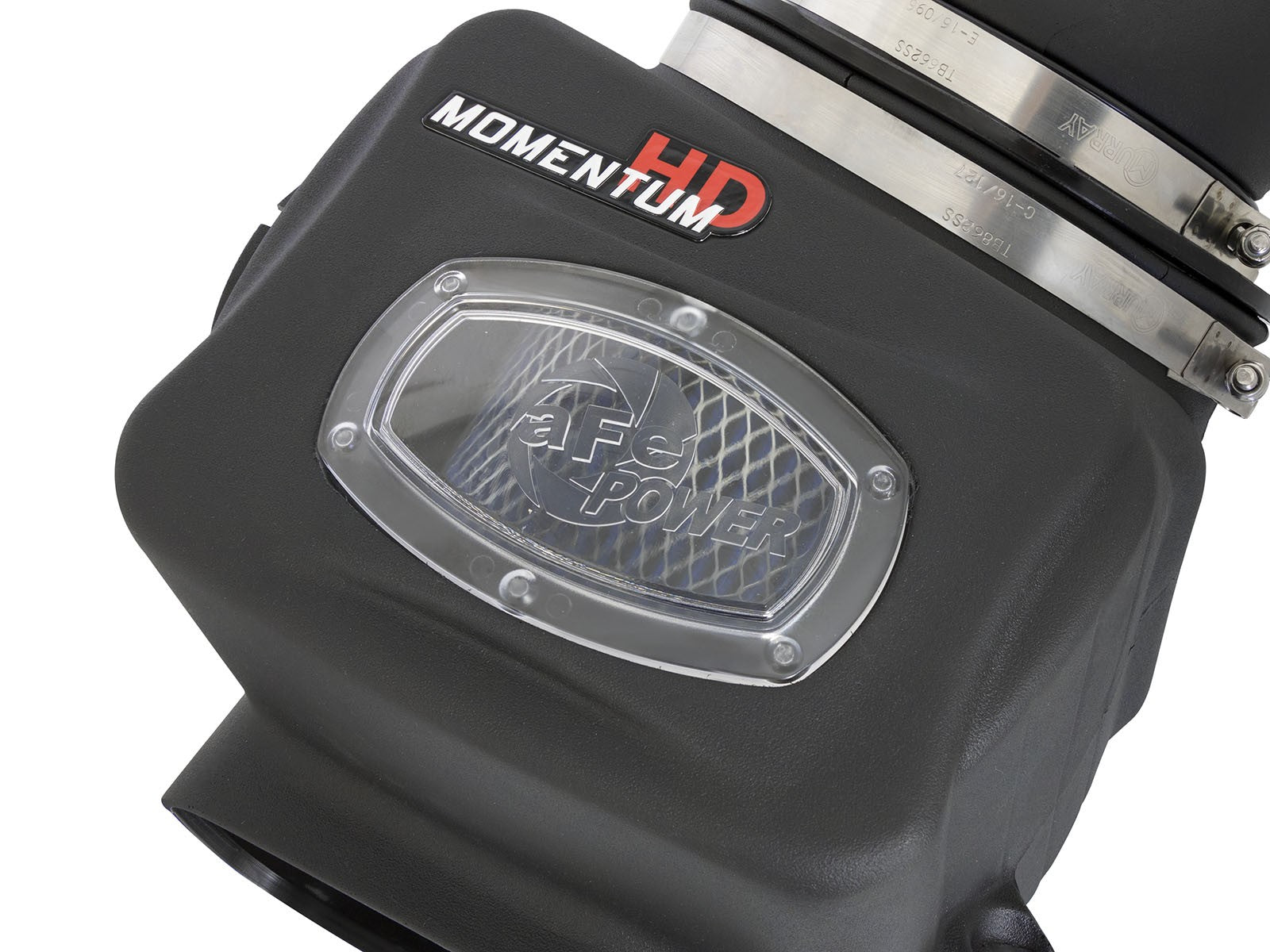

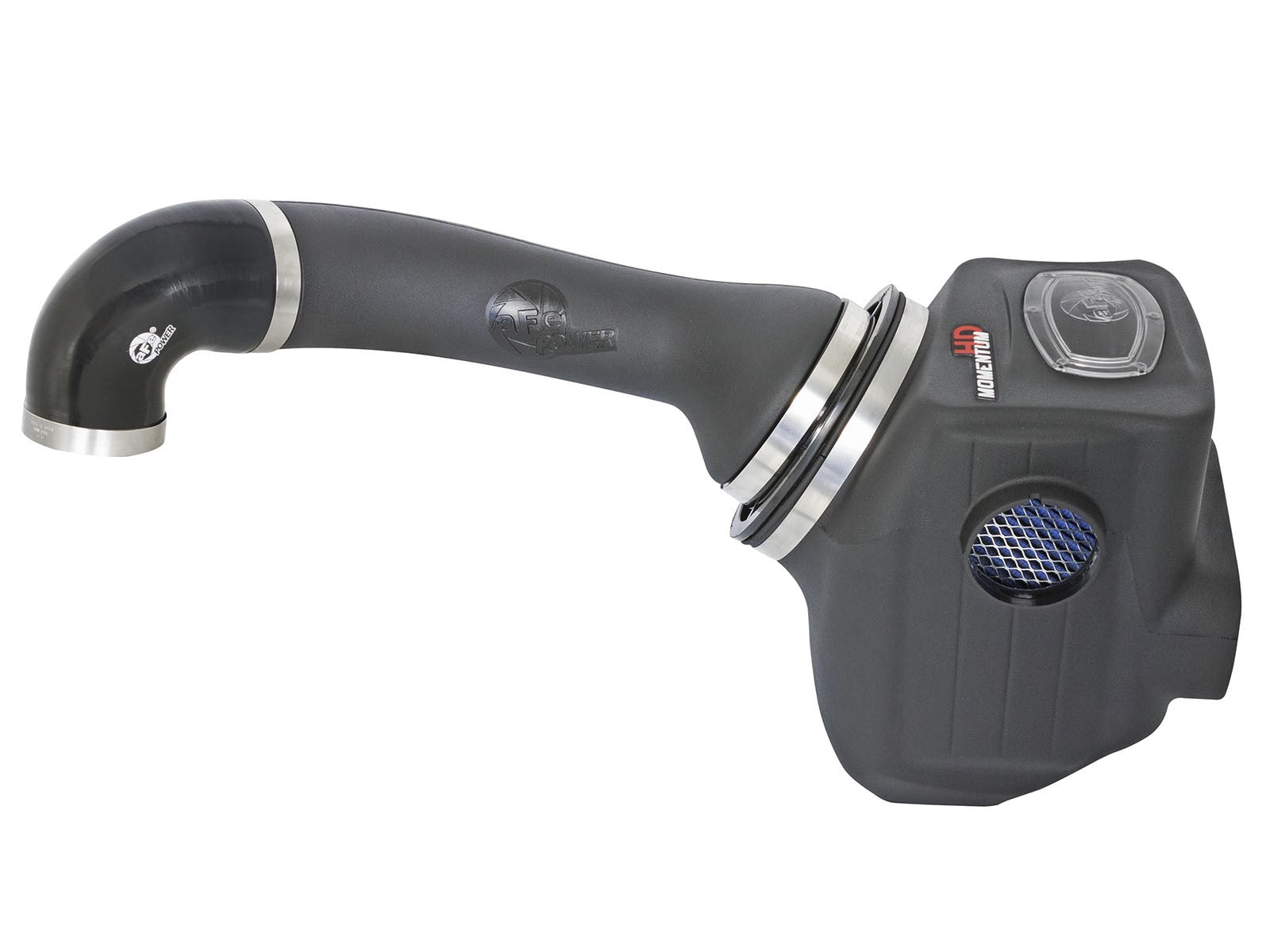

aFe 50-76105 Momentum HD intake uses one Pro 10R oiled filter, molded housing and intake tube for Nissan Titan XD 5.0L Cummins diesel. A silicone turbo-inlet elbow, three T-bolt clamps and transferred original MAF and temperature sensors complete the intake path. The external Dynamic Air Scoop is sold separately.
All five existing Titan XD Platinum Reserve, PRO-4X, S, SL and SV 2016-2019 rows remain unchanged, limited to the 5.0L Cummins diesel. Current manufacturer coverage and exact selected-part retailer tables support 2016-2019; the older installation-manual cover ends at 2017. Physical fitment through 2019 is distinct from the reviewed D-550-26 exemption, whose official Exhibit A lists the selected intake only for model years 2016-2017. No 5.6L gasoline XD or non-XD Titan fitment is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2016-2019 | Nissan | Titan XD | Platinum Reserve |
| 2016-2019 | Nissan | Titan XD | PRO-4X |
| 2016-2019 | Nissan | Titan XD | S |
| 2016-2019 | Nissan | Titan XD | SL |
| 2016-2019 | Nissan | Titan XD | SV |
Verify 50-76105 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 50-76105 |
| Product line | Momentum HD cold air intake |
| Selected filter | One 20-91059 Pro 10R; ten oiled cotton-gauze layers |
| Filter dimensions | 6-inch flange, 8-inch base, 8-inch inverted top, 9-inch height |
| Housing and tube | Molded components with application-specific sensor provisions |
| Supplied joints | One silicone elbow; three stainless T-bolt clamps |
| Bench flow | 220 versus original 183 CFM at 1.5 inches H2O; approximately 20.2% |
| Dyno qualification | Marked separate-rpm differences 9.22 hp / 15.44 lb-ft; maxima +3.58 hp / +11.95 lb-ft |
| Emissions | Official D-550-26 Exhibit A identifies 2016-2017 selected intake; 2018-2019 not established by that order |
| UPC | 802959542415 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 20-91059 | Pro 10R oiled filter |
| 1 | 05-76105B1 | Intake tube |
| 1 | 05-76105B2 | Housing |
| 1 | 05-01361 | Urethane auxiliary-opening plug |
| 1 | 05-01402 | Silicone elbow coupling |
| 1 | 03-50267 | T-bolt clamp, 8-5/16 to 8-5/8 inches |
| 1 | 03-50498 | T-bolt clamp, 3-9/16 to 3-7/8 inches |
| 1 | 03-50262 | T-bolt clamp, 4-1/16 to 4-3/8 inches |
| 3 | 03-50490 | M4 x 0.7 x 8 mm Torx sensor screws |
Retain the original MAF sensor, temperature sensor, three rubber isolation mounts and firewall-side housing bolt. The exact bill does not include an external scoop, new breather fitting, sensor extension or tuning module. Generic retailer aluminum-breather-fitting wording is not certified by the exact diesel bill or procedure.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

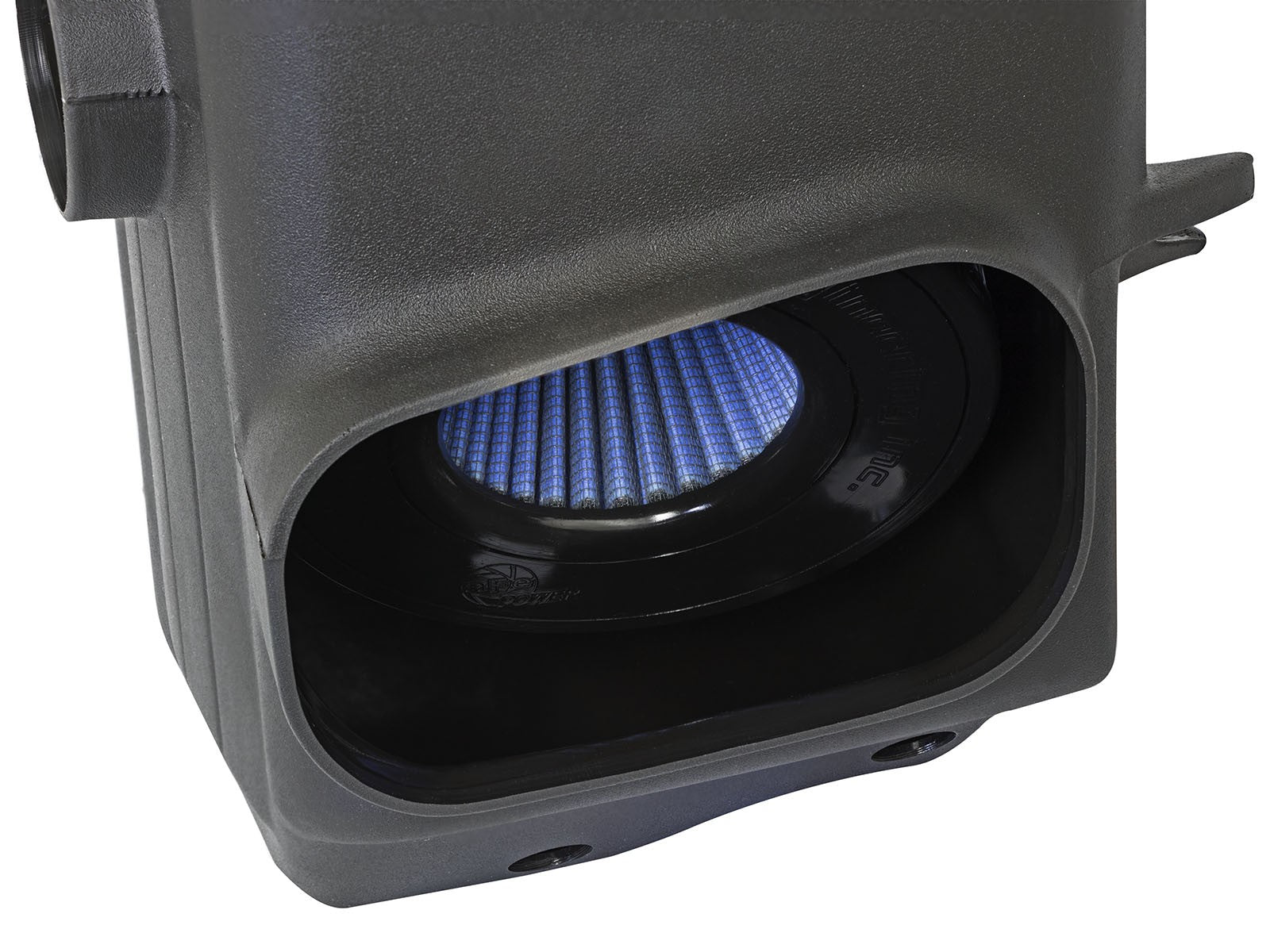

One 20-91059 Pro 10R with ten oiled cotton-gauze layers and reinforced metal support.
Does physical fitment through 2019 mean EO coverage through 2019?No. Exact physical application evidence supports the original 2016-2019 rows; reviewed official D-550-26 Exhibit A lists this intake for 2016-2017 only.
How many sensor screws are supplied?Three M4 x 0.7 x 8 mm screws transfer both original MAF and temperature sensors.
Which original mounting parts remain?Transfer all three rubber isolation mounts and reuse the firewall-side housing bolt.

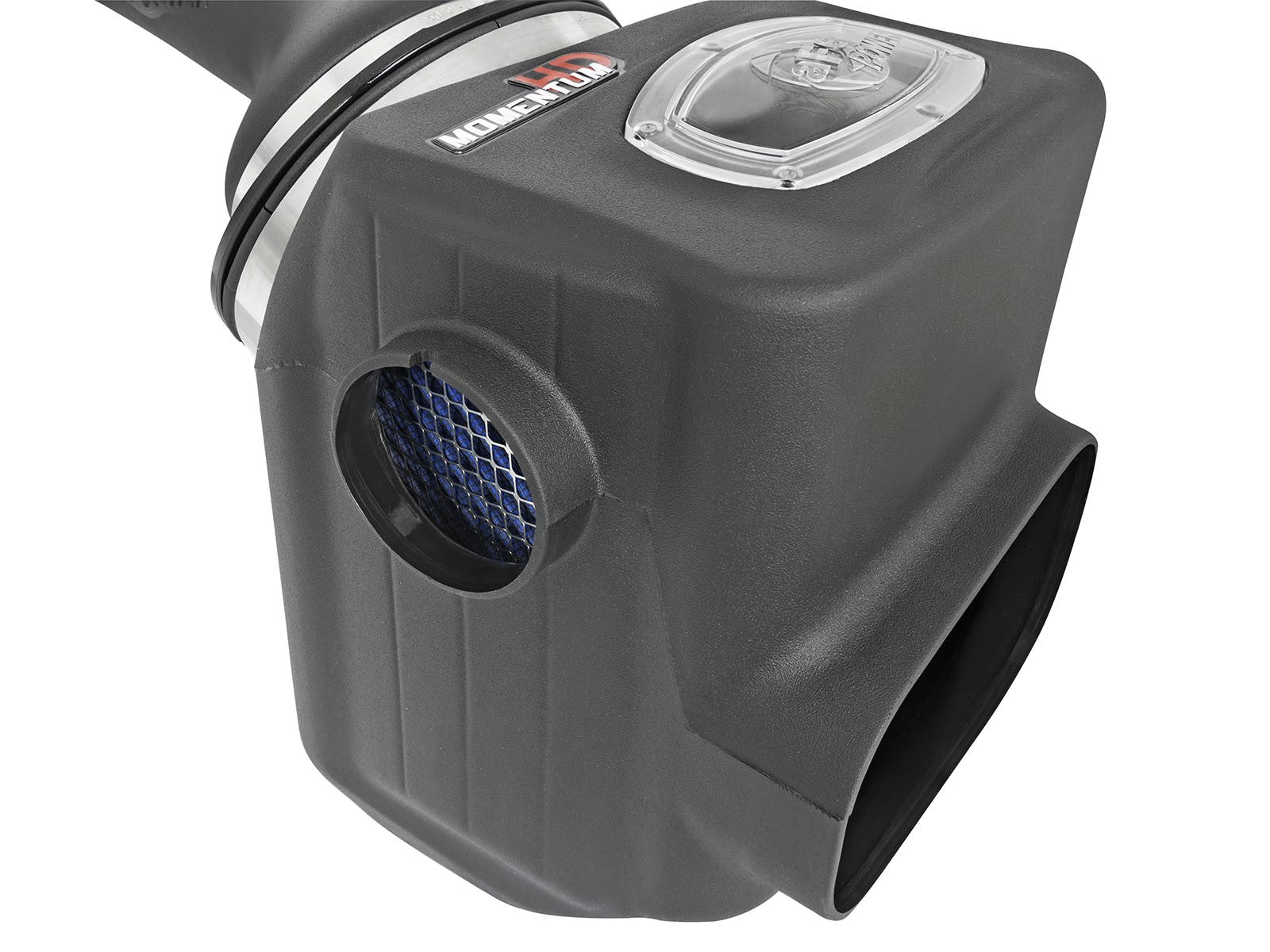

Does the kit include an external scoop?The external scoop is sold separately. The intake includes a plug for its auxiliary housing opening.
Is a new breather fitting listed?No new breather fitting is itemized in the exact bill or transfer procedure, despite generic retailer wording.
Is the installed intake rated at 1,000 CFM in its chart?The linked installed-system chart shows 220 versus original 183 CFM at 1.5 inches H2O. The 1,000-CFM overview statement refers to the filter.
What torque and mileage recheck are given?The exact manual states neither numeric torque nor a mileage recheck interval. Verify all connections are secure.
Verify aFe 50-76105. Read all sixteen pages and figures A-H. Work on a cool engine and disconnect the negative battery terminals as directed. Disconnect MAF and temperature harnesses, loosen the turbo-inlet clamp, release the two airbox spring clips and remove the upper housing and tube. Remove the flat filter, retain the firewall-side 10 mm housing bolt and remove the lower housing and original fender intake duct. Transfer three rubber isolation mounts to the new housing. Fit its large clamp loosely, push the housing onto the two lower studs and secure it with the original bolt. Insert the selected filter with clamps loose. Transfer the original MAF and temperature sensors to the new tube using the three supplied M4 x 0.7 x 8 screws. Fit the 90-degree elbow and clamps loosely to the turbo inlet, insert the tube into that coupling first and then the filter, align the assembly and secure all clamps. Reconnect both sensor harnesses. Install an optional separately purchased scoop only according to its own manual; otherwise choose whether to close the auxiliary opening with the supplied plug. Verify secure connections. For an actually covered exempt configuration, follow the manual instruction to place the supplied EO label on a clean, smooth surface on or near the intake. The exact manual gives no numeric torque or mileage interval.
The actual linked flow chart shows 220 versus 183 CFM at 1.5 inches H2O, approximately 20.2 percent more. The overview 1,000-CFM figure describes the filter and is not the installed-system chart value; its 99.59-percent cumulative-efficiency report was not provided. The 2016 Titan XD dyno marks 273.36 versus 264.14 hp and 460.65 versus 445.21 lb-ft at different rpm points, differences of 9.22 hp and 15.44 lb-ft. Run maxima are 284.70 versus 281.12 hp and 519.26 versus 507.31 lb-ft, differences of 3.58 hp and 11.95 lb-ft. Baseline April 29, 2016 uses SAE 0.99; intake June 7, 2016 uses SAE 1.02, with different weather. Both list original exhaust and tires, fourth gear, 30-percent brake load and coolant below 200 degrees; the intake notes 2,900 miles. Those conditions limit generalization. The official D-550-26 text and rendered Exhibit A were reviewed: its listed selected-intake application is Nissan Titan XD 5.0L turbo 2016-2017, subject to the order conditions and manufacturer-specification tuning. That order does not establish 2018-2019 exemption or a separate external-scoop exemption. Existing exact EO metadata is preserved with this qualified scope. Turn14 access is unavailable and prices remain unchanged.
