aFe Atlas/Cross Sport 3.6L Momentum ST Pro 5R

aFe Momentum ST intake details

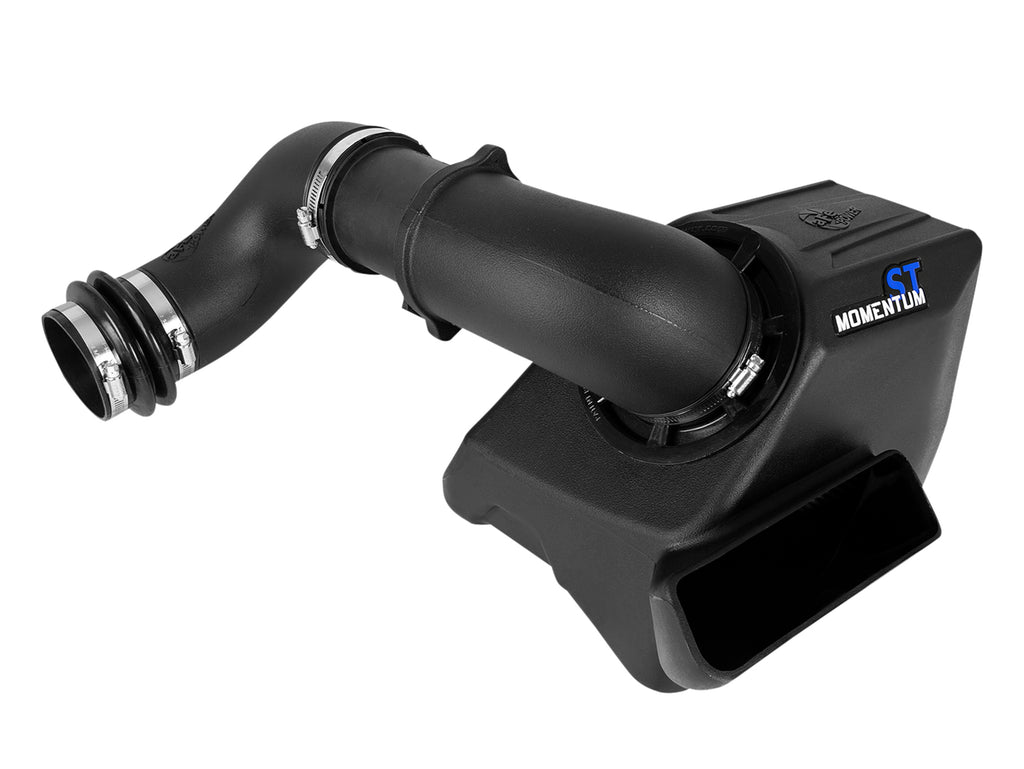

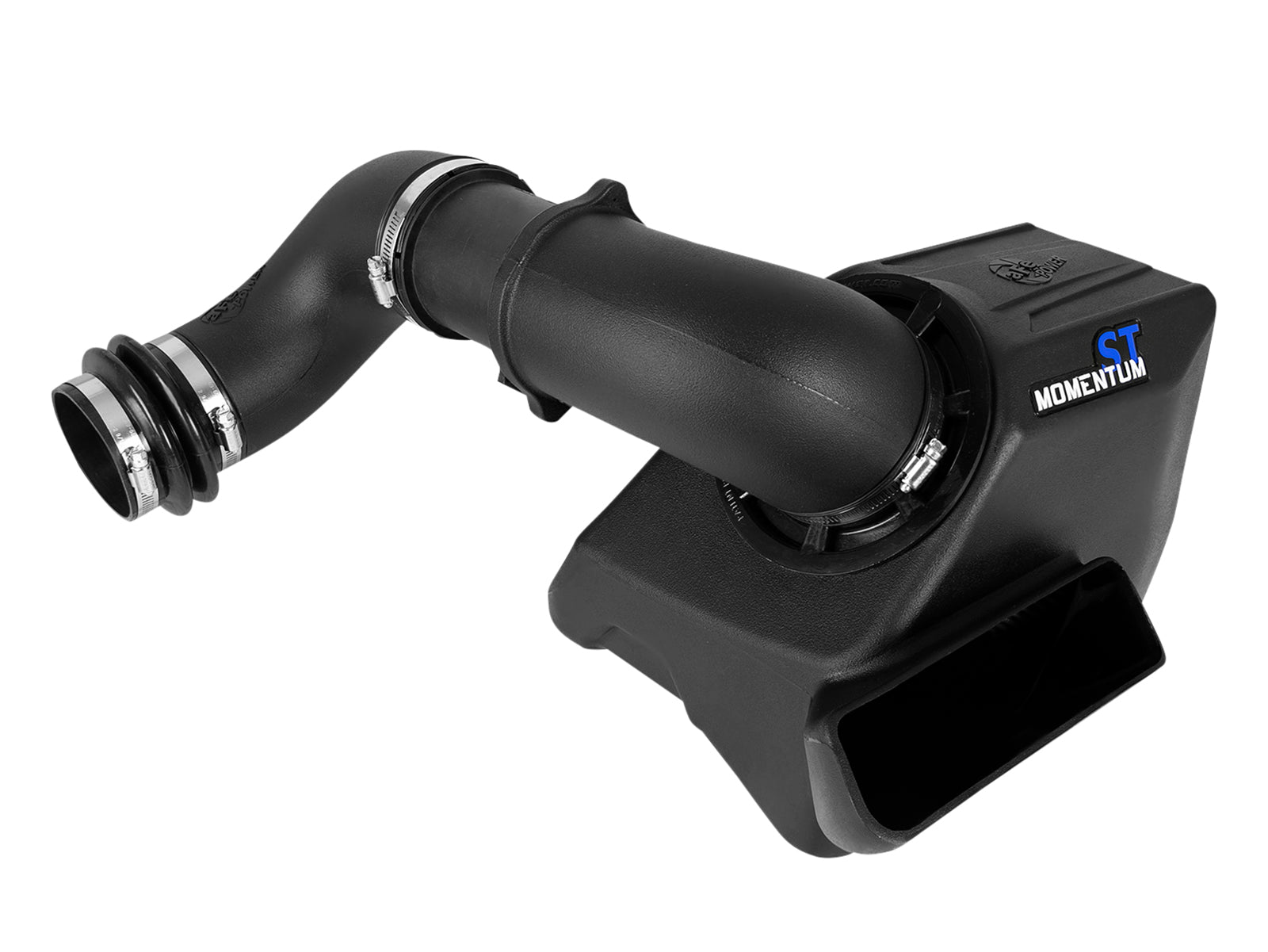

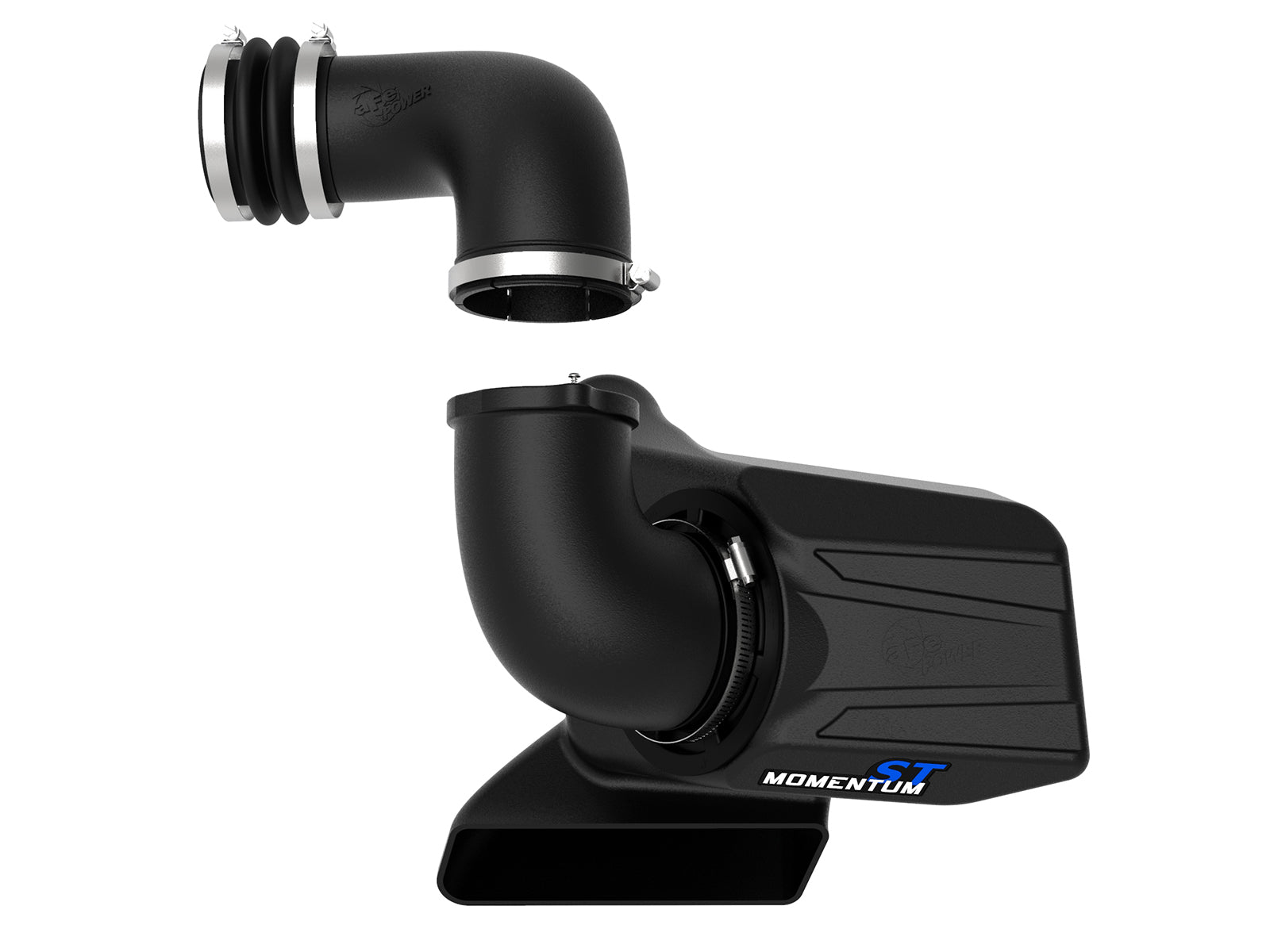

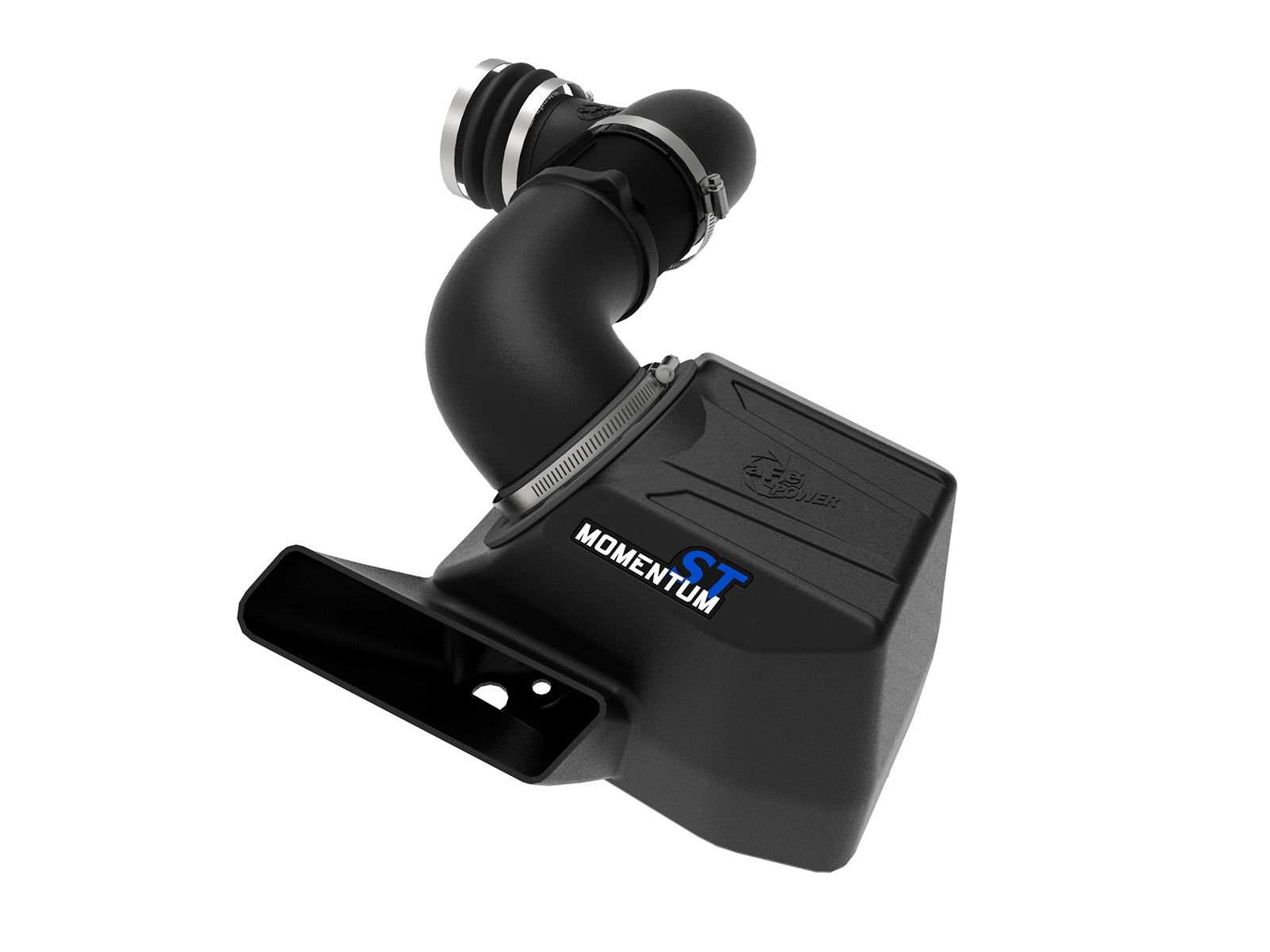

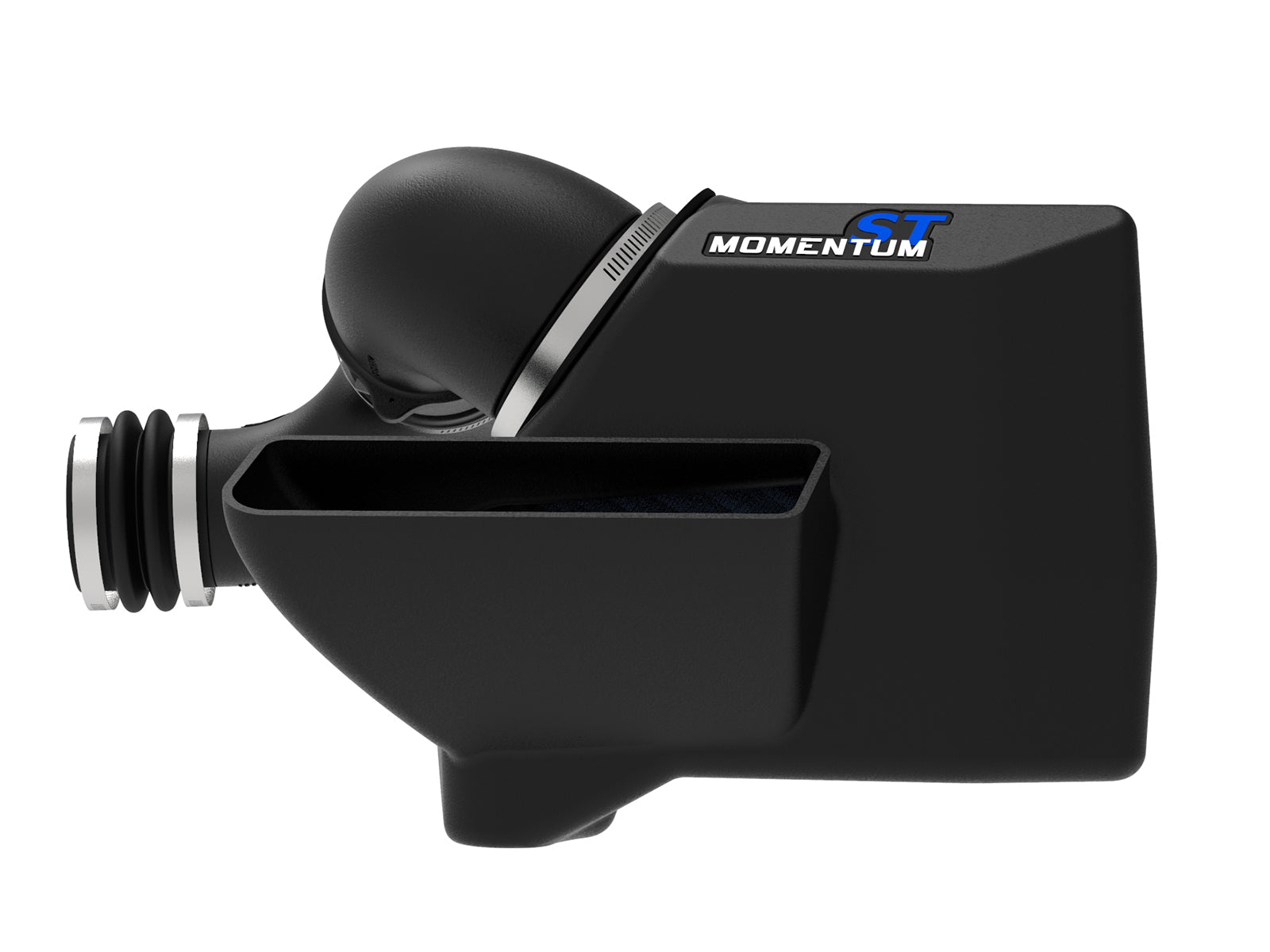

aFe 54-46405 Momentum ST Pro 5R intake serves qualified Volkswagen Atlas 2018-2023 and Atlas Cross Sport 2020-2023 3.6L V6 applications. One oiled filter, two molded tube sections and a molded housing retain the original MAF cartridge and sensor. The factory cartridge is required and is not included.

Key Features

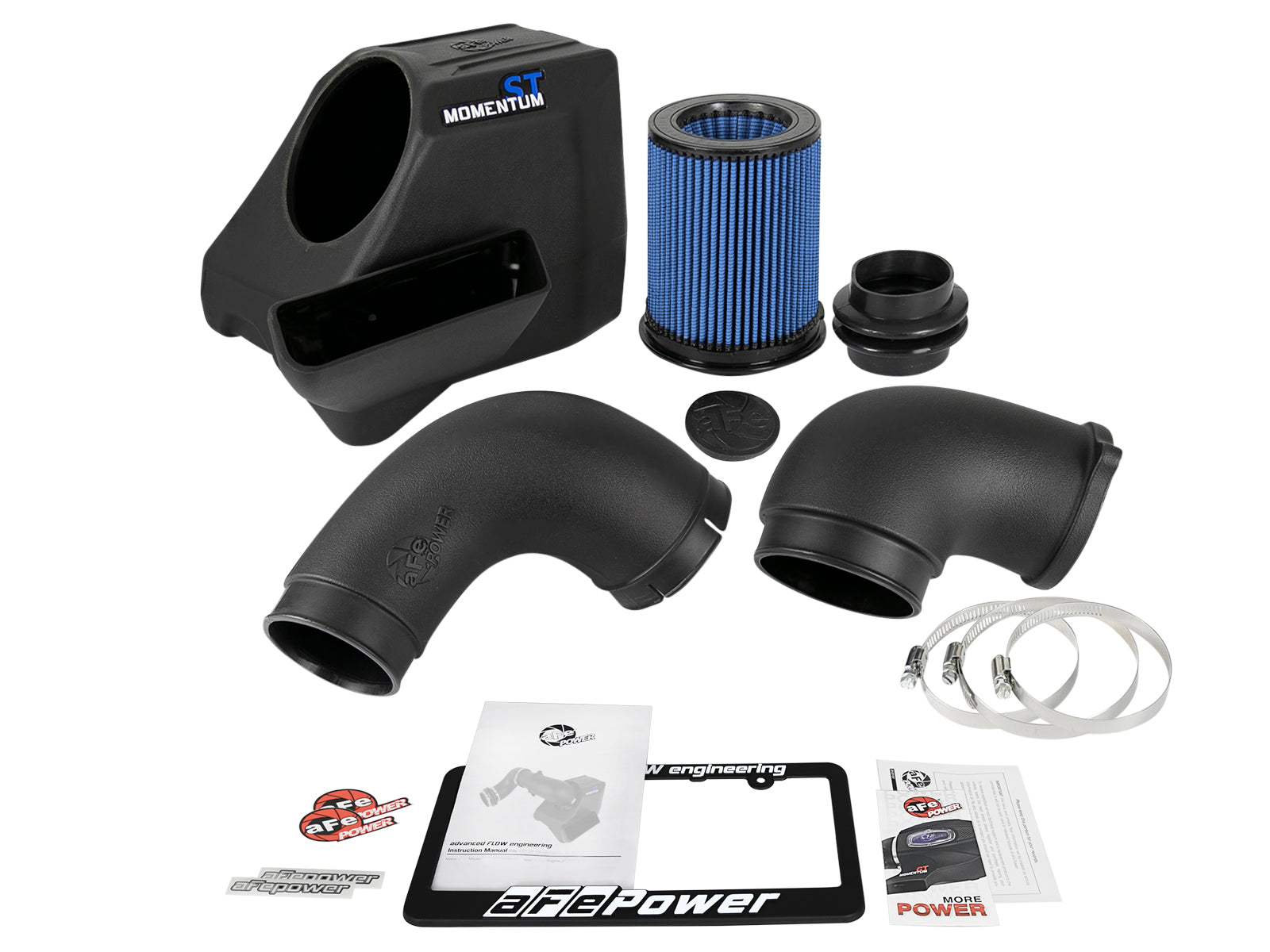

• One 24-91108 Pro 5R filter with five oiled cotton-gauze layers, 4-inch flange and 7.5-inch height.

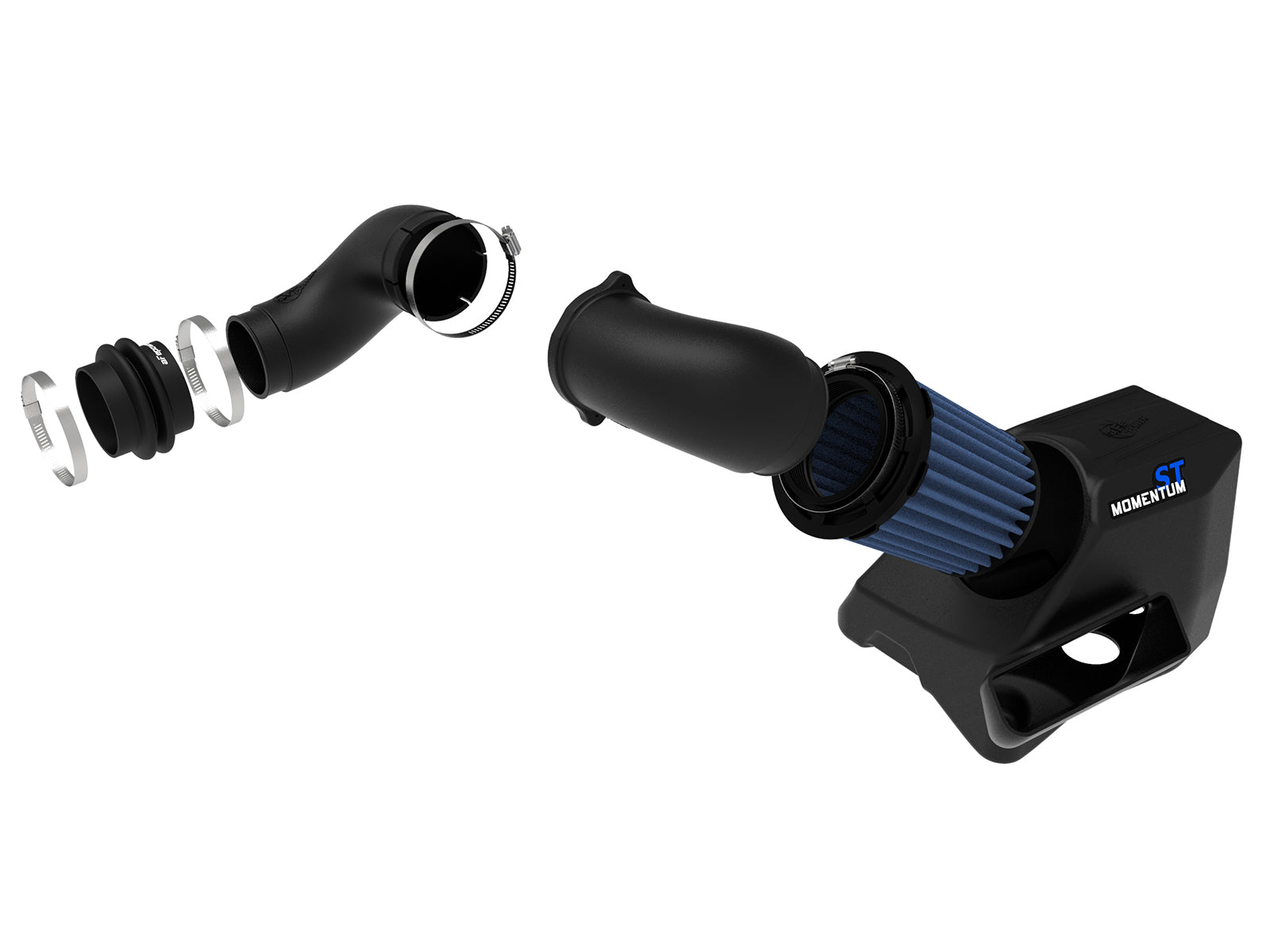

• Two separate molded tube sections, 05-46405B1 and 05-46405B2, and housing 05-46405B3.
• One silicone bellows, two size 048 clamps, one size 056 clamp and auxiliary opening plug.
• Original MAF cartridge, its two screws, three housing grommets and original scoop with rubber trim transfer.
• Actual Pro 5R airflow chart shows 480 versus 385 CFM at 7 inches H2O, approximately 24.7 percent.

Fitment

Own exact twenty-page manual explicitly identifies Atlas 2018-2023 and Atlas Cross Sport 2020-2023, V6 3.6L. Current primary headline names Atlas; the manual supplies direct Cross Sport proof. Exact selected-part retailer tables support nine missing named groups and five existing range extensions shown below. All original coverage, including Comfortline and Trendline 2020, is preserved. Later Canadian Execline/Highline rows seen in another exact retailer listing remain outside this verified expansion pending configuration reconciliation. No 2.0L or 2024-up engine inference is made.

Verify 54-46405 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

The alternate dry filter listed in the shared bill is not supplied as a second selected filter. Original MAF cartridge and sensor, its two screws, three housing grommets, scoop, rubber trim and scoop hardware are retained. No new MAF cartridge or screws are itemized. Selected current primary/replacement filter specifies 7.5-inch inverted-top filter; older retailer prose says 9-inch flat-top and remains qualified as a source/revision conflict. The flowchart heading says Momentum GT while selected primary and manual identify Momentum ST; chart measurements are retained with that label qualification.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-46405
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One 24-91108 Pro 5R oiled filter, five cotton-gauze layers, 4-inch flange and 7.5-inch height.

No. Transfer the original cartridge, sensor and both original T25 screws.

Align the sensor with the shorter tube flat flange and seat the cartridge flush against the longer tube lip.

Three original housing grommets, original scoop, its screws and transferred rubber trim remain.

The exact manual directs keeping the key outside and waiting five minutes after opening the hood for computer shutdown.

The plug closes the additional housing inlet. The manual associates an open inlet with more flow and the plug with lower noise.

The chart marks about 15.01 hp and 13.15 lb-ft at 6000 rpm; run-max differences are 13.13 hp and 7.16 lb-ft.

No numeric torque is specified. Secure all clamps, MAF plug, screws and mounts, then recheck after 100-200 miles.

Installation Instructions

Verify aFe 54-46405. Read all twenty pages and figures A-N. Keep key outside vehicle; open hood and wait five minutes for computer shutdown. Observe the manual negative-battery warning and work on a cool engine. Release MAF connector tab. Remove two original scoop screws with T25, push scoop toward engine then lift. Transfer rubber trim from old airbox to scoop. Loosen both original tube clamps and remove tube. Lift rear housing mount first, then release the other two mounts. Remove original MAF cartridge and its two T25 screws. Insert cartridge into shorter supplied tube, align sensor with flat flange and reuse both screws. Transfer all three grommets to supplied housing and seat housing. Fit selected filter; optional plug closes auxiliary opening for lower noise, while manual associates open inlet with more airflow. Restore original scoop with its hardware. Fit bellows and first 048 clamp at throttle body and secure. Insert longer tube with second 048 clamp tight enough to allow alignment rotation without pulling out. Fit 056 clamp at its opposite end. Insert shorter tube with attached MAF cartridge into filter, then connect cartridge to longer tube. Adjust until cartridge sits flush against tube lip, secure 056 and all remaining clamps, reconnect MAF plug and lock tab. Verify all connections, mounts, screws and clearance; restore battery connection if disconnected. No numeric clamp torque is specified. Recheck after 100-200 miles.

Important Disclosures

Actual linked chart gives Pro 5R 480 CFM, dry 465 CFM and original 385 CFM at 7 inches H2O. Selected oiled difference is about 24.7 percent. The GT chart heading differs from selected ST product naming. Actual 2018 Atlas 3.6L dyno marks 243.28 versus 228.27 hp and 212.94 versus 199.79 lb-ft at 6000 rpm: 15.01 hp and 13.15 lb-ft. Run maxima are 244.68 versus 231.55 hp and 244.47 versus 237.31 lb-ft, differences 13.13 hp and 7.16 lb-ft. Both runs occurred June 15, 2018, about fifty-three minutes apart, SAE 1.03, fourth gear and silver fan; weather differs slightly. These are marked-point and run-max comparisons, not independent certification for every trim. Current manufacturer/manual California restriction corrects old CARB-compliant copy; no EO exemption is established. Turn14 authenticated access is unavailable and prices remain unchanged.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
