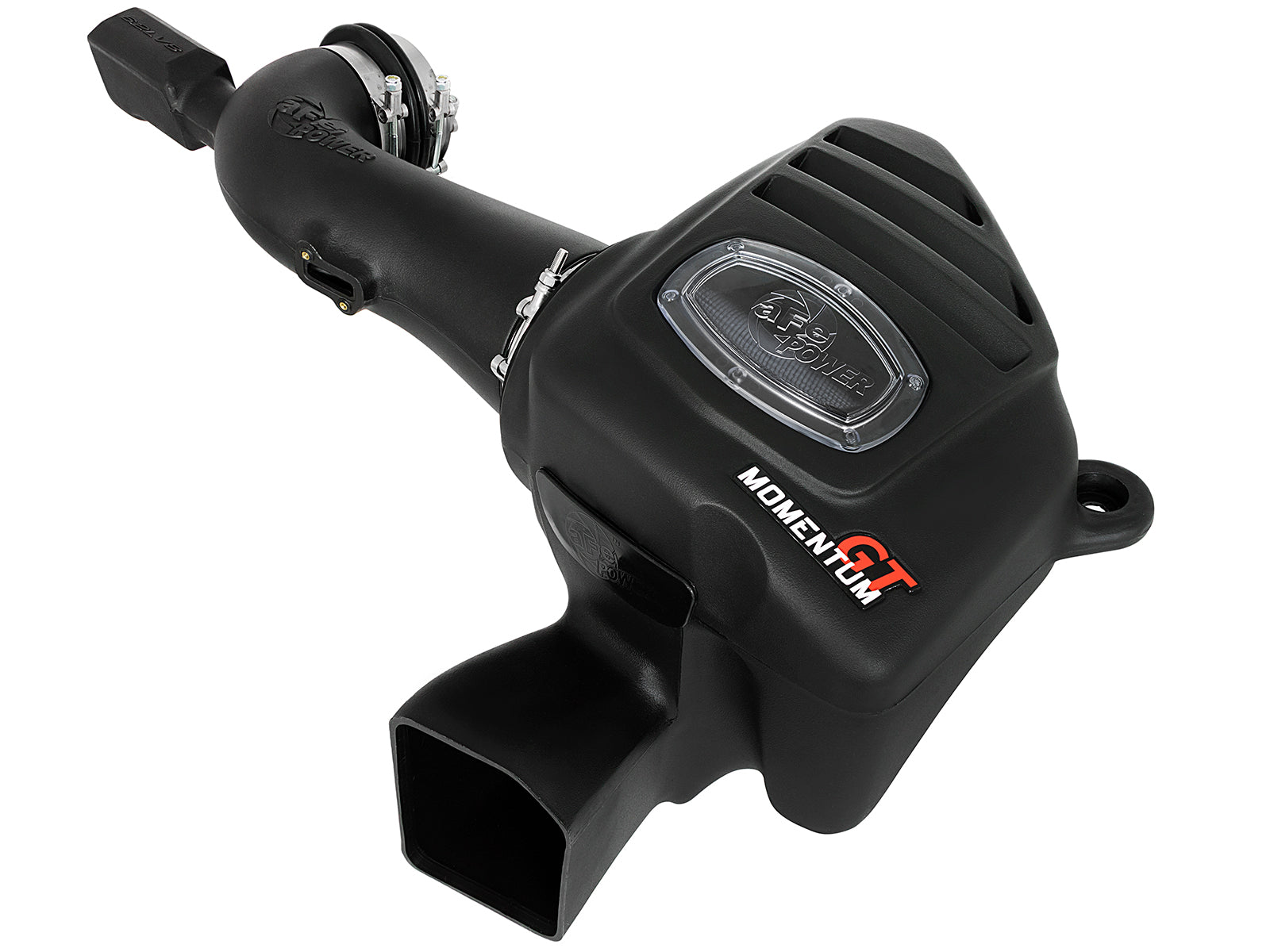

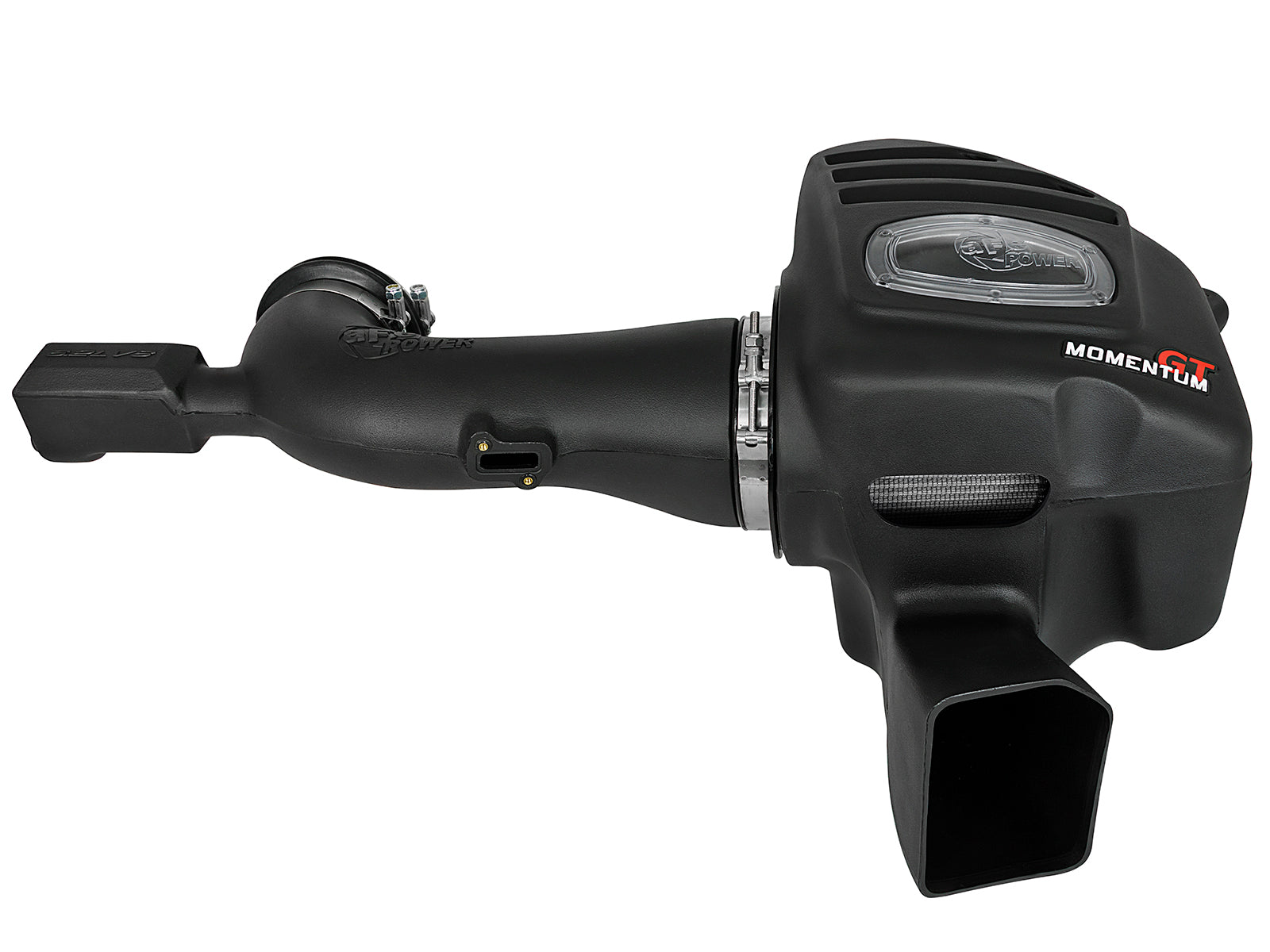

aFe 51-74204 is the Momentum GT intake for Chevrolet Camaro SS 2013–2015 V8-6.2L with electric steering. One Pro DRY S seven-inch filter fits the XLPE window housing. A molded tube with resonance chamber and silicone bellows retain the original MAF and breather connections; original mounting inserts, grommets and two nuts are reused.
Current manufacturer pages and both exact linked 16-page manuals specify Camaro SS 2013–2015 V8-6.2L with electric steering. Both existing named SS year ranges remain unchanged. Some retailer listings broaden coverage to 2010–2015 or include ZL1; those positive claims conflict with the exact current electric-steering application and do not establish earlier hydraulic-steering or supercharged fitment. No earlier years, ZL1 or other trims are added. Confirm steering equipment, actual engine, sensor/breather connections and mounting layout.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2013-2015 | Chevrolet | Camaro | SS |
Verify 51-74204 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 51-74204 |
| Product type | Momentum GT enclosed cold air intake |
| Application requirement | 2013–2015 Camaro SS V8-6.2L with electric steering |
| Selected filter | One 21-91107; 6.75 x 4.75-inch flange and 7-inch height |
| Media | Three-layer oil-free synthetic, washable/reusable |
| Tube / housing | 05-74204B1 / XLPE 05-74204B2 |
| Coupling / clamps | Silicone bellows 05-01375; two T-bolt 03-50265 |
| Sensor screws | Two M4 03-50491; length unspecified |
| Mounting hardware | Transfer two original metal inserts and grommets; reuse two original nuts and bottom chassis grommet |

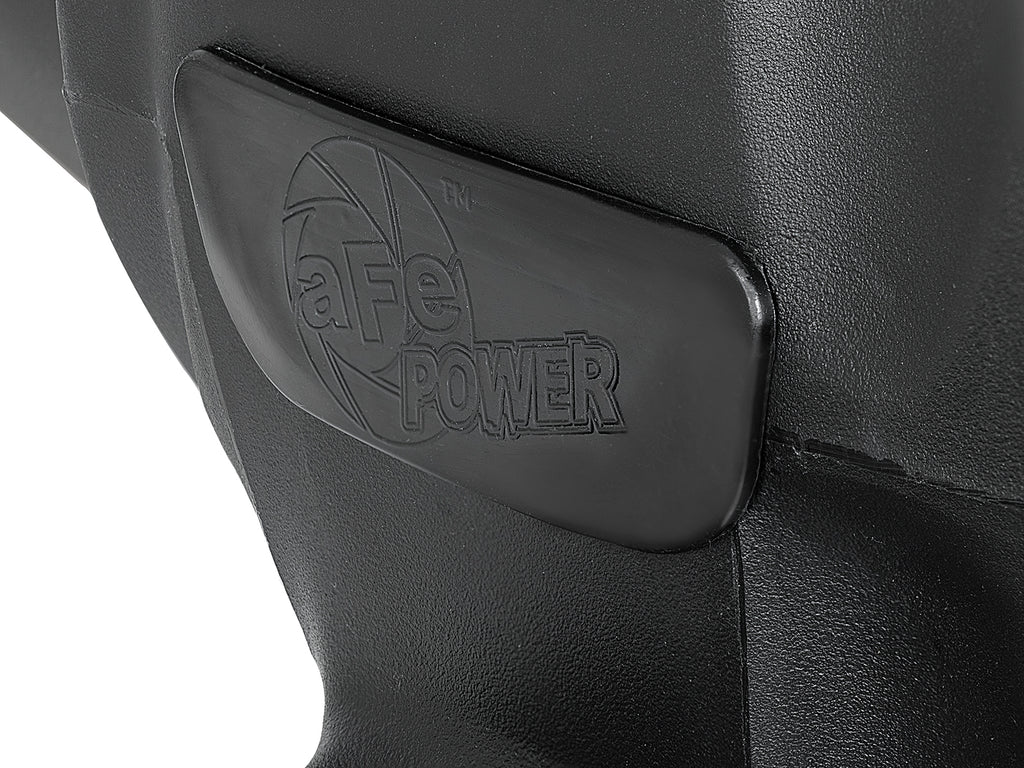

| Auxiliary inlet | Optional urethane plug 05-00937 |
| Torque / inspection | No numeric torque; check bolts, clamps and connectors after 200 miles |
| UPC | 802959541579 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-91107 | Selected filter; alternate media row is not a second filter |

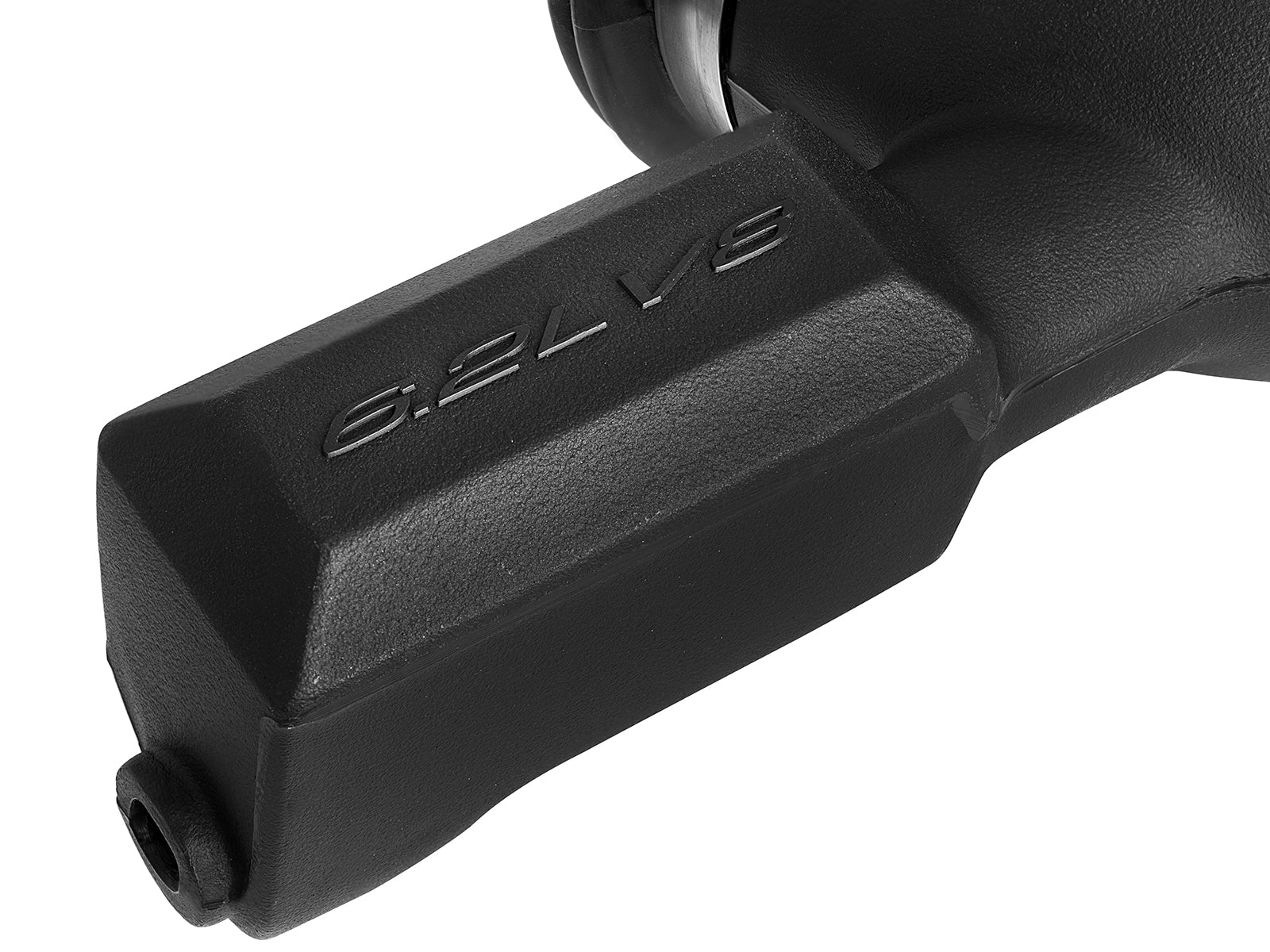

| 1 | 05-74204B1 | Molded tube with resonance chamber |

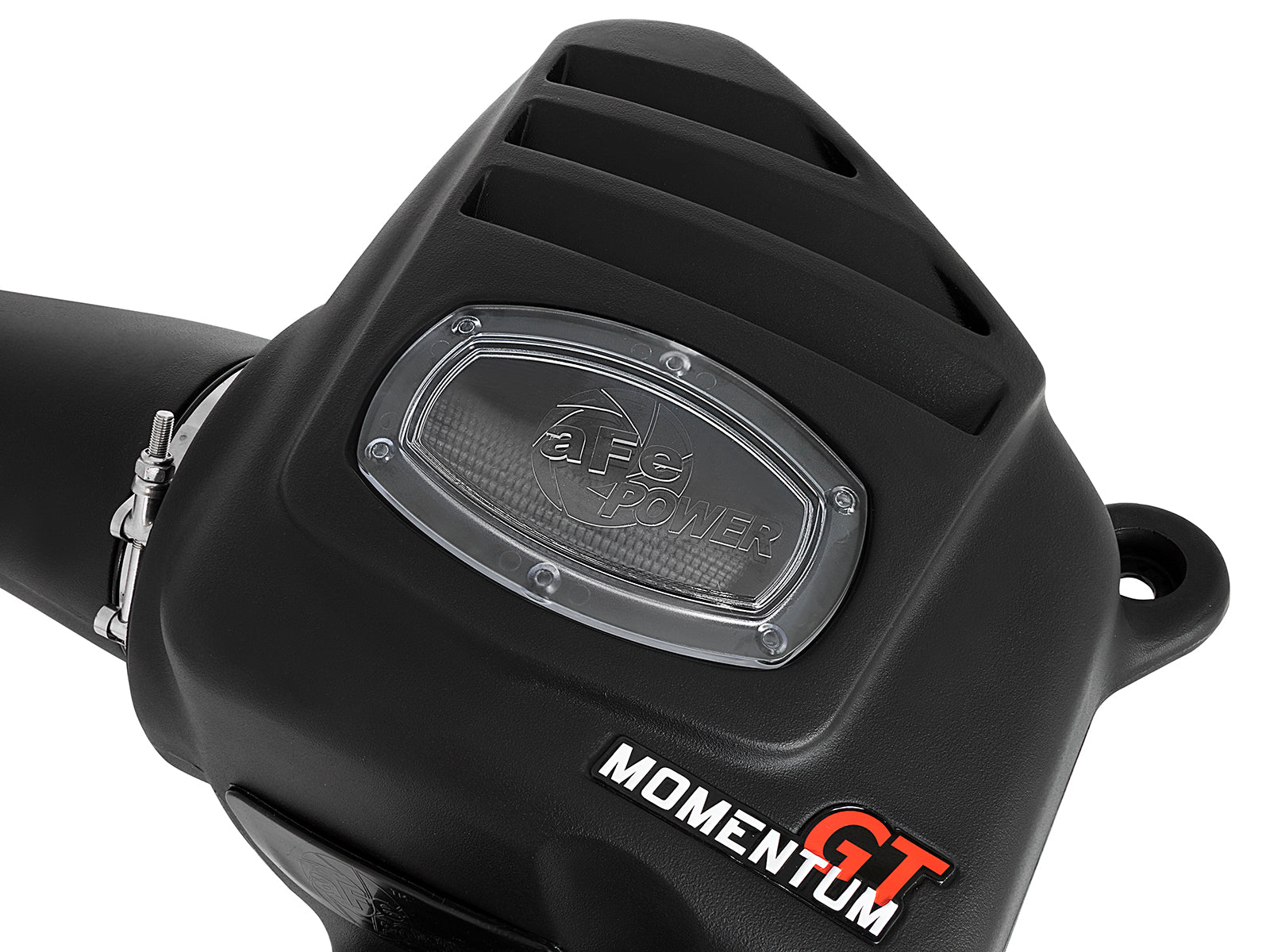

| 1 | 05-74204B2 | XLPE window housing |

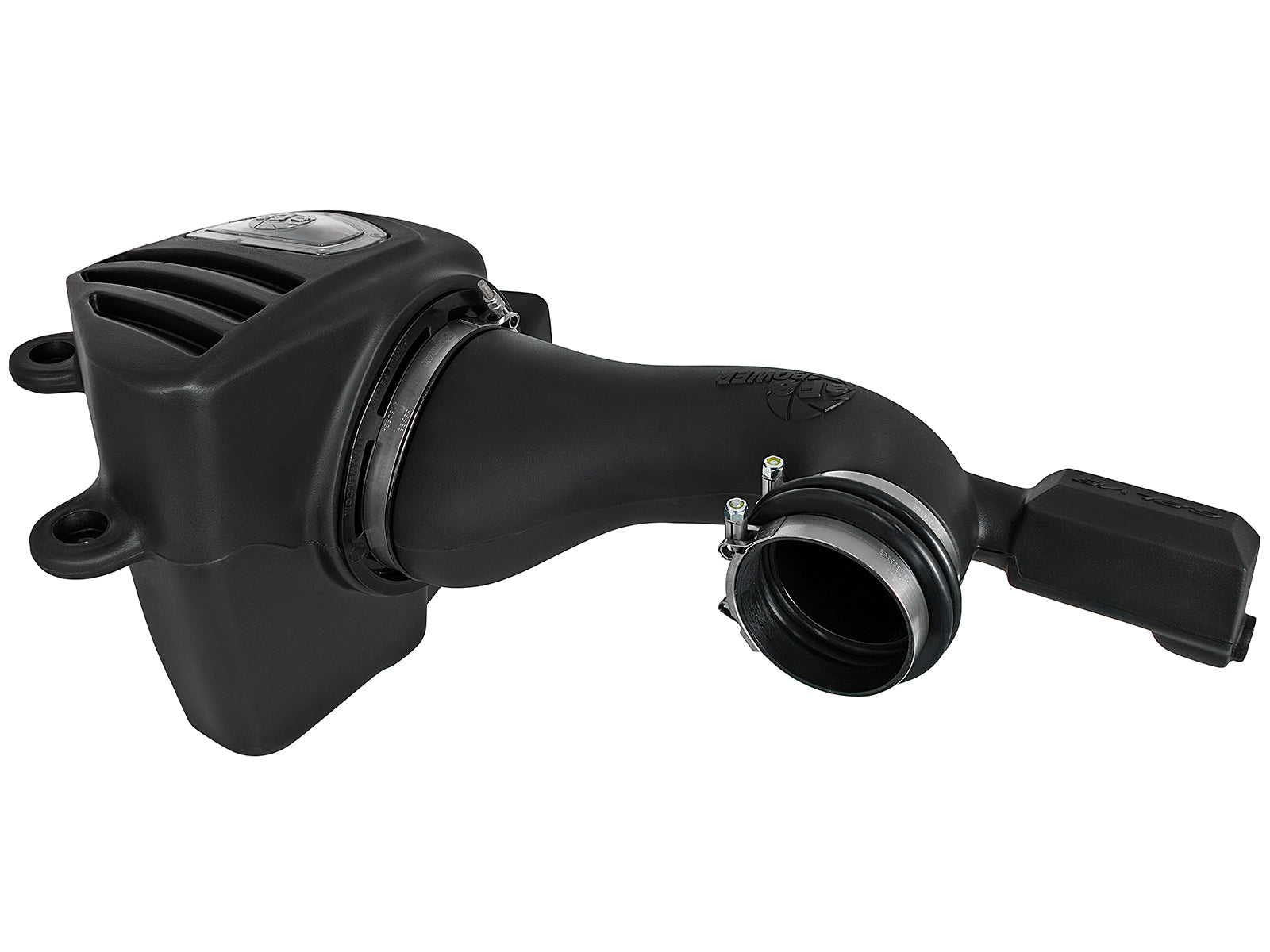

| 1 | 05-01375 | Silicone bellows coupling |
| 2 | 03-50265 | T-bolt coupling clamps |
| 2 | 03-50491 | M4 MAF screws; length unspecified |

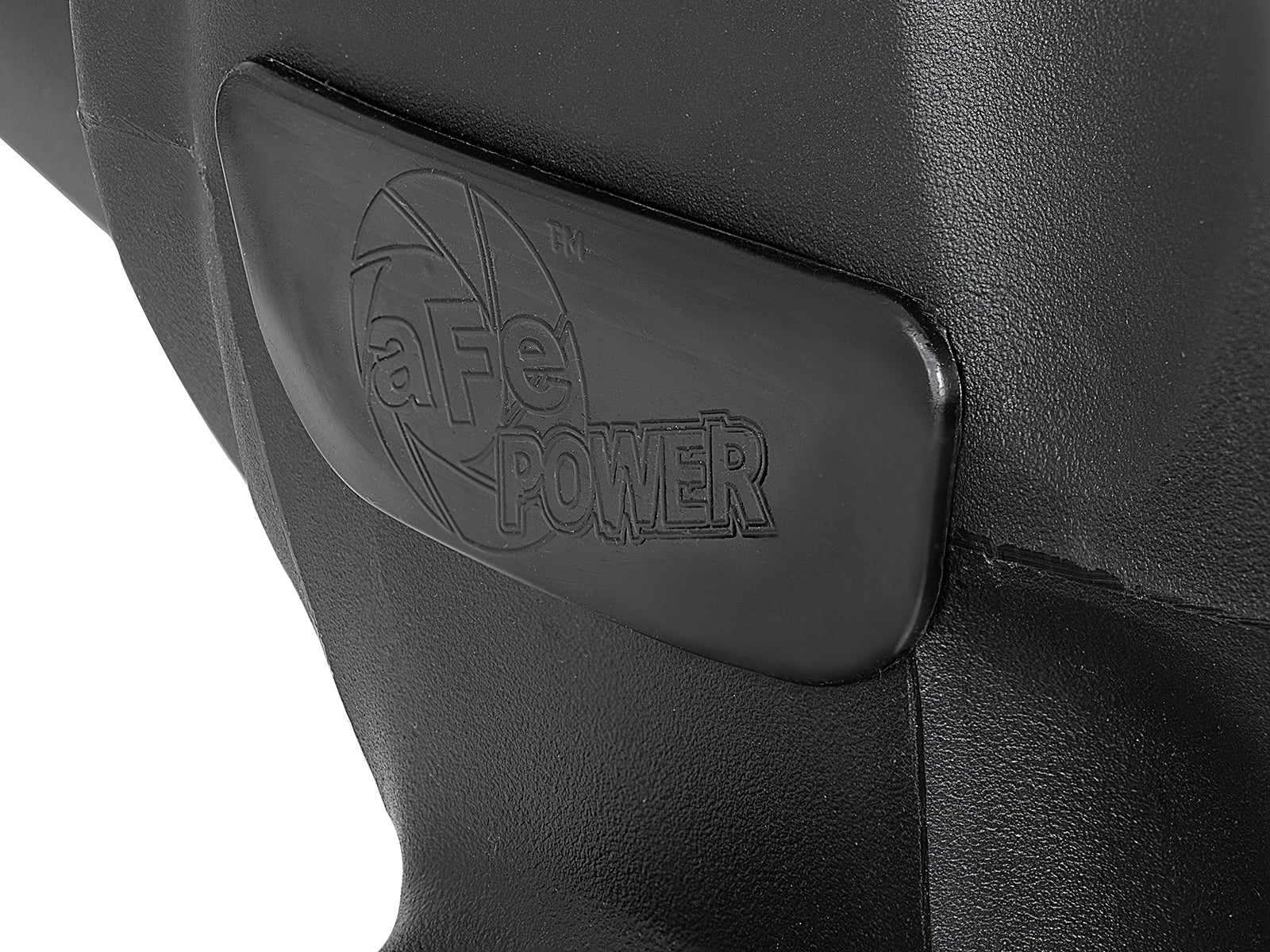

| 1 | 05-00937 | Optional auxiliary-inlet urethane plug |
Transfer the two metal inserts and their grommets from the original airbox into the new housing. The housing sits over two original mounting studs and its lower pin must pass completely through the bottom rubber grommet; reuse the two saved original nuts. This is different from simply leaving all mounts on chassis tabs in later Camaro kits. A filter clamp is illustrated without a separate BOM code. No separate snap-in scoop, billet vent fitting, sound-hose adapter, MAF extension, coolant hose, radiator-air-outlet procedure, spacers, sealant or threadlocker is listed in this exact kit. The supplied optional plug closes the auxiliary inlet. Service supplies are separate.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 21-91107 Pro DRY S seven-inch filter; the alternate media row is not another supplied filter.
Does the dry filter need oil?No. D uses three-layer oil-free synthetic media; R uses five-layer pre-oiled cotton gauze.
Does this apply to every 2010–2015 Camaro?No. Current exact manufacturer documents specify 2013–2015 SS with electric steering. Broader retailer claims are qualified and no earlier or ZL1 scope is added.
Which original mounting parts transfer?The two metal inserts and grommets transfer into the new housing. Reuse the two original nuts and seat the lower pin completely through the bottom rubber grommet.
Is a separate inlet scoop supplied?No separate scoop appears in this exact BOM. Do not import the later Camaro snap-in scoop procedure.
Does the engine cover go back on?Yes. Restore it in reverse order after reconnecting the MAF and breather tube, including the oil-cap handling.
Are the linked D charts independent dry-media tests?No. Both selected pages link byte-identical R flow and dyno images; their media limitation is explicit.
What torque and inspection interval apply?No numeric torque is specified. Check bolts, clamps and connectors after 200 miles.

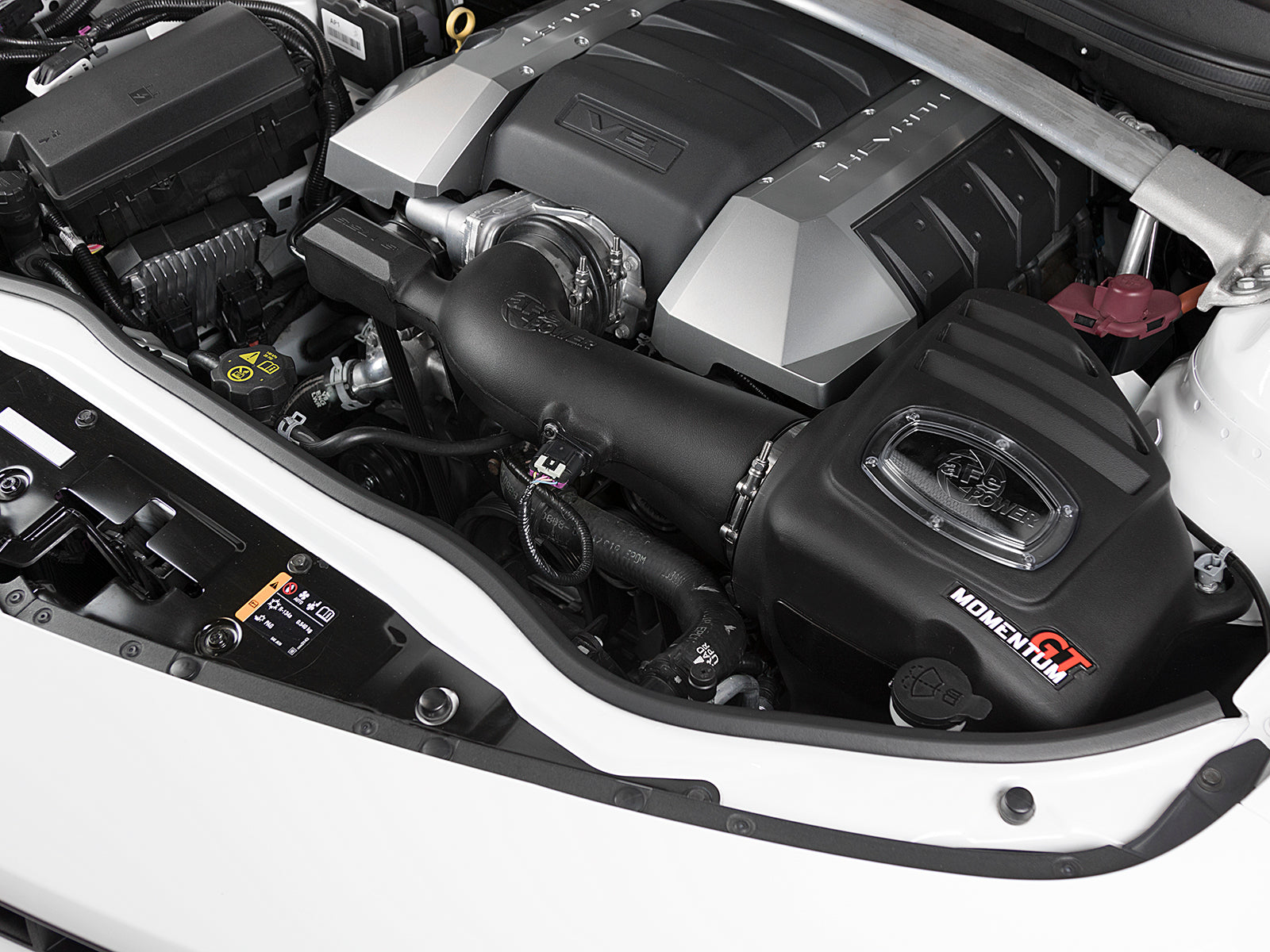

Verify aFe 51-74204. Work on a cool engine. Remove the oil cap and engine cover, then reinstall the oil cap. Disconnect the breather tube and MAF, loosen the original throttle-body and airbox clamps with an 8mm nut driver and remove the original intake tube. Remove and save the two airbox nuts with a 10mm deep socket and lift the airbox from its mounts. Install the optional auxiliary-inlet plug if desired. Seat the selected filter and its clamp in the new housing, leaving that clamp loose. Transfer the two original metal inserts and grommets into the new housing. Position the housing over the original mounting studs and push its bottom pin completely through the bottom rubber grommet; reinstall the two saved original nuts. Transfer the MAF with T20 and two supplied M4 screws without overtightening. Fit the silicone coupling and one supplied T-bolt clamp at the throttle body; place the second clamp on the other end without tightening. Insert the tube into the filter and then into the coupling, align it and tighten all clamps. Reconnect MAF and breather tube. Restore the engine cover in reverse order with the oil-cap handling and check security and clearance. Recheck bolts, clamps and connectors after 200 miles. No numeric torque or battery-disconnection step is specified.
Both pages advertise 19-percent airflow and 27 hp/24 lb-ft gains. Their linked flow images are byte-identical and R-labeled, showing 274 versus stock 230 CFM at 1.5 inches H2O, approximately 19.1 percent; this is not a 7-inch-H2O test or a separately labeled dry-media result. Their linked dyno images are also byte-identical R-version comparisons on a 2015 Camaro SS. Near marked 5,881 rpm, power 402.85 versus 375.17 hp differs by 27.68 hp and torque 359.75 versus 335.03 lb-ft differs by 24.72 lb-ft. Independent maxima are 402.86 versus 376.39 hp, a 26.47 hp difference, and 379.45 versus 373.01 lb-ft, a 6.44 lb-ft difference. The January 24 and February 2, 2017 runs state OE exhaust, fourth gear, manual transmission, stock wheels and regular fan. Baseline conditions are 58.08°F/29.33 in-Hg/38% humidity with SAE 0.98; intake conditions are 71.61°F/29.40 in-Hg/18% with SAE 0.99. The D page links those R test images, so an independent selected dry-media flow or dyno result is not certified. Point comparisons and independent peak differences are distinct and not guaranteed gains. Current product pages state this intake is not CARB exempt and unavailable for California purchase or California-registered vehicles. The older manual uses California race-vehicle wording and prohibits public-road use there and in states adopting California emissions rules; that older wording does not establish current exemption or dealer sale permission.
